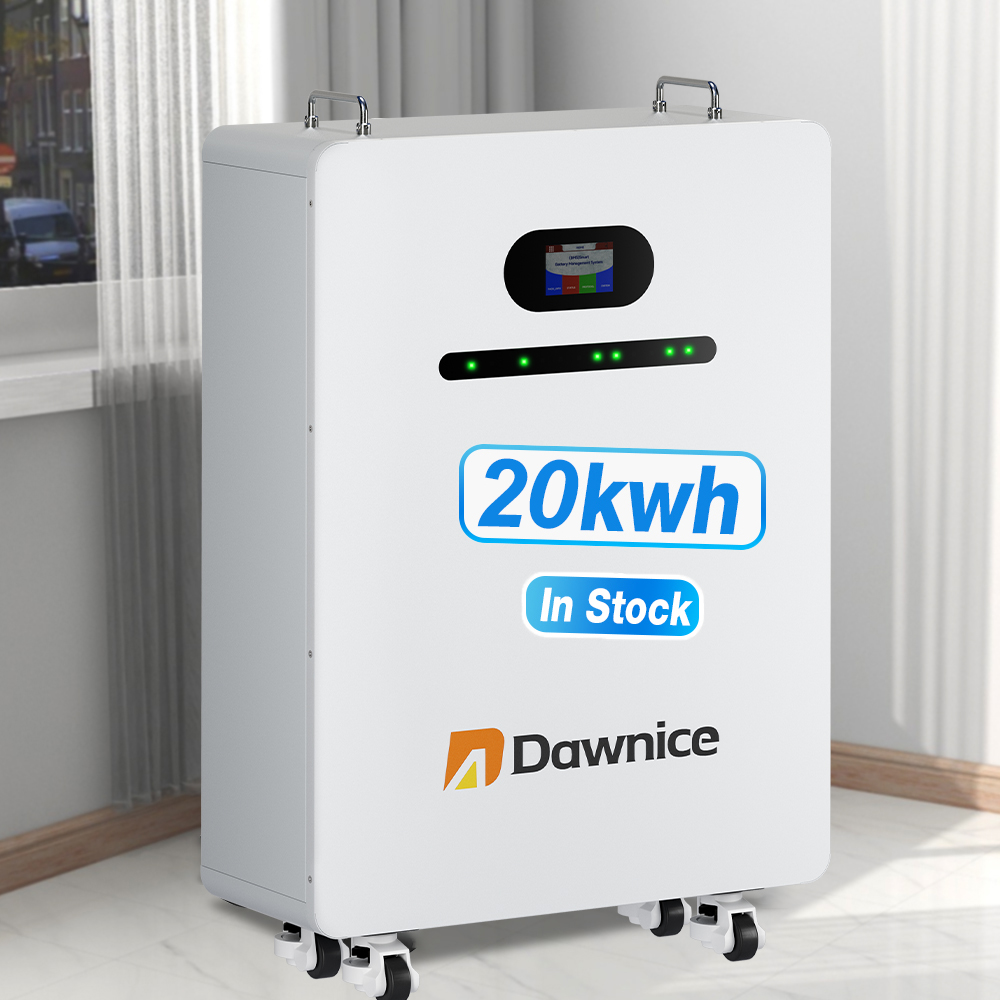

Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
1 / 5
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries
Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries

Touchscreen Lifepo4 Battery Pack 48v 51.2V 100ah 200ah 15kWh 10Kwh 20kWh Powerwall Home Solar Storage Lithium Ion Batteries

Send Inquiry

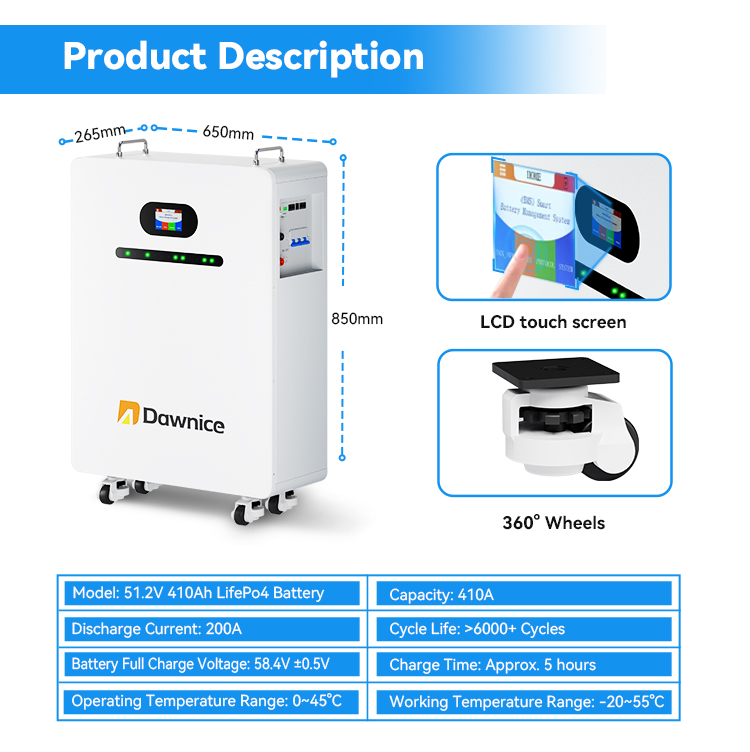

Product Description

Products Description

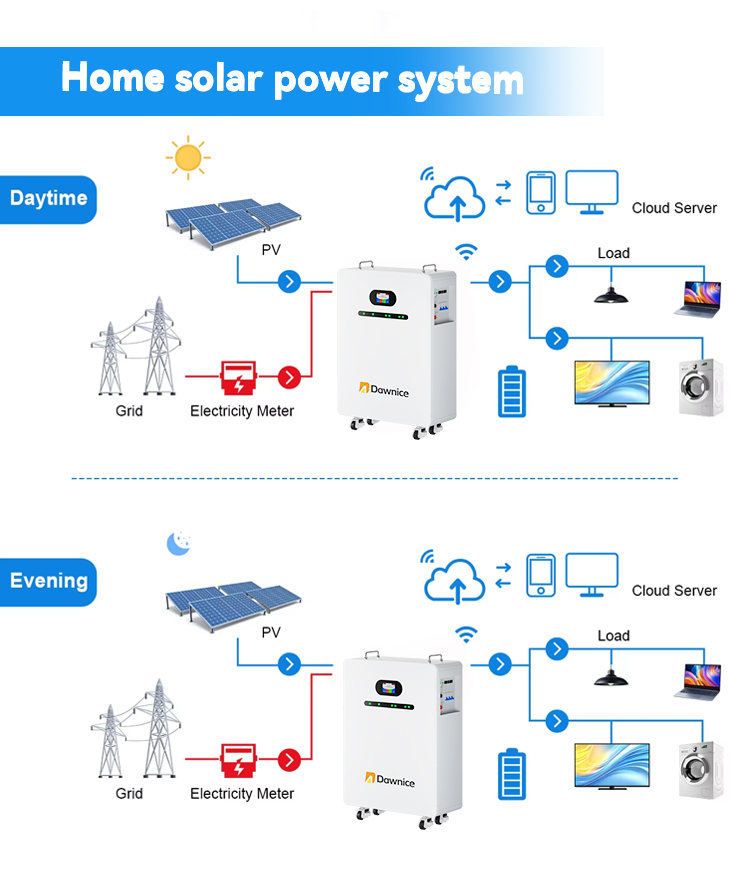

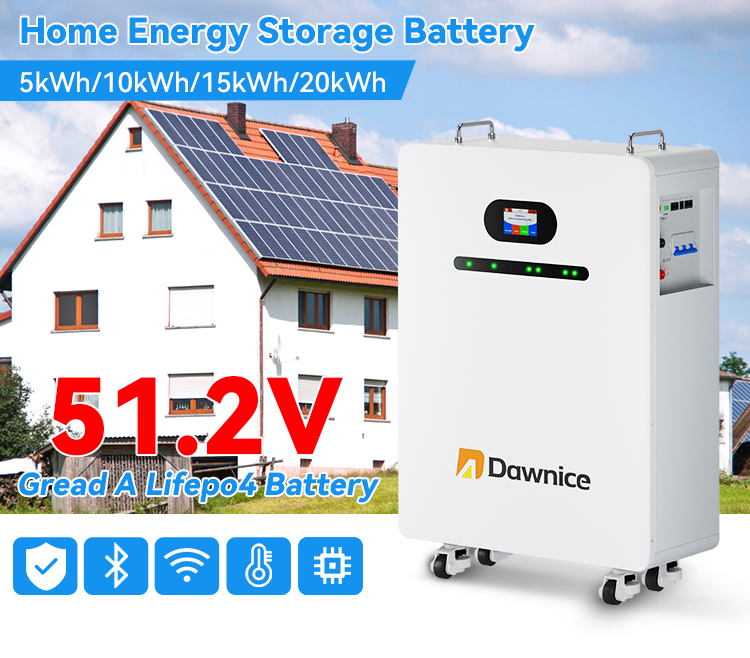

Power wall - Solar Energy Storage Batteries for Home
Specification
PERFORMANCE SPECIFICATIONS HZEB-LCT-5 HZEB-LCT-10 HZEB-LCT-16 HZEB-LCT-20
Battery Type LiFePO₄
Nominal Voltage 51.2V 51.2V 51.2V 51.2V
Configuration 3.2V100Ah/16S1P 3.2V206Ah/16S1P 3.2V314Ah/16S1P 3.2V205Ah/16S2P
Capacity (Ah) 100Ah 206Ah 314Ah 410Ah
Nominal Energy (kWh) 5.12kWh 10.55kWh 16.08kWh 20.992kWh
Max. Charge/Discharge Current 100A 100A 150A 200A
Scalability Up to 15 units in parallel
Cycle Life (@25℃, 90% DOD) ≥6000 Cycles ≥6000 Cycles ≥8000 Cycles ≥6000 Cycles
PHYSICAL SPECIFICATIONS
Weight (kg) 55kg 98kg 128kg 180kg
Dimension (W*D*H) 400*204*700mm 460*288*640mm 460*288*800mm 650*265*965mm
IP Rating IP54 IP54 IP54 IP21
SECURITY AND CERTIFICATION
Safety (Pack) UN38.3, MSDS, IEC62619(CB), CE-EMC, IEC63056 UN38.3, MSDS

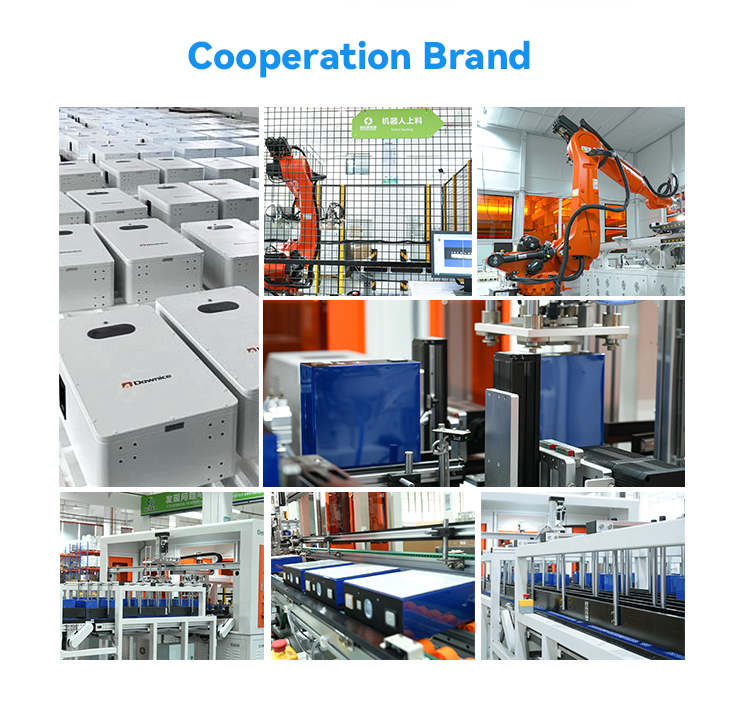

Company Profile
Frequently Asked Questions
1 Can I have a sample order?
Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
2 Do you have any MOQ limit?
Low MOQ, 1pc for sample checking is available.

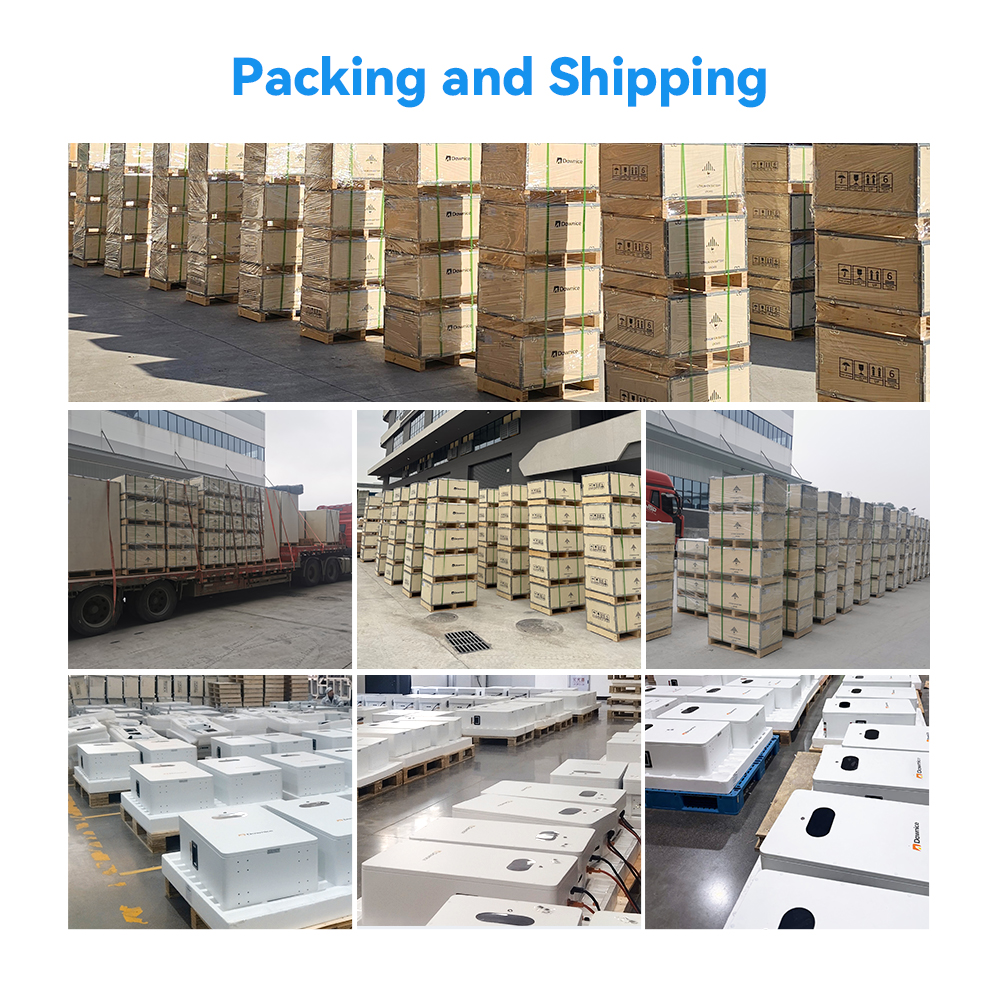

3 How do you ship the goods since they are high capacity batteries?
We have long-term cooperated forwarders who are professional at battery shipment and hazardous goods logistics.
4 How to proceed an order for lithium ion battery?
Firstly, let us know your requirements. Secondly, we quote according to your needs. Thirdly, customer confirms samples and places a deposit. Fourthly, we arrange production.
5 What is the life expectancy of these batteries?
Our batteries are rated for over 6000 cycles at 90% Depth of Discharge (DOD), ensuring long-term reliability for home energy storage.
6 Can the battery be installed outdoors?
Models HZEB-LCT-5, 10, and 16 feature an IP54 rating, making them suitable for protected outdoor or indoor installation. The 20kWh model is rated IP21 for indoor ground-mounted use.
