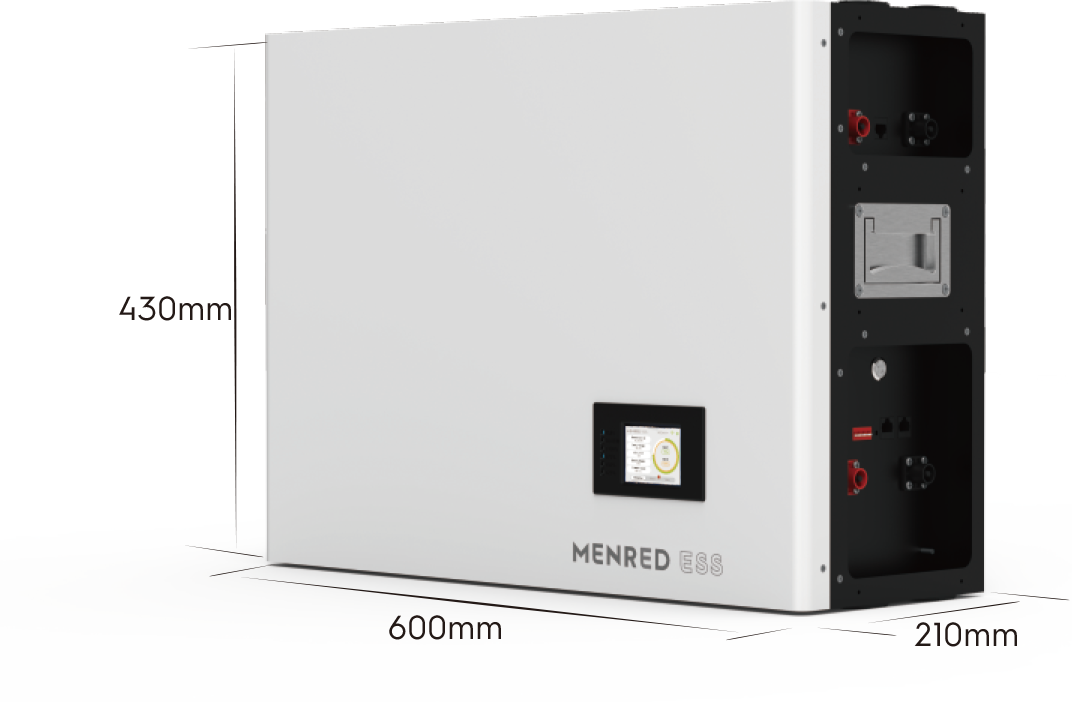

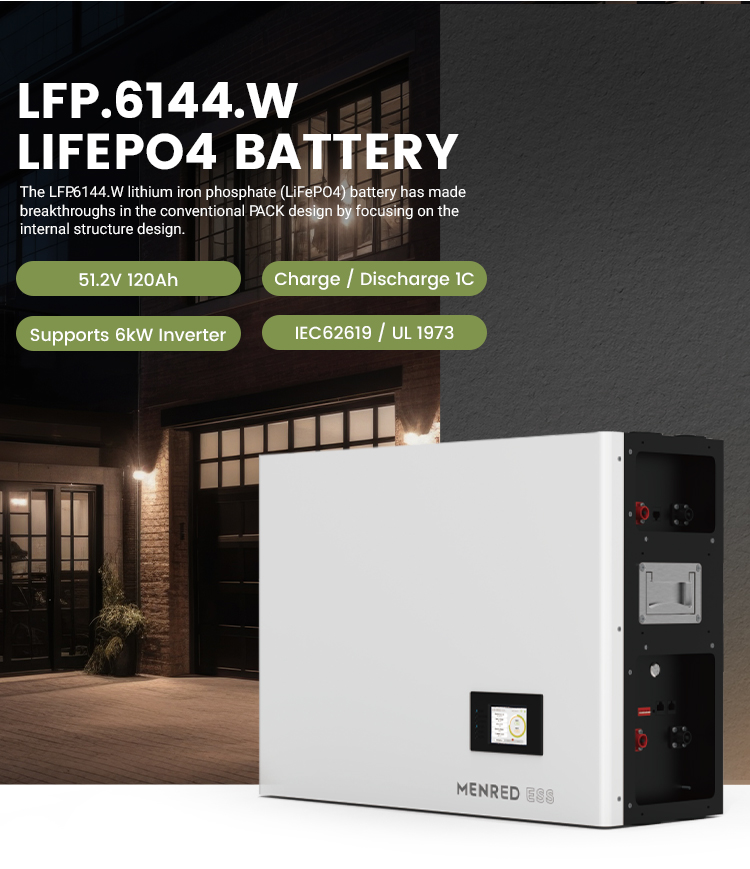

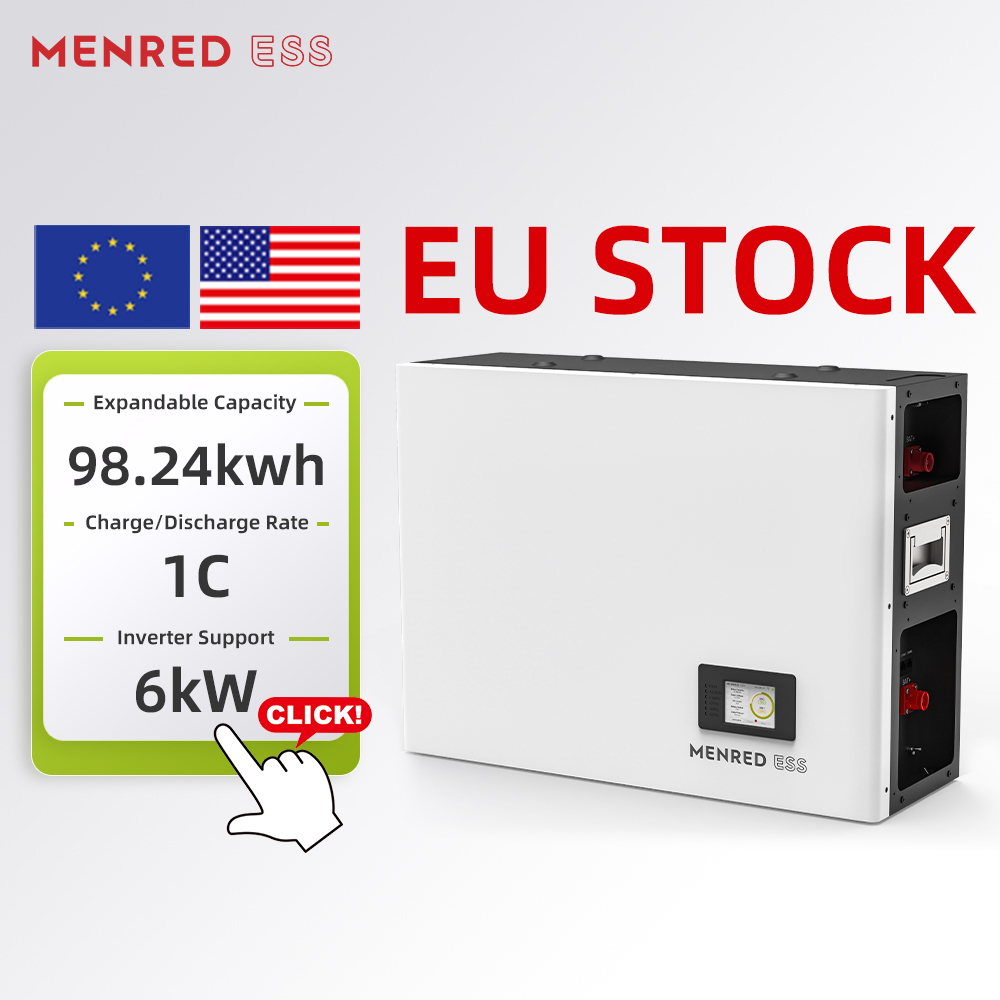

LFP.6144.W

• Selecting inverter communication protocol directly on the touch-screen.
• Battery Cycle Life >6000 Times @ 25°C & 0.5°C.
• Max Parallel 16pcs to 98.24kWh.
• Discharge/Charge 120Amp.
• Support 6000W Inverter.
• Support 27 Inverter Communication protocols.
• Warranty: 5 Years/10 Years (Option).

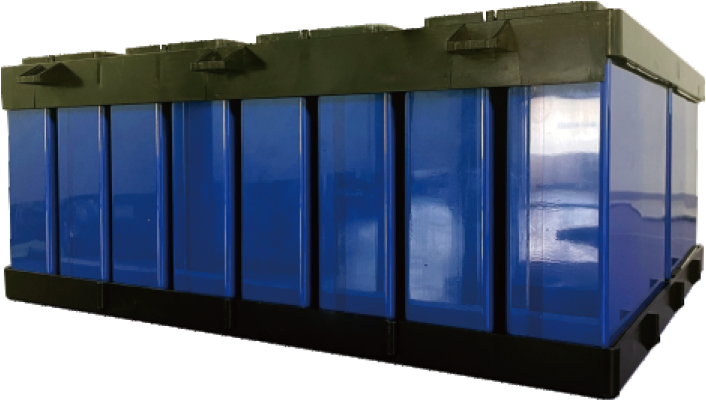

Optimized structural safety

The unique design of integrated plastic fixed modules ensures a gap of 7mm between battery cells. Ensure sufficient and uniform heat dissipation space during full load charging and discharging to avoid rapid aging and cell swelling caused by insufficient heat dissipation at the battery center. Reduce risks of battery short circuits and overheating.

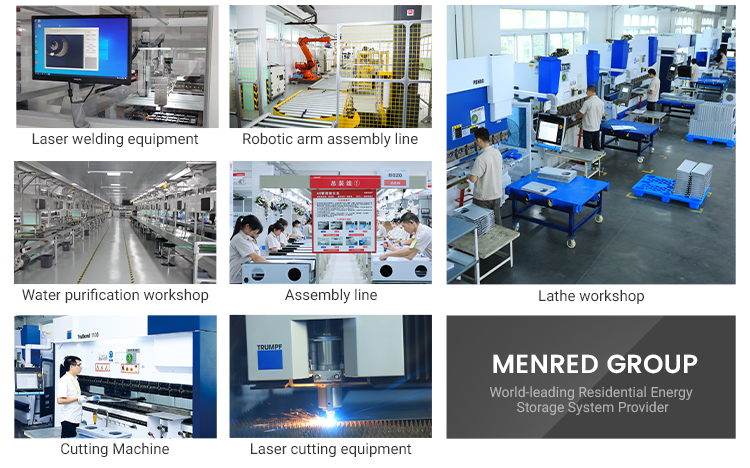

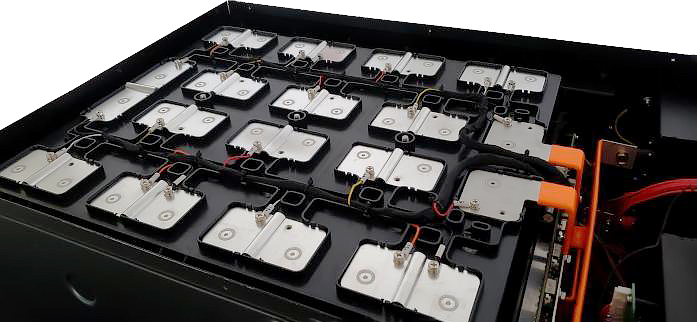

Efficient laser welding

Using aluminum connection straps that are three times the rated current to reduce series losses and heat generation between battery cells. The laser seamless integrated automation production line welding ensures the reliable connection of battery cells, avoiding the risk of detachment and false welding caused by inaccurate welding point positioning.

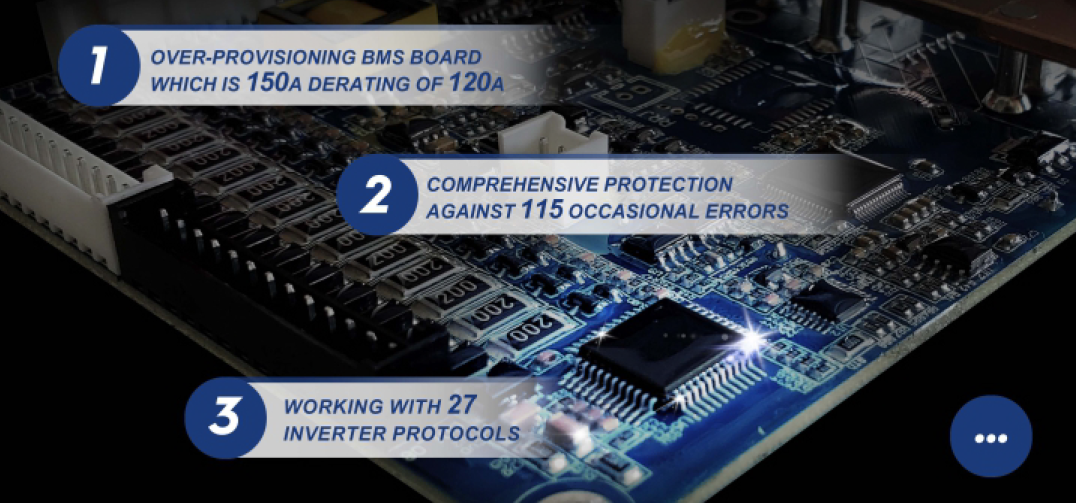

Comprehensive protection BMS

The battery protection system with up to 115 sensing protections provides comprehensive protection for battery cells. It has a passive balancing function that automatically balances the cells when charging or discharging to their limits, ensuring a high level of cell consistency. This helps maintain the overall battery performance with minimal degradation.

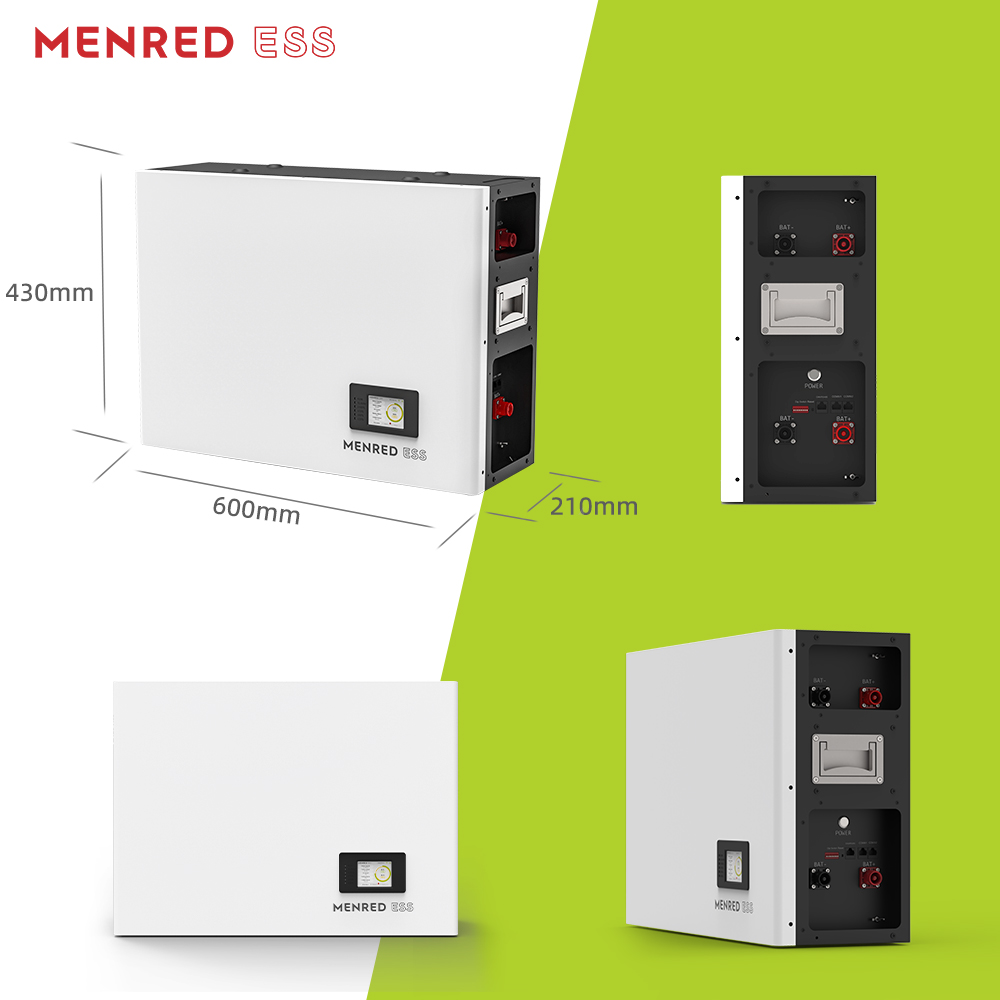

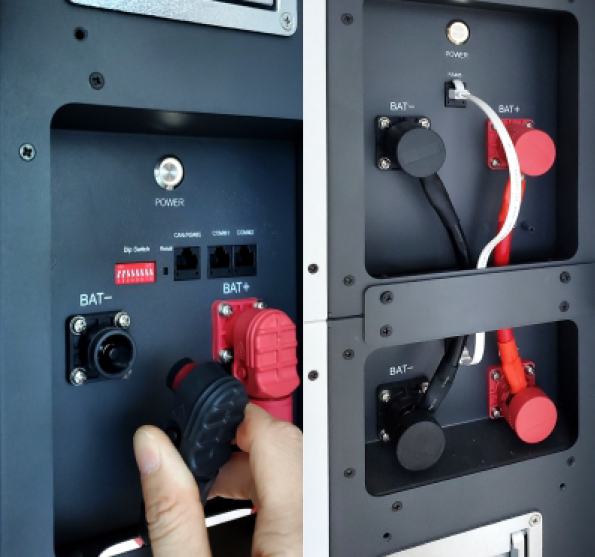

Unique connection design

The unique connection design includes a hot-pluggable interface and a concealed top and bottom entry/exit terminal. It features compatibility for both wall mounting and stacking, offering a space-saving and easy installation solution. It supports parallel connection of up to 16 battery modules, allowing the energy storage system to expand up to 98.3 kWh capacity.

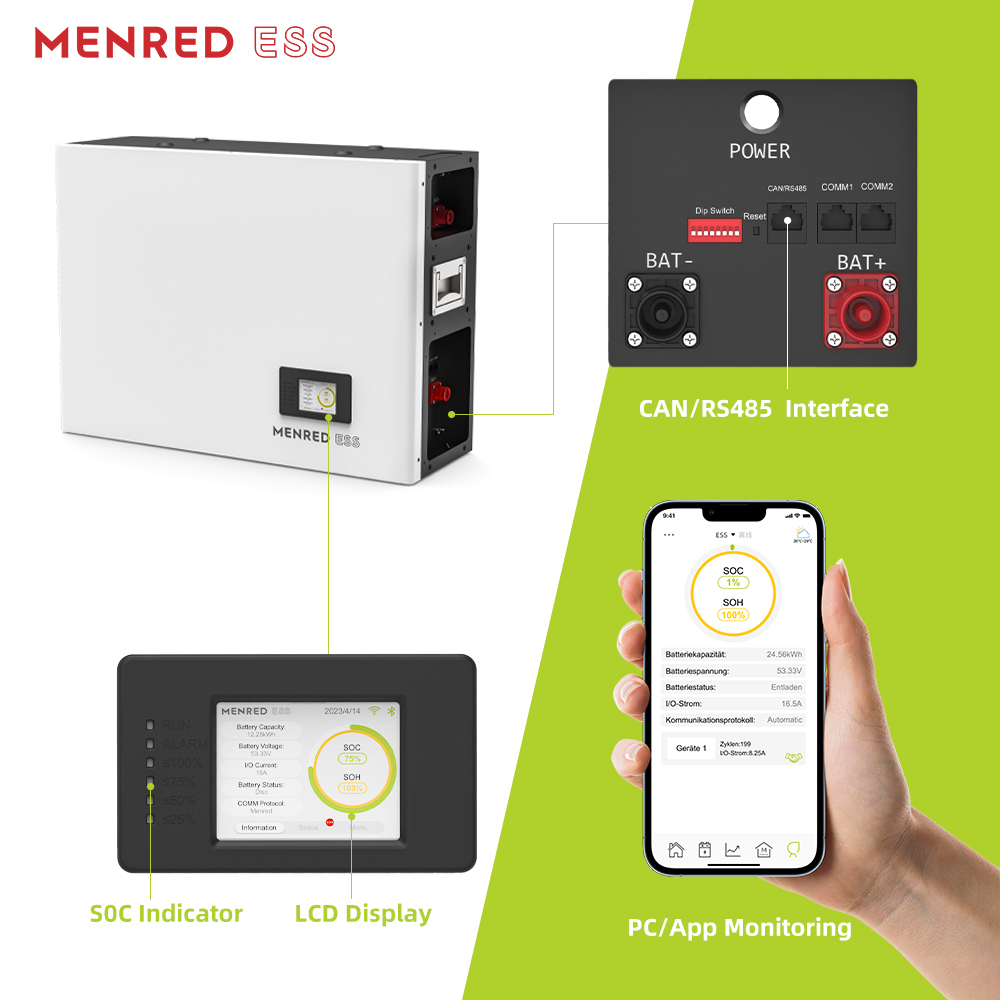

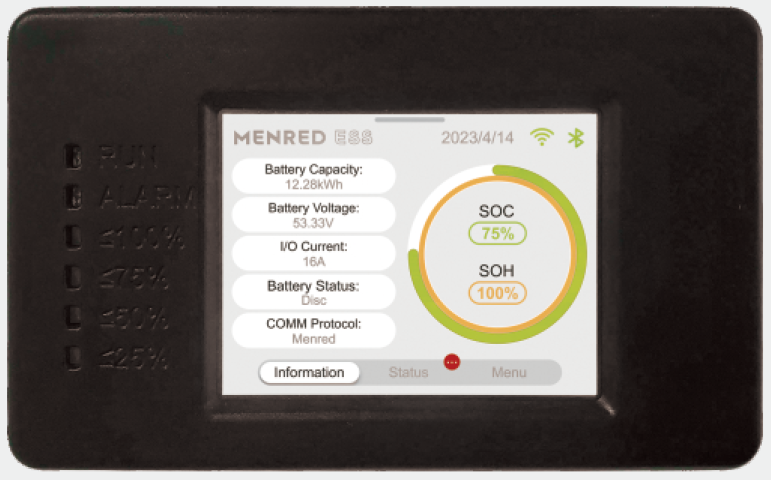

Touchscreen EMS panel

It is equipped with a 2.8-inch touchscreen LCD display that can show detailed information such as system SOC (State of Charge), status, and fault messages. The display screen allows easy switching of communication protocols and is compatible with 27 major inverter brands on the market. It also supports Bluetooth and Wi-Fi configuration, allowing users to monitor the battery's operation in real-time through an app. This enables convenient online monitoring of the battery's performance.

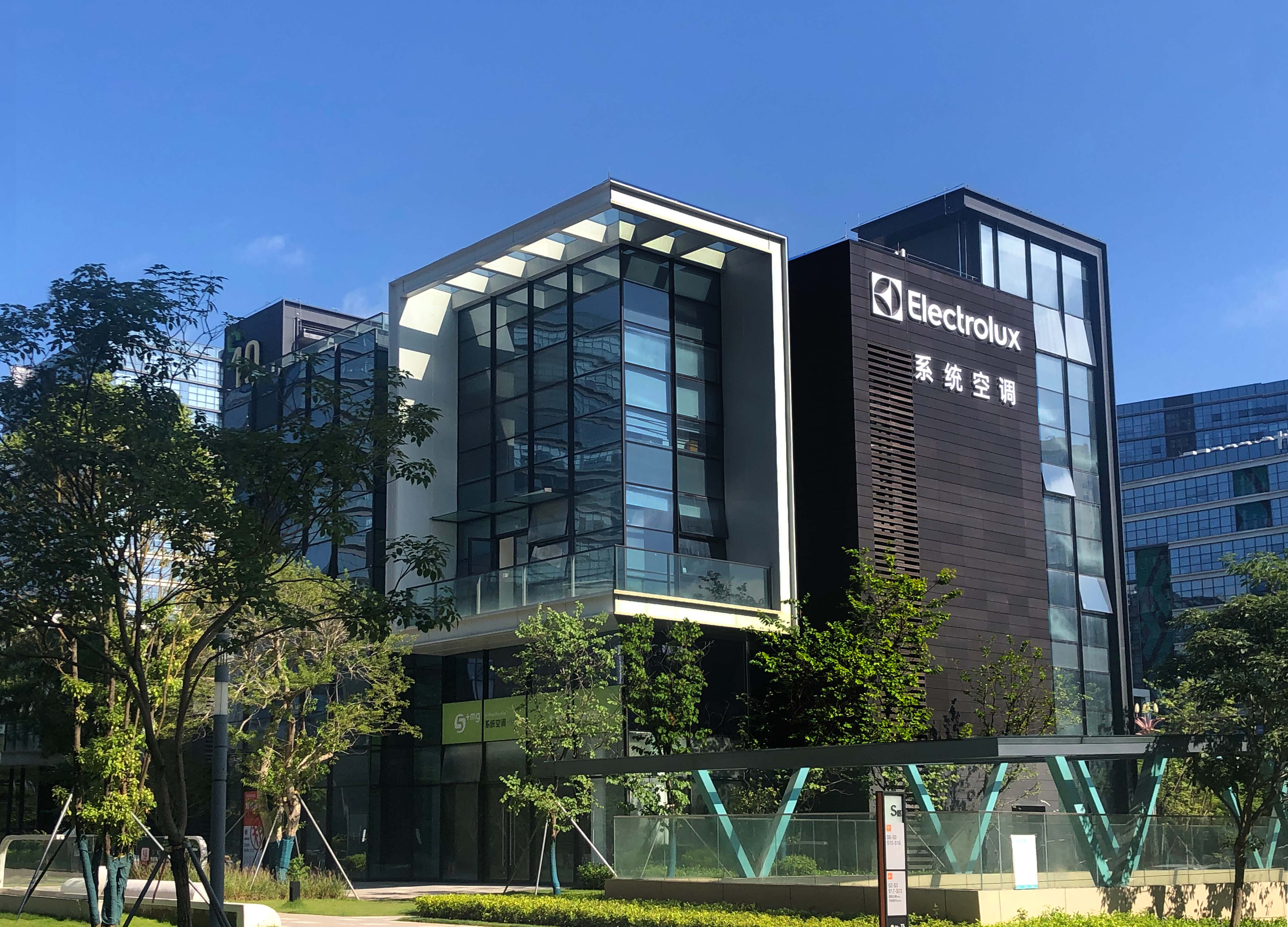

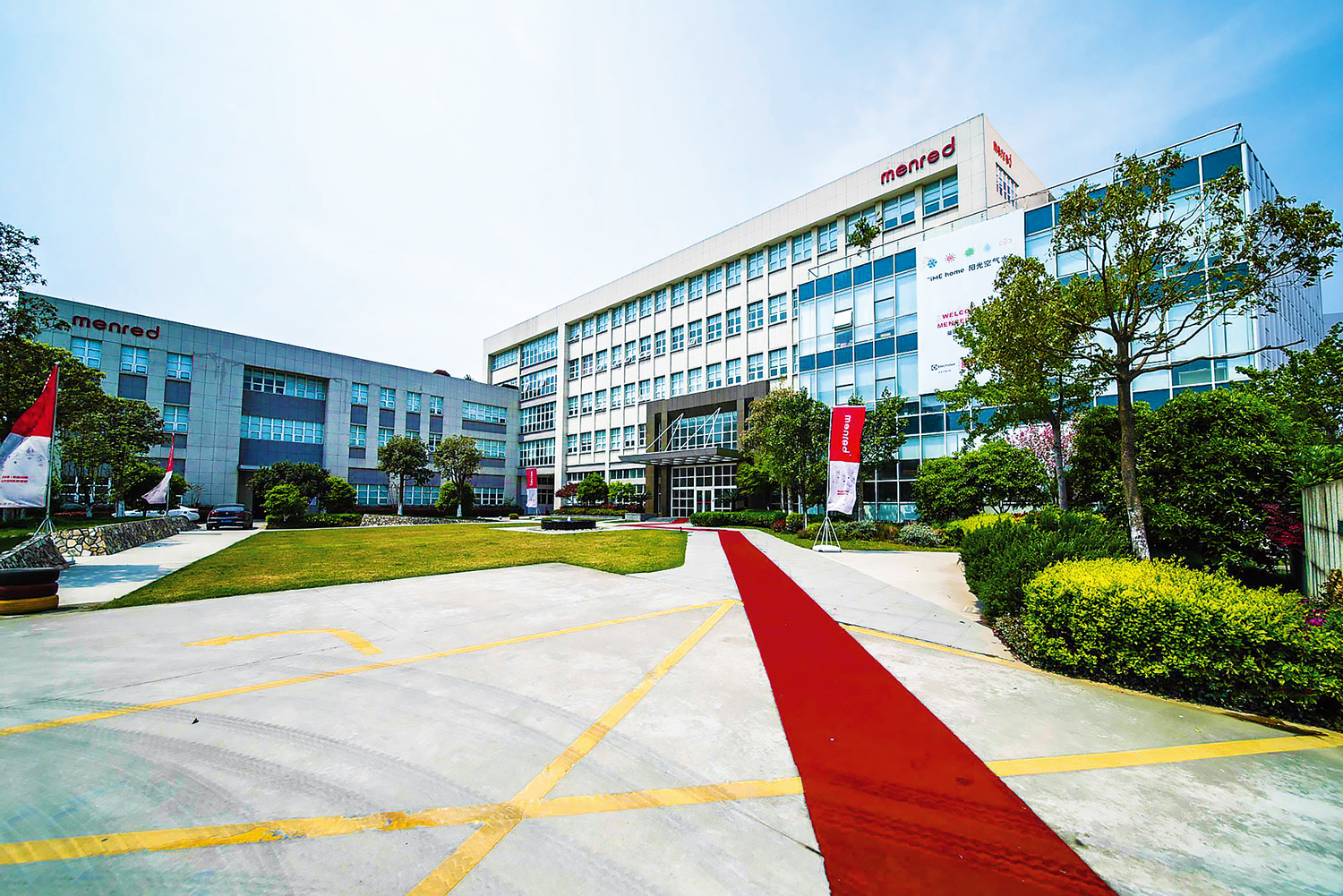

Our Group is a partner of the “Future Building” National Key Laboratory and its manufacturing facilities are certified by Electrolux, a Fortune Global 500 company based in Sweden.
