Products Description
Product Parameters

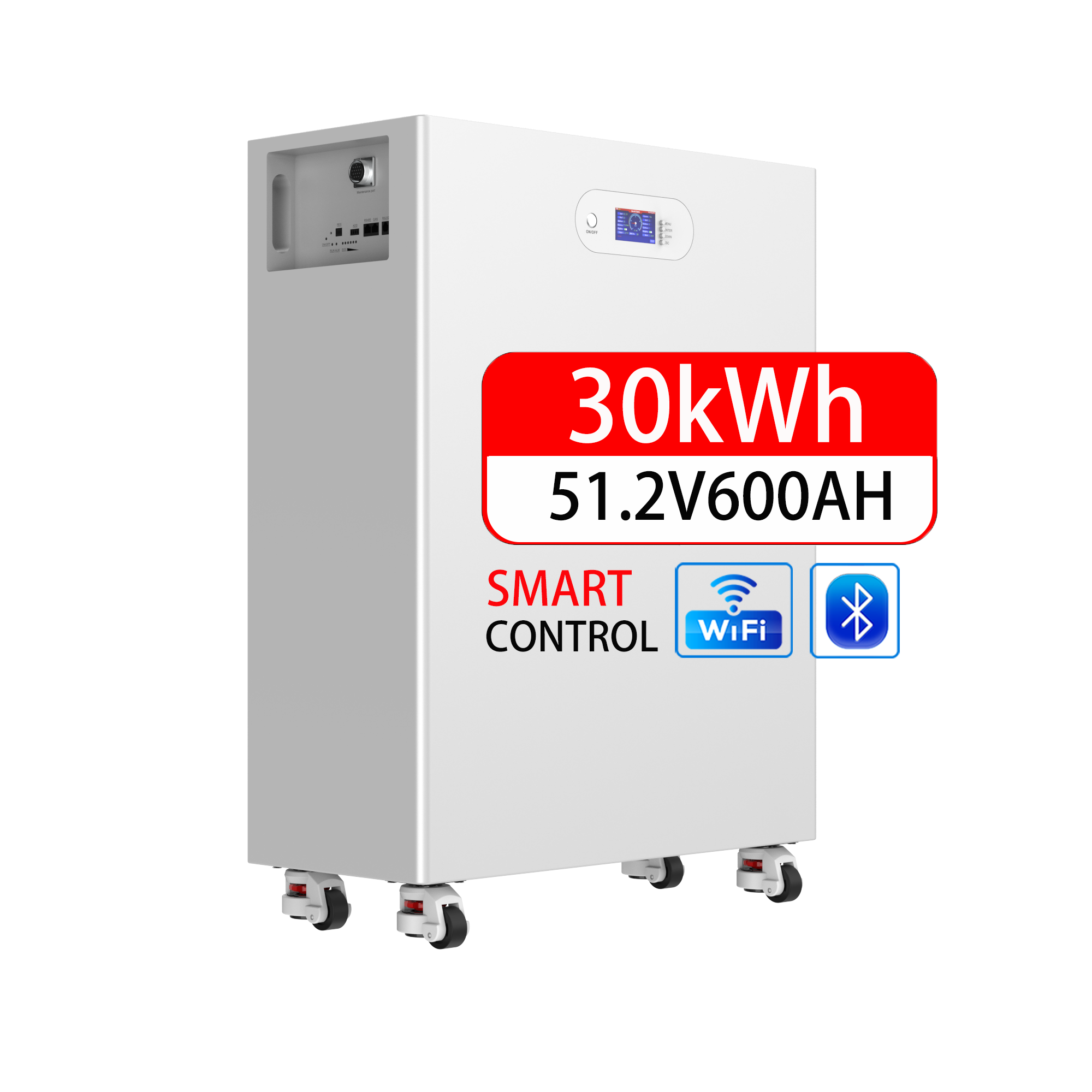

| ZTGF 51.2V 600AH LiFePO4 Battery Pack |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
600Ah |
| Max Charge Current |
200A |
| Max Discharge Current |
200A |
| Operating Temperature |
-20~60°C |
| Dimension |
998*330*735mm |
| Weight |
210Kg |
BMS Key Features
- Comprehensive Protection: Voltage warning and protection for the entire module and each individual cell.
- Current Management: Advanced current warning and protection with customizable maximum operating currents.
- Temperature Monitoring: Integrated with 4 sensors for the battery pack and 1 sensor for the BMS to ensure safe operation.
- Smart Calculation: Intelligent SOC and SOH calculation to display accurate battery status.
- Communication: Seamless communication with SMPS or monitoring devices to report battery performance data.
- Flexible Modes: Supports switch-off mode, sleep mode, and operating mode for various conditions.
Frequently Asked Questions (FAQ)
1. What is the nominal voltage and capacity of this battery?
The ZTGF battery features a nominal voltage of 51.2V and a total capacity of 600Ah.
2. Does the battery come with an integrated BMS?
Yes, it includes an advanced Battery Management System (BMS) that provides comprehensive protection, including voltage, current, and temperature monitoring.
3. What are the maximum charge and discharge currents?
Both the maximum charge current and the maximum discharge current are 200A.
4. What is the operating temperature range for this battery?
The battery is designed to operate safely within a temperature range of -20°C to 60°C.
5. How much does this battery unit weigh?
The total weight of the ZTGF 51.2V 600Ah battery unit is 210Kg.
