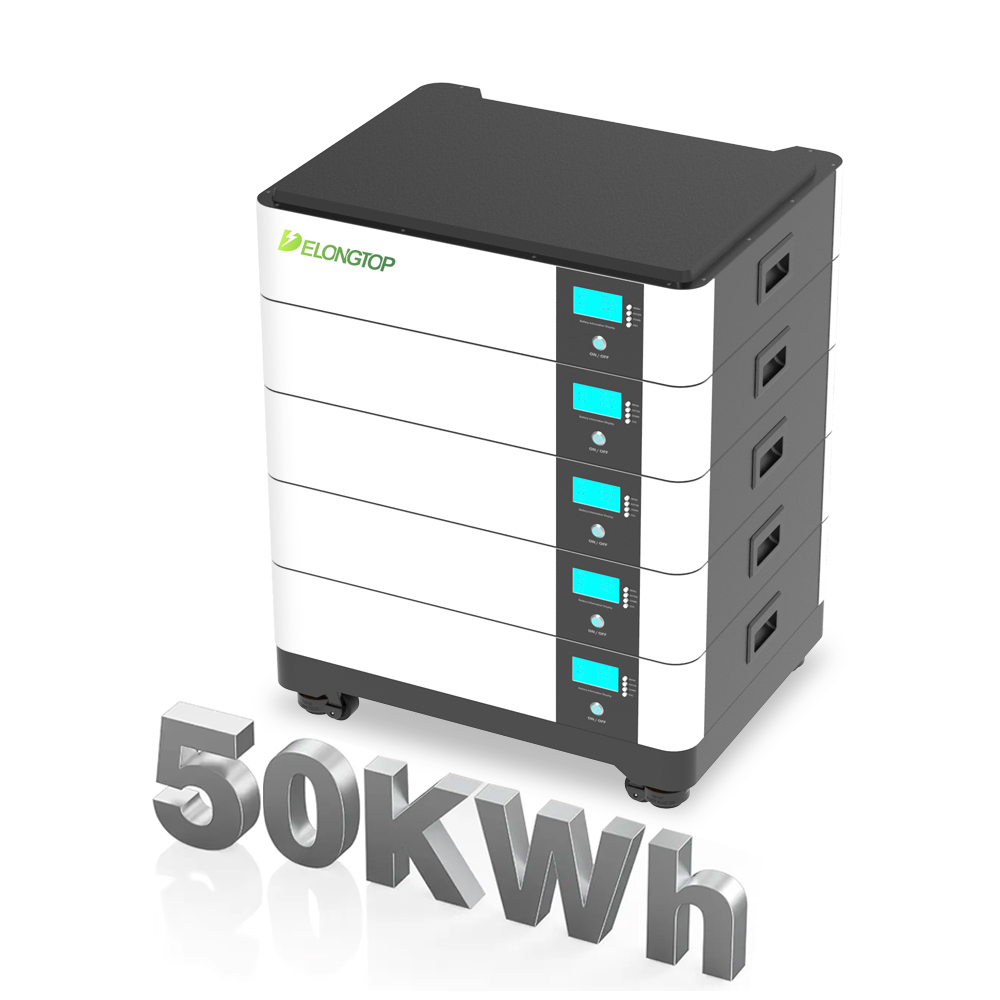

All in One Stacked Lifepo4 Battery Solar Energy Storage Power System Home 48v 51.2v 50kwh Stacked Lifepo4 Battery

Product Description

Certifications

Certifications

Products Description

SUPPORT ALL IN ONE SMART COMMUNICATION FUNCTION

Our BMS is a complete set of communication functions, supporting RS485, RS232 and CAN-BUS communication protocols. We can also customize the communication content according to the protocol information which customers provide. Customers can through the host computer software to monitor the batteries, and check the working status of each cells and set specific parameters on the computer.

BMS Function

WHAT BATTERY CELL WE USE:

As a over 10-year-old store engaged in the battery business, we are responsible for our customers and our brand. Using only A grade cells, the cycle life can up to 6000-8000 times: 10AH/ 25AH/ 30AH/ 50AH/ 100AH/ 200AH...

  • Our batteries are the primary source of supply from the original cells manufacturer, battery cells are paired and distributed before outgoing, and can be assembled directly.
  • Through a number of certification and testing, quality assurance.
  • There are two types of pouch cells and prismatic cells. The pouch cells: lighter, cheaper, and easy to customized in special sizes. The prismatic cells: not easily deformed, stable performance, mature market, more popular at present.
Battery Cells
Product NameSolar Energy Storage Battery Cabinet

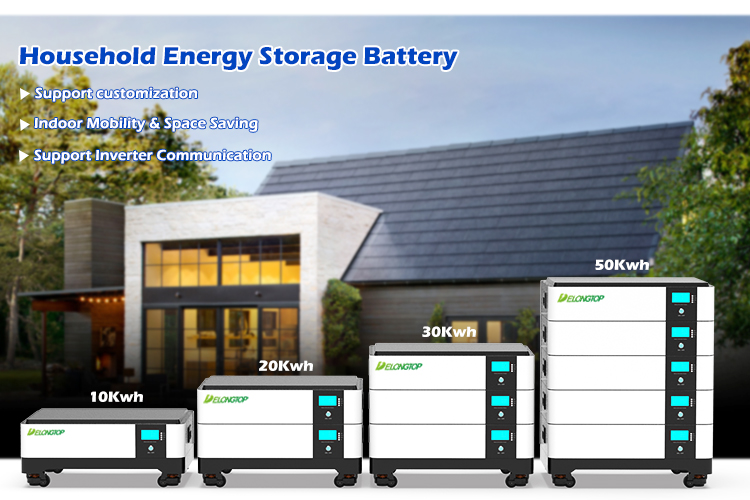

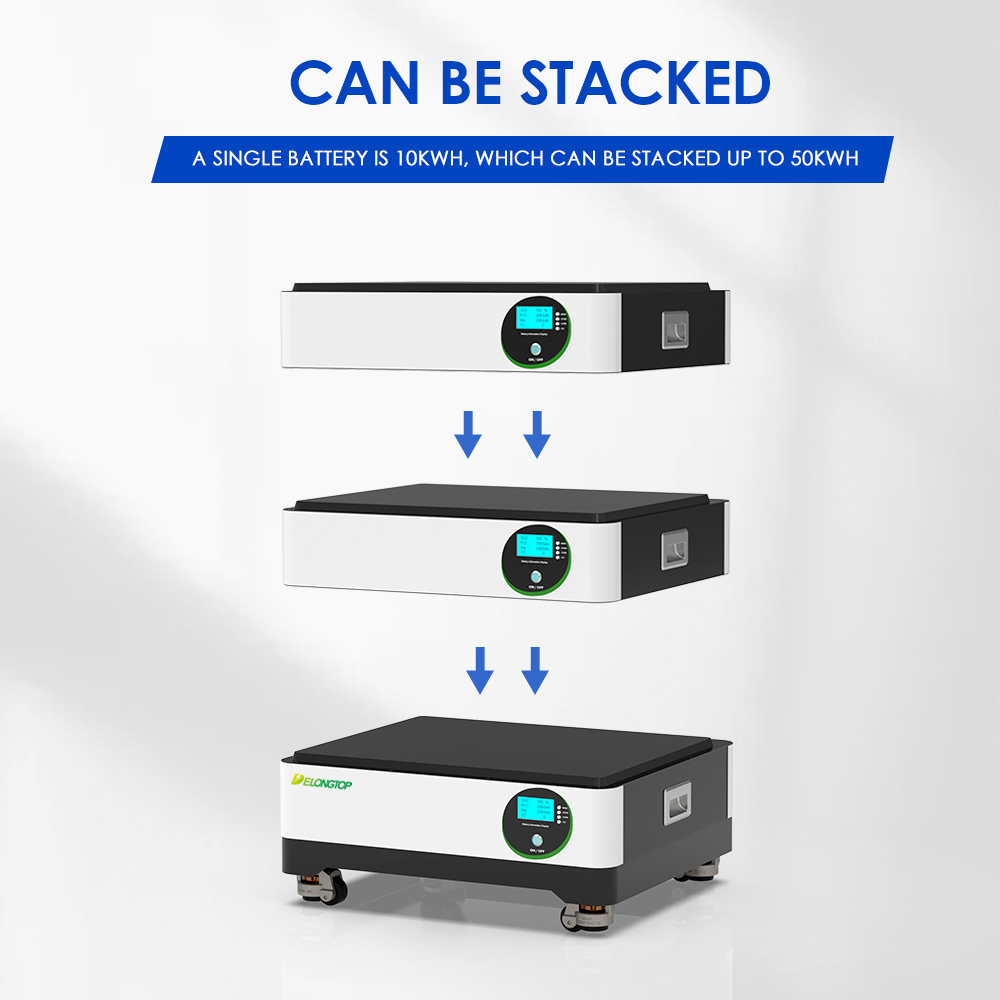

Free StackableIt can be stacked to 10KWH/ 20KWH/ 30KWH /40KWH/ 50KWH or more
Single Pack51.2V 200AH 10KWH
Nominal Voltage51.2V
Nominal Capacity200AH(10KWH)
Charge Cut-off58.4V
Disharge Cut-off38.4V
Max. Cont. Charge Current<100A
Max. Cont. Disharge Current200A
Battery CellPrismatic Cell 16S1P
DimensionMetal Case 690*590*280mm(with Pulley Base)
Weight93KG
Cycle Life6000+ times
BMSBuilt in smart BMS supported RS485/CAN/RS232 Communication function
LED DisplayBuilt accuracy power meter
Battery Case IPIP65

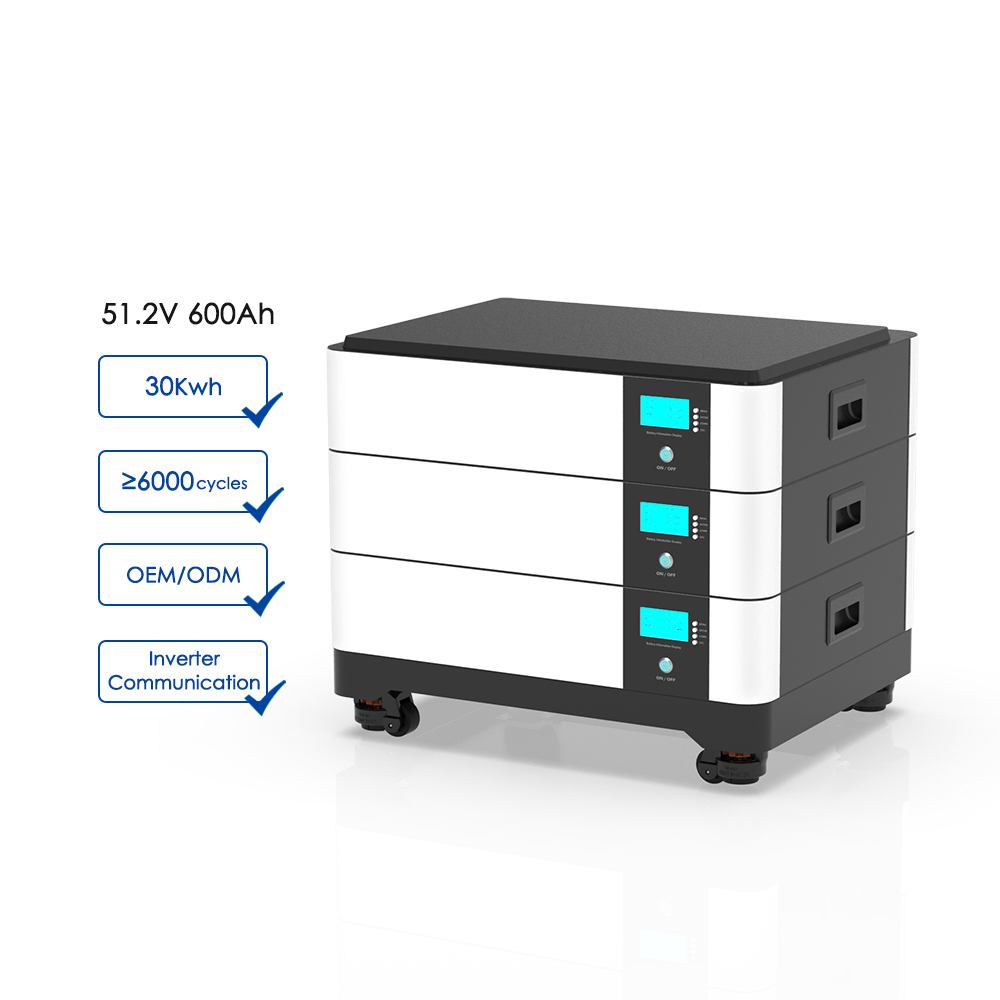

Product images

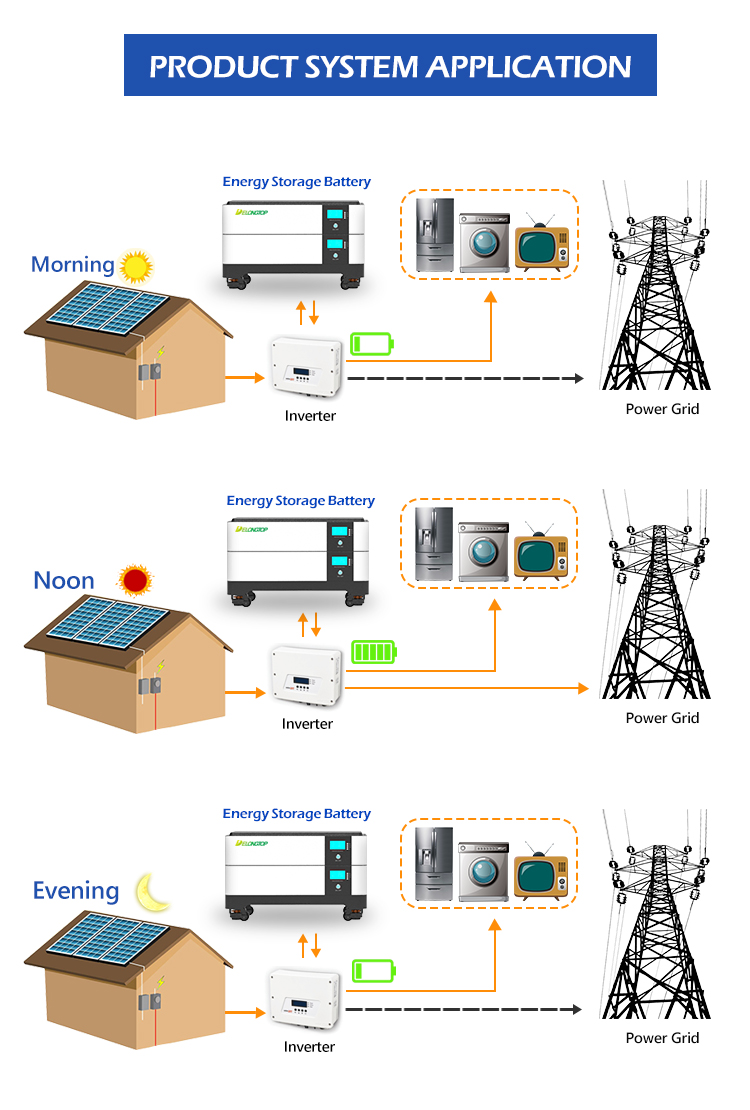

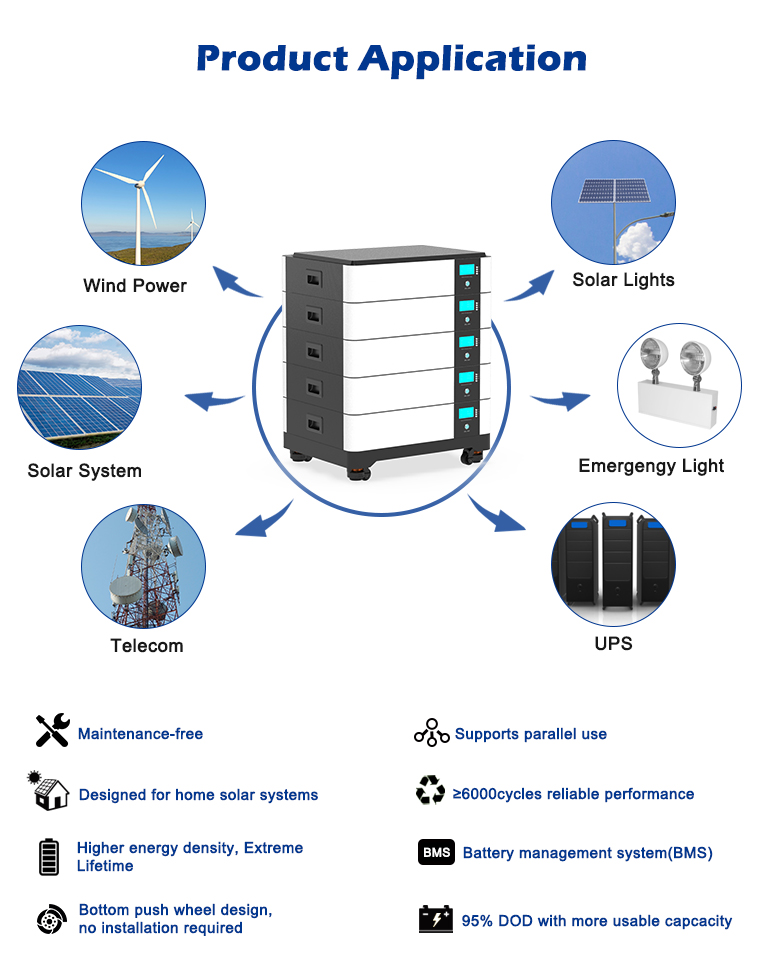

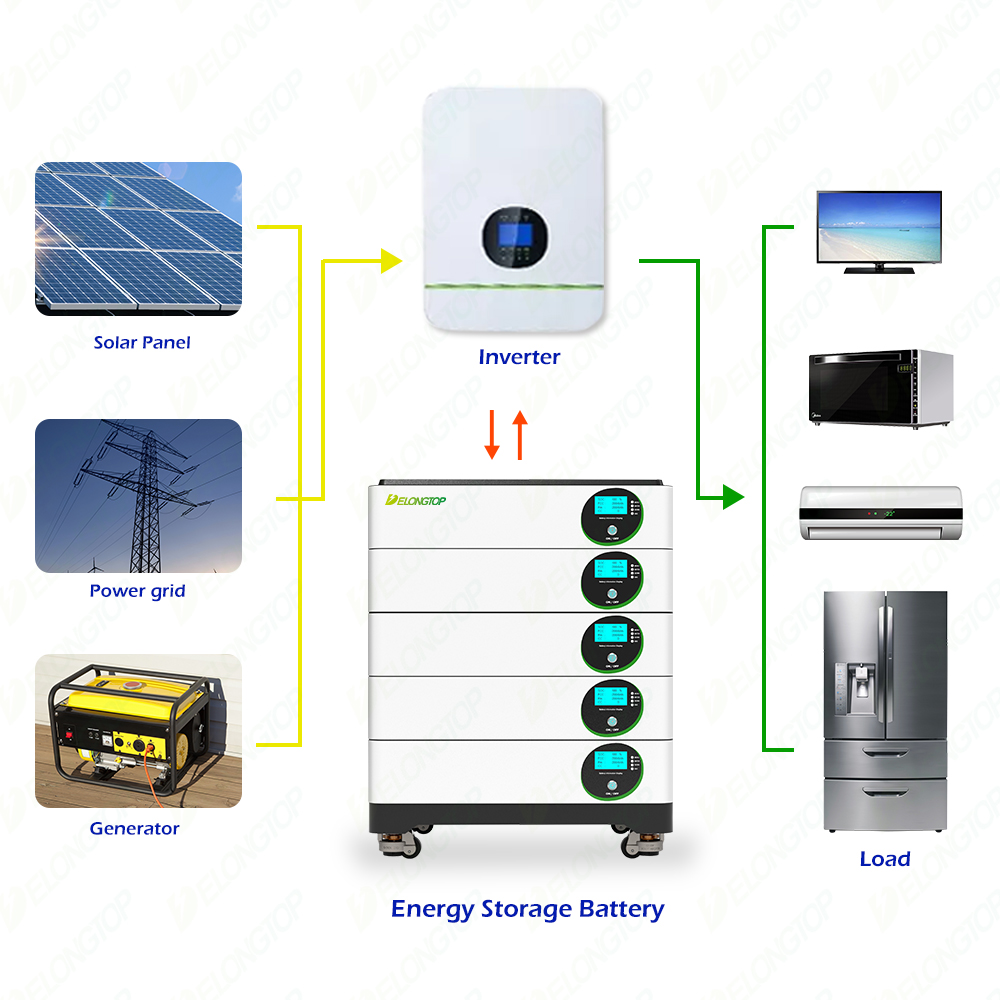

Product Application

Application

Why Choose Us

Customers reviews

Reviews

FAQ

Q1: What are there included for a battery or pack, may I buy charger from you?
Battery case, BMS, battery pack, can buy customized connector, charger.
Q2: How long frequency does recharge the battery?
Usually per 2 months to recharge the battery pack, to charge full the battery depends on the charger current you use.
Q3: What's the sample lead time, and bulk order delivery?
Small quantity can be finished in 3-5 days after payment, bulk in 10-25 days. Shipping by express for small packs or sea for bulk.
Q4: What is your warranty?
We offer 10 years warranty for all our LiFePO4 battery pack for different situation. We ensure at least 6000 cycle life.
Q5: Can I customize the size of battery?
Of course yes if your quantity MOQ is workable.
Q6: Can we put different LiFePO4 battery pack in parallel or series?
Yes, but ensure voltage of each battery is the same before putting in parallel, and don't mix discharged and undischarged batteries.
