EU Stock Solar Home Energy Storage Lithium Ion Battery Pack 15kWh 20kWh 30kW 48V 600Ah 900Ah LiFePO4 51.2V 300Ah Lithium Battery for Global B2B Procurement

⚡ Stock Available in PL / DE / USA Warehouses

We guarantee a sufficient supply, fast delivery, and premium service to meet your energy demands promptly.

Products Description

Basic Parameters	51.2V 200Ah 10kWh Wall mounted/Mobile Lifepo4 Battery Pack	51.2V 300Ah 15kWh 8000 Cycles Wall mounted/Mobile Lifepo4 Battery Pack	51.2V 200Ah 10Kwh Moveable Lifepo4 Battery Pack	51.2V 300Ah 15Kwh Moveable Lifepo4 Battery Pack	51.2V 600Ah 30Kwh Moveable Lifepo4 Battery Pack
Nominal Voltage (V)	51.2V	51.2V	51.2V	51.2V	51.2V
Capacity (Ah)	200Ah	300Ah	200Ah	300Ah	600Ah
Nominal Power (Wh)	10KWh	15KWh	10KWh	15KWh	30KWh
Weight (Kg)	90KG	113KG	86KG	125KG	251kg
Dimension (mm)	245475655mm	250535755mm	552300870mm	690300870mm (excl. wheels)	720435855mm (excl. wheels)
Communication	RS485/RS232/CAN

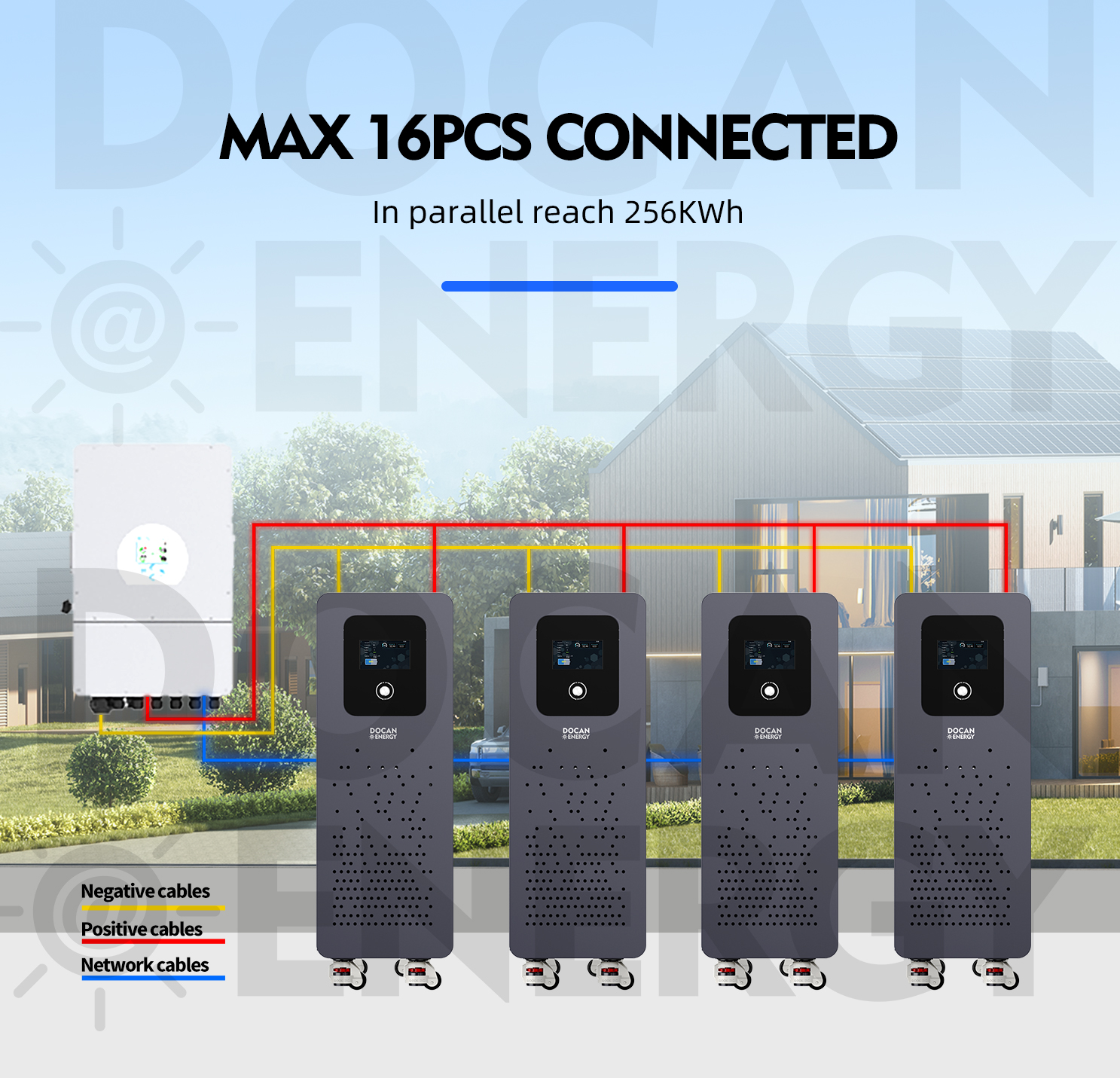

Max. Number of Parallel Connections	Up to 16 Units

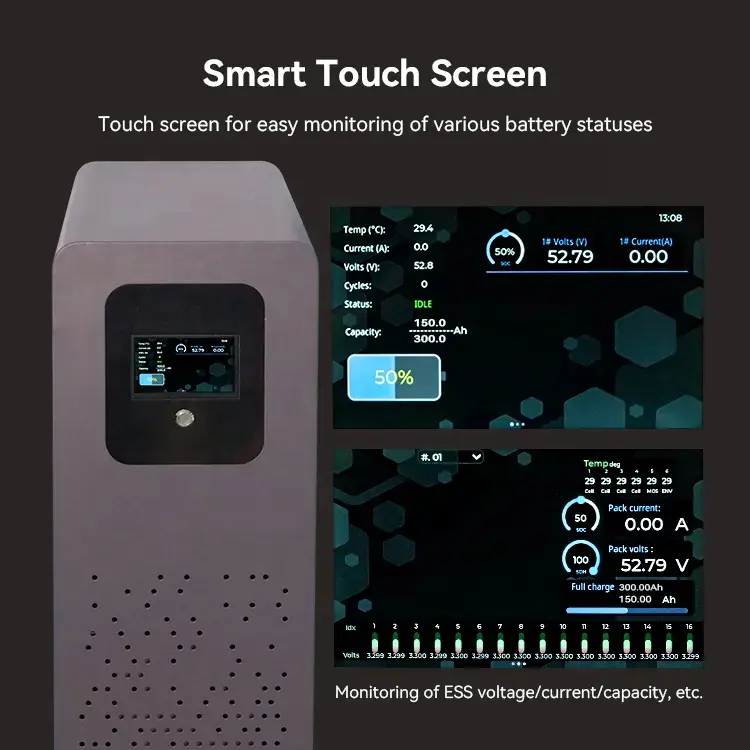

Display Screen	Touch screen

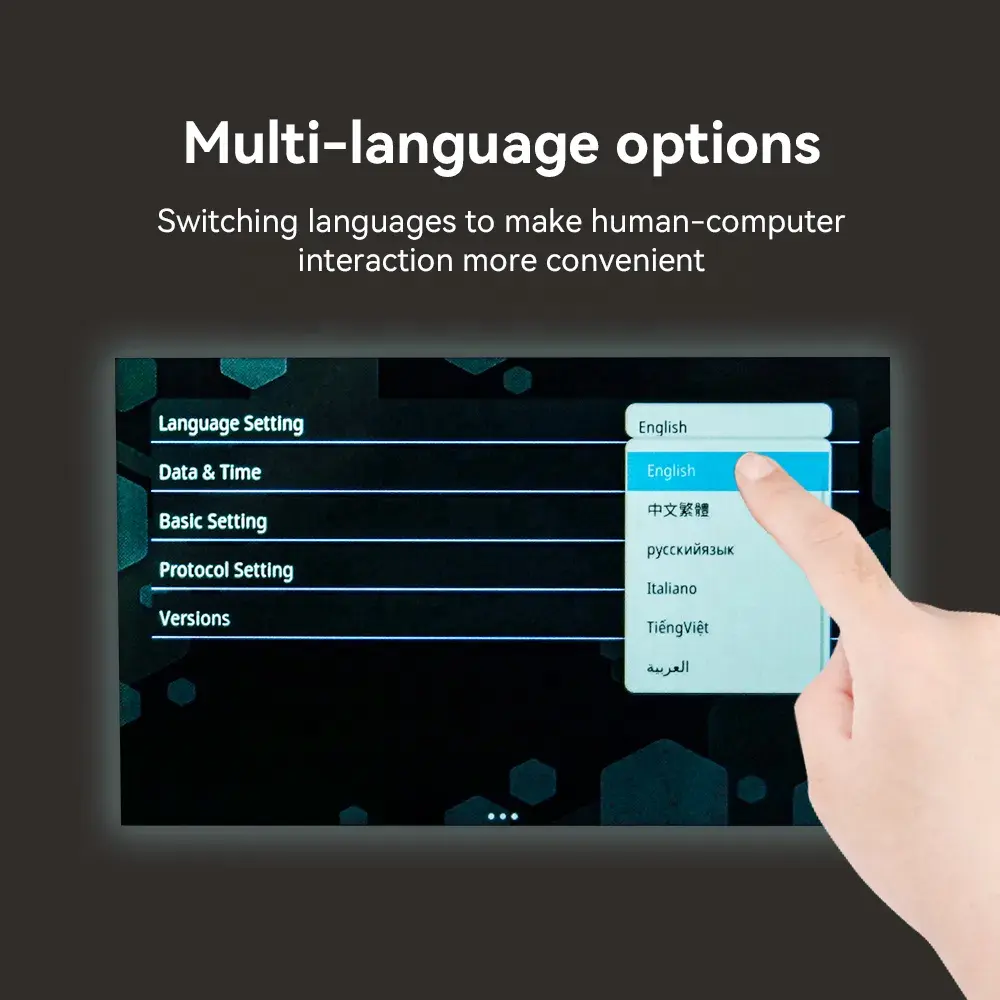

Language Options	English, Russian, Italian, Arabic, etc.
Installation	Mobile/Wall-mounted
System	Active Balancing System (5A)
Discharge Cut-off Voltage (V)	41.6V
Charge Voltage (V)	57.6V
Continuously Charge/Discharge Current (A)	140A @25±2℃ (Recommended)
Max Standard charge/discharge Current (A)	200A @25±2℃
Working Temperature	Charge: 0~50℃ \| Discharge: -10~50℃ \| Storage: -20~55℃
Recommended SOC Range	15-95%
Communication Interface	CAN (Default) or RS485
Humidity	10% - 85%
IP Rating	IP 20

📦 Available Models

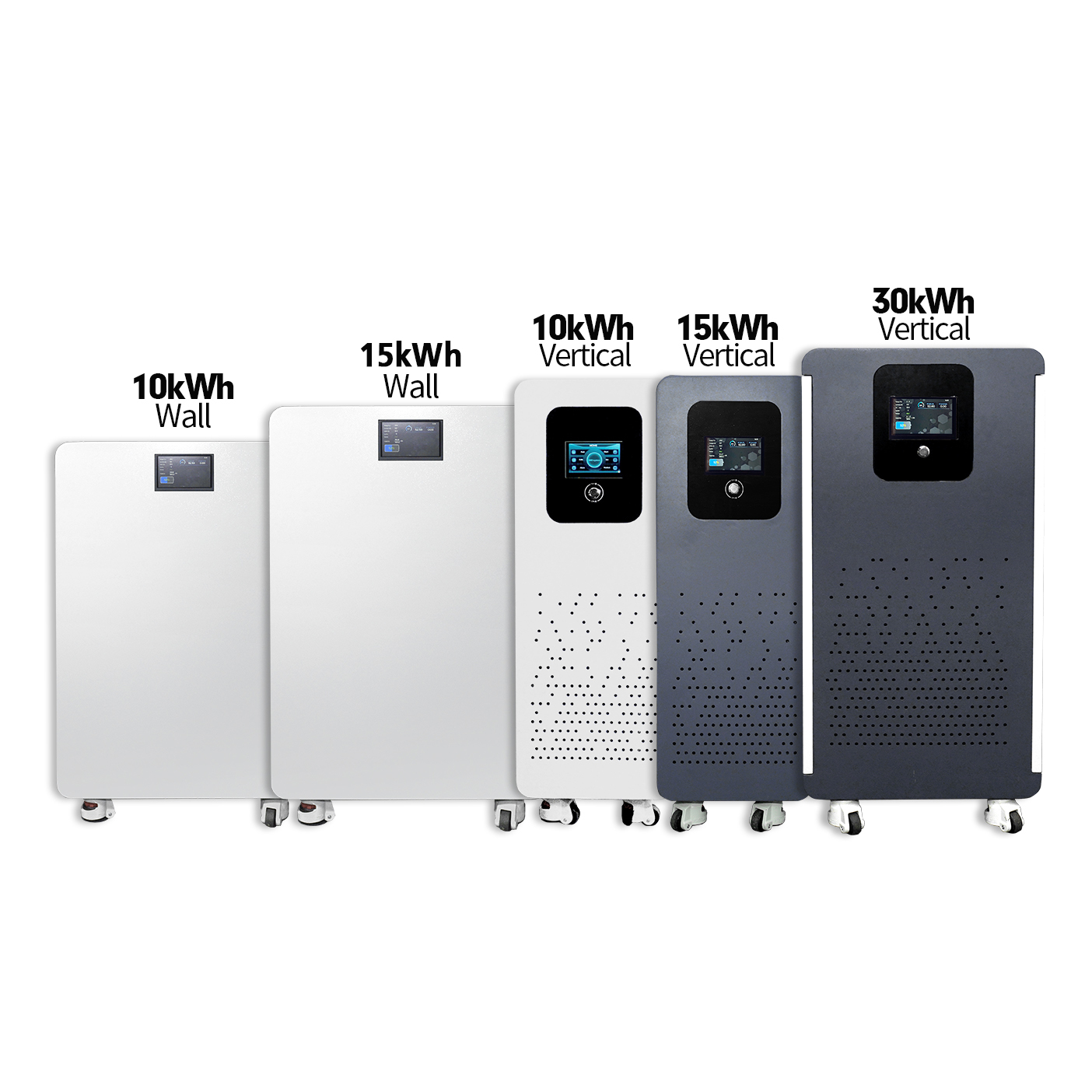

51.2V 200Ah wall mounted & movable battery pack
51.2V 300Ah wall mounted & movable battery pack
51.2V 200Ah movable vertical battery pack
51.2V 300Ah movable vertical battery pack

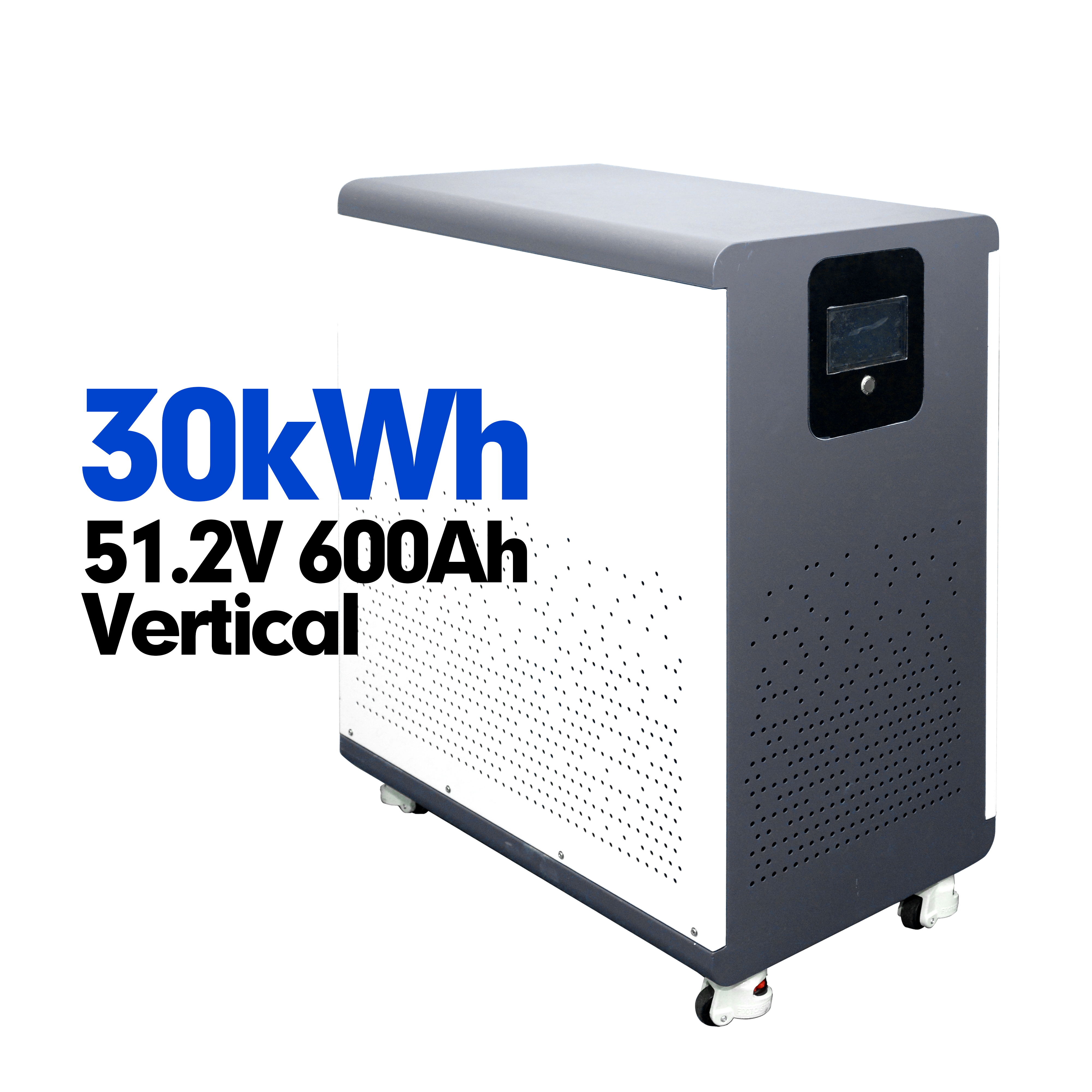

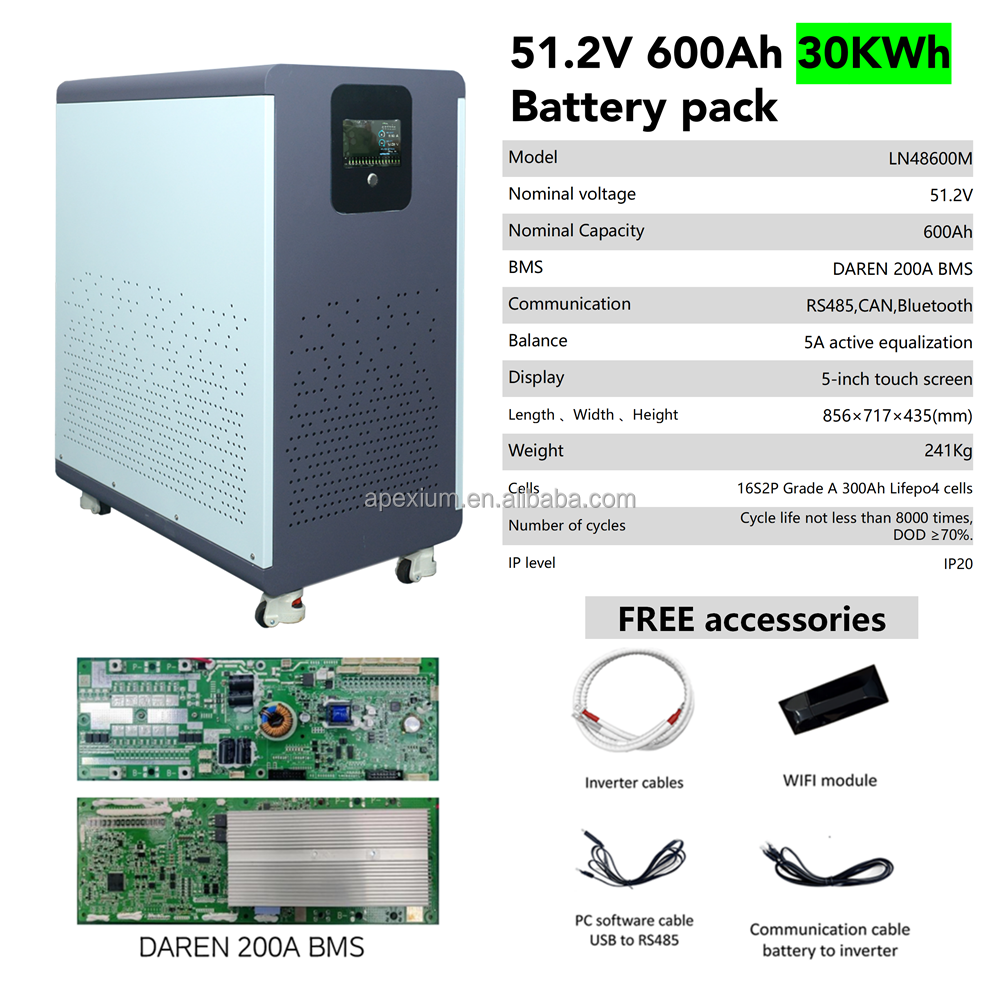

51.2V 600Ah movable vertical battery pack
51.2V 900Ah movable vertical battery pack

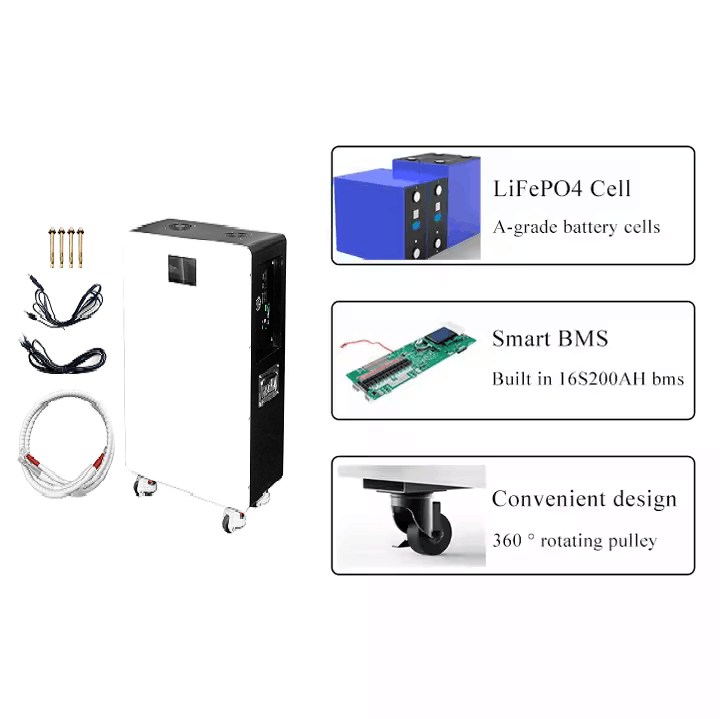

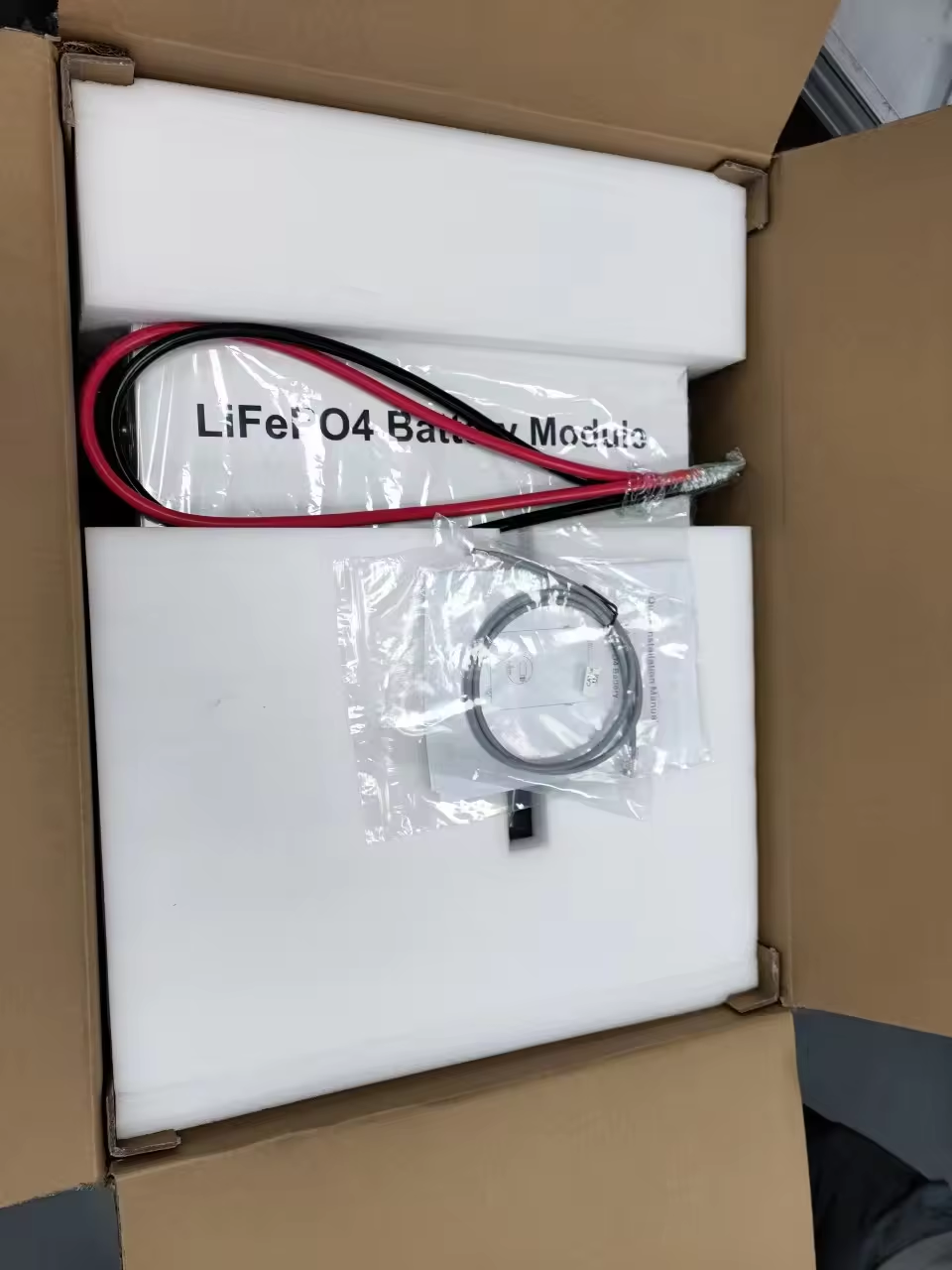

🌟 What's Included

100% Brand new Grade-A Lithium battery pack
Plug & Play completed set (aging test pre-completed)

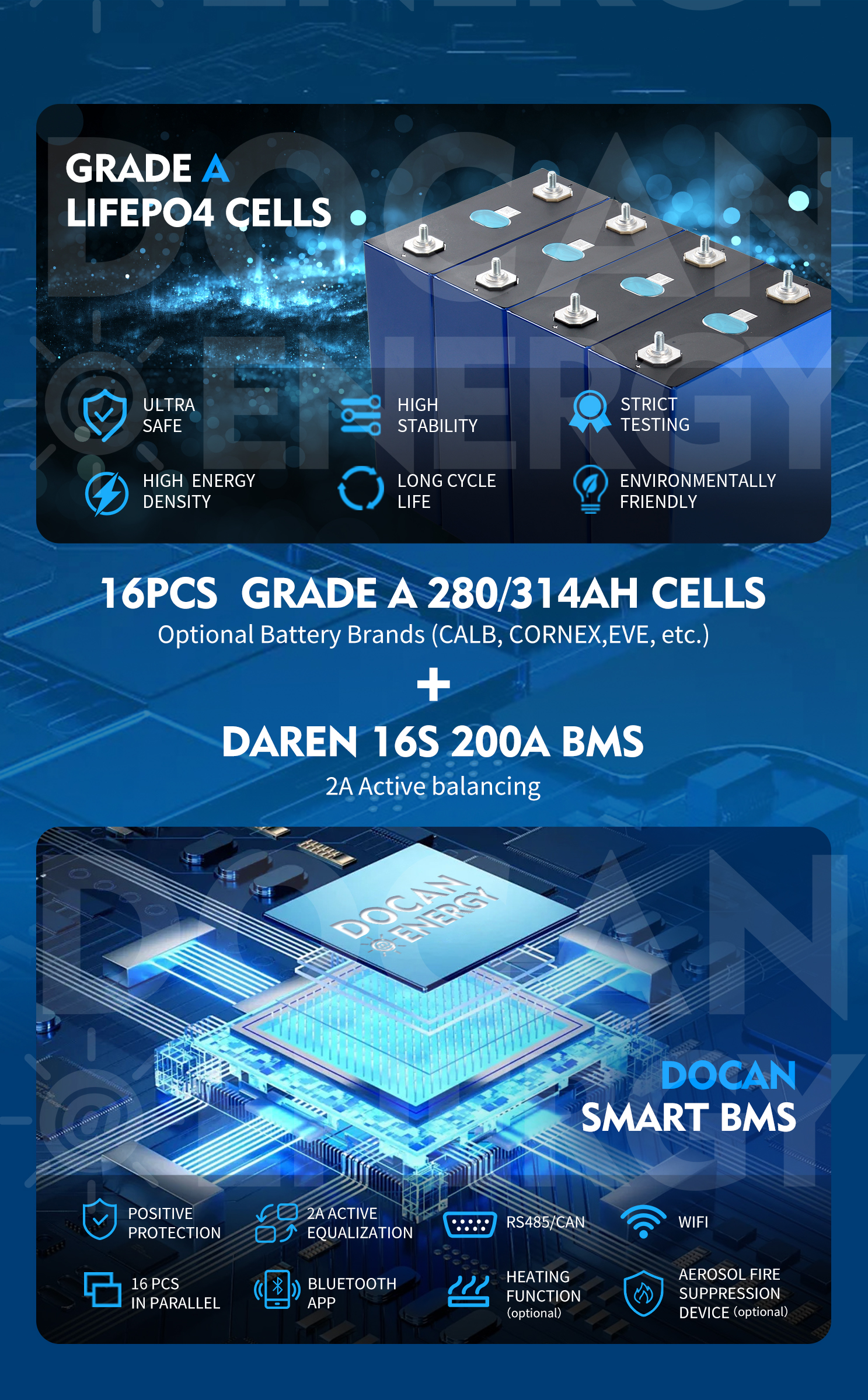

Inverter BMS, RS485, CAN, & Touch screen
Free WIFI & Bluetooth
Free active balancer
Free inverter and communication cables
Free wooden packaging box

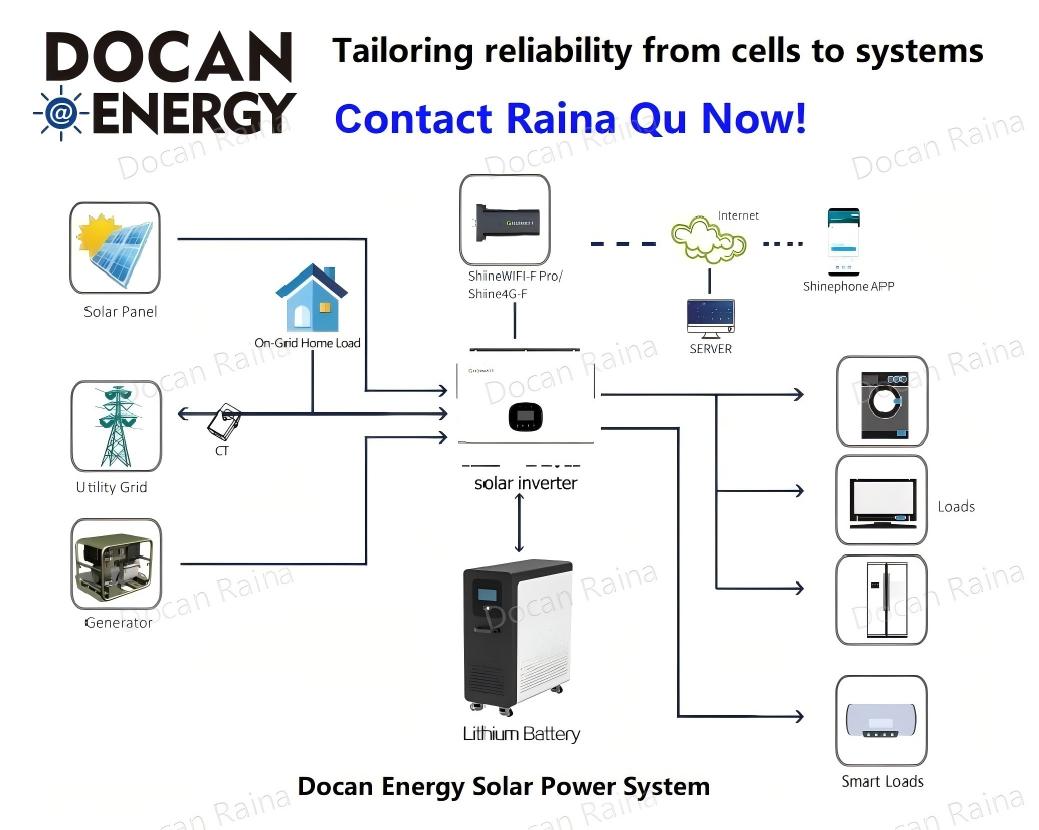

🔋 Premium Energy Storage Solutions Tailored for You

We Provide:

Grade A Battery Cells – Top-tier performance & reliability
DIY Battery Kits – Build your custom power solution
Plug-and-Play Battery Packs – Ready to use, hassle-free
High-Voltage Battery Systems – For demanding energy needs
End-to-End Support – From design to deployment

Let's power your project! Tell us your requirements, and we will deliver the perfect solution with a competitive quote.

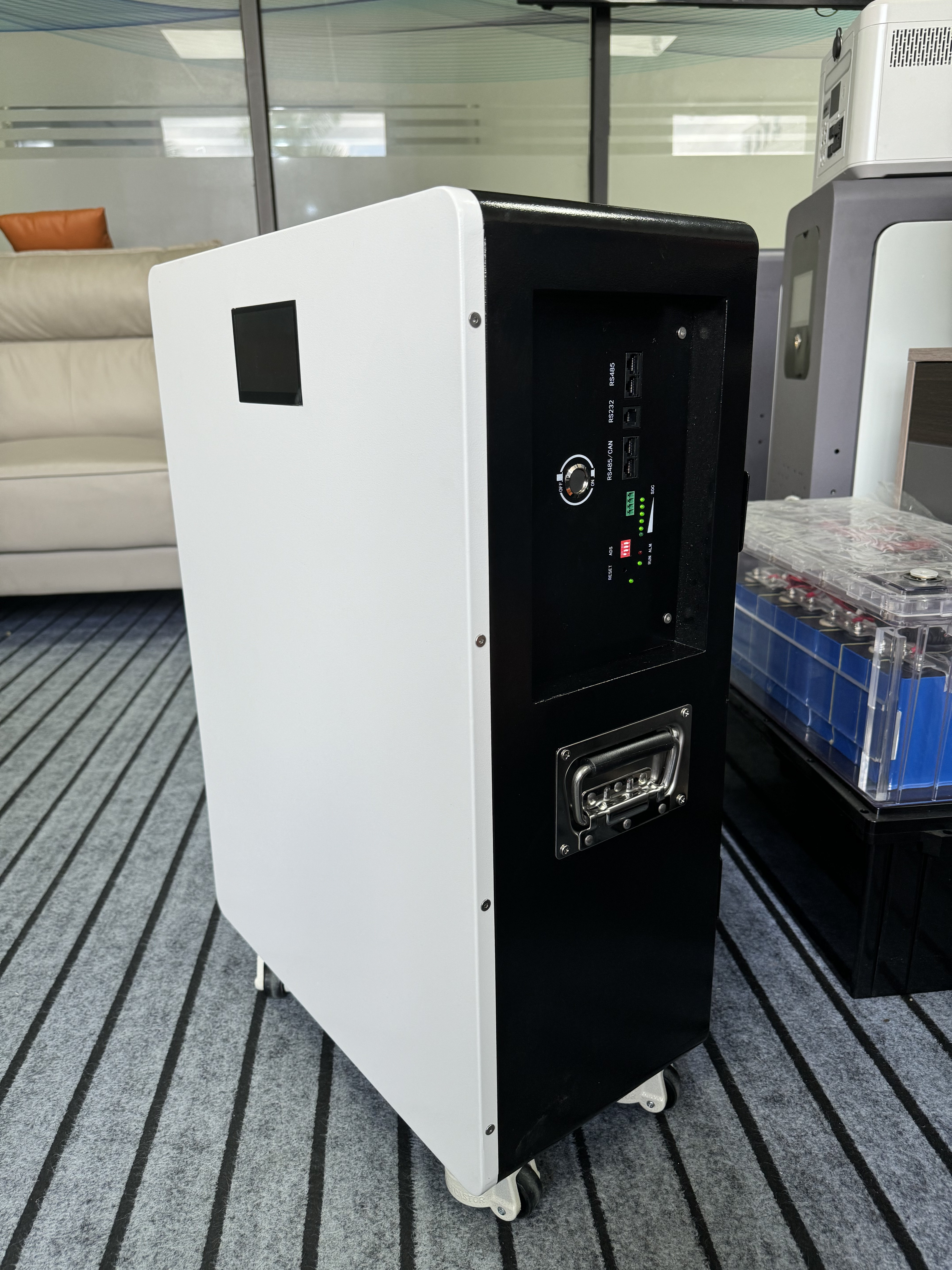

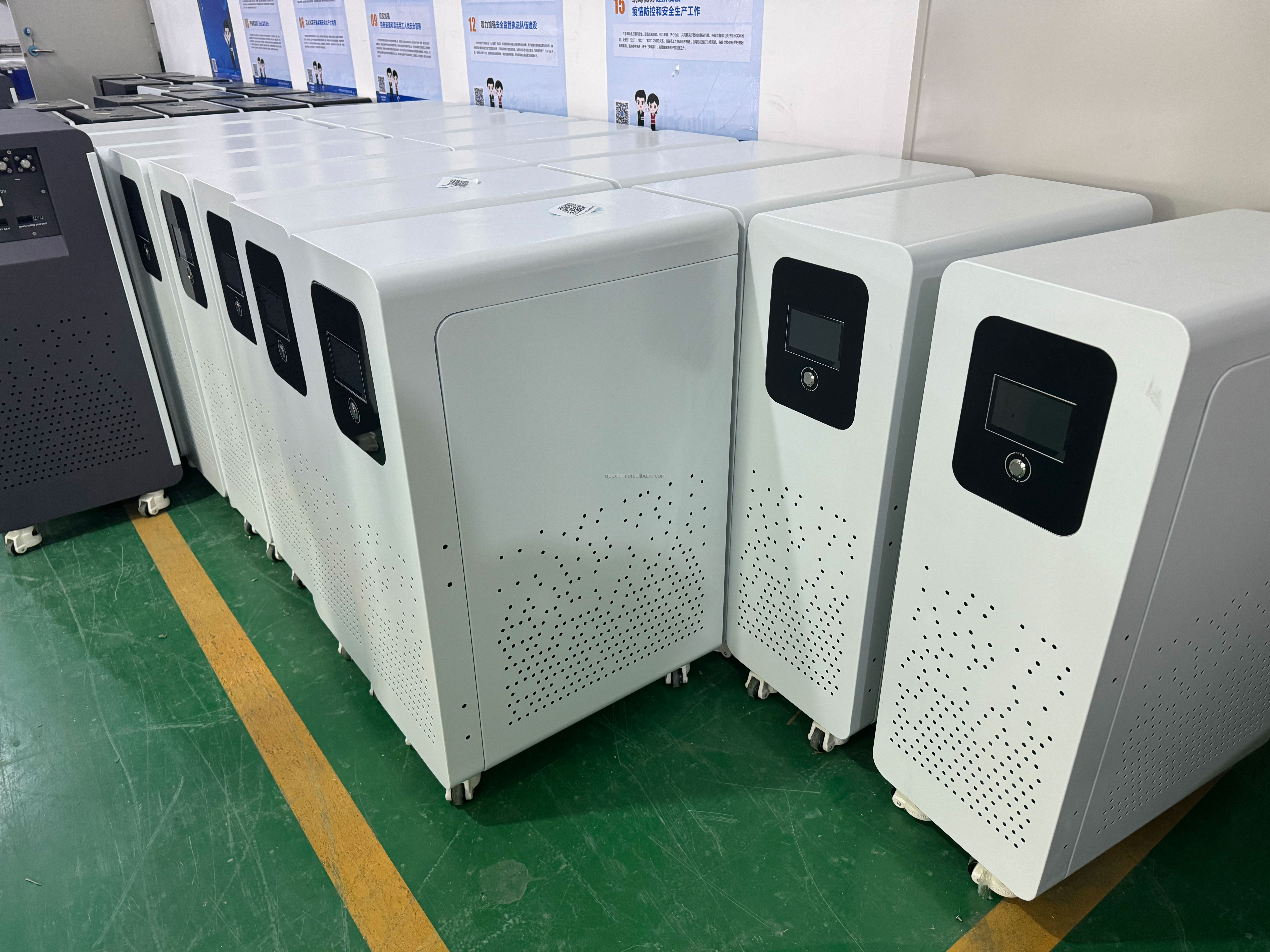

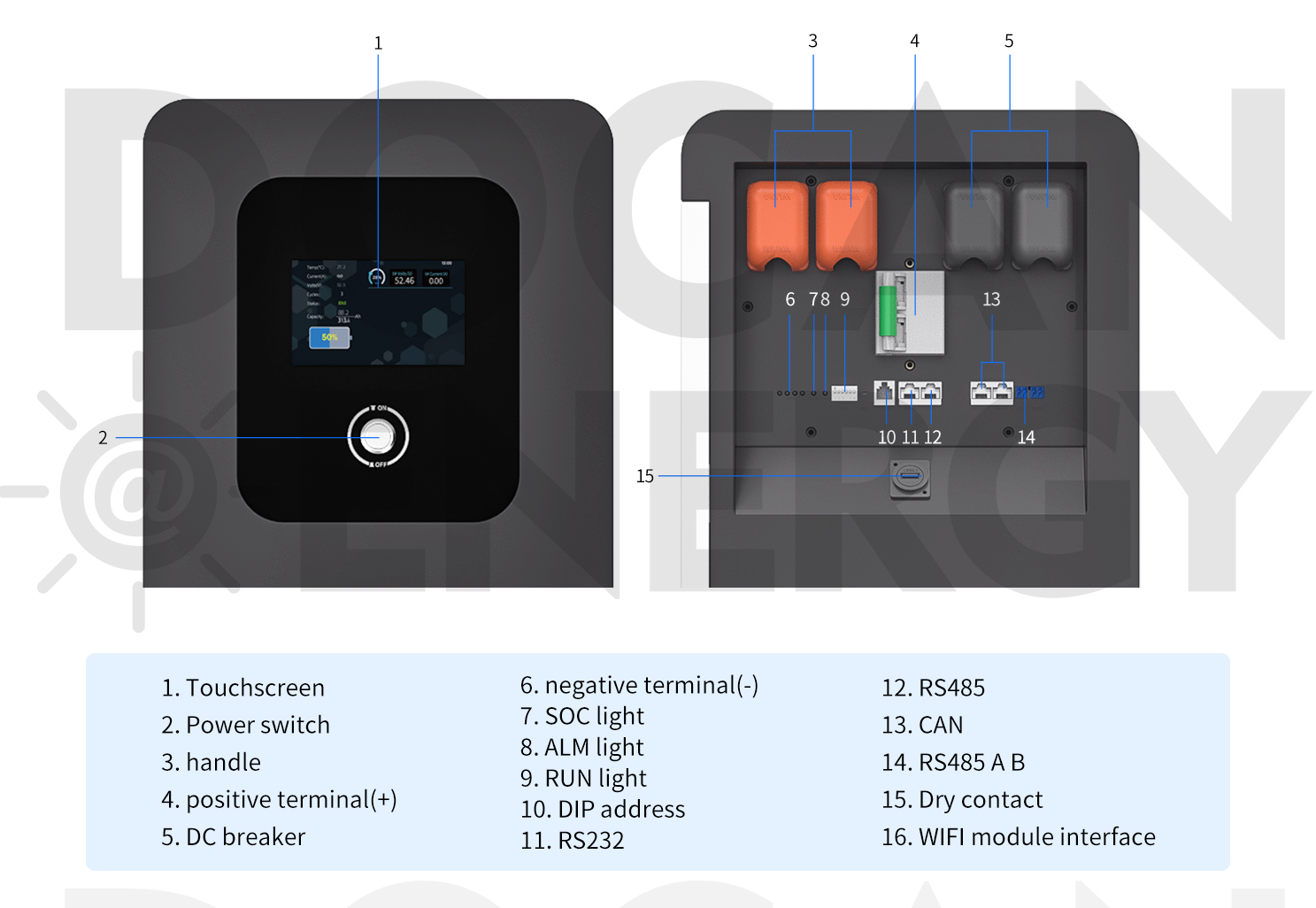

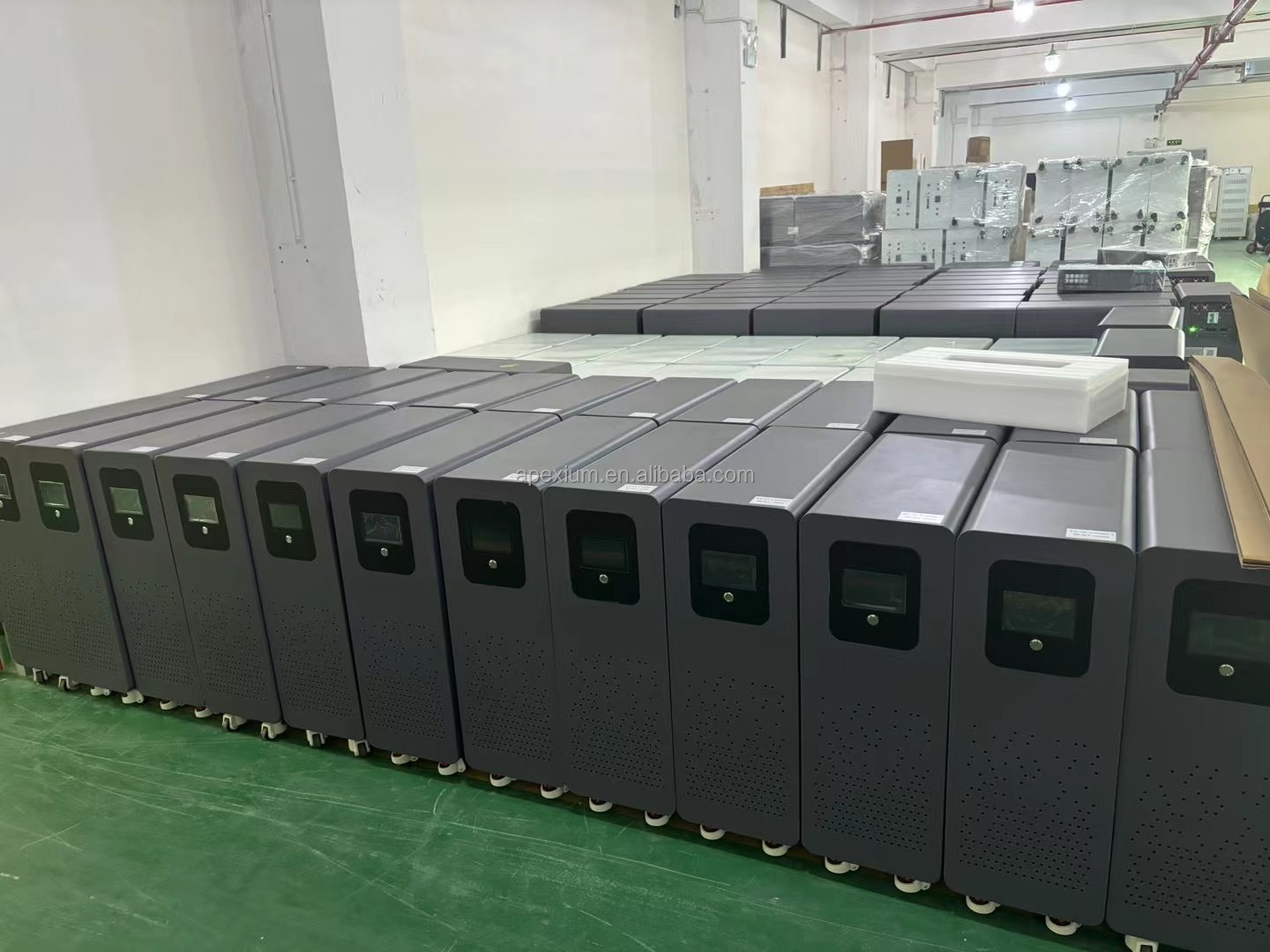

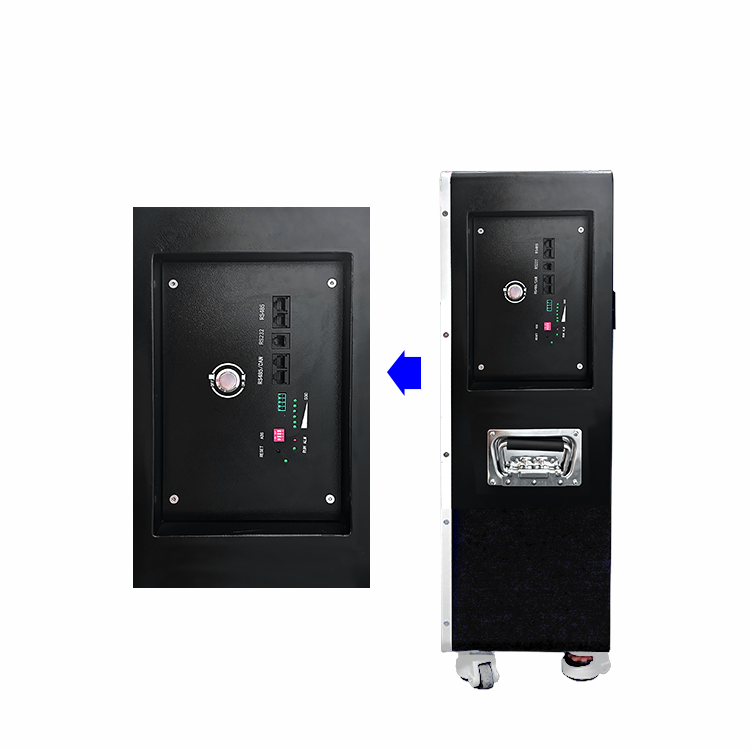

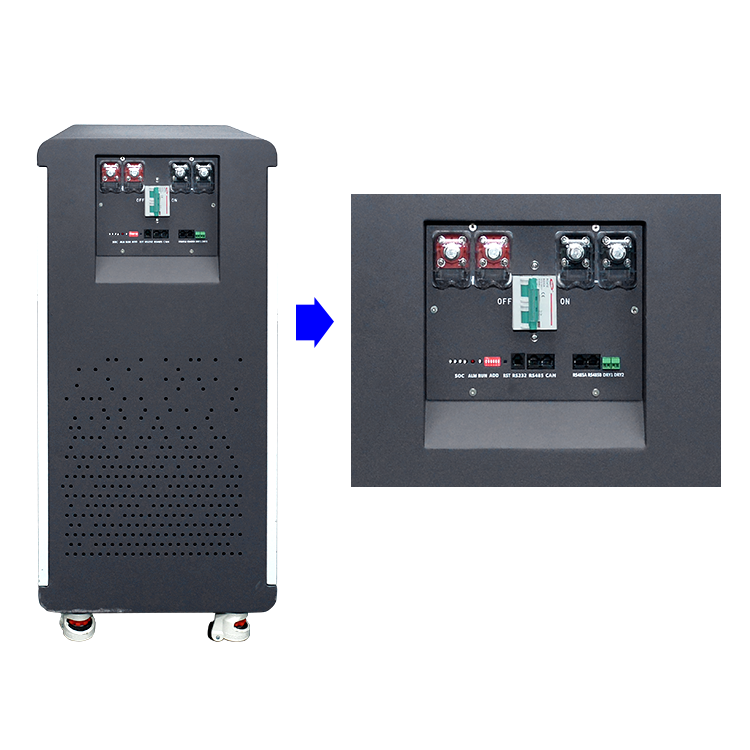

Details Images

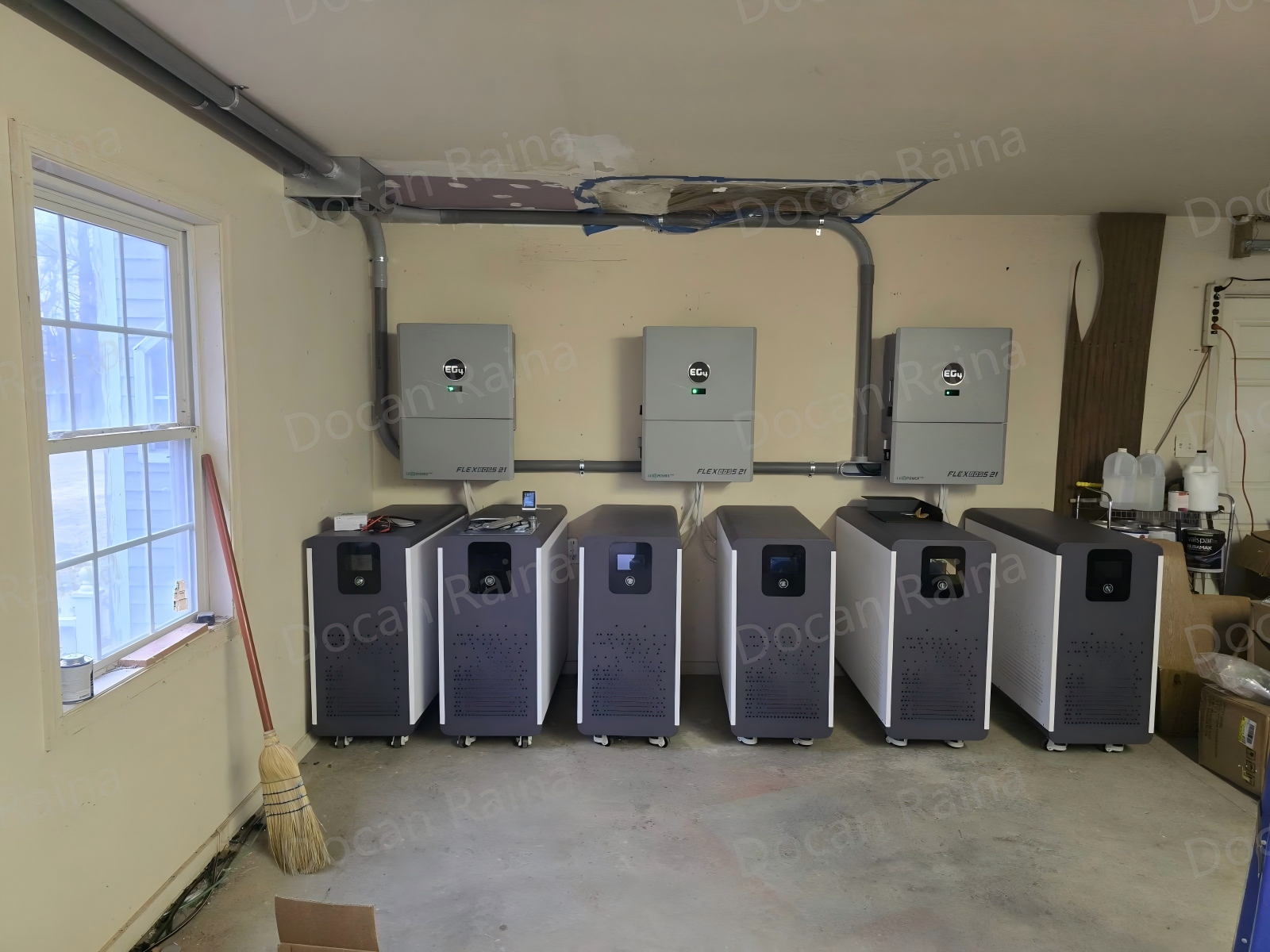

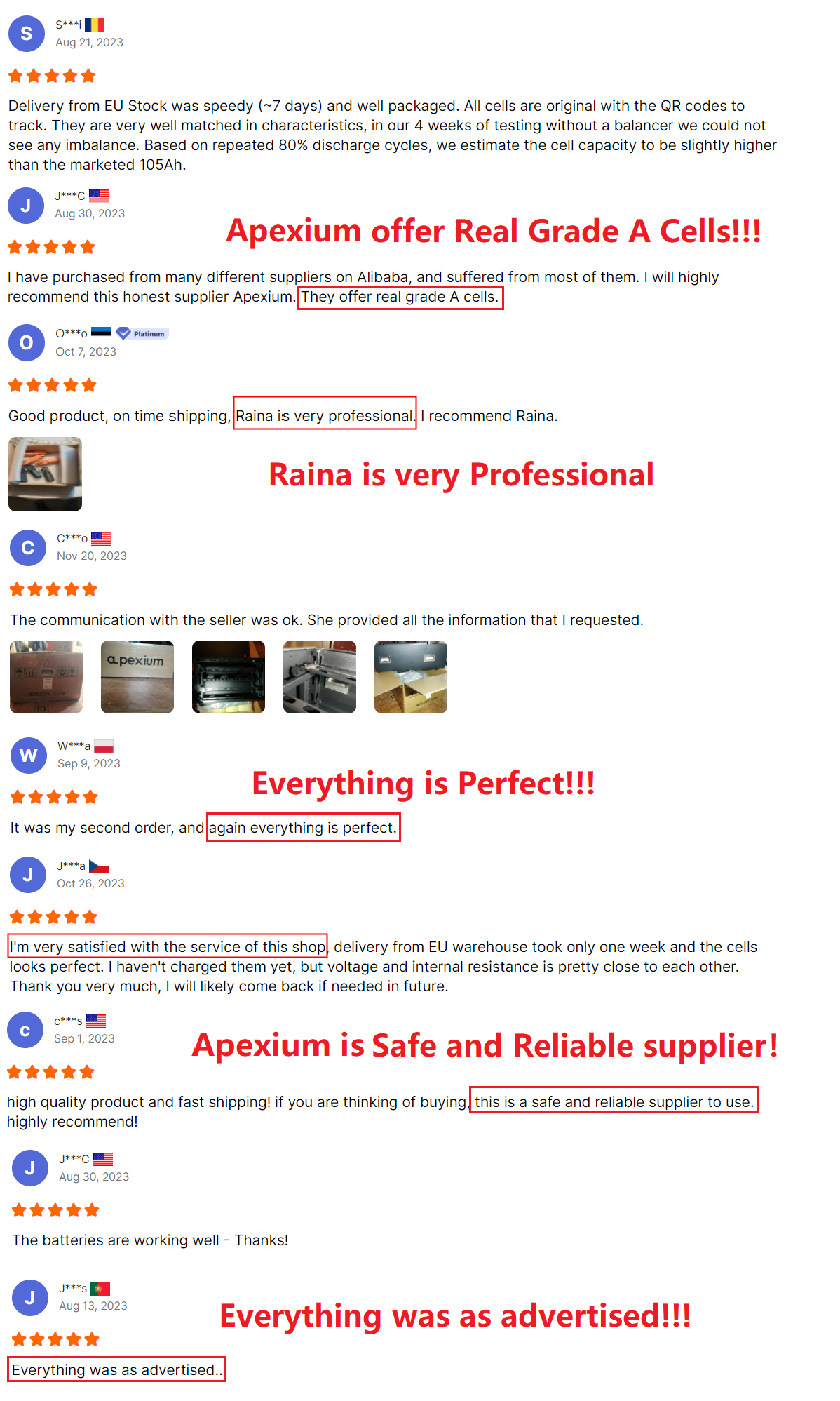

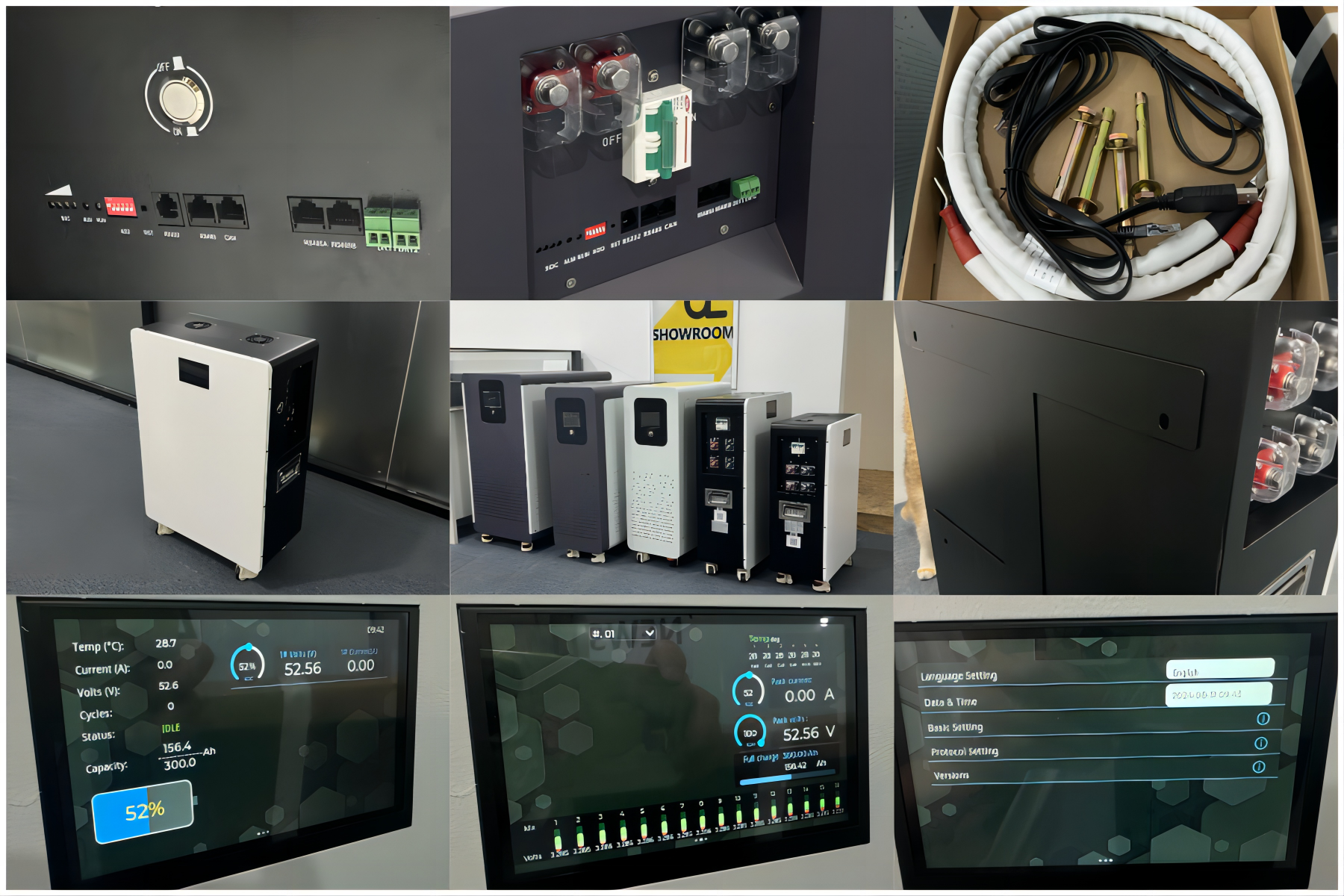

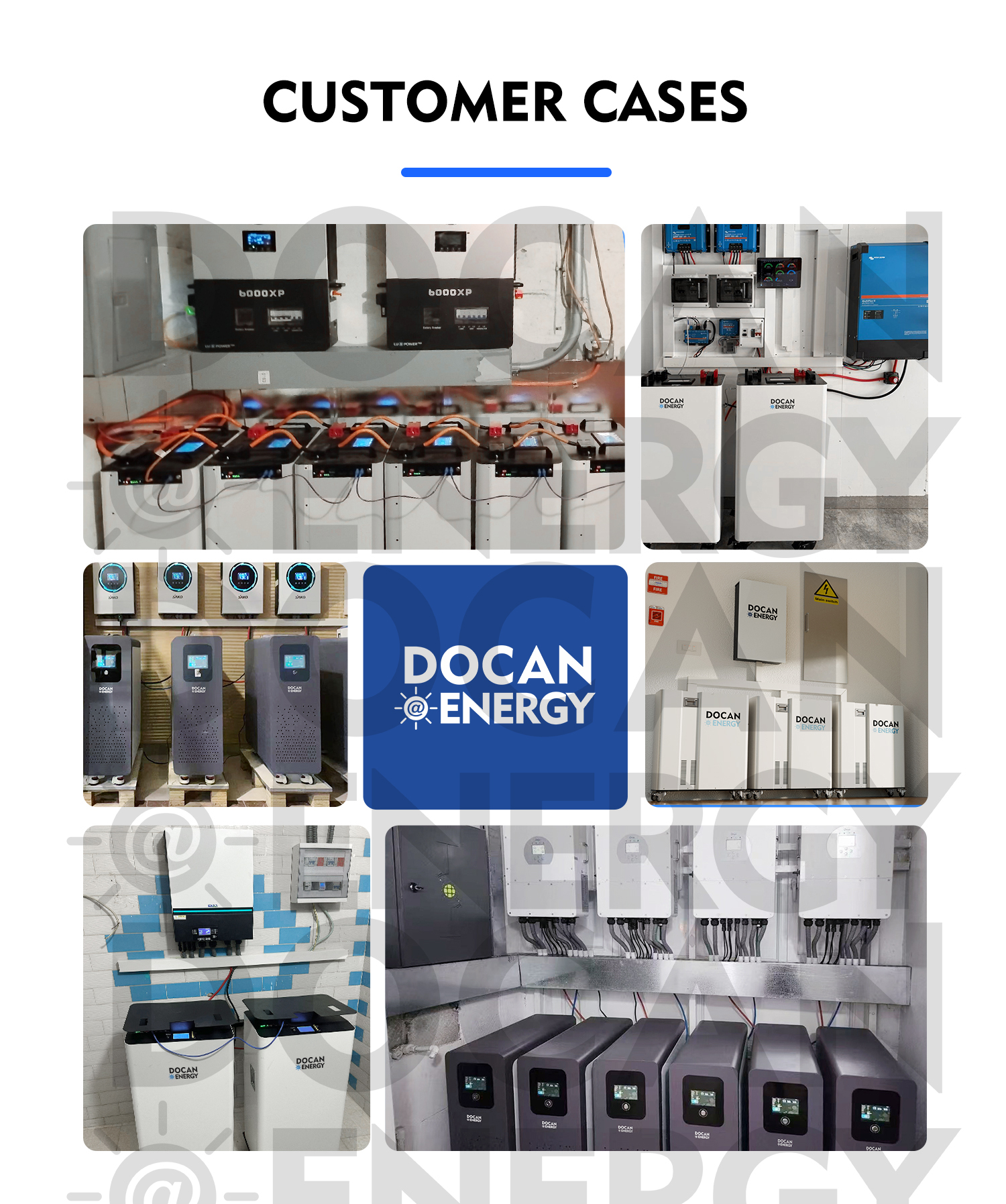

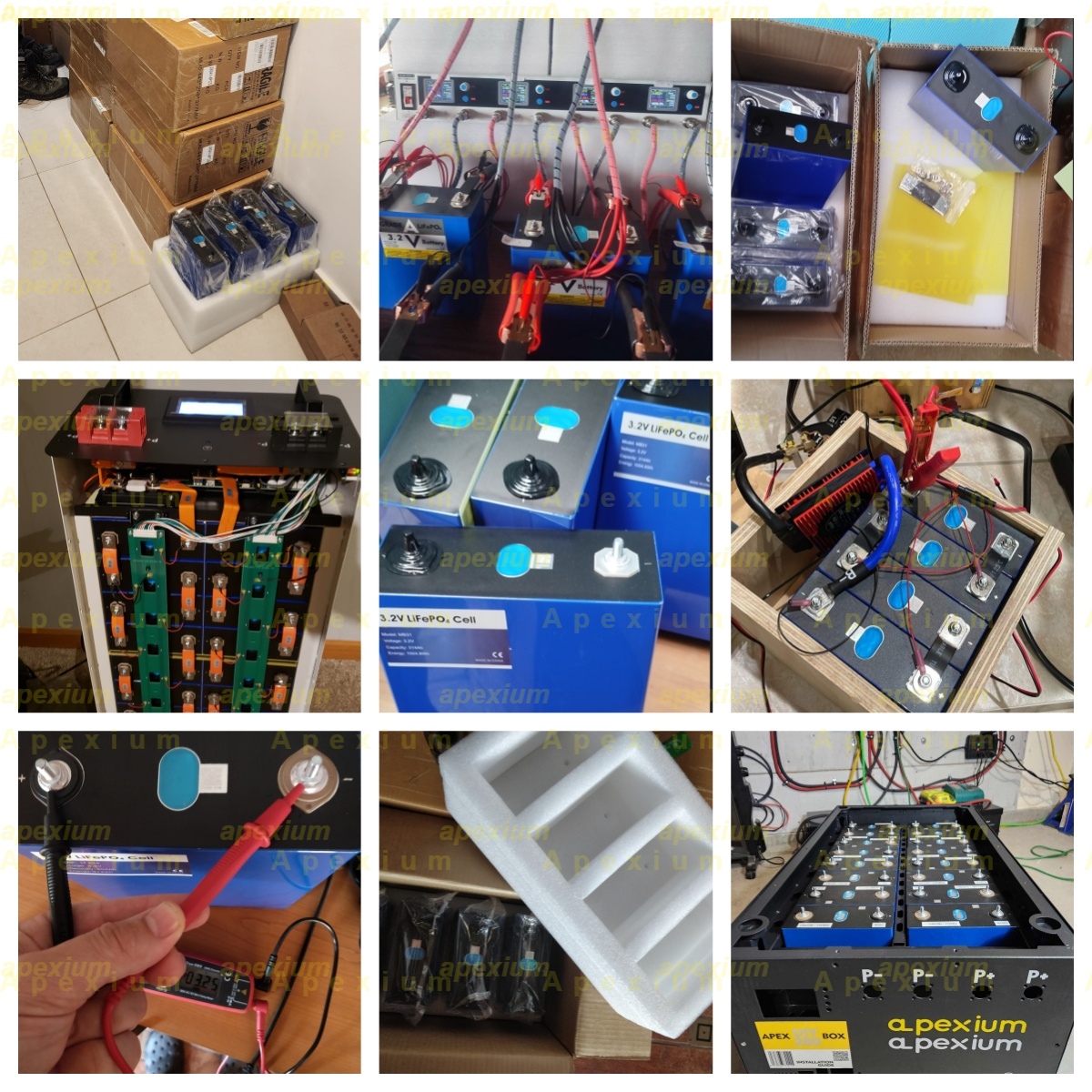

Customer Photos & Feedback

💬 Real Feedback From Our Clients

Please feel free to check more installation references and user experiences with our team.

Recommend Products

Model	Capacity	Voltage	IR	Cycles	Size (mm)	Weight	Stocks	Link
LF50K	50Ah	3.2V	0.7Ω	7000	18513529	1.4Kg	China	Learn More
LF100LA	100Ah	3.2V	0.35Ω	5000	16011850	2.1Kg	China	Learn More
LF105	105Ah	3.2V	0.35Ω	5000	20013036	1.98Kg	EU/USA	Learn More
LF230	230Ah	3.2V	0.18Ω	4000	20217253	4.1Kg	EU/USA	Learn More
LF280K	280Ah	3.2V	0.18Ω	8000	20217272	5.5Kg	EU/USA	Learn More
LF304	304Ah	3.2V	0.18Ω	4000	20217272	5.5Kg	EU/USA	Learn More
MB30	306Ah	3.2V	0.18Ω	10000	20217272	5.6Kg	EU/China	Learn More
MB31	314Ah	3.2V	0.18Ω	8000	20217272	5.6Kg	China	Learn More
REPT 280	280Ah	3.2V	0.25Ω	6000	20217272	5.45Kg	EU/US/CN	Learn More
Hithium 280	280Ah	3.2V	0.25Ω	10000	20217272	5.45Kg	China	Learn More
CATL 280	280Ah	3.2V	0.25Ω	6000	20217272	5.5Kg	USA/China	Learn More
CATL 302	302Ah	3.2V	0.25Ω	4000	20217272	5.6Kg	USA/China	Learn More
CATL 314	314Ah	3.2V	0.25Ω	7000	20217272	5.6Kg	China	Learn More

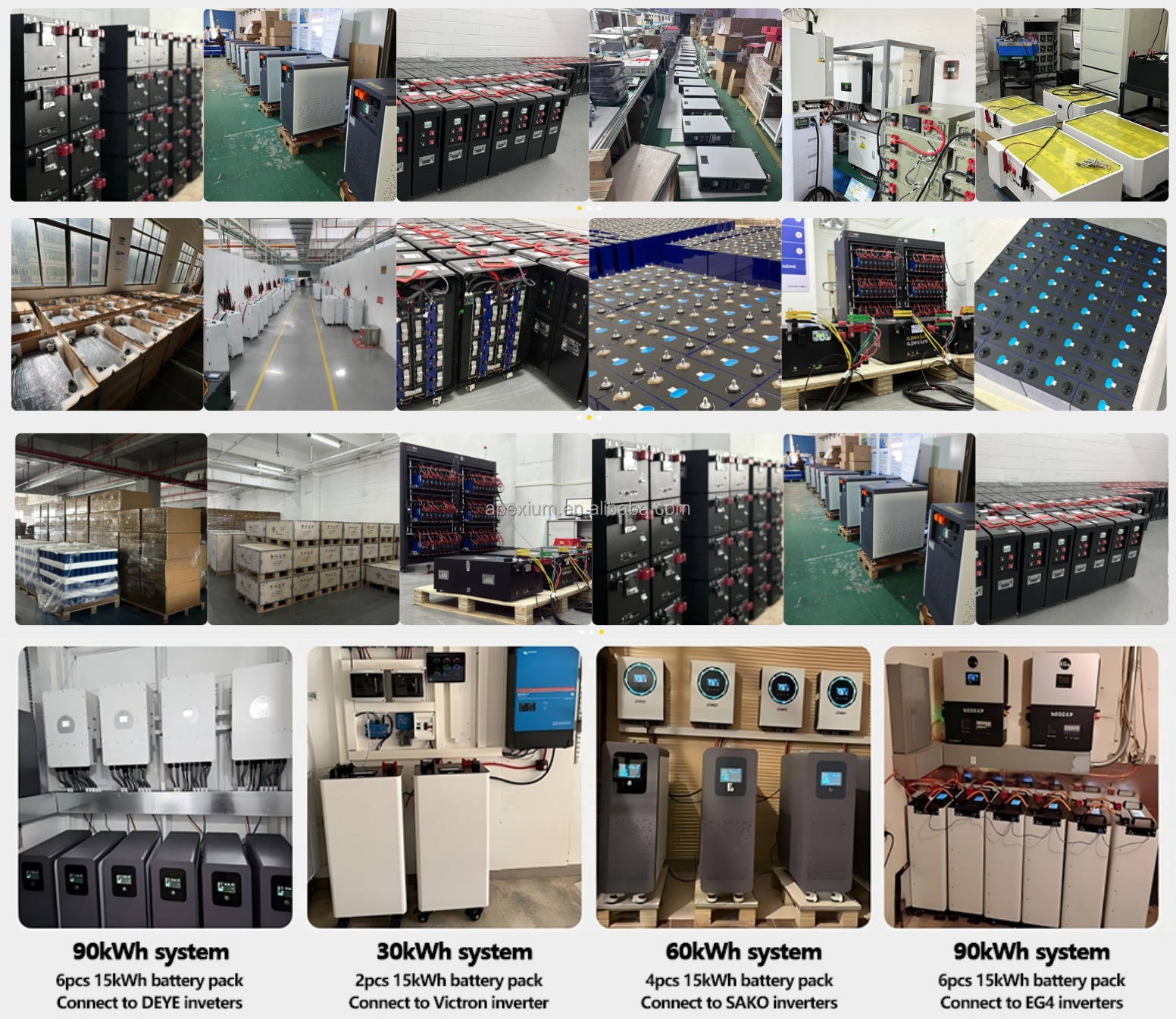

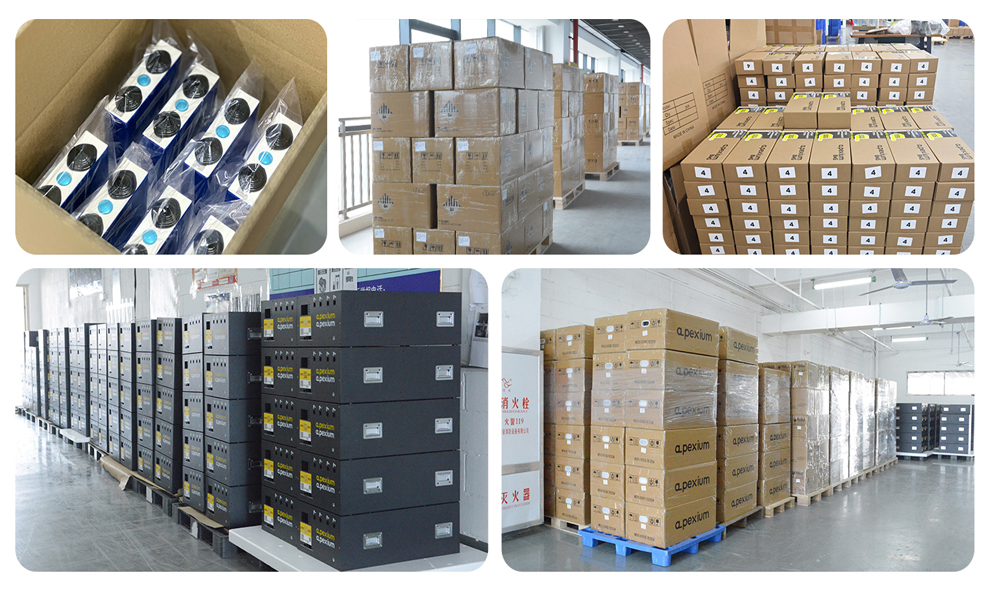

Project Cases & Usage

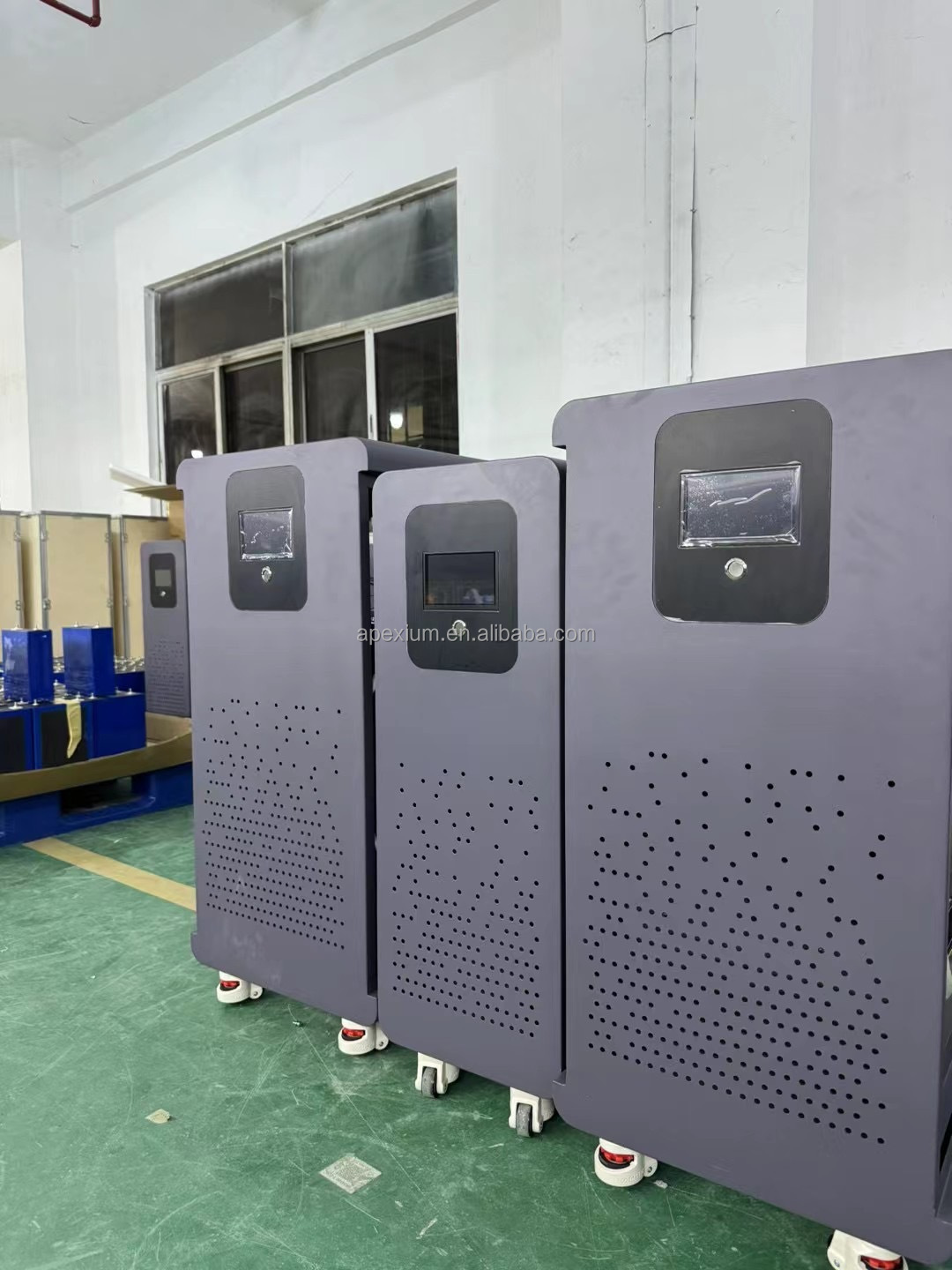

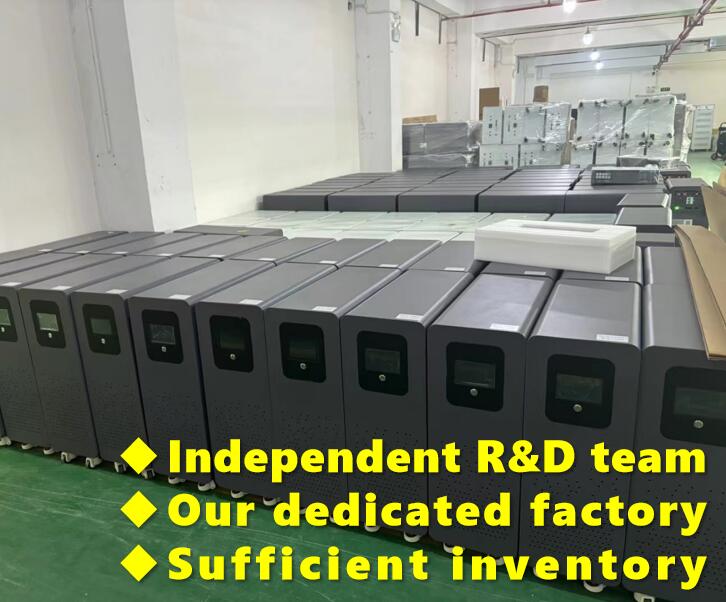

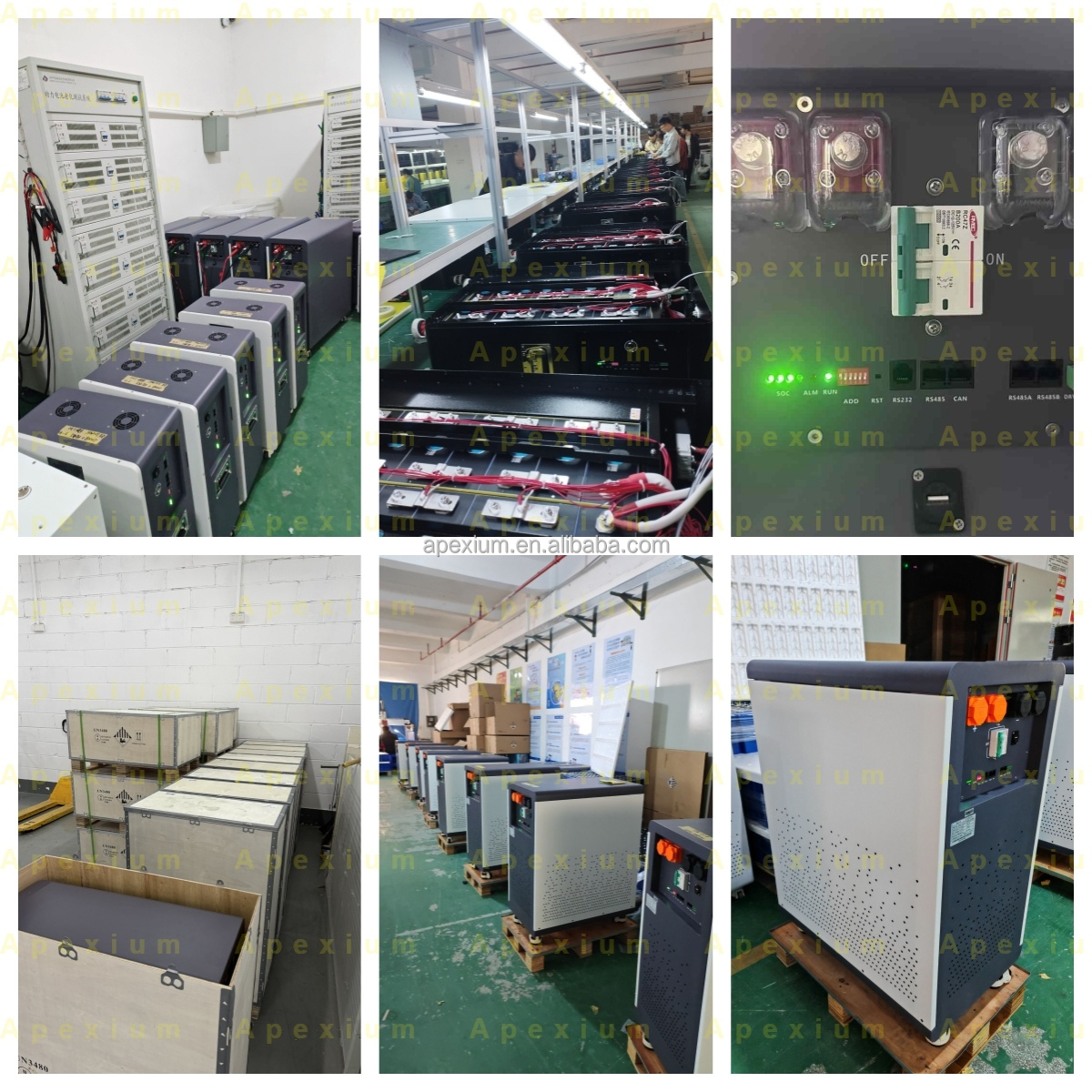

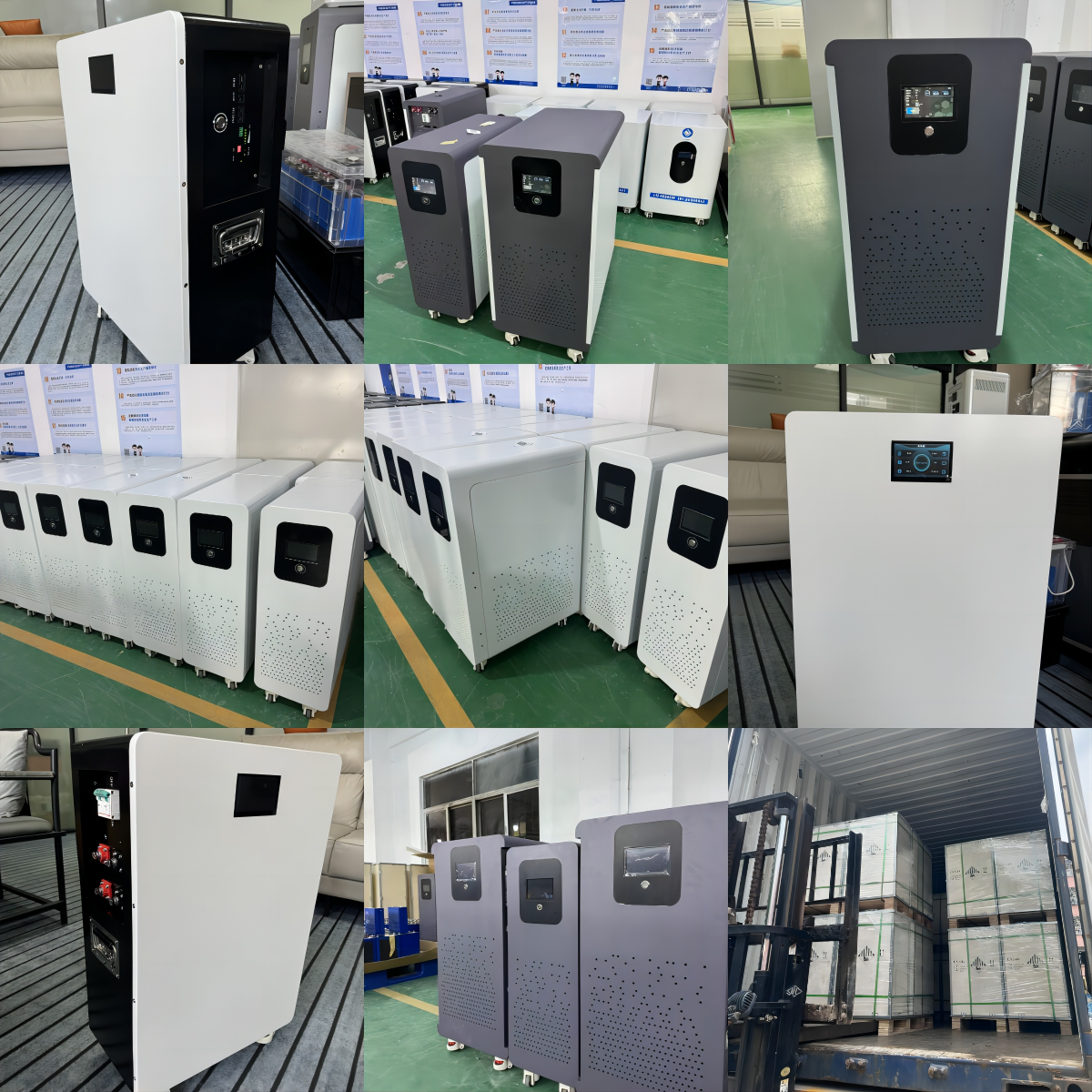

Production & Inspection Showcase

Technical Guidelines & Policies

⚙️ BMS Management Guidelines

BMS systems cannot be connected in series.
BMS power components withstand a maximum voltage of 100V.
For long wire/copper bar assemblies, coordinate impedance compensation to maintain cell consistency.
The external switch on BMS must not be connected to other equipment without prior authorization.
Do not touch the core surface directly during assembly to prevent structural damage.
Ensure tools (soldering iron, solder, etc.) do not contact components on the circuit board.
Maintain anti-static, moisture-proof, and waterproof precautions.
Strictly follow the design parameters and specifications to protect the board.
If no voltage or charge is detected after assembly, verify wiring configurations.

🛡️ Warranty & Return Terms

Pre-Assembly: DIY cells must be balanced (equal voltage) before assembly.
Inspection: 15-day testing window post-delivery (unused, no welding, intact electrodes). Buyer covers return shipping.
Exclusions: No refunds for damage from wiring errors, BMS failure, physical modifications, or charging without a BMS.
5-Year Warranty: Replacements provided if capacity drops below 80% with verified video/photo proof.
Shipping Issues: Report missing or damaged parts within 48 hours with visual evidence.

Frequently Asked Questions

❓ Q1: Does the DIY Box Case support parallel connection?

A: Yes, the DIY box case supports parallel connection for up to 15 units.

❓ Q2: What BMS parameters are integrated into the DIY Box?

A: The DIY Box features a built-in 48V 200A BMS equipped with Bluetooth and an LCD touch screen.

❓ Q3: What is the typical lead time for shipping?

A: We maintain stable stock in our warehouses. Shipments are typically dispatched within 2 to 7 business days.

❓ Q4: How is this DIY box optimized compared to standard market options?

A: We have upgraded the connection busbar from a flat shape to a bridge-like shape, and added a dedicated power control switch on the bottom right for enhanced safety.

❓ Q5: What materials are used, and what is the warranty on the case?

A: The case is constructed from premium cold-rolled sheet material, providing high flatness and durability. It comes with a 10-year warranty.

❓ Q6: Can the Battery Management System (BMS) modules be used in series?

A: No, the battery management systems cannot be connected in series. The BMS power components are rated for a maximum withstand voltage of 100V.
