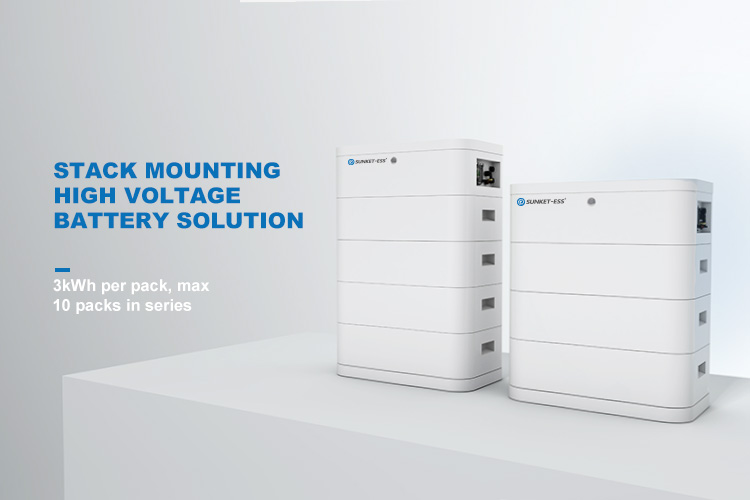

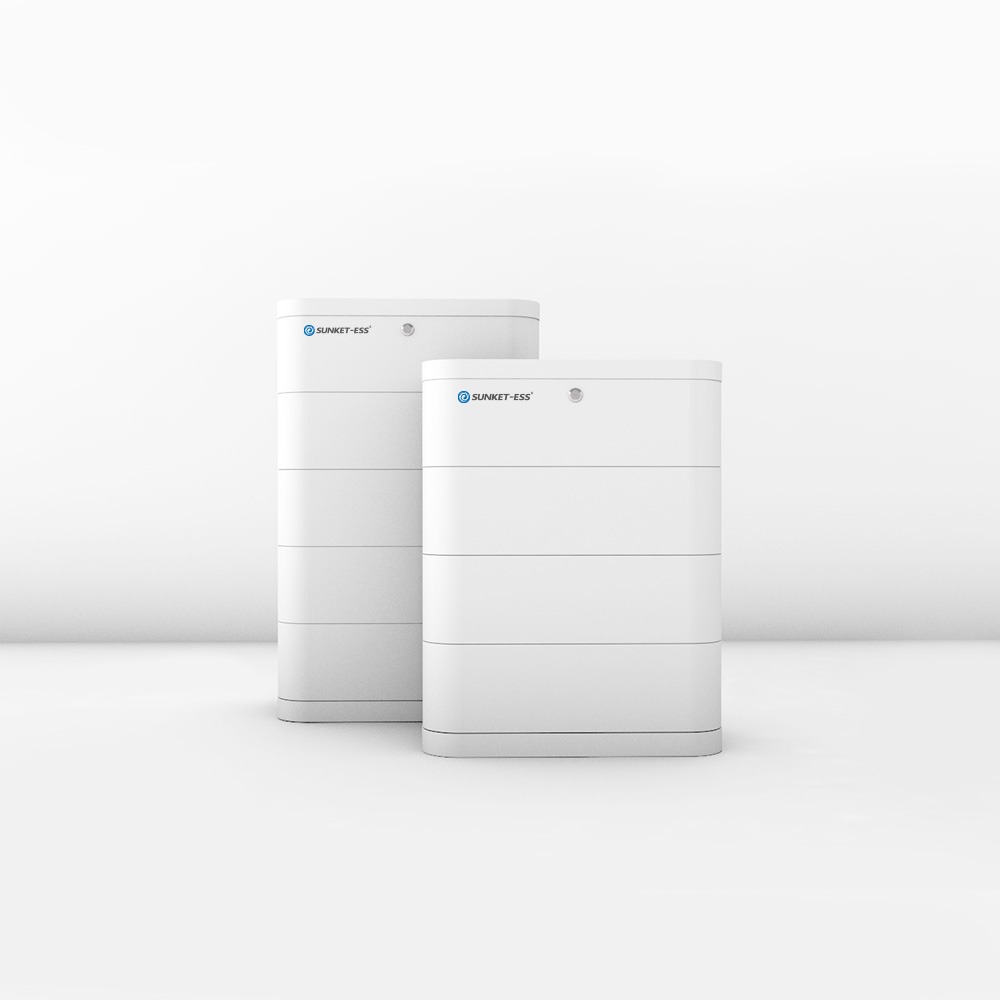

The lithium iron phosphate battery (LiFePO4 or LFP) is the safest of the mainstream lithium battery types. A single LFP cell has a nominal voltage of 3.2V. A 57.6V LFP battery consists of 18 cells connected in series. LFP is the chemistry of choice for very demanding applications.
| Module Type | LFP 9kWh | LFP 12kWh | LFP 15kWh | LFP 18kWh | LFP 21kWh | LFP 24kWh | LFP 27kWh | LFP 30kWh |
| Usable Energy | 8.64kWh | 11.52kWh | 14.40kWh | 17.28kWh | 20.16kWh | 23.04kWh | 25.92kWh | 28.80kWh |
| Battery Module | LFP 3000 / HV : 57.6V 50Ah | |||||||
| Number of Modules | 3 | 4 | 5 | 6 | 7 | 8 | 9 | 10 |
| Nominal Voltage | 172.8V | 230.4V | 288V | 345.6V | 403.2V | 460.6V | 518.4V | 576V |
| Operating Voltage Ranges | 135-197.1V | 180-262.8V | 225-328.5V | 270-394.2V | 315-459.9V | 360-525.6V | 405-591.3V | 450-657V |
| Nominal Dis-/Charge Current | 25 / 50A | |||||||
| Max. Charge Voltage | 197.1V | 262.8V | 328.5V | 394.2V | 459.9V | 525.6V | 591.3V | 657V |
| Weight | 102kg | 131kg | 160kg | 189kg | 218kg | 247kg | 276kg | 305kg |
| Dimension(mm) | 670*330*697 | 670*330*855 | 670*330*1013 | 670*330*1171 | 670*330*1329 | 670*330*1487 | 670*330*1645 | 670*330*1803 |
| Safety | CE,UN38.3,IEC62619,IEC63056,IEC62477 | |||||||
