Product Overview
DA15-1P - 48100 -3U
DAOGG Telecom Data Center 48V100Ah Module Pack for 19'' Rack Cabinet BESS UPS. DAOGG Integrates Batteries, BMS, RS485 Communication in one 19'' Rack Cabinet with Cooling System. Compatible with Air Conditioner Cooling System or Liquid Cooling Unit Cooling System for Different Data Center Solutions.
DAOGG Core Technology helps Data Center Stable Energy Supply Efficiently, Reduces After-sales Maintenance, and Effectively Increases the Energy Supply Life.
FEATURES AT A GLANCE
- 3U or 4U Standard Modular Size for 19'' Rack Cabinet
- 6500 CYCLES Full Life
- 15 YEARS After-Sales
- Data Center Telecom 48V100Ah Module Pack
- Core Tech Ensure Stable BESS and Full Life
- BROKEN BATTERY MODULE PACK AUTOMATICALLY LEAVES the WHOLE SYSTEM and OTHER BATTERY MODULE PACKS are AUTOMATICALLY CONNECTED in PARALLEL and STILL WORK SUCCESSFULLY.
PRODUCT SPECIFICATIONS
| Product Name | 48V100Ah - 15S1P | BATTERY PACK | 15S1P |
| Product Code | DA15-1P - 48100 -3U | WATERPROOF IP | IP67 |
| SPECIFICATION | 48V100Ah / 4800Wh / 15S | COMMUNICATION INTERFACE | 1 CAN, 1 RS485 |
| Cell Material | LiFePO4 | BATTERY DISPLAY | LCD DISPLAY |
| CELL VOLTAGE | 3.2V | REFERENCE STANDARDS | IEC62919 |
| CONTINUOUS DISCHARGE RATE | 1C | INSULATION RESISTANCE | ≥10M |
| WORKING TEMPERATURE | Discharge: -20°C - 50°C / Charge: -20°C - 50°C | PACK SIZE | Width 442mm * Height 133mm (3U) * Depth 435mm |
| STORAGE TEMPERATURE | -30°C~40°C (1 month) / -10°C~60°C (3 months) | CERTIFICATION | UN38.3 / MSDS / NO.9 UN DG |
| STORAGE HUMIDITY | 5% ~80% | G.W. | About 44Kg |

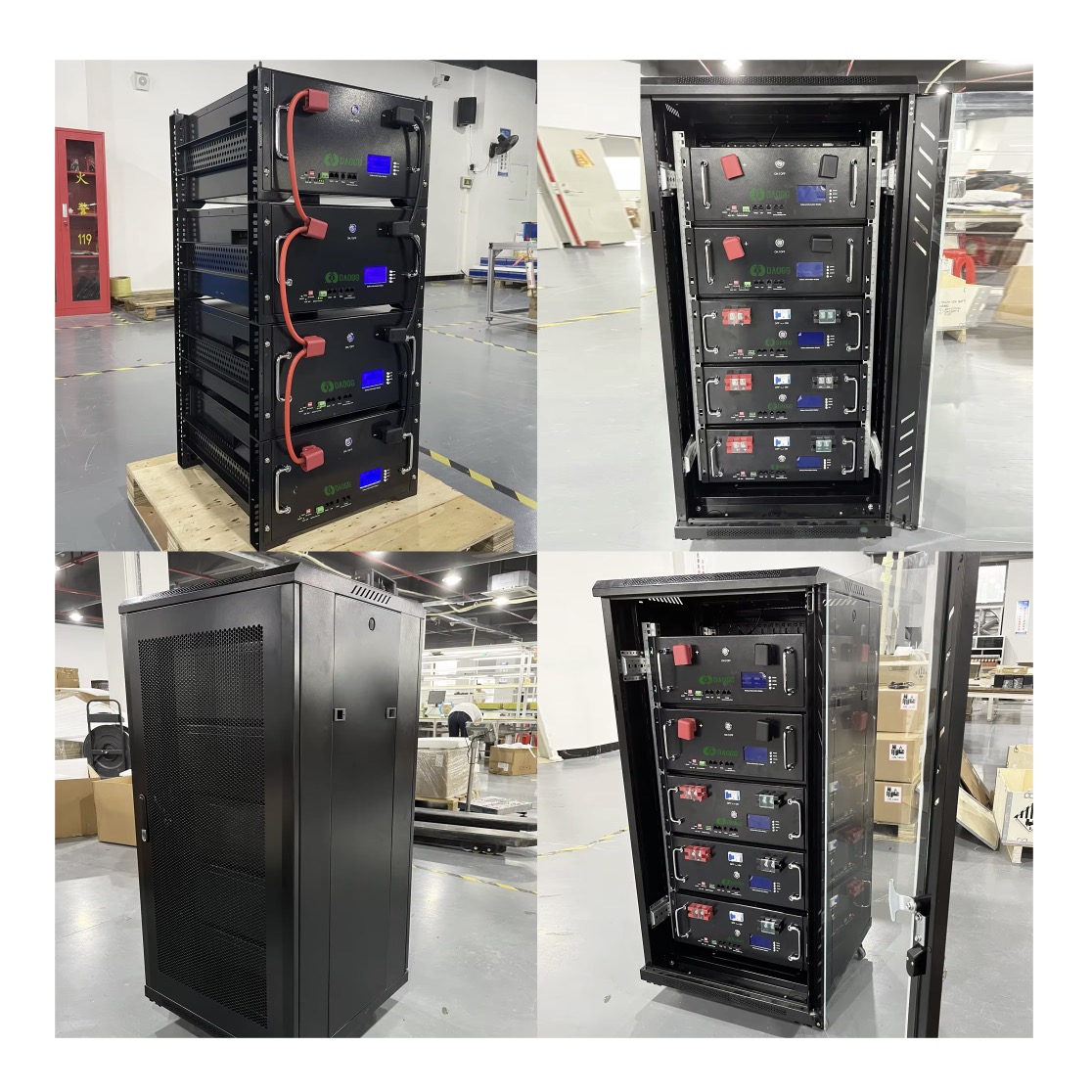

PRODUCT CONFIGURATION
SALES AND SERVICE NETWORK
SIMILAR PRODUCTS
Frequently Asked Questions
1. What applications is the 48V100Ah battery module suitable for?

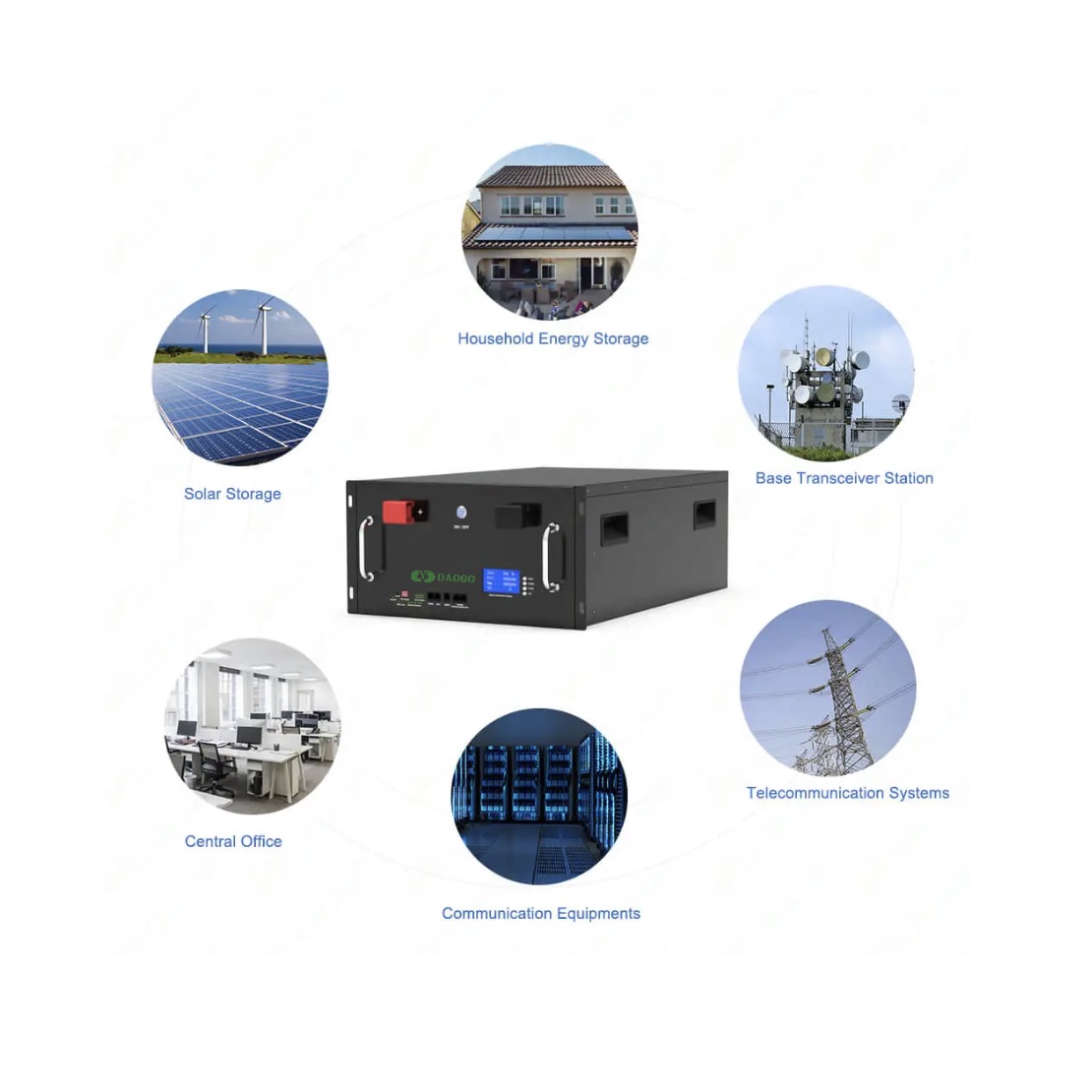

This module is specifically designed for 19-inch rack cabinets used in telecom data centers, BESS (Battery Energy Storage Systems), and UPS applications.
2. Does the battery support automatic protection?
Yes, if one battery module pack breaks, it automatically leaves the system, allowing the other modules to continue working in parallel without interruption.
3. What is the expected cycle life of this battery?
This battery pack features a 6500-cycle full life design, ensuring long-term stability and efficiency.
4. Is the module compatible with cooling systems?
Yes, it is designed to integrate seamlessly with both Air Conditioner cooling systems and Liquid Cooling units common in data center environments.
5. What communication protocols does it support?
The module supports standard CAN and RS485 communication interfaces for easy system integration.
