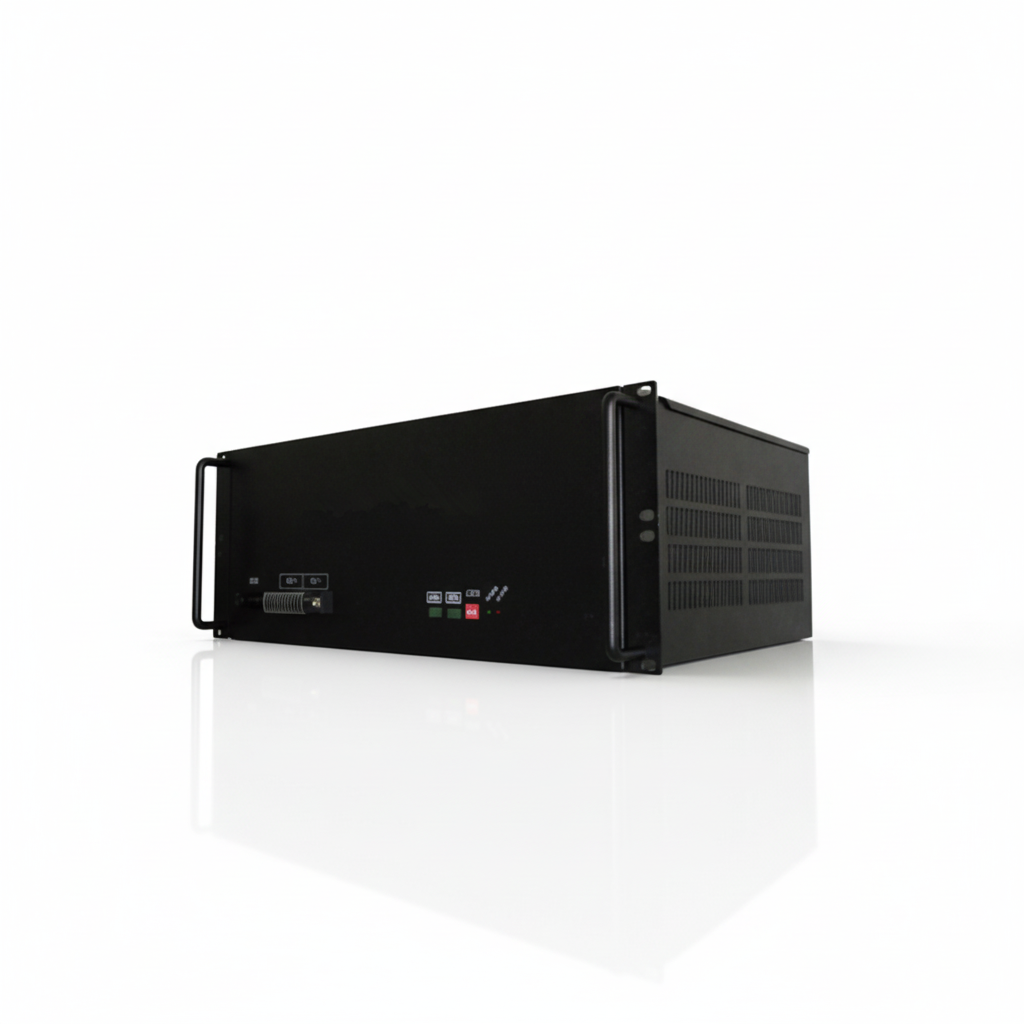

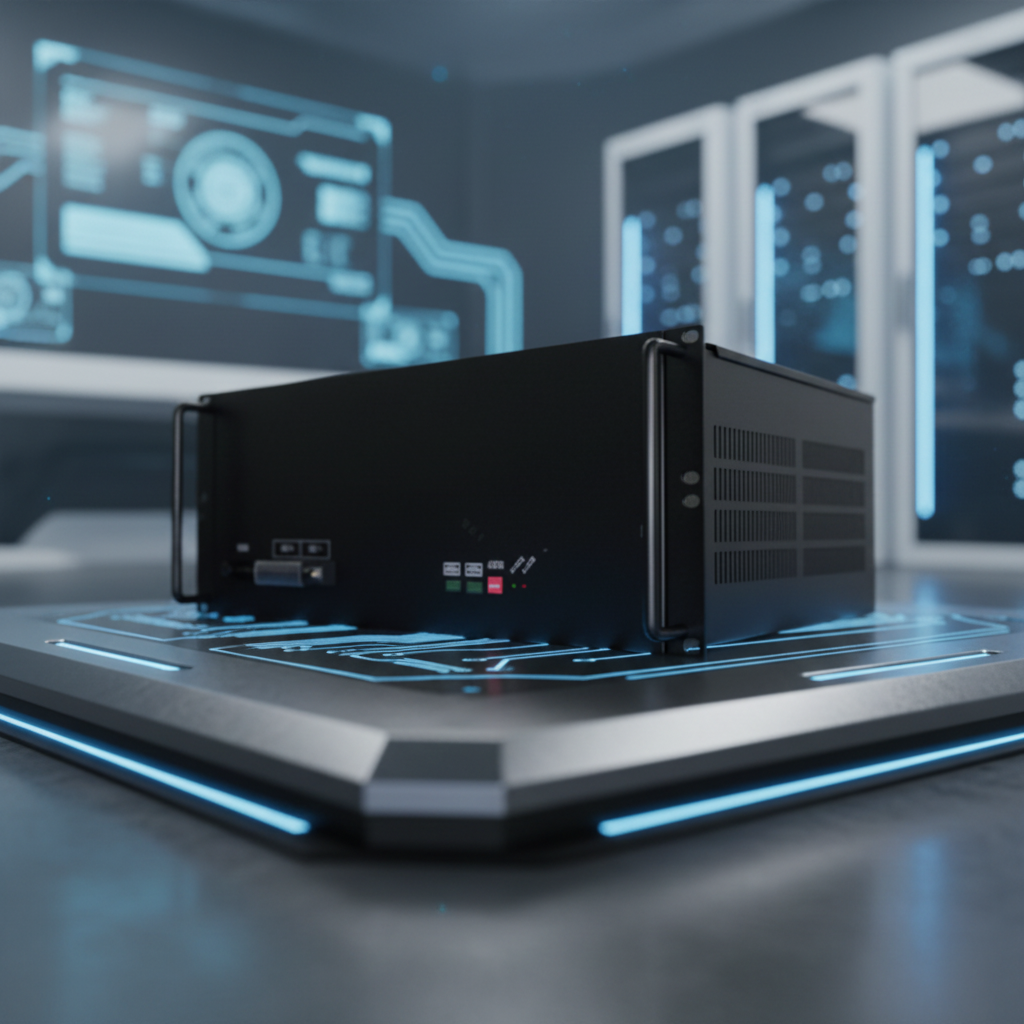

HT-LFP48150 is an intelligent energy storage module based on innovative Li-ion technology. It is especially designed for telecom sites with a nominal voltage of 48V and a capacity of 150Ah. It has the following advanced features: wide range of charging voltage, fast charging and long lifespan. When operated with compatible telecom power supply systems, it also has multiple features such as preferential discharge of Li-ion energy storage module and health management.
Our products are widely used in communications and telecommunications, general-purpose servers, edge computing servers, AI GPU mainframe servers, and data center equipment and industries, becoming a trusted power solution provider in the industry.
Leveraging years of application experience in the telecommunications power supply industry, we utilize the latest control technologies and materials to provide efficient and high-quality telecommunications power products to customers worldwide. Our product series covers telecommunications modules, embedded power supplies, indoor cabinets, outdoor cabinets, outdoor blade power supplies, site monitoring units, and PDUs.
| Product Model | HT-LFP48150 |
|---|---|
| Cathode Material | LiFePO4 |
| Nominal Voltage | 48VDC |
| Nominal Charging Voltage | 53.5VDC |
| Max. Charging/Discharging Current Limited | 100A/120A @ 25ºC |
| Cycle Life | 3500 cycles |
| Nominal Capacity | 7200Wh 0.2C, 25ºC |
| Weight | Approx. 76kg |
| Dimension (W*D*H) | 442mm × 560mm × 190mm (excluding mounting ear) |
| Local User Interface | LCD optional |
|---|---|
| Communication Interface | CAN/RS485; 2 dry contacts (fault alarm, low voltage alarm, etc.) |
| Terminal | M6, torque 4 N·m |
| Installation Type | Standard 19” rack |
| Protection | Over temperature, over current, short circuit, over charge/discharge, etc. |
| Certification | CE |
| Design Life | 15 years |
| Storage Temperature | 0ºC ~ 40ºC |
|---|---|
| Transportation Temperature | -40ºC ~ 60ºC |
| Operating Temperature | Charging: 0ºC ~ 45ºC; Discharging: -20ºC ~ 45ºC |
| Relative Humidity | 5% ~ 95% |
| Operating Altitude | 0 ~ 4000m (Each 200m increases in altitude will decrease the working temperature by 1ºC from 2000m to 4000m.) |
We have established deep business cooperation with partners from multiple countries and regions around the world, including the Commonwealth of Independent States, Europe, Southeast Asia, the Middle East, and Africa.
