HUA-WEI 5G Base 51.2V 100ah 150ah Communication Station Solar Backup LiFePO4 Lithium Battery ESM-48100B1 48150B1

1 / 5

HUA-WEI 5G Base 51.2V 100ah 150ah Communication Station Solar Backup LiFePO4 Lithium Battery ESM-48100B1 48150B1

Send Inquiry

Product Description

Specifications

Item	Description
Nominal voltage	48V	48v
Rated capacity	100Ah	150Ah
Battery impedance	≤50 mΩ	≤50 mΩ
Shipment voltage	48~52.65V	48~52.65V

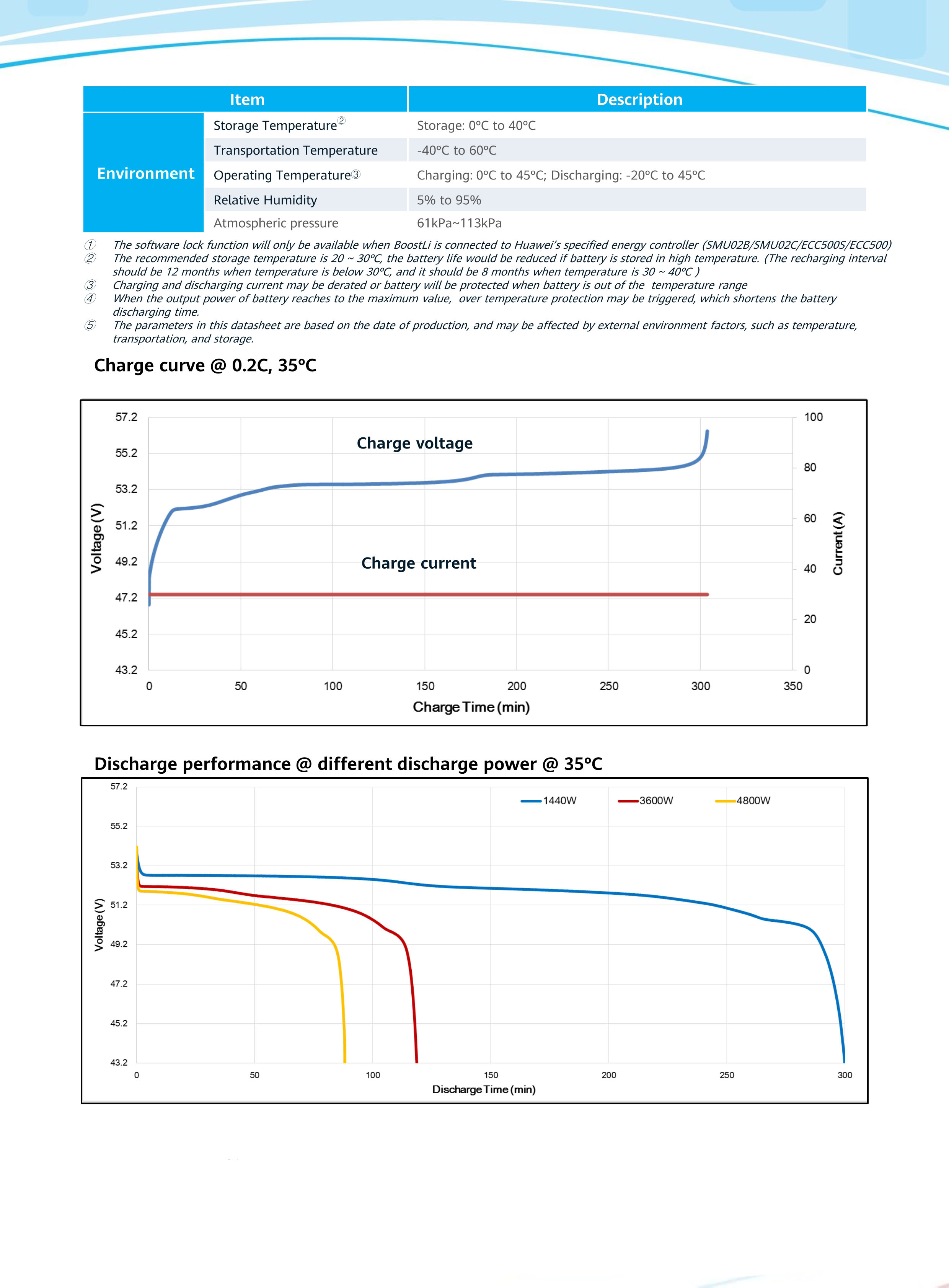

Operating temperature Range	-20~60℃	-20~60℃

Products Description

Product features

19 inch standard rack design, compatible with standard cabinets in telecommunications rooms;
High energy density, light weight, improving space installation utilization;
Supporting RS485 fieldbus protocol, multiple sets of batteries can be simultaneously connected to the FSU dynamic monitoring system;
Adapt to various harsh application environments and save investment in air conditioning equipment;

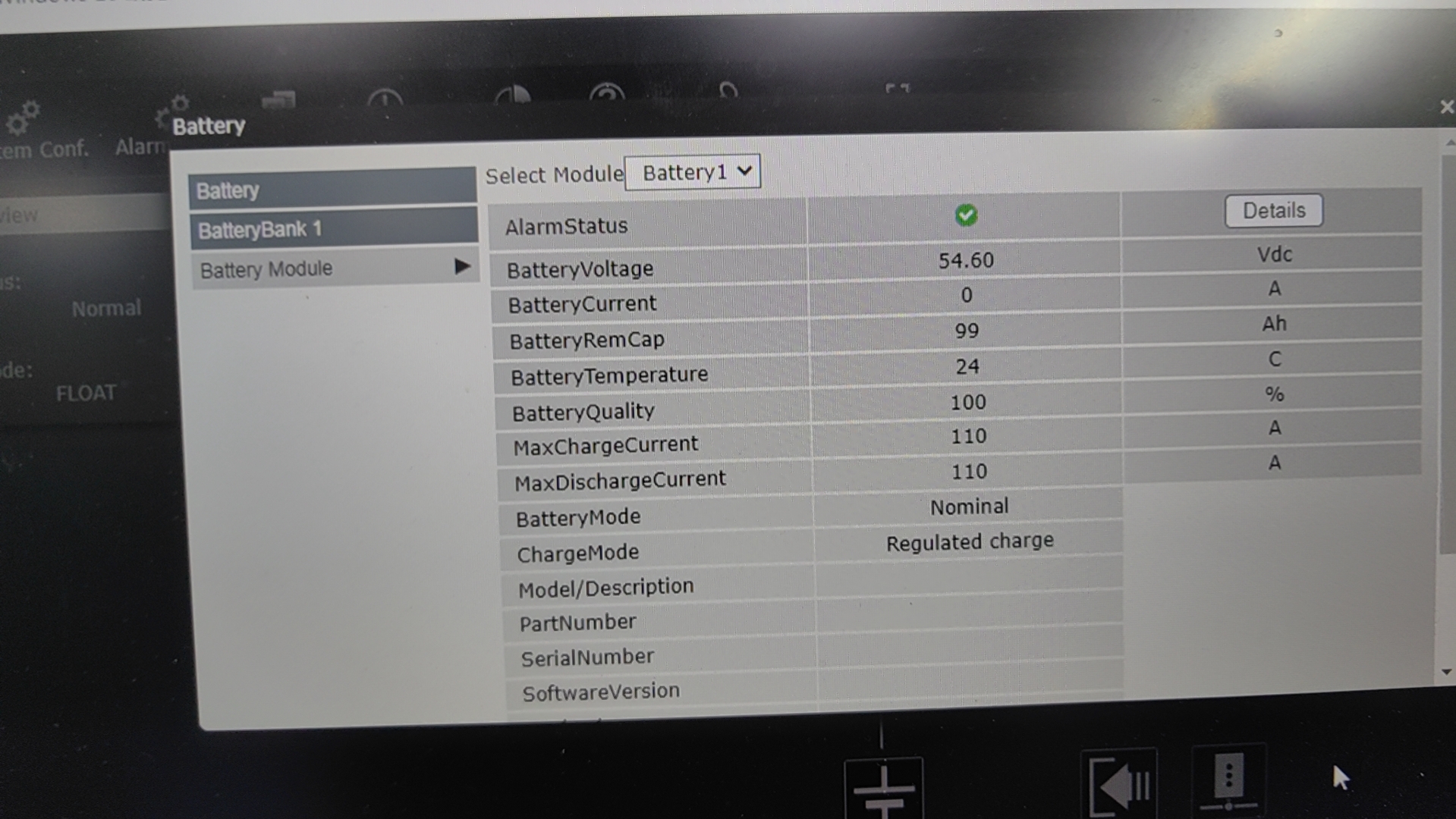

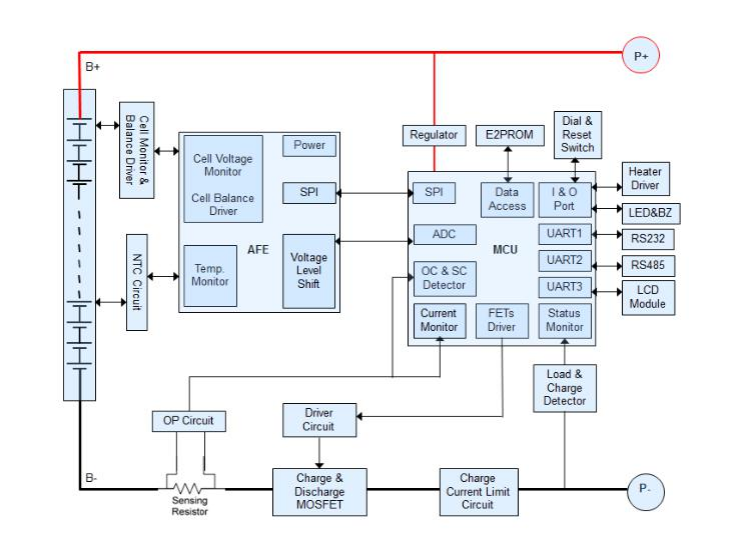

The built-in BMS management system of the battery pack has rich functions and can be used in conjunction with upper computer software to achieve convenient management of the battery;
Matching the existing switch power supply system in the computer room, there is no need to adjust the charging and discharging parameters.

to connect and can solve the discharge unbalance problem caused by multiple sets of parallel connection.

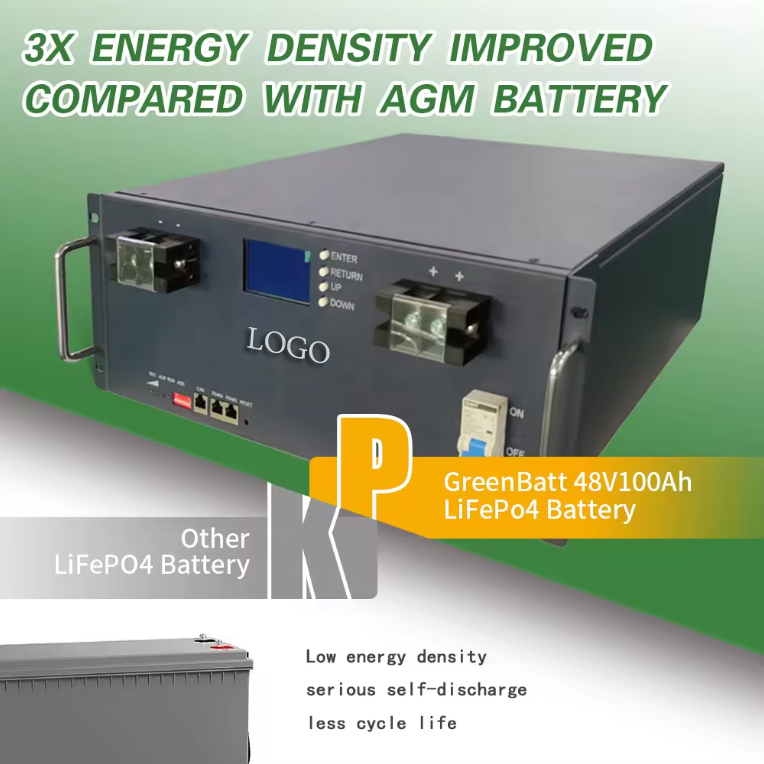

Increased energy in given space

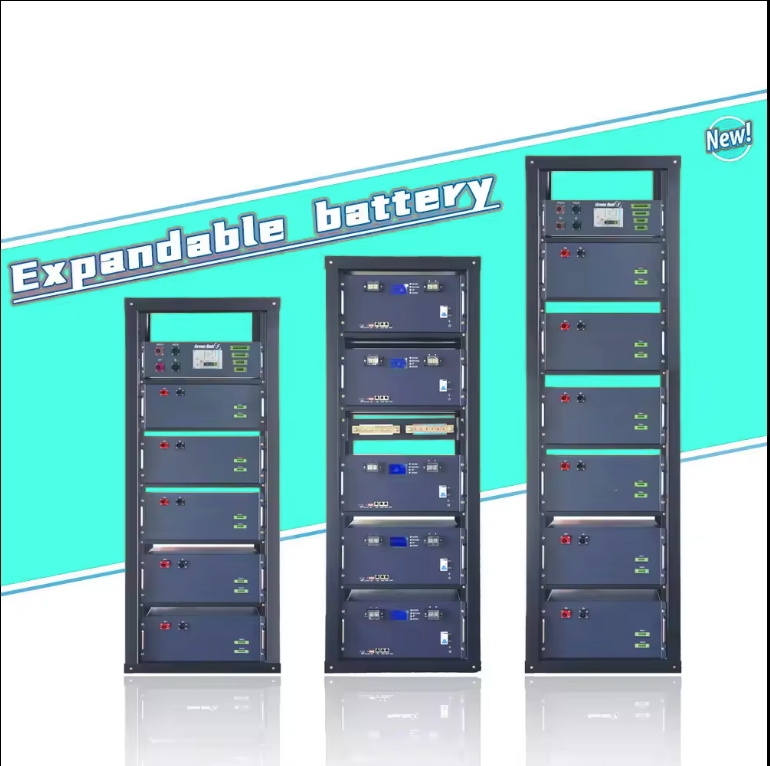

Easy installation and upscaling
High operational reliability
Optimized supervision strategy through remote control/diagnostic
Excellent long life time

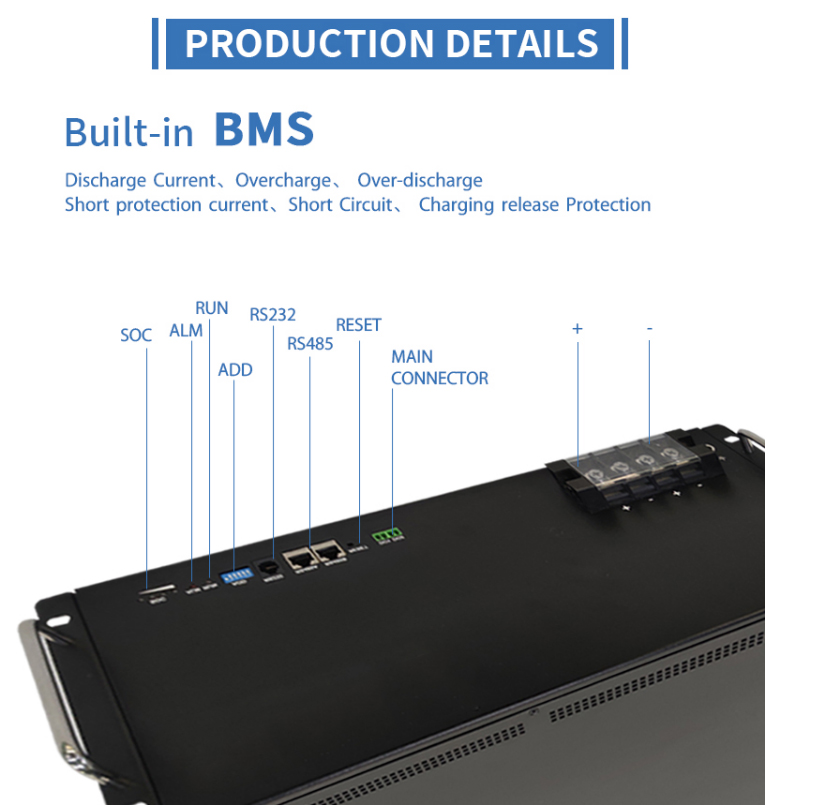

Built-in intelligent BMS to protect the battery pack at any time and prolong its service life

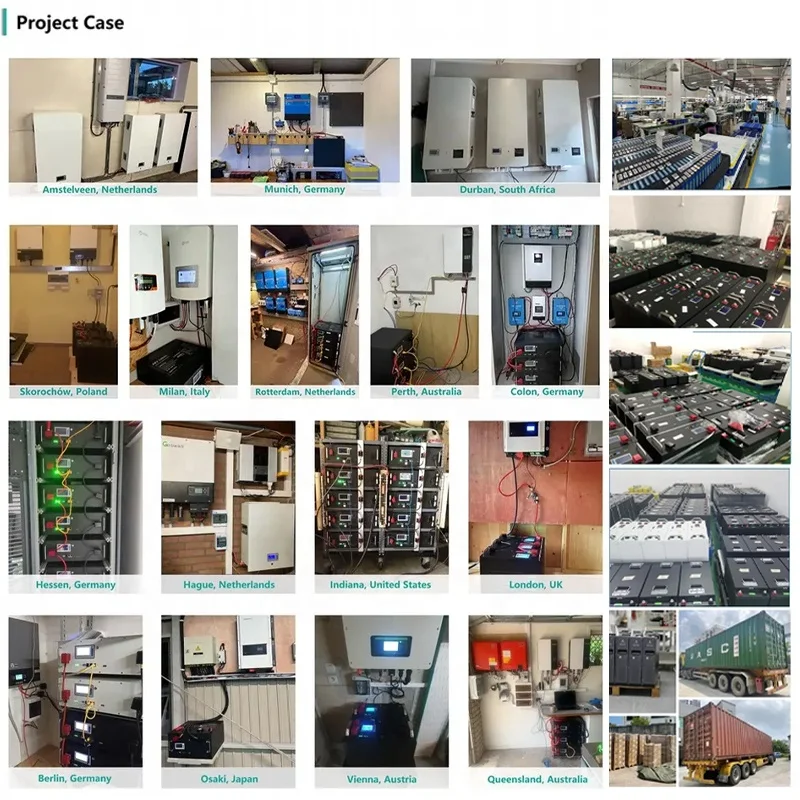

Application Scenarios

Backup Power Supply For FTTB,FTTH,ONU,EPON
Applicable to stable grid, half-grid and other scenes

FAQ

Is the battery used in the battery pack grade A?

Yes, we only use Grade A and Brand new cells inside.

Do you test and match the battery before installing the battery pack?

Yes, every cell will be tested capacity, IR, voltage to surely match. Voltage: The deviation less than 0.01V. Resistance: The deviation less than 0.1mΩ. Capacity: Tested and label the data on each cell.

How do I store my batteries?

When the product is not in use for a long time, it should be stored in a dry, clean and well-ventilated warehouse at 10°C~35°C, avoiding inflammable and explosive materials; the battery pack should be charged and maintained regularly every three months to ensure that the battery best performance state.

What is the cycle life of the battery?

6000 cycle life @80% DOD.

What's the warranty of your 48V/51.2V battery pack?

5 years warranty, if there is broken item under quality problem within warranty time, we will offer free replacements or refund, up to your needs.

Do your batteries support series or parallel connection?

Our 48V battery packs support up to 15pcs in parallel, if you need series connection, please contact our sales staff.
