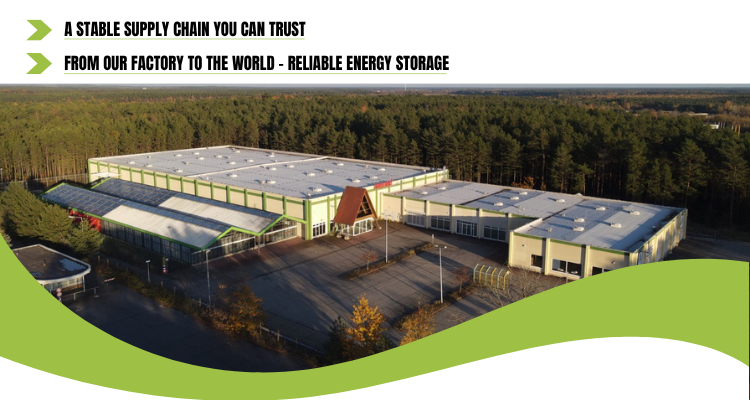

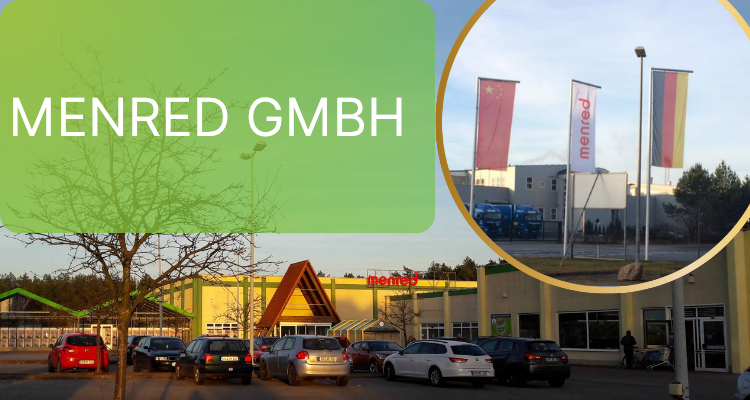

We are located near Berlin, Germany, just 148 kilometers away from Berlin Airport. With our 8000 square meter factory, we have a dedicated exhibition area, logistics center, and warehouse.
We guarantee that orders received before 5:00 PM will be processed and confirmed, and we offer the convenience of on-site pickup and access to our showroom.
Our energy storage division is focused on sustainable energy storage technologies. Our products — designed for residential and small commercial applications — are engineered and manufactured to German-quality standards.
Available for eligible business customers (a valid EU VAT number is required).

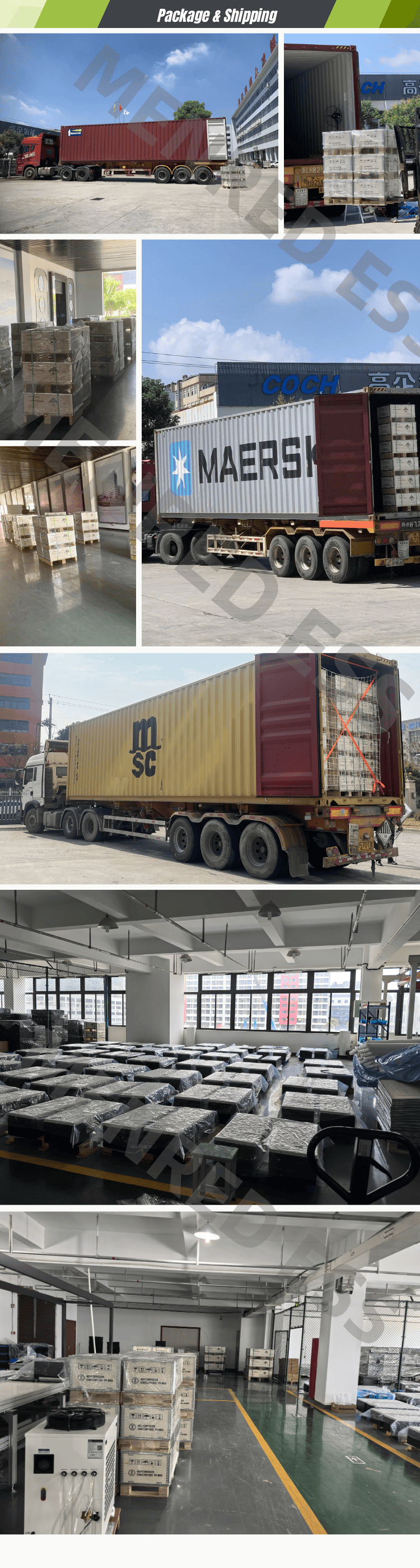

Dispatched from our warehouse in Germany — ensuring reliable supply and seamless integration for installers, distributors, and EPCs globally.

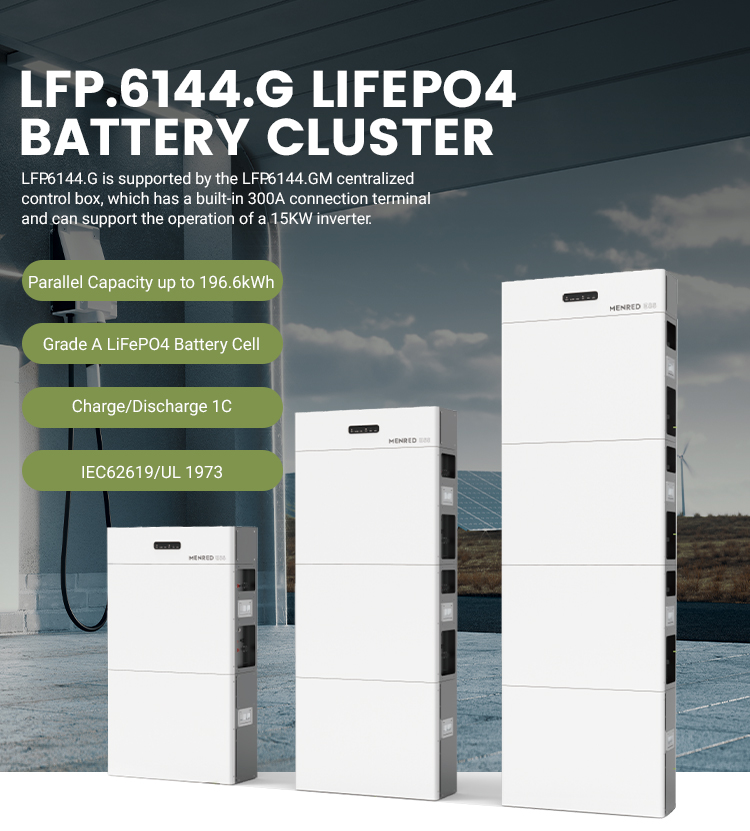

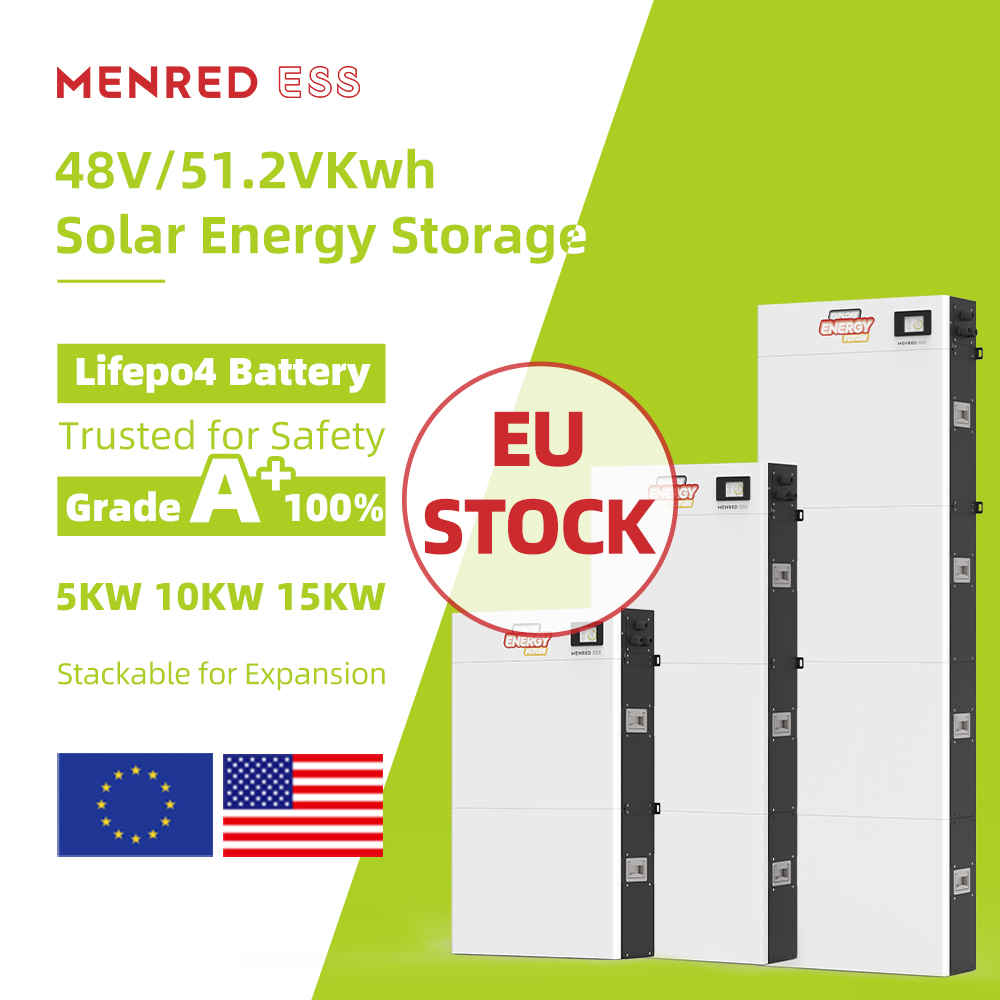

| Model | LFP.6144.G2 | LFP.6144.G3 | LFP.6144.G4 |
| Battery Cell | Lithium Iron Phosphate (cobalt-free) - LiFePO4 | ||
| Energy Capacity | 12.28kWh | 18.43kWh | 24.57kWh |
| Usable Capacity | 11.66kWh (DoD 95%) | 17.50kWh (DoD 95%) | 23.34kWh (DoD 95%) |

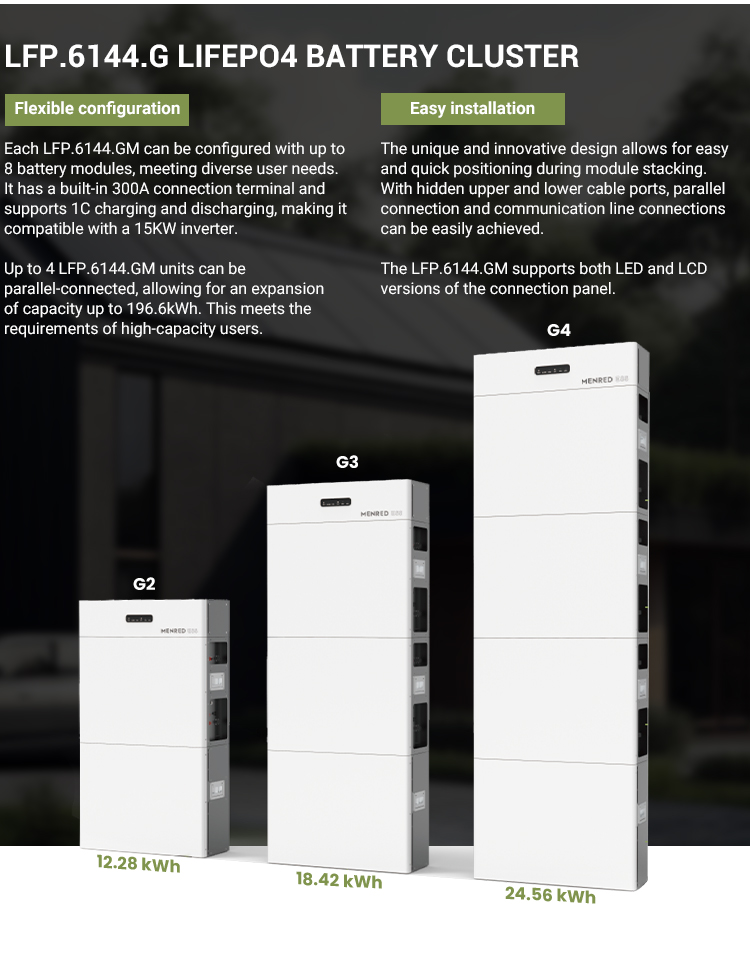

| Assembly Method | 1 Parallel Control Box and 2 Battery Packs | 1 Parallel Control Box and 3 Battery Packs | 1 Parallel Control Box and 4 Battery Packs |
| Nominal Voltage | 51.2Vdc | ||
| Operate Voltage Range | 44.8Vdc - 57.6Vdc | ||
| Max Charge Current | 240Amp Max @ 12kW inverter | 300Amp Max @ 15kW inverter | |
| Max Discharge Current | 240Amp Max @ 12kW Grid or PV Charge | 300Amp Max @ 15kW Grid or PV Charge | |

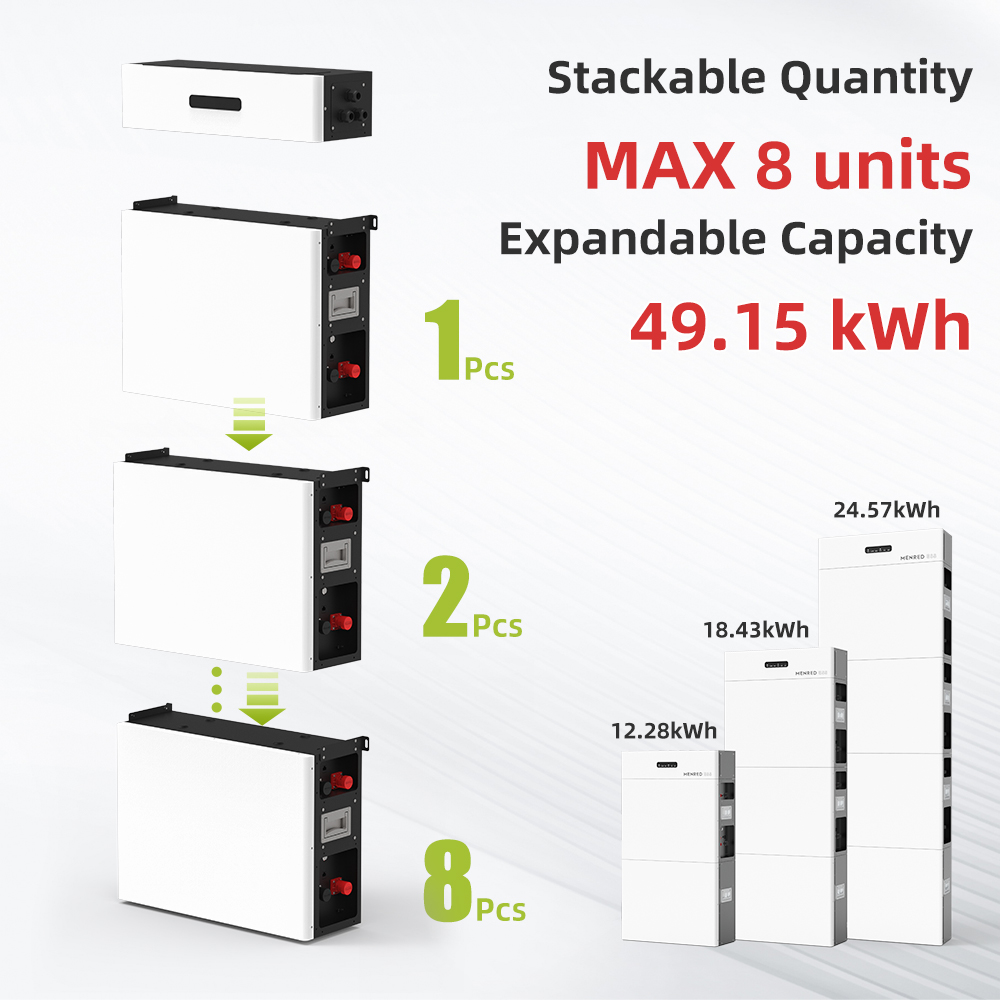

| Max Parallel | 4PCS to 49.12kWh | 4PCS to 73.72kWh | 4PCS to 98.28kWh |
| Cycle Life | ≥6000 times @ 1C 0.5C & 25±2°C | ||
| Operate Temperature | Battery discharge: -10°C to +50°C, Battery Charge: 0°C to +50°C | ||
| Warranty | 5 Years / 10 Years (Option) | ||
| IP Grade | IP21 (Indoor) | ||
| Installation | Floor Stand Installation | ||
| Communication Port | CAN / RS485 | ||
| BMS Monitoring | SOC, System Voltage, I/O Current, Cell Voltage, Cell Temp, Battery Status, Fault code | ||
| Support Inverter Brands |
CAN: Victron V1.0 / SMA V2.0 / Studer V1.03 / CNBOU V1.0 / PYLON V1.3 / Goodwe V1.5 / SUNGROW V1.3 / Solis V1.0 / SOFAR V1.0 / Growatt V1.05 / Growatt V1.01 / Luxpower V1.0 / Sol-Ark V1.2 / TBB V1.02 / Deye V1.0 / LIVOLTEK V1.0 / Sorotec V1.0 / MEGAREVO V1.01 / Afore V1.0 / Sacolar V1.05 RS 485: PYLON V3.5 / DEYE V1.0 / SRNE V1.3 / Growatt V2.01 / SMKSOLAR V2.01 / EPEVER V1.4 / Voltronic V1.0 |
||
| Product Size (W*D*H) | 600 * 1010 * 210 mm | 600 * 1440 * 220 mm | 600 * 1870 * 220 mm |
| Weight | 140kg | 205kg | 270kg |
Our battery system is equipped with a multi-protocol communication module, supporting communication protocols of over 95% of mainstream inverter brands worldwide.
Seamless Integration
Enables robust handshaking and battery telemetry reporting directly to the centralized EMS system.
