Lithmate lithium lifepo4 deep cycle battery solutions are better suited for campers, RVs, truck campers, caravan, vans, etc. The battery kit solution includes 12v LiFePO4 battery systems, chargers (waterproof optional), and external meters.
Neutral solutions and customized solutions are optional. Lithmate maintains long-term cooperation with major RV battery wholesalers in the US, Europe, and other countries. We are professionals in providing OEM solutions for our clients as well.

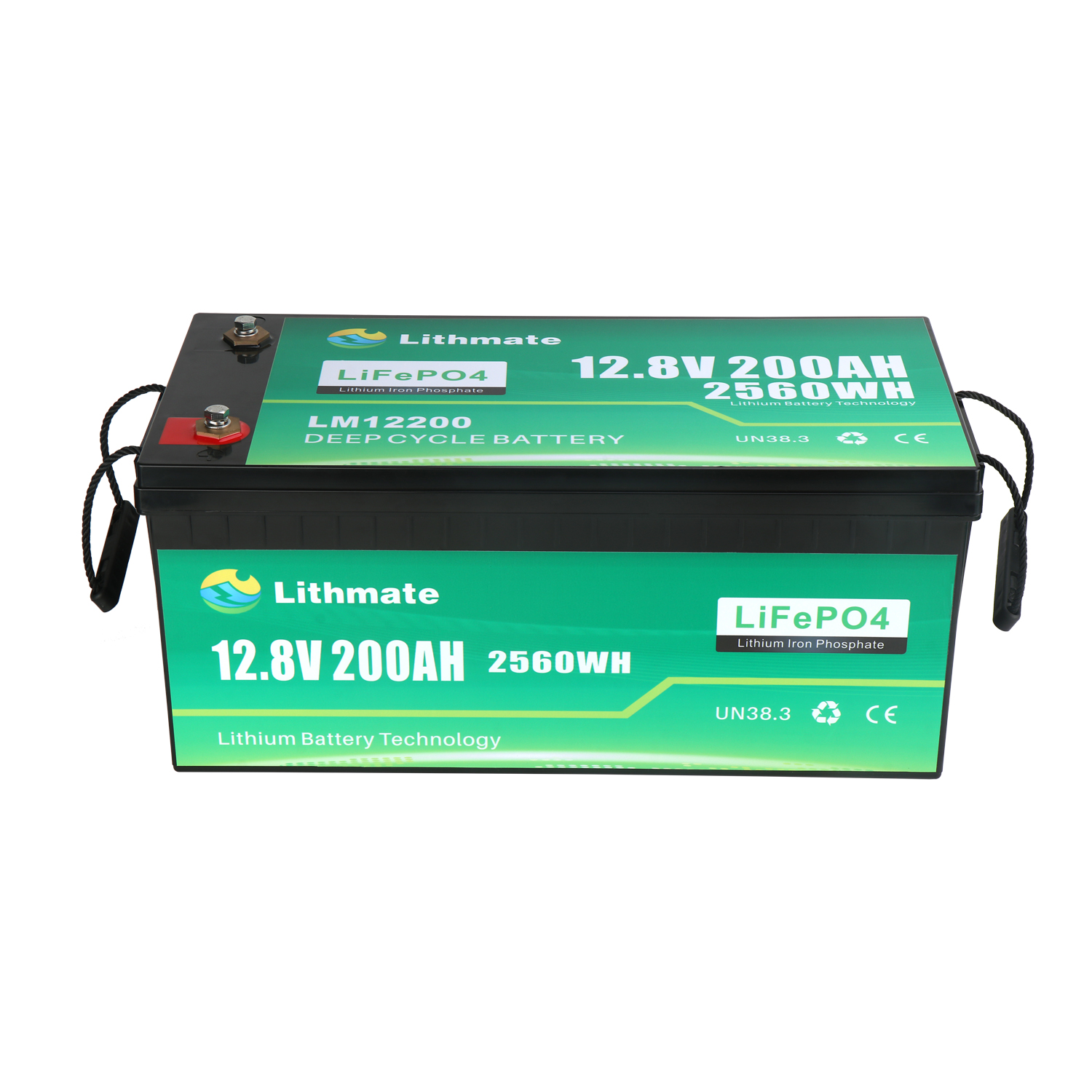

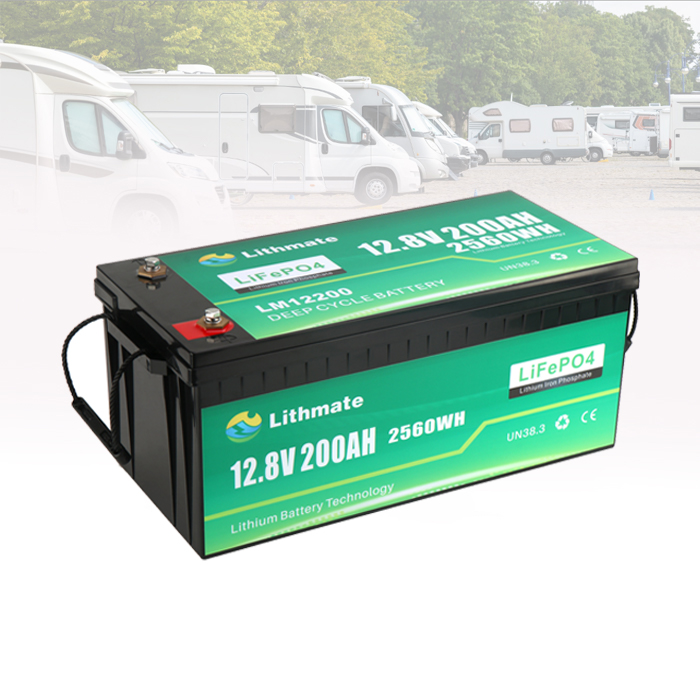

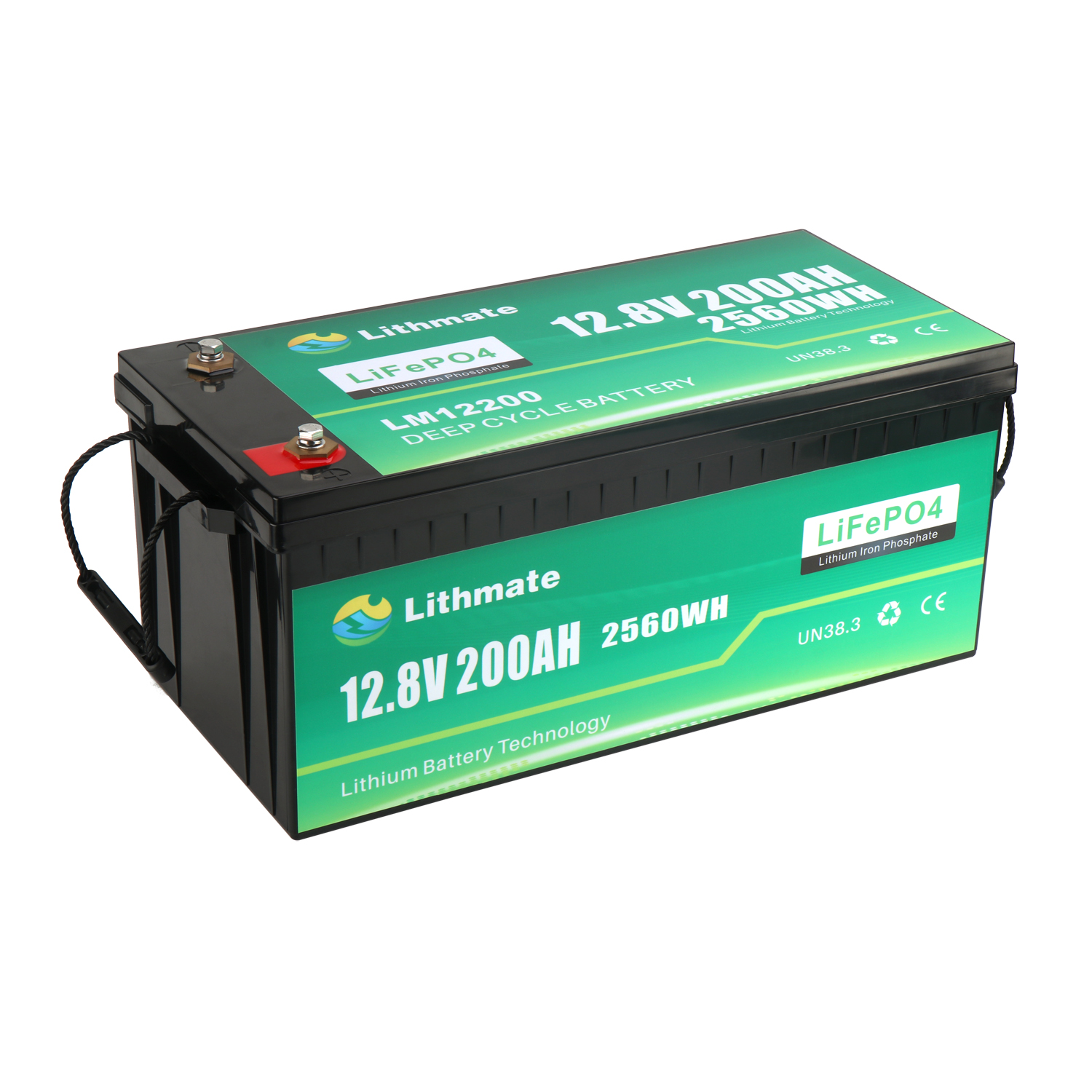

| Specification | Parameter | LM12200 |
|---|---|---|
| Nominal | Voltage | 12.8V |
| Capacity | 200Ah | |
| Physical | Dimension | 525*239*220mm (20.67x9.41x8.66") |
| Weight | 21.6KG (47.6lb) | |
| Terminal type | M8 | |
| Electrical | Charge Voltage | 14.6V |
| Cut-off Voltage | 10V | |
| Constant charge Current | 100A | |
| Continuous Discharge current | 150A | |
| Peak Discharge Current | 300A | |
| Others | Working Temperature | -20-65℃ |
| Storage Temperature | 0-45℃ | |
| Cycle Life | >4000 Cycles | |

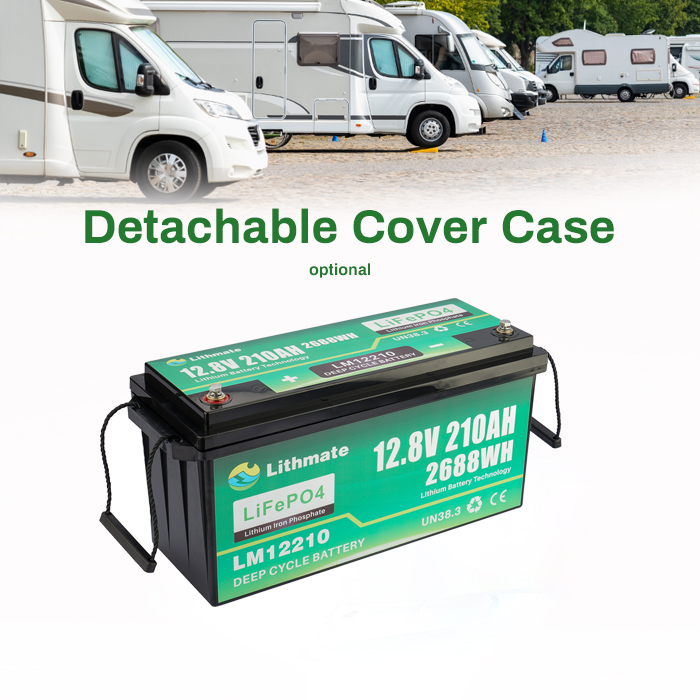

| Functions optional | BT monitoring/Remote diagnosis and upgrade/ Pre-heating/Detachable Cover | |

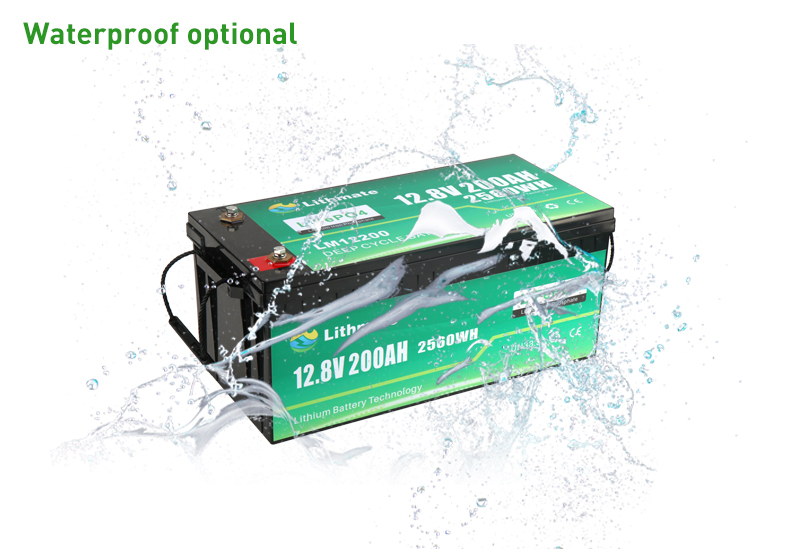

A waterproof fishing boat battery is a specialized type of battery designed for use on boats, particularly for powering equipment like trolling motors, fish finders, and other electronics while being resistant to water exposure. These batteries are typically made to withstand harsh marine environments, where moisture, splashes, and even submersion may occur.

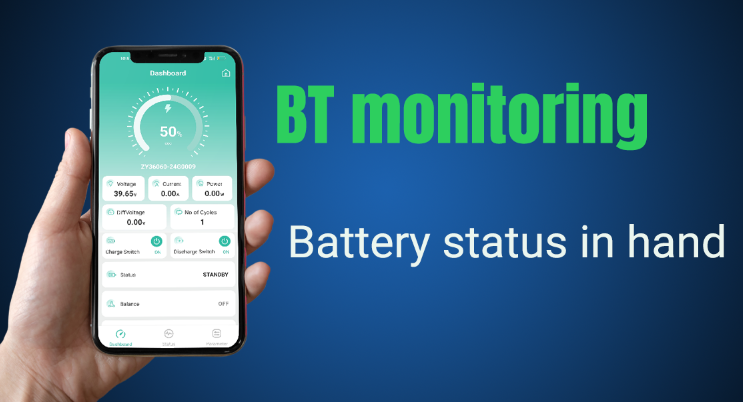

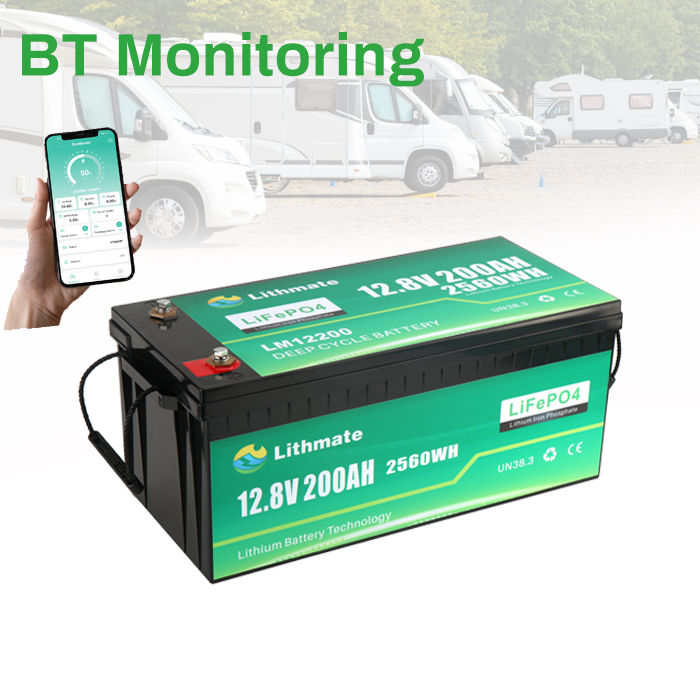

Lithmate batteries are with BT technology, you can read batteries real-time data: Through a smartphone app, users can monitor battery performance, including voltage, current, state of charge (SOC), temperature, and overall health.
Users can send the historical data of the battery through the BT mobile APP, allowing for the analysis of battery data and troubleshooting of any issues. Furthermore, it can facilitate the remote upgrading of the Battery Management System (BMS), aiding in resolving after-sales problems.

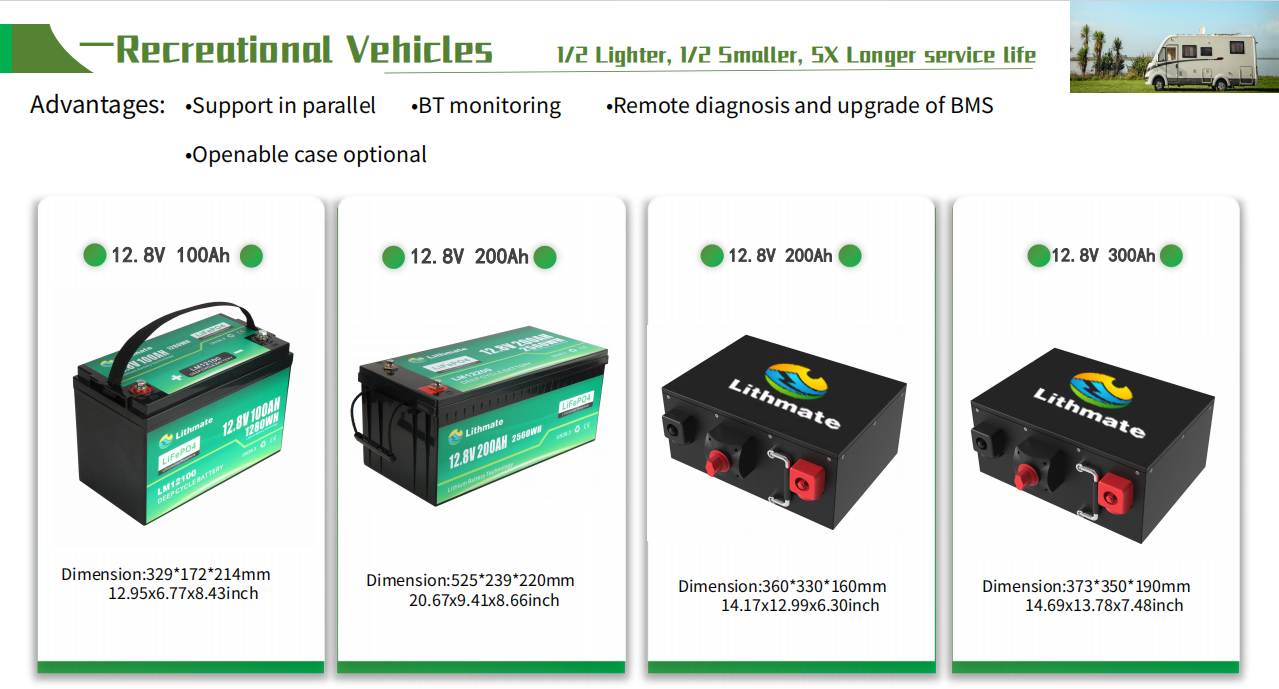

| Model | Voltage | Capacity | Size | Weight |
|---|---|---|---|---|

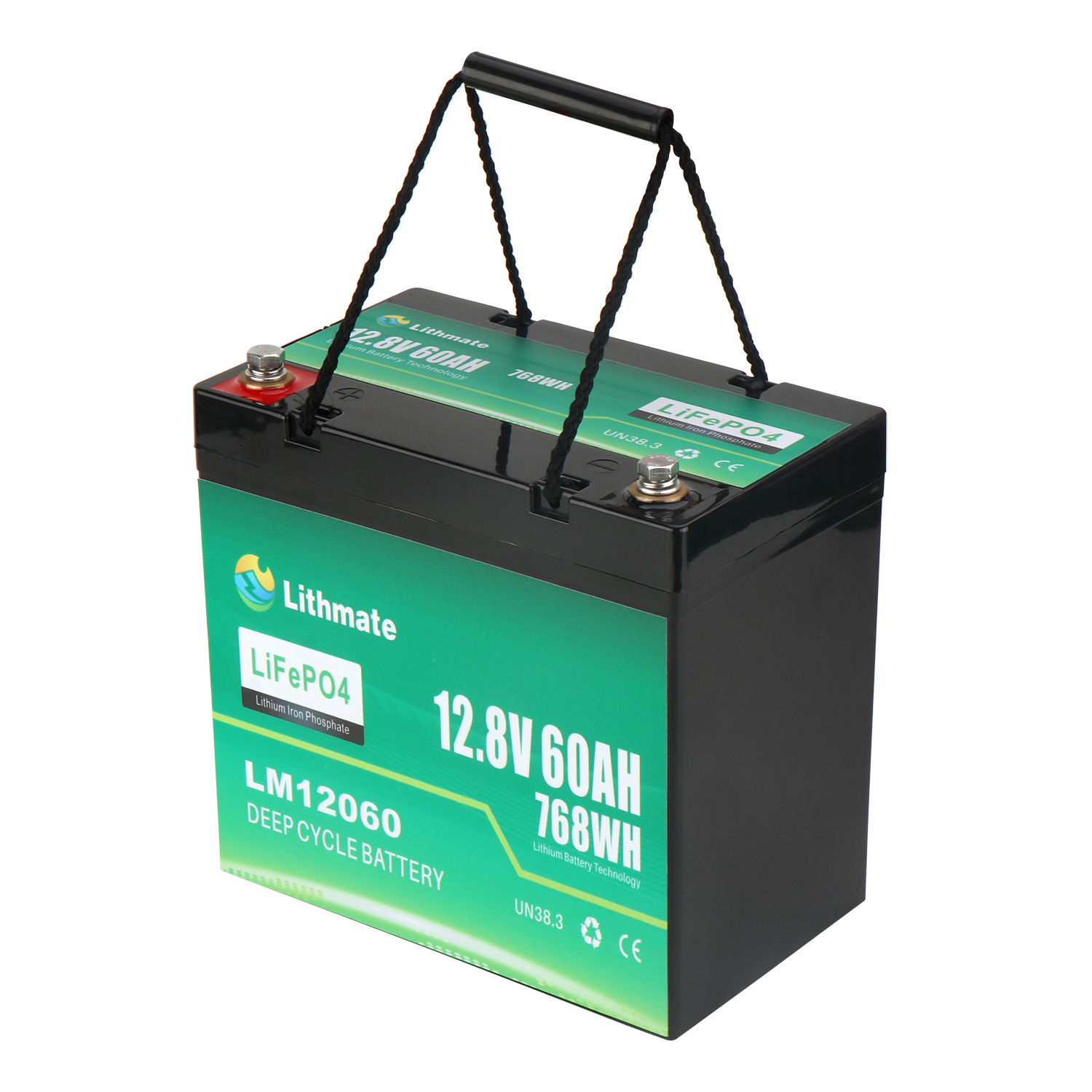

| LM12060 | 12.8V | 60Ah | 229*138*208mm (9.02x5.43x8.19") | 7.9KG (17.4lb) |
| LM12100 | 12.8V | 100Ah | 329*172*214mm (12.95x6.77x8.43") | 11.2KG (24.7lb) |

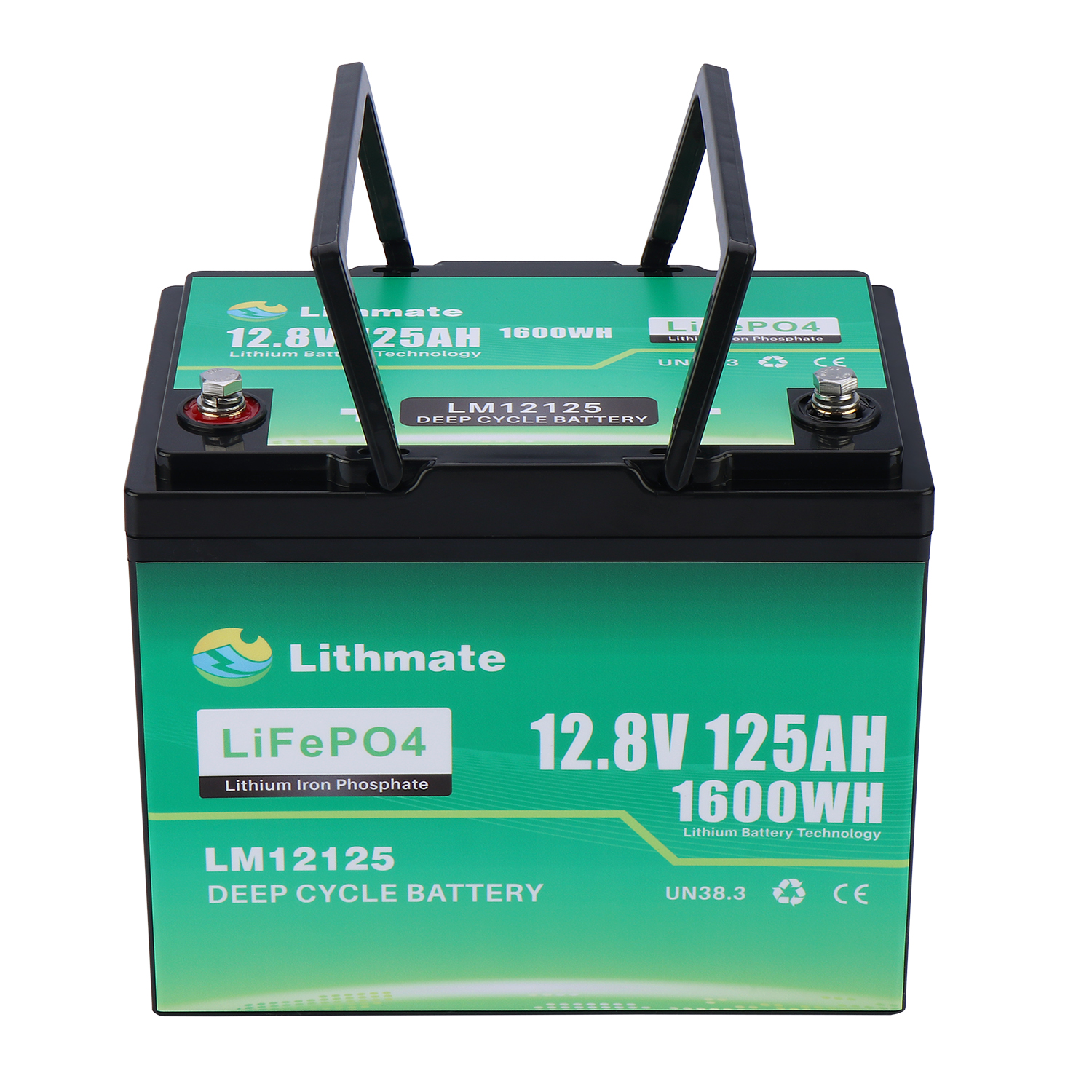

| LM12125 | 12.8V | 125Ah | 260*168*209mm (10.24x6.61x8.23") | 14.5KG (31.97lb) |
| LM12200-2 | 12.8V | 200Ah | 345*190*245mm (13.58x7.48x9.65") | 20.6KG (45.4lb) |

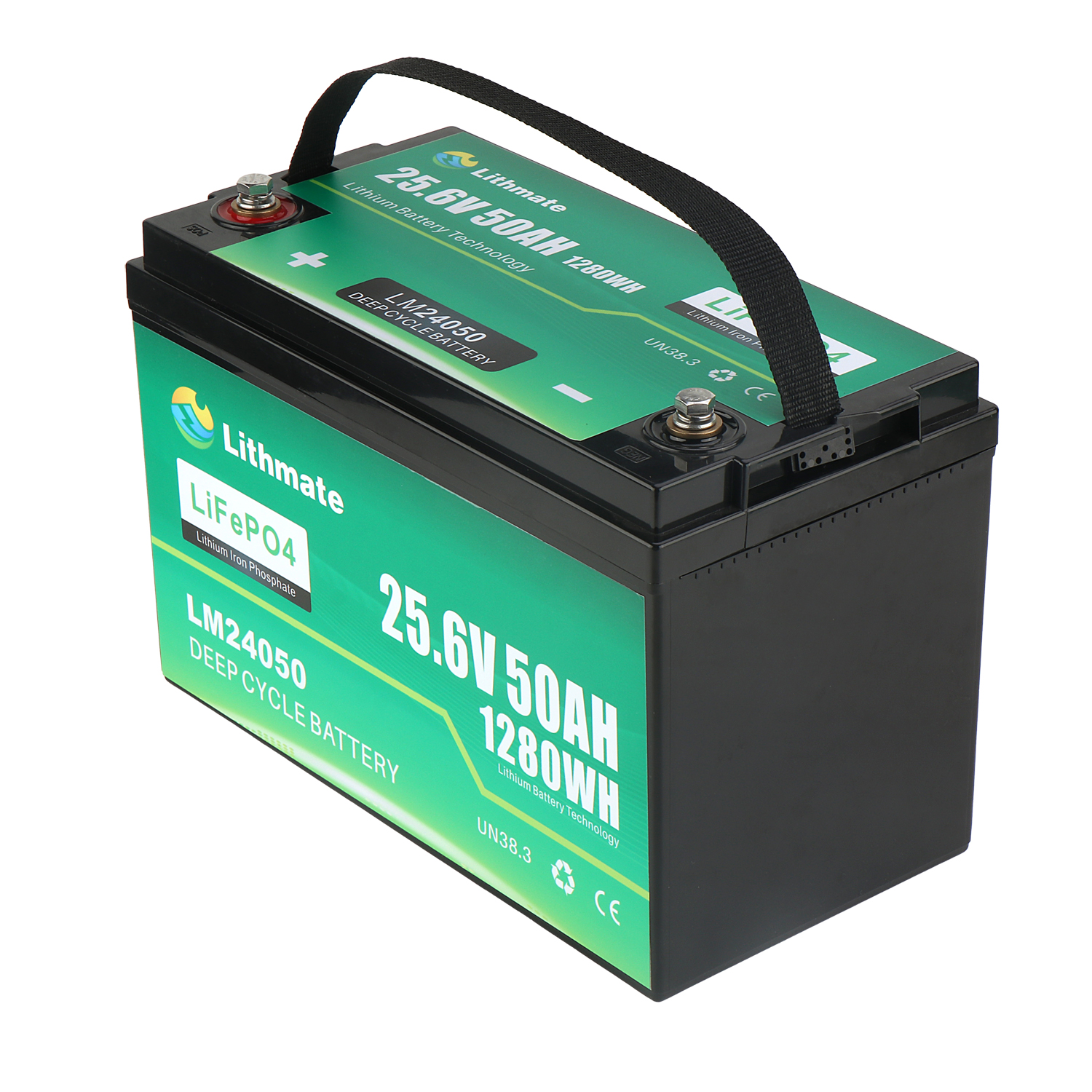

| LM24050 | 25.6V | 50Ah | 329*172*214mm (12.95x6.77x8.43") | 11.8KG (26lb) |
| LM24060 | 25.6V | 60Ah | 329*172*214mm (12.95x6.77x8.43") | 11.5KG (25.4lb) |
| LM24100 | 25.6V | 100Ah | 525*239*220mm (20.67x9.41x8.66") | 21.6KG (47.6lb) |
| LM36040 | 38.4V | 40Ah | 329*172*214mm (12.95x6.77x8.43") | 14.5KG (32lb) |

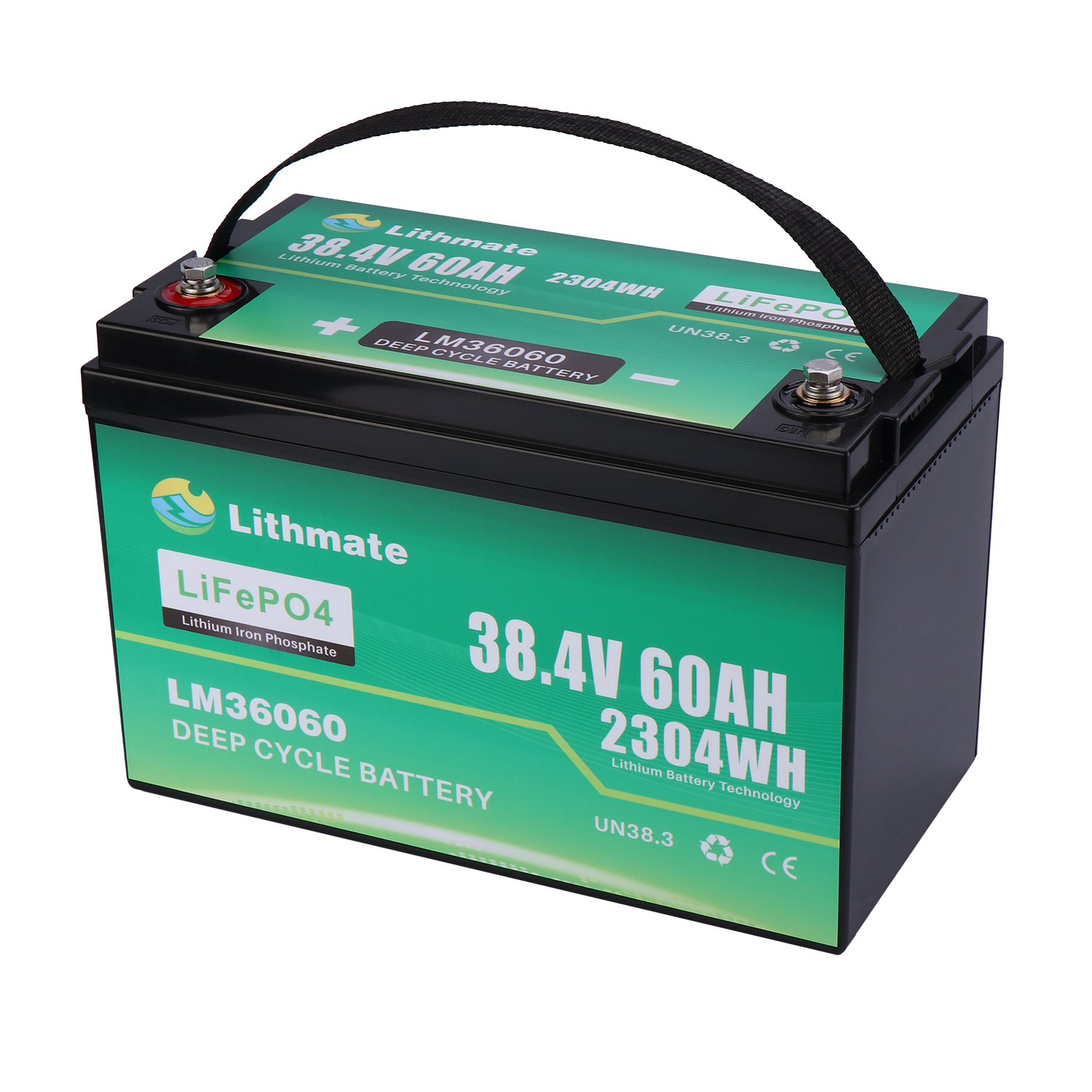

| LM36060 | 38.4V | 60Ah | 329*172*214mm (12.95x6.77x8.43") | 17.3KG (38.1lb) |
| LM36100 | 38.4V | 100Ah | 525*270*220mm (20.67x10.63x8.66") | 35.9KG (79.1lb) |
With advanced lithium iron phosphate (LiFePO4)technology, the batteries deliver zero maintenance, safer performance, stronger power, lighter weight, and 4 times longer run time than lead-acid batteries.
Our technical R&D team comes with CATL, BYD, HUAWEI, and EVE, with over 16 years of industry experience. Leveraging advanced lithium technologies, we have obtained more than 100 technology patents in BMS, battery module, battery connect structure, and earned the title of National High-tech Enterprise. We can achieve many complex battery systems. We not only provide standard solutions but also customized solutions and complete kit battery systems.
Cylindrical cells or prismatic cells and cells models optional, such as the 32650, 32700, 26650, etc.
The internal and external structure customization of battery module, make batteries best fit for the application.
Battery Management System Customization, such as customize the charge and discharge current, support high power output, fast charge, battery protection system settings, etc.
According to your needs, we can customize the battery size that is more suitable for the actual application or the same in energy, but smaller in size.

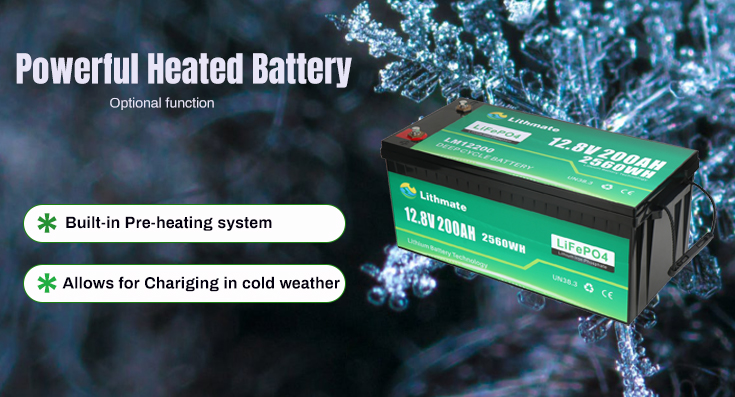

We can provide more intelligent Batteries, such as BT monitoring, remote diagnosis and upgradation, Self-heating, emergency start, etc.
ABS case or Metal Case, the case colors, and package, etc.
