Lithium Polymer Battery Li Polymer Battery Lithium Ion Polymer Battery Liion Battery Rechargeable Lithium Battery Energy Storage Battery for Uav or Drone
1 / 5

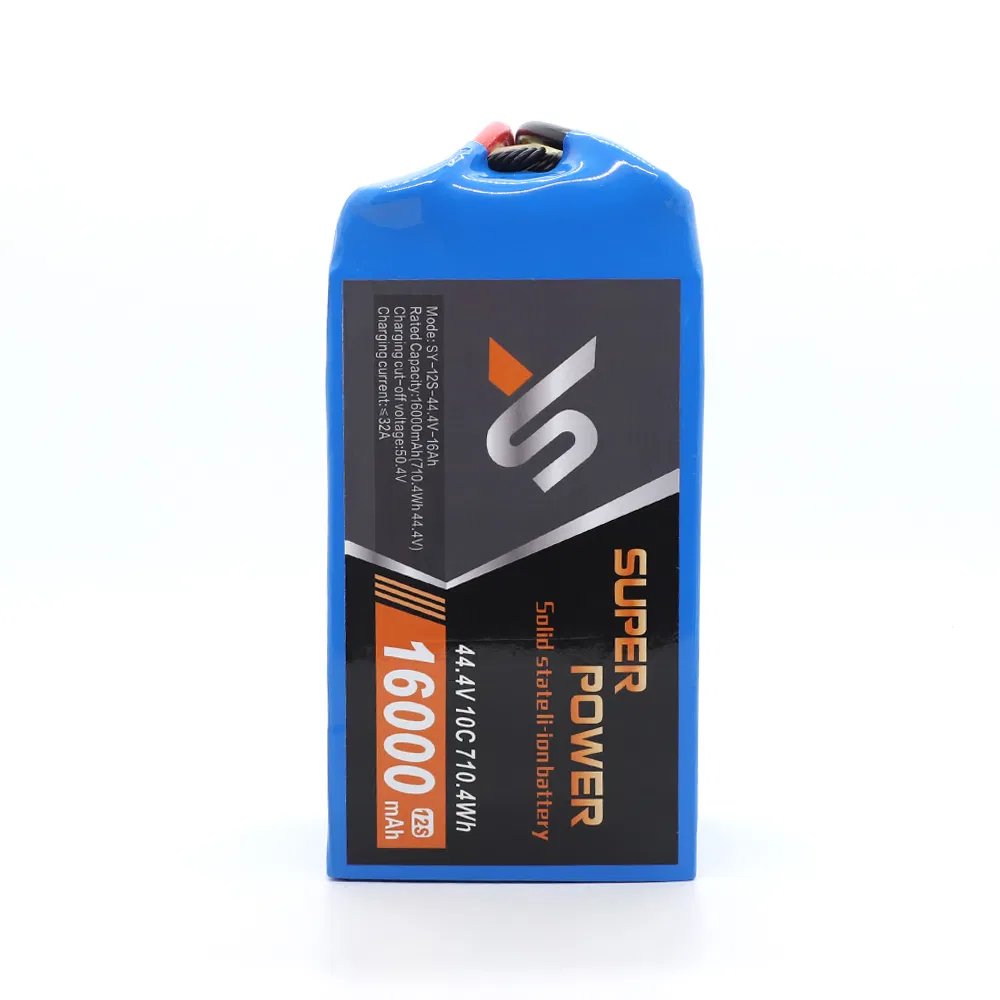

Lithium Polymer Battery Li Polymer Battery Lithium Ion Polymer Battery Liion Battery Rechargeable Lithium Battery Energy Storage Battery for Uav or Drone
The international leading solid-state battery technology enables the battery to have higher energy density, better safety and longer cycle life (1800 cycles). Advanced intelligent manufacturing processes guarantee the high consistency of the cell, delivering excellent energy density, stable magnification characteristics, and surging power.
Highlights:
Waterproof treatment, making it resilient in wind and rain.
Widely used in firefighting, inspection, surveying, mapping, and various other fields.
Optimized capacity-to-weight ratio: for the same capacity, our batteries are lighter; for the same weight, they offer higher capacity. Implementing these cells yields a 20% to 35% improvement in overall flight time.
Parameter
Specification Details
Model
SY-12S-44.4V-16Ah
Nominal Capacity
≥16Ah
Nominal Voltage
3.7V
Charging Cut-Off Voltage
50.4V
Discharge Cut-off Voltage
33V
Configuration
12S1P/44.4V
Discharge Rate
10C
Net Weight
2.98kg
Dimensions
195mm Length * 75mm Width * 99mm Height
Connector Type
XT90S-F / AS150-F / ...
Discharge wire
10# / 8# AWG
Charging wire
22# AWG
Charge Rate
0.5C - 2C Recommended (2C Max)
Long Cycle Life
1000 times (0.5C/0.5C; 100% DOD)
500 times (0.5C/3C; 100% DOD)
High-Energy Density
238wh/kg
Lithium Battery Advantages
High Energy Density
Relatively high storage energy density, reaching up to 460-600Wh/kg, which is approximately 6-7 times that of lead-acid batteries.
Extended Service Life
Long functional service life exceeding 6 years. Under specific 1C (100% DOD) charge and discharge cycles, records show up to 10,000 uses for lithium iron phosphate.
High Rated Voltage
Features a high single working voltage of 3.7V or 3.2V, making it highly convenient for assembling complex battery power packs.
High Power Endurance
Capable of supporting 15-30C charge and discharge rates, ideal for high-intensity starting phases and fast acceleration.
Low Self-Discharge
Extremely low self-discharge rate, typically under 1% per month, which is less than 1/20 of standard nickel-metal hydride batteries.
Lightweight Design
The weight for an equivalent volume is only about 1/6 to 1/5 of traditional lead-acid products.
Strong Temperature Adaptability
Operational within environmental temperatures ranging from -20°C to 60°C, and adaptable down to -45°C after specialized process treatment.
Environmentally Friendly
Production, utilization, and disposal stages do not contain or produce toxic heavy metals like lead, mercury, or cadmium.
Capabilities & Customization
Established in 2017, we are a professional manufacturer of solid-state lithium-ion soft pack cells and battery packs offering high energy density (270wh/kg), excellent safety standards, and long cycle lives (800-1000 charge and discharge cycles). The main cell offerings include 16Ah, 22Ah, 27Ah, and 30Ah capacities, supporting versatile battery pack configuration configurations such as 6S, 7S, 12S, 13S, 14S, and more.
The specialized UAV batteries produced significantly improve product endurance, serving a diverse array of clients in the UAV, unmanned aerial vehicle, robotics, and custom industrial sectors. Configuration setups, outlet positions, plug models, and branding options can be fully customized based on client requirements. An advanced higher energy density battery variant (320wh/kg) is aimed for release to systematically address run-time limitations.
Adhering strictly to high-quality standards and client-centric principles, our products are widely distributed throughout domestic regions and exported internationally to India, Europe, South Africa, and other global destinations to build mutually beneficial corporate collaborations.
Frequently Asked Questions
Q1: What are the main applications of these solid-state batteries?
These batteries are widely applied in fire services, inspection operations, surveying, mapping, UAVs, robotics, and various other specialized fields requiring reliable portable power.
Q2: How does the weight and capacity profile benefit UAV flight times?
For the same capacity, these batteries are lighter than traditional cells, and for the same weight, they offer a higher capacity. This performance edge enables a 20% to 35% improvement in overall flight time.
Q3: What parameters can be customized for the battery packs?
We can customize the battery pack assembly/combination method, the wire outlet position, connector plug models, and custom logos according to specific technical demands.
Q4: What is the operating temperature range of these lithium batteries?
The batteries possess strong adaptability to thermal environments and can function within a -20°C to 60°C window. With specialized process treatments, operation can be extended down to -45°C.
Q5: What are the charge and discharge specifications for the SY-12S-44.4V-16Ah model?
This model supports a discharge rate of 10C. The recommended charge rate is 0.5C to 2C, with a maximum charge rate threshold of 2C.
Q6: How long is the expected cycle life of these solid-state cells?
The leading solid-state technology enables a long cycle life of up to 1800 cycles under nominal operating conditions.
