Product Description

Overview Description

Basic Info.

Model NO.LP803450 rechargeable cell

Nominal Voltage3.7V 083450 Li-Polymer Batteries

SizePrismatic

RecyclableRecyclable

Thickness8.0mm

Length50.5mm

Product NameLi-Polymer

ModelLp803450

Anode MaterialNcm

The Charging Ratio0.2c to 0.5c

Battery Size803450 Battery 3.7V

The Discharge Rate1c

Storage Type-20 to +35

Width34.0mm

Weight36g

Transport PackagePP+Cartons

SpecificationRechargeable 803450 1500mah 3.7 Volt Li Polymer

TrademarkOEM

OriginGuangdong, China

HS Code8507600090

Production Capacity5000000 PCS Per Months

Packaging & Delivery

Package Size5.00cm * 5.00cm * 3.00cm

Package Gross Weight0.020kg

Product Description

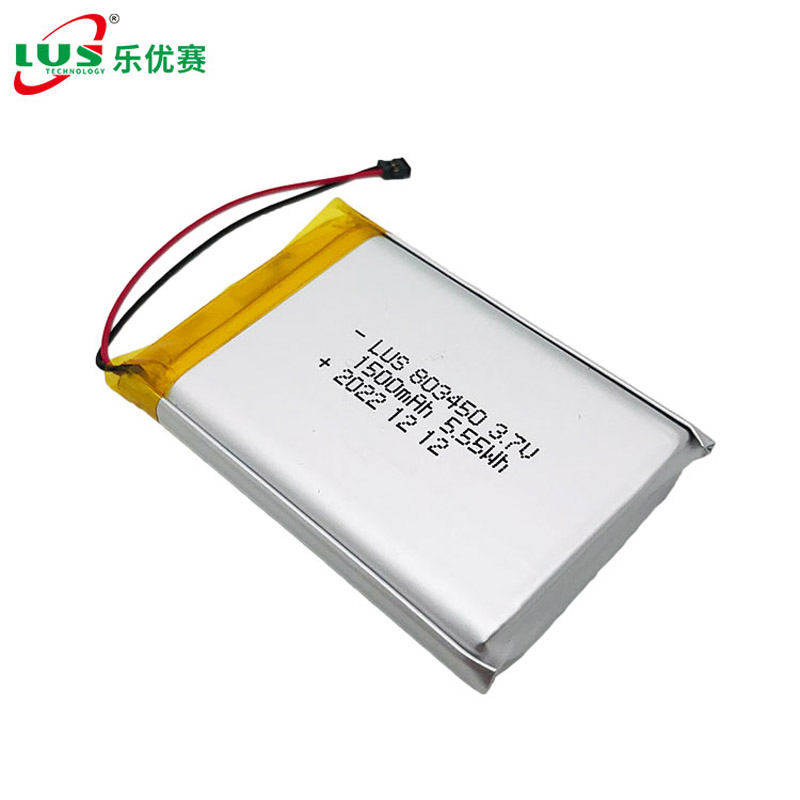

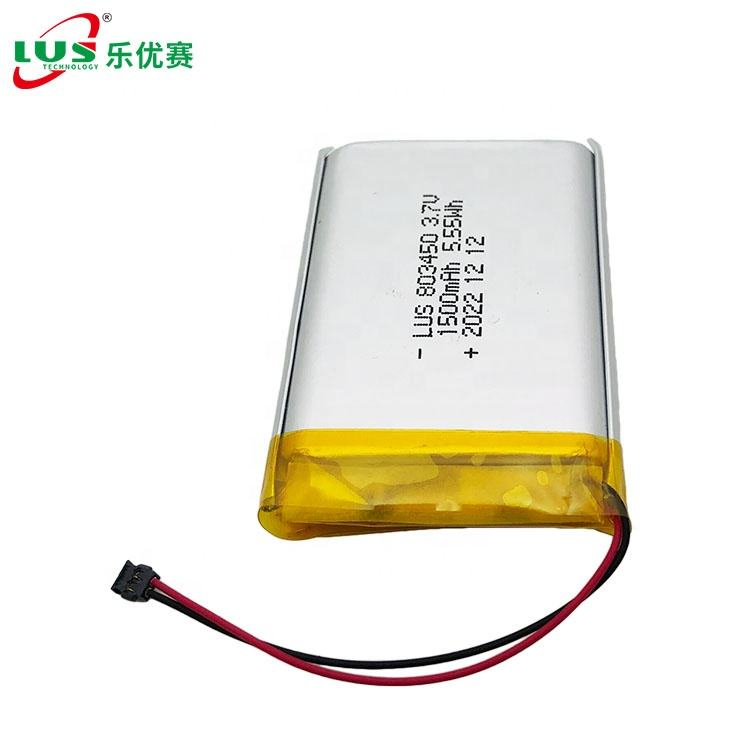

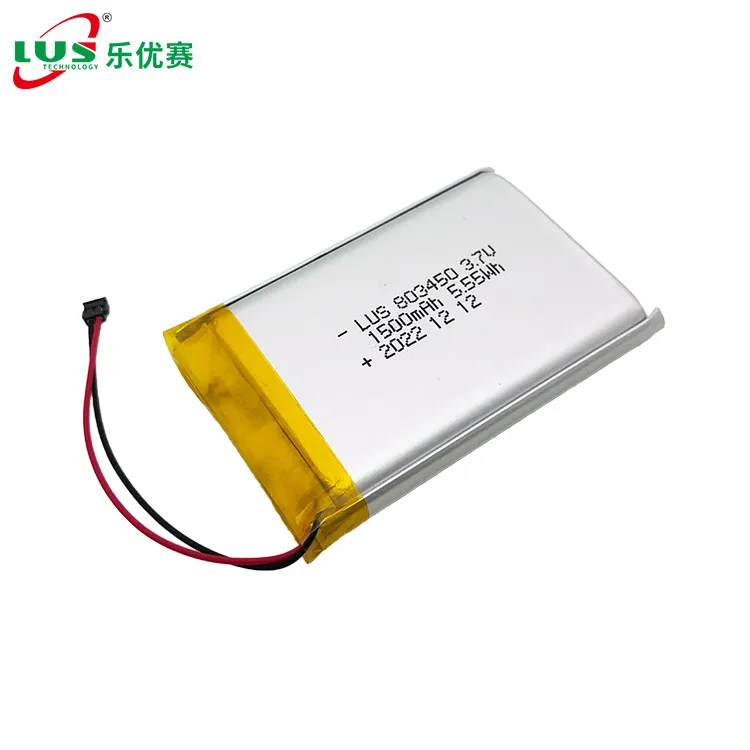

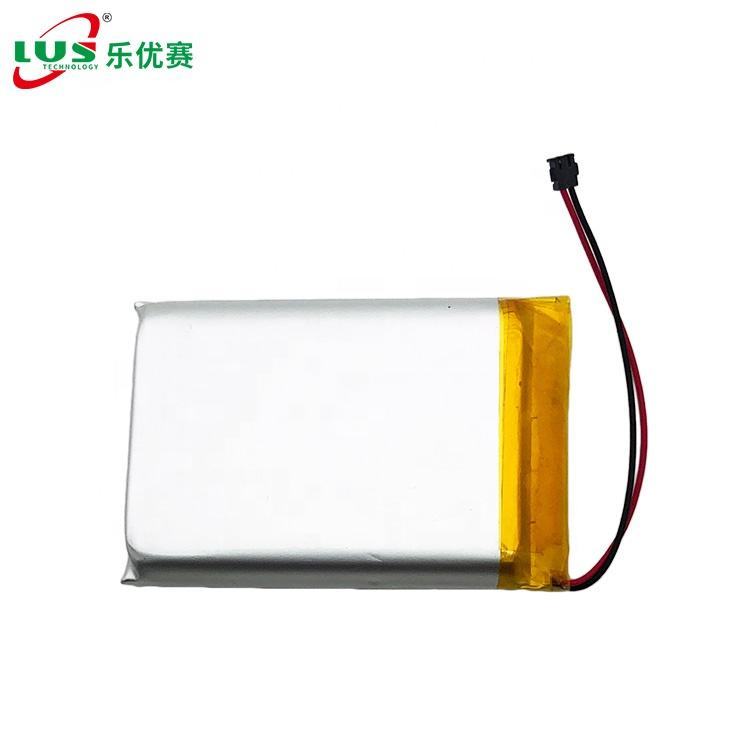

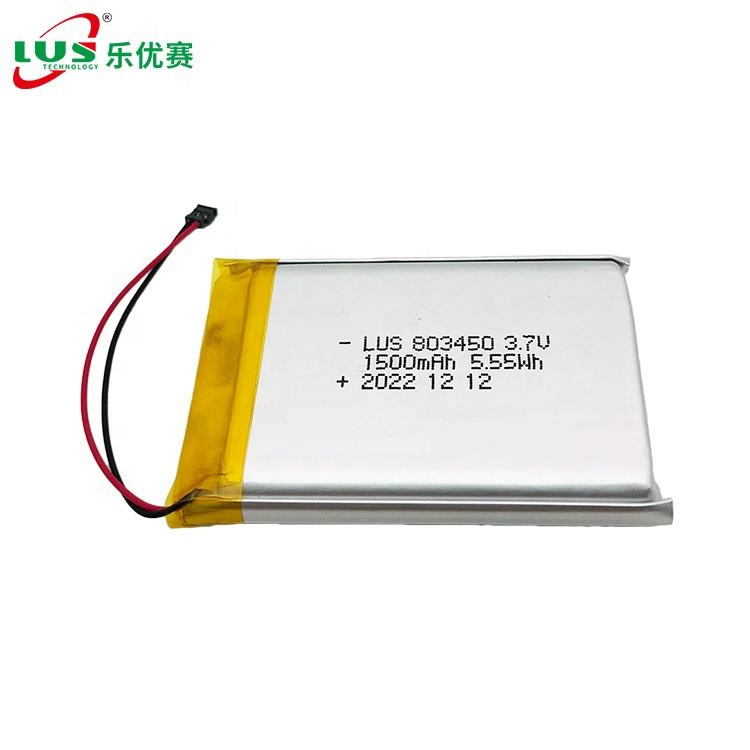

Rechargeable Battery LiPo 3.7 V 1500mAh Batteries LP803450

Application: Toys, Consumer Electronics, Bluetooth Headset/smart device Battery

Size: 3.7v 1500mah 083450

Model Number: 803450 3.7v 1500mAh

Type: Li-polymer battery 3.7v 1500mah

Cycle life: Over 800 times

Label: LP803450 3.7v 1400mah DATE OR customized

Recommend charging current: 0.2C

Standard charging current: 0.5C

Cables: Standard or custom types wires, 2 or 4 with different length

Connectors: Custom models 2pin, 3pin…

Over-charge voltage: 4.25V±0.05V

Over discharge voltage: 2.7V±0.1V or 3.0V±0.1V

Over current: 2.0±1.0A(2.7V~4.25V)

Type	Rechargeable
Name	Lithium polymer battery/lithium ion cell
Model	803450
Voltage	3.7V
Capacity	1500mah
Protect	PCM
Terminals	Wires/Connectors/Pins/Tabs/Customized
OEM and ODM	Welcome

Storage and Shipment Requirement

Item		Requirement
Storage environment	Short period less than 1 month	-20°C ~ +45°C, 85%RH Max
	Long period more than 3 month	-10°C ~ +35°C, 85%RH Max
	Recommend storage	15°C - 35°C, 85%RH Max
Long time storage: If the cell is stored for a long time, the cell's storage voltage should be 3.7-3.9V and the cell is to be stored in a condition as recommended above. Also, it is recommended to charge the cell every six months.

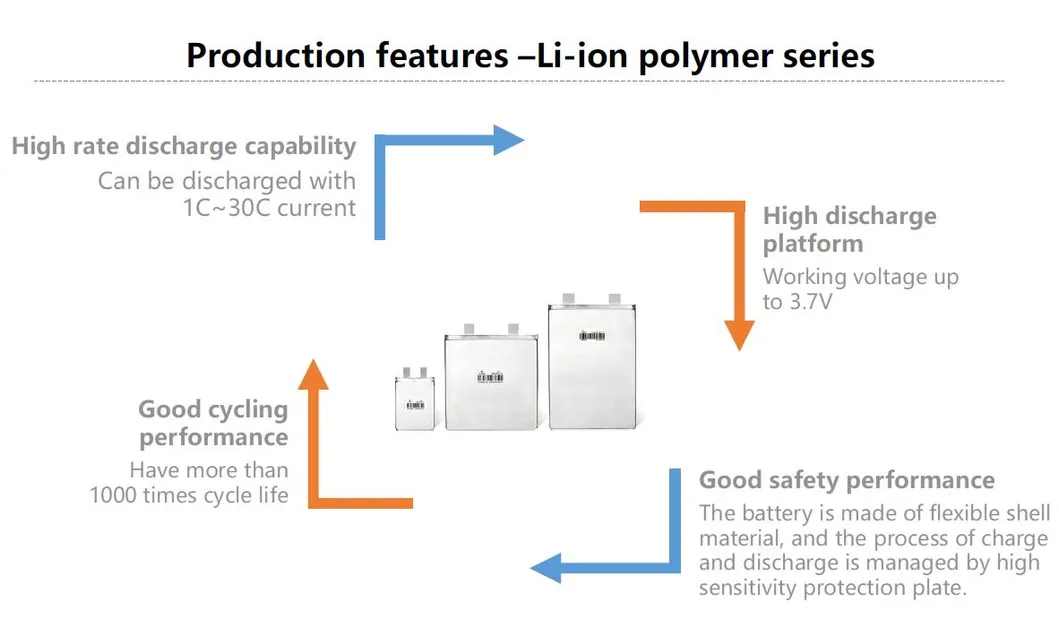

Li-Polymer Battery Product Advantages

Environmental friendly
High density of energy
Light weight
Low self-discharge
Low internal resistance
Long cycle life, chargeable up to 500 or 1000 times
No memory effect
Doesn't contain Mercury, No fire, No explosion, No leakage
Very good and quick charge, capability can be charged to 90% within 10 min.
Thickness can be adjusted while width and height keep the same

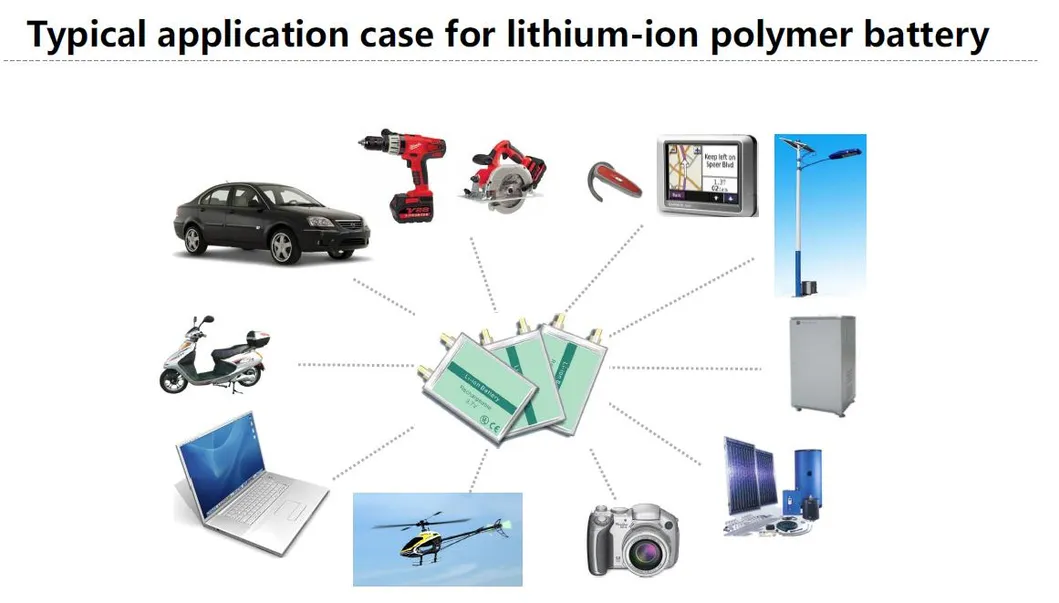

Major Application

MP3/MP4 player, bluetooth, speakers, car GPS and all possible electronics products
Widely applied in Telecommunications, Audio and Video Devices, Information Devices...Etc.
Communications equipment: Interphone, PHS phone, Blue tooth earphones
Audio-visual equipment: Digital cameras, Camcorders, Portable DVD, Portable television
Portable Devices: GPS, PMP, PDA, E-book, Shaver, Portable medical device etc.
Illuminate Devices: Miner lamp, Search light.
Others: RC models, Toys

Li-Polymer Battery 3.7V Range & Dimensions

Model	Capacity (mAh)	T±0.1 (mm)	W±0.5 (mm)	L±0.5 (mm)
1254	60	5.4	12	-
1040	35	4.2	10	-
1038	30	3.8	10	-
301030	70	3.0	10.0	30.5
301525	80	3.0	15.0	25.5
302020	90	3.0	20.0	20.5
302025	110	3.0	20.0	25.5
302030	120	3.0	20.0	30.5
303048	400	3.0	30.0	48.5
350926	60	3.0	9.0	26.5
380926	70	3.8	9.0	26.5
400808	18	4.0	8.1	8.2
400820	40	4.0	8.3	20.5
400835	100	4.0	8.3	35.5
400838	110	4.0	8.3	38.5
400909	25	4.0	9.1	9.2
400912	30	4.0	9.0	12.5
400930	80	4.0	9.0	30.5
401010	25	4.0	10.0	10.5
401012	35	4.0	10.0	12.5
401015	40	4.0	10.0	15.5
401020	55	4.0	10.0	15.5
401025	70	4.0	10.0	25.5
401030	90	4.0	10.0	30.5
401035	110	4.0	10.0	35.5
401230	110	4.0	12.0	30.5
401235	130	4.0	12.0	35.5
401730	150	4.0	17.0	30.5
402020	110	4.0	20.0	20.5
402025	150	4.0	20.0	25.5
402030	200	4.0	20.0	30.5
402035	230	4.0	20.0	35.5
402050	400	4.0	20.0	50.5
403040	400	4.0	30.0	40.5
403450	680	4.0	24.0	50.5
450833	110	4.5	8.3	33.0
400835	110	4.0	8.3	35.0
450845	165	4.5	8.3	45.0
450909	30	4.5	9.1	9.2
450912	35	4.5	9.0	12.5
500830	100	5.0	8.3	30.5
500843	160	5.0	8.3	43.0
500930	110	5.0	9.1	30.5
500935	130	5.0	9.1	35.5
500945	190	5.0	9.1	45.0
501012	43	5.0	10.0	12.5
501015	50	5.0	10.0	15.5
501030	110	5.0	10.0	30.5
501035	150	5.0	10.0	35.5
501220	85	5.0	12.0	20.5
501225	110	5.0	12.0	25.5
501230	120	5.0	12.0	30.5
501235	150	5.0	12.0	35.5
501240	200	5.0	12.0	40.5
501245	250	5.0	12.0	45.5
501525	150	5.0	15.0	25.5
501535	230	5.0	15.0	35.5
502020	150	5.0	20.0	20.5
502025	200	5.0	20.0	25.5
502030	250	5.0	20.0	30.5
502035	320	5.0	20.0	35.5
502248	500	5.0	22.0	48.5
502530	320	5.0	25.0	30.5
502535	400	5.0	25.0	35.5
502540	550	5.0	25.0	40.5
503030	450	5.0	30.0	30.5
503035	500	5.0	30.0	35.5
503040	600	5.0	30.0	40.5
503048	750	5.0	30.0	48.5
503759	1200	5.0	37.0	59.5
523450	1000	5.2	34.0	50.5
551012	50	5.5	10.0	12.5
551015	55	5.5	10.0	15.5
551145	250	5.5	11.3	45.5
551240	230	5.5	12.0	40.5
552535	450	5.5	10.1	35.5
581013	52	5.8	10.2	13.5
582728	400	5.8	27.2	28.5
601012	55	6.0	10.2	12.5
601015	60	6.0	10.2	15.5
601040	200	6.0	10.2	40.5
601043	250	6.0	10.2	43.0
601220	110	6.0	12.0	20.5
601230	180	6.0	12.0	30.5
601235	200	6.0	12.0	35.5
601435	280	6.0	14.0	35.5
601730	250	6.0	17.0	30.5
602020	180	6.0	20.0	20.5
602025	250	6.0	20.0	25.5
602030	300	6.0	20.0	30.5
602035	400	6.0	20.0	35.5
602040	450	6.0	20.0	40.5
602045	500	6.0	20.0	45.5
602530	400	6.0	25.0	30.5
602535	500	6.0	25.0	35.5
602540	600	6.0	25.0	40.5
602626	400	6.0	26.0	26.5
603030	500	6.0	30.0	30.5
603035	600	6.0	30.0	35.5
603040	750	6.0	30.0	40.5
603048	850	6.0	30.0	48.5
603450	1200	6.0	34.0	50.5
651730	300	6.8	17.0	30.5
681345	400	6.8	13.0	45.5
701230	220	7.0	12.2	30.5
701250	400	7.0	12.2	50.5
701435	320	7.0	14.0	35.5
702020	210	7.0	20.0	20.5
702025	300	7.0	20.0	25.5
702030	380	7.0	20.0	30.5
702035	450	7.0	20.0	35.5
702040	500	7.0	20.0	40.5
702530	500	7.0	25.0	30.5
702535	600	7.0	25.0	35.5
703040	800	7.0	30.0	40.5
703048	1100	7.0	30.0	48.5
751425	240	7.5	14.0	25.5
751535	380	7.5	15.0	35.5
801230	250	8.0	12.5	30.5
801350	500	8.0	13.0	50.5
802025	350	8.0	20.0	25.5
802030	420	8.0	20.0	30.5
802035	500	8.0	20.0	35.5
802040	650	8.0	20.0	40.5
802050	800	8.0	20.0	50.5
802530	600	8.0	25.0	30.5
802535	700	8.0	25.0	35.5
802540	800	8.0	25.0	40.5
803030	750	8.0	30.0	30.5
803035	800	8.0	30.0	35.5
803040	900	8.0	30.0	40.5
803048	1200	8.0	30.0	48.5
803450	1500	8.0	34.0	50.5
902025	400	9.0	20.0	25.5
902030	500	9.0	20.0	30.5
902035	600	9.0	20.0	35.5
902040	700	9.0	20.0	40.5
902535	800	9.0	25.0	35.5
101550	800	10.0	15.0	50.5
102050	1000	10.0	20.0	50.5
102530	800	10.0	25.0	30.5
102540	1100	10.0	25.0	40.5
103040	1200	10.0	30.0	40.5
103048	1650	10.0	30.0	48.5
103450	2000	10.0	34.0	50.5

OEM and ODM Customized Products

Our Production Standards

Nice Quality Standards
Quick Shipping within 7 Days
No MOQ, 1pc is accepted, small orders welcome
Secure Online Payment
Specialized Customization Services

We feature a 3000 square meters production workshop, 120 dedicated staff members, a monthly production capacity of 500,000 pcs, and over 15 years of industry experience.

"Quality is the soul of an enterprise." Trust that you will find our quality & pricing structure highly competitive.

Frequently Asked Questions (FAQ)

What are the primary applications of the 803450 3.7V 1500mAh LiPo battery?

This rechargeable Li-Polymer battery is widely used in consumer electronics, Bluetooth headsets, smart devices, toys, MP3/MP4 players, speaker systems, car GPS navigation, digital cameras, and portable medical tools.

Can I customize the wire leads and connector options?

Yes. Standard or customized wire lengths are available in 2-wire or 4-wire configurations. Various 2-pin and 3-pin connector models can also be assembled based on your hardware requirements.

How should the battery be stored for long periods?

For long-term storage (more than 3 months), the cell should be kept at 3.7V to 3.9V under temperatures between 15°C and 35°C with a maximum relative humidity of 85%. It is highly recommended to recharge the cell every six months during storage.

What safety mechanisms are built into the LP803450 cell?

Each cell is integrated with a Protection Circuit Module (PCM) to protect against over-charge (threshold at 4.25V±0.05V), over-discharge (threshold at 2.7V±0.1V or 3.0V±0.1V), and over-current situations (2.0±1.0A).

What is the standard cycle life of this Lithium Polymer cell?

This battery cell supports over 800 cycles under proper charging and discharging conditions. It features a low self-discharge rate, low internal resistance, and is completely free from memory effects.

What is the recommended charging rate?

We recommend a charging current rate of 0.2C for optimal longevity, with a maximum standard charging current rate set at 0.5C.
