| Model | SY-6S-22.2V-30Ah |
| Nominal Capacity | ≥30Ah |
| Nominal Voltage | 22.2V |
| Charging Cut-Off Voltage | 25.2V |
| Discharge Cut-off Voltage | 16.5V |
| Configuration | 6S1P/22.2V |
| Discharge Rate | 10C |
| Net Weight | 2.6kg |
| Dimensions | 207mm Length * 90mm Width * 67mm Height |
| Connector Type | XT90S-F/AS150-F/… |
| Discharge wire | 10#/8# AWG |
| Charging wire | 22# AWG |
| Charge Rate | 0.5C-2C Recommended, 2C Max |
| Long Cycle Life | 1000 times (0.5C/0.5C;100% DOD) 500 times (0.5C/3C;100% DOD) |
| High-Energy Density | 256wh/kg |

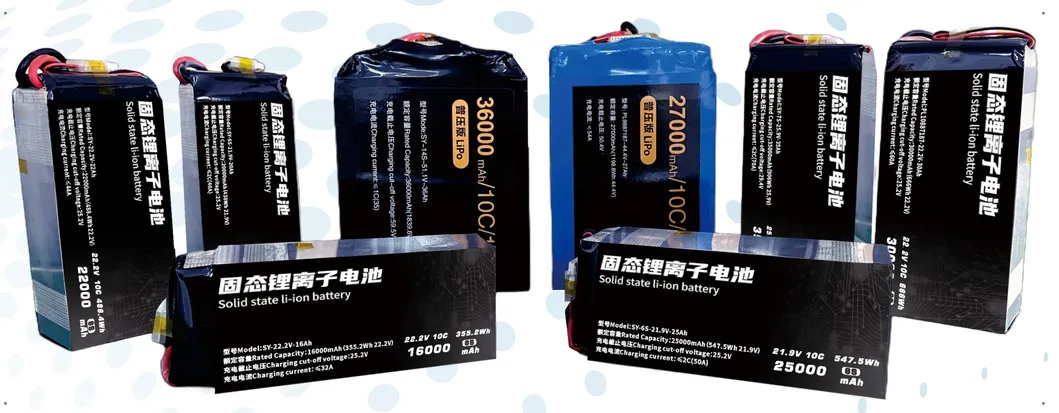

Our company specializes in Solid-State Lithium-Ion Battery, Terminal Block, and more, each crafted with precision and innovation for optimal performance.

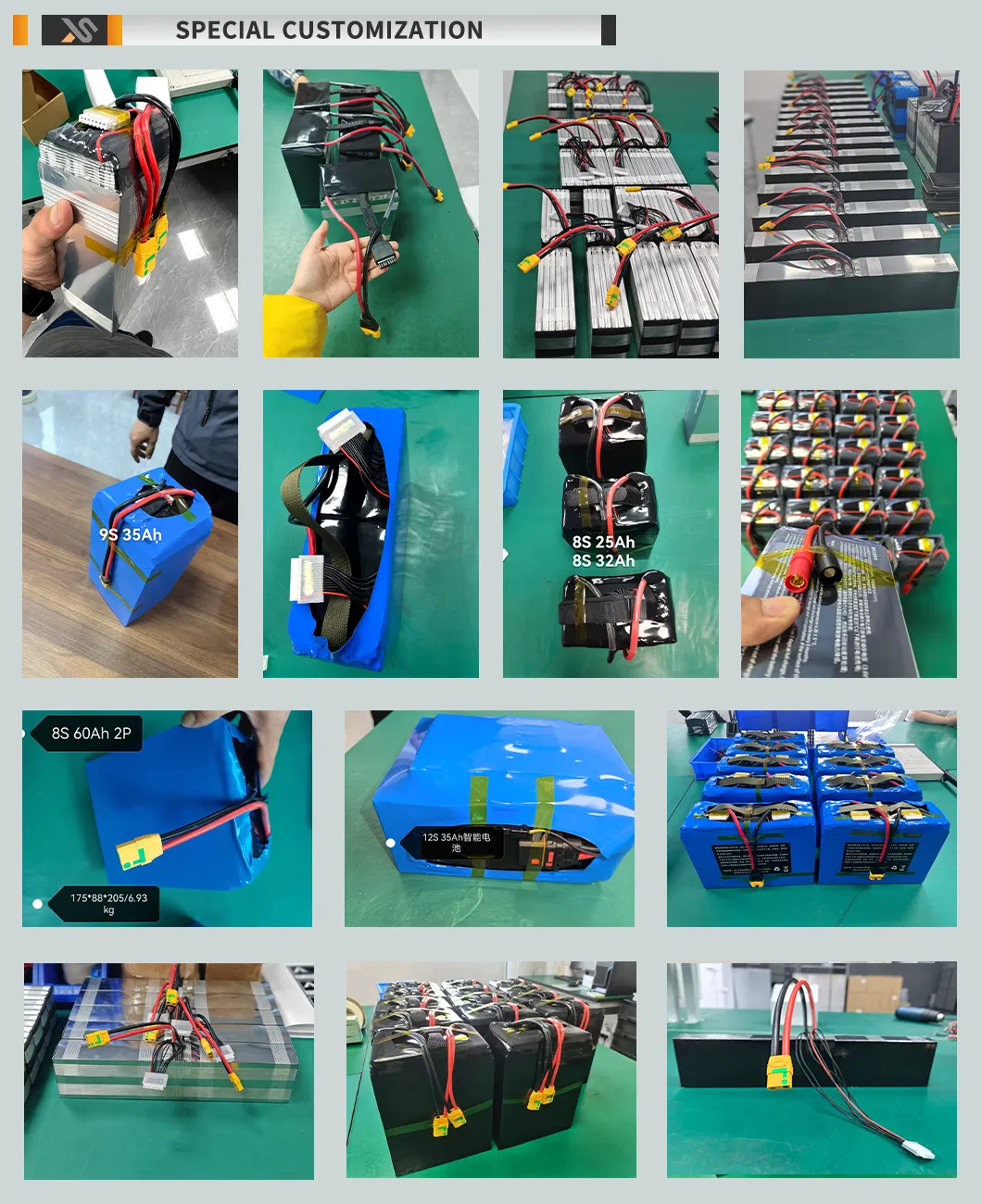

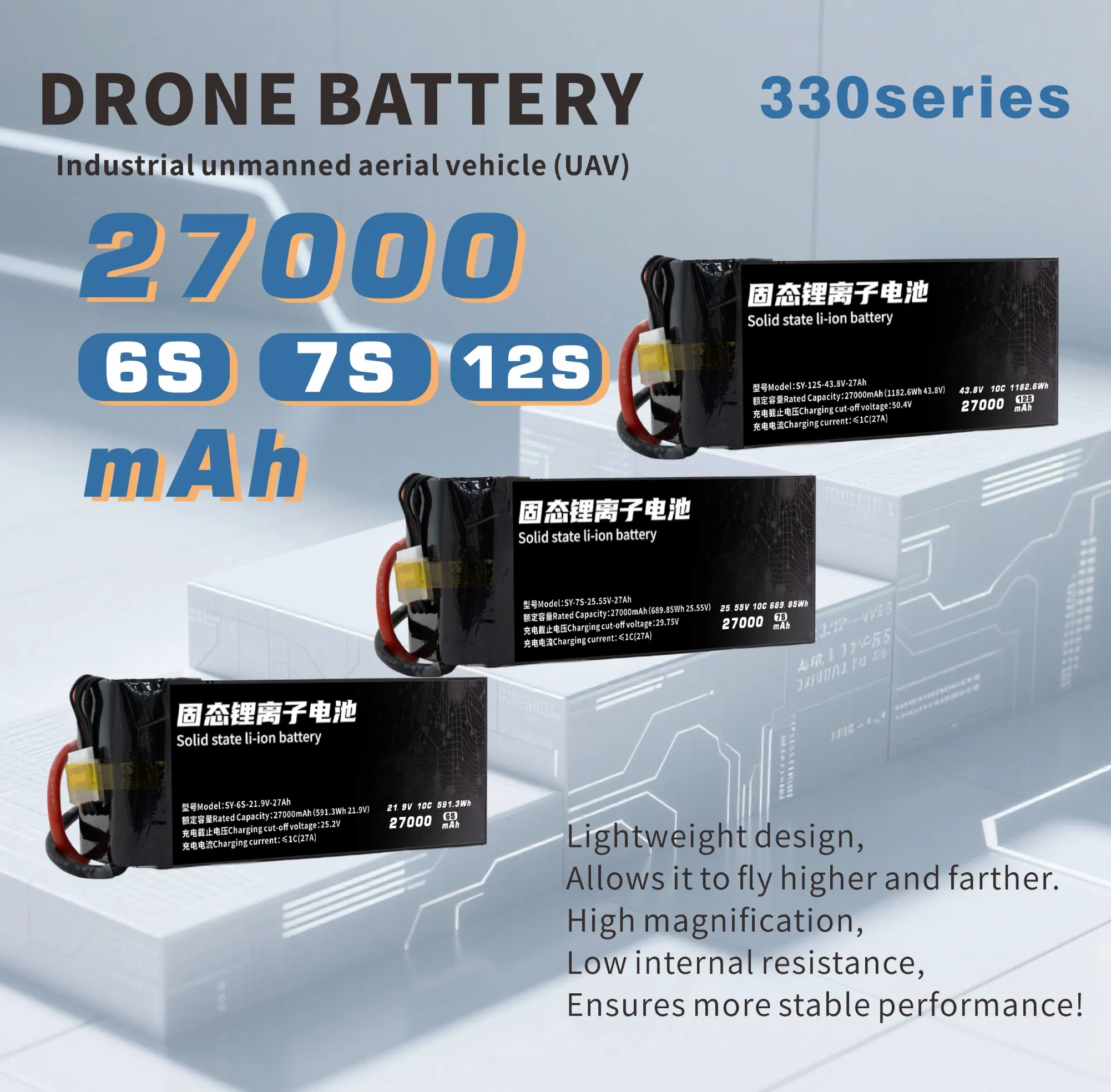

As a dedicated manufacturer, we specialize in the creation and distribution of top-tier high-energy density, high-rate, high-voltage, and high-safety solid-state lithium-ion batteries specifically engineered for industrial drone applications. The energy density of our cutting-edge series products spans from an impressive 270wh/kg to 340wh/kg. We offer diverse battery pack assembly solutions, and smart battery packs can be meticulously customized to match our clients' unique requirements, including combination methods, outlet positioning, plug model preferences, and more.
