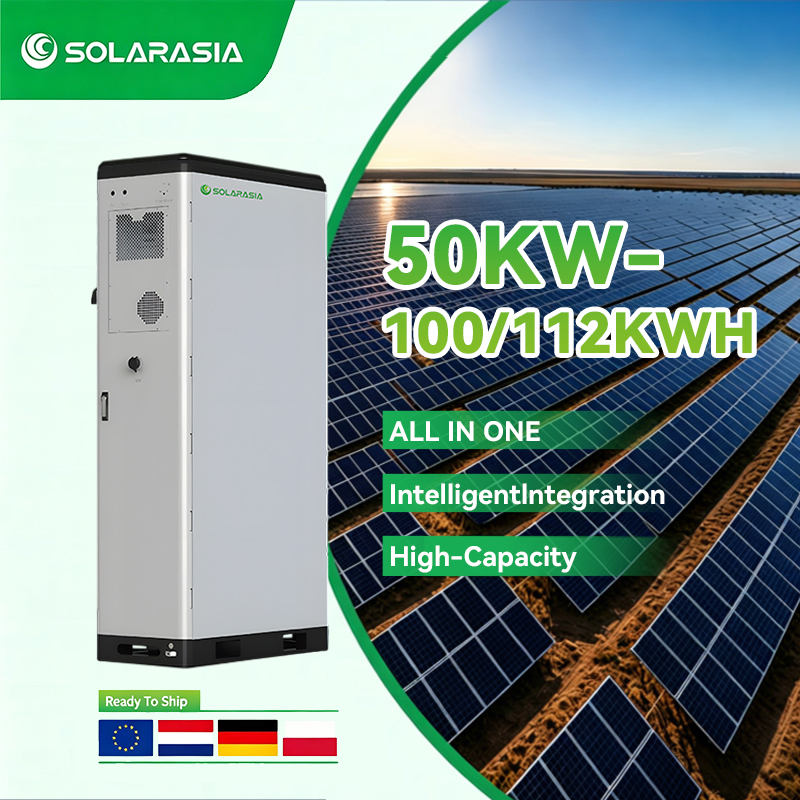

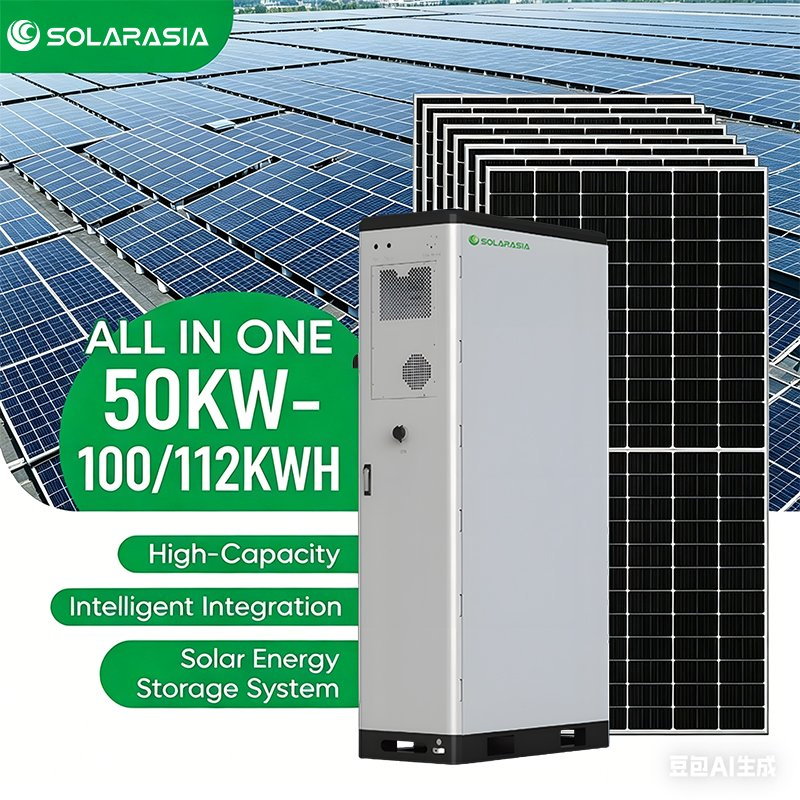

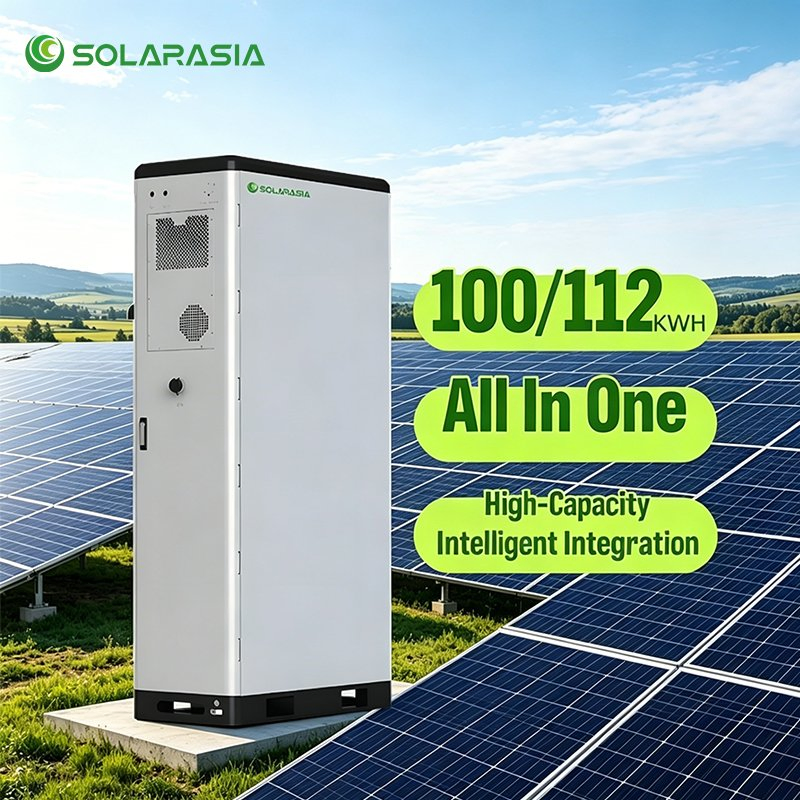

Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
1 / 5
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container
Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container

Bess Commercial Industrial Battery Storage 50kw 100kwh Hybrid PCS Air Cooling IP54 LiFePO4 Lithium Polymer Battery Energy Storage Container

Customization: Available

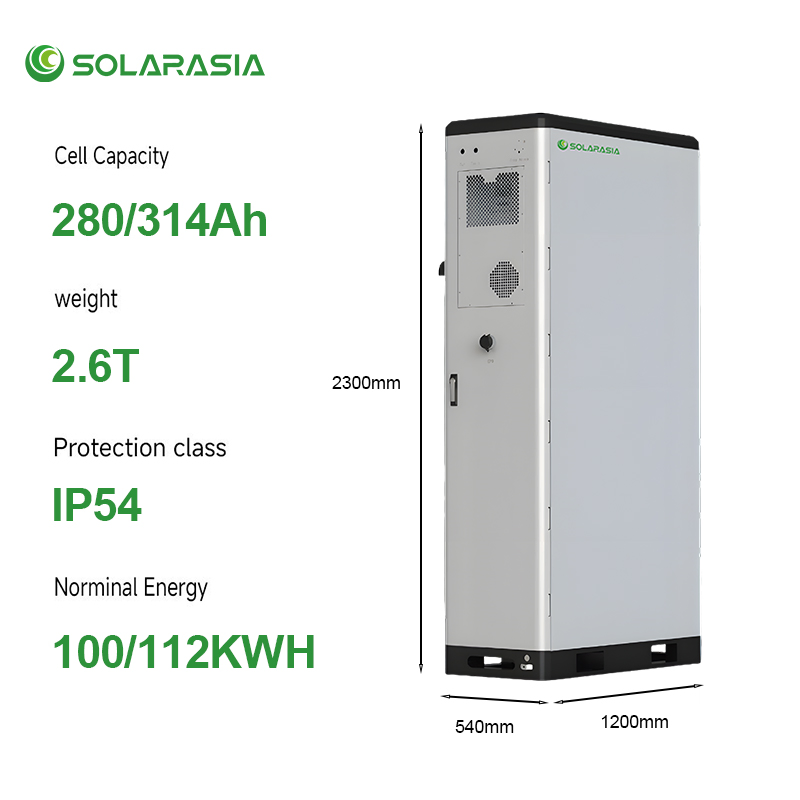

Container Size: 540*1200*2300 mm
Weight: 2.6t
Send Inquiry

Product Description

Basic Information
Model NO.
HZ10050HY (Hybrid)/HZ11250HY (Hybrid)
Nominal Voltage
600V
Warranty
5 Years
Nominal Capacity
100kwh
Cycle Life
6000 Cycles
IP Rating
IP54
Cooling
Air-Cooled
Rated Frequency
50/60Hz
Grid Connection
Customized for on/off Grid Systems
Energy Cycle Efficiency
≥ 90 %
Battery Energy (Ah)
280/314ah
Origin
China

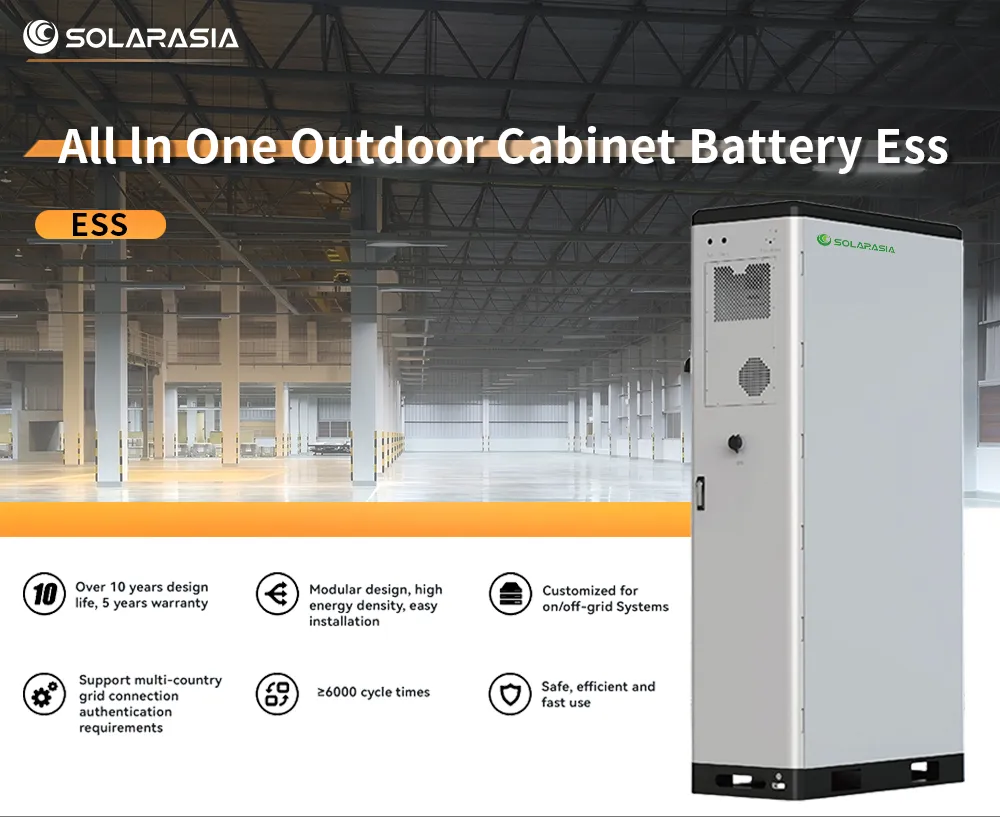

BESS Commercial Industrial Battery Storage
COMMERCIAL AND INDUSTRIAL ESS Features
●
High Cycle LFP Battery with Long Lifespan: Up to 6,000 cycles (0.5C, 5%–95% DOD, 80% SOH) and annual decay rate below 3%.
●
Dual Power & Capacity Options: 100/112 kWh energy variants with 50 kW rated AC power output.
●
High-Efficiency Energy Conversion: 97.80% max PCS efficiency and ≥90% energy cycle efficiency.
●
Hybrid Solar Compatibility: Supports recommended 100 kW PV array, 1000V max input voltage.
●

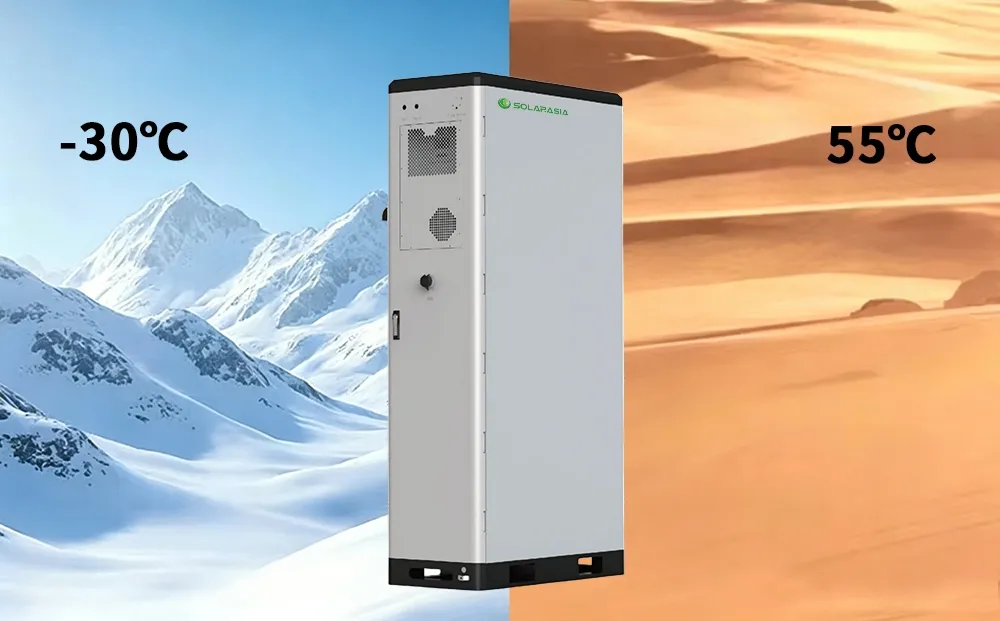

Rugged Environmental Adaptability: IP54 protection, operating from -30°C to 55°C.
●
Flexible Communication: Supports 4G/CAN/RS485 interfaces for EMS/BMS integration.
●
Safe Operation: Optional aerosol/perfluorohexanone fire fighting and air-cooling system.
Technical Specifications
DC Battery Parameters
Battery Rated Energy (KWh)100/112
Battery Rated Voltage (V)358.4
Battery TypeLFP
Battery Life Cycle6,000 Cycles (0.5C, 5%~95%DOD, 80%SOH)
AC Parameters
Rated AC Power (KW)50
Maximum Power (KW)55
Rated AC Voltage (V)400
Current Distortion Rate THDI< 3% (Rated Power)
PV Parameters
Max. Input Voltage (V)1000
MPPT Voltage Range (V)150~850
System Parameters
Protection LevelIP54
Fire FightingAerosol/Perfluorohexanone (Optional)
Dimensions (mm)540 * 1200 * 2300
Weight (T)2.6
Product Gallery & Application
Internal Structure
Product View

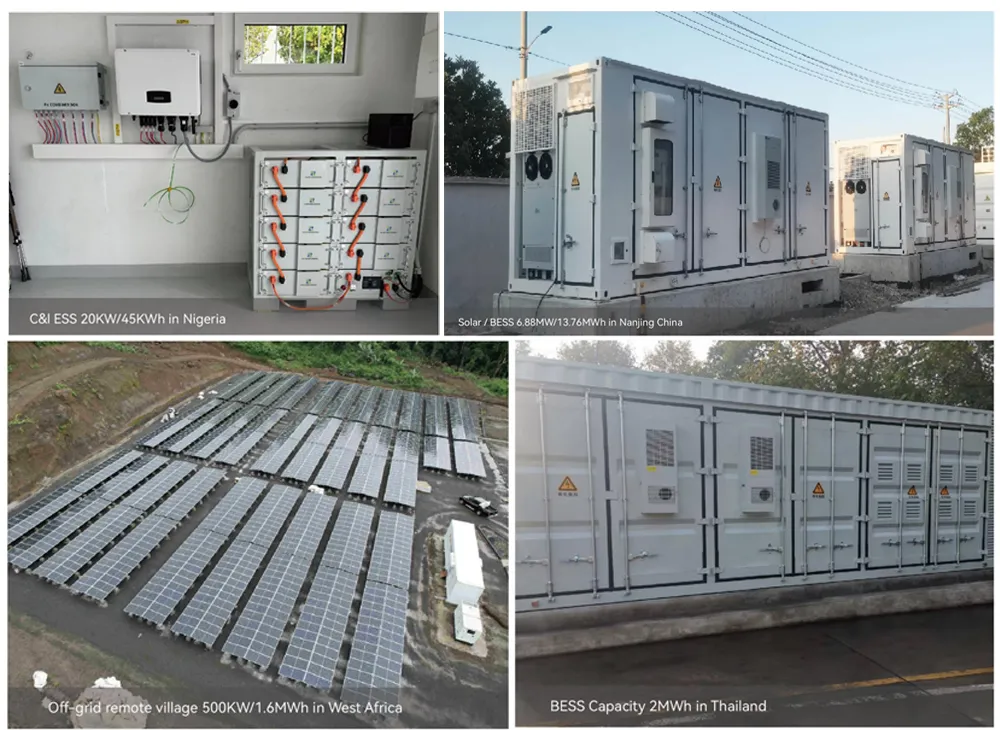

Project Case
Project Case

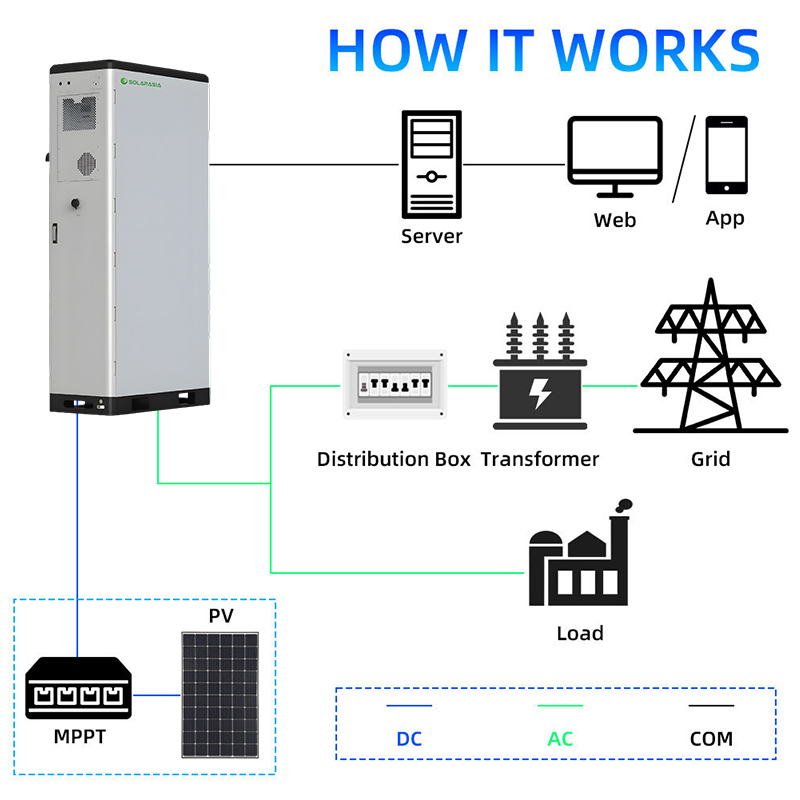

Working Principle
Principle Diagram 1
Principle Diagram 2

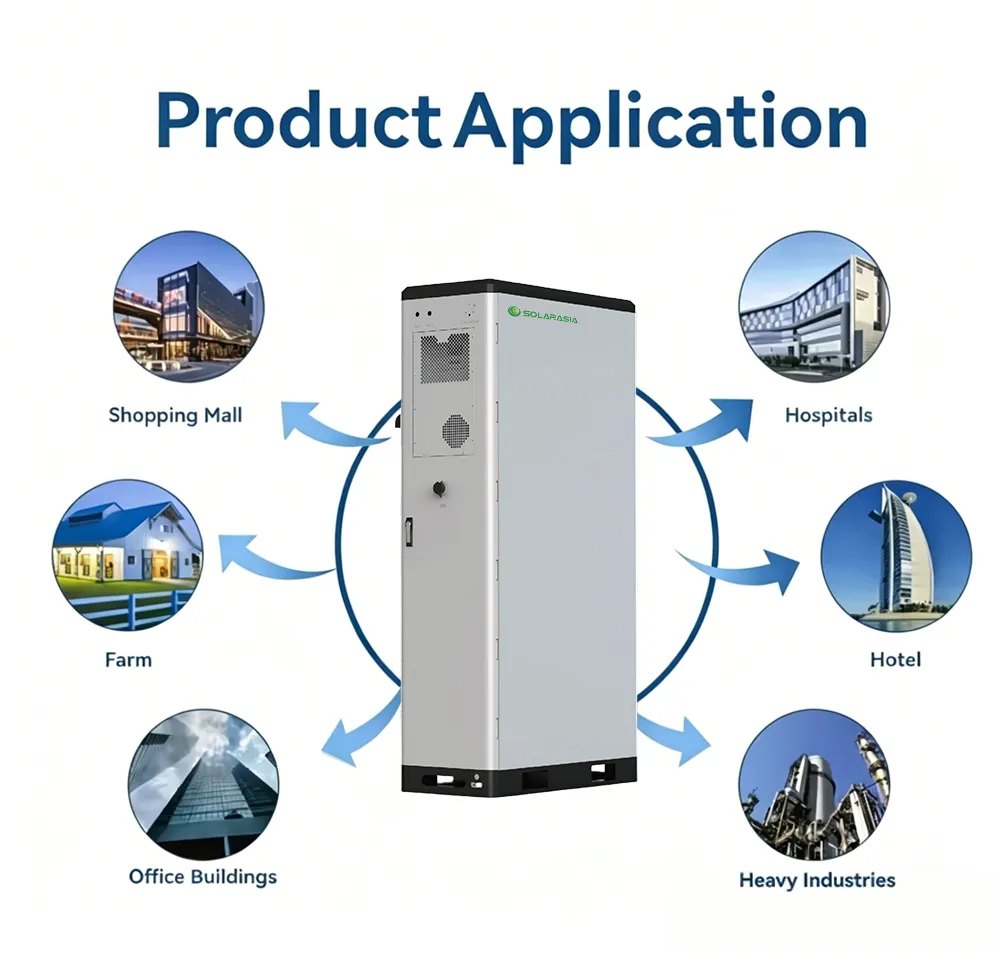

Application Scenarios
Application Scenarios
Packing & Delivery
Packing
Certifications
Certifications
Factory Facility
Production Line
Frequently Asked Questions
What type of battery is used and what is its cycle life?
It adopts LFP (Lithium Iron Phosphate) batteries, with a cycle life of 6,000 cycles under 0.5C charge/discharge (5%~95% DOD) while maintaining 80% SOH.
What are the rated and maximum AC power specifications?
The system features a rated AC power of 50kW and a maximum AC power of 55kW, supporting stable grid-tie and off-grid operations.
What is the recommended PV array capacity?
The recommended maximum PV array capacity is 100kW, with an MPPT voltage range of 150~850V and a maximum input voltage of 1000V.
What is the energy cycle efficiency?
The system achieves an energy cycle efficiency of ≥90%, and the PCS has a maximum efficiency of 97.80%.
What environmental conditions can the system adapt to?
It operates in temperatures from -30℃ to 55℃ (derating above 45℃), has an IP54 protection level, and supports altitudes up to 3000m.
What communication interfaces are available?
The system uses CAN for BMS communication and supports 4G/CAN/RS485 for EMS communication for remote monitoring.
