Lifepo4 lithium battery pack 24V 200ah with smart bms for solar energy storage system home appliances ups telecom power station
Product Description
| Model |
LiFePO4 Lithium Battery 24V 200AH |
| Nominal Voltage |
25.6V |
| Nominal Capacity |
200Ah |
| Minimum Capacity |
200Ah |
| Energy |
5120Wh |
| Cycle Life |
6000 cycles |
| Months Self Discharge |
< 3% |
| Efficiency of Charge |
100% @0.5C |
| Efficiency of Discharge |
96~99% @0.5C |
| BMS Functions |
Over charge, over discharge, over current, short circuit and temperature protection |
| Communication Port |
CAN, RS485, 232 |
| Charge Voltage |
28.8-29.2V |
| Charge Mode |
0.2C to 29.2V, then 29.2V, charge current to 0.02C (CC/CV) |
| Charge Current |
25A |
| Max. Charge Current |
100A |
| Max Continuous Discharge Current |
100A (Can be customized) |
| Peak Discharge Current |
250A 1-3S |
| Discharge Cut-off Voltage |
20V±0.5V |
| Shell Material |
SPCC |
| Approx. Dimensions |
L482(L1 442)xW420xH177.5mm |
| Approx. Weight |
45kgs |
| Terminal Type |
DW38 |
| Charge Temperature |
0 °C to 55 °C (32F to 131F) @60±25% Relative Humidity |
| Discharge Temperature |
-20 °C to 60 °C (-4F to 140F) @60±25% Relative Humidity |
| Storage Temperature |
-20 °C to 45 °C (-4F to 113F) @60±25% Relative Humidity |
| IP Class |
IP20 |

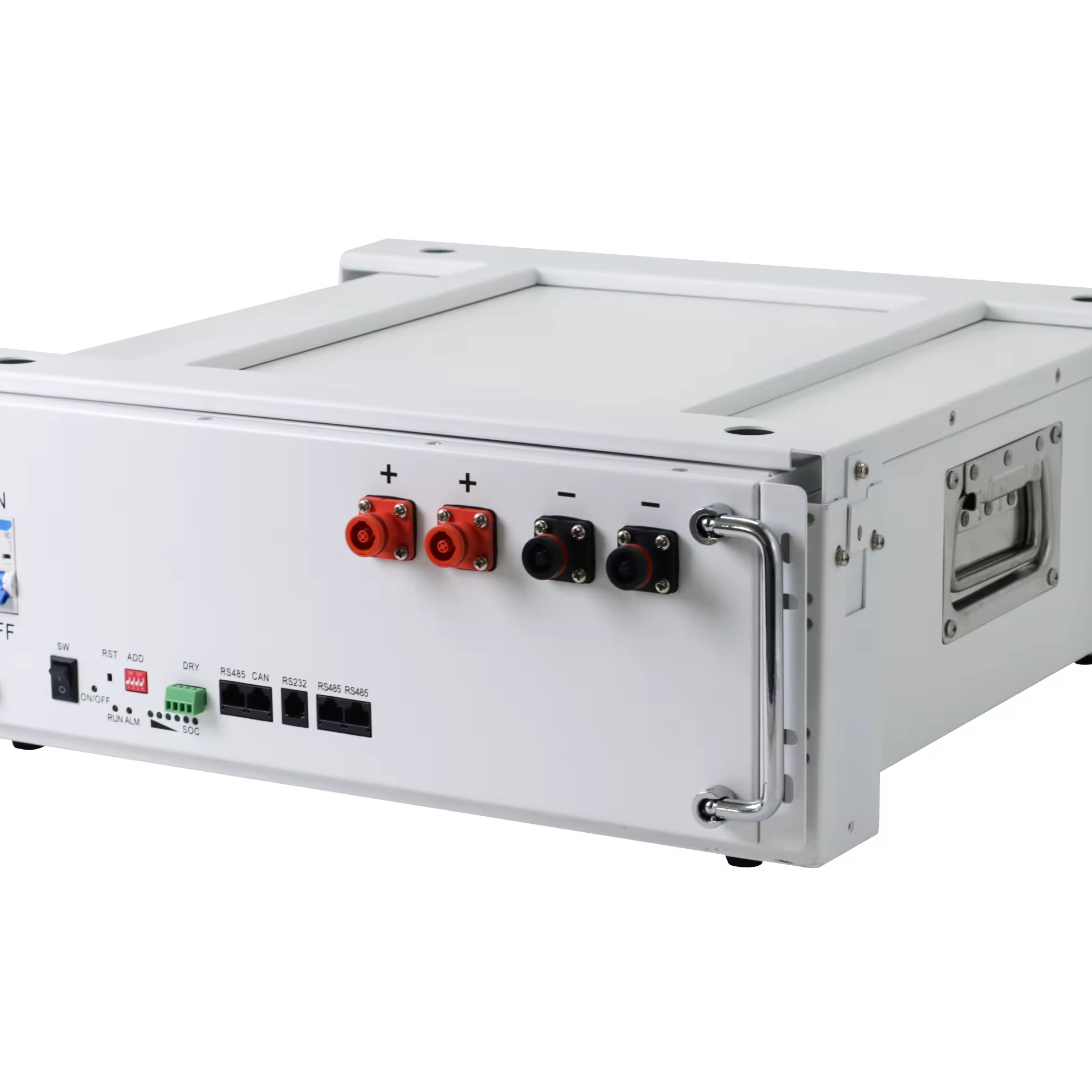

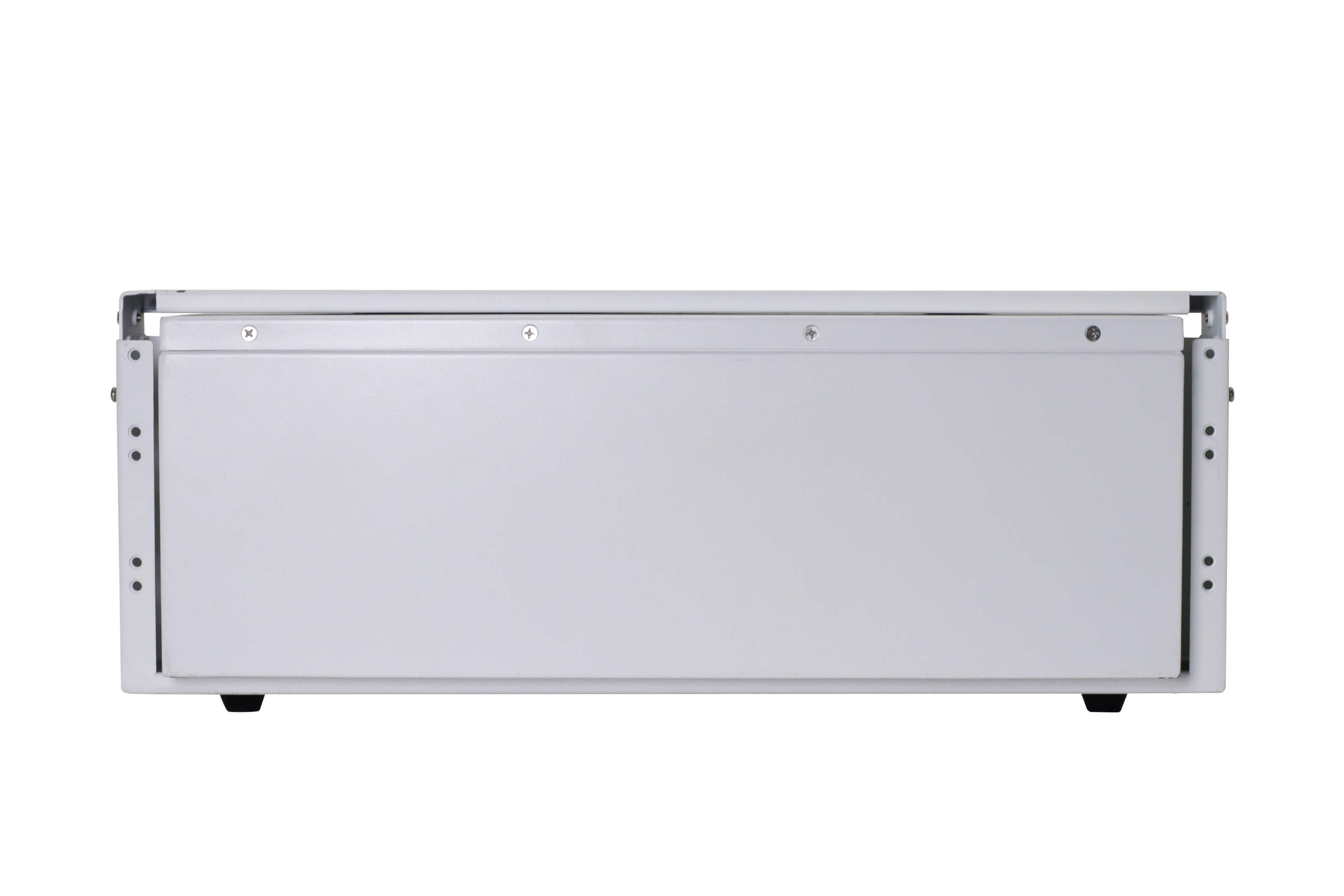

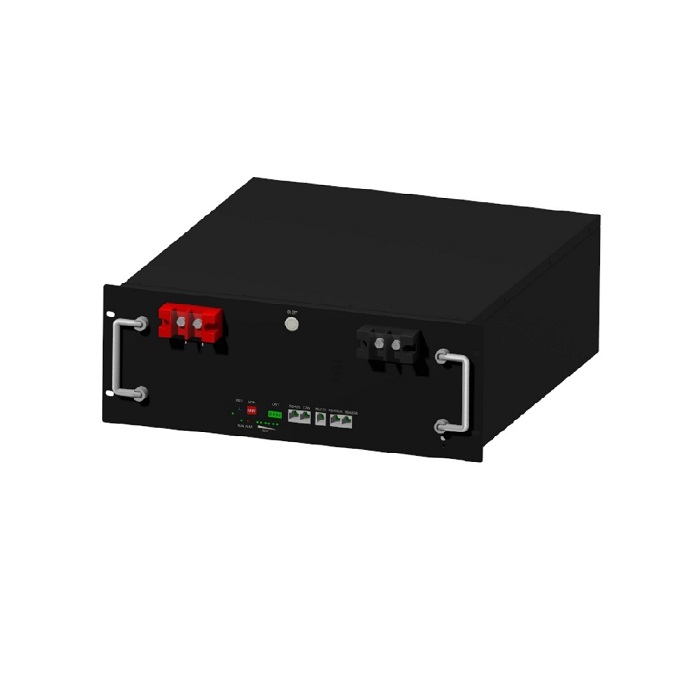

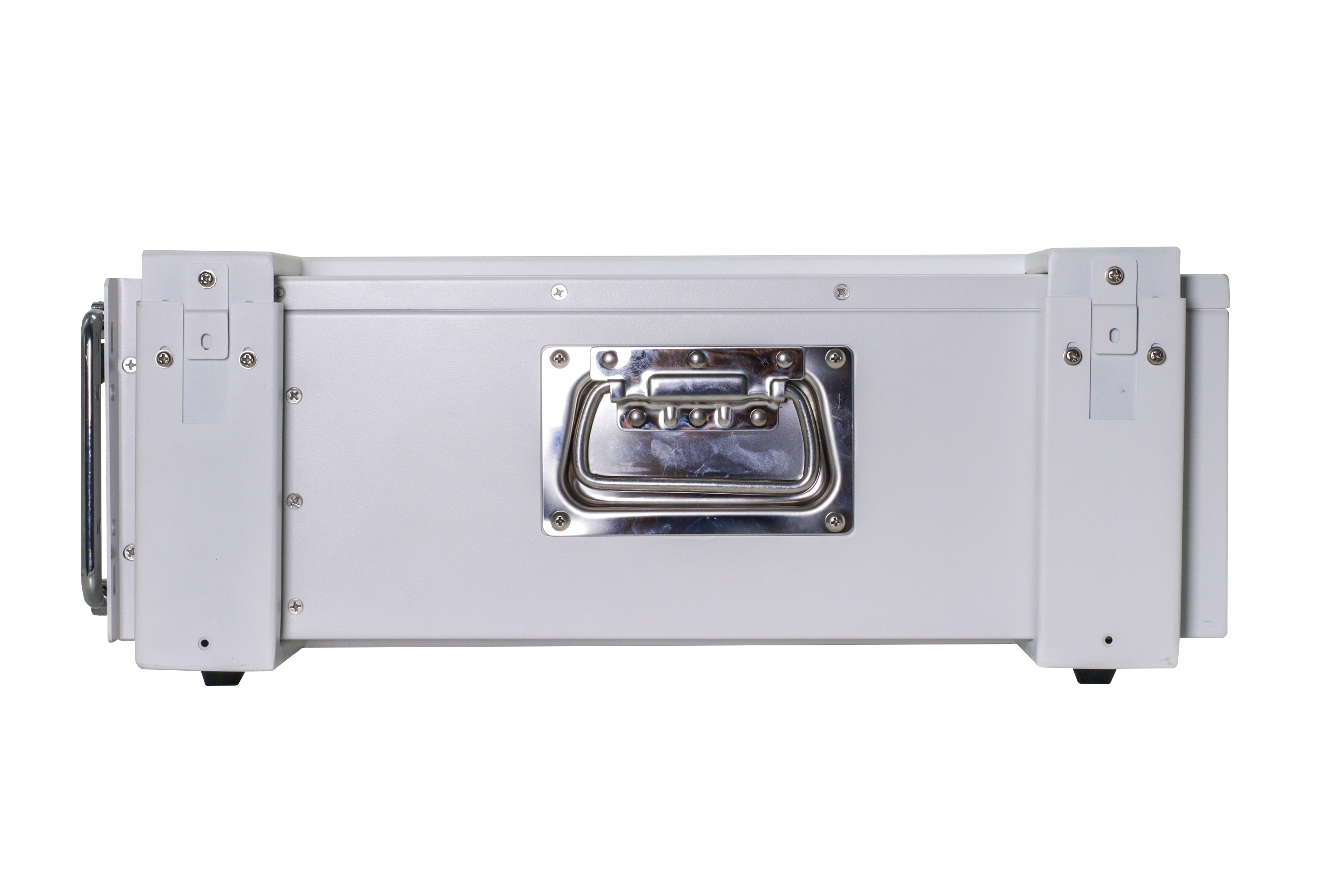

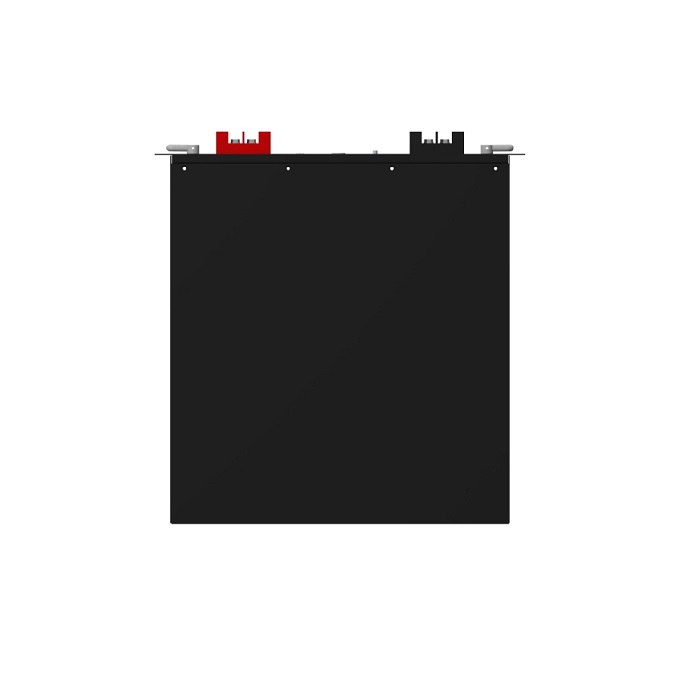

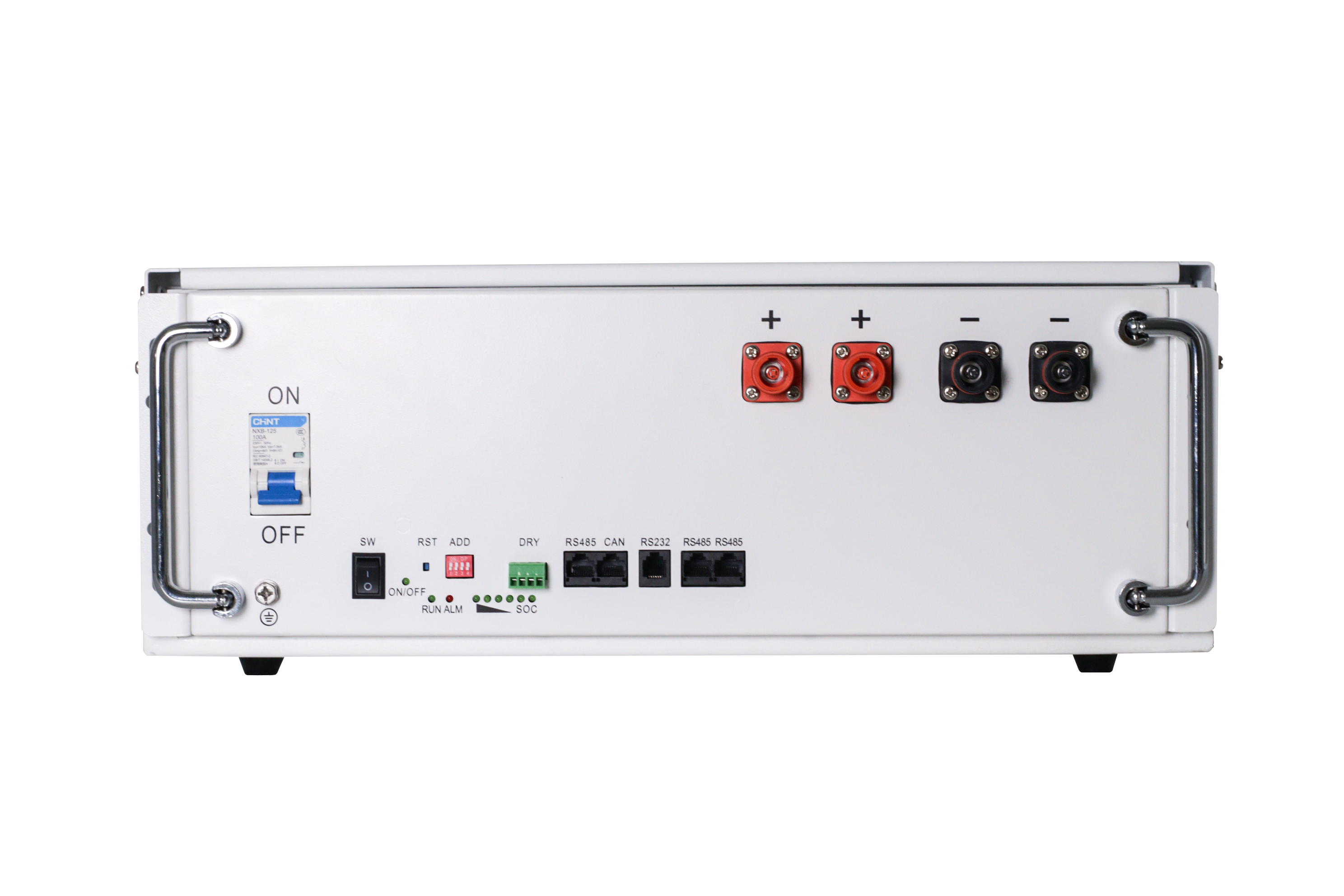

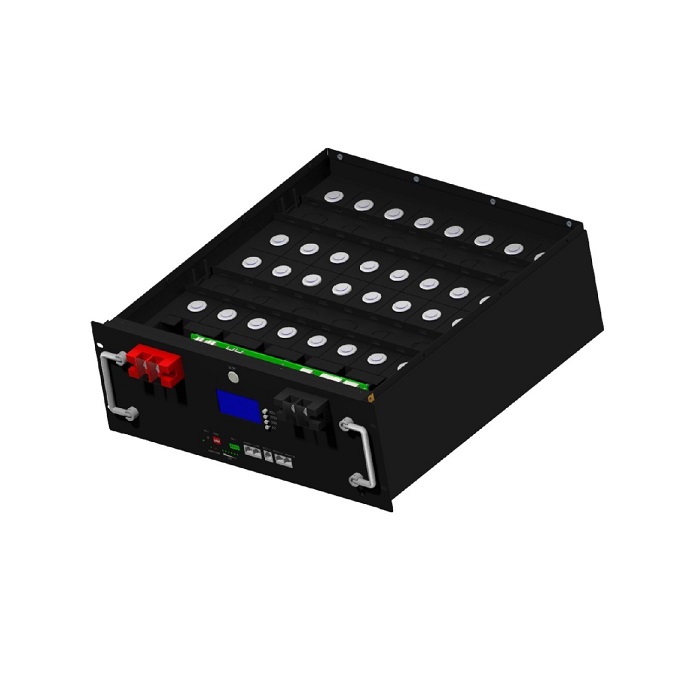

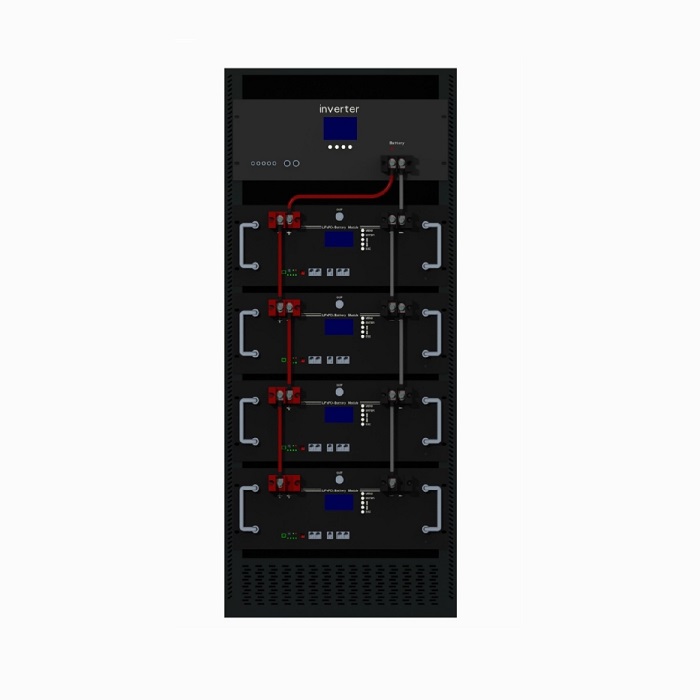

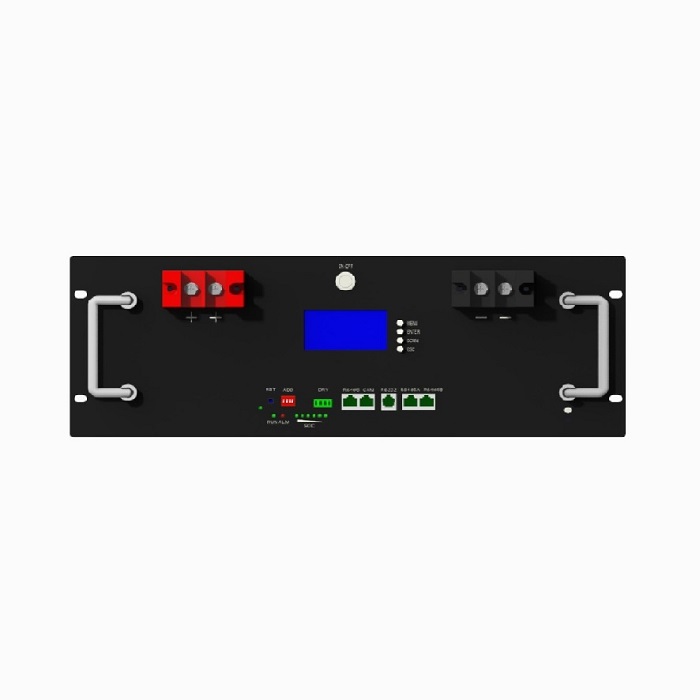

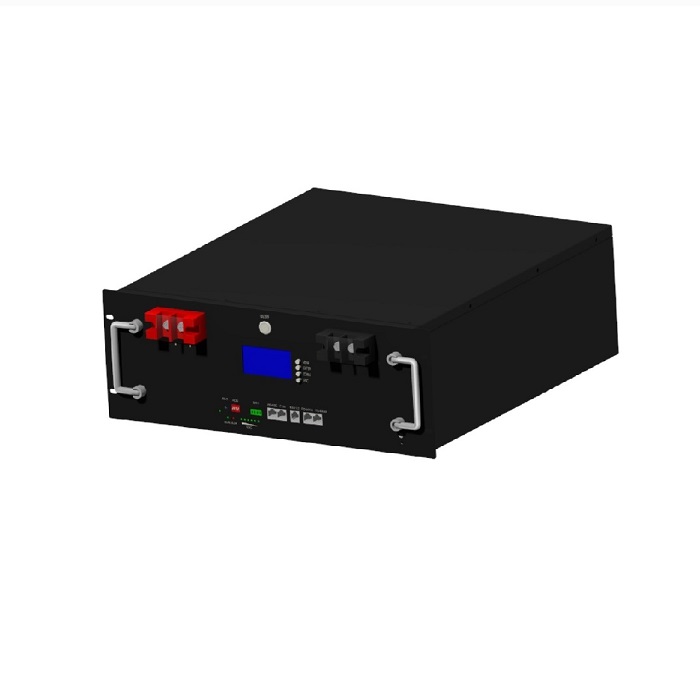

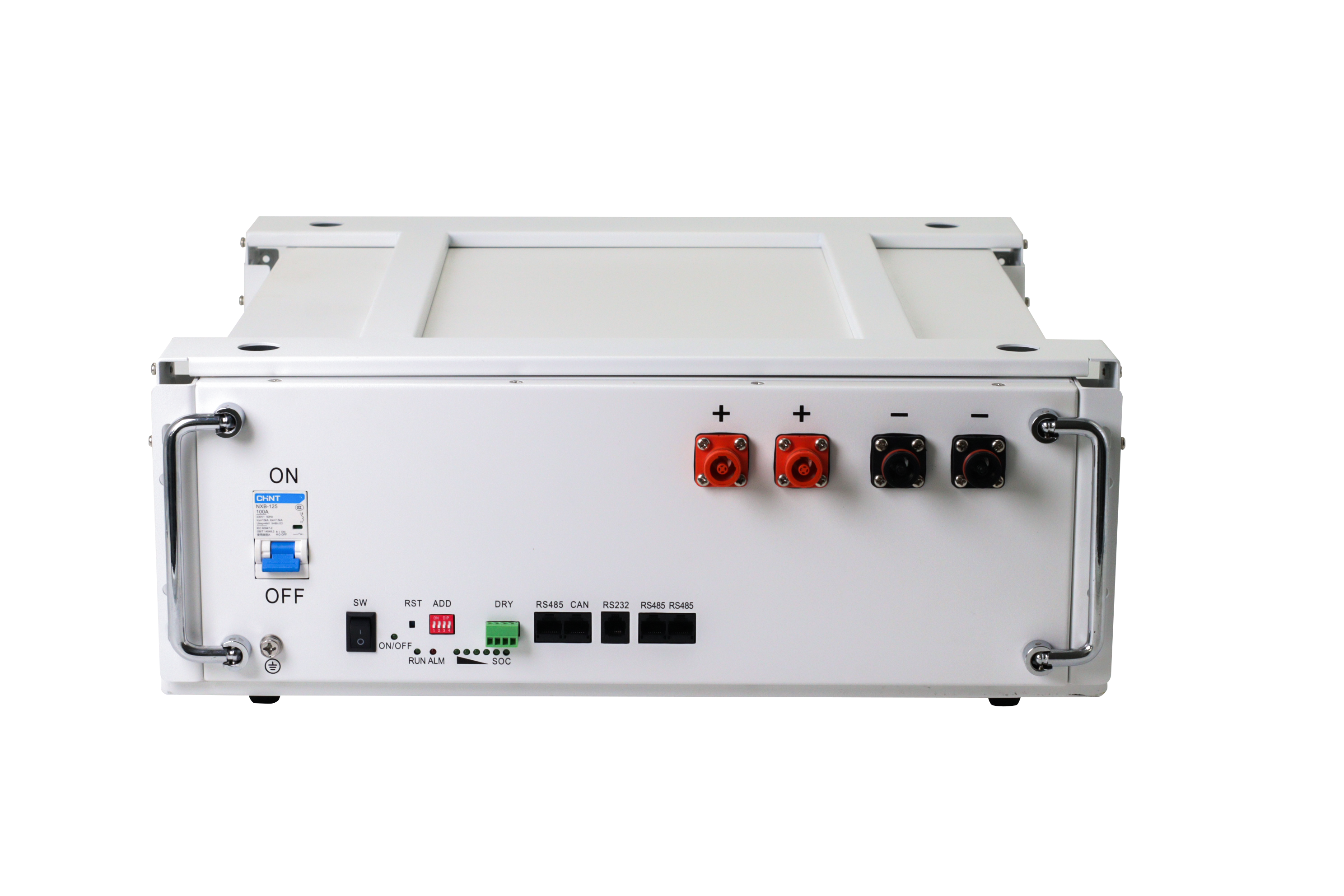

Product Images

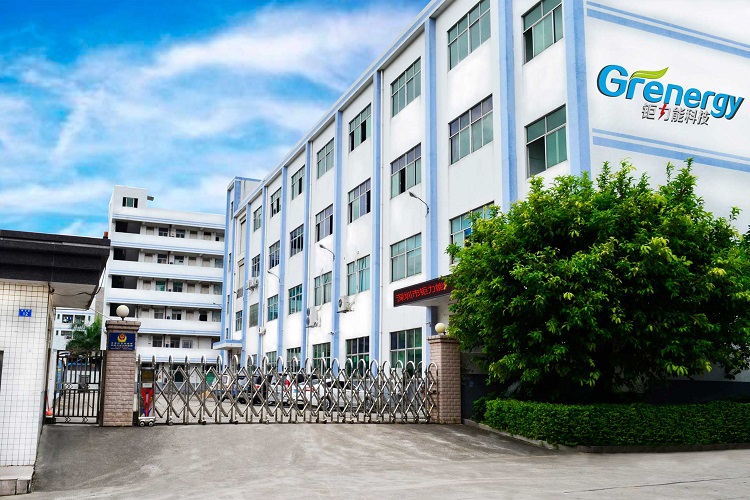

About Us
Founded in 2010, this professional and reliable national Hi-tech enterprise specializes in intelligent and clean energy products and solutions. The factory area is over 10000m² and employees more than 500 people. The enterprise has a strong and professional R & D team with more than 15 researchers and a well-equipped laboratory for battery testing.

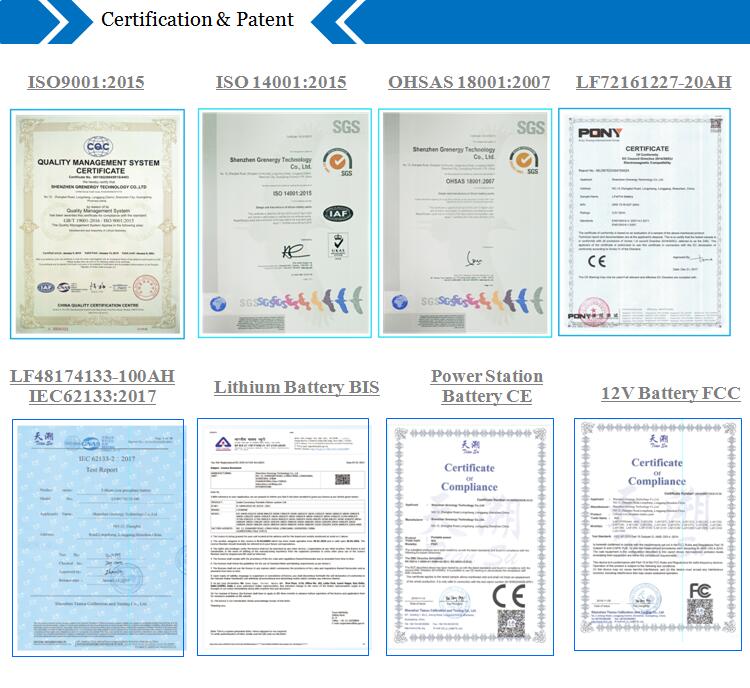

Certifications
- ISO9001:2015
- ISO14001:2015, OHSAS18001:2007
- UL2272, UL1642
- CE, CB, IEC62133
- BIS, FCC
- UN38.3 (MSDS, ROHS, Cargo Transportation Test Report) and so on.
Our Services & Strength
-
Strong R&D team which can offer one-stop battery power solutions:
- Customized battery pack solution
- Battery with BMS management system
- Battery with Bluetooth technology
- OEM/ODM service
-
Strict quality control system for every order:
- Raw materials are sent to lab for analysis and strict inspection.
- In-process 100% quality control, sampling survey, and random checking for product performance.
- Products are 100% tested & inspected before packing.
- For product returns, we analyze the causes and recommend corrective measures for continuous improvement.
-
QC/Technical Support:
- In-house QC staff are responsible for maintaining rigorous quality levels.
- QC procedures are strict, meticulous, and conform to international standards.
-
Procedures/Testing Details:
- Raw materials undergo strict inspection in labs. IPQC and LQC are systematically implemented.
- Checks are performed at multiple steps throughout production with 100% of finished products being tested prior to packaging.
-
Excellent Delivery Capability:
- FOB, CIF, DDU, and DDP shipping solutions via Sea, Air, and Couriers.
-
Excellent Production Capability:
- Fast delivery in 10-15 days for samples, and 20-30 days for mass production.
-
Fast Response on RFQ and Complaints:
- 8h response and 48h solution.
- Free repair or replacement services during the warranty period.
-
Various Payment Methods:
- Acceptable options: T/T, L/C, Credit Card, PayPal, Western Union.
Packing & Shipping
Products will be packed securely by cartons, pallets, and wooden boxes accordingly.
We provide multiple shipping methods including Sea, Air, and Express/Couriers.
Our regular shipment term is FOB. Other shipment terms such as EXW, CIF, DDP, and DDU are also acceptable.
FAQ
Are you a trading company or a manufacturer?
We are a professional manufacturer specialized in LiFePO4 batteries and Lithium ion batteries for EV, UPS, Telecommunication, Energy Storage System, and Solar applications. We trade our products with our clients directly.
What types of batteries can you make?
We can make both LiFePO4 batteries and Lithium ion Batteries (NMC), which are applicable for EV, Telecommunication, UPS, Solar Storage, and Industrial/Household Energy Storage Systems.
What's your battery product range?
The battery range we can make covers voltages from 3.2V to 512V and capacities from 1AH to 800AH.
Can you do OEM and ODM?
Yes, OEM and ODM are both acceptable. You can provide the detailed specification requirements to us, and our engineers will design the most suitable battery power solution for you.
What is your production lead time?
Sample Lead Time: approximately 15 days
Mass Production Lead Time: approximately 25-35 days
Products in Stock Lead Time: approximately 7-10 days
