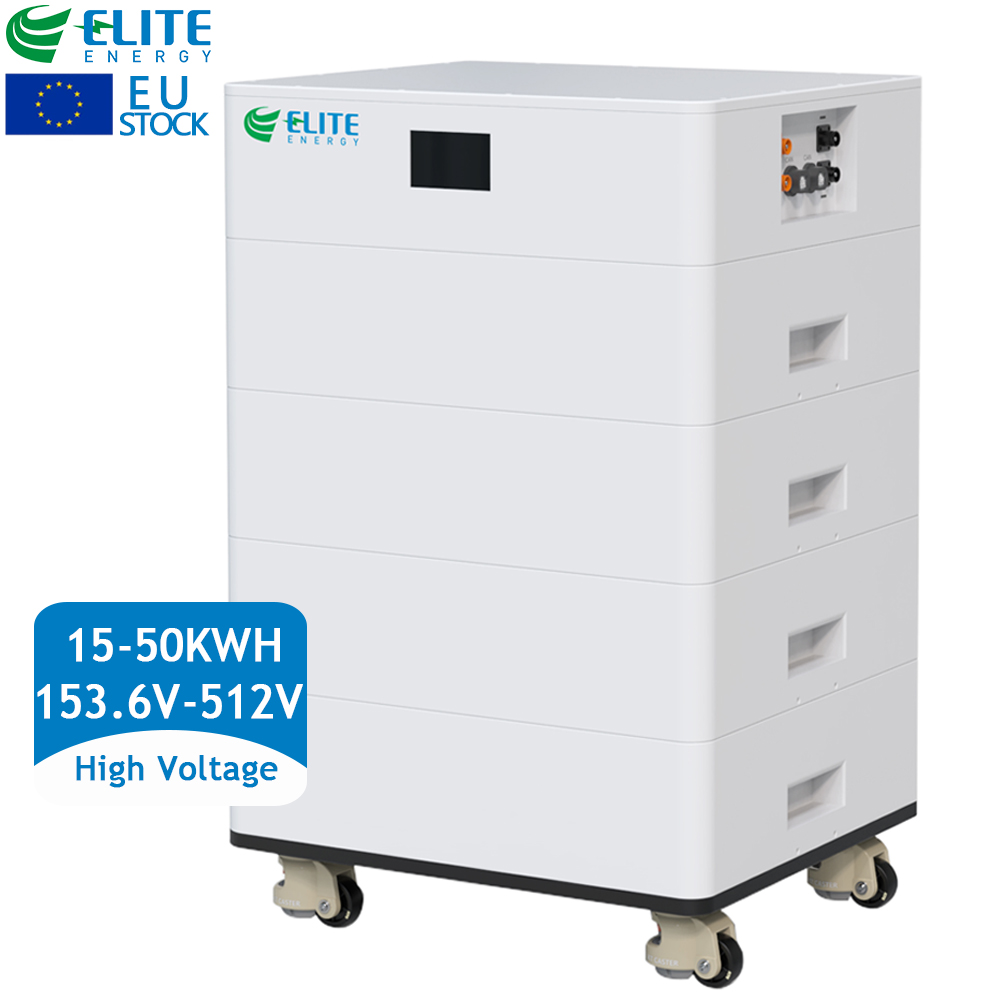

EU STOCK 15kwh 20kwh 30kwh 40kwh High Voltage Plug And Play Stackable Energy Storage Solar System 100Ah LiFePO4 Battery Pack IEC
We are an Original Lithium Ion LiFePO4 Battery Pack Manufacturer with 15+ years Experience in Energy Storage System (ESS) and Motivation Power System Industry. Our product range includes Low Voltage, High Voltage Stackable Battery, Wall Mounted Battery, Floor Standing Battery, Rack Mounted Battery, and Commercial & Industrial BESS, as well as Lithium Power Batteries for Solar and Golf Cart DIY Modification Conversion Kits.
Our manufacturing facility covers an area of 10,000 Square meters, boasting an annual production capability of 1GWH. Equipped with state-of-the-art facilities and equipment, our manufacturing system is certified under ISO9001, ISO14001, and ISO45001 standards. All products comply with the latest international certifications including CE, RoHS, BIS, MSDS, and UN38.3, ensuring exceptional safety performance and quality compliance for high-end markets and global OEM/ODM requirements.

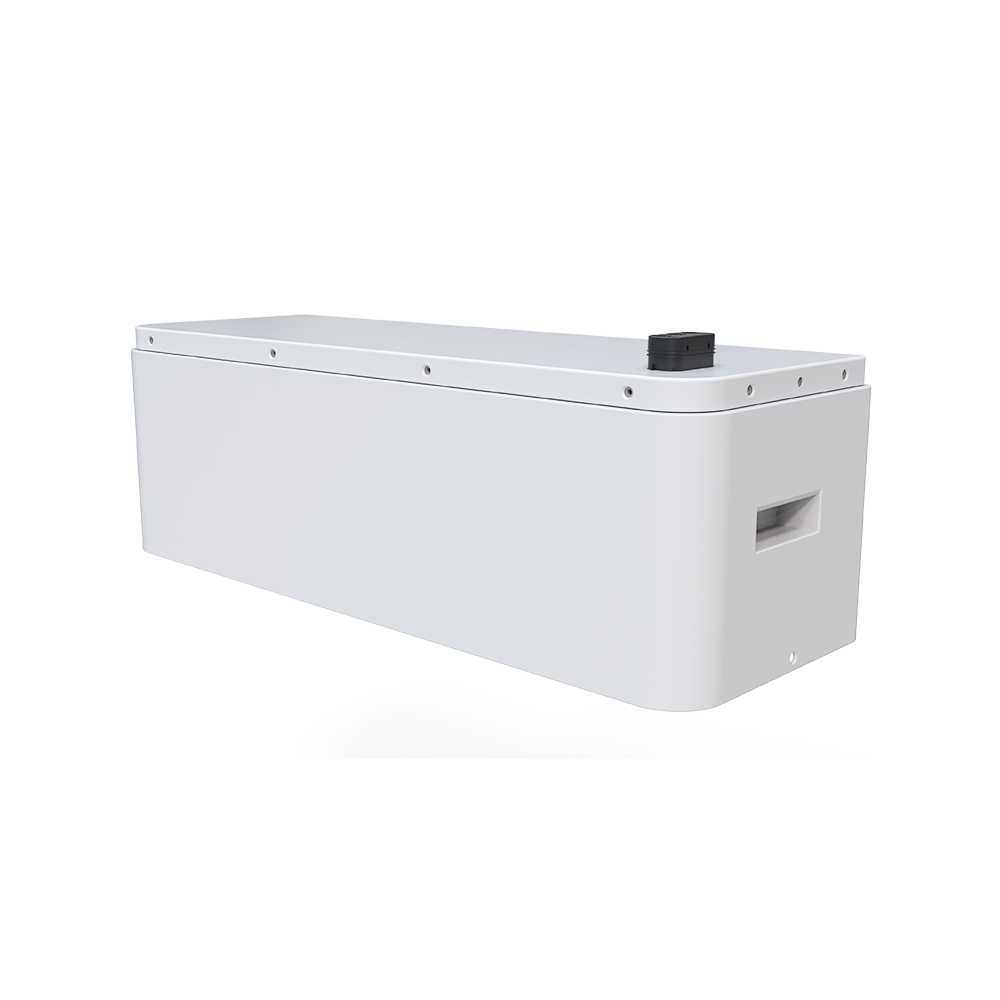

High Voltage Stackable Solar Home Energy Storage System Lithium Ion Batteries 51.2V 100Ah LiFePO4 Battery Pack
Product Features
Adopts green, safe and reliable LiFePO4 battery cells.
Flexible investment options to easily meet diverse energy scaling requirements.
Optimized structure for maximum energy density and efficiency.
Wide compatibility with major hybrid and off-grid inverter brands in the market.
Robust structural design backed by a 5-year standard warranty.
Product Parameters
Typical Model
ELT15K100H
ELT20K100H
ELT25K100H
ELT30K100H
ELT40K100H
Number of battery Modules
3
4
5
6
8
System Parameters
Battery Type
LiFePO4
Battery Module
5120Wh, 51.2V 100Ah
Nominal Energy
15.36kWh
20.48kWh
25.6kWh
30.72kWh
40.96kWh
Nominal Voltage
153.6V
204.8V
256V
307.2V
409.6V
Operating Voltage
120-175.2V
160-233.6V
200-292V
240-350.4V
320-467.2V
Rated DC Power
15.36kWh
20.48kWh
25.6kWh
30.72kWh
40.96kWh
Max. Continuous Current
100A
Max. Peak Current
150A (10s)
Depth of Discharge
100%
Communication Interface
CAN/RS485
Protection Function
Over / Under Voltage Protection
Yes
Over Current Protection
Yes
Over / Under Temp Protection
Yes
DC Breaker
Yes
General Parameters
Dimensions (W*H*D) (mm)
550*470*712
550*470*885
550*470*1058
550*470*1231
550*470*1577
Weight (kg)
177
227
277
327
427
Installation Location
Indoor
Mounting Method
Floor stand
Ambient Temp Range
Charge: 0~55°C / Discharge: -20~65°C
IP Standard
IP65
Allowable Humidity Range
0% to 95% (non-condensing)
Cooling Method
Natural convection
Warranty
5 years

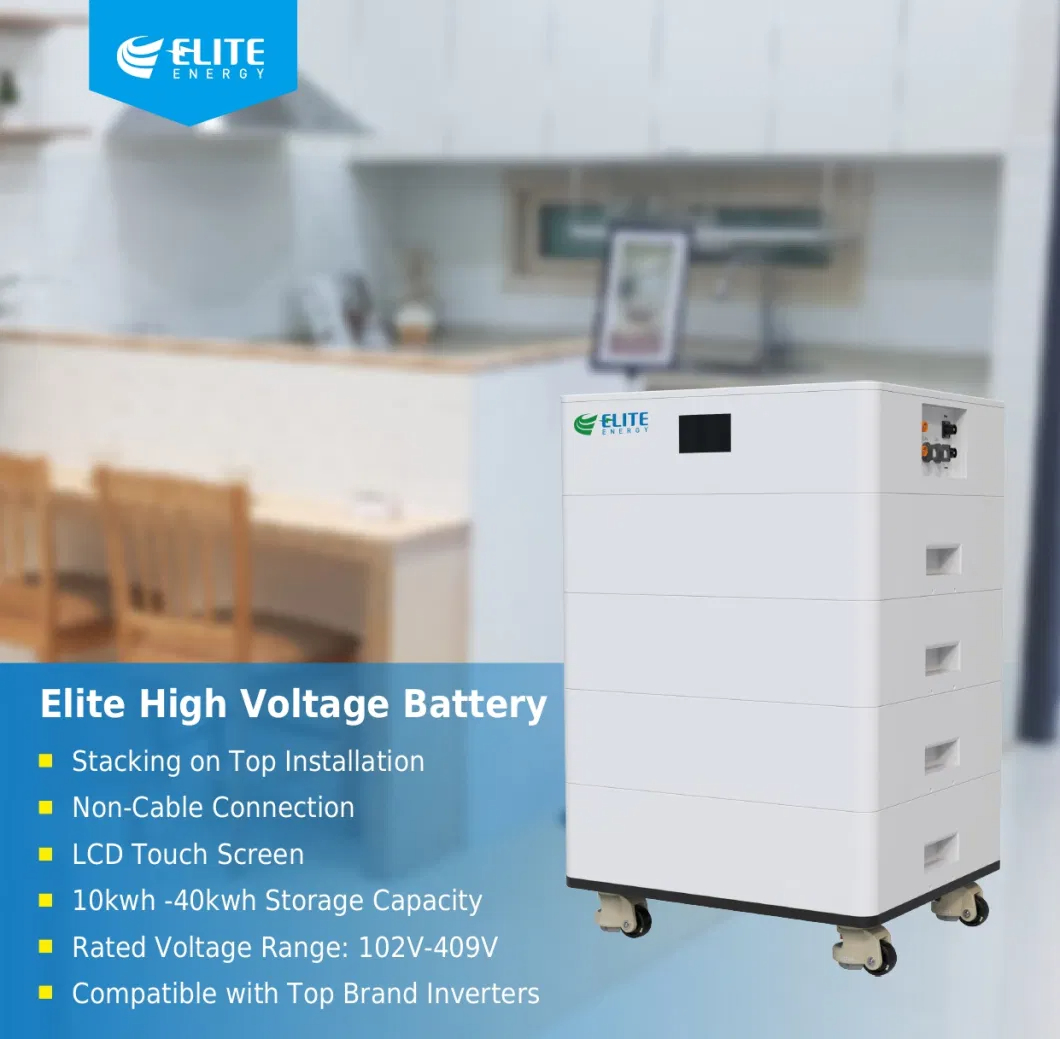

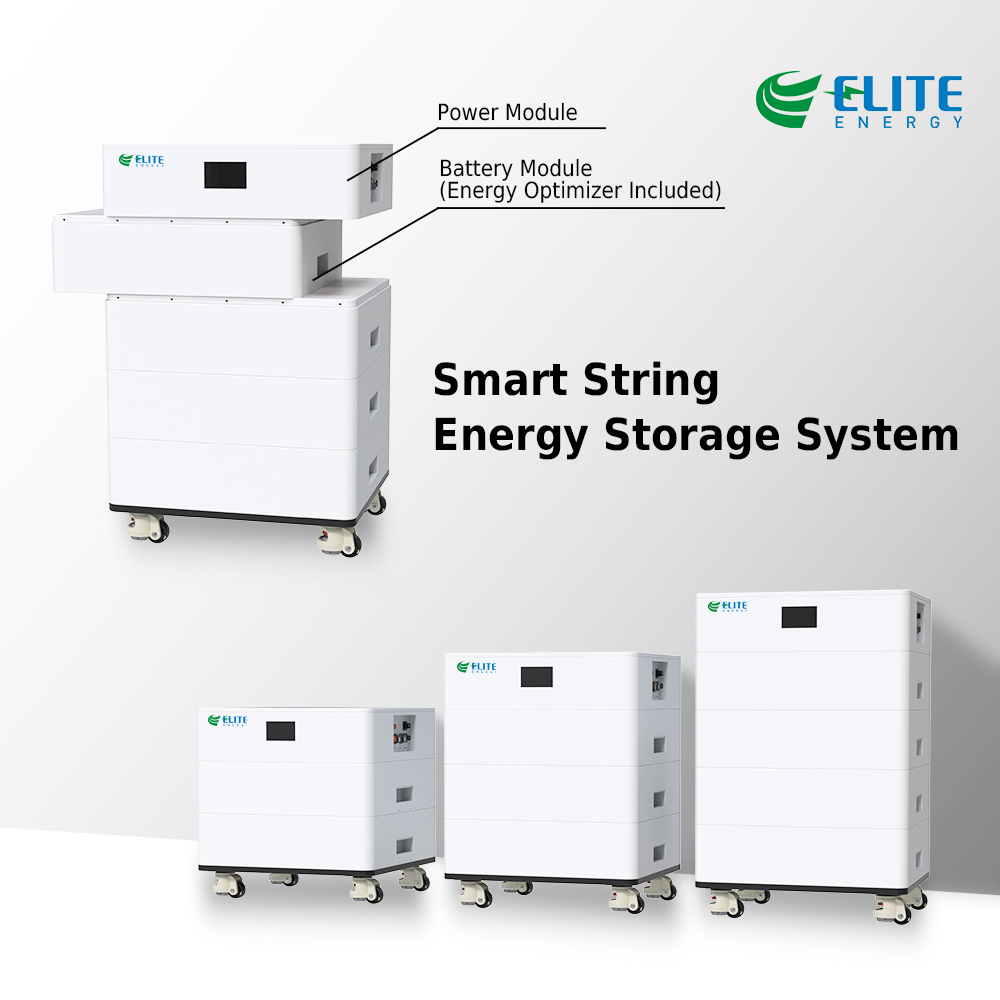

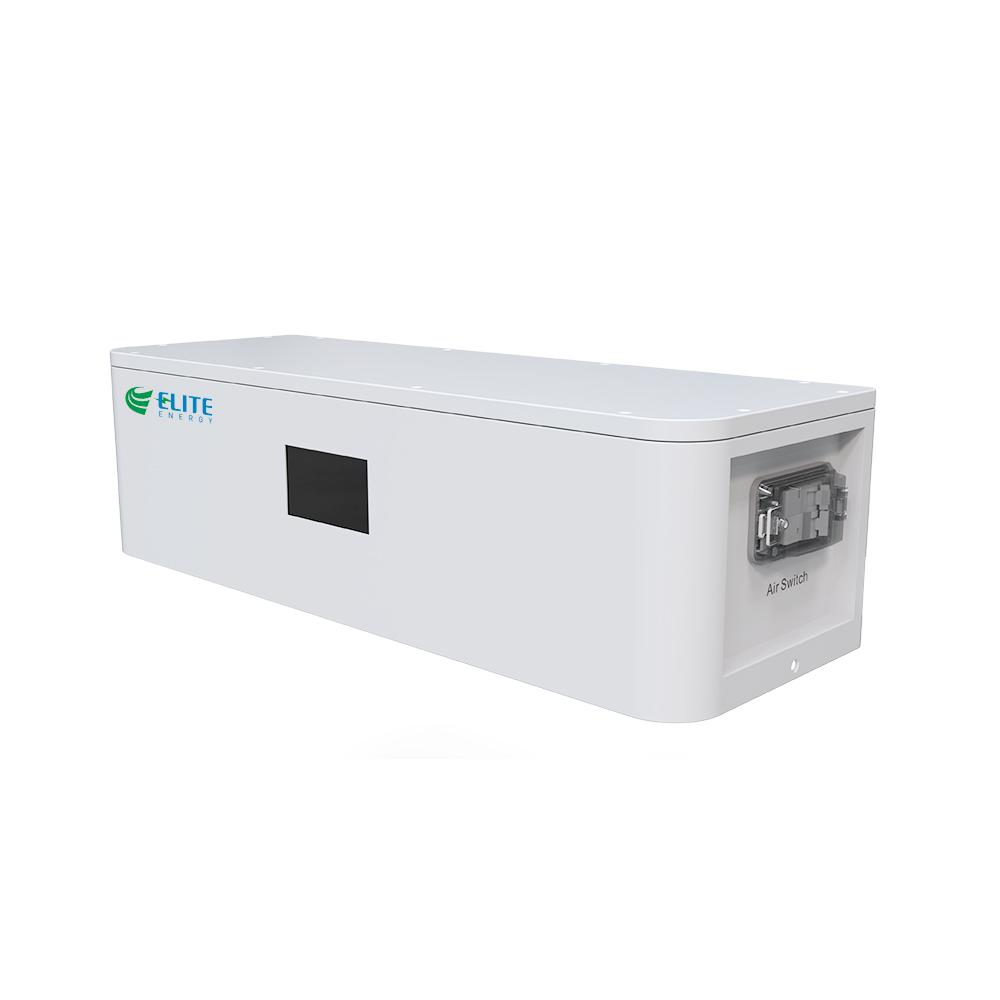

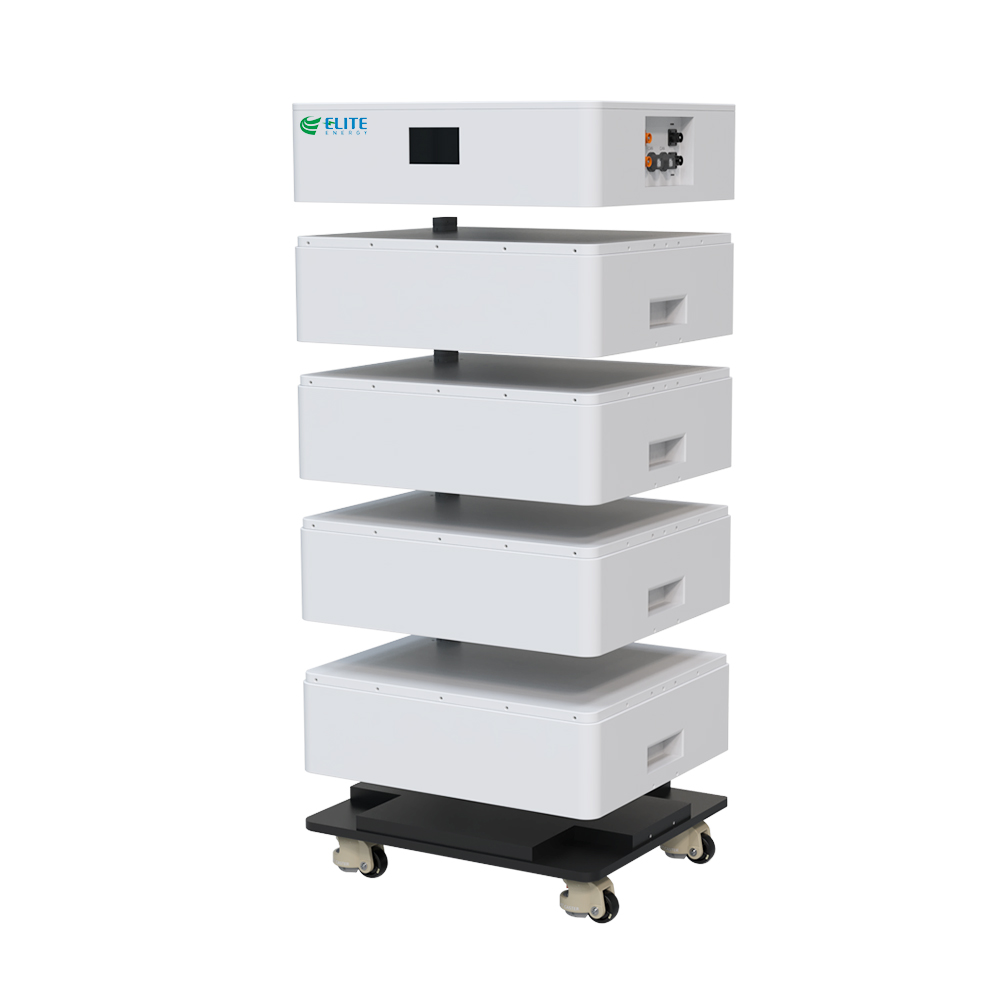

Product Details

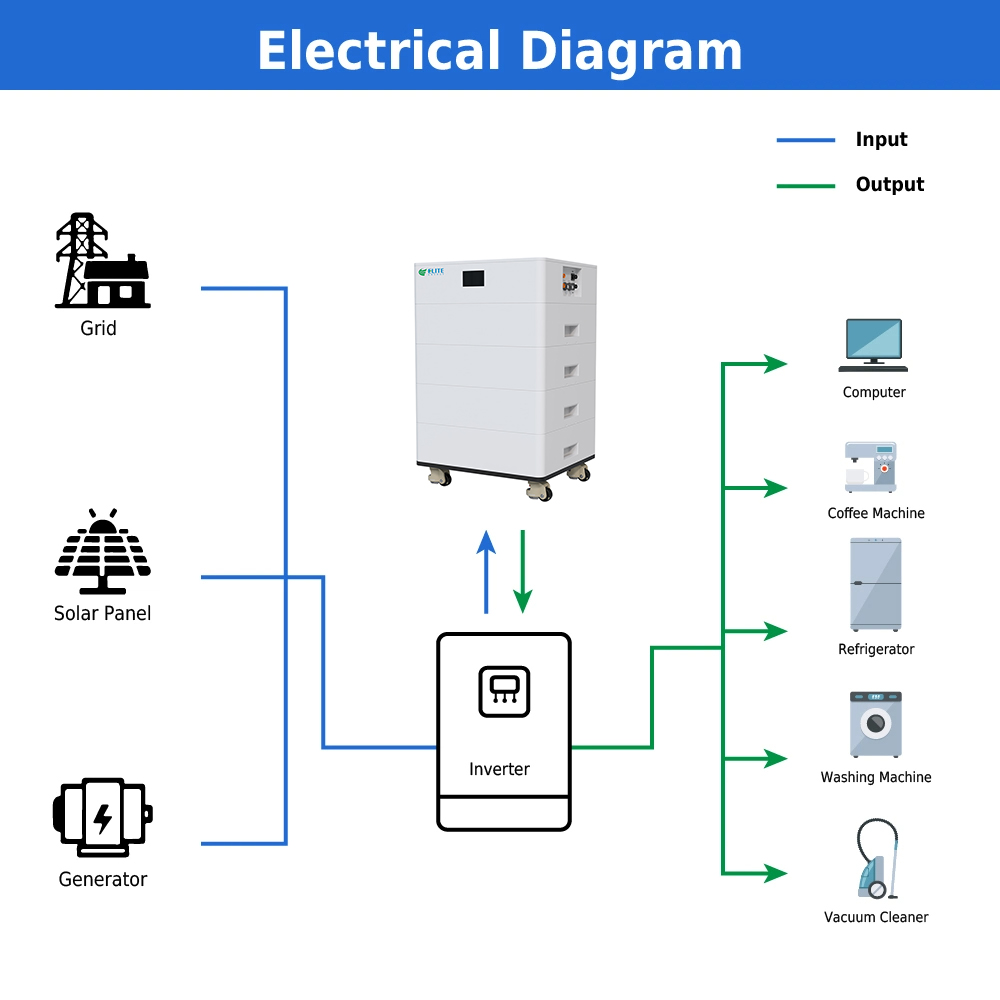

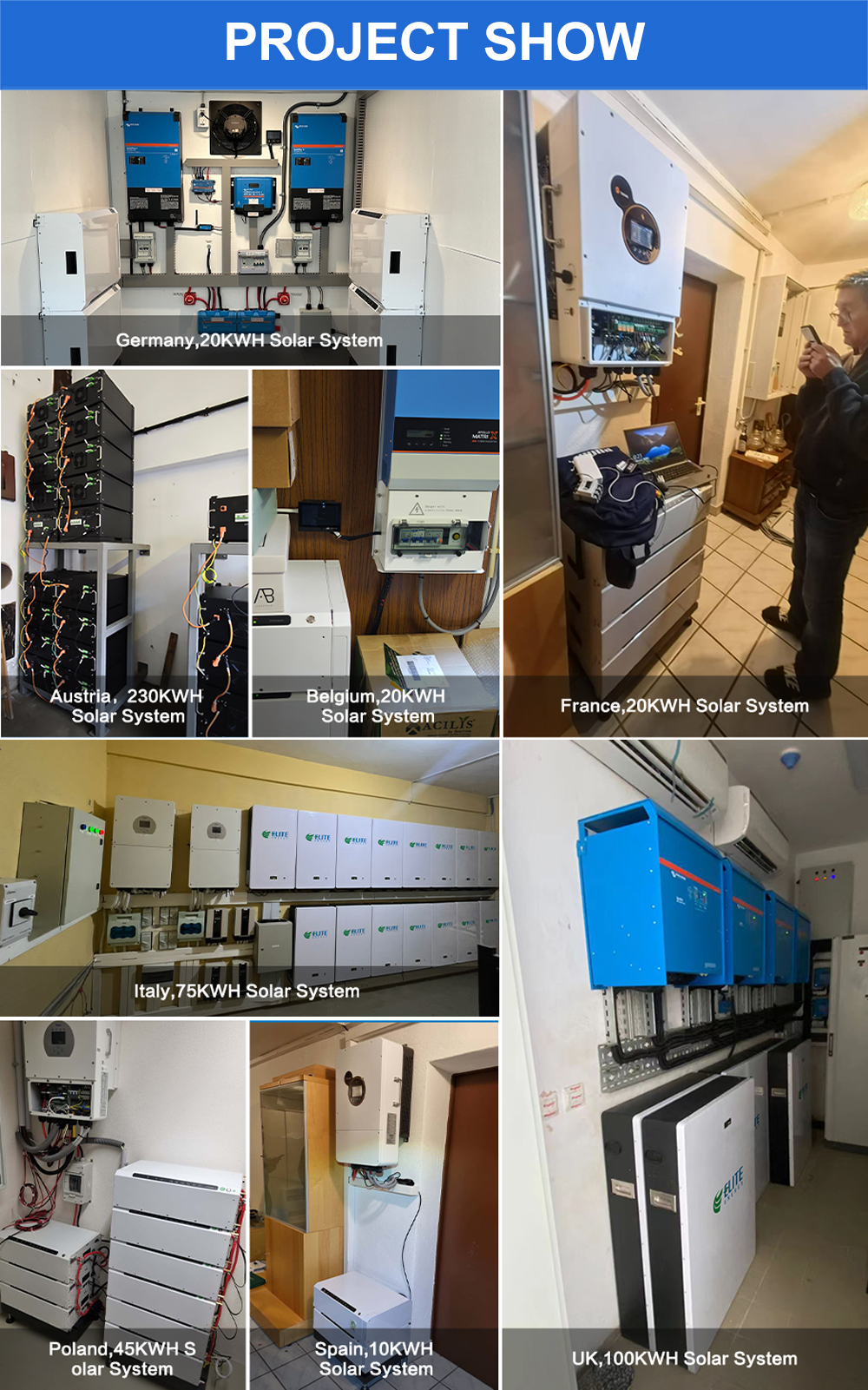

Applications

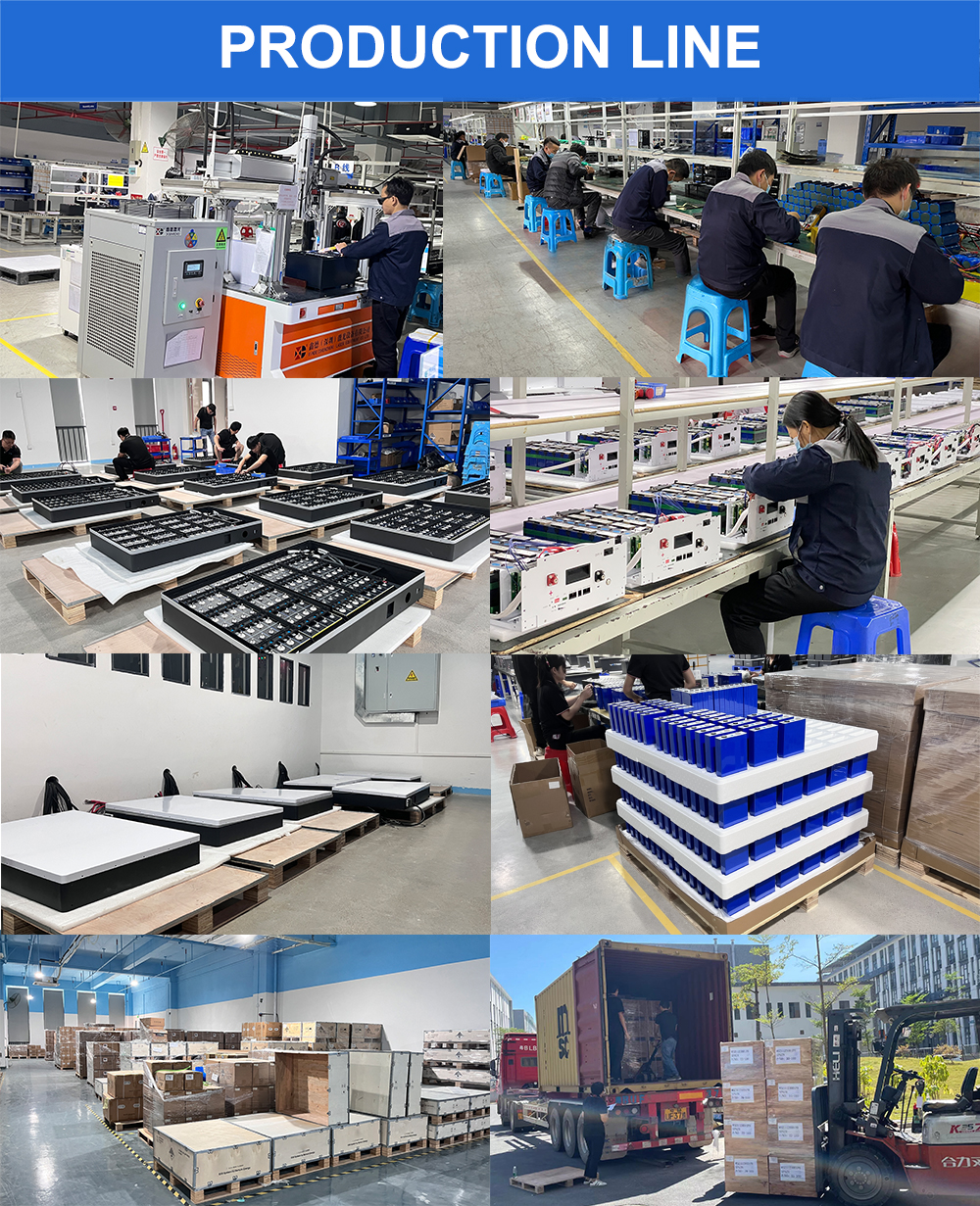

Production & Quality Control
Certifications
Our products are fully compliant with major global requirements and standards, ensuring top performance and legal authorization for distribution worldwide.
Products approved with CE, UKCA, MSDS, UN38.3, and BIS certifications.
Manufacturing systems comply fully with ISO9001, ISO14001, and ISO45001 standards.
Recommended Products
Frequently Asked Questions
Q:
Do you have a MOQ (Minimum Order Quantity) limit?
No, we do not enforce strict MOQ limits. Samples or small volume orders are fully supported to match your pilot requirements.
Q:
What is the typical lead time for orders?
For standard catalog products: Samples require 3-5 days; bulk orders usually take 3-4 weeks. Customized system production runs average 3-4 weeks for both design validation and volume runs.
Q:
How are shipments handled, and what are the delivery times?
We support multiple shipping modes based on requirement urgency:
- Air Freight Express Door-to-Door (6-12 days via FedEx, UPS, or DHL): Recommended for urgent sample orders.
- Ocean Freight Door-to-Door (25-50 days): Ideal cost-saving choice for volume orders.
- Ocean Freight to Destination Port (20-35 days): Standard bulk option.
- Air Cargo to Airport (3-5 days): Fast routing for heavy modules.
Q:
What is the process to place and customize an order?
First, communicate your application requirements or standard product choices. Our engineers will provide a verified configuration design and matching price quote. Upon technical approval and deposit receipt, the project enters planned production.
Q:
Is it possible to customize the enclosures with custom branding?
Yes. Simply submit your branding elements. We provide custom labels for our standard configurations, and screen-printing options for systems built in metal or aluminum housings.
Q:
What certifications and warranties are included?
Our facilities operate under ISO9001/14001/45001. Products carry relevant certifications such as CE, UKCA, UN38.3, MSDS, and BIS. All products are backed by our standard 5-year replacement and engineering warranty, supplemented with lifetime technical assistance.
