| Parameter | Details & Value |
|---|---|

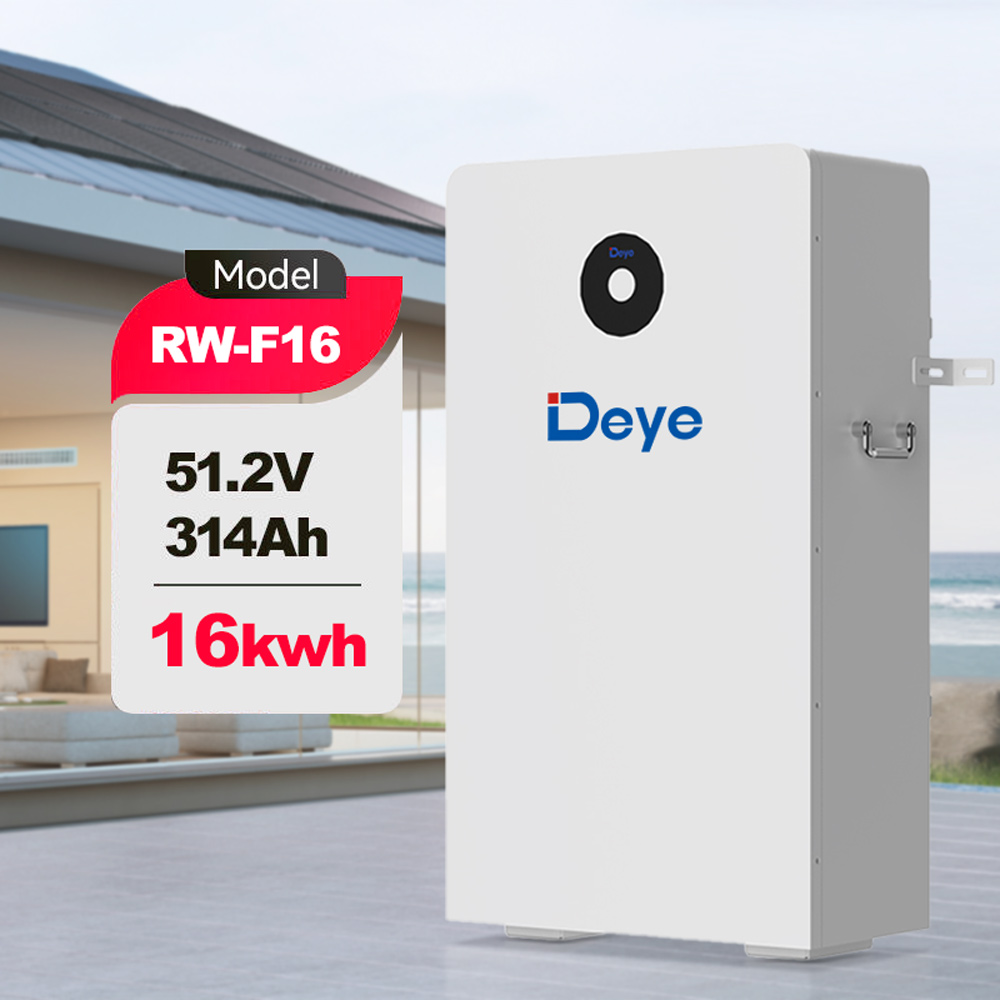

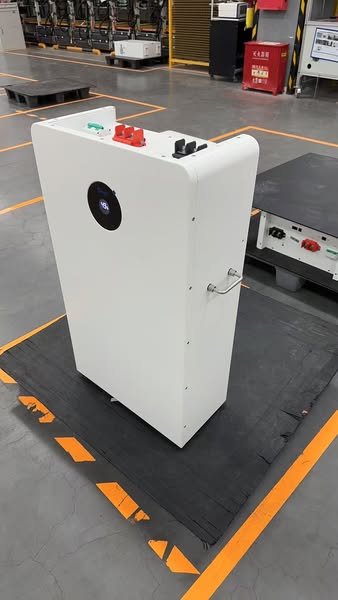

| Model | RW-F16 |
| Battery Chemistry | LiFePO4 |

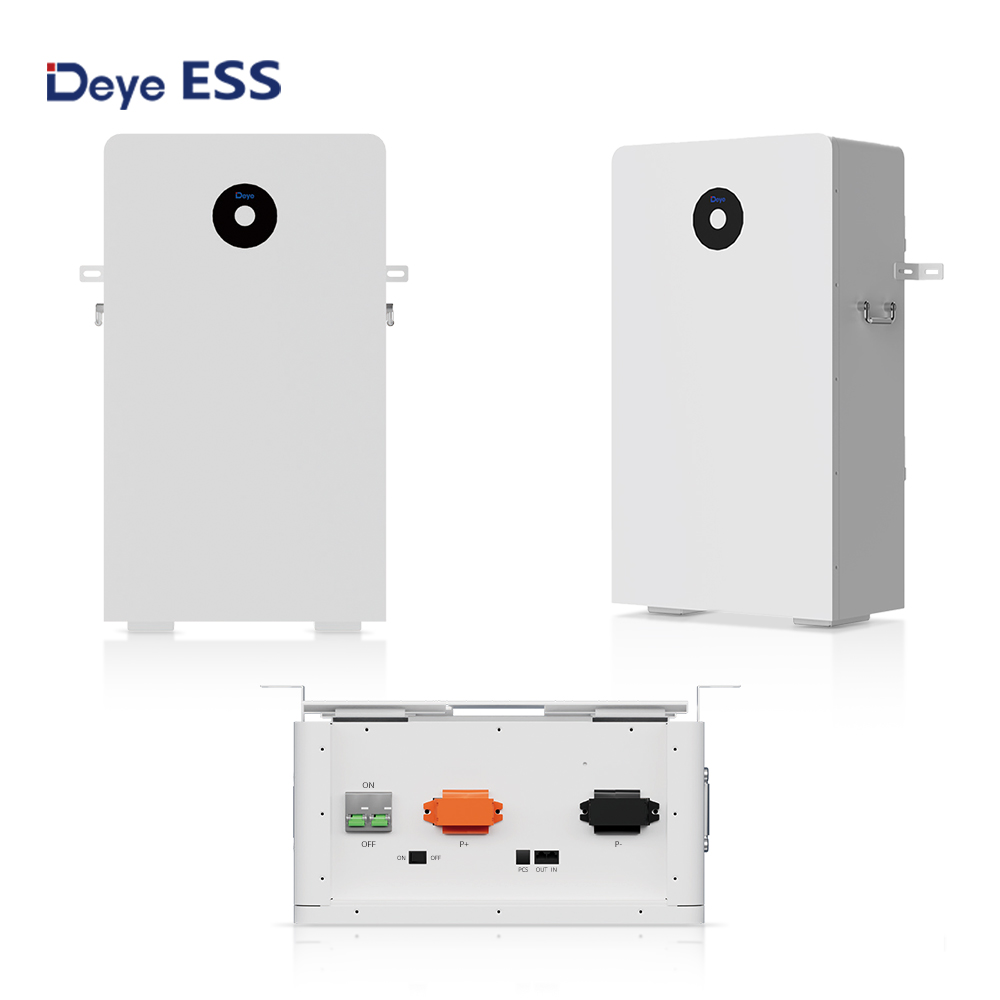

| Built-in Circuit Breaker | 125A 2P, 60Vdc |
| Capacity | 314Ah |

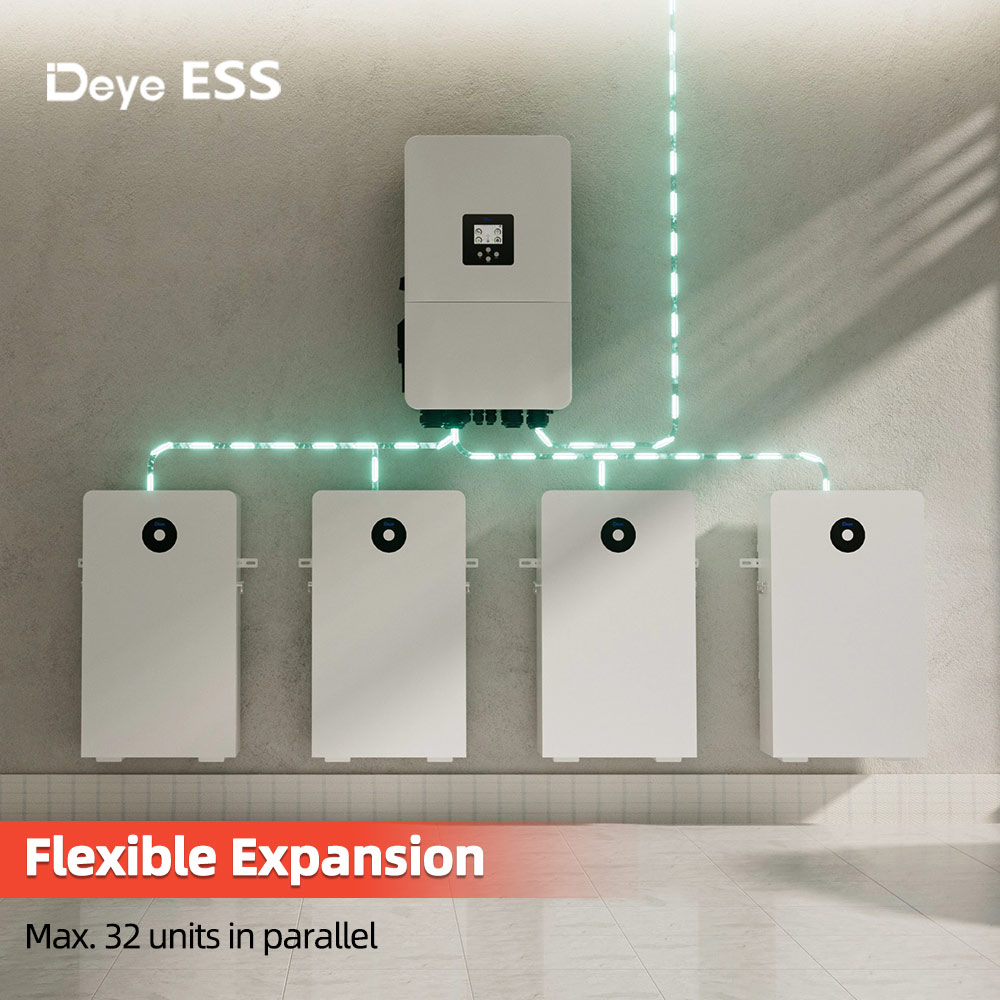

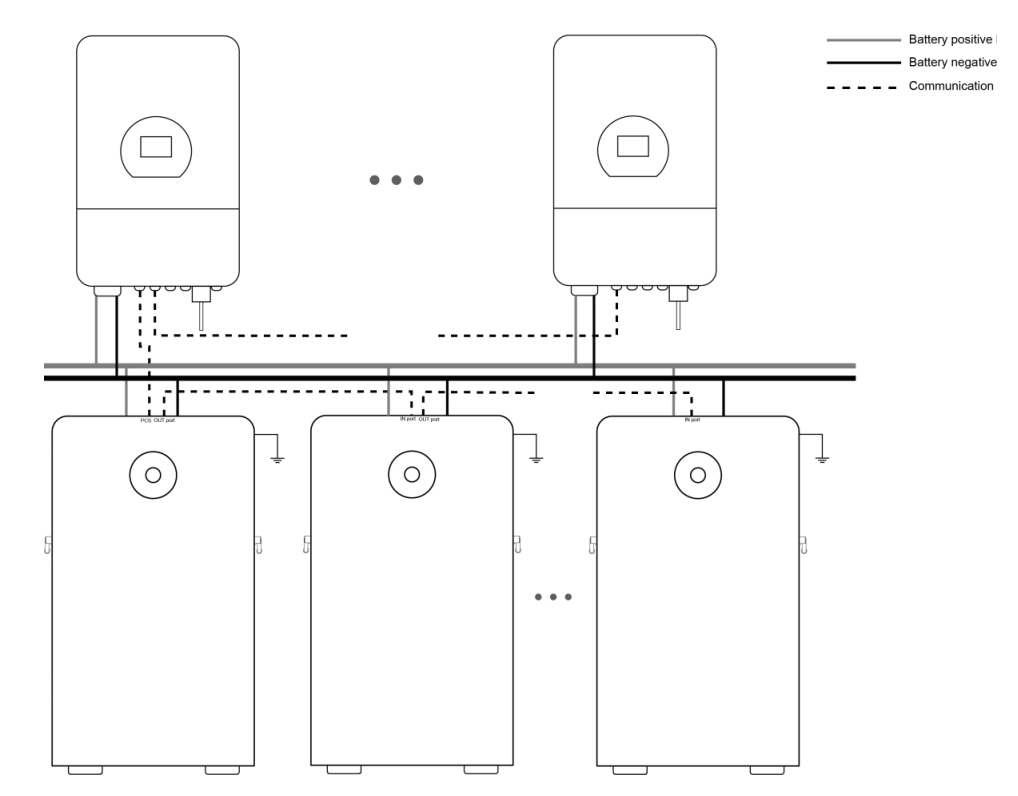

| Scalability | Max. 32 pcs pack (Max. 512kWh) in parallel |
| Nominal Voltage | 51.2V |
| Operating Voltage | 44.8 ~ 57.6V |
| Nominal Energy | 16kWh |
| Usable Energy | 14.4kWh |
| Charge/Discharge Current (A) | 160 / 160 |
| Charge/Discharge Current (A) Max Peak (25°C) | 300 / 300 (10 sec) |
| Recommend Depth of Discharge | 90% |

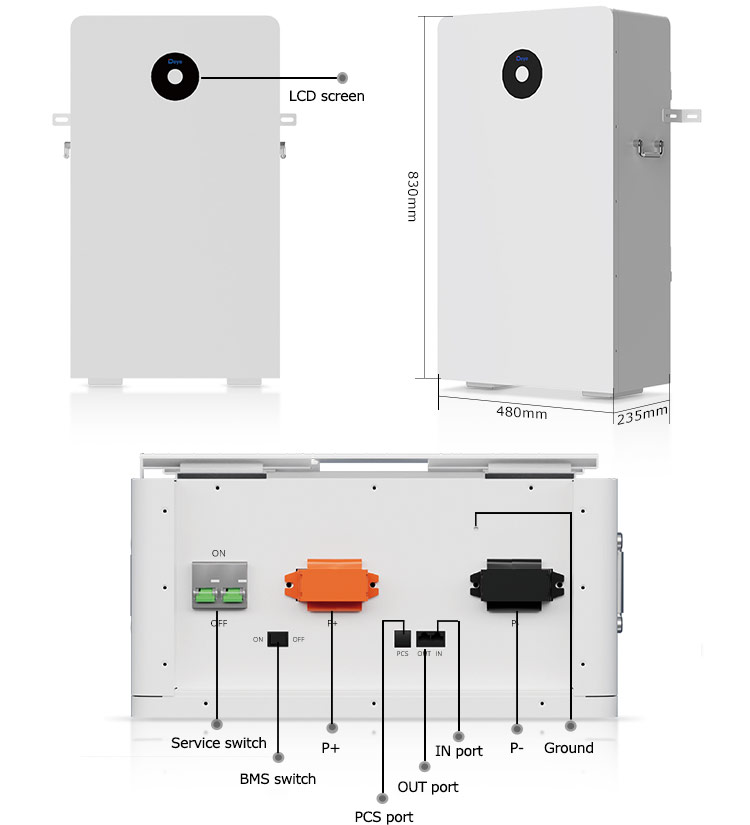

| Dimension (W x H x D, mm) | 480 x 830 x 235 (Without hanging board and base) |
| Weight Approximate (kg) | 122 |
| Master LED indicator | LED (SOC and working state) |
| Operating Temperature | Charge: 0 ~ 55°C / Discharge: -20°C ~ 55°C |
| Recommend Operating Temperature | 15°C ~ 35°C |
| Storage Temperature | 0°C ~ 35°C |
| IP Rating of Enclosure | IP20 |
| Communication Port | CAN2.0, RS485 |

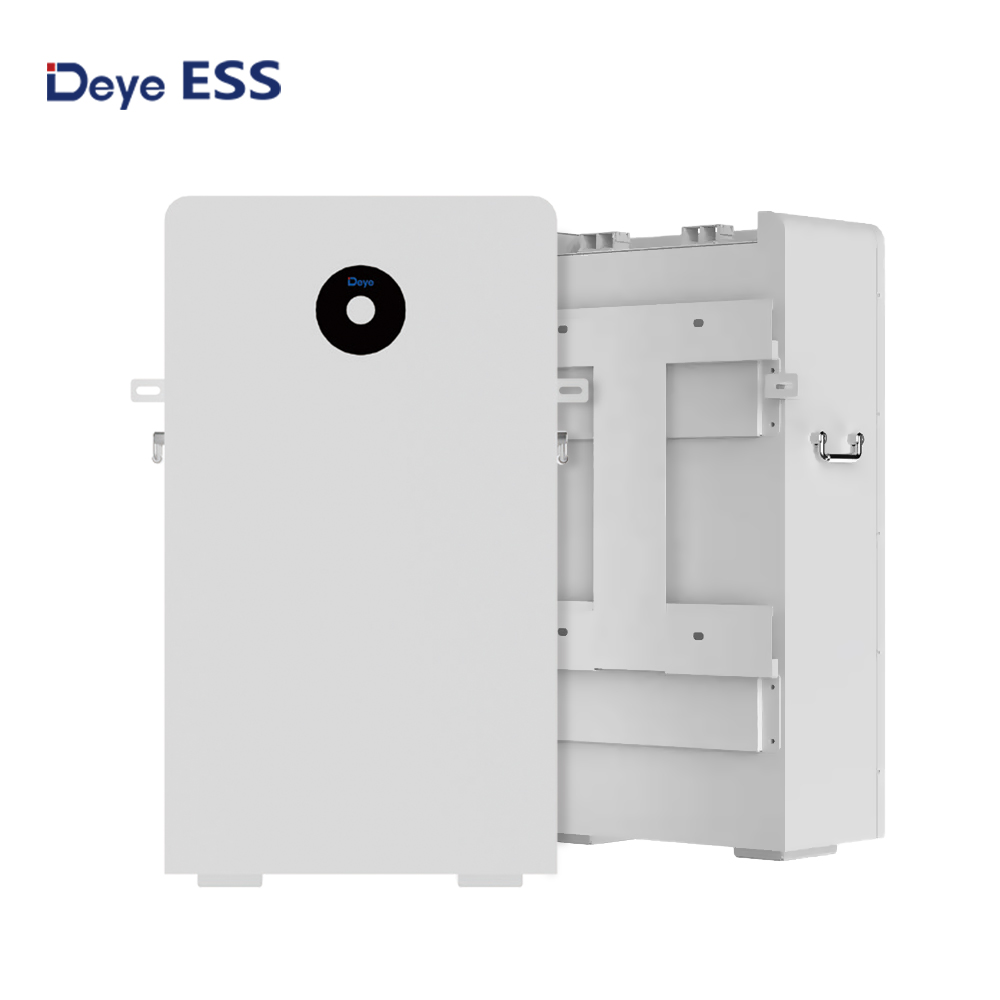

| Installation | Wall-Mounted, Floor-Mounted |
| Cycle Life | ≥ 6000 (25°C ± 2°C, 0.5C/0.5C, 90% DOD, 70% EOL) |
| Warranty Period | 5 Years |
| Energy Throughput | 52.5MWh (25°C, 0.5C/0.5C, 70% EOL) |
| Certification | UN38.3, MSDS |
