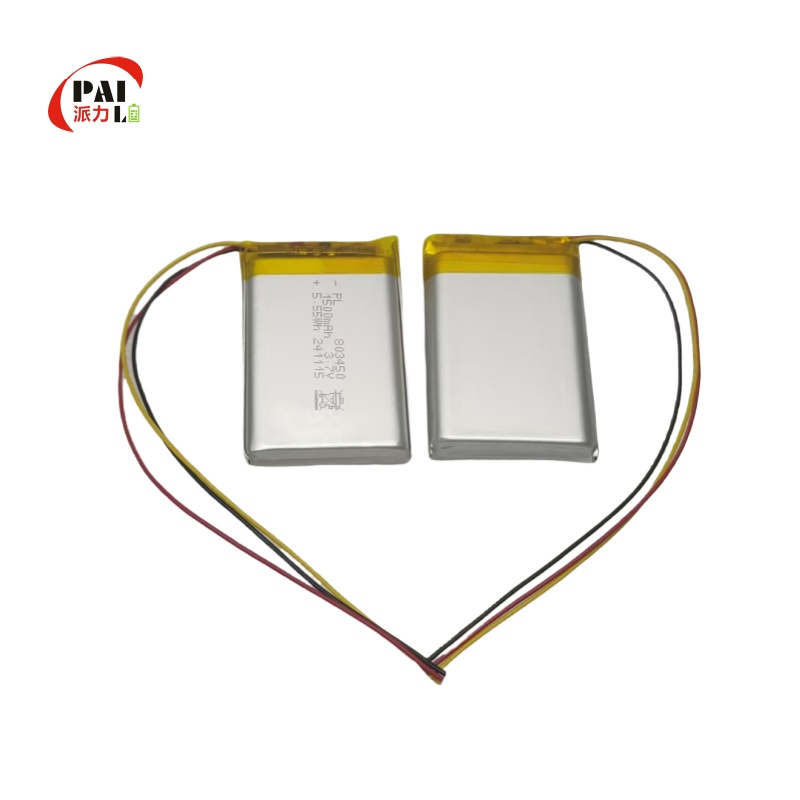

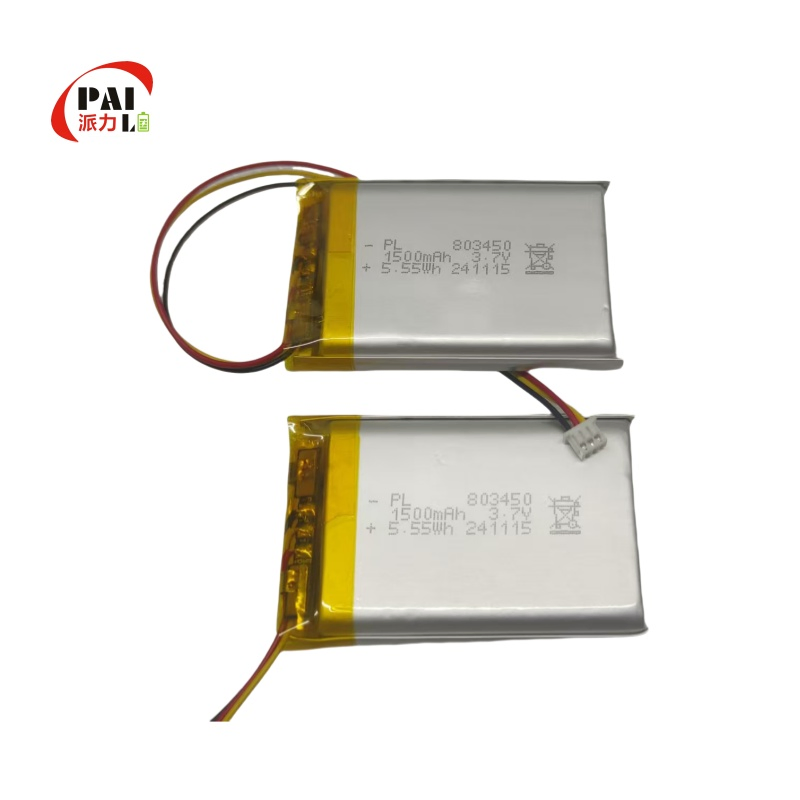

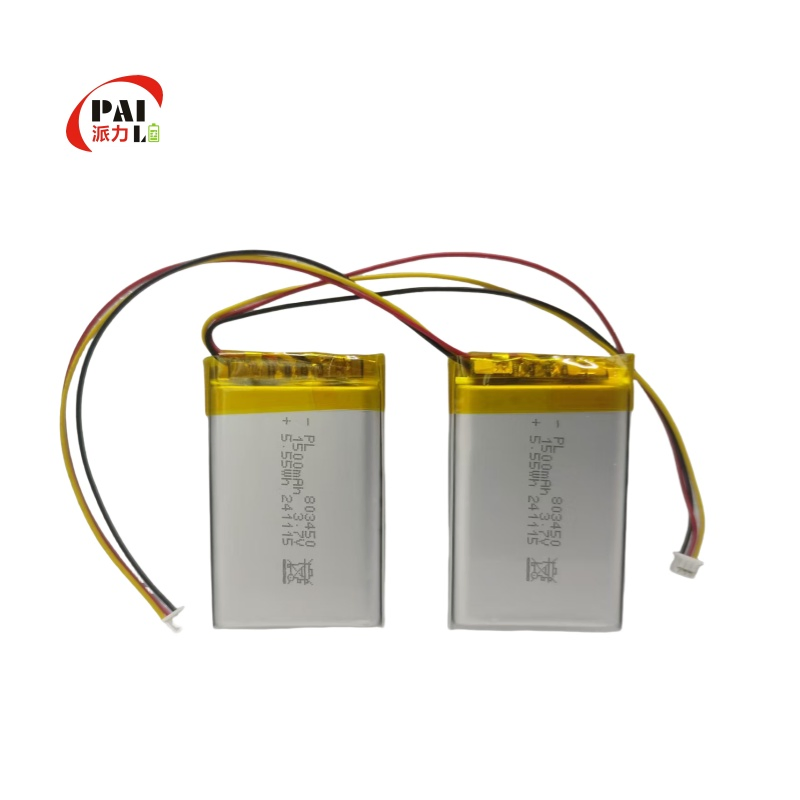

Customized Pouch Cells 3.7V Polymer Battery 803450 Li-ion Lithium Battery Rechargeable Lipo Battery

Still deciding? Get samples of $ !
Order Sample

Product Description

Wholesale Li-Polymer 1500mAh Lipo Battery 803450 3.7V Battery Pack

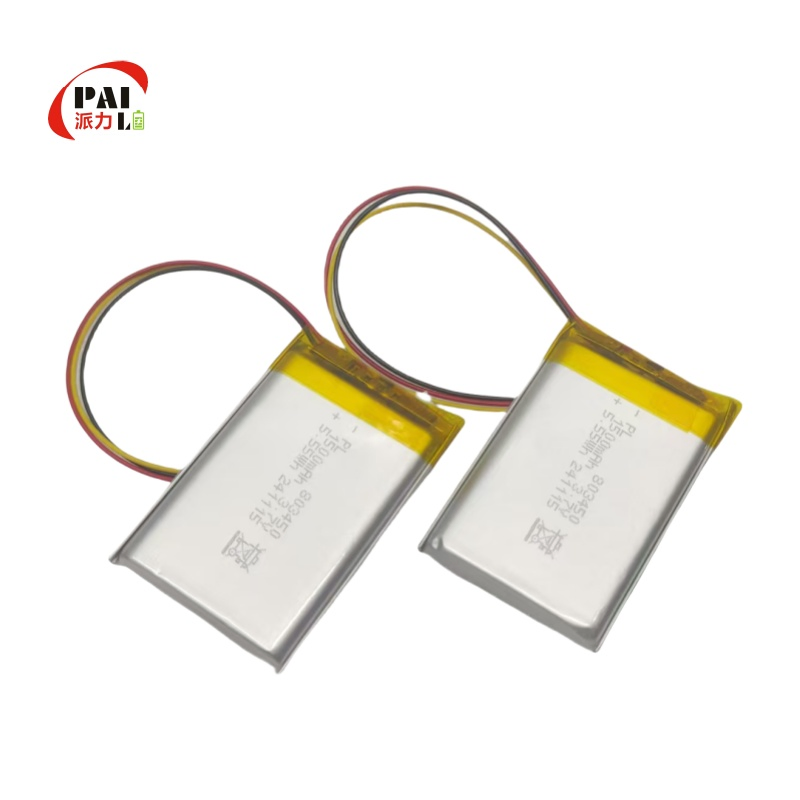

Rechargeable Lipo Battery Details

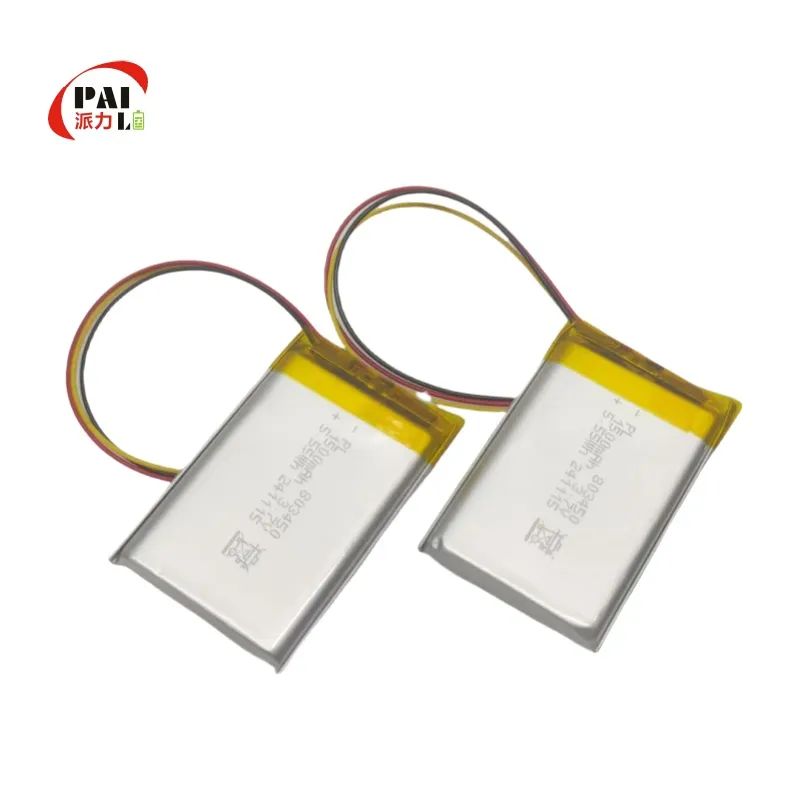

Lithium Polymer Battery Features

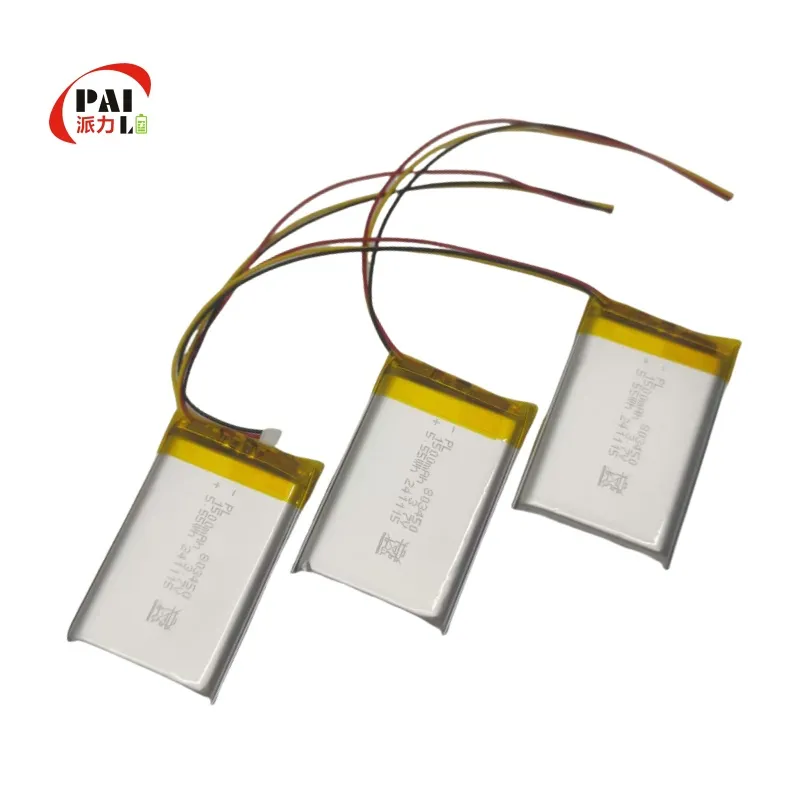

Lipo Battery Pack Application

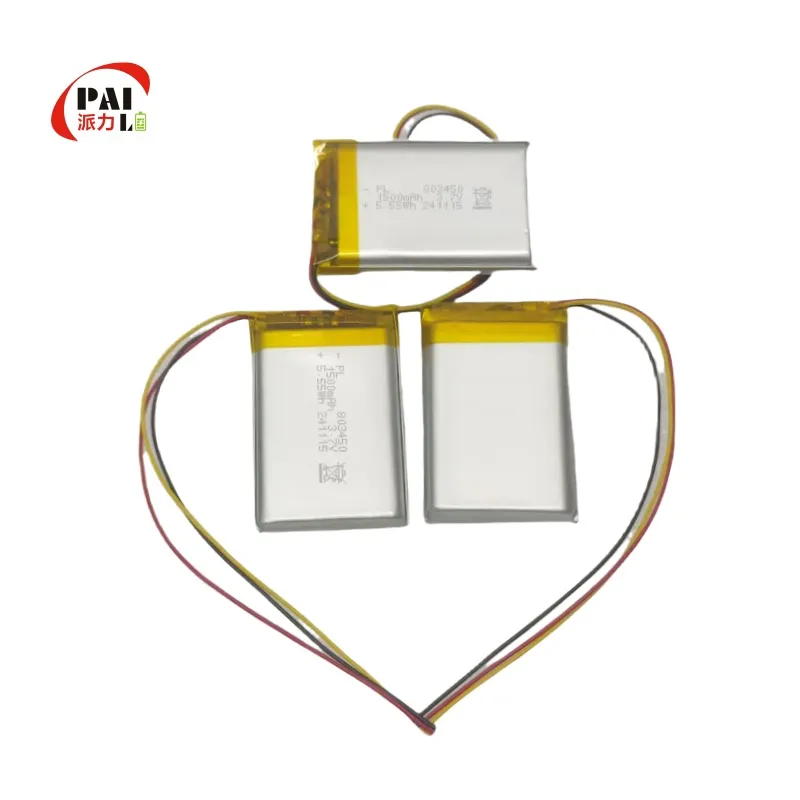

Customized Pouch Cells 3.7V Polymer Battery

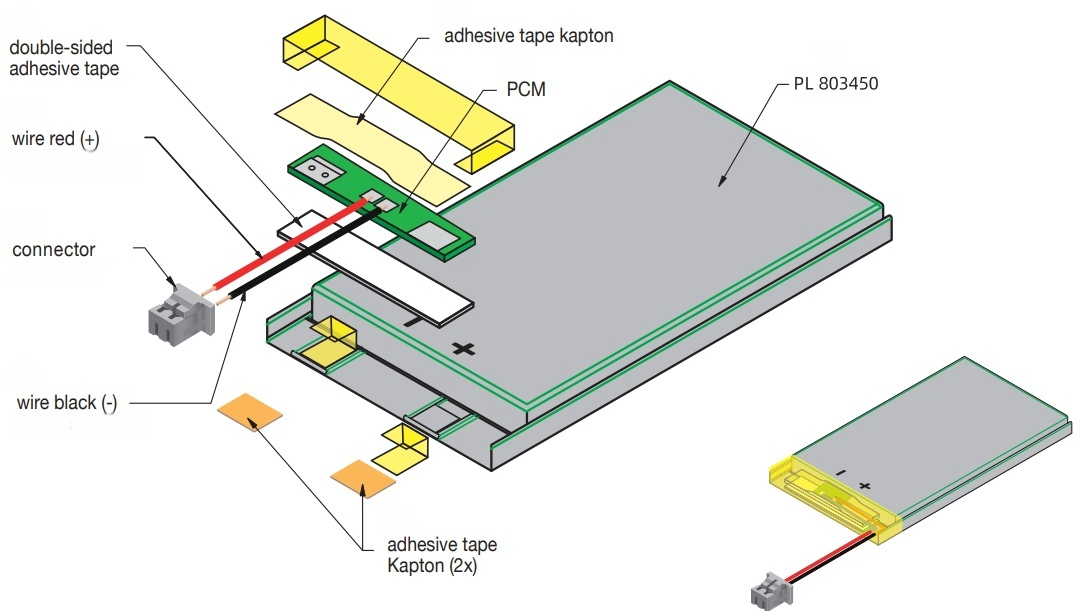

Polymer Battery Structural Parameters
Battery Charging Curve

Basic Info.

Model NO.
803450 1500
Rechargeable
Yes
Size
Small
Connection Mode
Series and Parallel
Discharge Rate
Low Discharge Rate
Accessories Type
Battery
Electrolyte
Alkaline
Customizable
Customizable
Battery Brand
NCR
Rated Capacity
1500mAh
Nominal Voltage
3.7V
Maximum Discharge Current
0.2c/5c
Lithium Battery
Lipo Battery
Transport Package
Export Cartons
Specification
803450
Origin
China Guangdong
HS Code
8506500000
Production Capacity
5000000

Packaging & Delivery

Package Size
10.00cm * 5.00cm * 5.00cm
Package Gross Weight
0.200kg
Lead Time
20 days (1 - 100000 Pieces)
To be negotiated (> 100000 Pieces)

Product Description

Battery Specification
Item Specification
Nominal capacity 1500mAh @0.2C
Minimum capacity 1.5Ah @0.2C
Nominal voltage 3.7V
Max Charging voltage 4.2 ±0.05 V
Discharge ending voltage 2.75 ±0.05 V
Standard charge current Customized
Standard discharge current Customized
Recommended cell surface max temperature during charge and discharge Charge: 0~45ºC
Discharge: -20~60ºC
Storage temperature and time 1 year: -20~25ºC
3 months: -20~45ºC
1 month: -20~60ºC

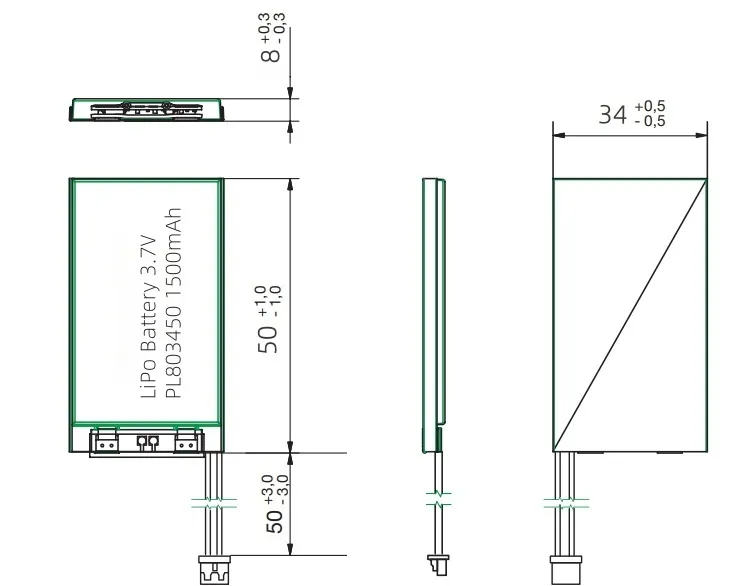

Cell dimension 8*34*50mm
Weight About 18g
BMS Electric Features
Overcharge detection voltage 4.2 ±0.05 V
Overdischarge detection voltage 2.75±0.05 V
Max continuous discharge current 1500mAh
Operating temperature Customized
NTC resistor Customized
0V battery charge function Available

Major Application

  • Portable devices: laptops, camcorders, PDAs, digital cameras, portable DVDs, smart bracelets, headphones
  • Household appliances: sweeping robots, walkie-talkies, electric toys, electric bicycles, emergency lights
  • Industrial applications: infrared telescopes, signal lights, industrial computers, AGV, AMR
  • Medical equipment: wheelchairs, golf carts, medical treatment instruments
  • Power tools: specialized industrial and consumer electric tools
Lipo Battery Major Applications

A Partner Worthy of Your Trust

Manufacturing Workflow 1

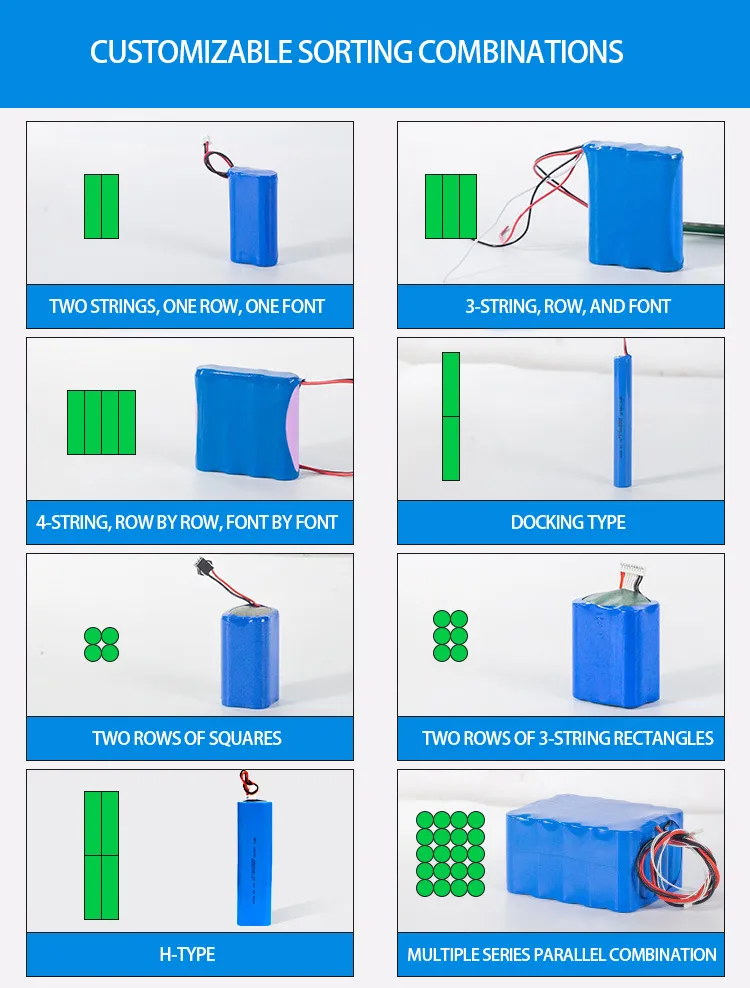

Manufacturing Workflow 2

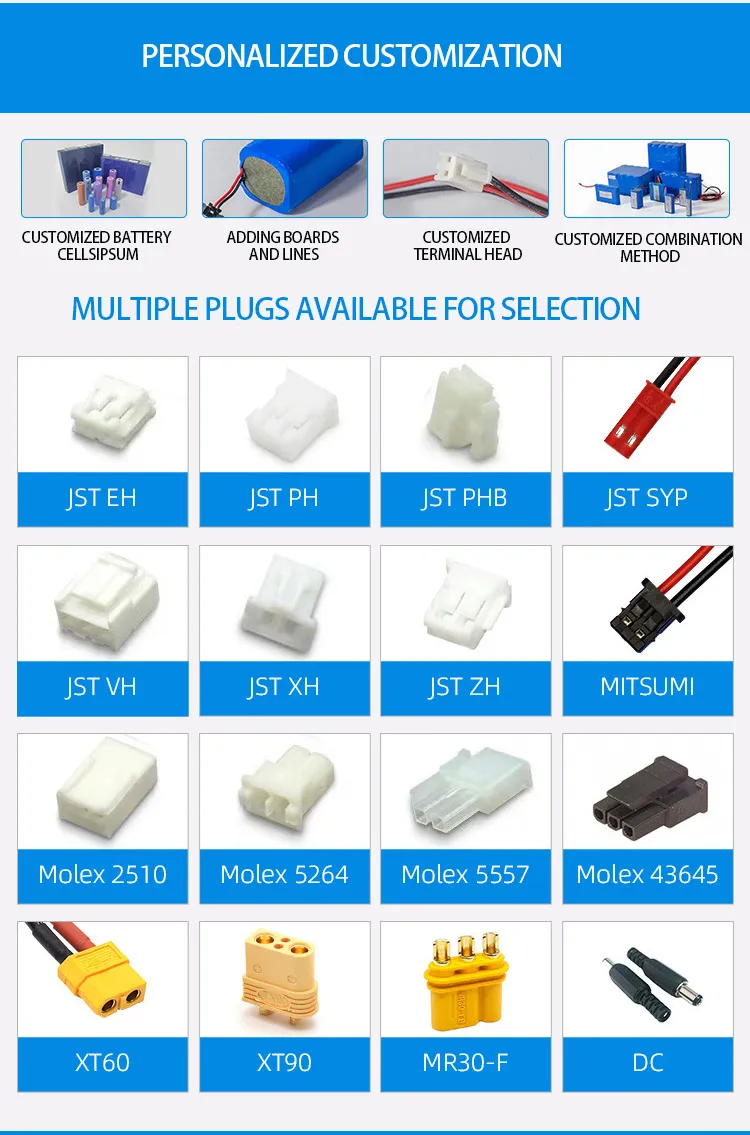

Manufacturing Workflow 3

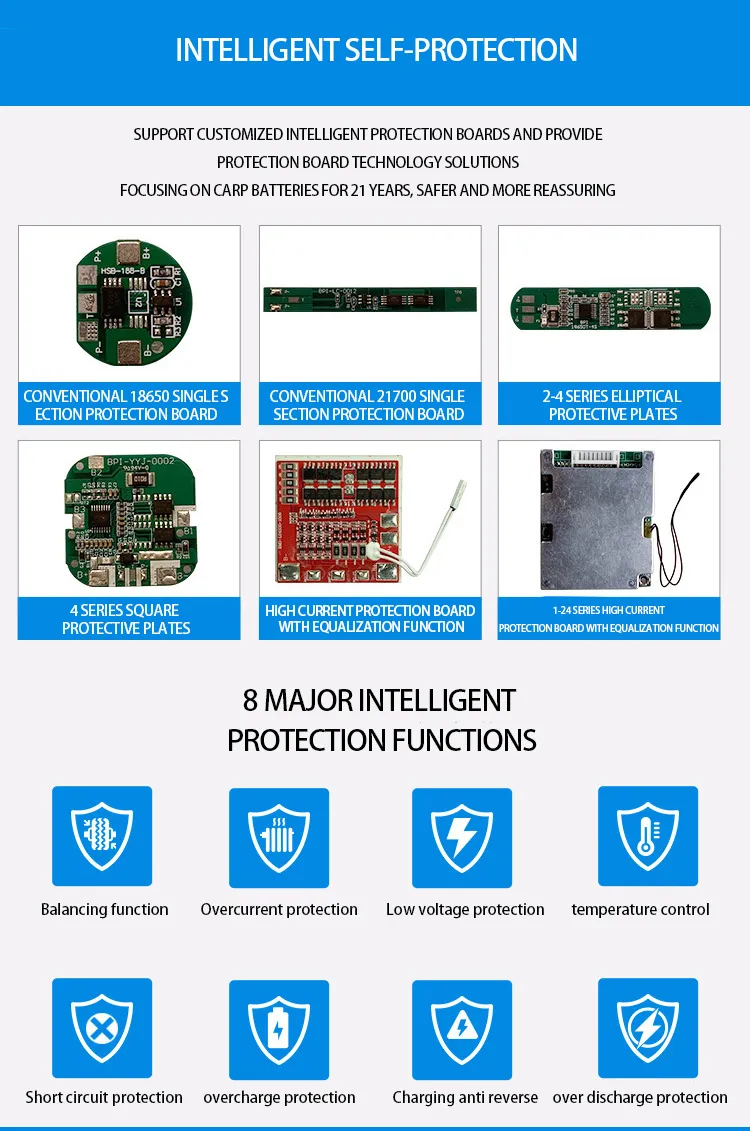

Manufacturing Workflow 4
Manufacturing Workflow 5

Certifications

Battery Certifications Sheet
Quality Standard Compliance

📦 Product Packaging

Packaging Standard Part 1

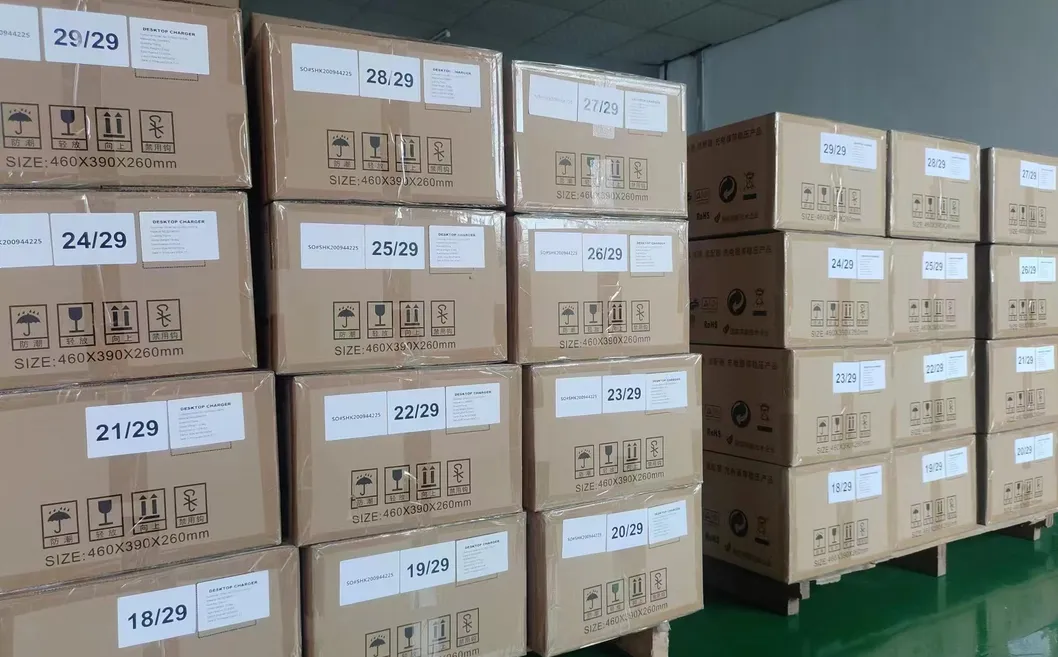

Packaging Standard Part 2
Packaging Standard Part 3

Company Profile

Our company was established in 2010 and is a professional lithium battery solution provider. We have more than 15 years of industry experience and provide 200+ professional battery pack solutions for domestic and foreign customers. The company has passed ISO9001 quality management system, ISO14001 environmental management system and other system certifications. The products have complete certification measures such as CE, UL, IEC62133, ROHS, REACH, UN38.3, BIS, KC, CQC, etc., ensuring that every battery is carefully designed and strictly tested to meet the highest durability, reliability and efficiency standards.
In recent years, we focused on investing in and expanding the high-end application market in new fields such as polymer batteries, cylindrical lithium batteries, and energy storage batteries, creating highly recognized terminal solutions for major domestic and foreign customers. Our solutions are widely used in communications, security, medical, energy storage, portable devices, lighting fixtures, personal care, power tools, and solar lamp energy storage. High and low temperature NiMH and lithium batteries represent our core advantageous products.
Our advantages:
1. Personalized customized batteries with voltages from 1.2V to 90V, various capacities, and custom shapes;
2. Customized structural design, active/passive balanced charging/discharging hardware/software, extreme high & low temperature tolerance (-50°C to 125°C), high discharge currents, and explosion-proof models;
3. Communication protocols integration (SMBUS, I2C, HDQ, RS485, CAN, Bluetooth, UART);
4. Integrated industrial and trade management for rapid, efficient response, maximizing time and cost savings.
Industrial Facility Office

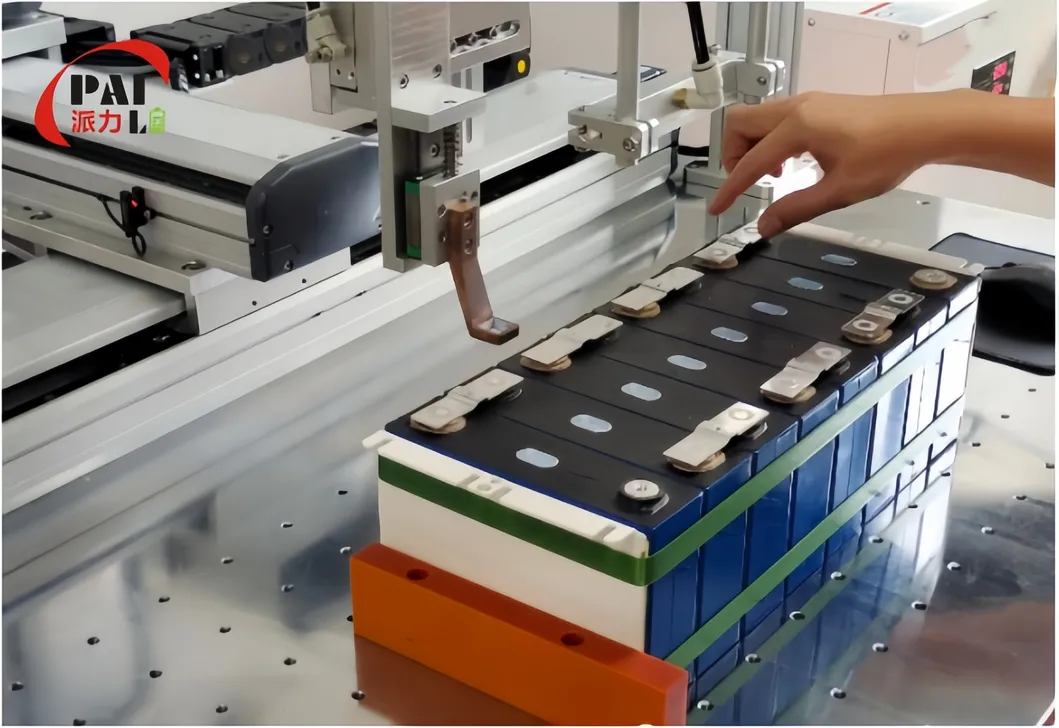

Battery Assembly Line

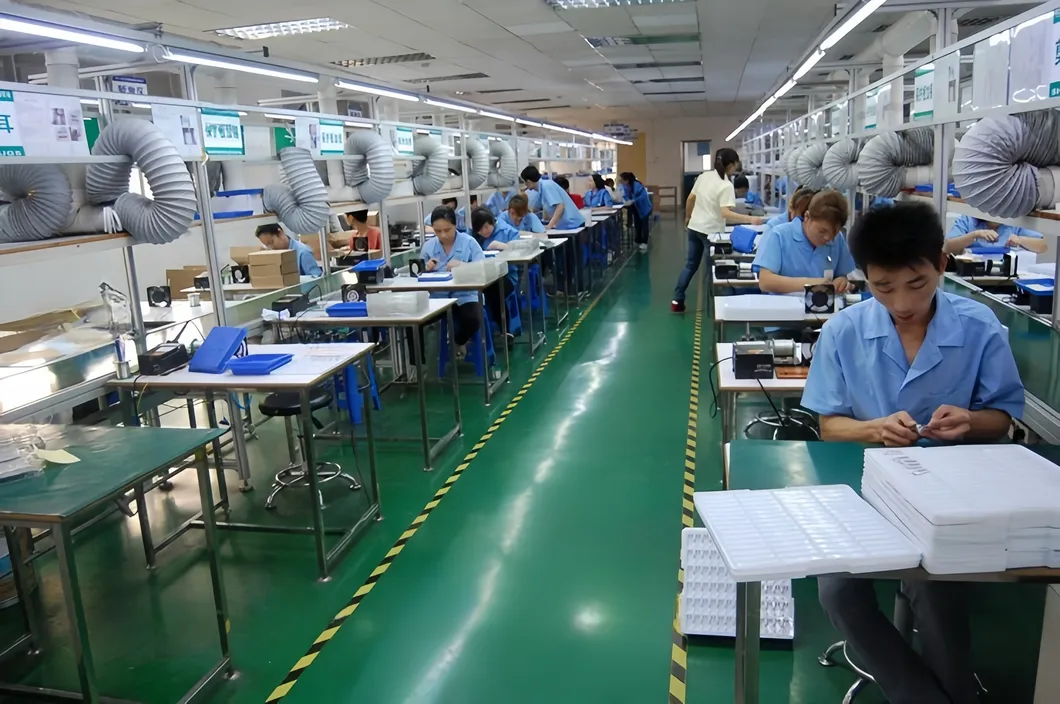

Testing Equipment

Quality and Guarantee

Product quality requirements: Professional design, strict material selection, and rigorous quality control in every step of production ensure top-tier product compliance with global standards.

Battery Life: All battery packs utilize A+ grade cells to guarantee longer cycle life, consistent capacity, and reliable operating stability.

Power management: Integrated high-quality PCB protection boards, charging guards, thermal switches, and circuit breakers effectively safeguard against overcharging, over-discharging, overheating, and short circuits.

Pledge: We guarantee that all products shipped are brand new, with no second-hand or refurbished cells. All products come backed by a 12-month warranty!
We look forward to hearing from you.
Thank you for visiting. Please submit your inquiry details to get started.

Frequently Asked Questions

Where can I get the price?
We quote within 12 hours after receiving your inquiry. Please supply specific battery parameters in your message so we can provide an accurate quotation.
How can I get samples to check the battery quality?
Once the price terms are mutually confirmed, you are welcome to request samples to verify the build quality and electrical performance.
What is the delivery lead time for mass production?
Mass production typically takes about 1 month. We advise clients to initiate inquiries at least 2 months prior to their target battery purchase date.
What are your payment terms?
We currently support T/T (Telegraphic Transfer) and PayPal payment methods for sample and mass production orders.
What certifications do your batteries hold?
Our battery products conform to key international standards and hold comprehensive certifications including CE, UL, IEC62133, RoHS, REACH, UN38.3, BIS, KC, and CQC.
What warranty policy do you provide?
All products are covered by a 12-month manufacturer warranty. We guarantee that all shipped batteries are 100% brand new and never refurbished.
