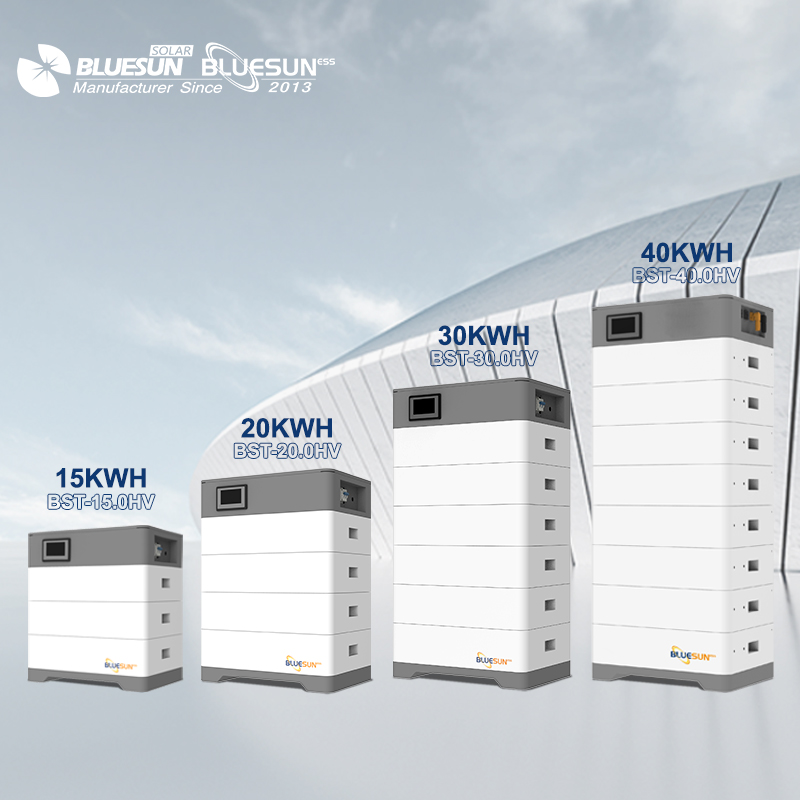

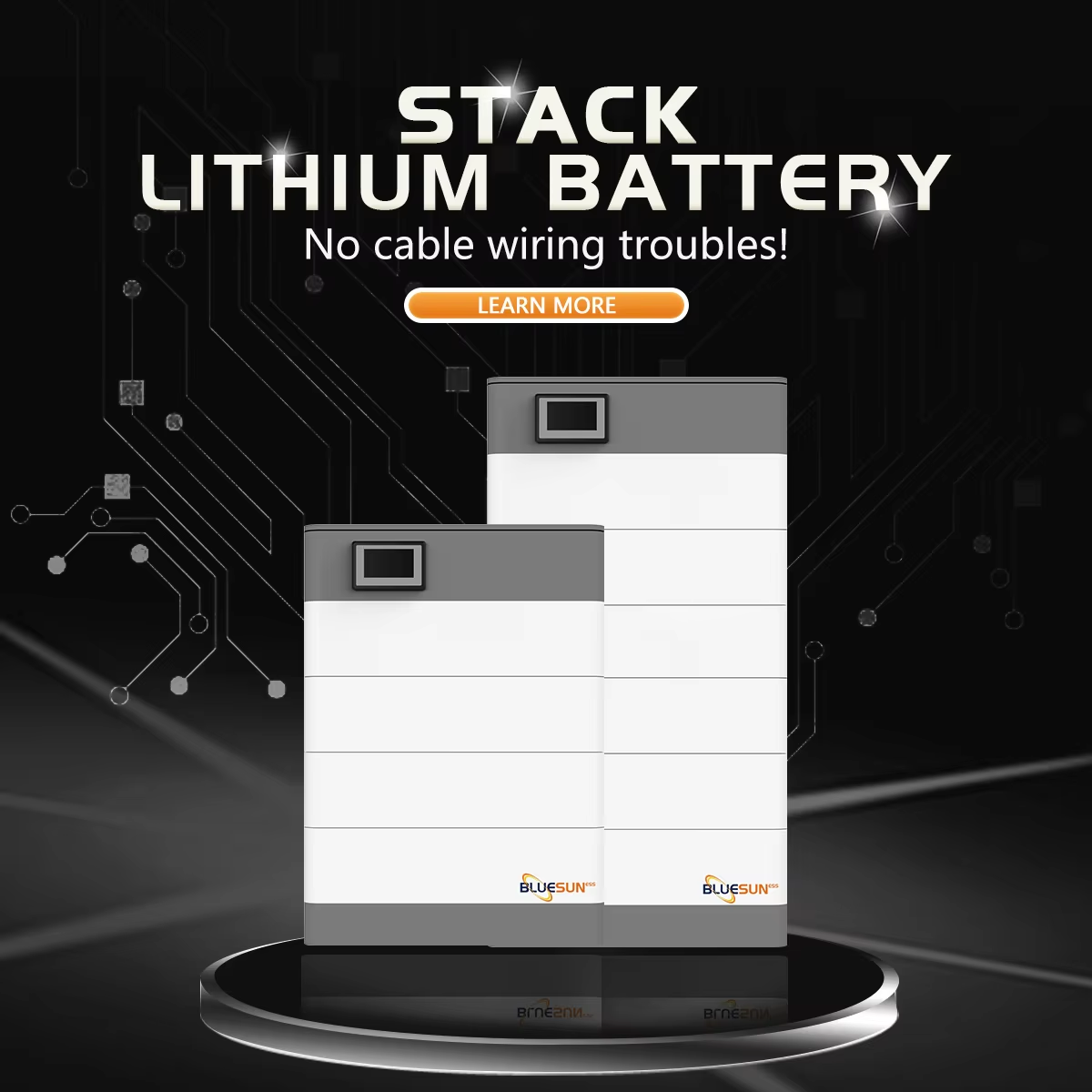

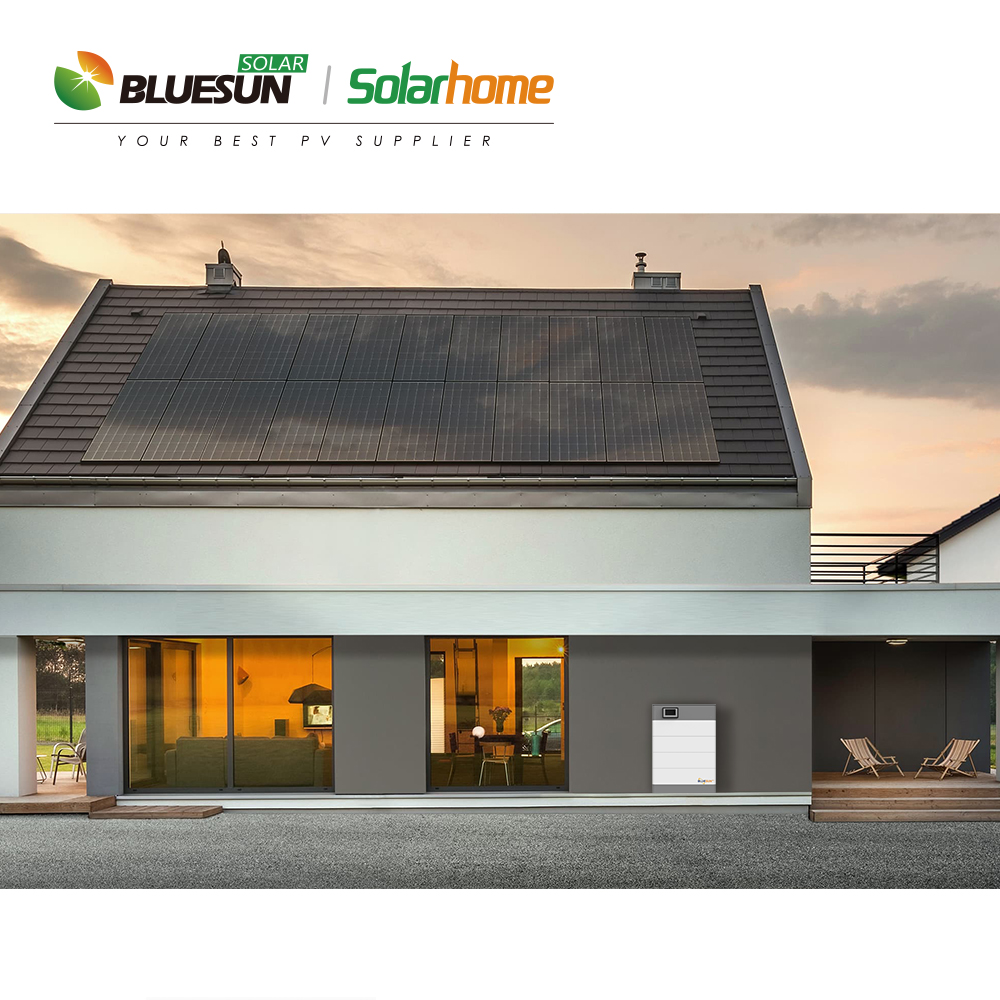

Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
1 / 5
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System
Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System

Bluesun High Voltage LIFEPO4 Battery 10KWH Solar Battery 20KWH 30KWH High Voltage For Solar Energy System

Send Inquiry

Product Description

Products Description

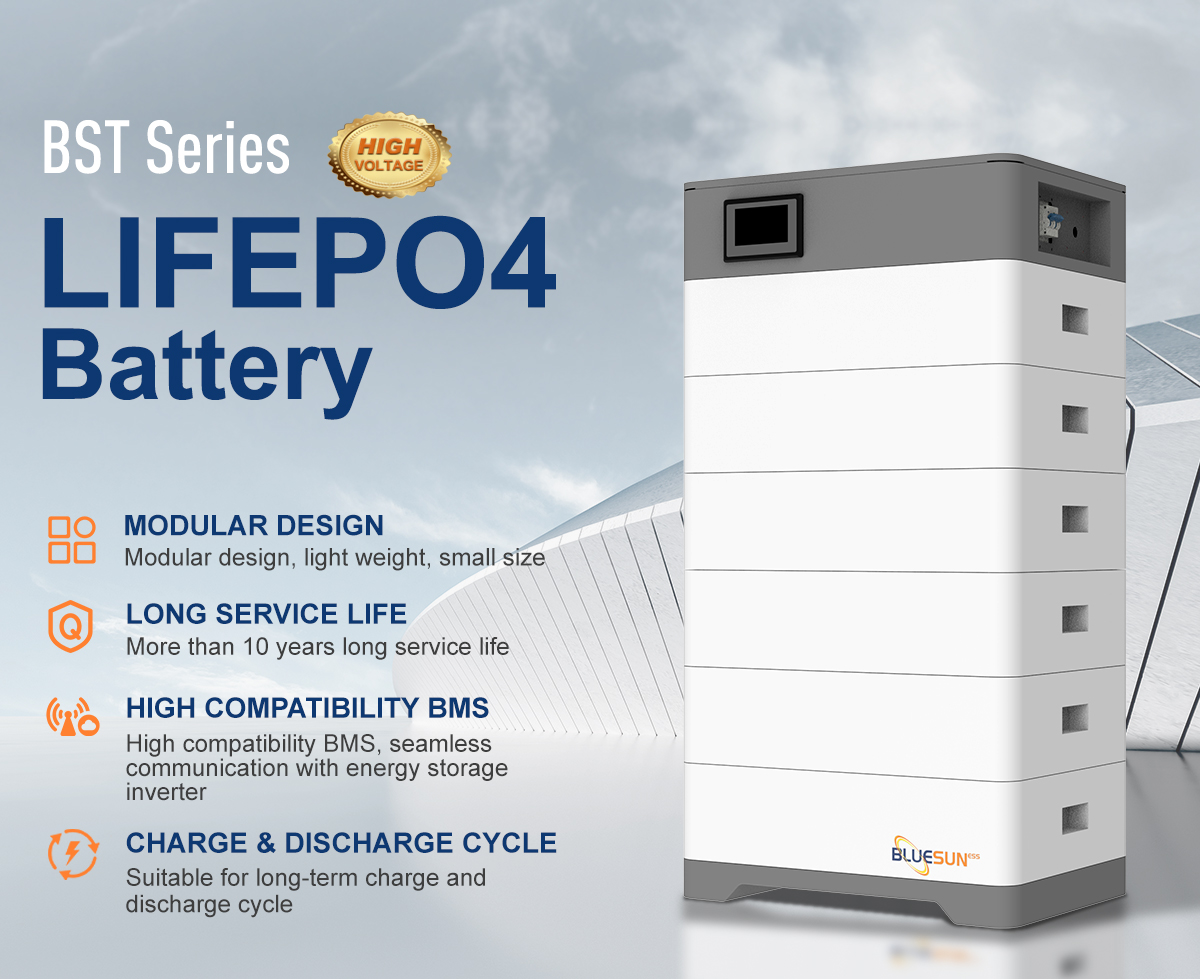

Product Overview

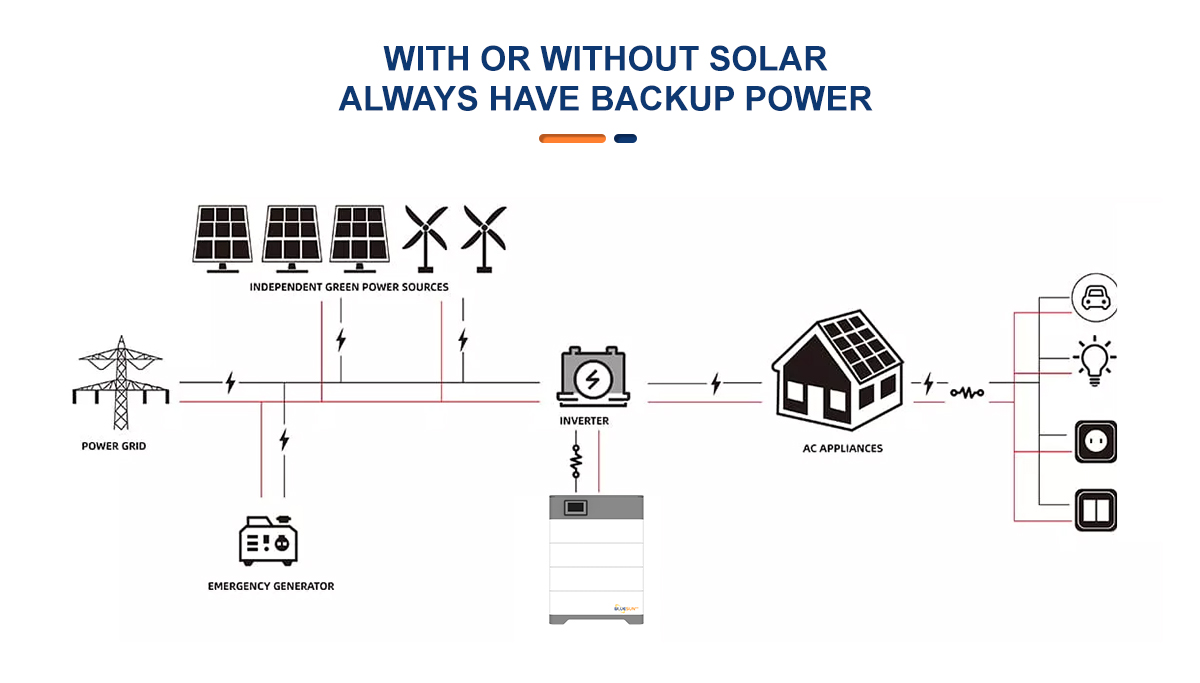

Product Detail
Product Parameters
MODEL BST-15.0HV BST-20.0HV BST-25.0HV BST-30.0HV
Battery TypeLiFeP04(LFP)
Nominal Voltage(V)153.6V204.8V256.0V307.2V
Nominal Capacity(KWH)16.28KWH21.7KWH27.13KWH32.56KWH
Usable Capacity(KWH)14.65KWH19.53KWH24.41KWH29.30KWH
Design Life10+Years (25°C/77F)
Physical
Dimension(mm)600*400*683600*400*832600*400*981600*400*1130
Weight (kg)170215260305
Electrical
Cycle Life>6000. 25°C
Discharge Voltage(V)120-144160-192200-240240-288
Charge Voltage(V)168-175.2224-233.6280-292336-350.4
Charge/Discharge Current(A)50A (Recommended) 100A(Max)
Internal Resistance≤30mΩ
BMS
CommunicationCAN/RS-485/RS-232

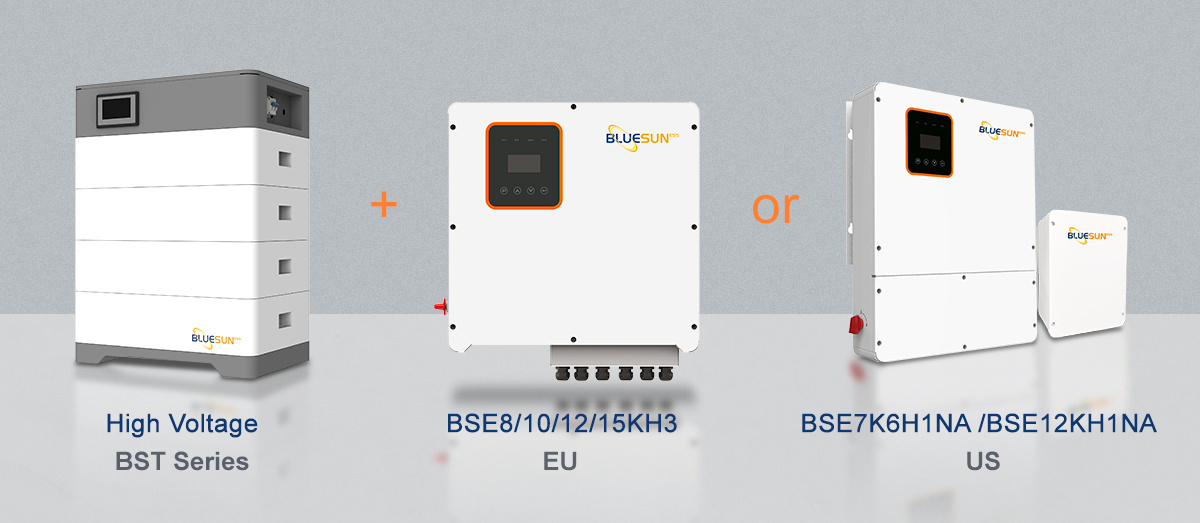

Matching Inverter
High compatibility BMS, seamless communication with energy storage inverter.
Matching Inverter
Inverter Connection

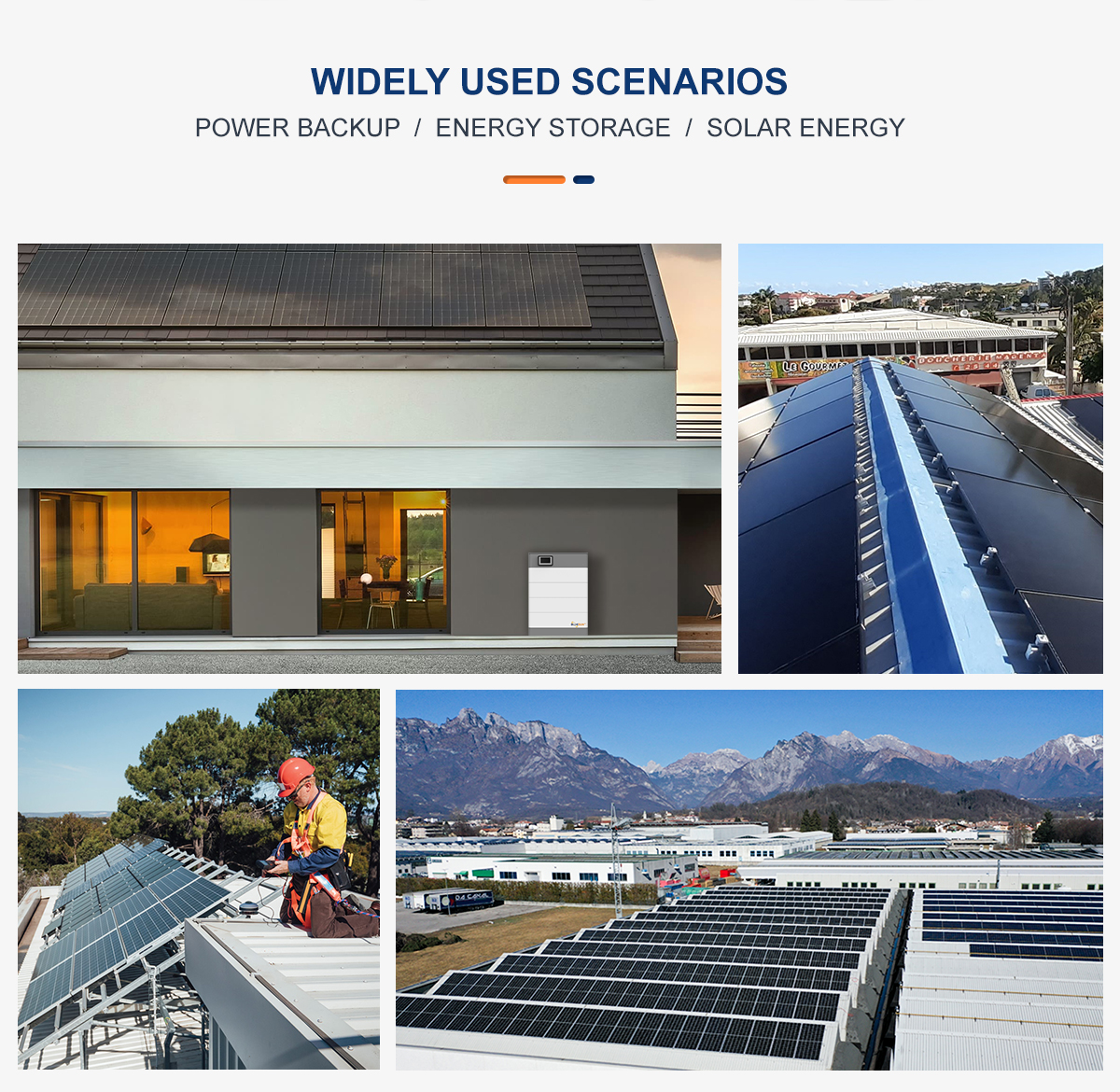

Project
Project Case

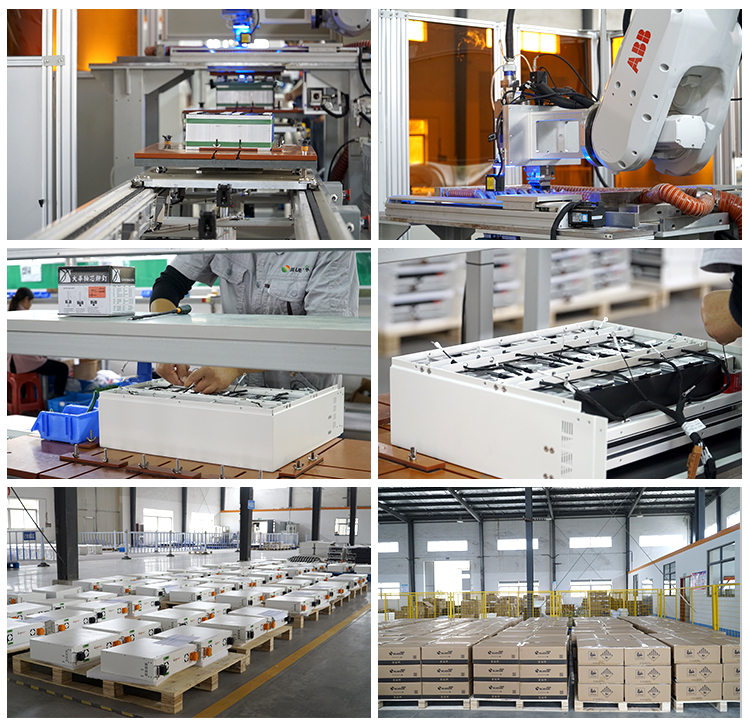

Manufacturing Technique
Manufacturing
Global Exhibitions
Exhibitions
Certificate
Certificate 1
Certificate 2
Certificate 3
Customer Photos

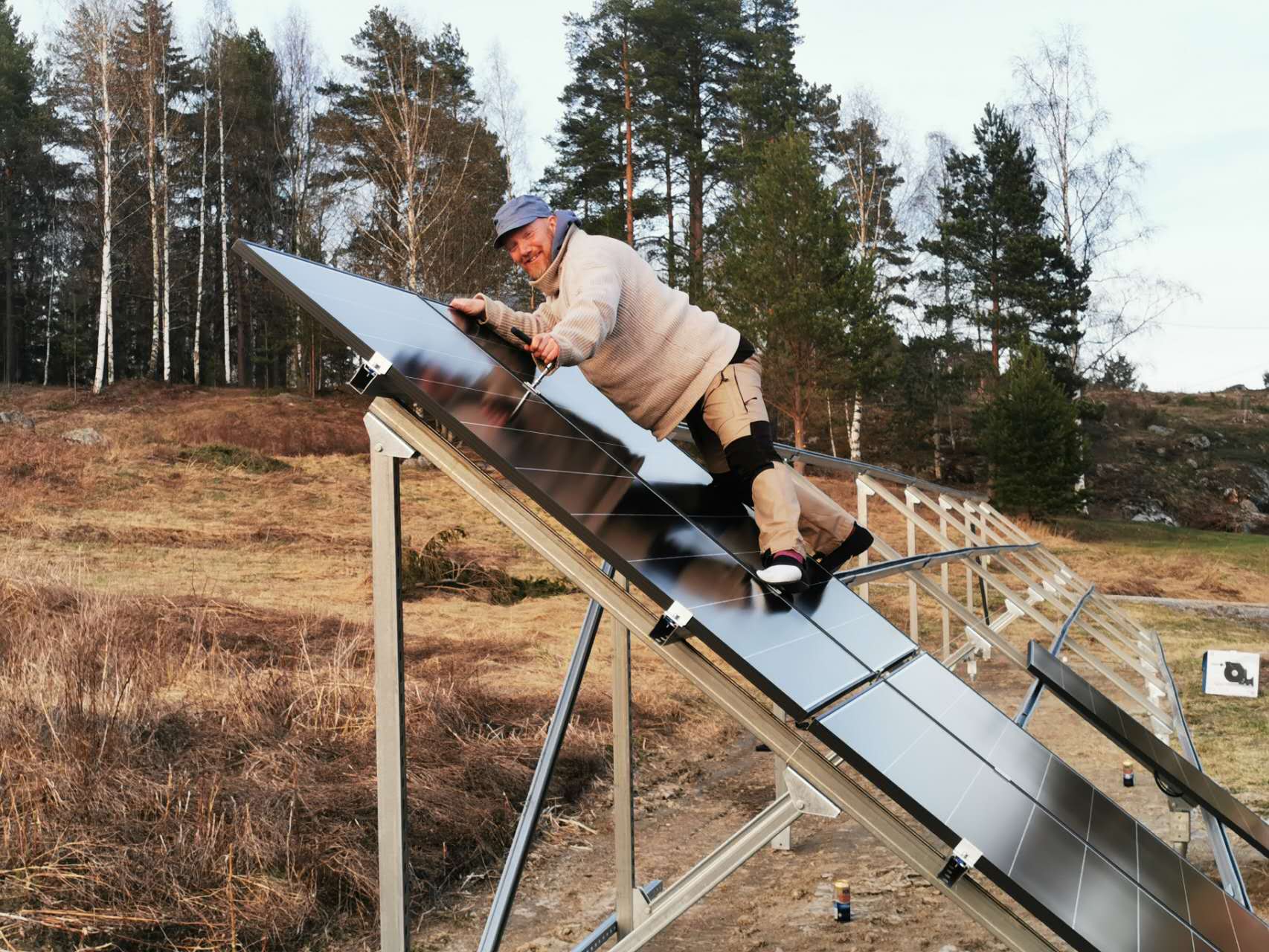

Customer Photo
Customer Photo

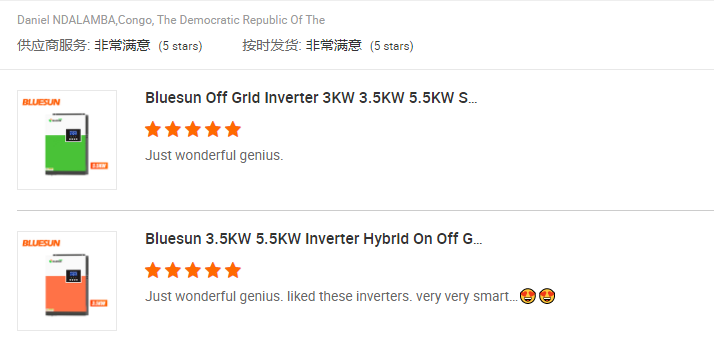

Customer Praise
Feedback
Feedback
Feedback
Frequently Asked Questions
1. What is the expected cycle life of these batteries?
Our LiFePO4 batteries are designed for long-term use, offering over 6000 cycles at 25°C.
2. Are these batteries compatible with mainstream inverters?
Yes, our integrated BMS supports multiple communication protocols including CAN, RS-485, and RS-232, ensuring seamless compatibility with major energy storage inverters.
3. What is the recommended operating temperature range?
The batteries operate efficiently between -10°C and 50°C. For storage, we recommend keeping them between -20°C and 45°C.
4. What kind of warranty do you provide?
We offer a 5-year product warranty and a 10-year performance warranty for peace of mind.
5. Does the battery support intelligent monitoring?
Yes, the intelligent BMS monitors system voltage, current, cell voltage, cell temperature, and module temperature in real-time.
