Wonvolt 48V 51.2V Lithium Ion Solar Battery 200ah 250ah 300ah for Off Grid Solar System High Capacity Energy Storage Solutions

Basic Information

Model NO.

WV51300L

Rechargeable

Yes

Size

Medium

Communication

Can Box

Design Life

15 Years+ (25°c)

Battery Cycle Life

10000 Times (25°c)

Certificates

CE/RoHS/Un38.3/MSDS

Solar Inverter

Deye Growatt Solis Solax Invt

Parallel Connection

Yes

Low Voltage

48V 51.2V

Battery Shape

Square

System Name

Home Solar Power System

Battery Pack

Home Energy Storage System

Installation

Indoor for Home Use

Battery Monitor

Online

Cooling Method

Air Nature Cooling

Battery Use

Solar Power System for Home

Battery Capacity

200ah 300ah 314ah LiFePO4 Battery

Transport Package

Wooden Box with Pallet

Specification

51.2V 300Ah 314ah

Trademark

OEM Brand

Origin

China

HS Code

8507600090

Production Capacity

1.8 Gwh/Year

Product Description

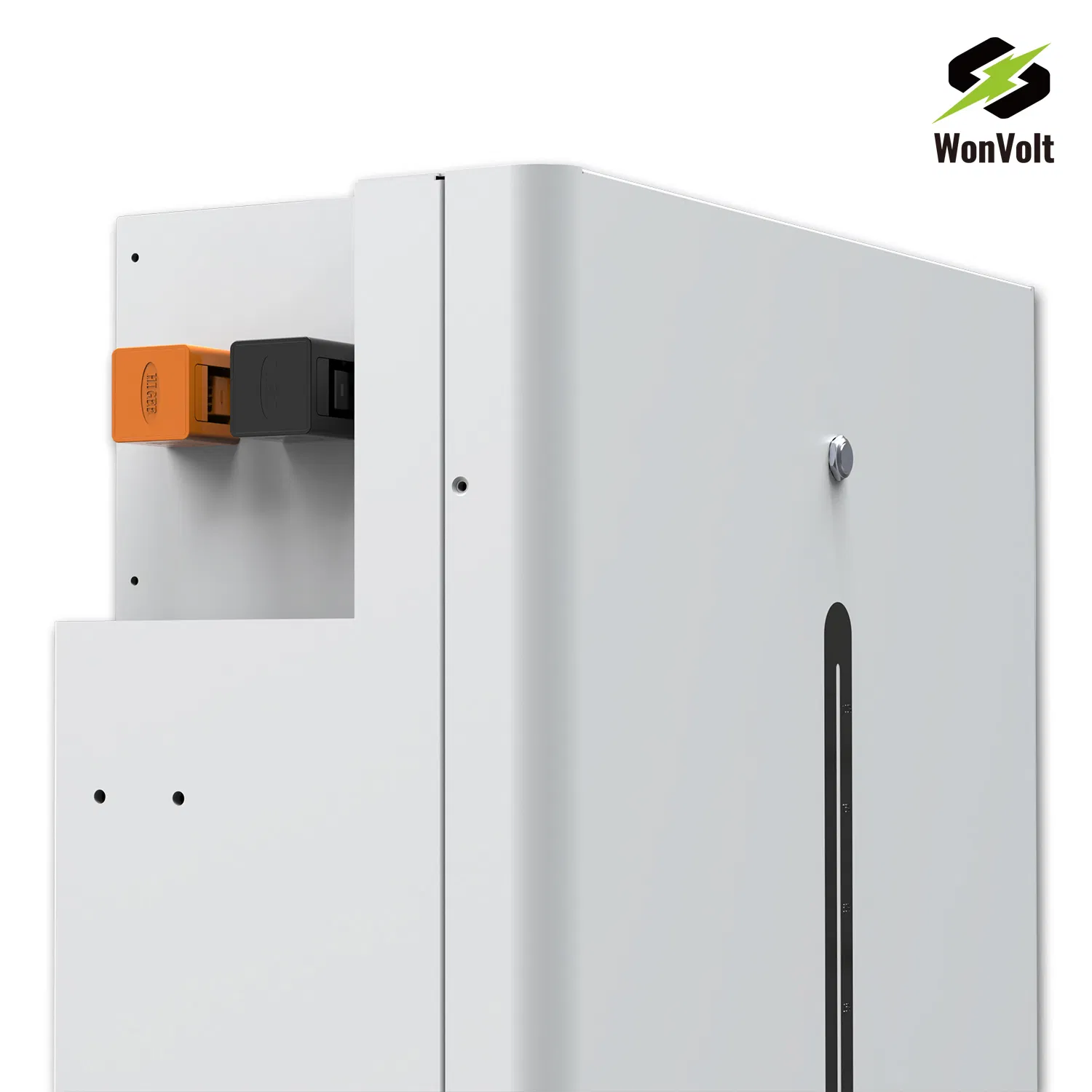

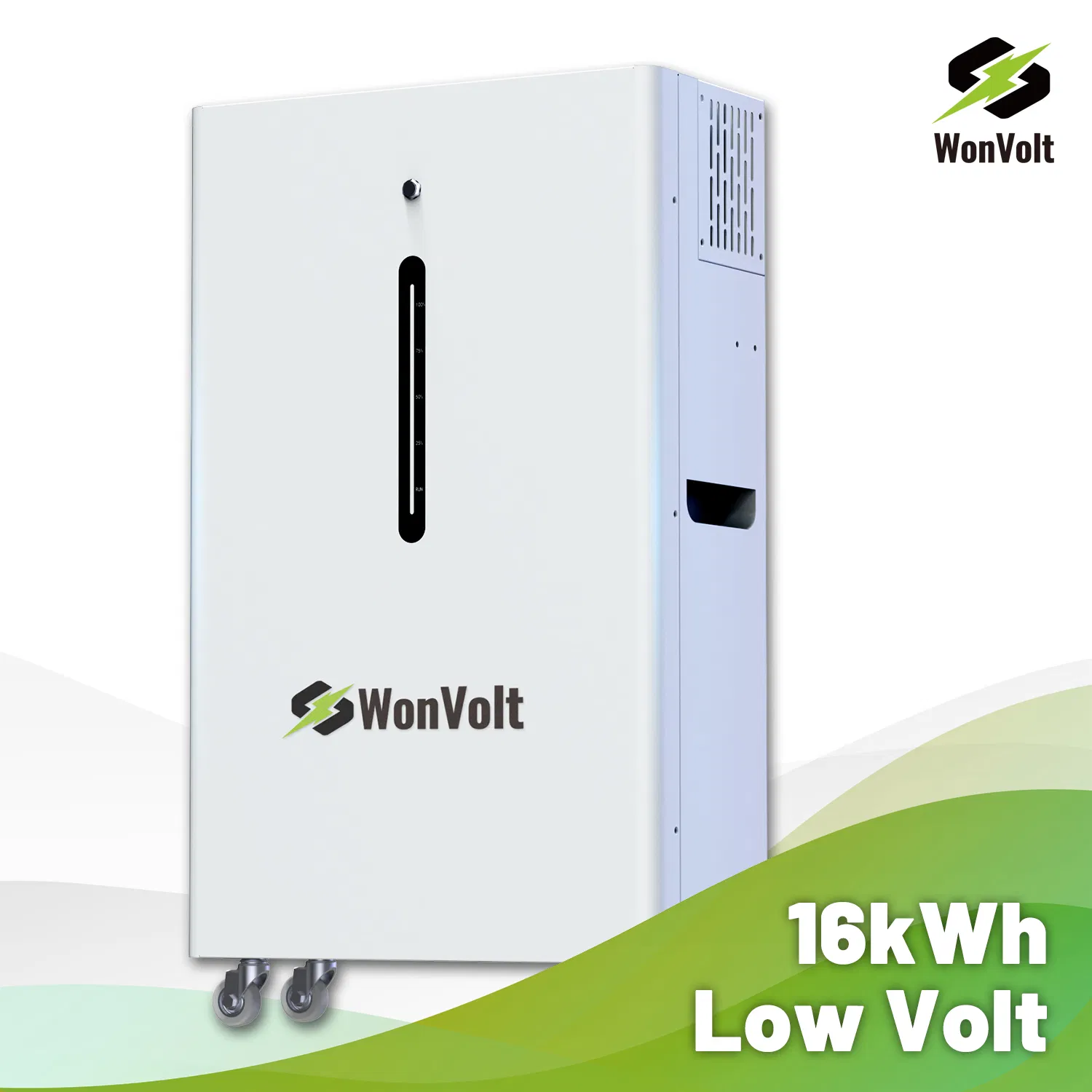

48V 51.2V 200ah 250ah 300ah Lithium Ion Battery Solar Battery for off Grid Solar System

Low Voltage Lithium Ion Battery for home solar energy system, 48V 51.2V 100AH 200AH 300AH 314AH for home use 5KWH 10KWH 15KWH 16KWH compatible with Deye inverter 5KW/6KW/8KW/10KW/12KW/15KW/16KW/20KW 48V Battery, Luxpower inverter 6KW/8KW/10KW/12KW, Growatt inverters, Solis inverters, Goodwe inverters and other brand inverters optional. Wall mounting or rack mounting optional, parallel is available. IEC61000 CE certified, 10pcs per pallet, 90pcs per 20ft container shipment, 172pcs per 40ft container shipment.

Battery cells manufacturer, accept OEM and ODM for the lithium batteries. The certificates for land transport and sea transport, UN38.3, MSDS are ready for your orders. Packaged with wooden cases to protect the battery and facilitate distributor storage in the warehouse, ensuring easy transport and faster installation.

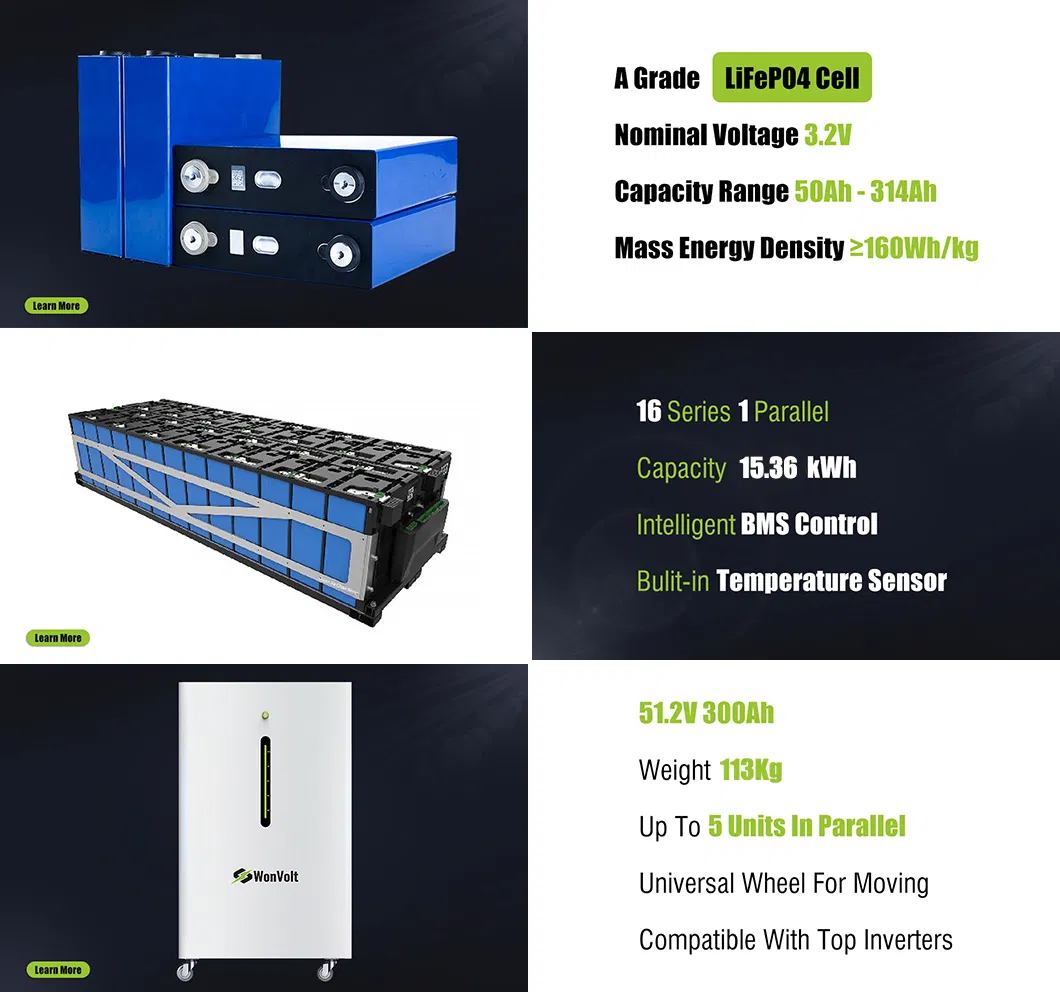

Product Parameters

Parameter Item	Technical Specifications
Model	WV51300L
Connection	1P16S
Nominal Voltage	51.2V
Nominal Capacity	300Ah
Nominal Energy	15.36kWh
Recommended Charge/Discharge Current	100A
Max. Charge/Discharge Current	200A
Cooling	Smart Air Cooling
Operating Voltage	44.8~57.6V
Dimensions (WLH)	580x278x990mm
Weight	115kg

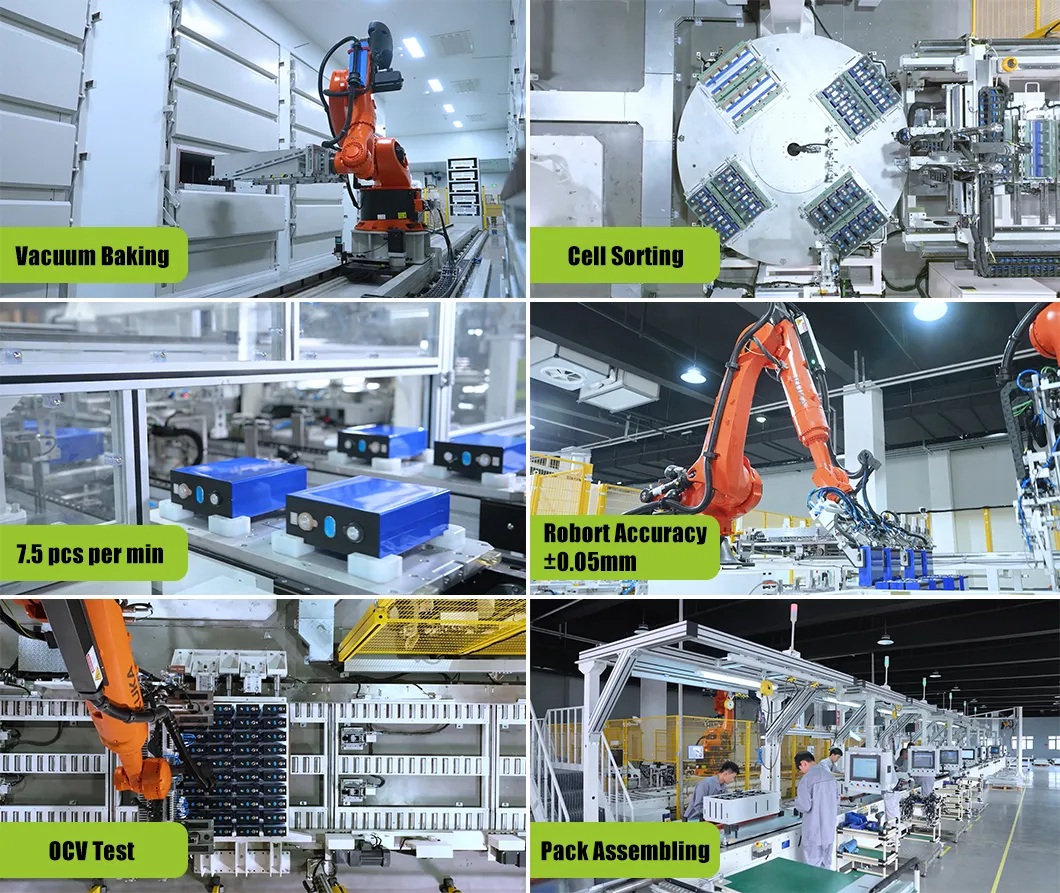

Factory Overview

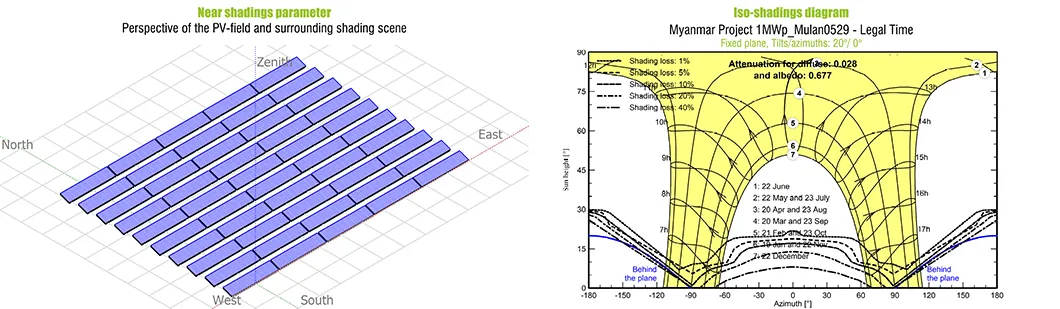

Technical Support

Reference Projects

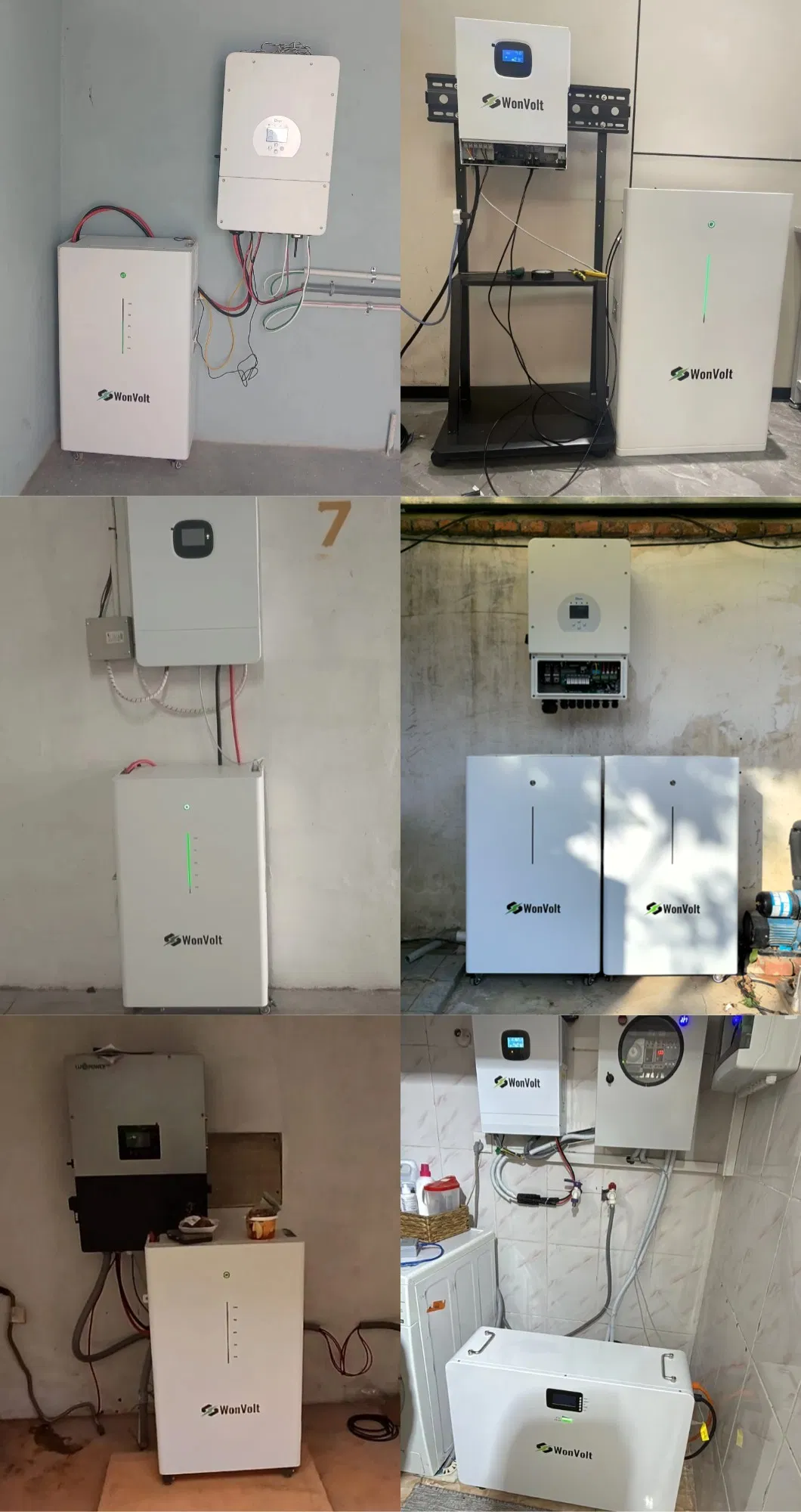

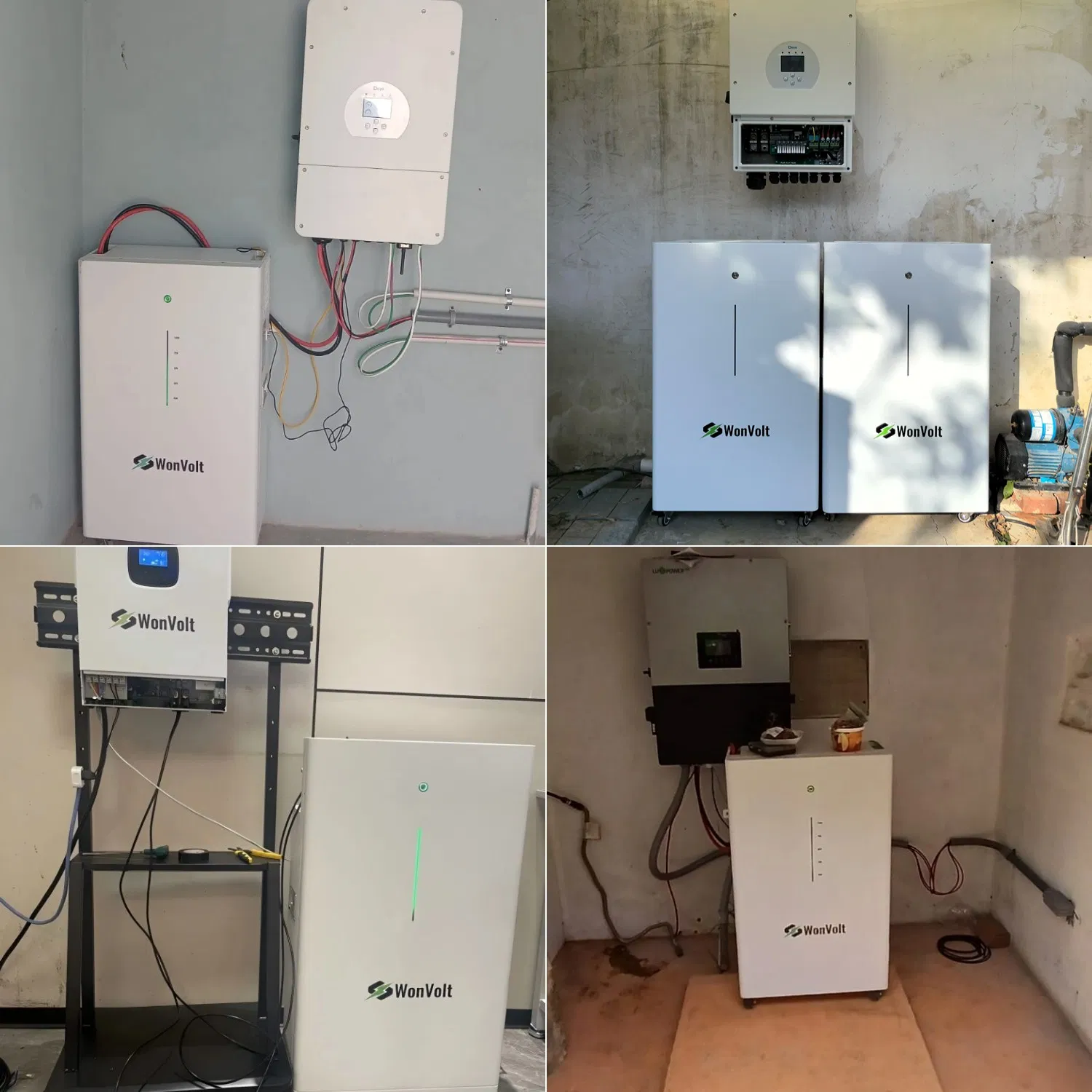

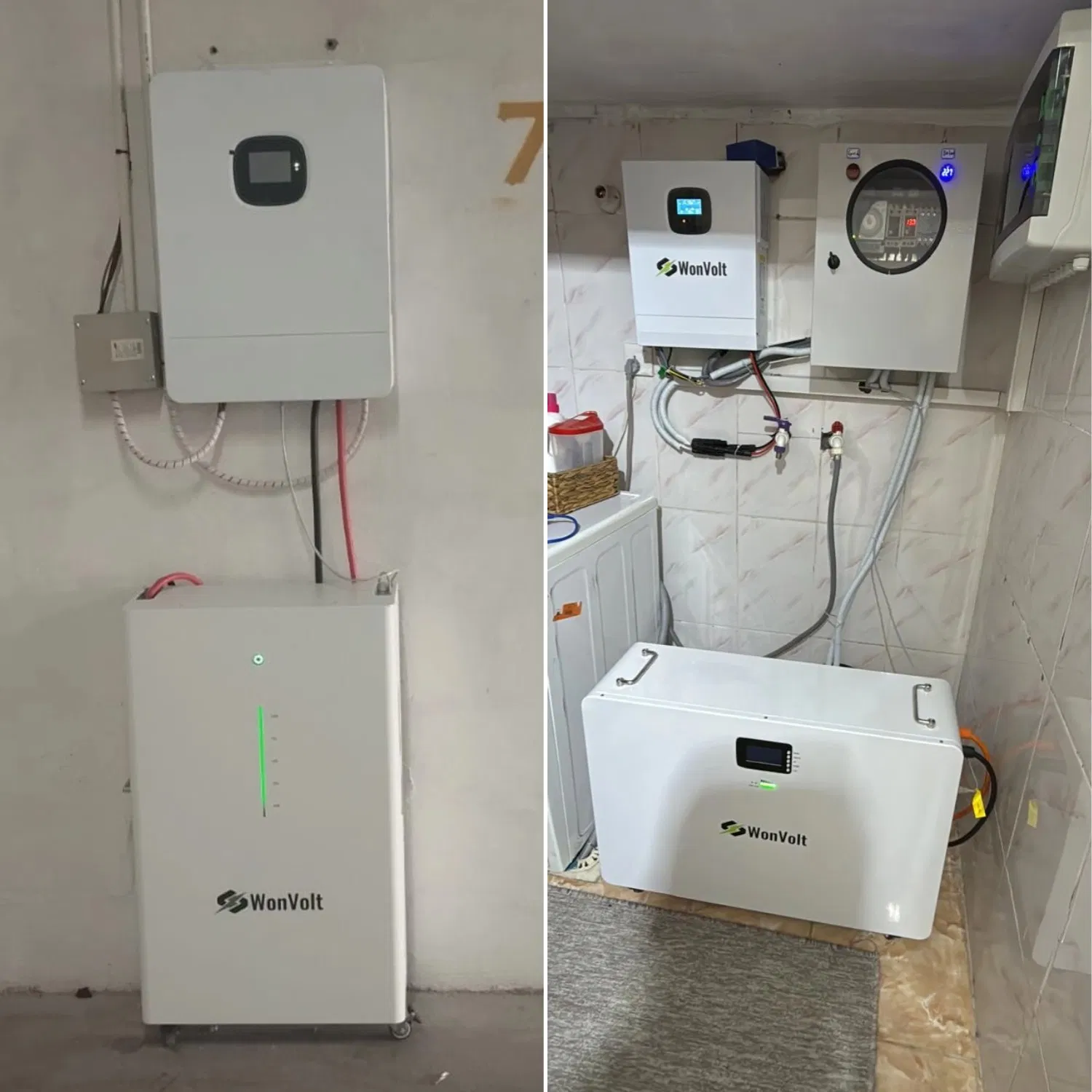

Completed Residential Solar Project Applications

Frequently Asked Questions

Q1: What is the design life and cycle life of the WV51300L battery?

A1: The battery is designed for a service life of over 15 years at 25°C, with an outstanding cycle life of up to 10,000 times under standard operating conditions.

Q2: Which hybrid and off-grid solar inverters are compatible with this system?

A2: The system features wide compatibility with leading brand inverters, including Deye, Luxpower, Growatt, Solis, Solax, Goodwe, and Invt models.

Q3: Can these battery units be connected in parallel for higher capacity?

A3: Yes, parallel connection is fully supported, allowing you to easily scale up the storage capacity of your home energy storage system.

Q4: What safety and transportation certificates does the battery hold?

A4: The battery pack holds key international standard certifications including CE, RoHS, UN38.3, and MSDS, ensuring full compliance for safety and global logistics.

Q5: How are the batteries packaged to ensure safe shipping and warehousing?

A5: Each battery unit is shipped in a robust wooden case with pallet support. This secures the product during sea/land transit and makes it easy to stack and manage in warehouse facilities.

Q6: What cooling method is used to maintain optimal battery temperatures?

A6: The model features a combination of air nature cooling and a smart air cooling system to actively regulate internal temperatures and maximize cell health.
