Industrial 3 Years, 5 Years Monocrystalline Solar Panel Lithium Ion Batteries

Customization:	Available
After-sales Service:	After- Sales Service
Warranty:	3 Years, 5 Years

Send Inquiry

Product Description

Basic Info

Condition

New

Certification

ISO, CE

Application

Home, Industrial, Commercial, School, Factory

Specification

100kwh, 233kwh

Type of Cell

Lithium Iron Phosphate(LFP)

Cell Parameter

3.2V/314ah

Cooling

Liquid Cooling

Protection Class

IP55

Max.Charge/Discharge Power

0.5c

Configuration of System

1p416sx12

Rated Capacity

5.01 Mwh

Rated Voltage

1331.2V

Voltage Range

1164.8~1497.6V

Transport Package

Carton and Pallet

Origin

China

HS Code

8501310000

Production Capacity

1000set/Month

Packaging & Delivery

Package Size

110.00cm * 140.00cm * 238.00cm

Package Gross Weight

2000.000kg

Product Description

Items	Parameters
Type of cell	Lithium Iron Phosphate(LFP)
Cell parameter	3.2V/314Ah
Max. charge/discharge power	0.5C
Configuration of system	1P416S×12
Rated capacity	5.01 MWh
Rated voltage	1331.2V
Voltage range	1164.8~1497.6V

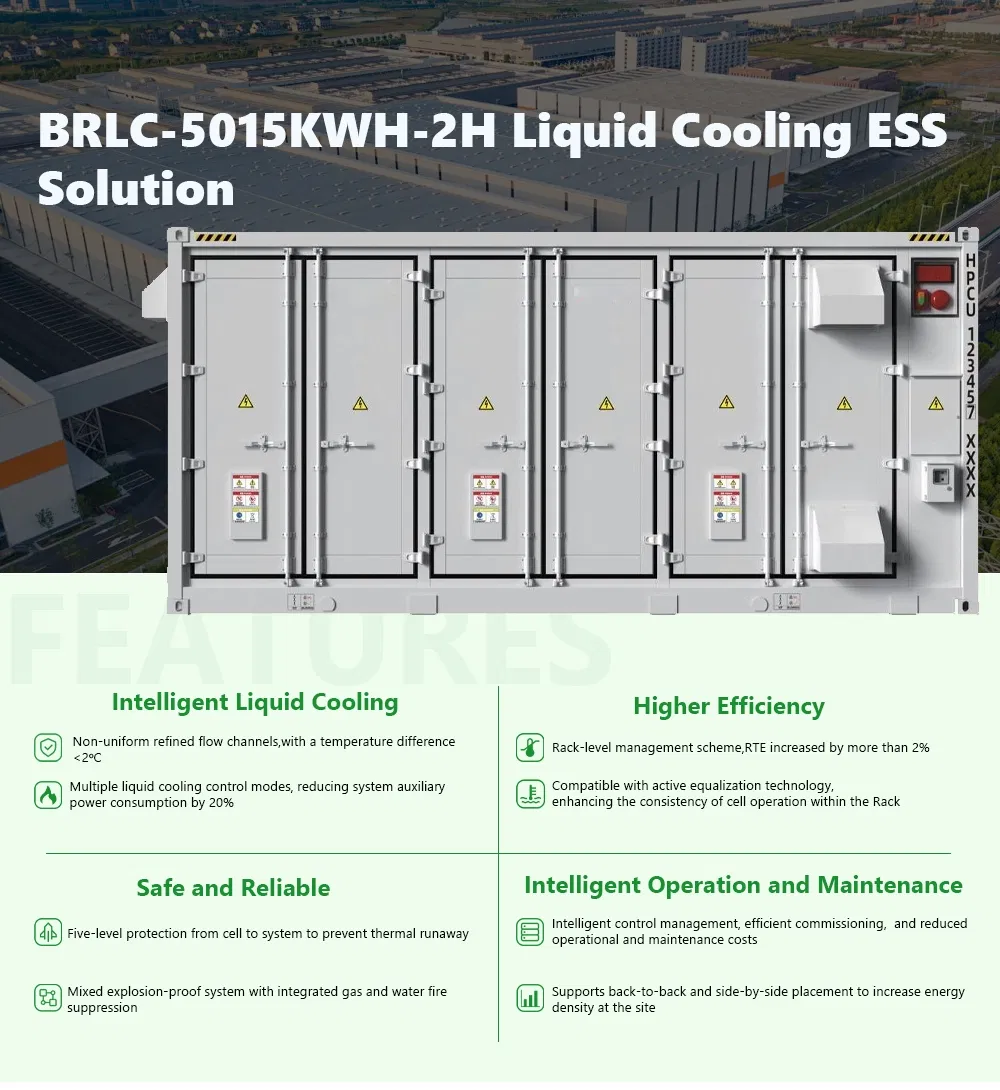

Cooling method	Liquid Cooling
Operating temperature	−30~50ºC
Humidity	≤95%RH, no condensation
Altitude	≤3000m
Noise level	≤80dB(A), @1m / 75dB(optional)
IP grade	IP55
Storage temperature	−20~45ºC
Corrosion-proof grade	C4/C5(optional)
Fire protection	Temperature sensor + Smoke detector + Combustible gas detector + Deflagration venting + Fire extinguishing gas + Water sprinkler
External communication interface	Ethernet/CAN/RS485
Dimension(L×W×H)	6058×2438×2896mm
Weight	≈42000 kg

Frequently Asked Questions

What type of battery cell chemistry is used in this system?

This system uses Lithium Iron Phosphate (LFP) cells. These cells operate with a parameter configuration of 3.2V/314Ah, providing a highly stable, safe, and long-lasting energy storage solution.

How is the temperature regulated within the system?

The system implements an advanced Liquid Cooling method. This ensures efficient heat dissipation and temperature consistency, allowing the system to work safely in ambient temperatures ranging from −30ºC to 50ºC.

What built-in fire protection safety features are included?

Safety is prioritized with a multi-layered fire protection layout. It features a temperature sensor, smoke detector, combustible gas detector, deflagration venting, fire extinguishing gas system, and a water sprinkler system.

What is the protection rating and environmental tolerance of this unit?

The system comes with an IP55 protection rating and is suitable for outdoor installations. It supports operating altitudes of up to 3000m and humidity levels up to 95%RH (non-condensing), with optional C4/C5 corrosion-proof ratings.

Which external communication protocols does the system support?

To facilitate seamless integration with monitoring and management platforms, the system is equipped with standard Ethernet, CAN, and RS485 communication interfaces.

What are the main application scenarios for this energy storage system?

This versatile system is designed to support a wide range of fields, including Home, Industrial, Commercial, School, and Factory applications.
