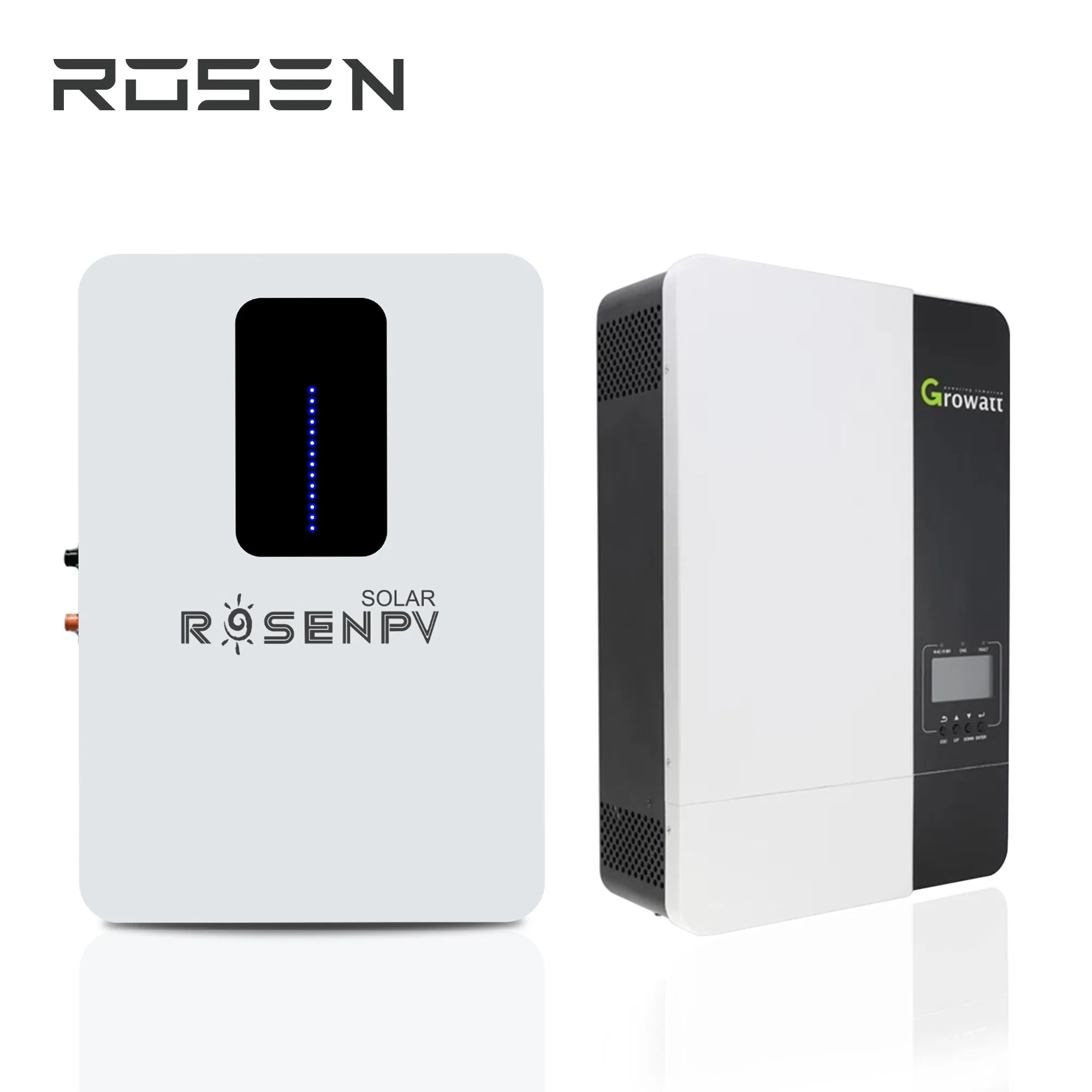

Lithium Ion Battery Pack 48V 200ah 5kwh 10kwh LiFePO4 Battery for Home Use

1 / 5

Lithium Ion Battery Pack 48V 200ah 5kwh 10kwh LiFePO4 Battery for Home Use

Customization:	Available
Type:	Lithium-Ion Batteries
Rechargeable:	Chargeable

Send Inquiry

Product Description

Basic Info

Model NO.

LFP48V200AH

Warranty

10 Years

Battery Size

802*552*172mm

Brand Name

OEM

Certification

CE/Rosh/MSDS/Un38.3/IEC/ISO9001/ISO14001

Weight

96kg

Product Name

LiFePO4 Lithium Battery Pack

Nominal Capacity

5/7.5/10kwh

Cycle Life

More Than 6000 Times

Material

LiFePO4

Display

LCD Indicator

Color

Grey, Black, Red, Green, White etc

Battery Cell

3.2V 50ah Prismatic Cell

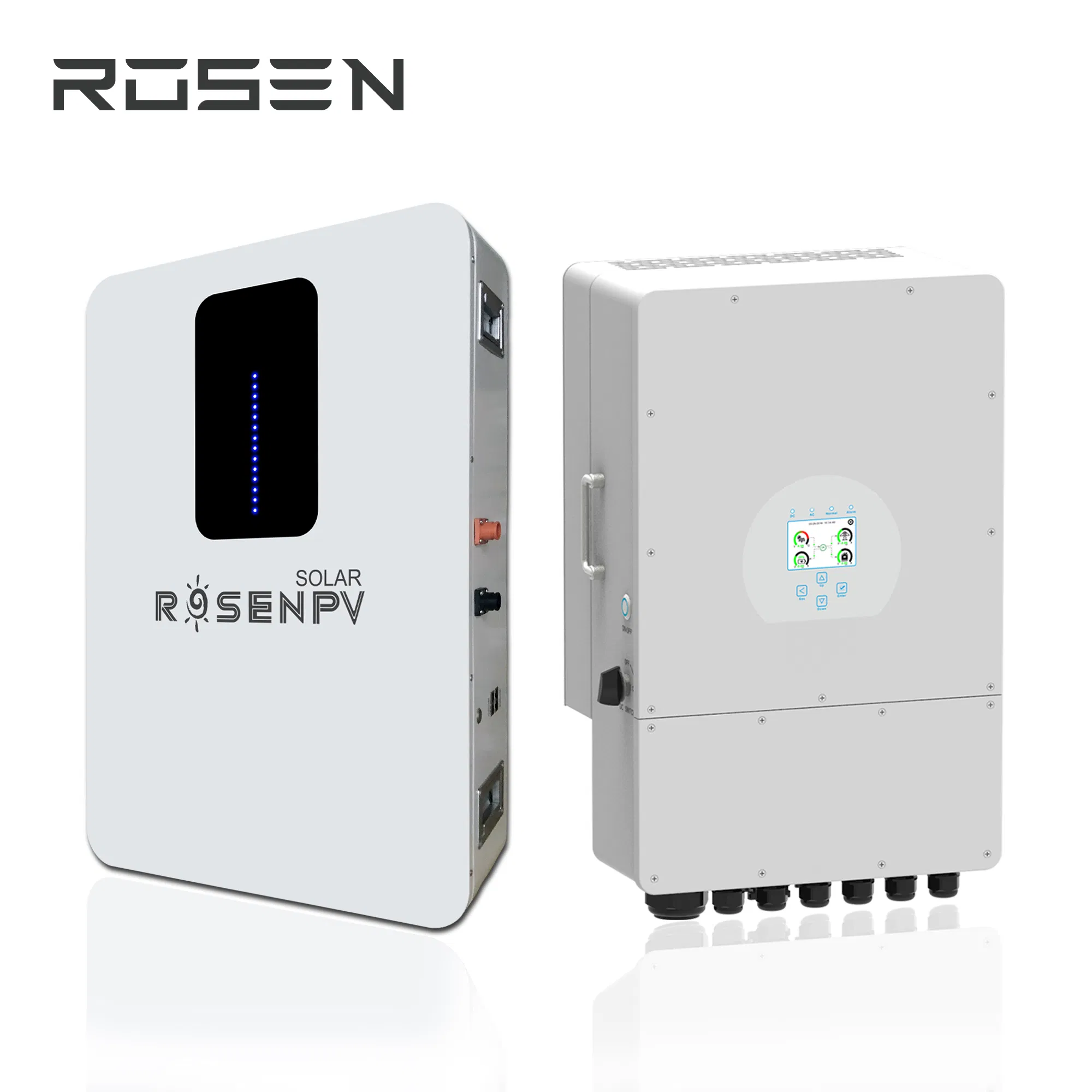

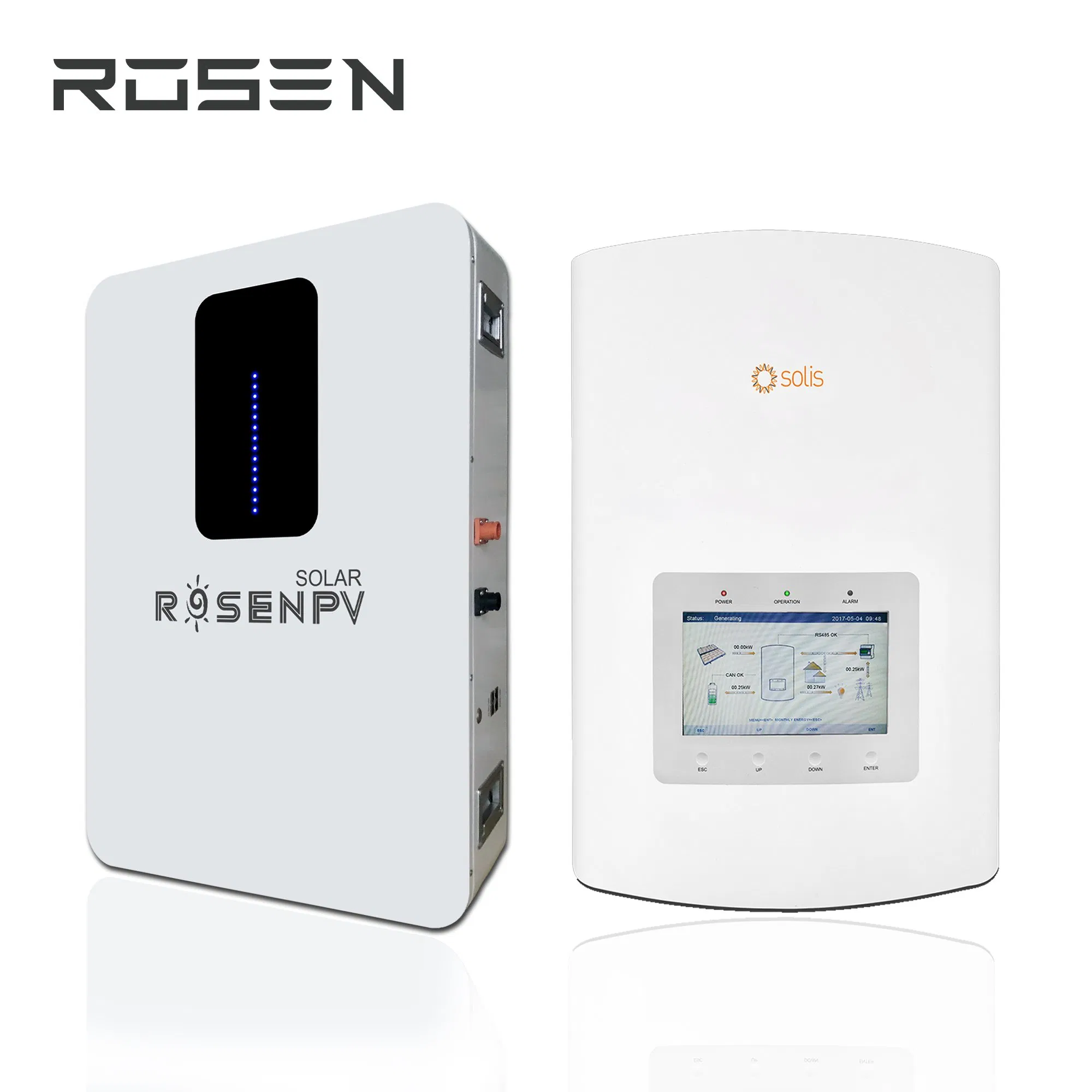

Inverter Matched

Solax, Deye, Goodwe, Growatt, Victron, Sofar, Gmde

Transport Package

Wooden Box / Carton Packing

Specification

48V 200AH Lithium Battery

Trademark

OEM/ODM

Origin

China

HS Code

8507600090

Production Capacity

10000 Set/Sets Per Week

Product Description

Product Overview

Technical Specification

Attractive Design

Lithium battery has compact design, LCD screen, convenient setting buttons, bluetooth Monitor on your smartphones, and cables & accessories ready for installation. To welcome the world cooperation we accept OEM with your logo design!

Wide Application

Lithium Ion Powerwall series are widely used in Solar Systems for residential and commercial use. With more than 6000 times deep cycle, up to 90% DOD and phosphate battery Cell, Powerwall has won global approval!

Integrated Function

Powerwall can be installed in parallel with combiner box for protection, with its integrated BMS communication protocol to comprehensive hybrid and off grid inverters!

Type	Powerwall
Model	LFP48V100AH	LFP48V150AH	LFP48V200AH	LFP48V300AH
Battery Capacity [Ah]	100Ah	150Ah	200Ah	300Ah
Nominal Battery Energy [kwh]	4.8	7.2	9.6	14.4
Max Discharge Current [A]	100	150	200	200
Net Weight	68	95	108	144
Dimension [HWD, mm]	802552185	802552185	802552185	1020495190
Operating Temperature Range	-20 ~ 50 [ºC ]
Life Cycles	>6000
Nominal Voltage [V]	48Vdc
Communication	CAN/RS485/DRY CONTACT
Certificate & Safety Standard	TUV / CE / EN62619 / IEC62040 / UN38.3
Warranty	10 Years
Alarms	Battery Operation/Out of Battery/System fault
Pros	Applied in off-grid and hybrid system, Compact Design, Modular Expansion
Monitoring & Protection	With BMS protection in each Module, and breaker embedded in the system

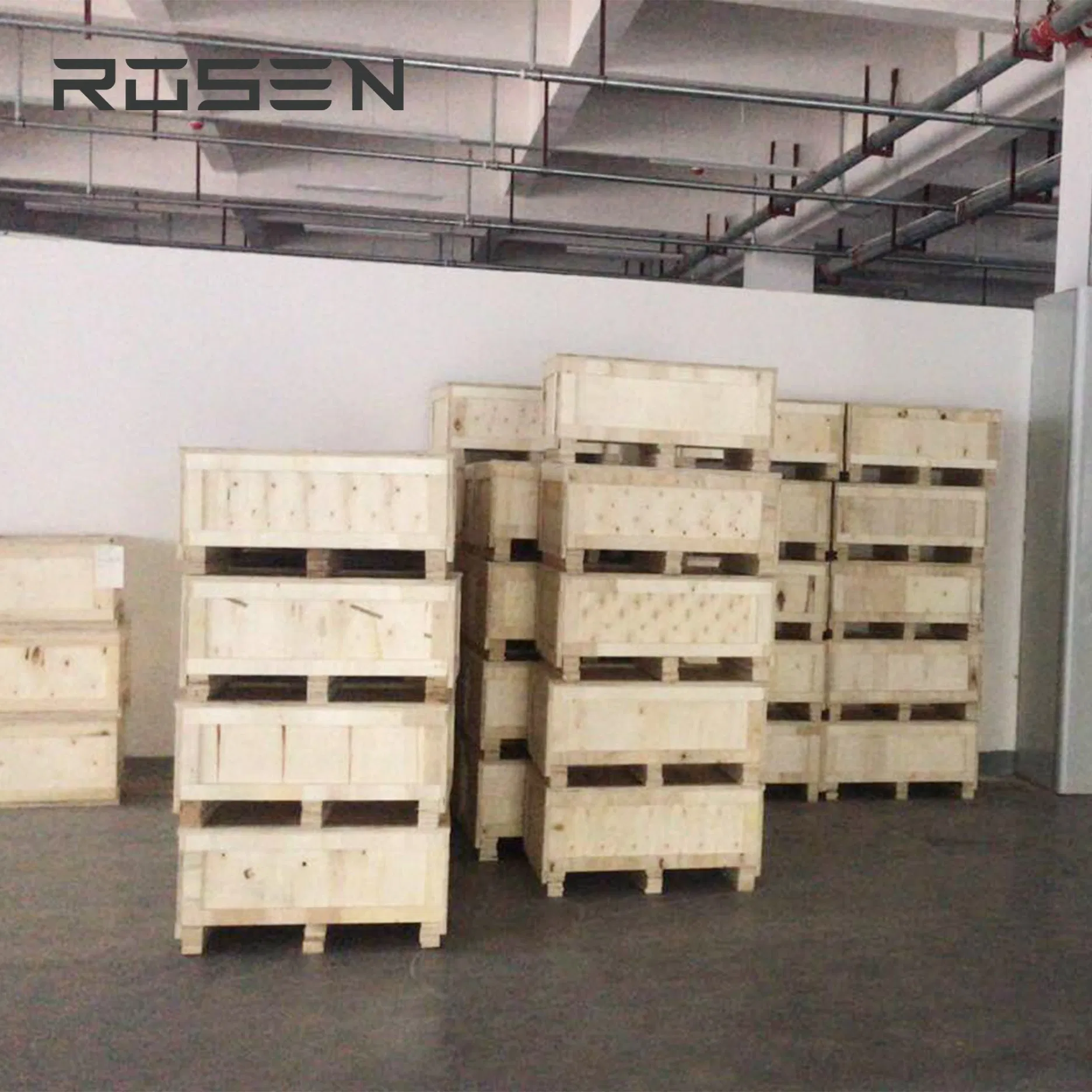

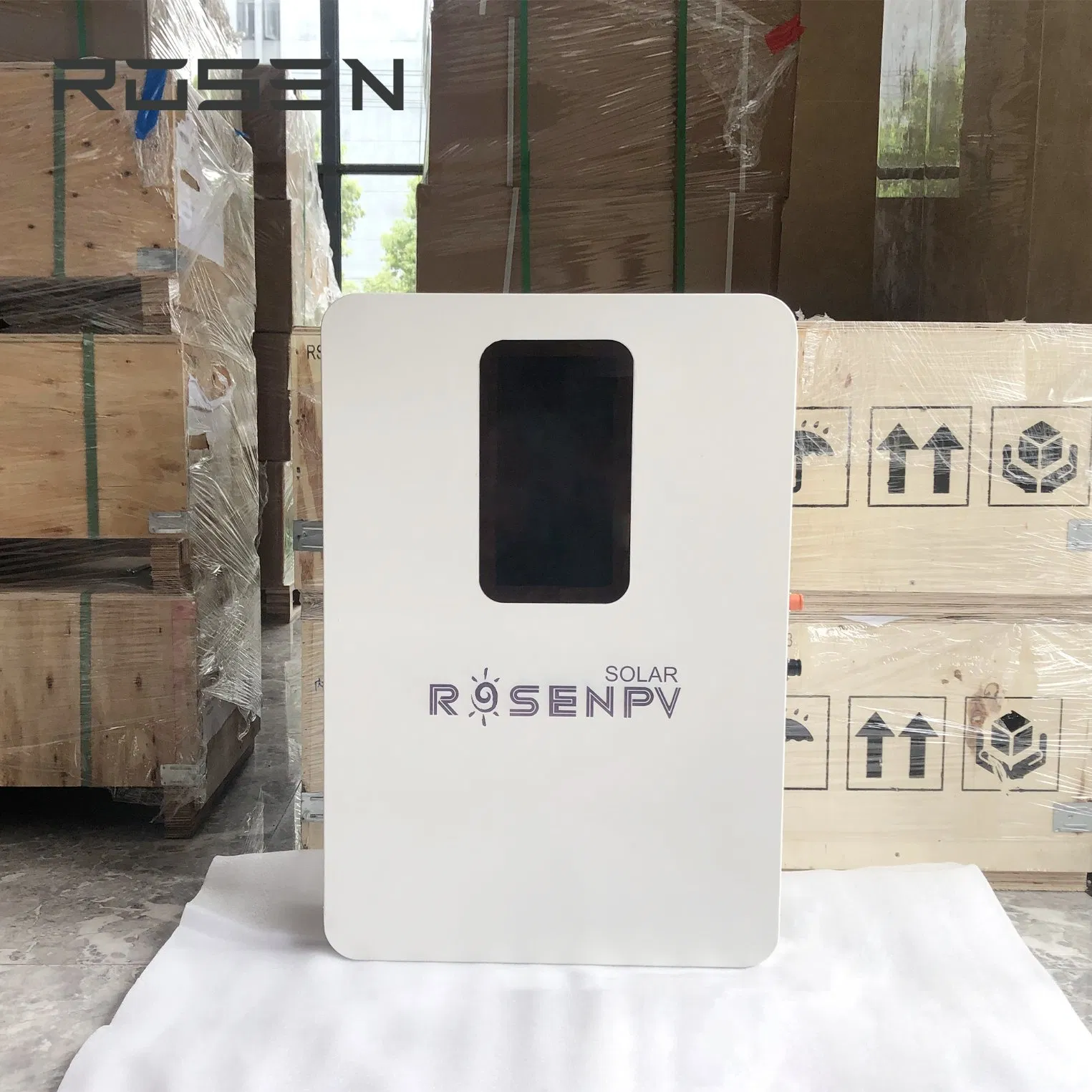

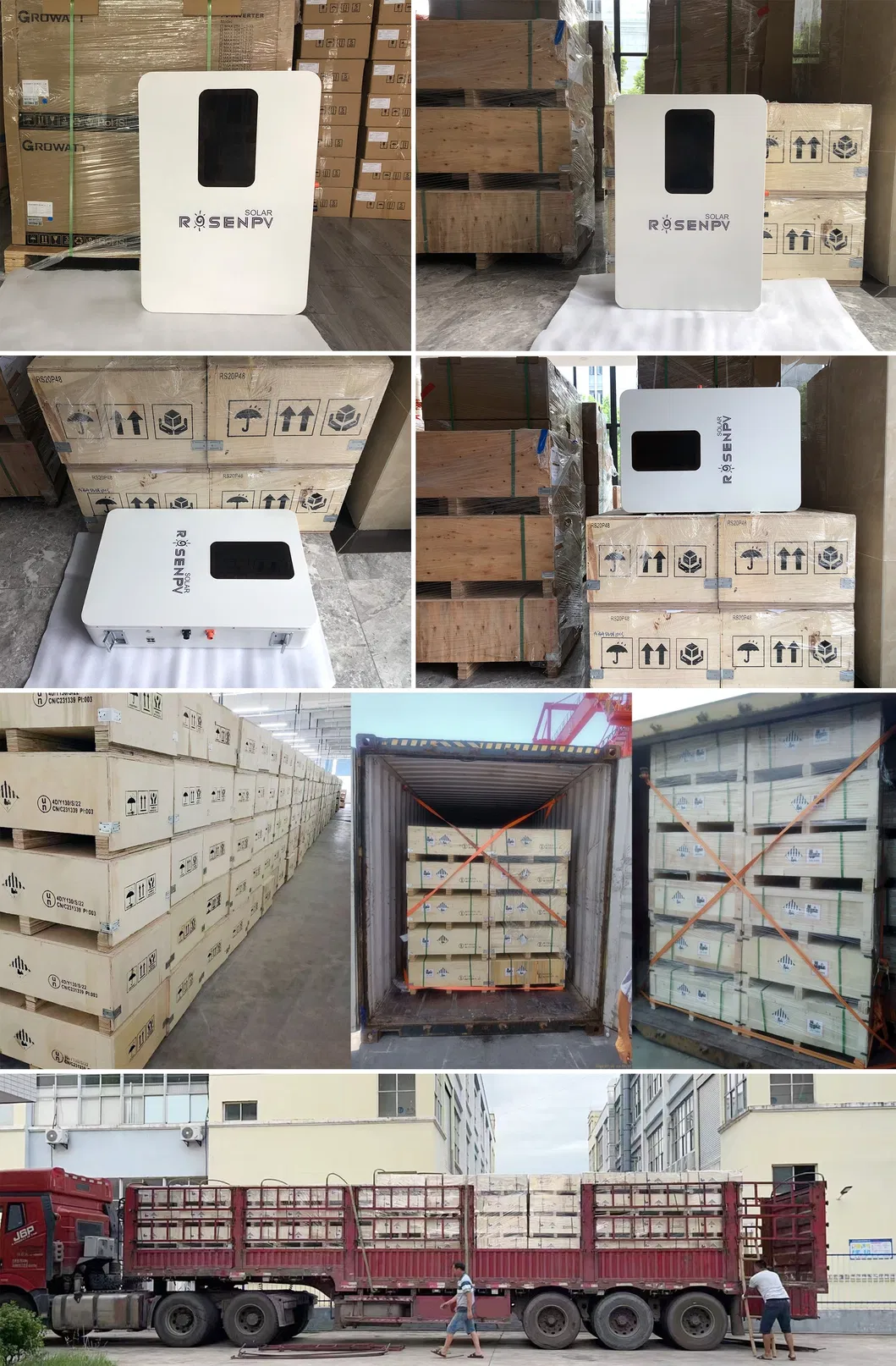

Package & Delivery

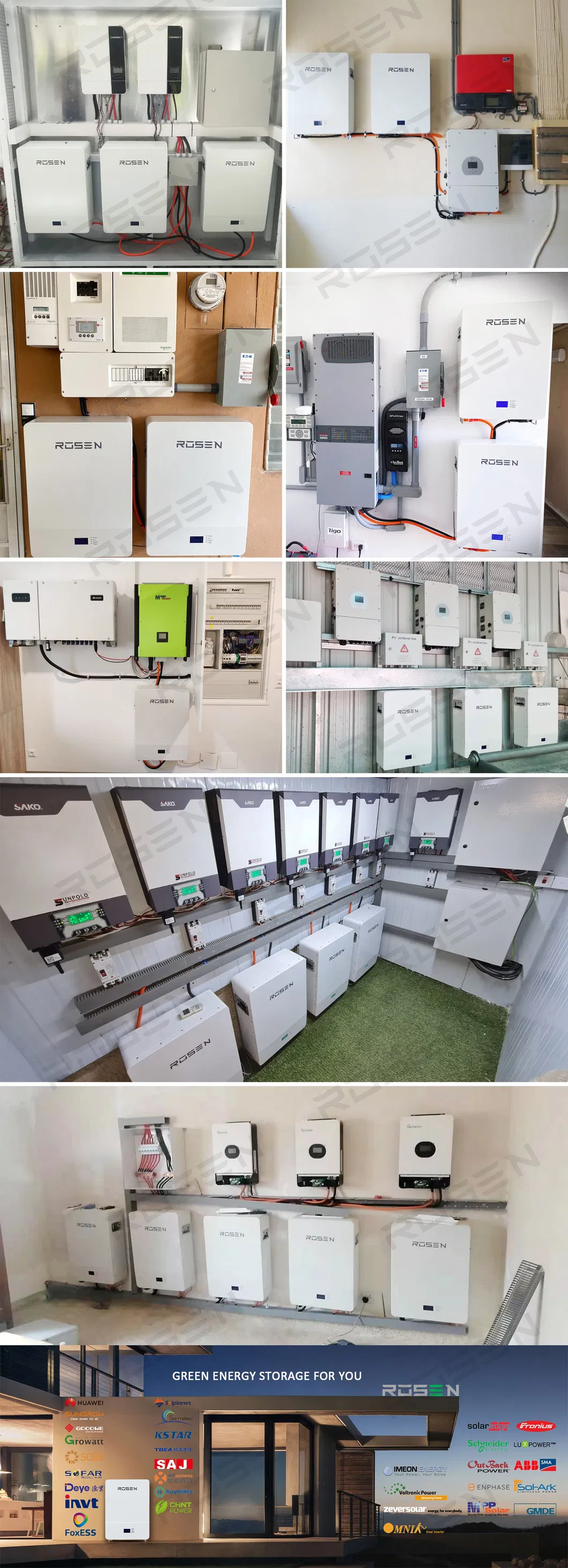

Battery Projects

Frequently Asked Questions (FAQ)

What is the lifespan and cycle capability of the LiFePO4 battery pack?

The battery pack provides exceptional longevity with a cycle life of more than 6,000 times, operating efficiently with deep cycles up to 90% Depth of Discharge (DOD).

Which solar inverters are compatible with these battery systems?

Our Lithium Ion Powerwall series has integrated BMS communication protocols to match seamlessly with leading off-grid and hybrid inverters, including Solax, Deye, Goodwe, Growatt, Victron, Sofar, and Gmde.

What monitoring features are included with this battery pack?

The battery is equipped with an integrated LCD Indicator display screen and supports Bluetooth monitoring, enabling you to inspect system status directly from your smartphone.

Can these batteries be connected in parallel for expansion?

Yes, they support modular expansion and can be installed in parallel with a combiner box for integrated protection, with custom BMS communication protocols working to maintain system safety.

What certifications and warranties do you offer?

Our battery packs carry international safety standard certifications including CE, RoHS, MSDS, UN38.3, IEC, TUV, EN62619, and ISO compliance. They also feature a comprehensive 10-year warranty.
