We have PL Warehouse. You can order one box only.

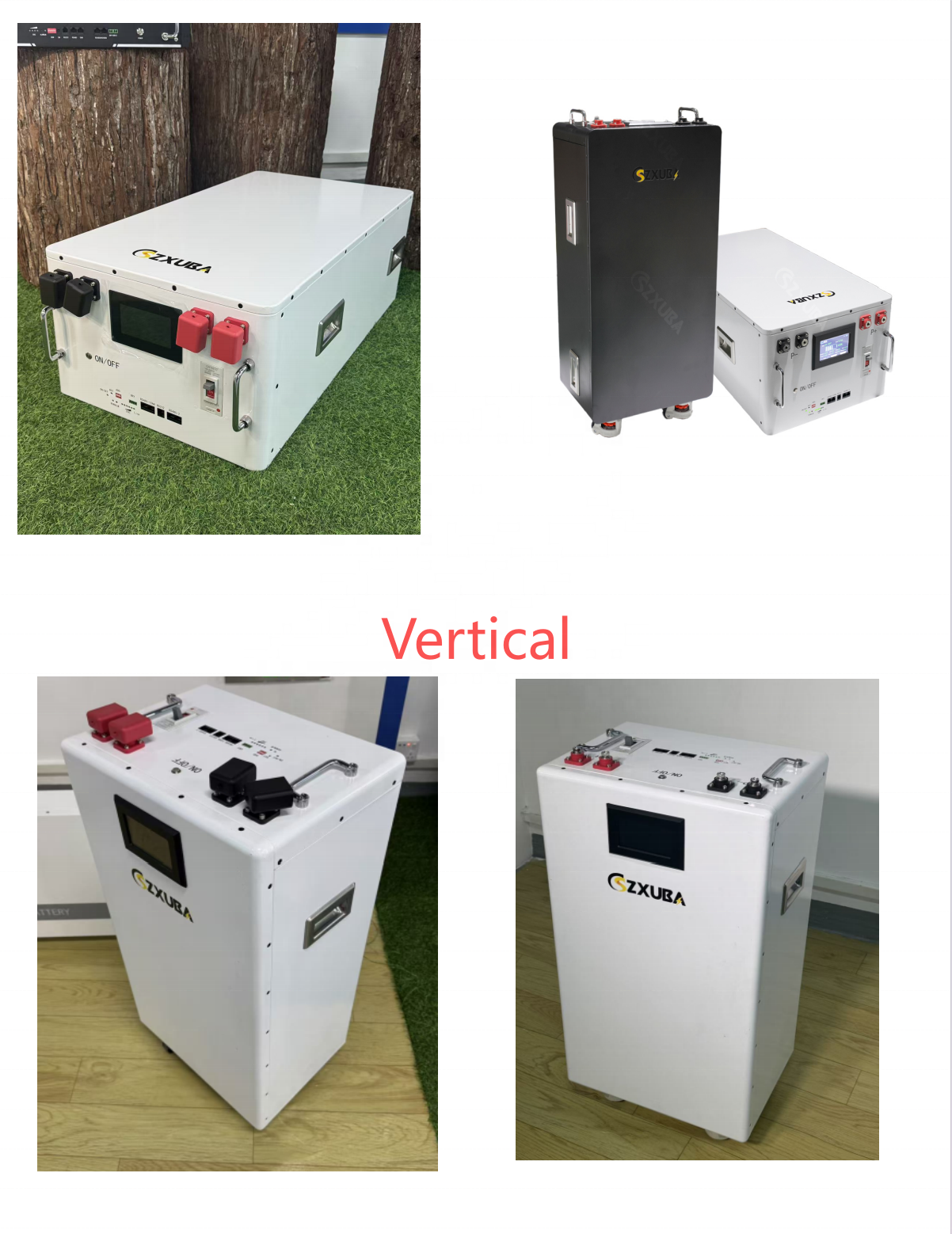

They can be moved around easily. We upgraded to add 4 tires. You can put the wheels in the back and stand them up, so they are easy to store and don't take up too much space.
We use larger, safer leakage switches. They prevent DC circuit breaker hazards, short circuits, and overheating or overloading issues.
| Battery Model | Cycles (25℃) | Voltage | Capacity | AC IR | Weight (g) | Dimension (mm) |
|---|---|---|---|---|---|---|
| LF32 | 3500 | 3.2V | 32AH | ≤1.5mΩ | 730±50 | 148*26*94 |
| LF50F | 1500 | 3.2V | 50AH | ≤2mΩ | 1035±100 | 148*26*129 |
| LF50K | 7000 | 3.2V | 50AH | ≤0.7mΩ | 1395±50 | 135*29*185 |
| LF80 | 4000 | 3.2V | 80AH | ≤0.5mΩ | 1680±50C | 130*36*170 |
| LF90K | 6000 | 3.2V | 90AH | ≤0.5mΩ | 1994±100 | 130*36*200 |
| LF100MA | 2000 | 3.2V | 101AH | ≤0.5mΩ | 1920±100 | 160*50*118 |
| LF100LA | 5000 | 3.2V | 102AH | ≤0.28mΩ | 1985±100 | 160*50*118 |
| LF105 | 4000 | 3.2V | 105AH | ≤0.3mΩ | 1980±60 | 130*36*200 |
| LF125 | 4000 | 3.22V | 125AH | ≤0.4mΩ | 2390±71 | 200*33*172 |
| LF150 | 4000 | 3.22V | 150AH | ≤0.4mΩ | 2830±84 | 200*33*207 |
| LF160 | 4000 | 3.22V | 160AH | ≤0.2mΩ | 3000±100 | 200*33*207 |
| LF173 | 4000 | 3.2V | 173AH | ≤0.2mΩ | 3190±96 | 173*41*207 |
| LF230 | 4000 | 3.2V | 230AH | ≤0.2mΩ | 4140±124 | 173*53*207 |
| LF280k | 8000 | 3.2V | 280AH | ≤0.2mΩ | 5490±300 | 173*71*207 |
| LF304 | 4000 | 3.2V | 304AH | ≤0.1mΩ | 5450±300 | 173*71*207 |
| MB30 | 10000 | 3.2V | 306AH | ≤0.1mΩ | 5600±300 | 173*71*207 |
| MB31 | 8000 | 3.2V | 314AH | ≤0.1mΩ | 5600±300 | 173*71*207 |
| LF560K | 8000 | 3.2V | 628AH | ≤0.2mΩ | 10700±300 | 72*352*207 |
- NOTE: For different specifications or concrete parameters such as different brand, capacity, quantity etc., the price will be with a corresponding change. The listed price is just for reference, because some models may be out of stock in the short term or will alternatively be replaced. Please check details with support before purchasing to get accurate pricing, quality confirmations, and after-sale services. Thank you!
We can customize batteries and provide OEM branding designs to fit your specific application needs.
Supported by two dedicated manufacturing facilities to ensure consistent quality and production capacity.
All cells are authentic A-Grade battery cells. Brand new with the original factory QR code intact. We offer a full refund guarantee if used, B-quality, or swollen cells are received.
We test every battery's voltage, internal resistance, and capacity prior to shipping.
Providing world-class customer service. Logistics methods are optimized based on shipment destination to ensure safe and timely delivery.
| No. | Destination | Shipping Details & Timelines |
|---|---|---|
| 1 | USA |
• By Sea + FedEx Delivery (DDP, Tax Free): Total time: 25-30 working days (ETD: 3-7 days | ETA: 15-20 working days) • By Air + FedEx/UPS (Tax Free): Total time: 10-12 working days |
| 2 | Europe |
• By Railway + DPD/UPS/FedEx (DDP, Tax Free): Total time: 45-55 working days (ETD: 3-7 days | ETA: 35-45 working days) • By Air + DPD/UPS (Tax Free): Total time: 10-12 working days |
| 3 | Australia |
• By Sea + Delivery (DAP): Total time: 45-50 working days (ETD: 3-7 days | ETA: 20-29 working days) • By Air + DPD/UPS (Tax Free): Total time: 8-15 working days |
| 4 | Others |
Custom delivery solutions available on demand via customer service. (ETD: 3-7 days) |
Yes, these items are Grade A, Brand New from the original factory with the QR code fully intact.
We perform strict voltage and internal resistance checks on all battery units before they leave our warehouse.
Yes, the price includes busbars and bolts. Every single battery comes with one set (e.g., if you purchase 4 cells, we will include 4 busbars and 8 bolts).
They are packed using high-density PE foam inserts and thick protective bags, then sealed in 5-layer heavy-duty export cartons to ensure maximum safety during transport.
Minor scuff marks are a normal result of the repeated factory QC inspection processes. We conduct multiple rounds of voltage matching, internal resistance checks, and laser welding of studs, during which the cells are grouped together in the warehouse.
We carry out 100% inspections during production and before final packaging. In the rare event of functional or quality issues, we provide replacement cells in your subsequent order.
