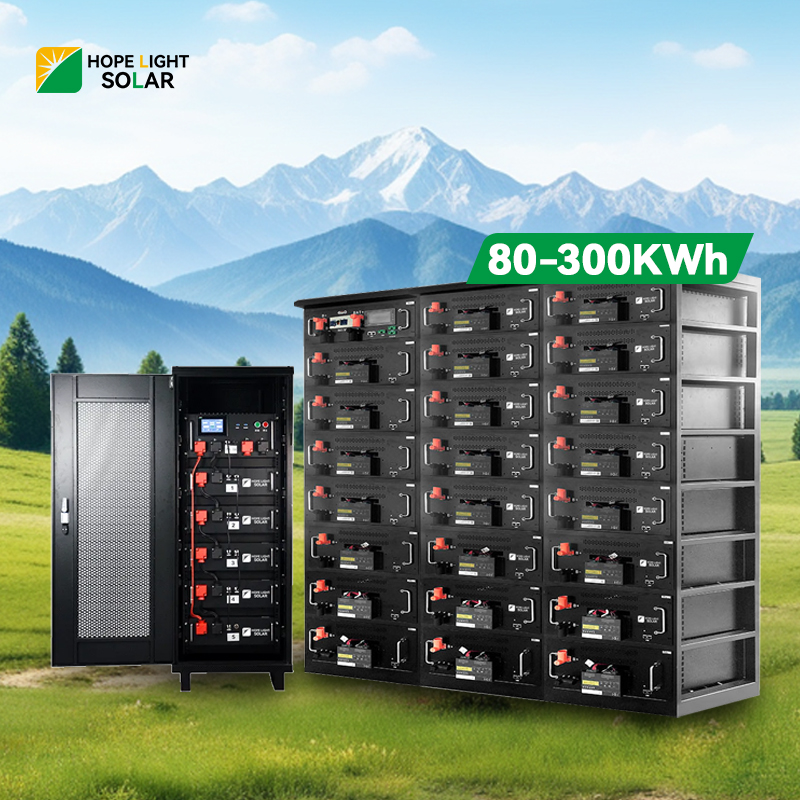

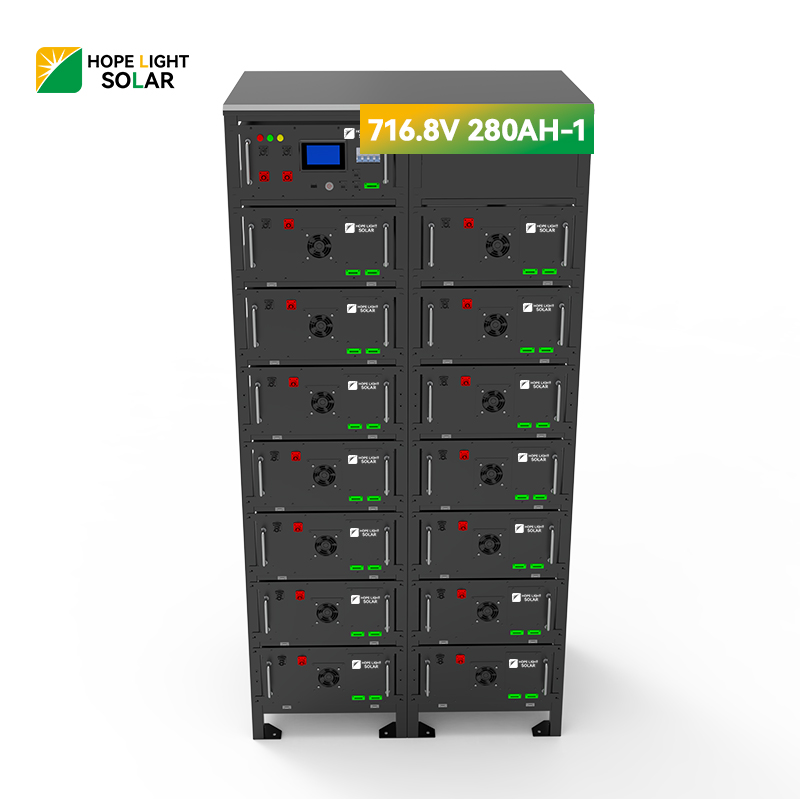

307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
1 / 5
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh
307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh

307.2V 358.4V 460.8V 512V 614.4V 280ah High Voltage Battery Pack Lithium Ion Storage Solar Battery 200kwh

Send Inquiry

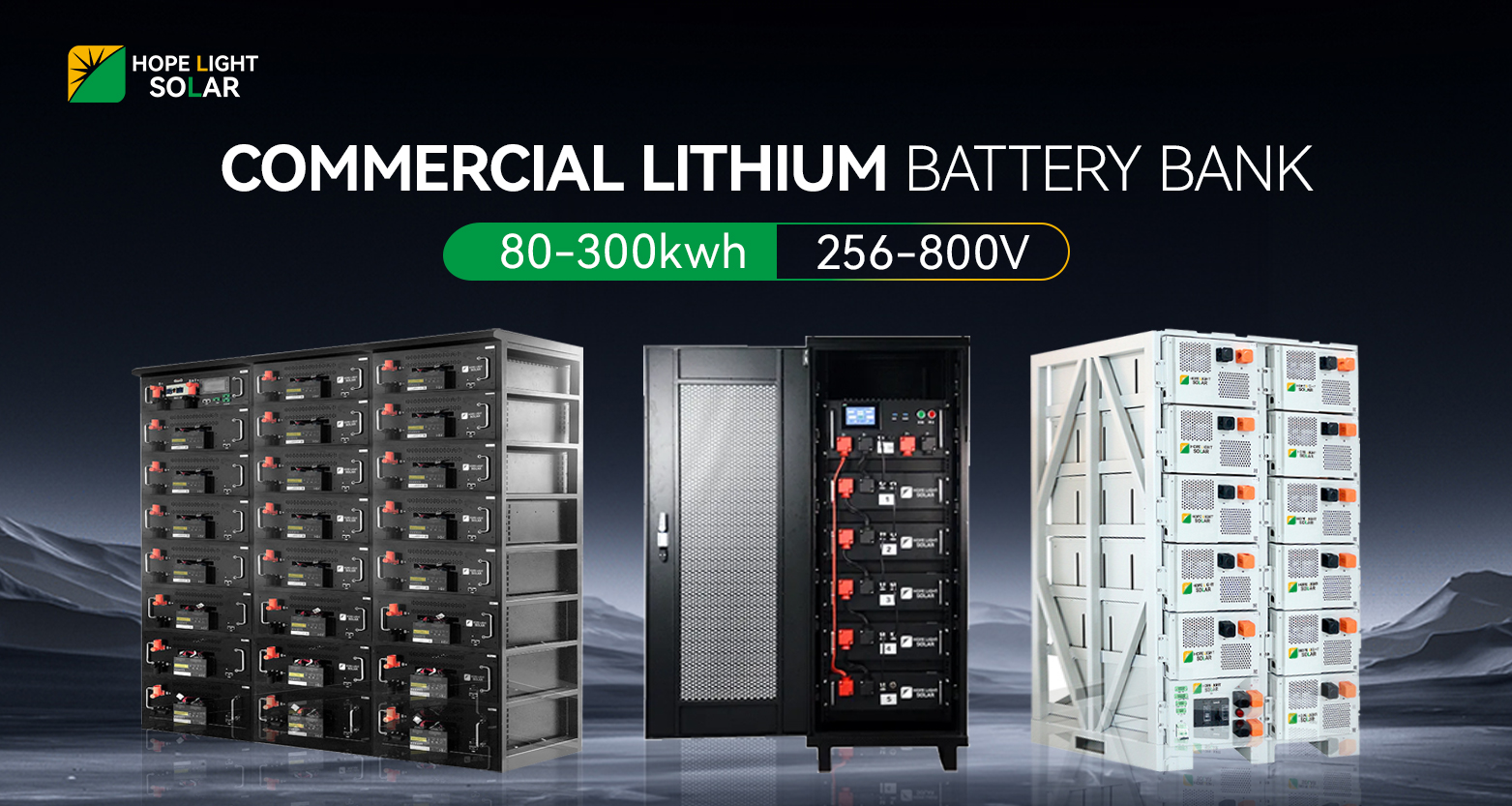

Product Description

Product Description
Product Description Image
Specification
Related Voltage 307.2V 358.4V 409.6V 512V 563.2V 614.4V 665.6V 716.8V 768V
Combination Method 96S1P 112S1P 128S1P 160S1P 176S1P 192S1P 208S1P 224S1P 240S1P
Rated capacity(Ah) 280Ah
System Energy(Kwh) 86 100 115 143.36 158 172.03 186.4 200.7 215
Max charge/discharge current(A) 140A
Working temperature Charge: 0°C~55°C ; Discharge: -20°C~55°C
Communication port CAN2.0/RS485
Weight(Approx)(KG) 980 1130 1255 1400 1525 1670 1795 1922 2077
System Size(L/W/H)(mm) 780*550*1940 780*1100*1175 780*1100*1430 780*1100*1685 780*1100*1940 780*1650*1430 780*1650*1685
IP Grade IP21
Protection BMS & Breakers
Storage Temperature(RC) 0°C~35°C
Recommend depth of discharge 90%
Key Features
  • Cabinet lithium battery bank technology features:
  • Multiple communication interfaces RS232, RS485, CAN
  • IP21 protection, indoor application
  • Supporting up to 4 strings parallel configuration
  • Standard of 19-inch embedded designed module is comfortable for installation and maintenance
  • Multiple protection Lifepo4 material, BMS and breaker, safe and long life
  • Compatible with DEYE, Luxpower, Goodwe, Growatt, SMA, Solis, Voltronic etc
  • With Bluetooth, Active balancing, Includes current limiting module
Key Features Image

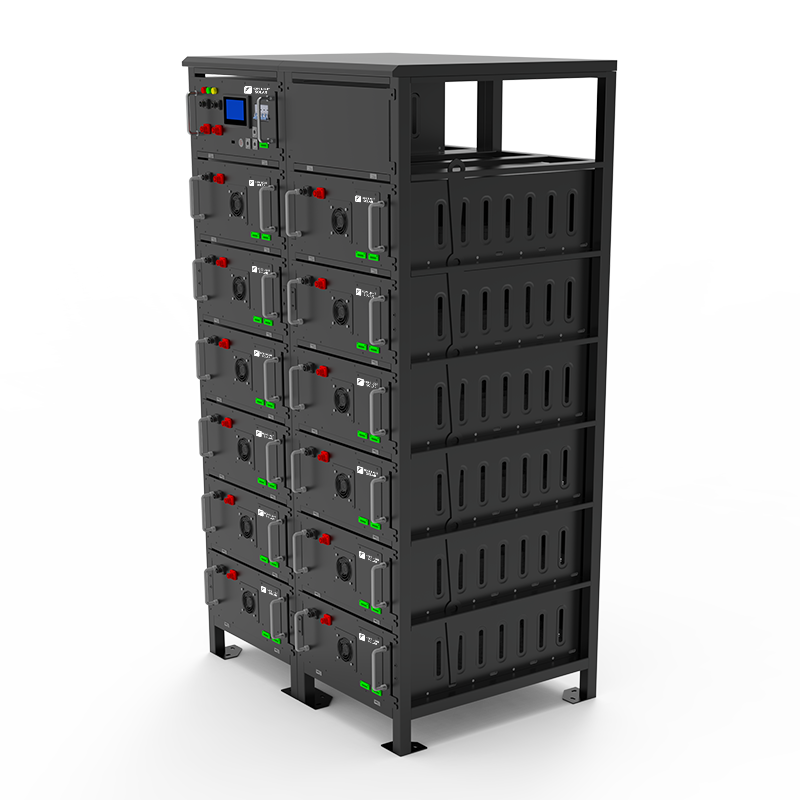

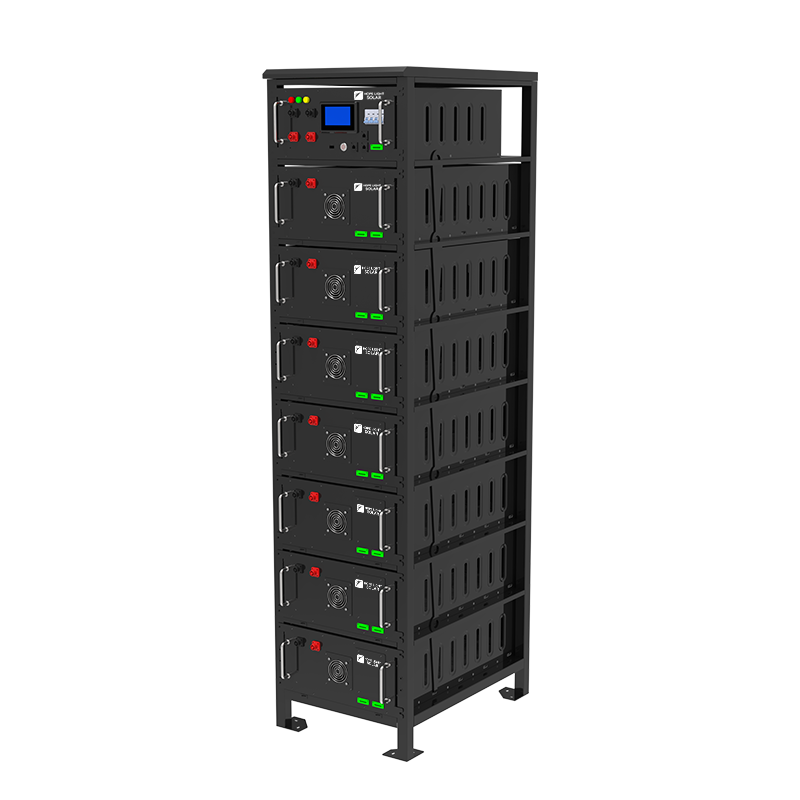

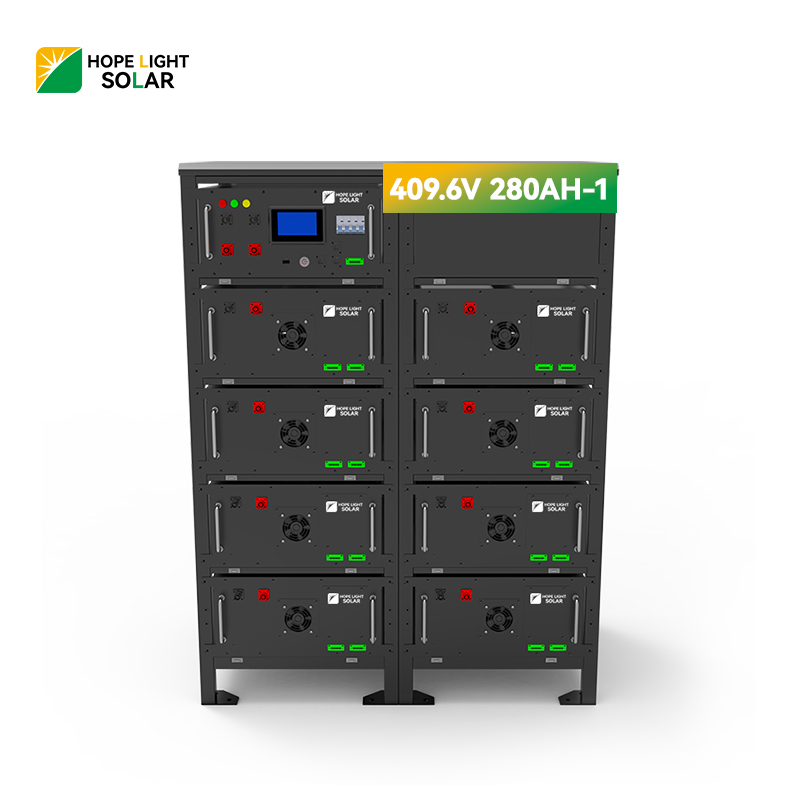

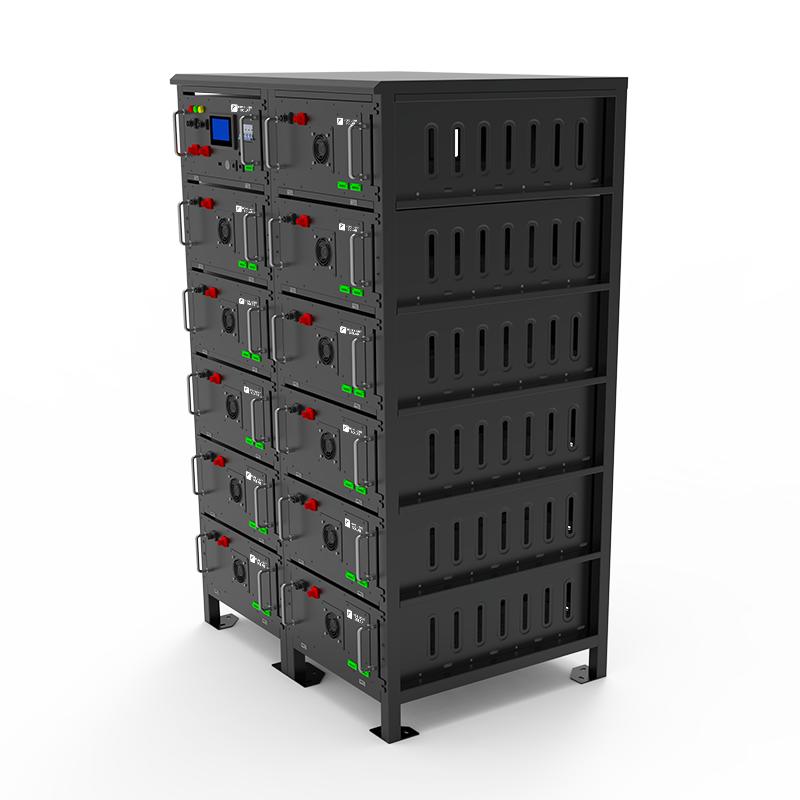

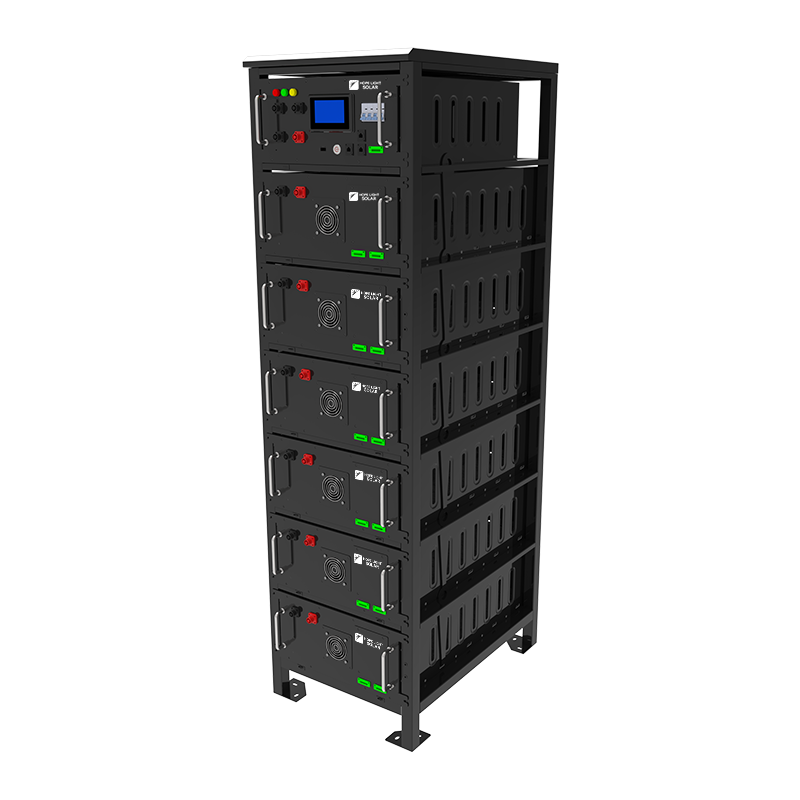

Details Images
Detail Image 1 Detail Image 2 Detail Image 3

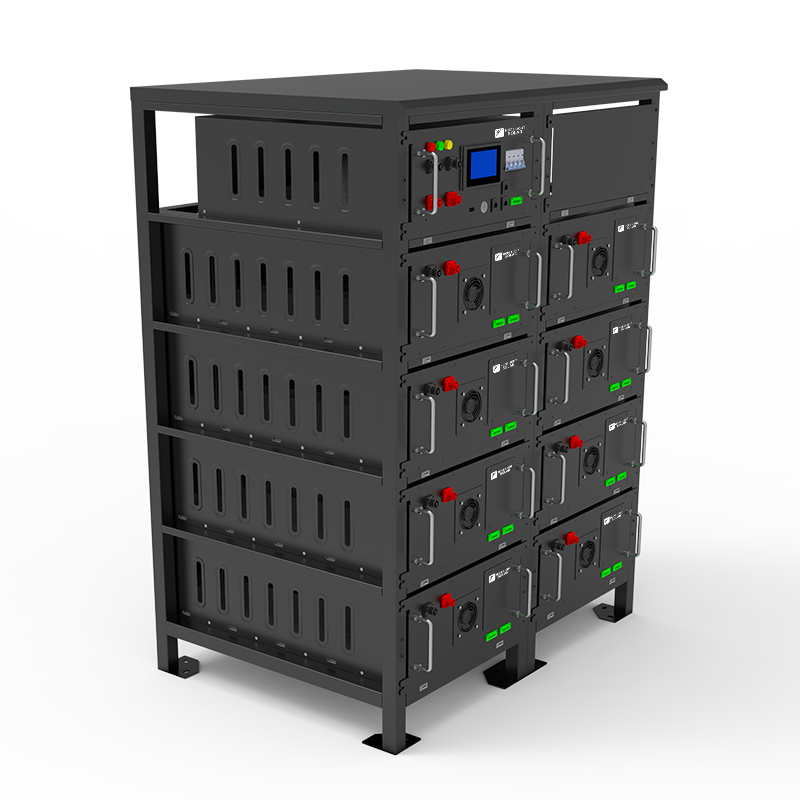

Detail Image 4 Detail Image 5 Detail Image 6 Detail Image 7

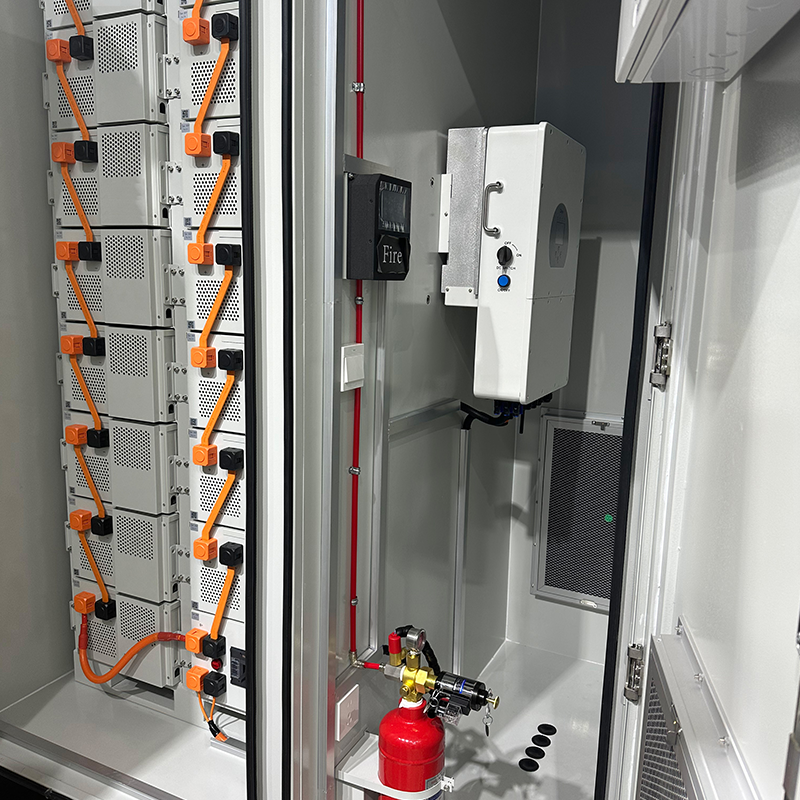

Project Case

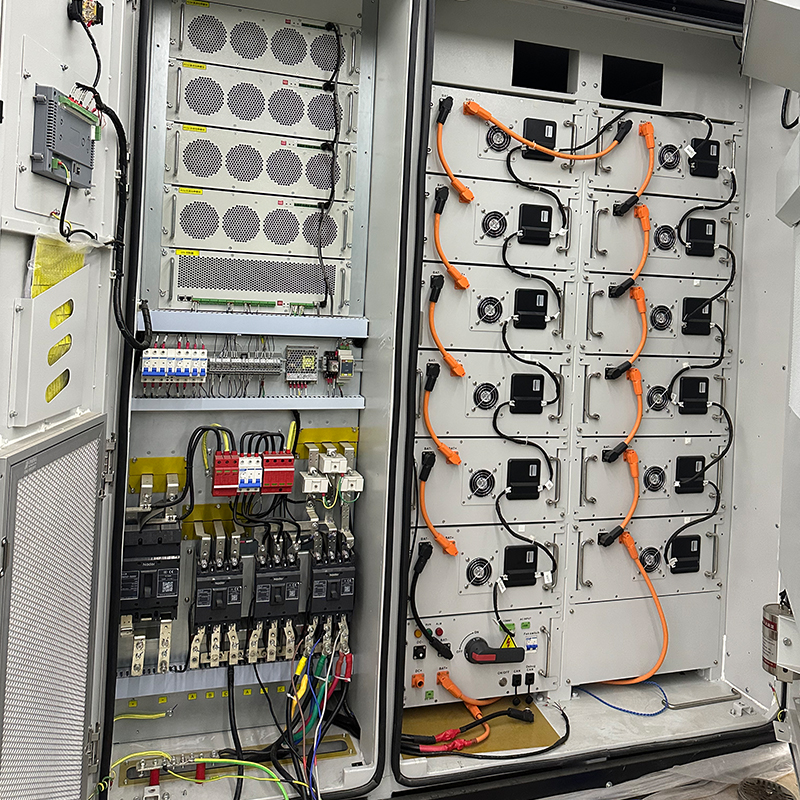

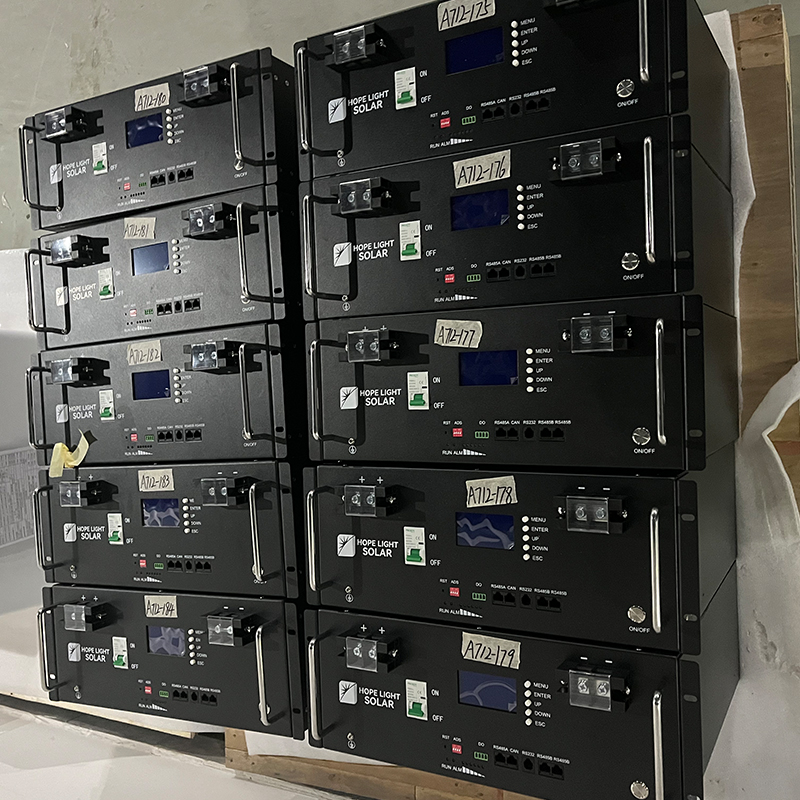

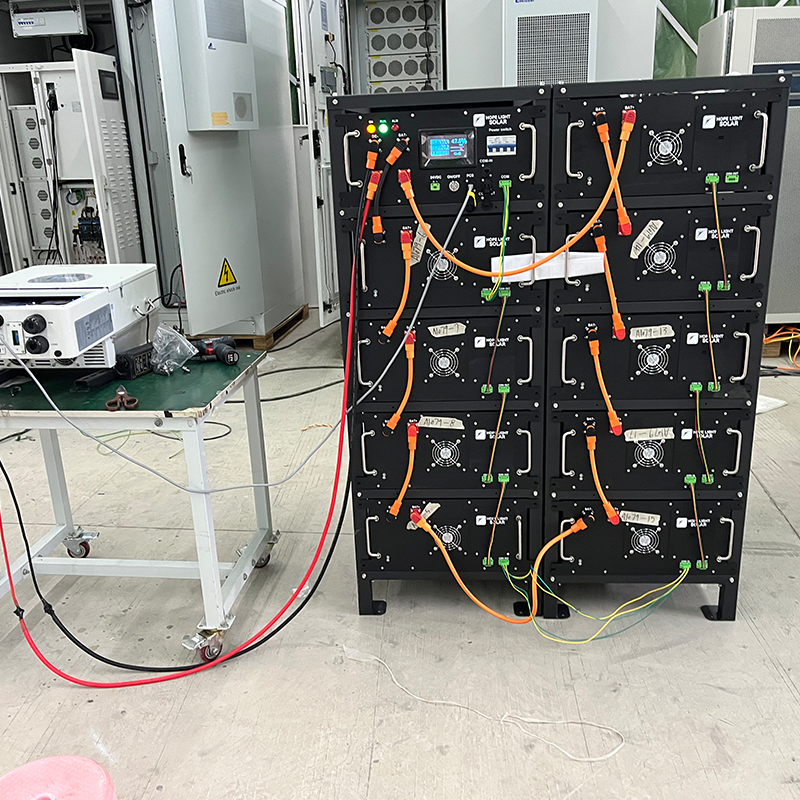

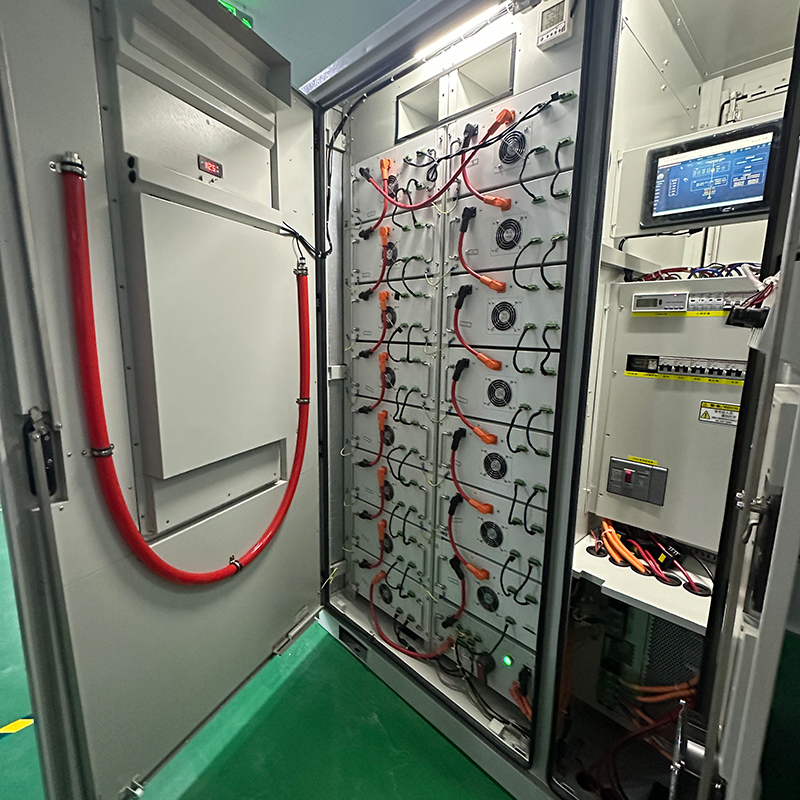

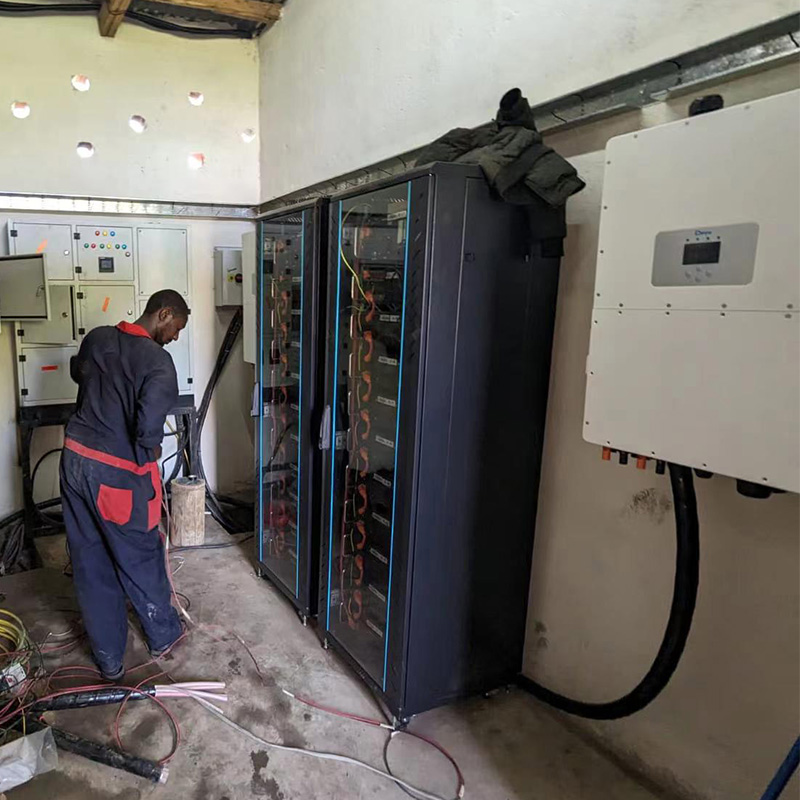

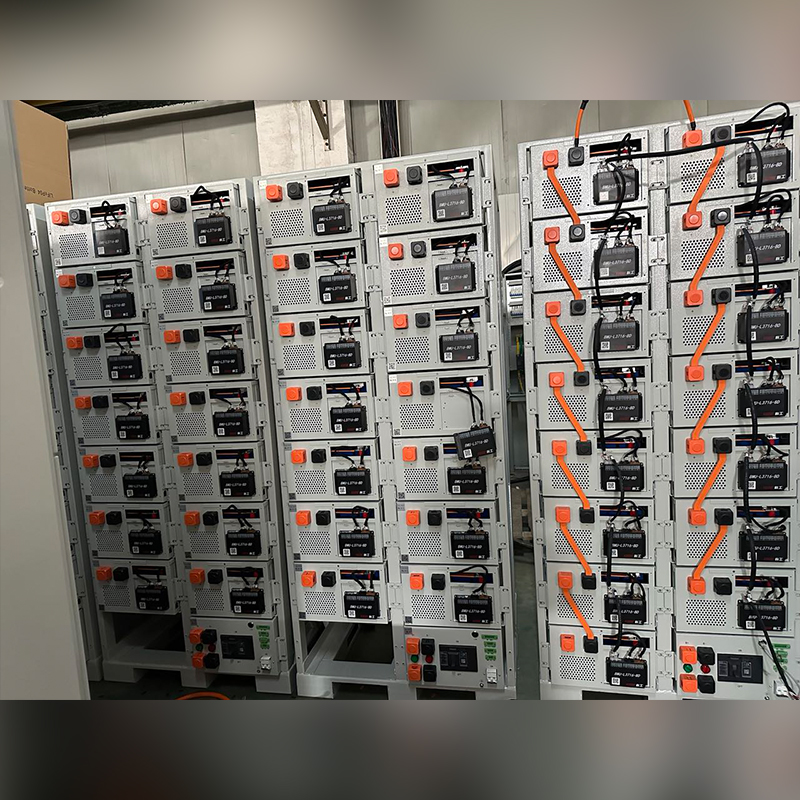

Project Case 1 Project Case 2 Project Case 3 Project Case 4 Project Case 5 Project Case 6 Project Case 7 Project Case 8

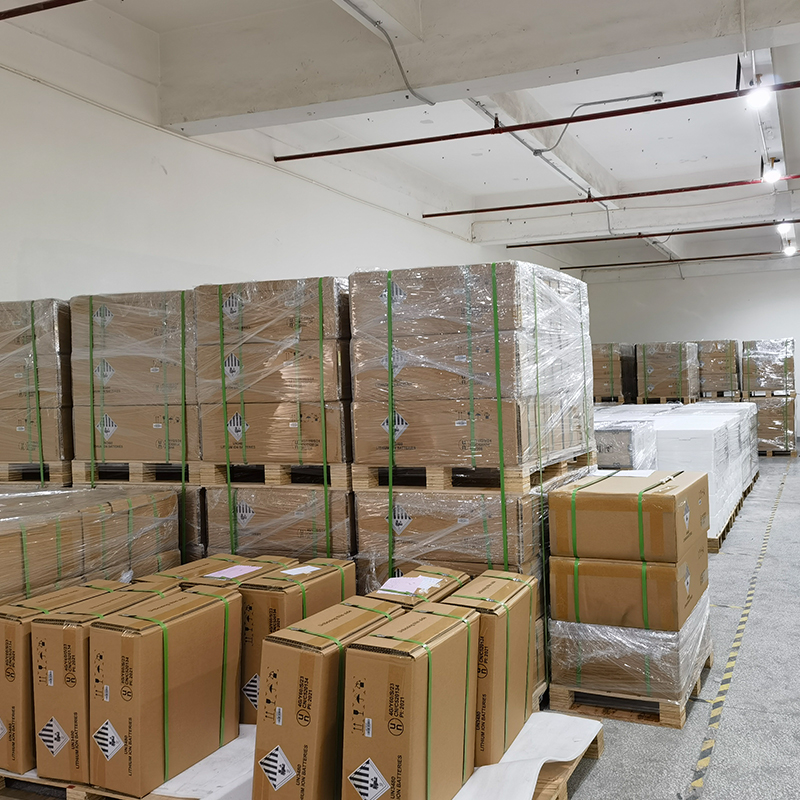

Packing & Shipping
Packing Image 1 Packing Image 2 Packing Image 3
Frequently Asked Questions
Q: What communication ports are available on the cabinet lithium battery bank?
A: The solar cabinet battery bank supports multiple communication interfaces, including CAN2.0, RS485, and RS232, enabling convenient connection and monitoring.
Q: Which inverter brands are compatible with this system?
A: The system is designed for high compatibility and works seamlessly with mainstream solar inverter brands such as DEYE, Luxpower, Goodwe, Growatt, SMA, Solis, and Voltronic.
Q: What is the recommended Depth of Discharge (DoD) for the battery bank?
A: The recommended depth of discharge (DoD) is 90%, which ensures the optimal balance between power utilization and extending battery lifespan.
Q: What built-in safety protections are integrated into this lithium battery system?
A: The battery utilizes high-safety LiFePO4 chemistry and features integrated BMS (Battery Management System), built-in circuit breakers, active balancing, and a current-limiting module for complete protection.
Q: Can multiple battery systems be set up in parallel?
A: Yes, this cabinet lithium battery bank supports parallel configurations of up to 4 strings for scalable energy storage expansion.
Q: What are the recommended temperature ranges for operation and storage?
A: The optimal operating charging temperature is 0°C to 55°C, discharging temperature is -20°C to 55°C, and the recommended storage temperature range is 0°C to 35°C.
