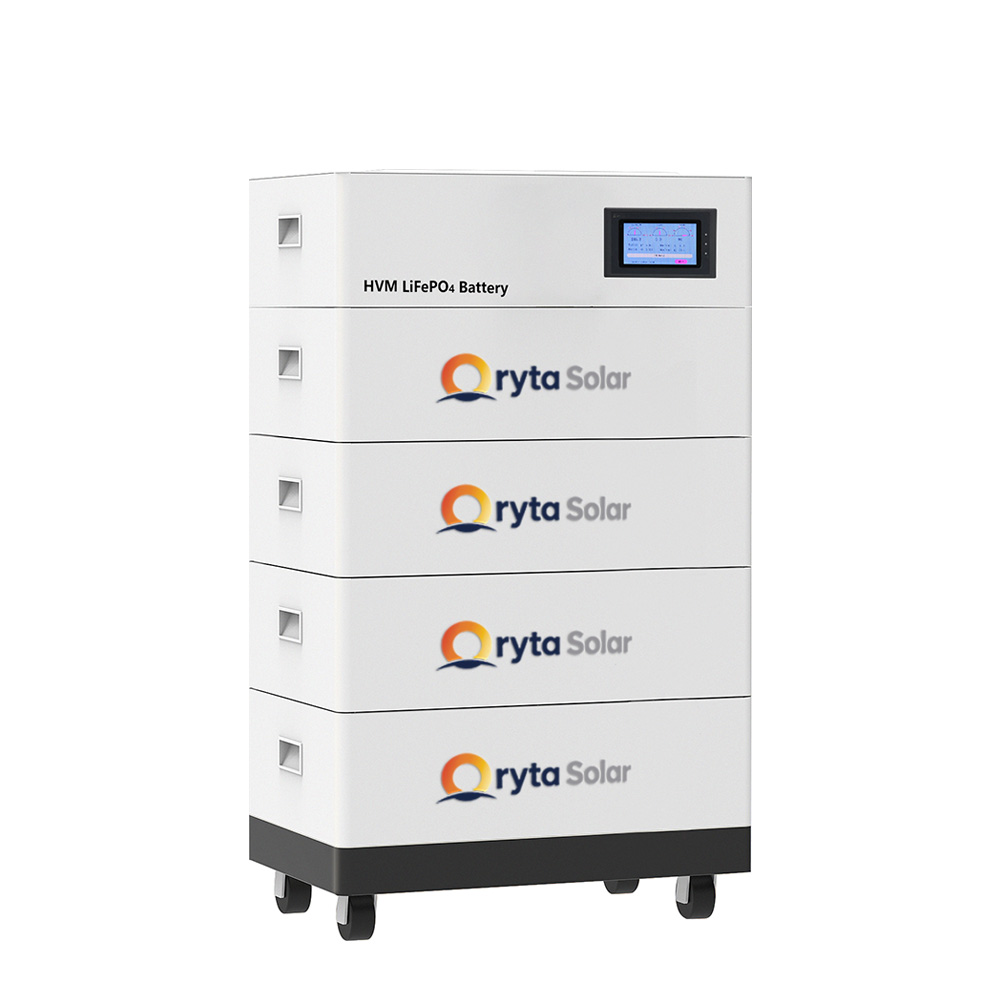

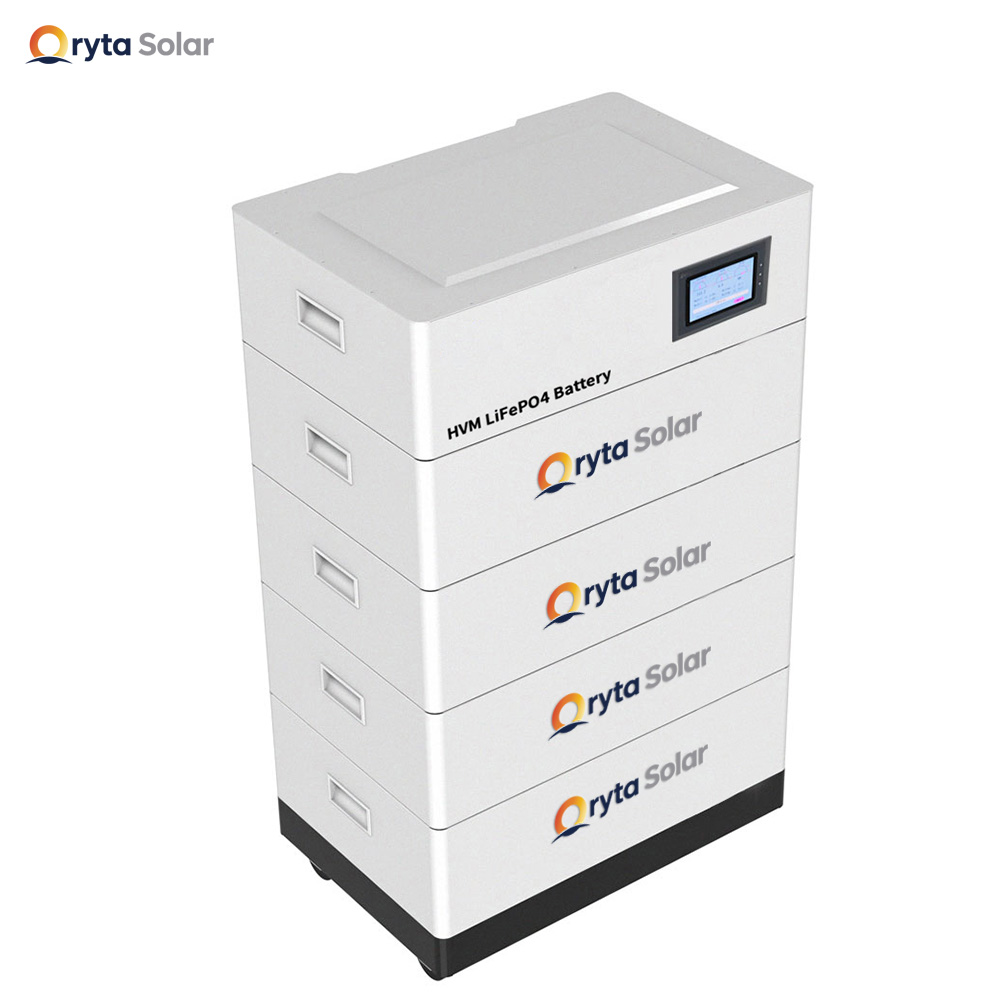

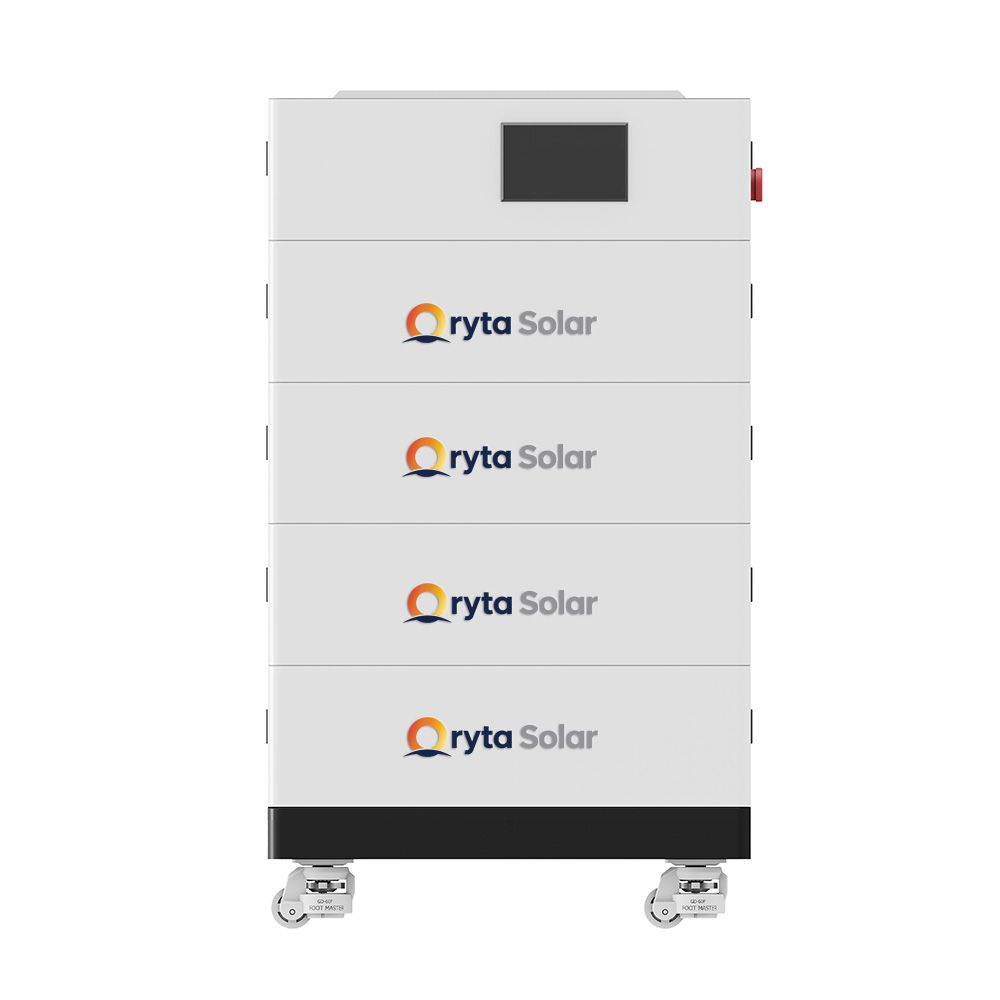

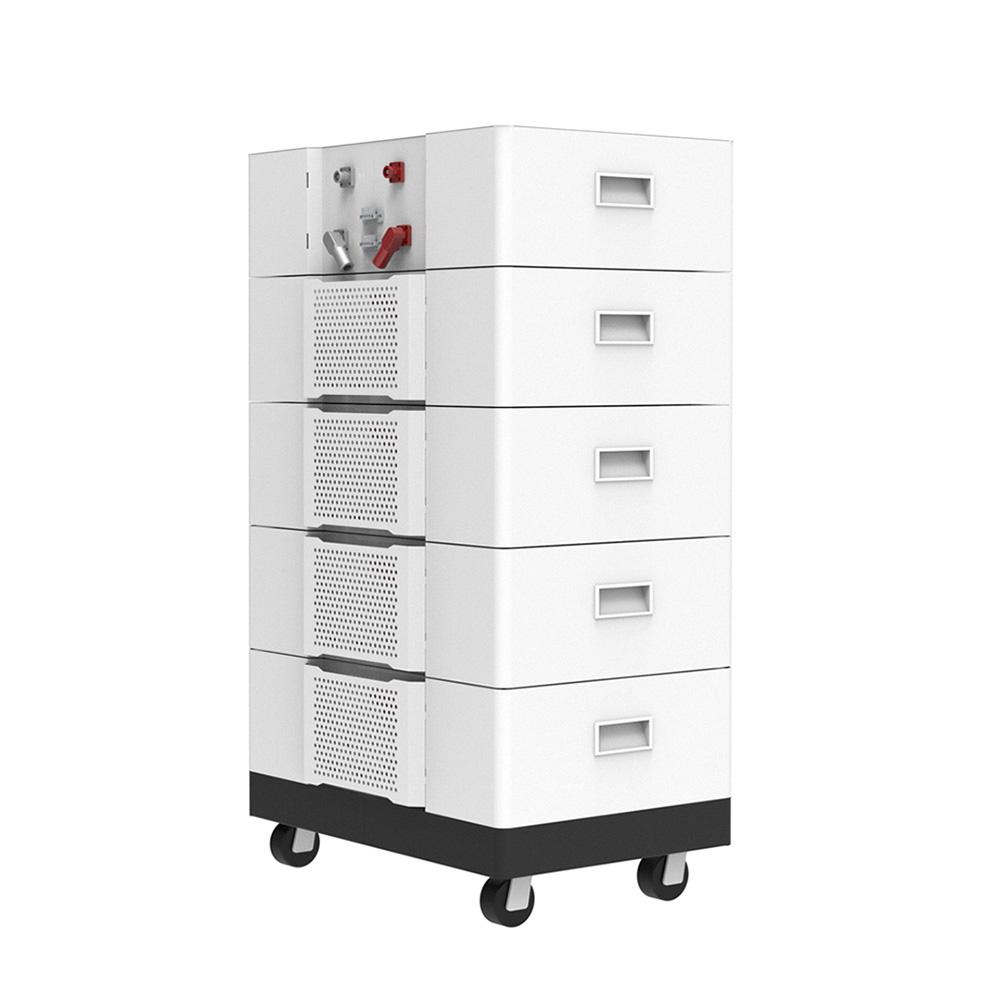

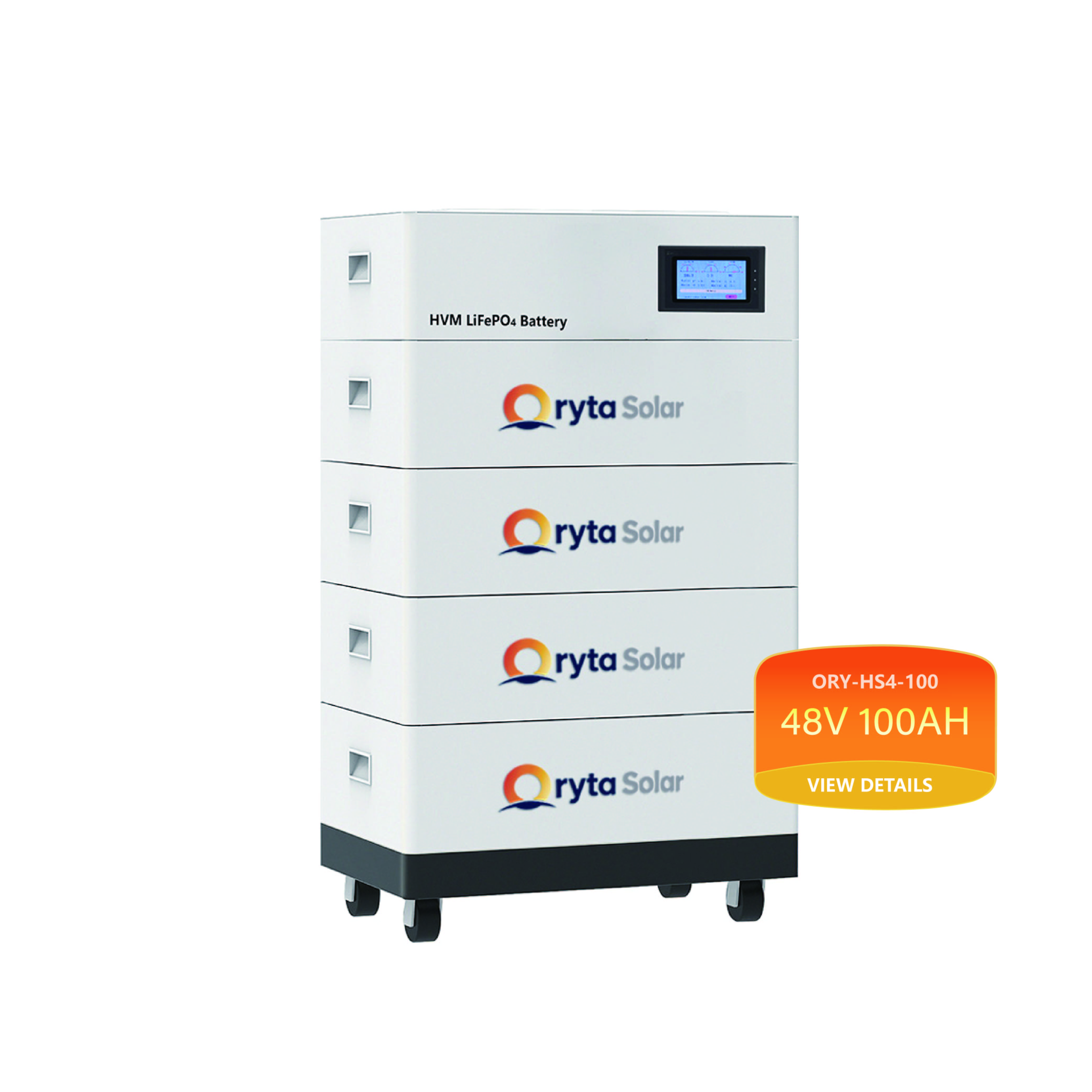

| Product Model | ORY-HS4-100 |
| Number of Modules | 4 |
| Battery Capacity | 100Ah |
| Battery Energy | 19.2KWh |
| Size (LxWxH) mm | 570 × 380 × 1000 |
| Weight | 189Kg |
| Standard Charge Current | 20A |
| Standard Discharge Current | 20A |
| Battery Type | LFP |
| Cycle Life | ≥ 6000 times @ 80% DOD, 25 °C |
| Nominal Voltage | 192V |
| Operating Voltage Range | 160-438V |
| IP Protection | IP 21 |
| lnstallation | Cabinet Holding |
| Charging Temperature | 0 ~ 60 ℃ |
| Discharge Temperature | -10 ~ 60 ℃ |
| BMS Monitoring Parameters | SOC, System voltage, current, cell voltage, cell temperature, PCBA temperature measurement |
| Communication Port | RS485 / CAN |
| Warranty | 5 or 10 years (optional) |
We are a professional exporter of PV modules, lithium batteries, inverters and energy storage systems. Our products hold international certifications with strict quality control. We provide one-stop customized solutions, efficient cross-border logistics and thoughtful after-sales service, boasting a global cooperative network. We are a reliable green energy partner committed to win-win cooperation worldwide.

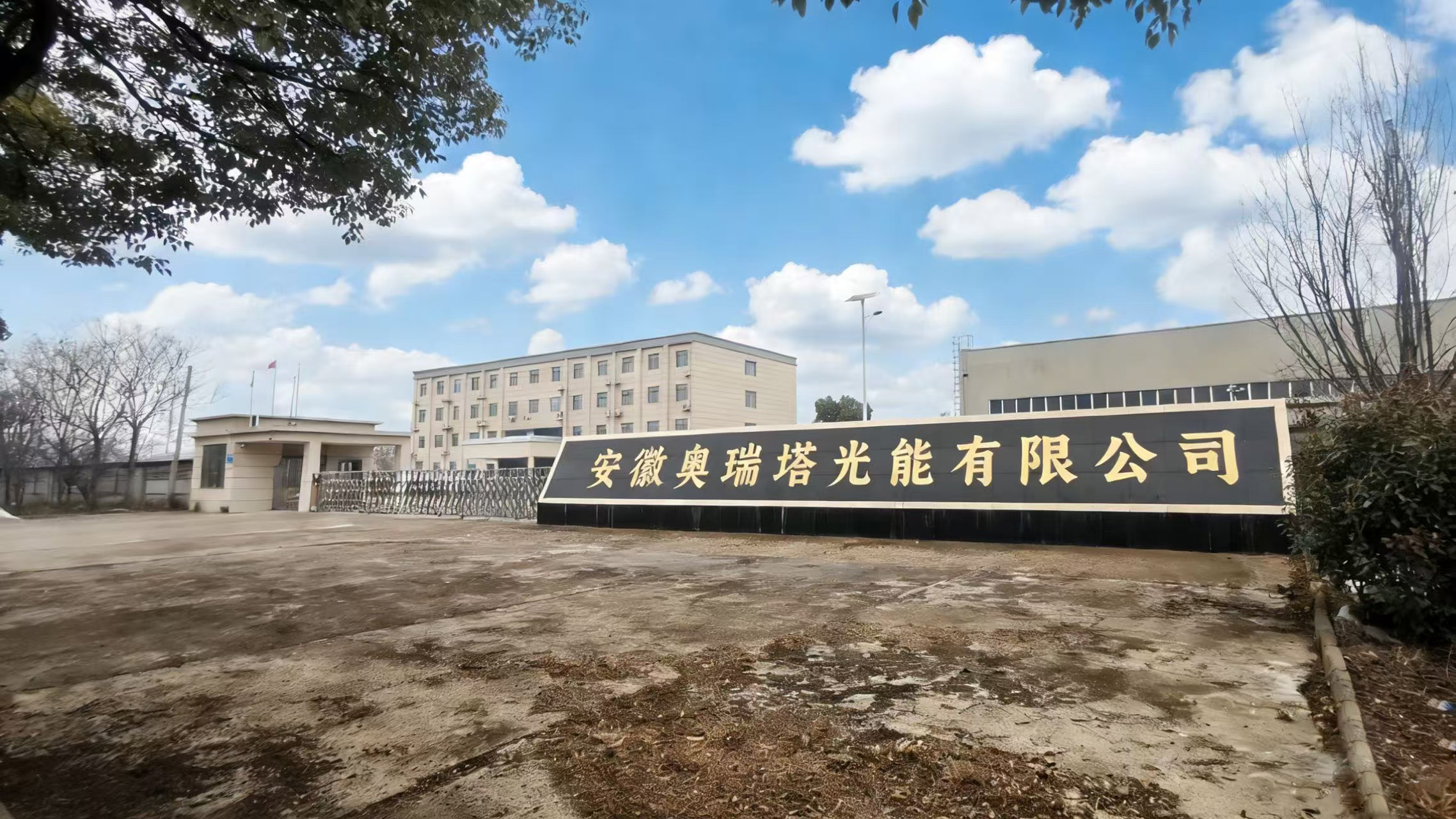

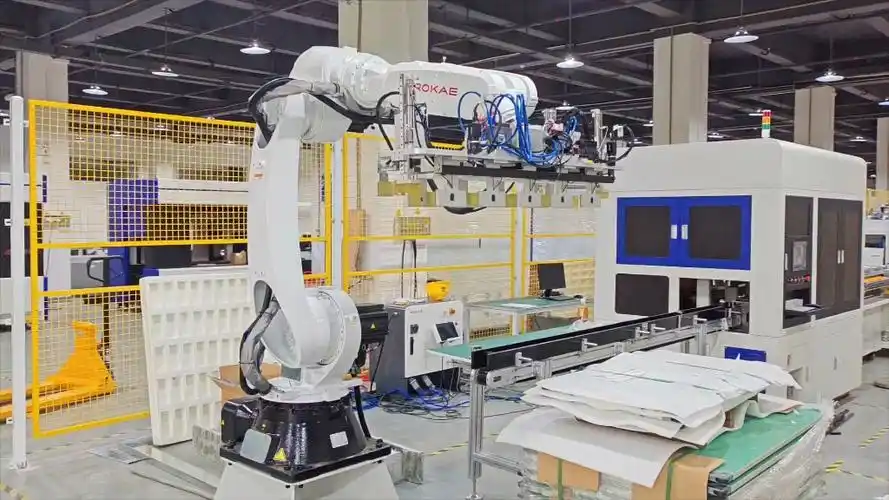

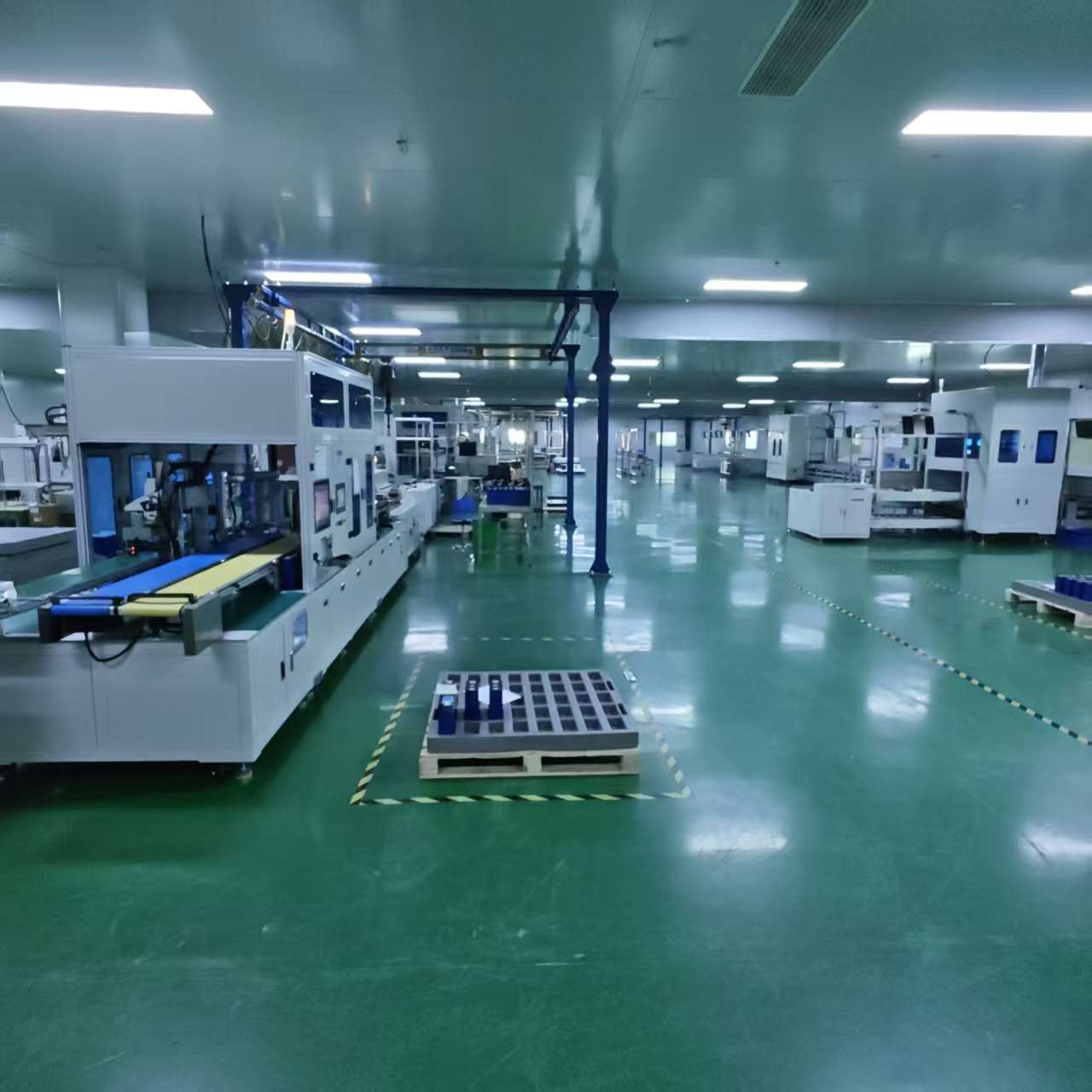

Our factory is equipped with fully automated production machinery for photovoltaic and energy storage products. Featuring intelligent control, high-efficiency operation and precise manufacturing, the equipment strictly guarantees product consistency and quality. It boosts stable large-scale production capacity, shortens delivery cycles, and lays a solid foundation for reliable global supply.

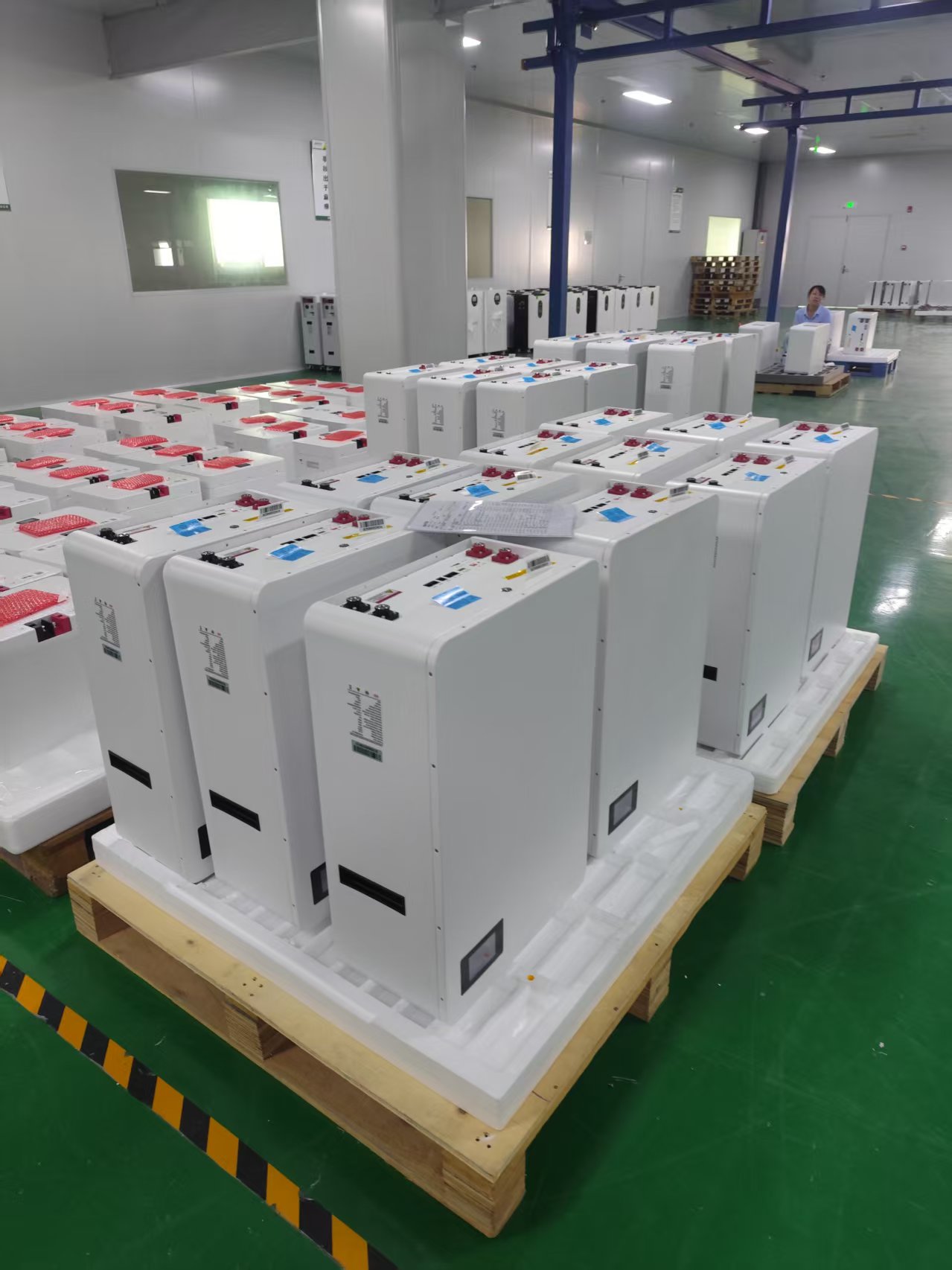

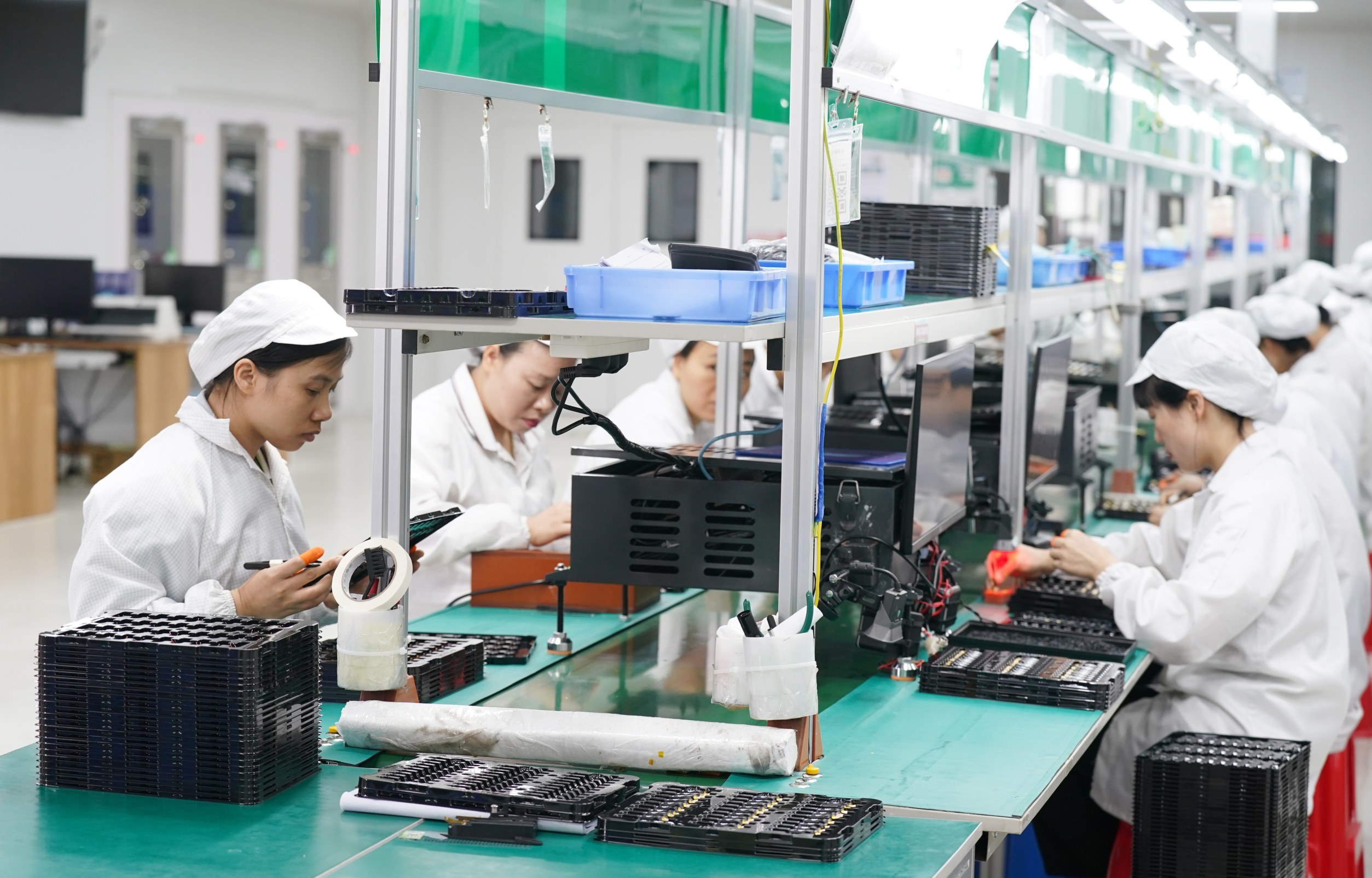

We implement a full-process quality inspection system for all products, with multi-link strict testing by professional equipment and technical teams. Adhering to international quality standards, we conduct rigorous checks from raw materials to finished products, ensuring zero defective products leaving the factory and solidly guaranteeing stable and reliable product quality for global customers.
English manual & step-by-step teaching videos (disassembly/assembly/operation) will be provided to you.
Lifetime online support. Video call guidance is available anytime after delivery.
Yes. Customizable options: brand name, machine color, and unique patterns.
Under normal use, the cycle life is 3000+ times (capacity retention ≥80%), and the service life can reach 8-10 years.
Yes. Our lithium batteries adopt standard output interfaces, compatible with most mainstream inverters. We can also provide matching solutions for your specific model.
5-year warranty for photovoltaic lithium batteries. Free repair or replacement for non-human quality problems during the warranty period.
