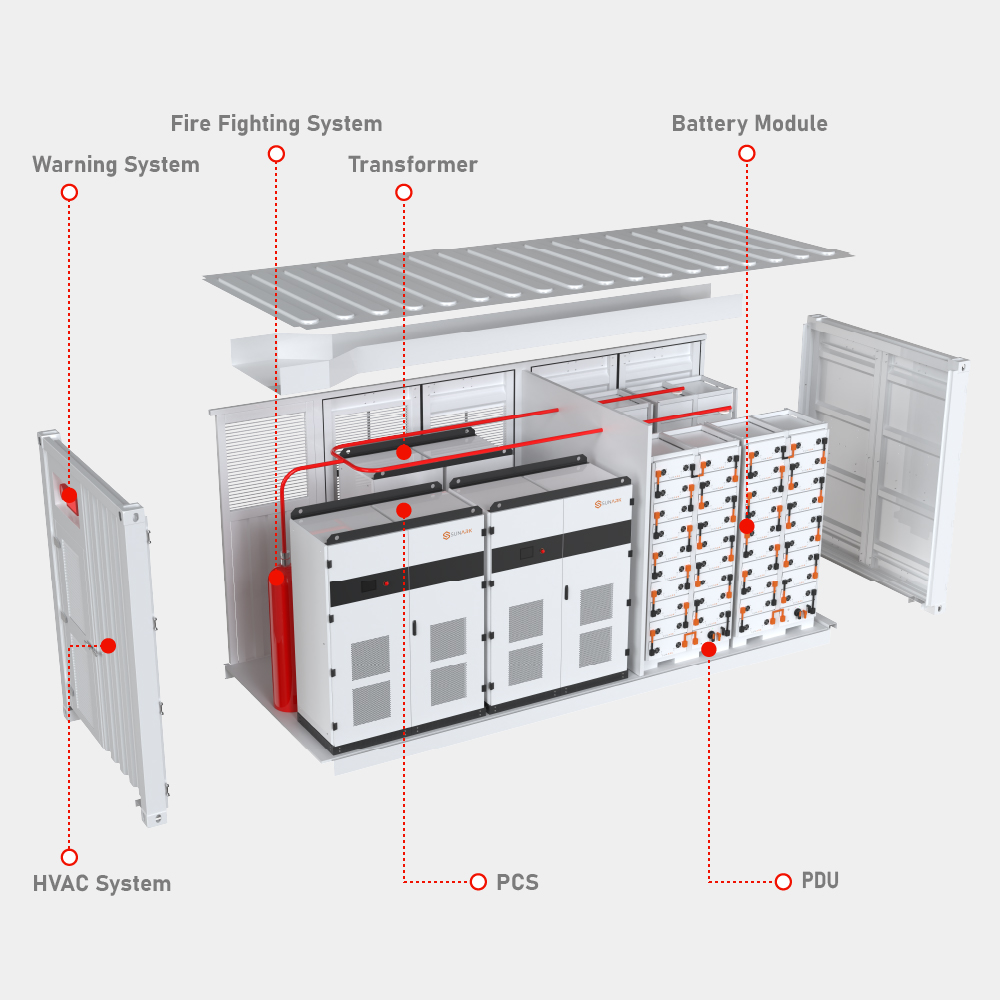

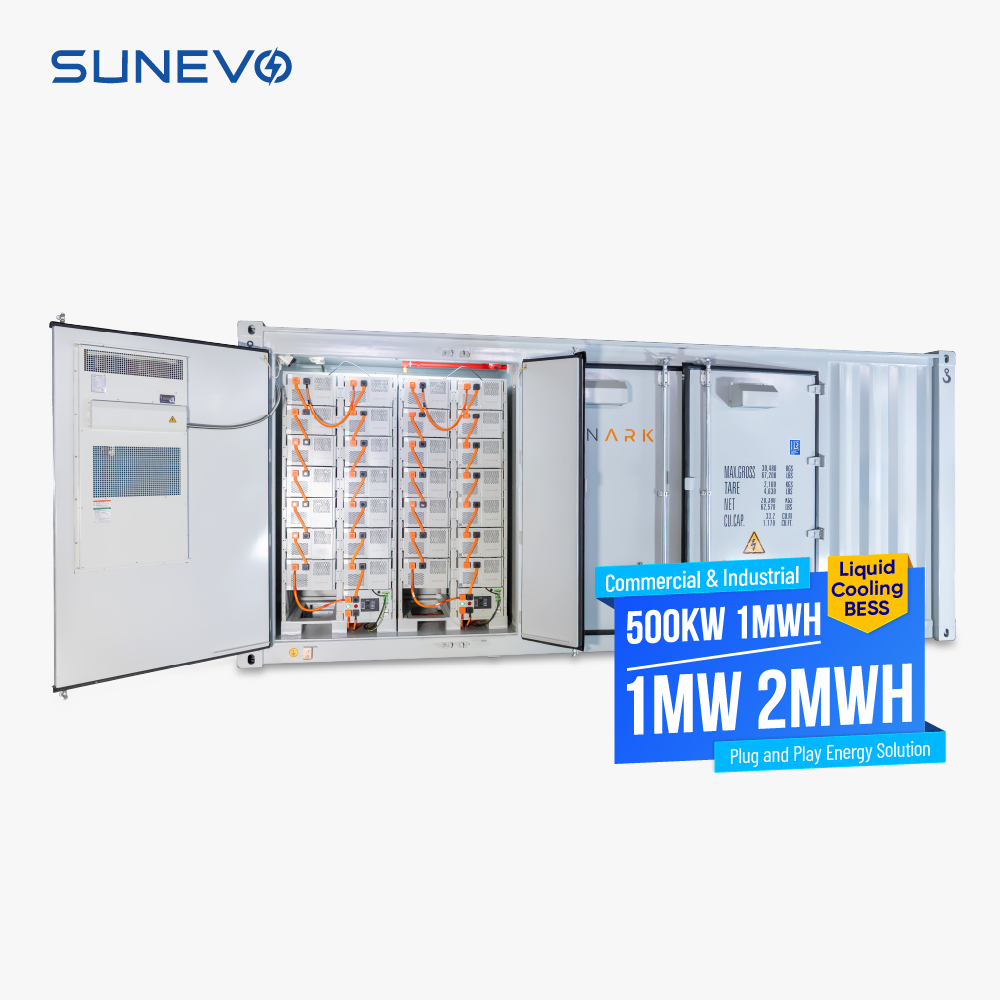

| CubeArk-1MW-2MWH Specifications | |
|---|---|
| MODULE | CubeArk-1MW-2MWH |
| DC Data | |

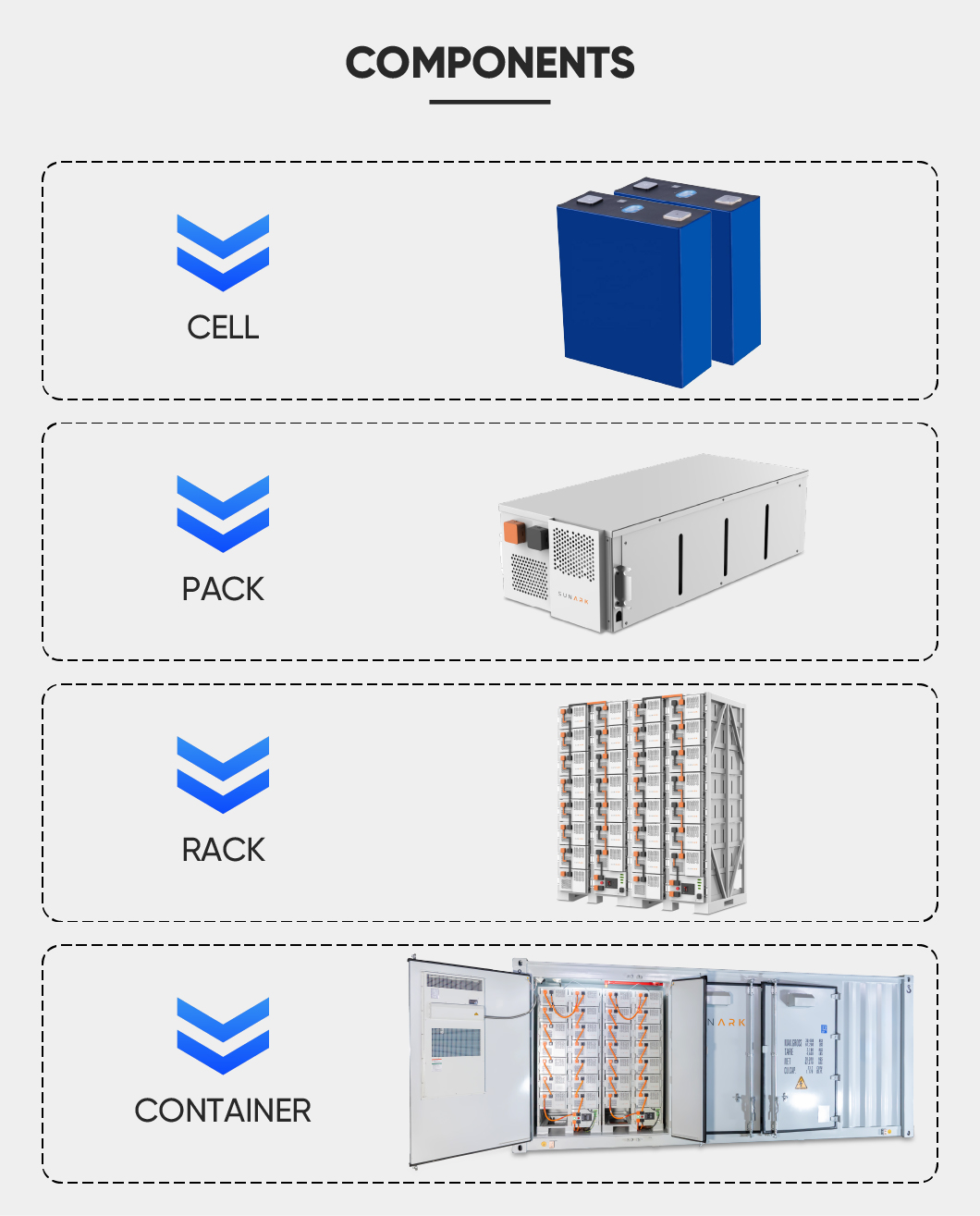

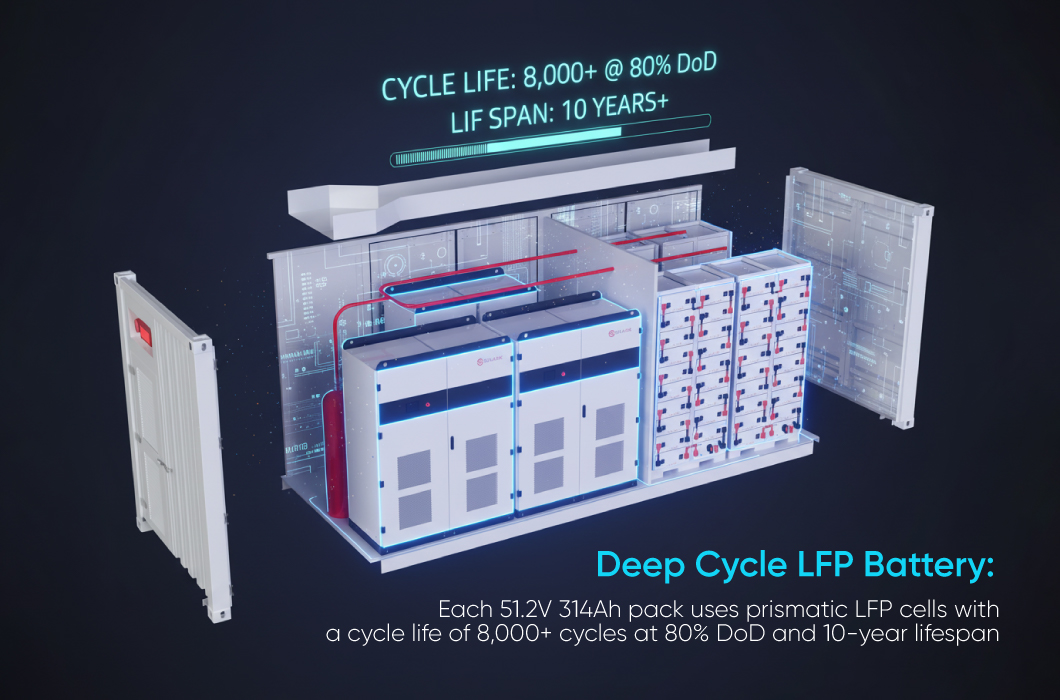

| Cell type | Prismatic LFP |
| Cell brand | HiGEE/EVE/GOTION |
| Cell life cycle | >8,000 [email protected], 25℃ |
| Cell spec | 3.2V 280Ah/314Ah |
| String configuration | 1P224S/1P240S |
| Number of strings | 10 |
| String rated energy capacity | 200kWh/215kWh |
| DC rated energy capacity | 2000kWh |
| Rated voltage | 716.8V/768V |
| Voltage range | 627.2V~795.2V |

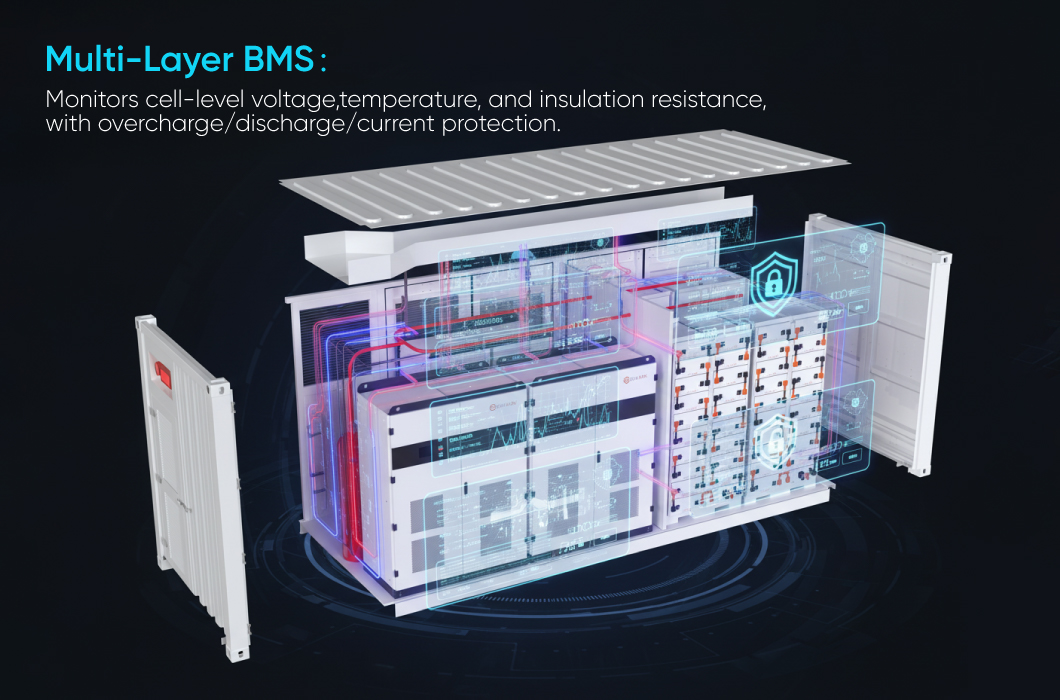

| BMS communication interface | Ethernet, CAN, RS485 |
| BMS communication protocol | Modbus RTU, Modbus TCP |

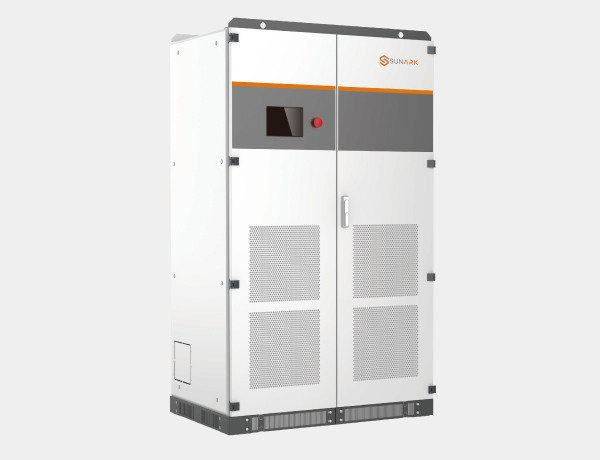

| AC Data | |
| Rated AC power | 2*500kW |
| Maximum AC power | 2*550kW |
| Rated AC voltage | 400V |
| AC PF | 1 leading ~ 1 lagging |
| Output THDi | ≤3% |
| Nominal grid frequency | 50/60Hz |
| Isolation method | 3 Phase 4 line Transformer |

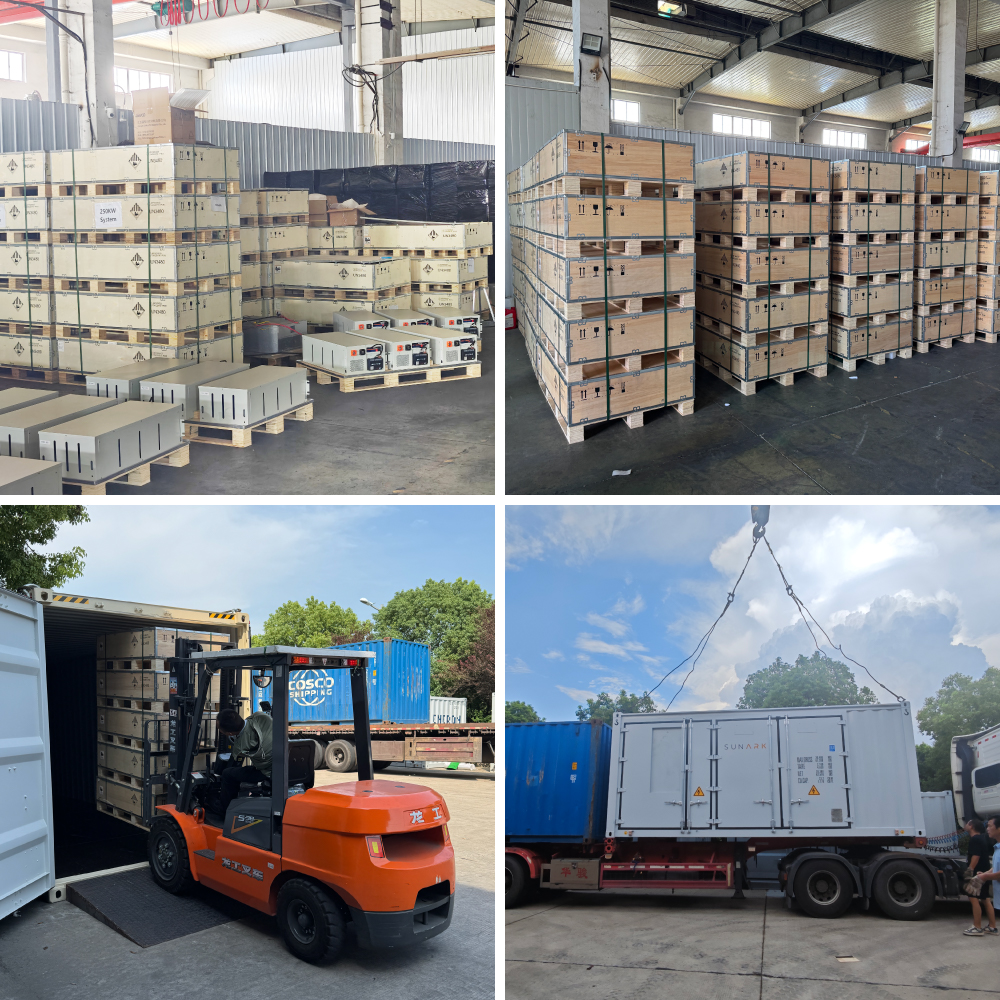

| Item | 1-10 PCS | 10-50 pcs | 50-100 pcs | 100+ pcs |
|---|---|---|---|---|
| Need Dangerous Goods Transport Certificate | 30 days | 30-45 days | 45-60 days | 60+ days |
| Not Need Dangerous Goods Transport Certificate | 30 days | 30-45 days | 45-50 days | 50+ days |
