Overview
Basic Info

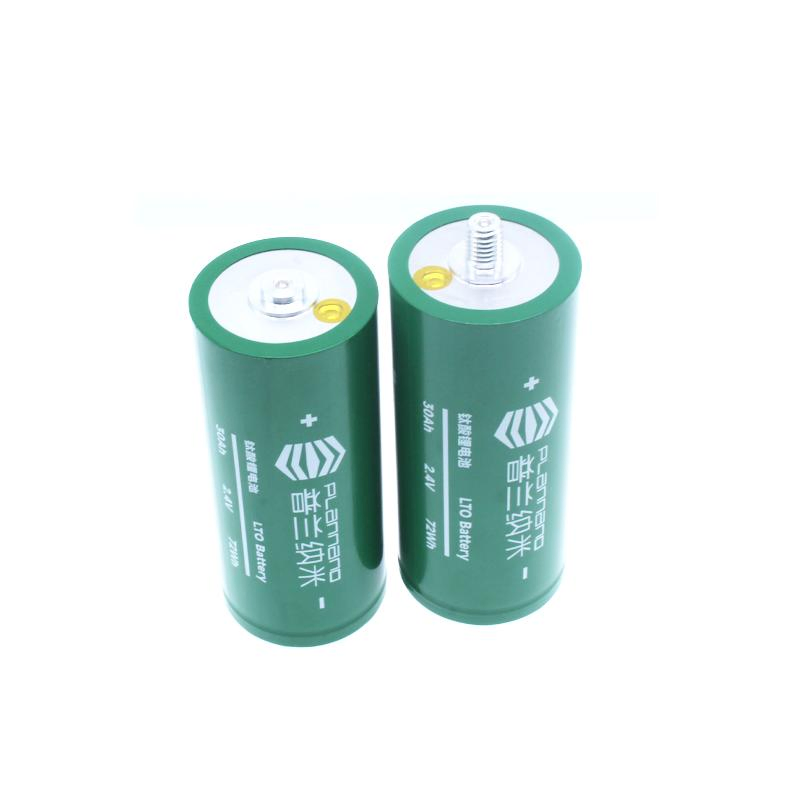

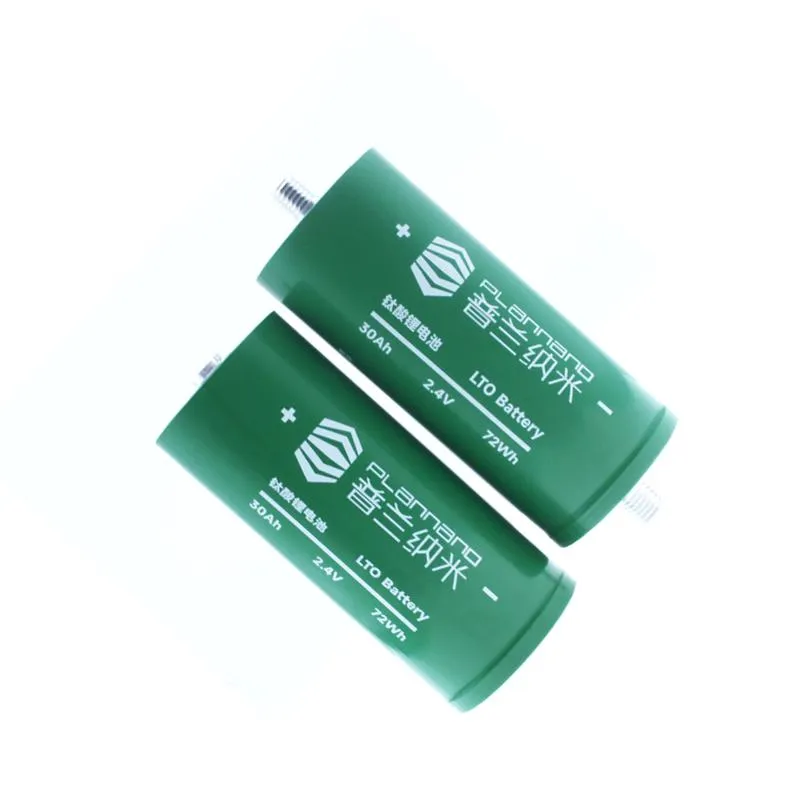

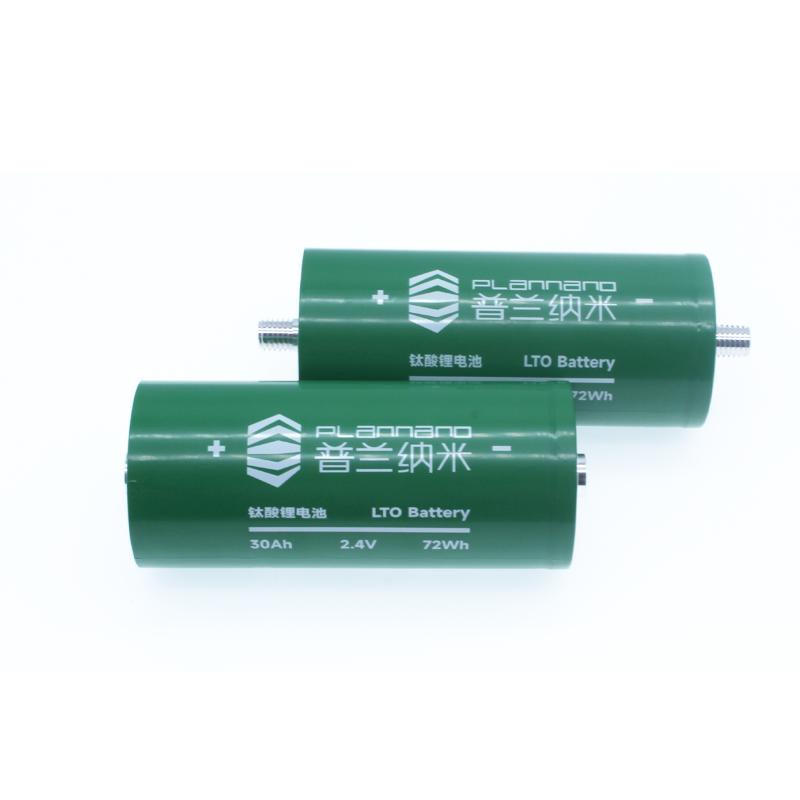

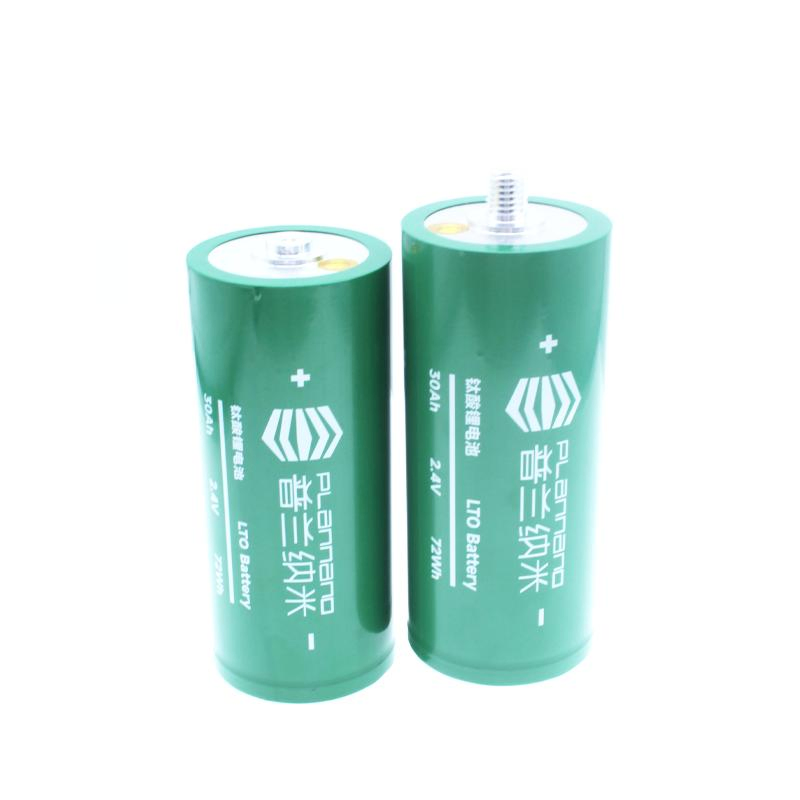

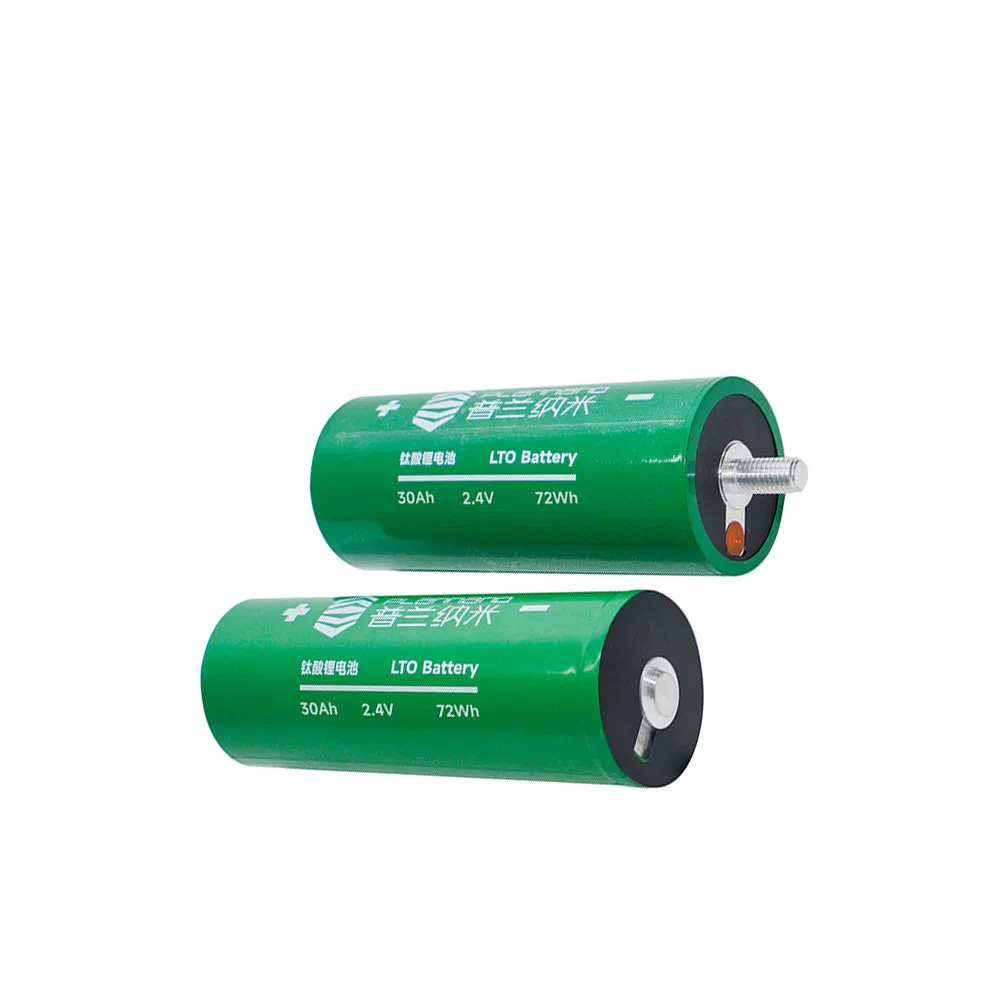

Model NO.PLITR60138CWLA-30Ah-2.4V
RechargeableYes
SizeMedium
ModelPlitr60138cwla-30ah-2.4V
Nominal Energy72wh
Weight850
Working Temperature-50~+65
Transport PackageOversea Carton Box
Specification60*138mm
HS Code8507600090
Production Capacity100000pieces/Year
Packaging & Delivery
Package Size1.46cm * 6.04cm * 6.04cm
Package Gross Weight0.850kg

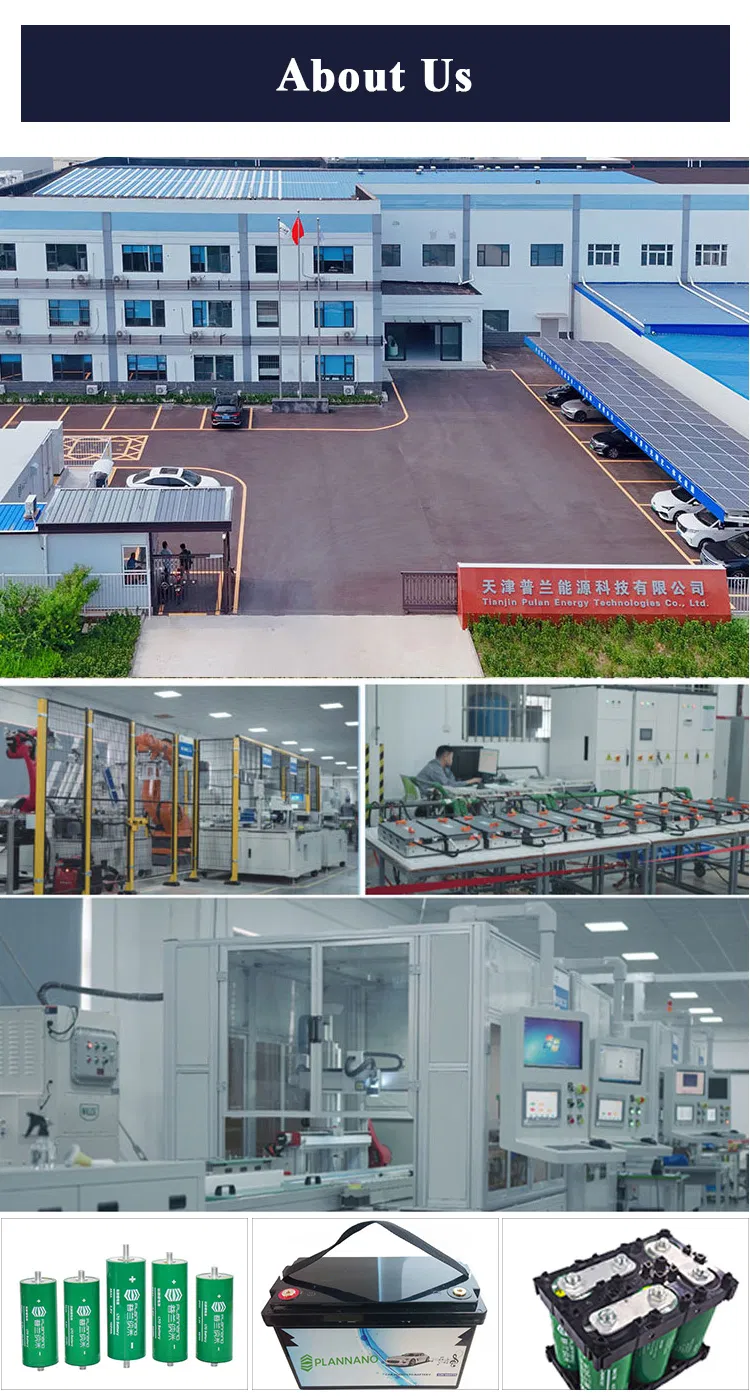

Company Profile
We are committed to the development and application of new nanomaterials in the field of new energy. We possess outstanding technical advantages and rich process experience in the fields of dry electrodes, LTO all-tab batteries, energy storage systems, and all-solid-state batteries. With our own R&D team, we can realize technical R&D and product development such as material preparation characterization, capacitor and battery cell assembly evaluation, energy storage system assembly test, and solid-state battery development.
We provide four major categories of main products, including supercapacitors, LTO batteries, industrial and commercial energy storage systems, and large-scale energy storage systems. Our products are exported to more than 50 countries and regions around the world and are widely praised by customers.
As a developer in dry electrodes and safe energy storage systems, we utilize dry electrodes and LTO batteries as the foundation, and all-solid-state batteries as the breakthrough, to accelerate green development and set sail for a zero-carbon future.

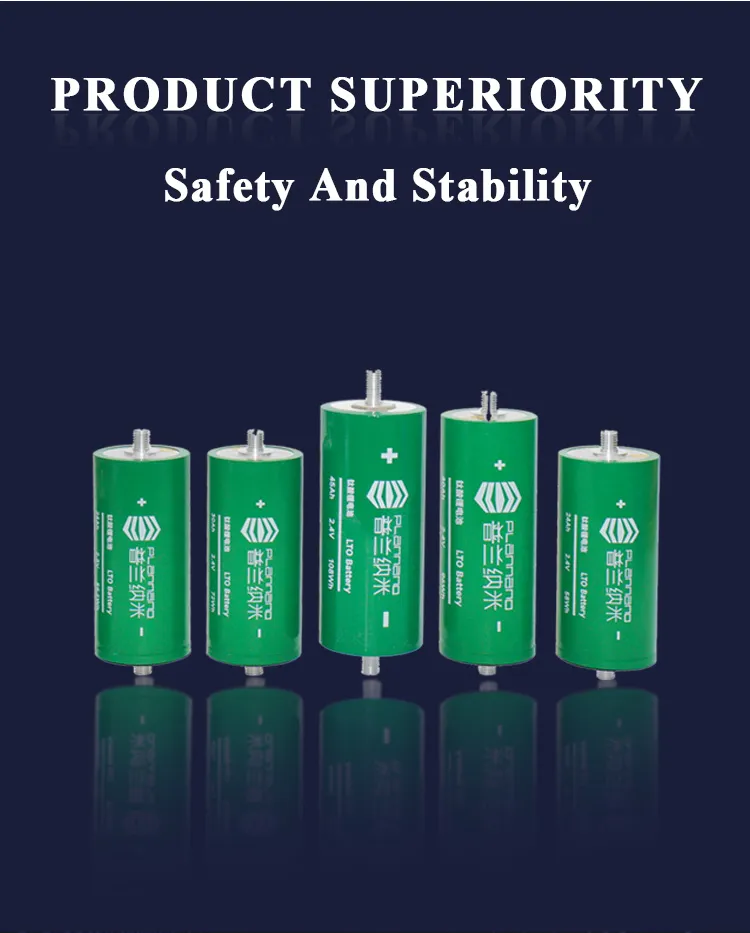

LTO Battery Series Features
Advanced Technology: Through innovative graphene modification technology and nanomaterials technology, we have overcome the industrial problem of producing gases at high temperatures, with advanced technology, simplified process and low cost, which is more than 20% lower than the production cost of general products in the market.

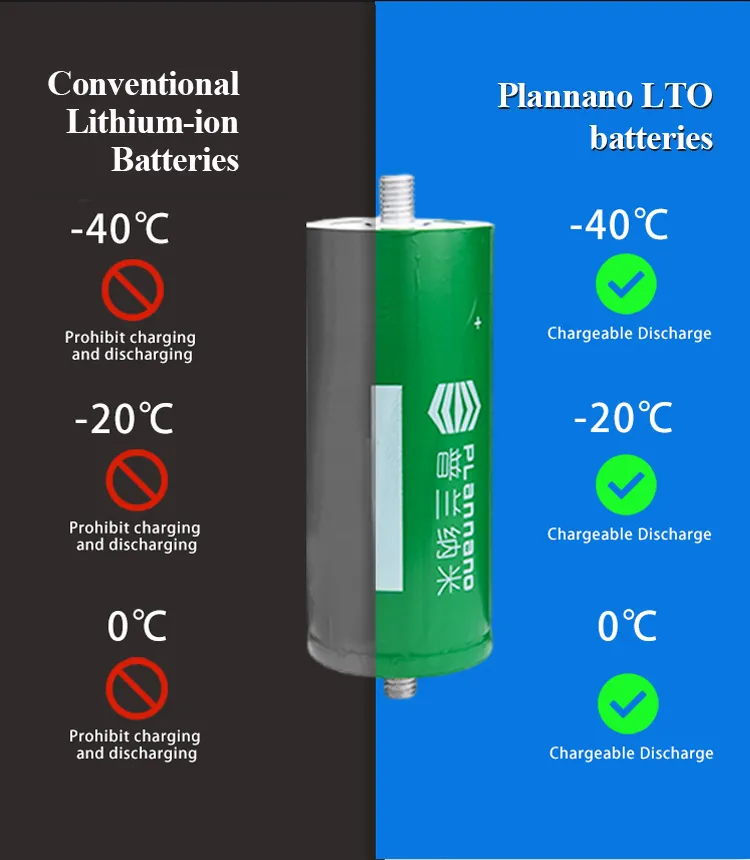

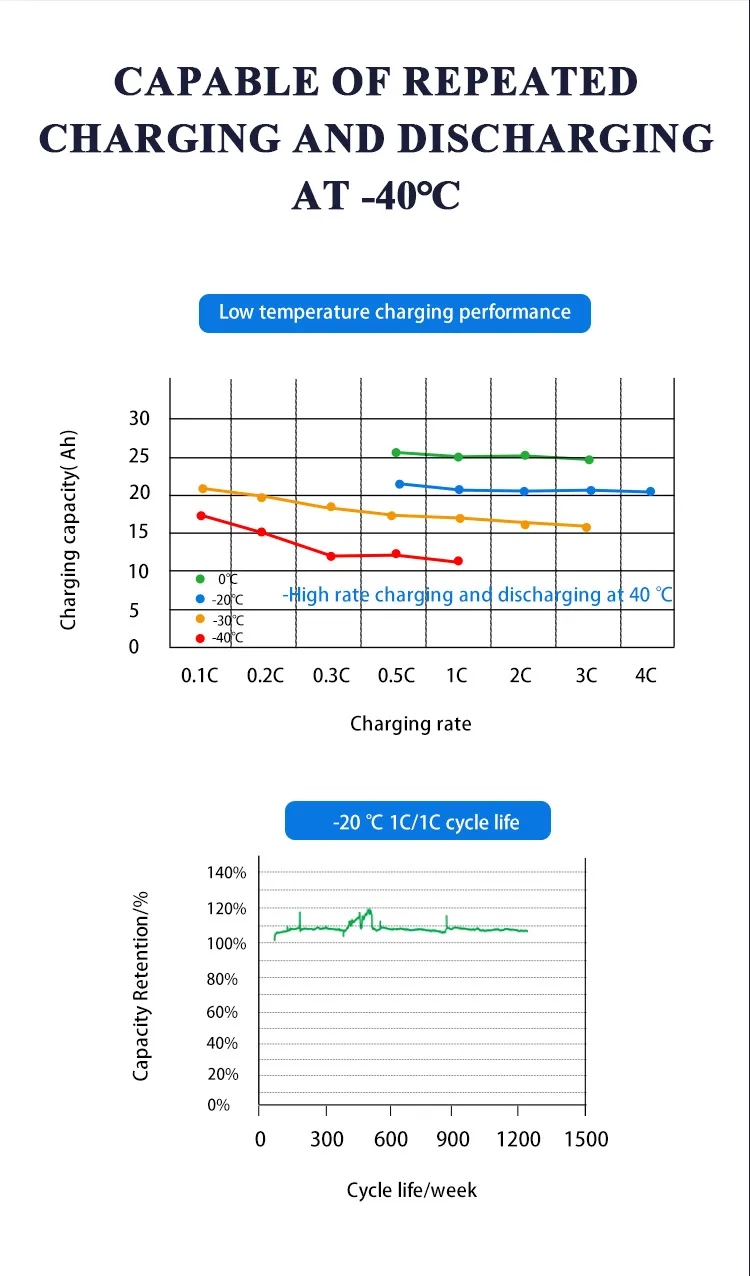

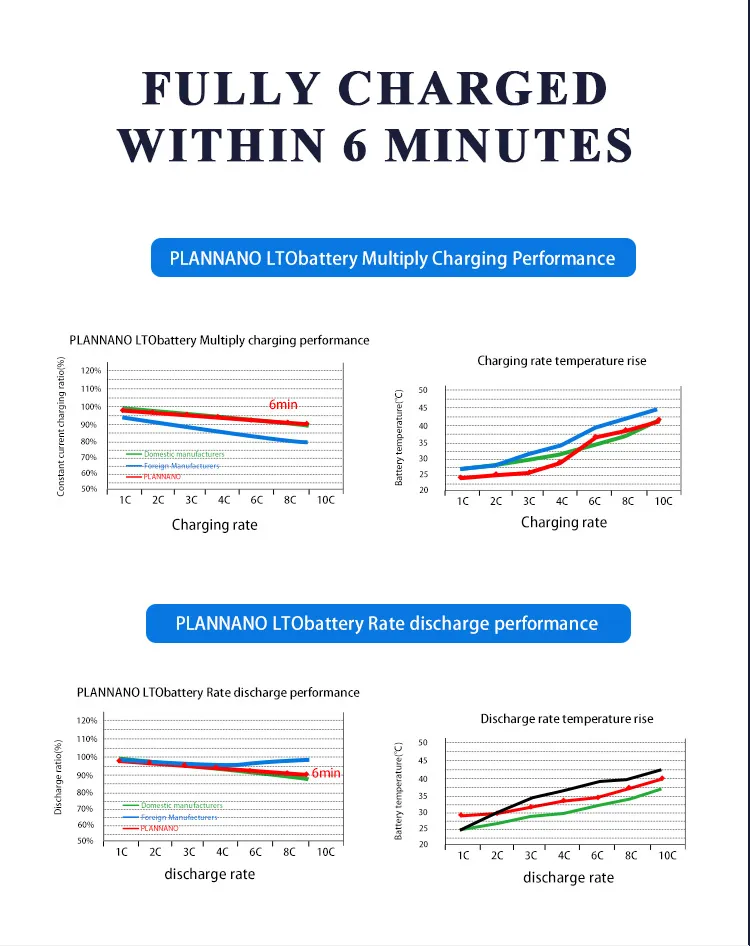

Extreme Environment Resilience: Our LTO batteries can operate at -40°C to 60°C in ultra-low temperature harsh environments and have excellent multiplier performance: 30C (high power charge/discharge).

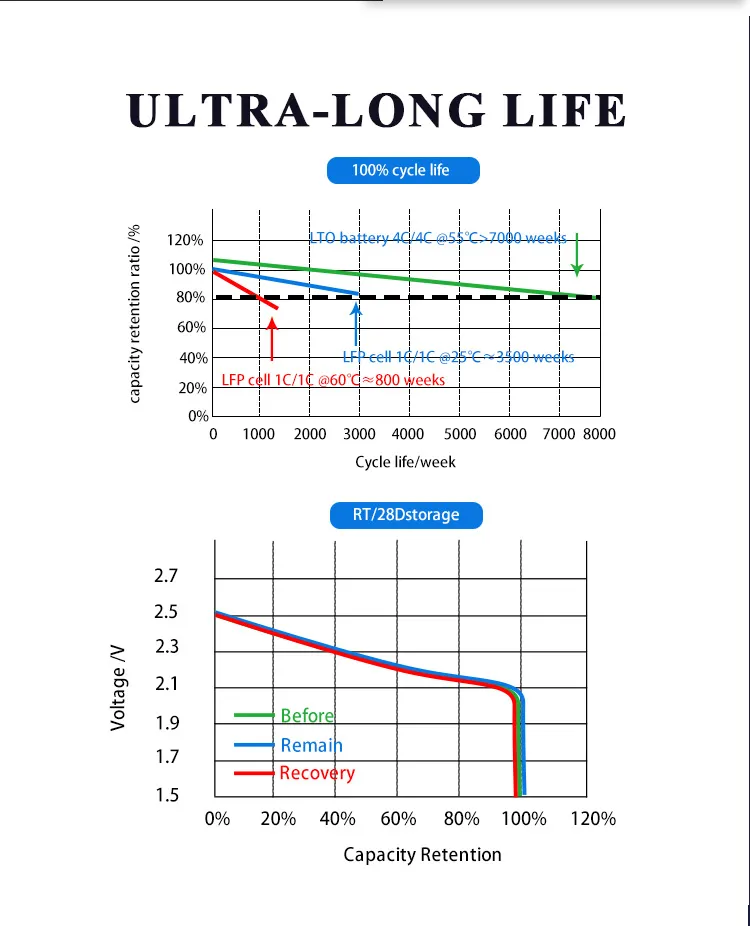

Extremely Long Lifespan: The cycle lives of our LTO battery can reach 30,000 times, greatly reducing full life cycle operating costs.
Product Model

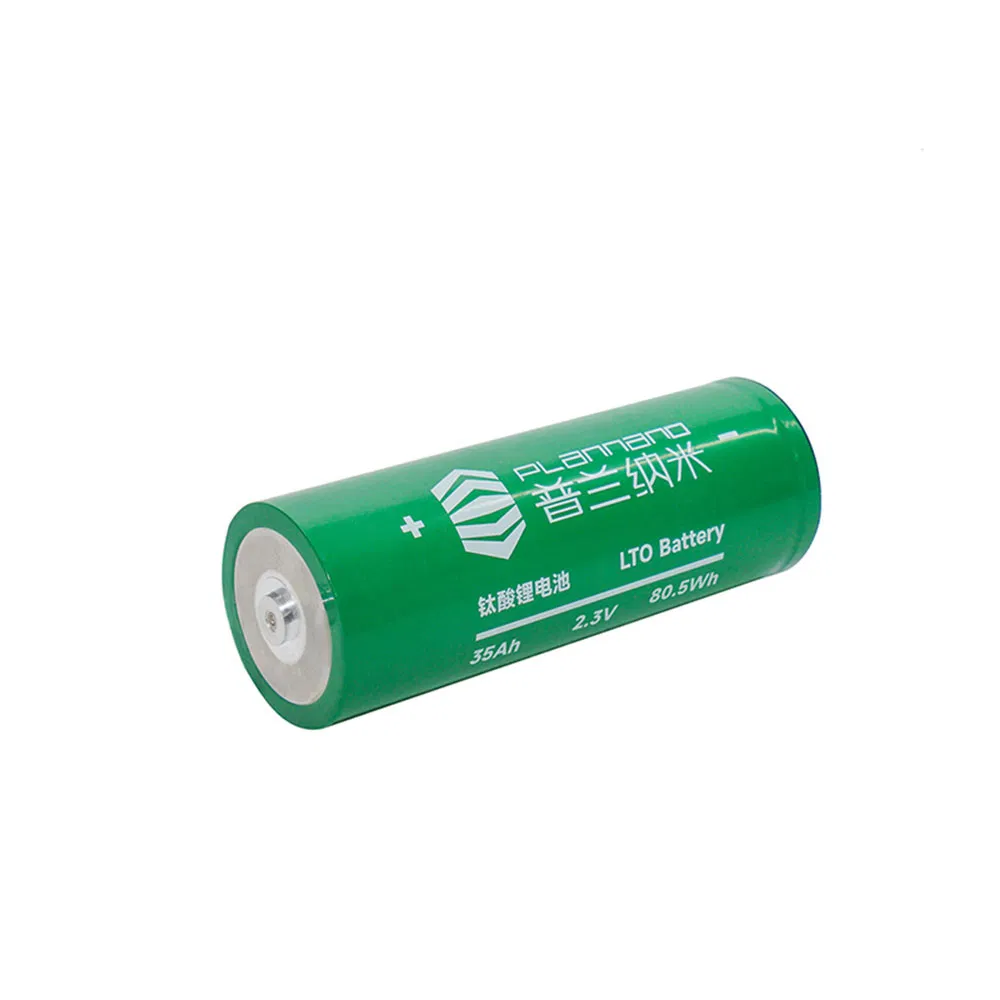

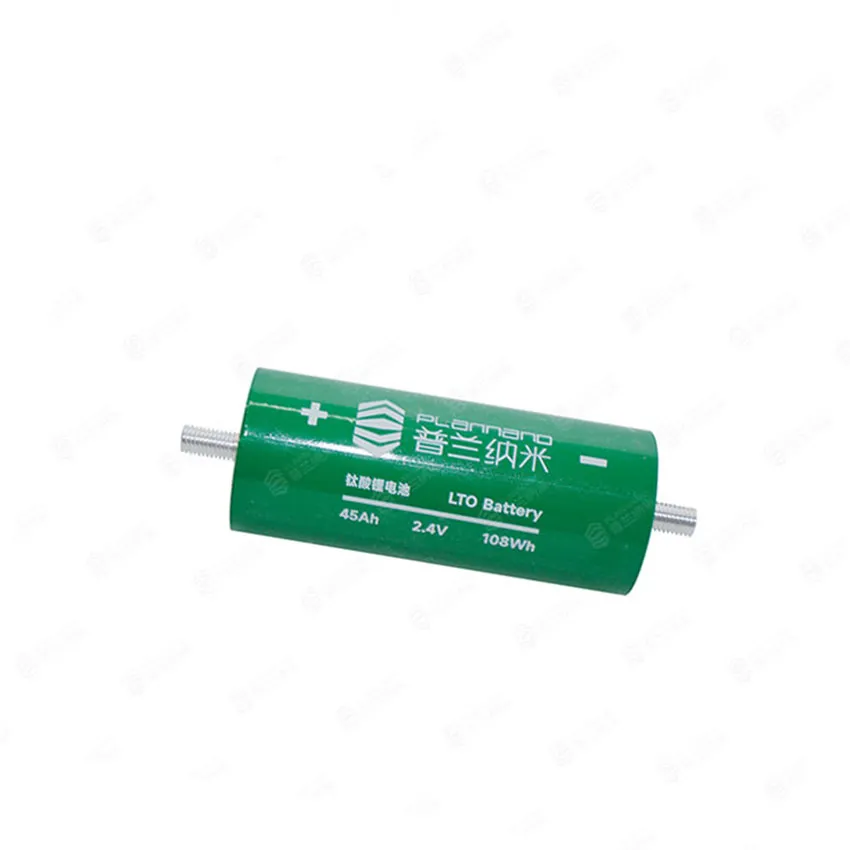

Available Capacities: 20Ah, 30Ah, 35Ah, 37Ah, 40Ah, 45Ah, and 18650 formats.
Form Factors: 18650, 32140, 60100, 60138, 60165, and 66160.
Application Scenarios
Electric & Hybrid Vehicles
High safety, long lifespan, and fast charging ability make LTO batteries particularly suitable for EVs and HEVs.
Public Transportation
Ideal for buses and trams. Fast charging characteristics minimize downtime and maximize operational scheduling.
Energy Storage Systems
Optimizes load balancing and stores clean energy from wind and solar grids with rapid charge/discharge properties.
Industrial Applications
Applies to high-performance backup power, powerful industrial tools, and heavy-duty electric forklifts.
Communication Base Stations
Acts as continuous backup power, preventing signal disruptions during sudden grid outages.
Aerospace & Defense
Provides reliable, lightweight, and highly durable energy for satellites, UAVs, and aviation systems.
Medical Equipment
Delivers stable and highly reliable mobile power for portable diagnostics and emergency devices.

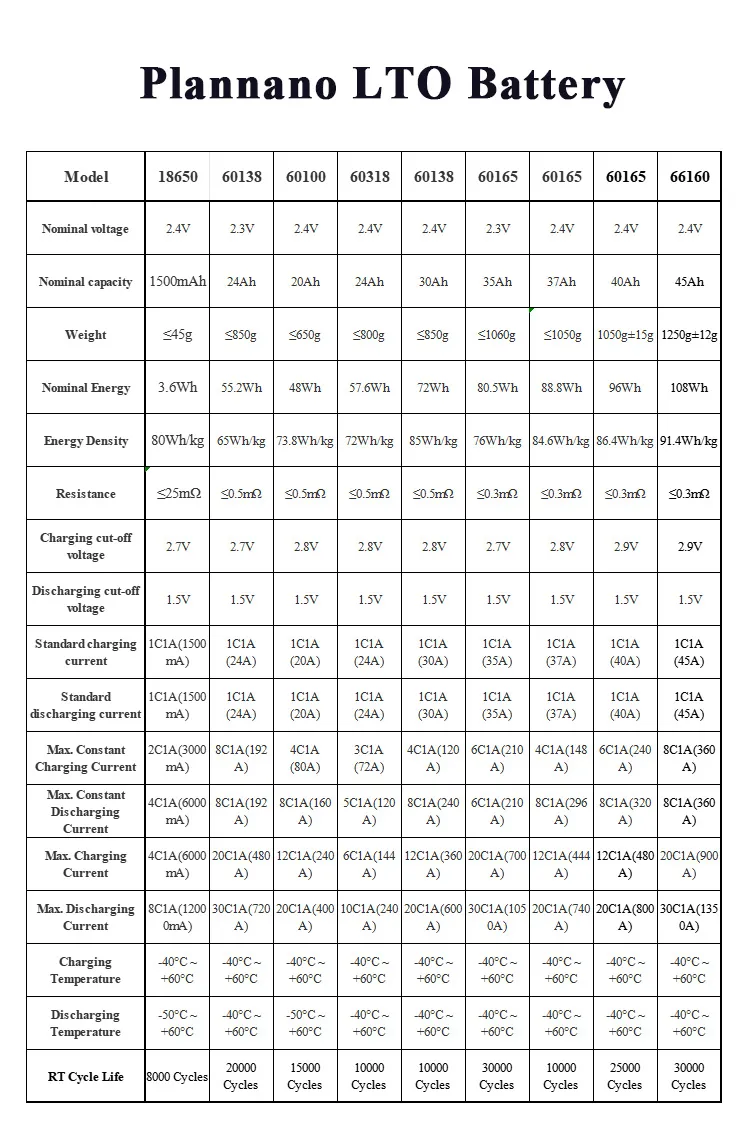

Product Parameters
| Technical Parameter |
Specification (PLITR60138CWLA-30Ah-2.4V) |
| Nominal Capacity |
30Ah |
| Rated Voltage |
2.4V |
| Resistance |
≤0.5 mΩ (AC, 1000 Hz) |
| Energy Density |
85 Wh/kg |
| Dimensions (Height * Diameter) |
60 * 138 mm |
| Nominal Energy |
72 Wh |
| Max. Constant Charging Current |
4C1A (120A) |
| Max. Constant Discharging Current |
8C1A (240A) |
| Operating Temperature Range |
-50°C to 60°C |
| RT Cycle Life |
15,000 cycles |
Frequently Asked Questions
Q1: What is your standard response time for inquiries?
A1: We will reply to all inquiries as soon as possible, guaranteed within 6 hours.
Q2: What is the warranty period for your LTO batteries?
A2: We offer a comprehensive 2-year warranty. In case of quality issues during this period, replacements will be provided at our cost.
Q3: How long does a formal delivery take?
A3: For formal battery orders, the typical delivery timeframe spans between 7 to 15 days.
Q4: What is the Minimum Order Quantity (MOQ)?
A4: We support small MOQ requirements initially to help you test the demand in your local market.
Q5: What payment methods and support services do you provide?
A5: We accept T/T, Western Union, and more. Alongside this, we offer ongoing technical support to ensure seamless integration.
Q6: What kind of marketing support is available?
A6: We are glad to help you market the products locally by sharing product assets and assisting with local advertising initiatives.
