| Item | Parameter | ||||
|---|---|---|---|---|---|
| Battery module Combination | 1P16S | ||||

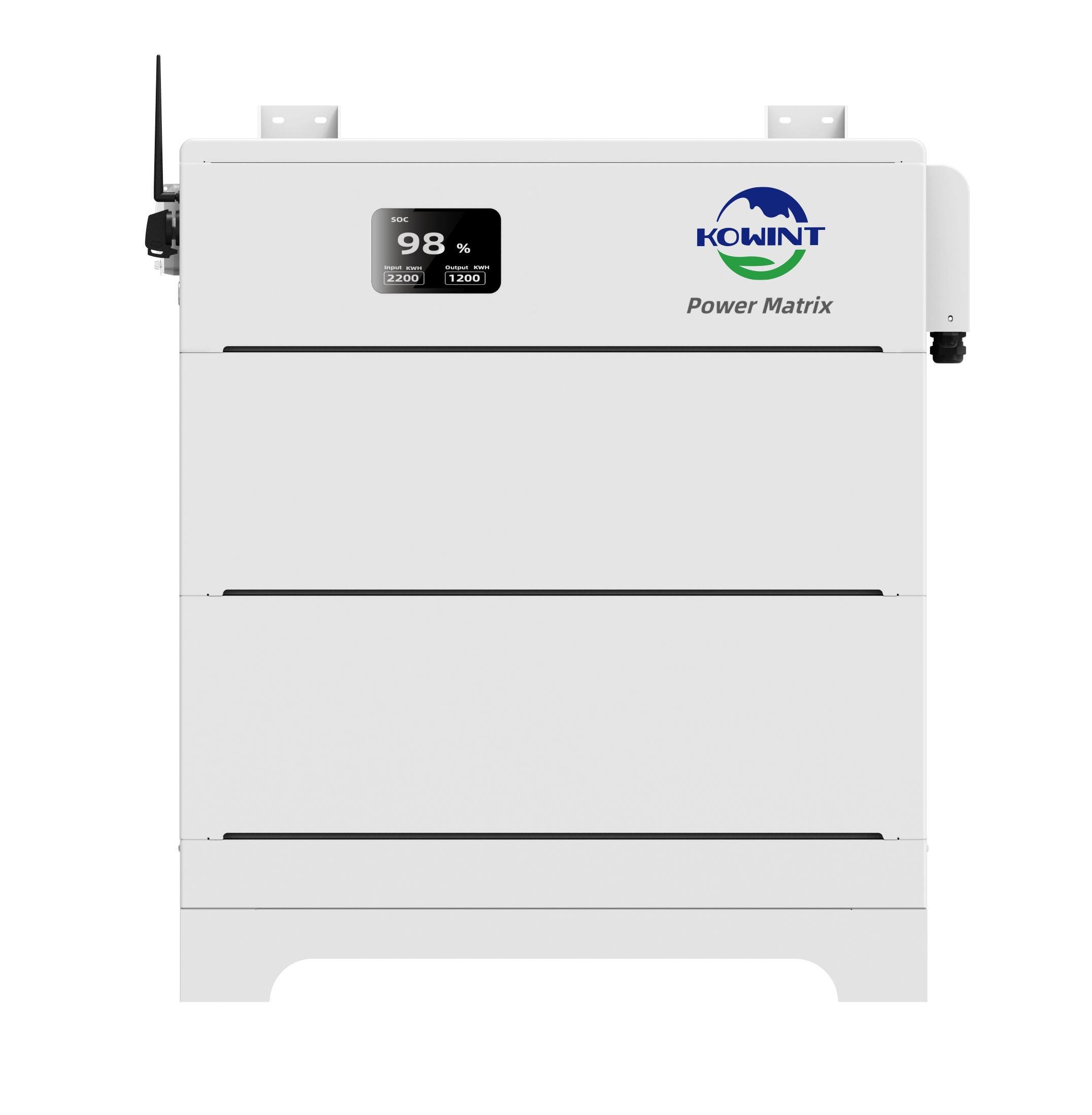

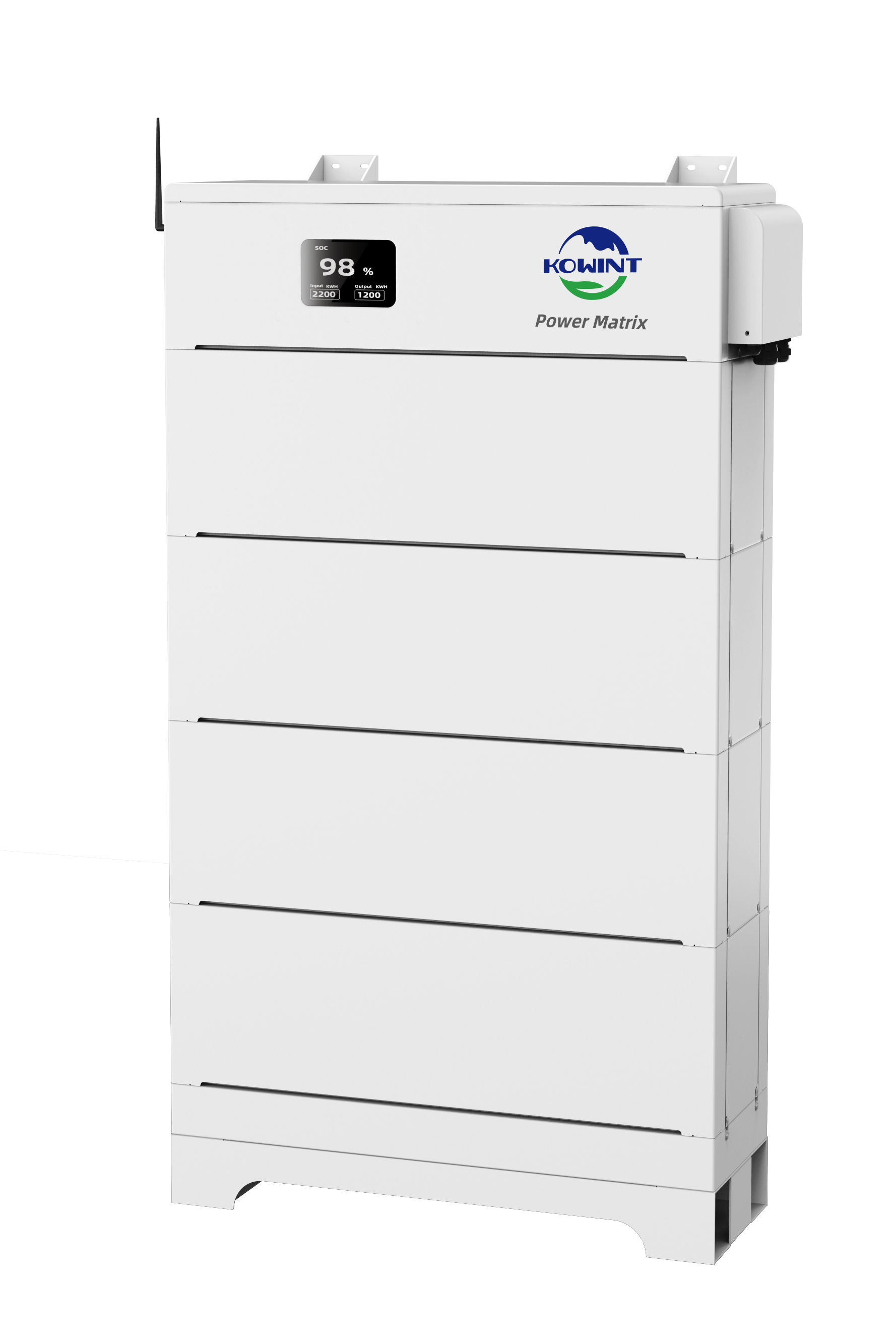

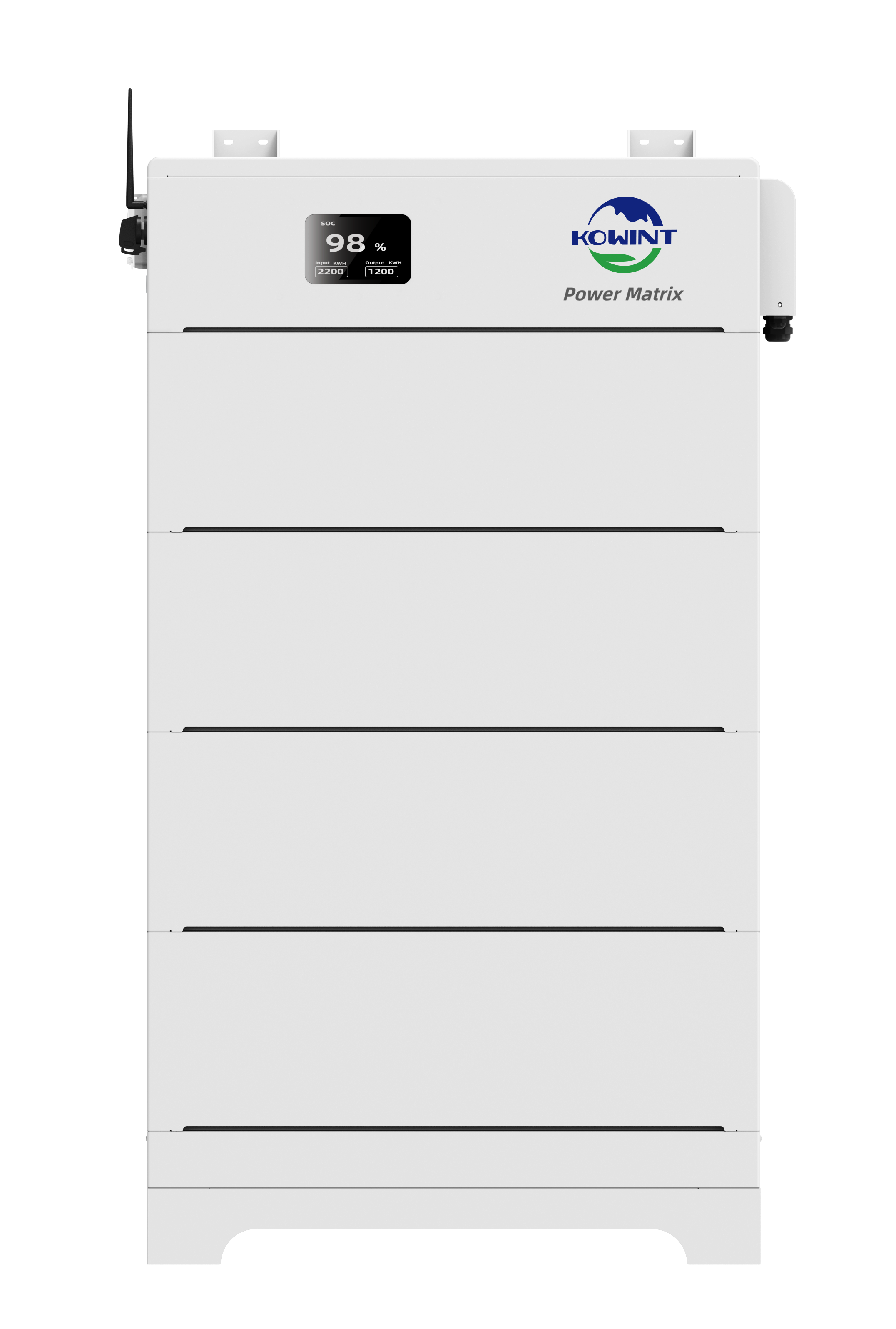

| Battery module Number | 3 | 4 | 5 | 6 | 7 |
| Cell Capacity(Ah) | 100 | ||||

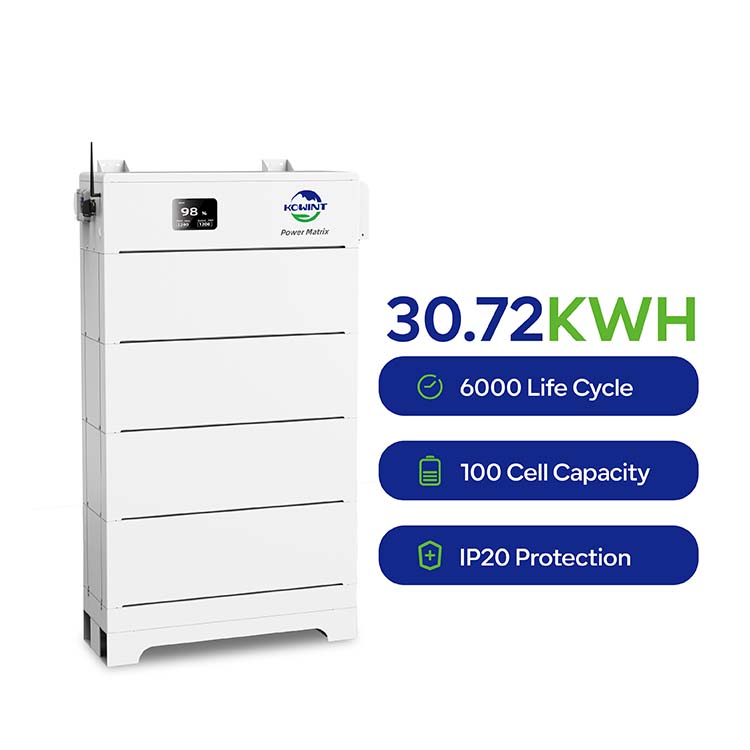

| Nominal Energy (kWh) | 15.36 | 20.48 | 25.6 | 30.72 | 35.84 |
| Nominal Voltage (V) | 153.6 | 204.8 | 256 | 307.2 | 358.4 |
| Nominal Current (A) | 100 | ||||
| Max. Current (A)@10S | 200 | ||||
| Operating Voltage Range (V) | 140.64~170.4 | 187.52~227.2 | 234.4~284 | 281.28~340.8 | 328.16~397.6 |
| Cycle Life | 6000 | ||||

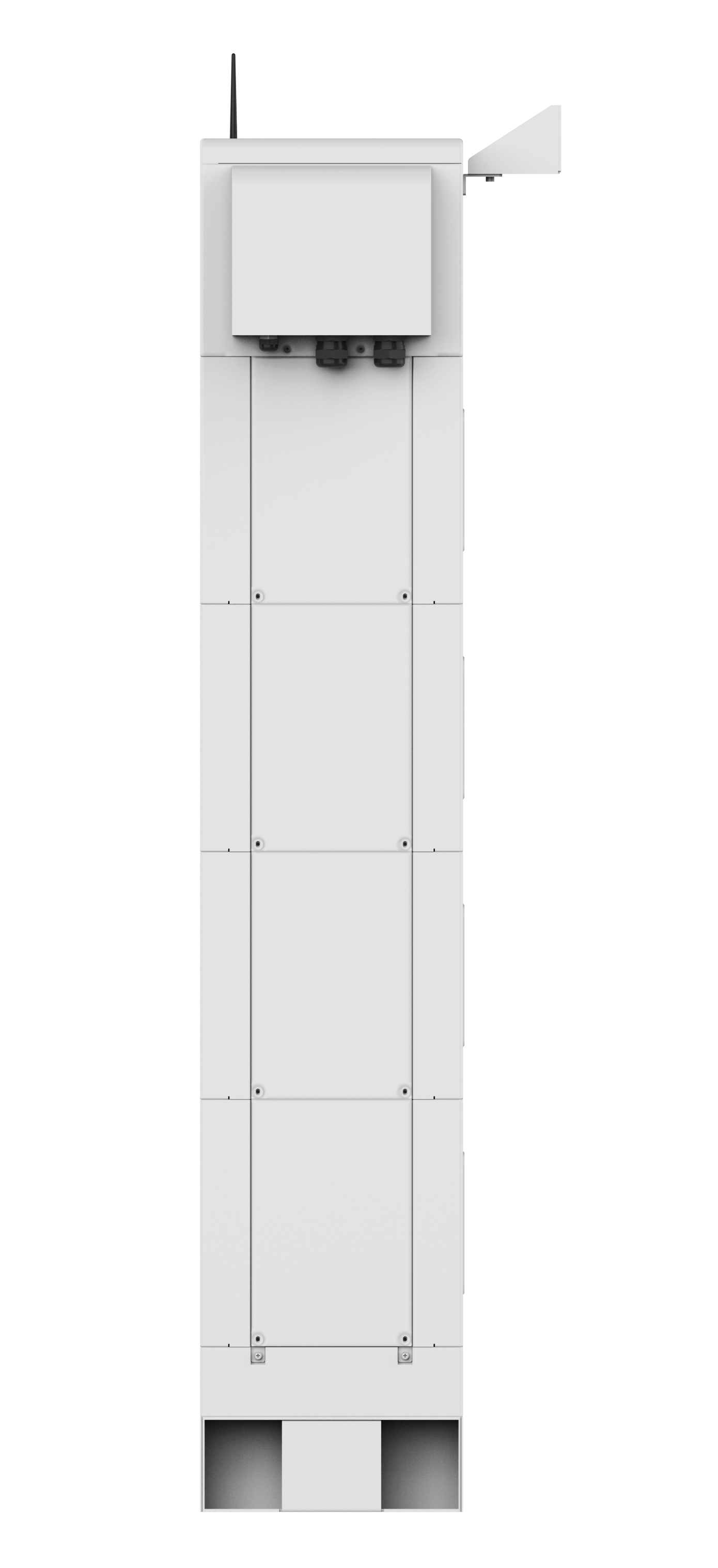

| Dimensions (mm) | 635(W)*268(T)*1086(H) | 635(W)*268(T)*1312(H) | 635(W)*268(T)*1538(H) | 635(W)*268(T)*1764(H) | 635(W)*268(T)*1990(H) |
| Weight( kg ) | 196 | 248 | 300 | 352 | 404 |
| Operating Temperature | -20°C to 50°C | ||||
| Recommended Temperature | 0°C to 30°C | ||||
| Operating Humidity (RH) | Up to 100%, non-condensing | ||||
| Storage Conditions | -20°C to 30°C Up to 95% RH, non-condensing State of Energy (SoE): 50% initial | ||||
| Maximum Elevation | 3000 m (9843 ft) | ||||
| Environment | Indoor and outdoor rated | ||||
