51.2V 48V 200Ah LiFePO4 Solar Battery Powerwall for Home Energy Storage 15kWh Lithium Ion Rechargeable Solution for B2B Buyers

Overview

Basic Info

Model NO.

Powerwall 2

Nominal Capacity

100ah~280ah

Cycle Life

6000+

Battery Capacity

5kwh~15kwh

Cell Chemistry

LiFePO4

Certification

CE, UL, Un38.3, MSDS

Installation

Wall Mounted

Application

Solar, Wind, UPS, Telecom

Origin

China

HS Code

8507600090

Production Capacity

50000 PCS Per Year

Packaging & Delivery

Transport Package

Wooden Cases

Specification

576*820*200mm

Package Size

58.00cm * 82.00cm * 20.00cm

Package Gross Weight

125.000kg

Product Description

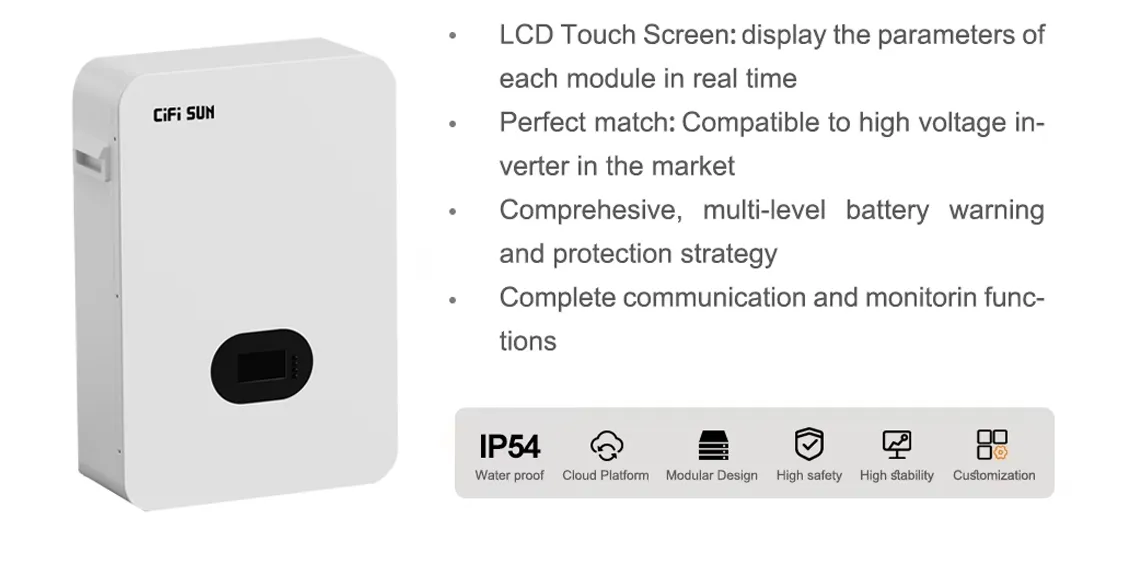

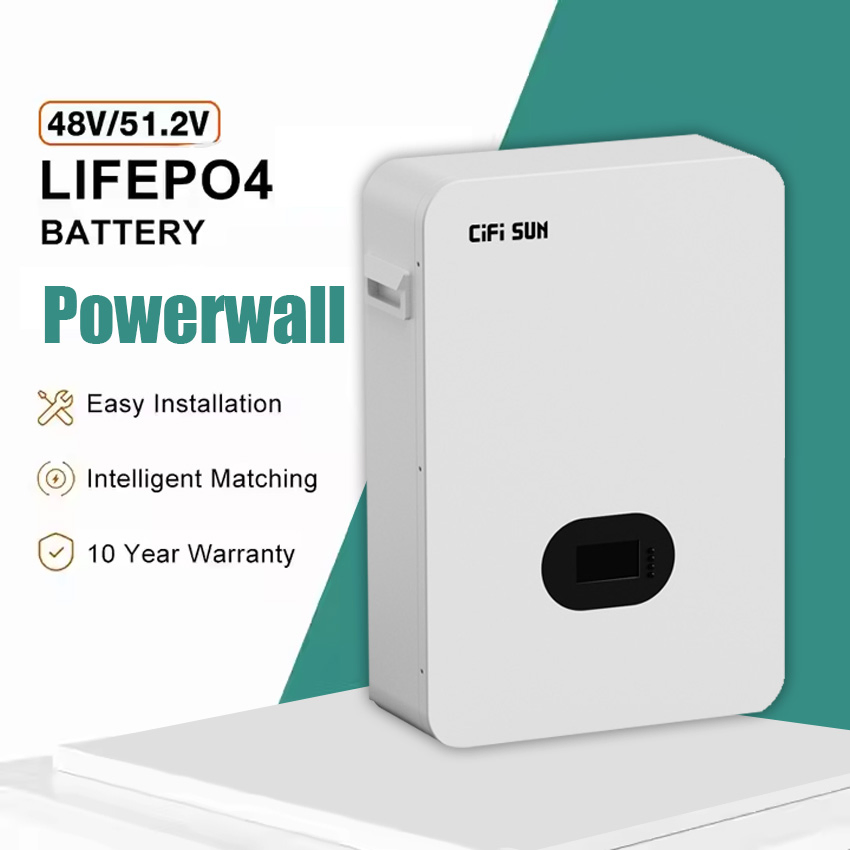

51.2V 48V 200ah LiFePO4 Powerwall Lithium Ion Solar Battery 15kwh for Homes

Specification

Model	LWN-AU004	LWN-AU005	LWN-AU006	LWN-AU007
Battery
Standard voltage	51.2VDC
Voltage Range	43.2~57.6VDC
Norminal Capacity	100Ah	150Ah	200Ah	280Ah
Rated Energy	5.12kWh	7.68kWh	10.24kWh	14.336kWh
Communication	CAN/RS485/RS232/WIFI/Blue Tooth
Cell Self-Discharge	<5%/Month

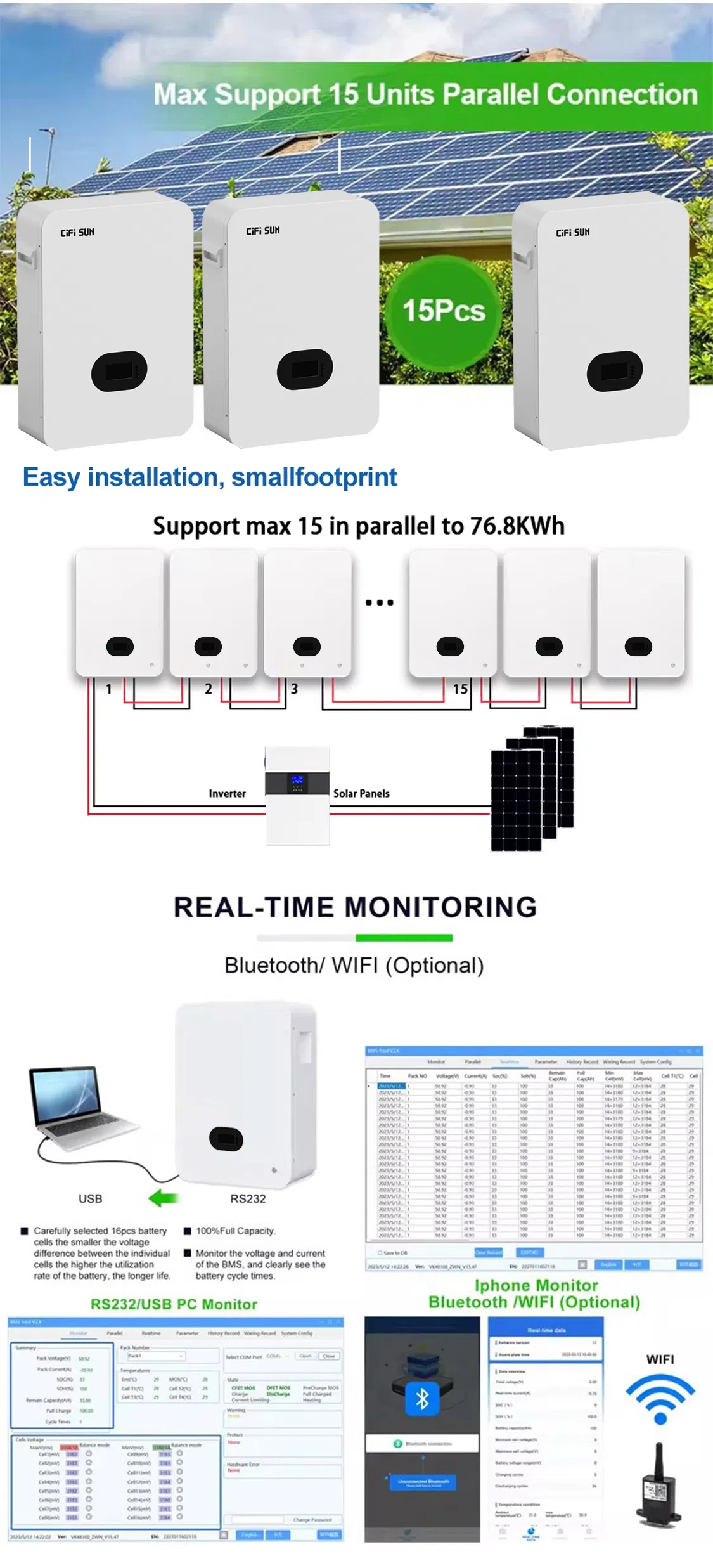

Modules Connection	1~15 in Parallel
DOD	90%
Cycle Life	≥6000@25℃,80%DOD
Max Charge&Discharge Current	100A			200A
Ingress Protection	IP20(IP54)
Installation	Wall
Working Temperature	0~55℃
Storage Temperature	-20~55℃
Humidity	≤80%
Product Dimension	426590160mm	705530247mm	576820200mm	530800267mm
Package Dimension	495680280mm	770630325mm	635900300mm	630900510mm
Net Weight	44kg	84kg	96kg	125kg

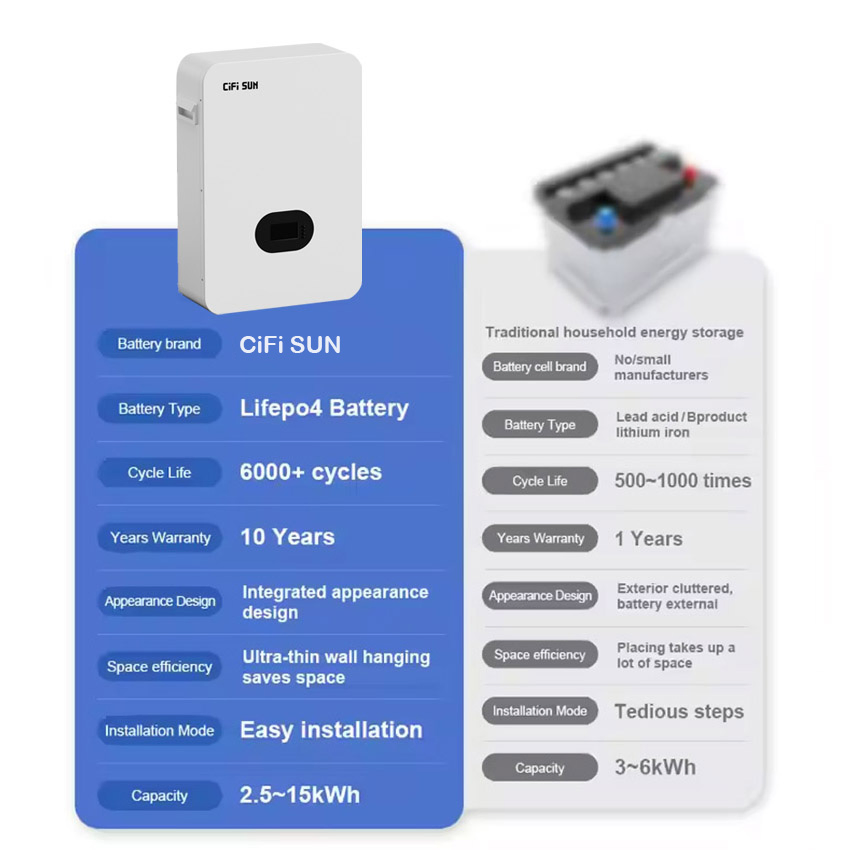

Product Advantage

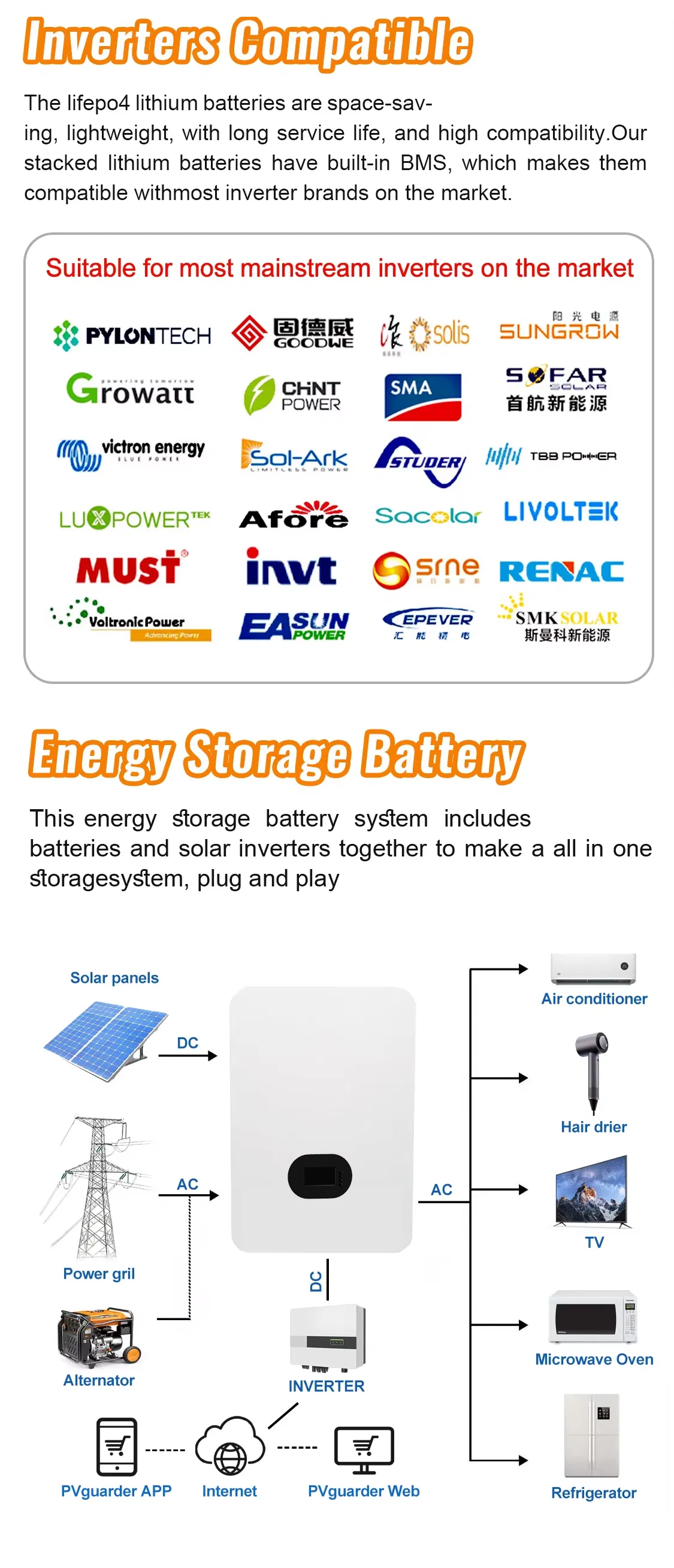

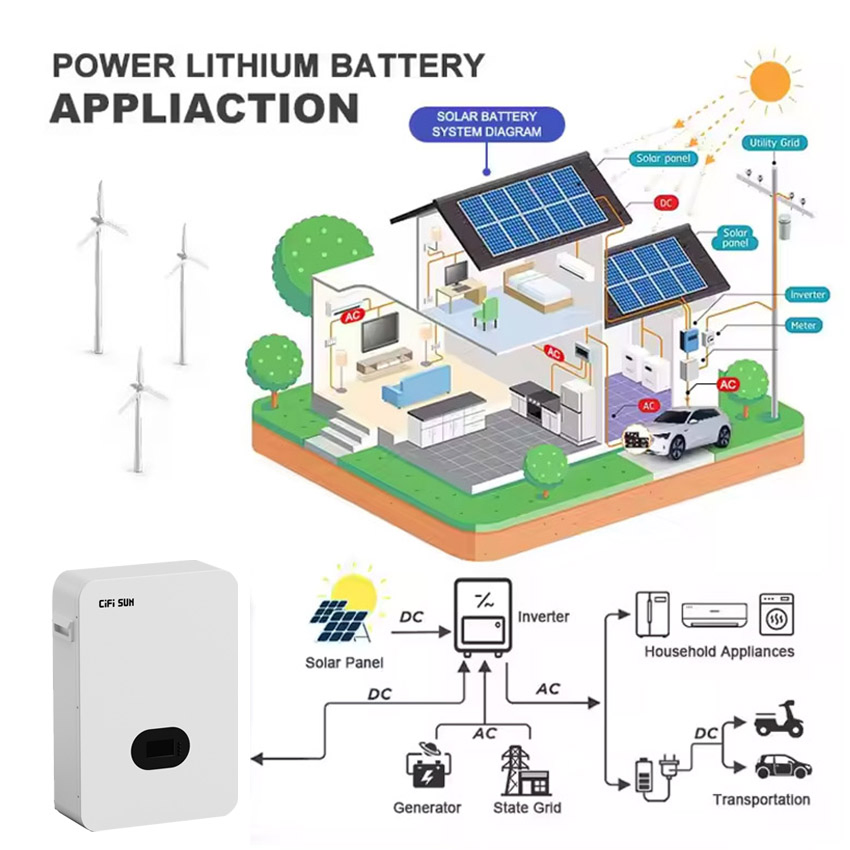

Product Application

Exhibition

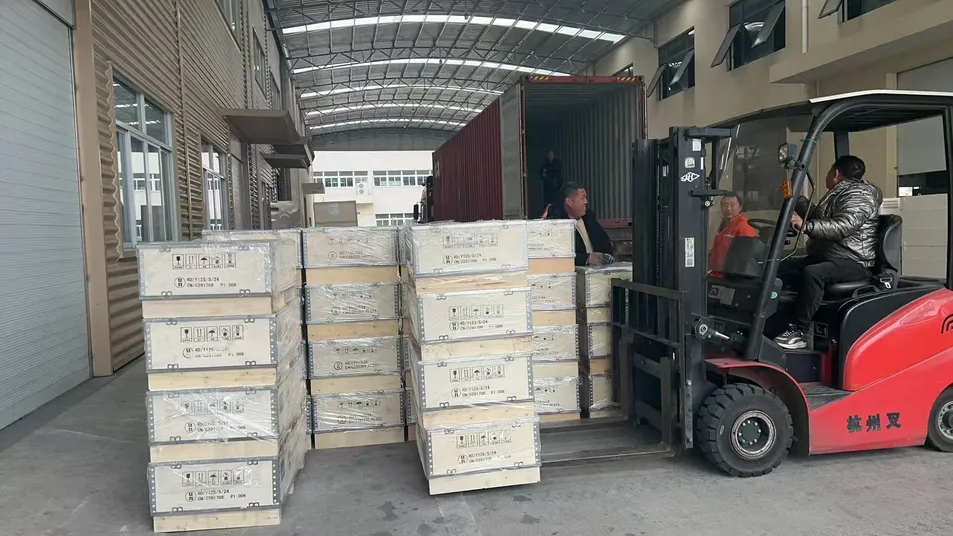

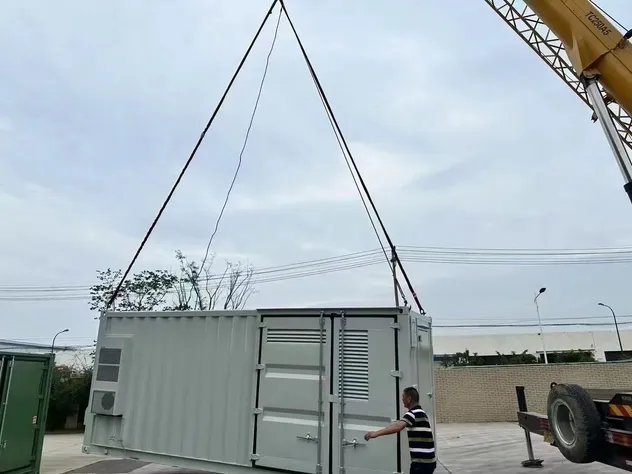

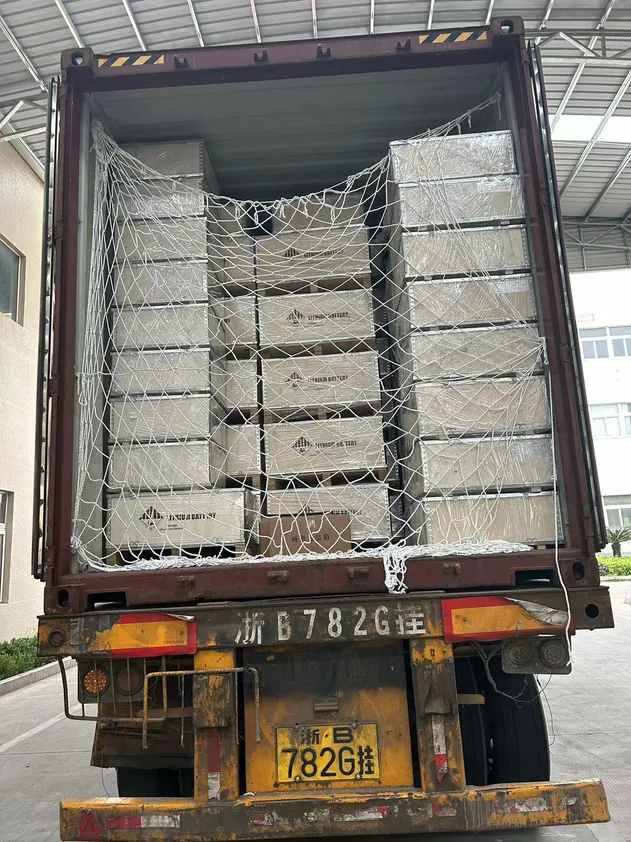

Packaging & Shipping

FAQ

Are the batteries Top Quality, Brand NEW?

Yes, Top quality. The QR code is intact, Brand new from original factory.

Are the batteries come with busbars+bolts?

The price comes with Bus bars and Bolts. One Battery will come with one set of bus bar and bolt (e.g., If you buy 4pcs battery, we will send 4pcs cells with 4pcs busbars and 8pcs bolts).

Can you test each battery PRIOR to shipping?

We will test all the battery Voltage and Internal resistance before shipping.

What is the delivery time if we place an order?

It depends on order quantities. Usually, we can deliver goods within 1-15 working days for small orders. For mass orders, we will confirm delivery timelines upon receiving your inquiry.

Can Battery Management Systems (BMS) be used in series?

No, battery management systems cannot be used in series. In addition, the BMS power component switch has a withstand voltage of 100V.

What precautions should be taken when assembling the battery pack?

Do not touch the surface of the core directly when assembling to avoid damage. The assembly should be firm and reliable. Ensure lead wire heads, soldering irons, and solder do not touch components on the circuit board to prevent damage.
