| Technical Specifications | |
|---|---|
| DC Side | |
| Cell Type | LFP280Ah |

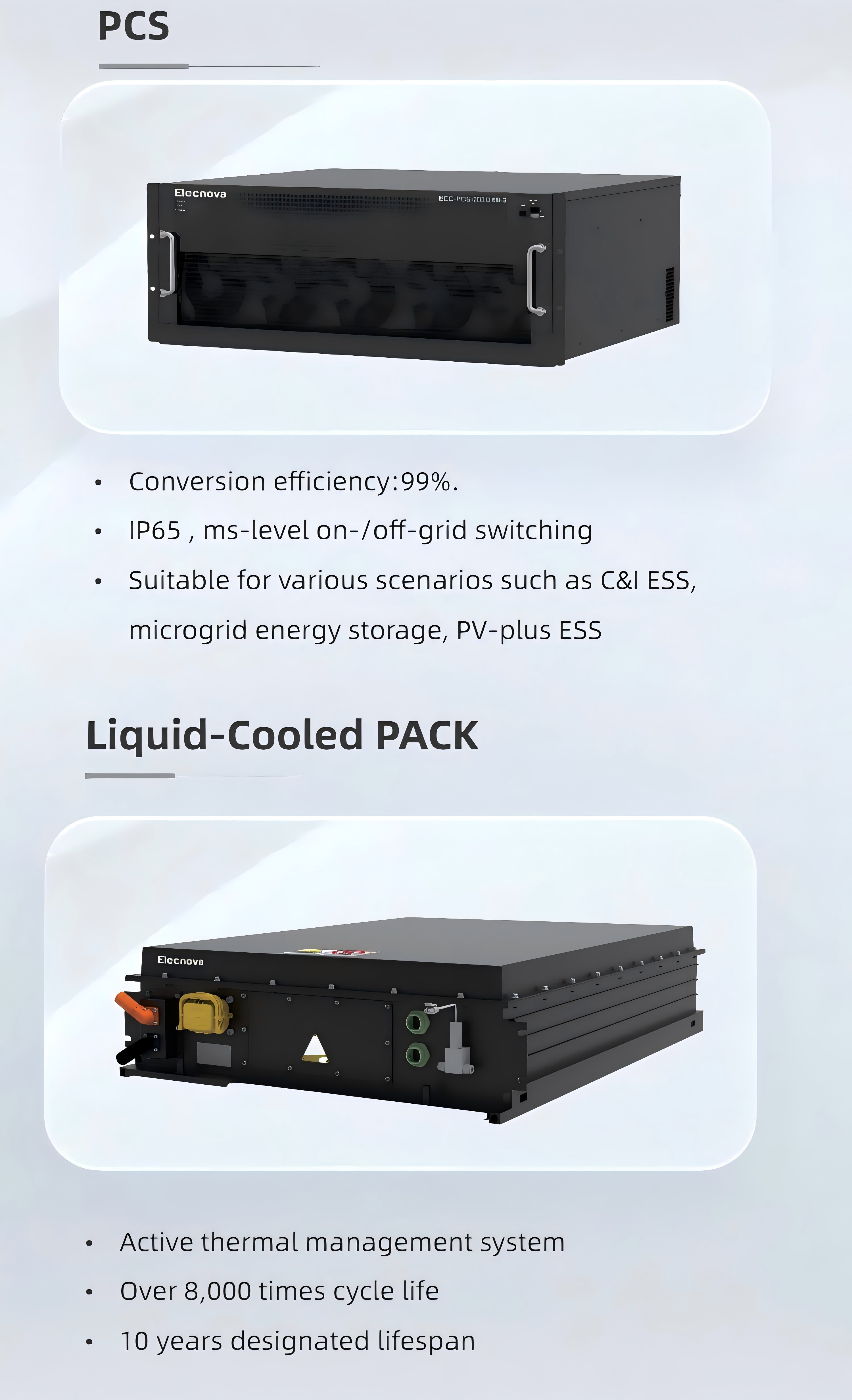

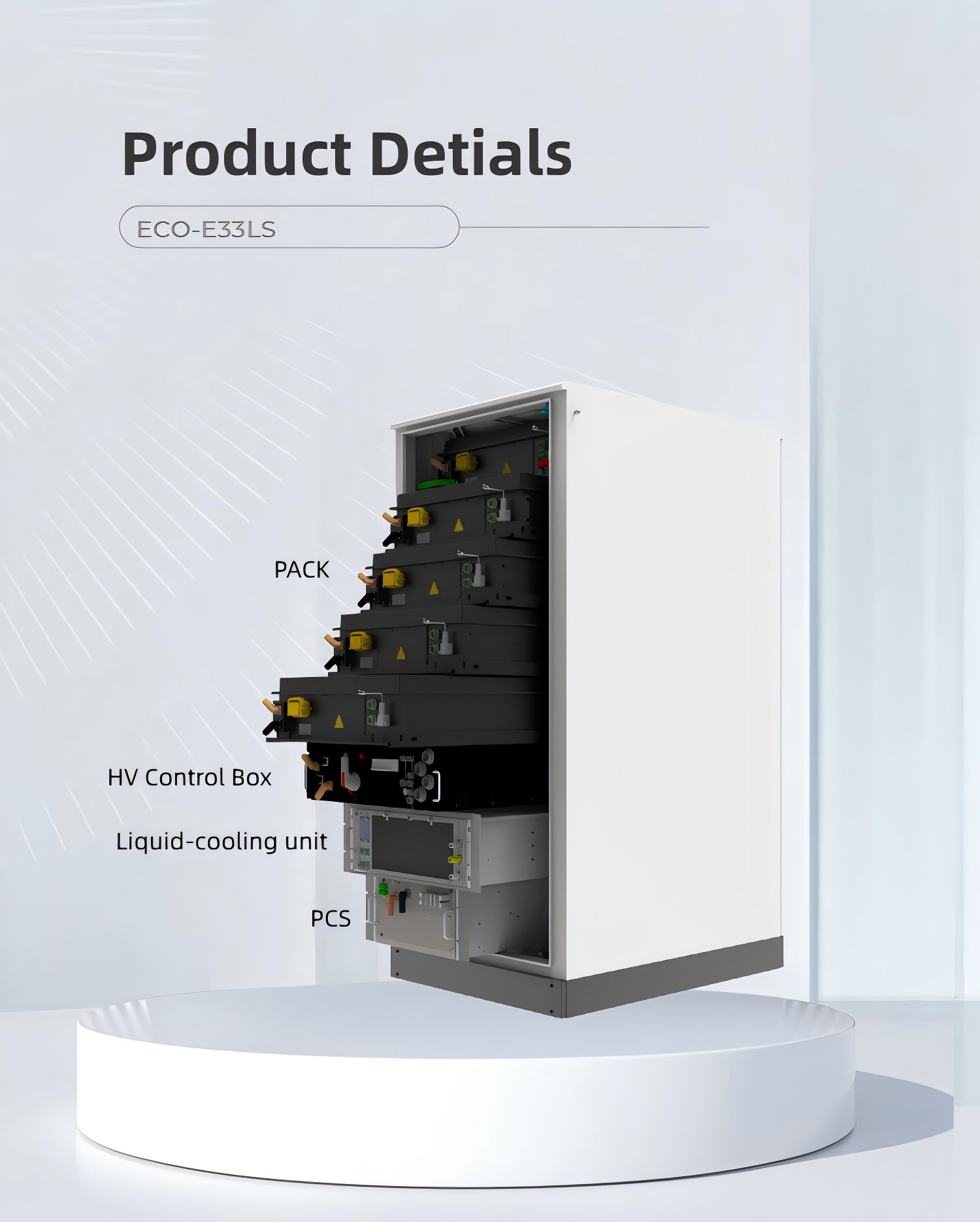

| PACK | 46.592kWh/1P52S |
| Battery System | 232.96kWh/1P260S |
| Voltage Range | 728~936Vdc |
| PACK Ingress Rating | IP65 |
| AC Side | |
| Rated Power | 100kW |
| Max. Power | 110kW |
| THDi | < 3% |
| DC Ratio | < 0.5%Ip |
| Nominal Voltage | 400Vac/3P+N+PE |
| Nominal Frequency | 50/60 Hz |
| General | |

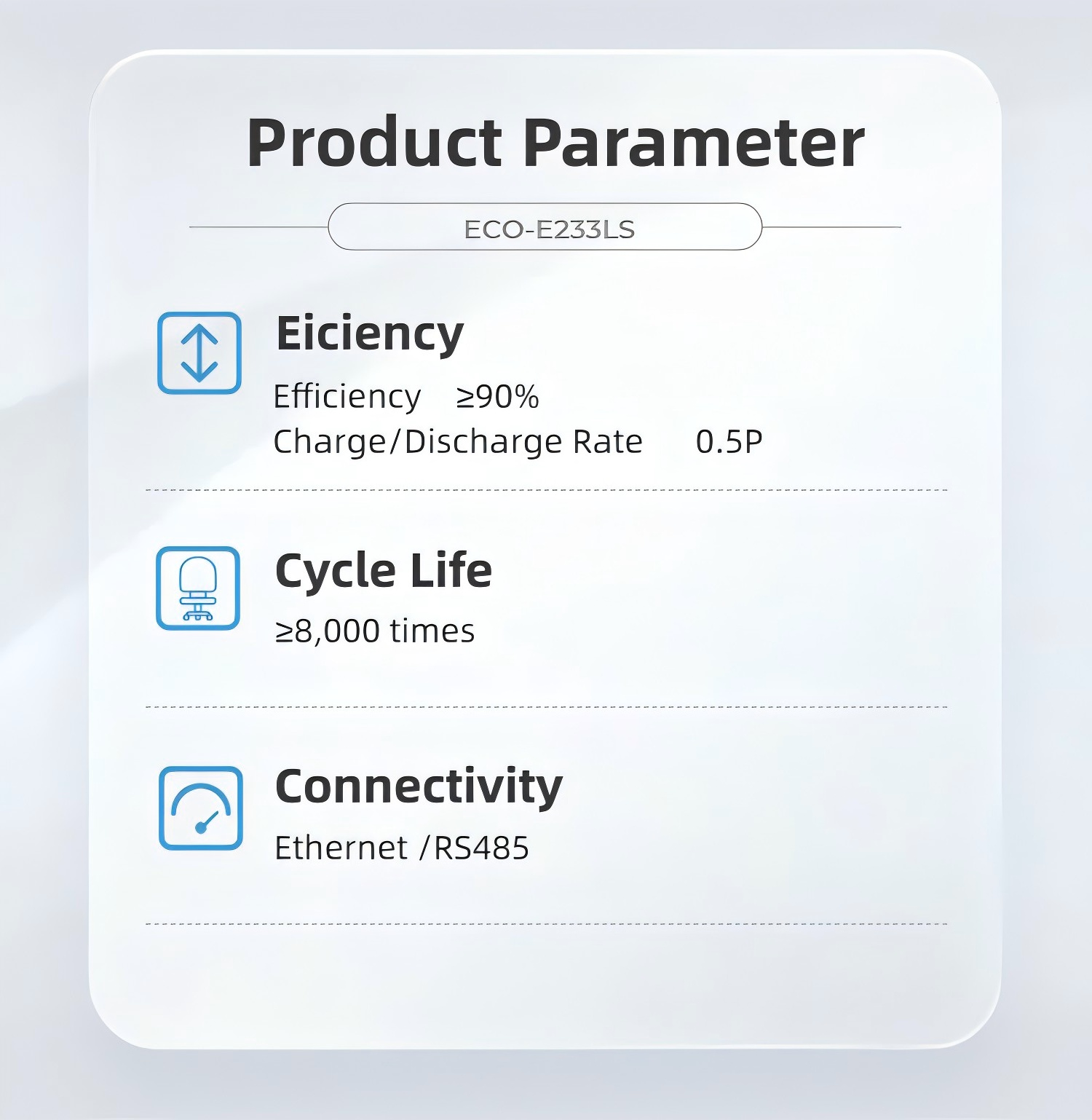

| System Efficiency | ≥ 90% |
| Charge/Discharge Rate | 0.5P |
| DoD | 95% |
| SOC Accuracy | < 3% |
| Cycle Life | ≥ 8,000 times |
| Switching Time | < 100ms |
| Connectivity | Ethernet /RS485 |
| Ingress Rating | IP55 |

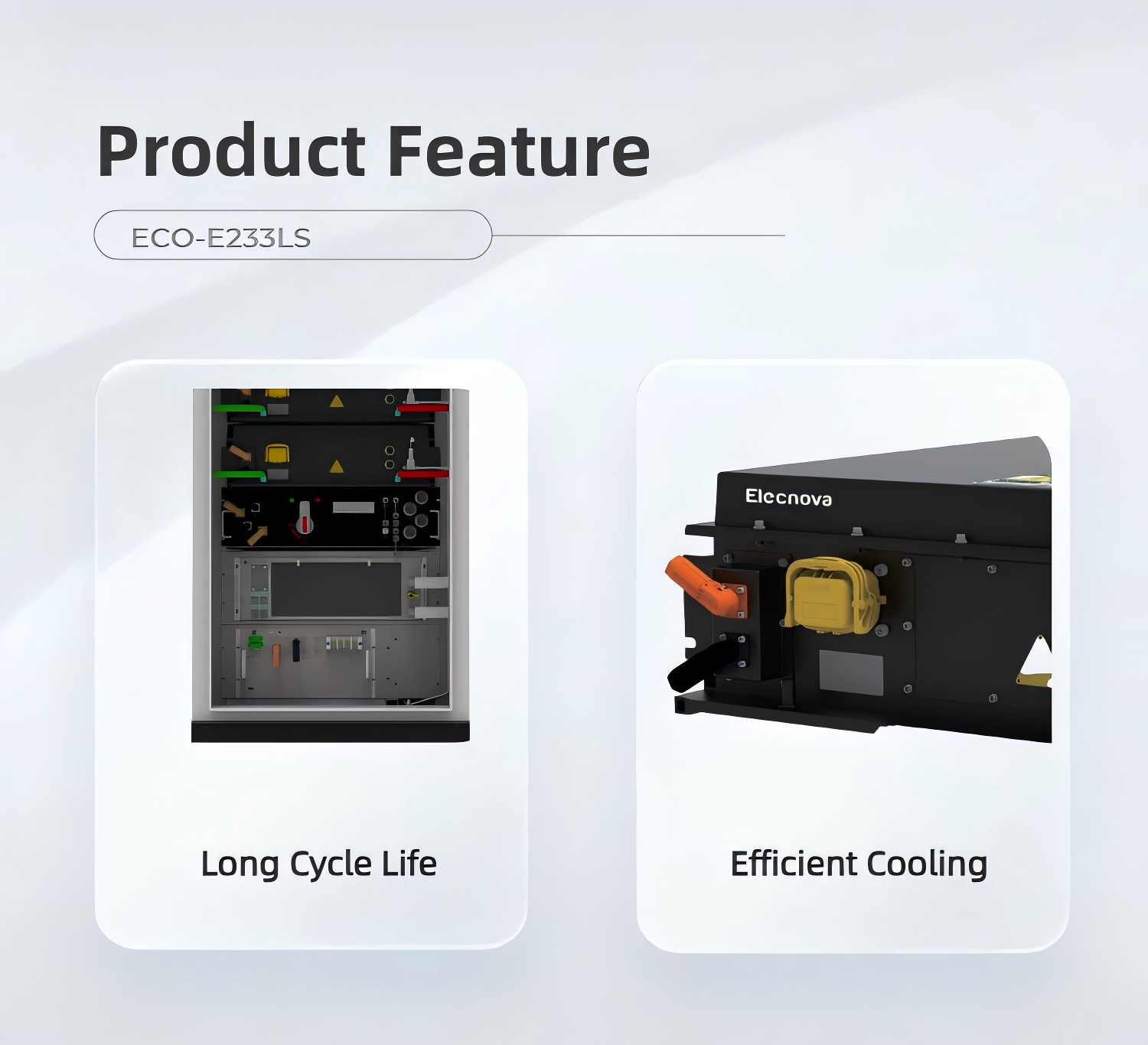

| Cooling | Active liquid cooling |
| Operating Temperature | -25℃ ~ 55℃ |
| Humidity | 5-95%RH, non-condensing |
| Noise | ≤ 75dB |
| Altitude | ≤ 2,000m (derating above 2,000m) |
| Fire Safety | Aerosol |
| Dimensions (W*D*H) | 1,050*1,350*2,400 (mm) |
| Weight | 2,570kg |

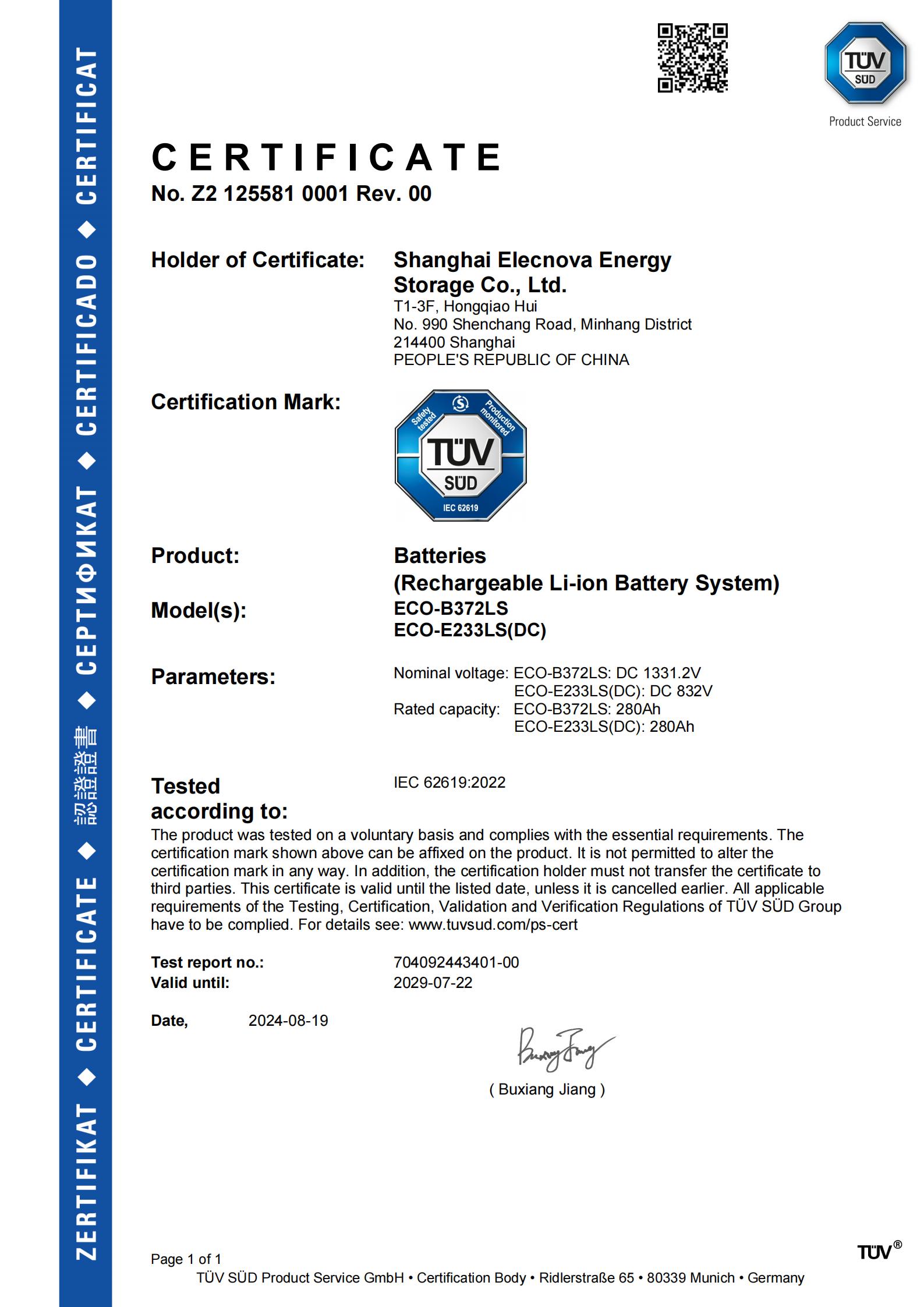

| Compliance | UN38.3, IEC62477, IEC61000, IEC62619, IEC63056, UL9540A, EN50549 |
