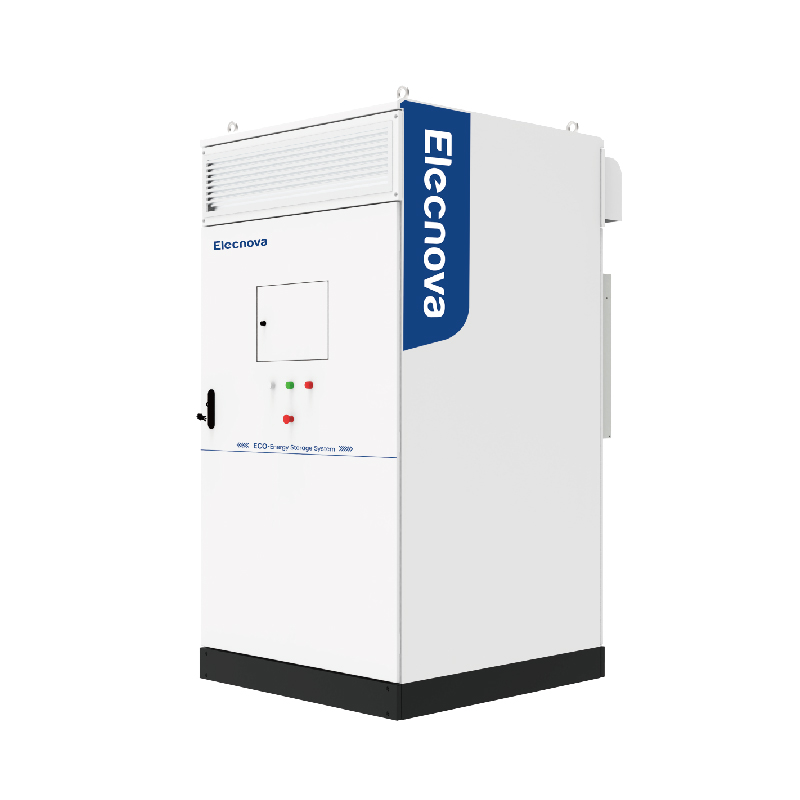

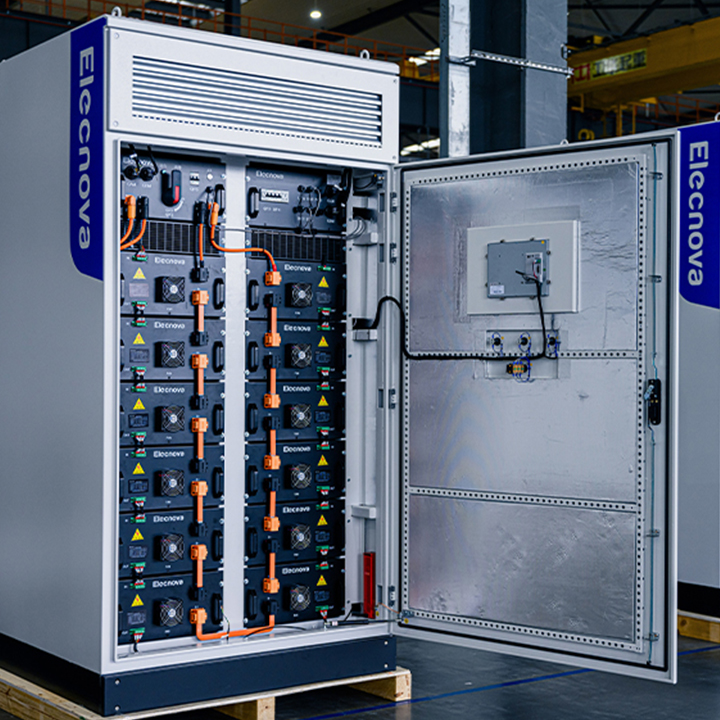

Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
1 / 5
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System
Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System

Industrial & Commercial Energy Storage Solar Battery 100Kw 200Kw 500Kw Telecom Battery All in One Energy Storage System

Send Inquiry

Product Description

Product Description

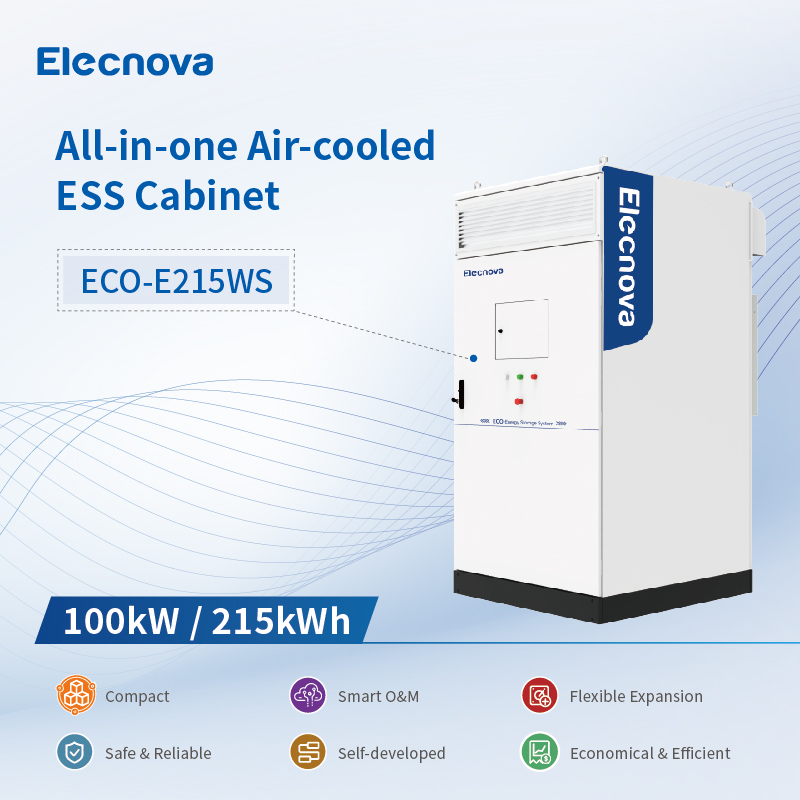

Energy Storage Cabinet
The air-cooled integrated energy storage cabinet adopts the "All in One" design concept, integrating long-life battery cells, efficient bidirectional balancing BMS, high-performance PCS, active safety system, intelligent power distribution system and thermal management system into a single cabinet. It can operate safely, stably and reliably for a long term and achieve capacity-flexible deployment of energy storage power stations through the grid connection on the AC side.
Energy Storage Detail 1

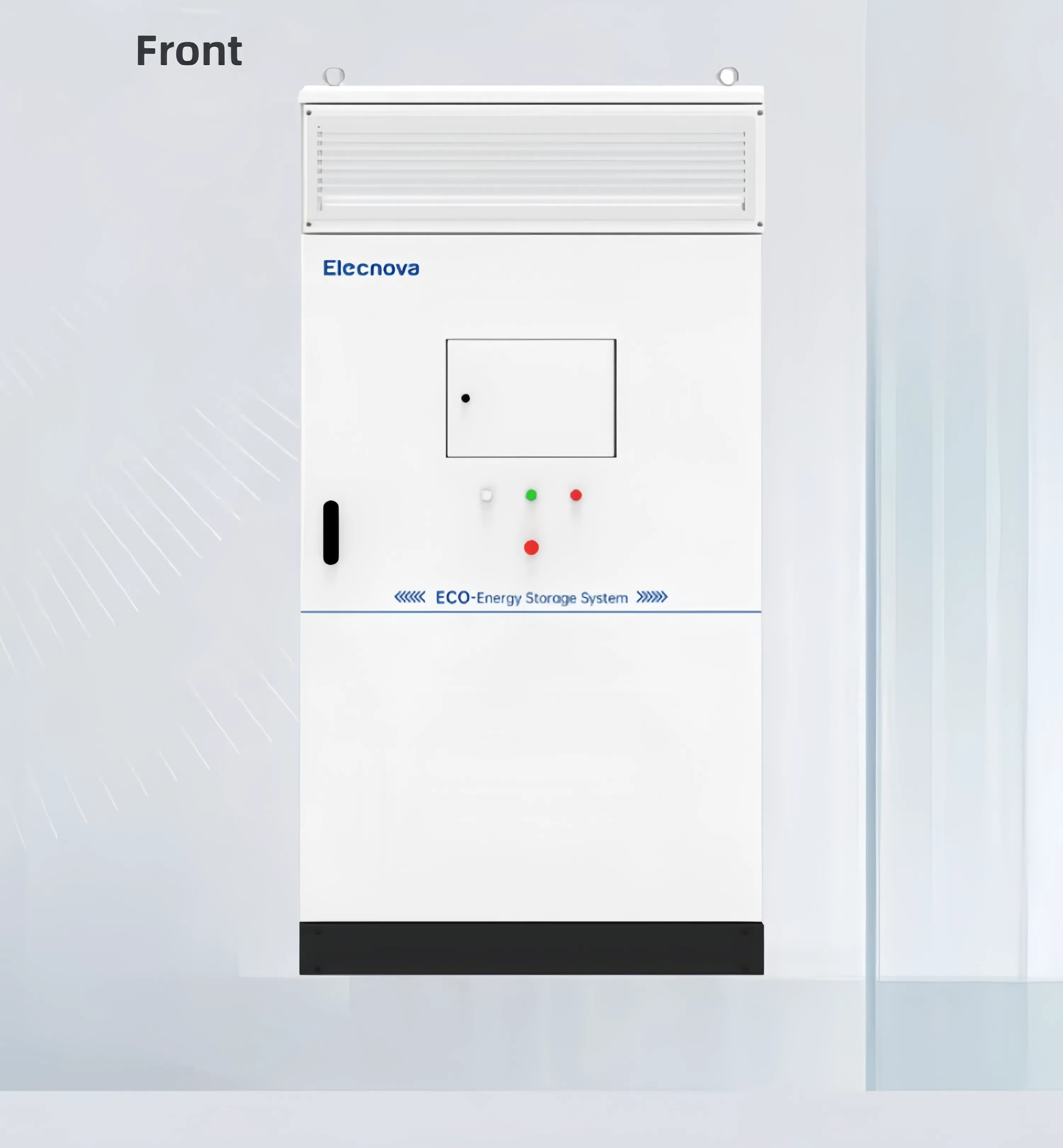

Energy Storage Detail 2

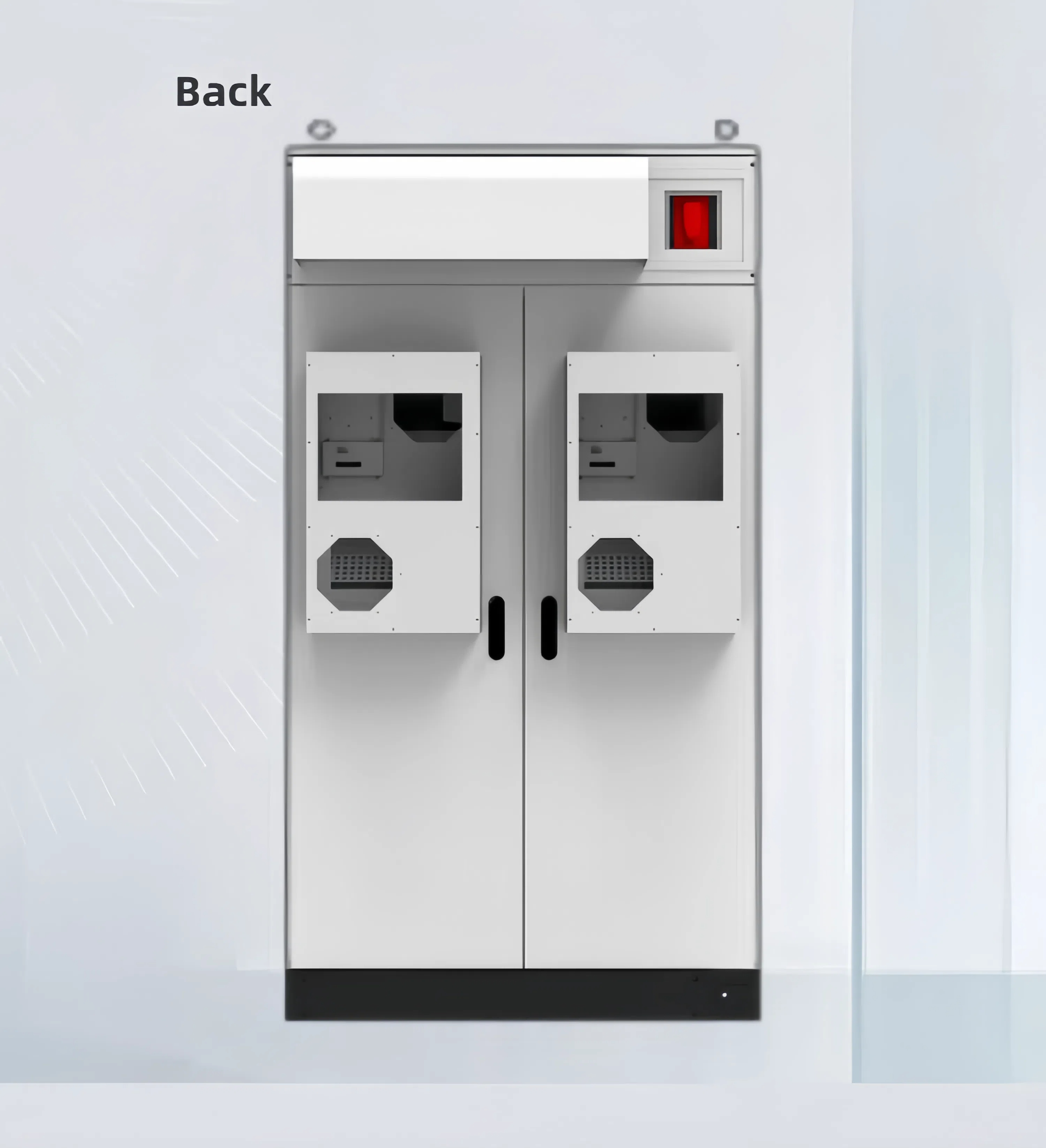

Energy Storage Detail 3

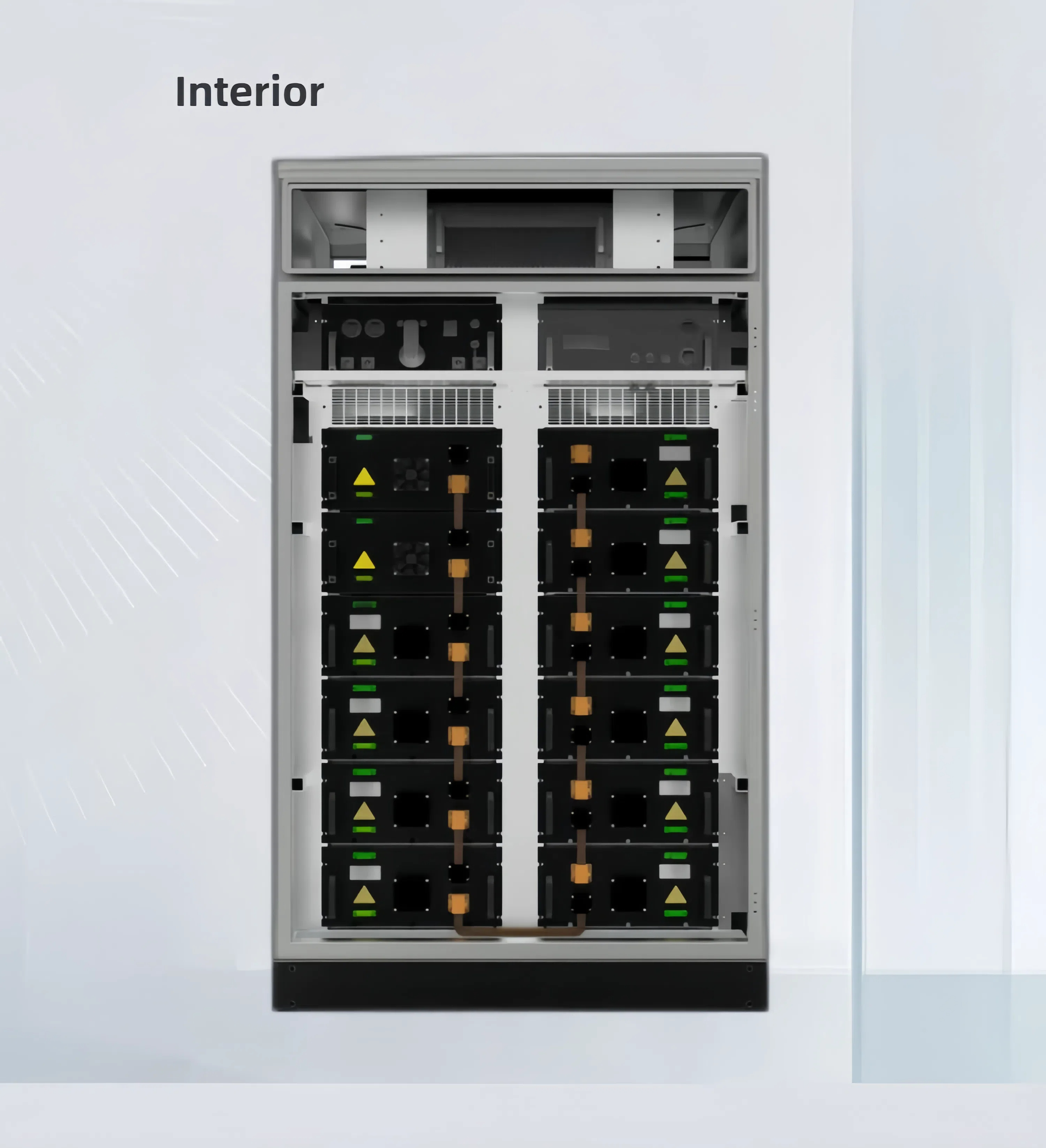

Main View
Specification
DC Part
Cell TypeLFP 3.2V/280Ah
PACK17.92kWh/1P20S
Battery System215kWh/1P240S
Voltage Range672~864Vdc
Rated Voltage768Vdc
AC Part
Rated Power100kW
Max. Power110kW (60s)
THDi<3%
Nominal Voltage400Vac
Nominal Frequency50/60 Hz
General
Efficiency≥90%
Cycle Life≥8,000 times
Ingress RatingIP55
CoolingForced Air Cooling
Operating Temperature-25ºC~55ºC
Dimensions (W*D*H)1,250*1,300*2,400 (mm)
Weight2,500kg
Detail Images

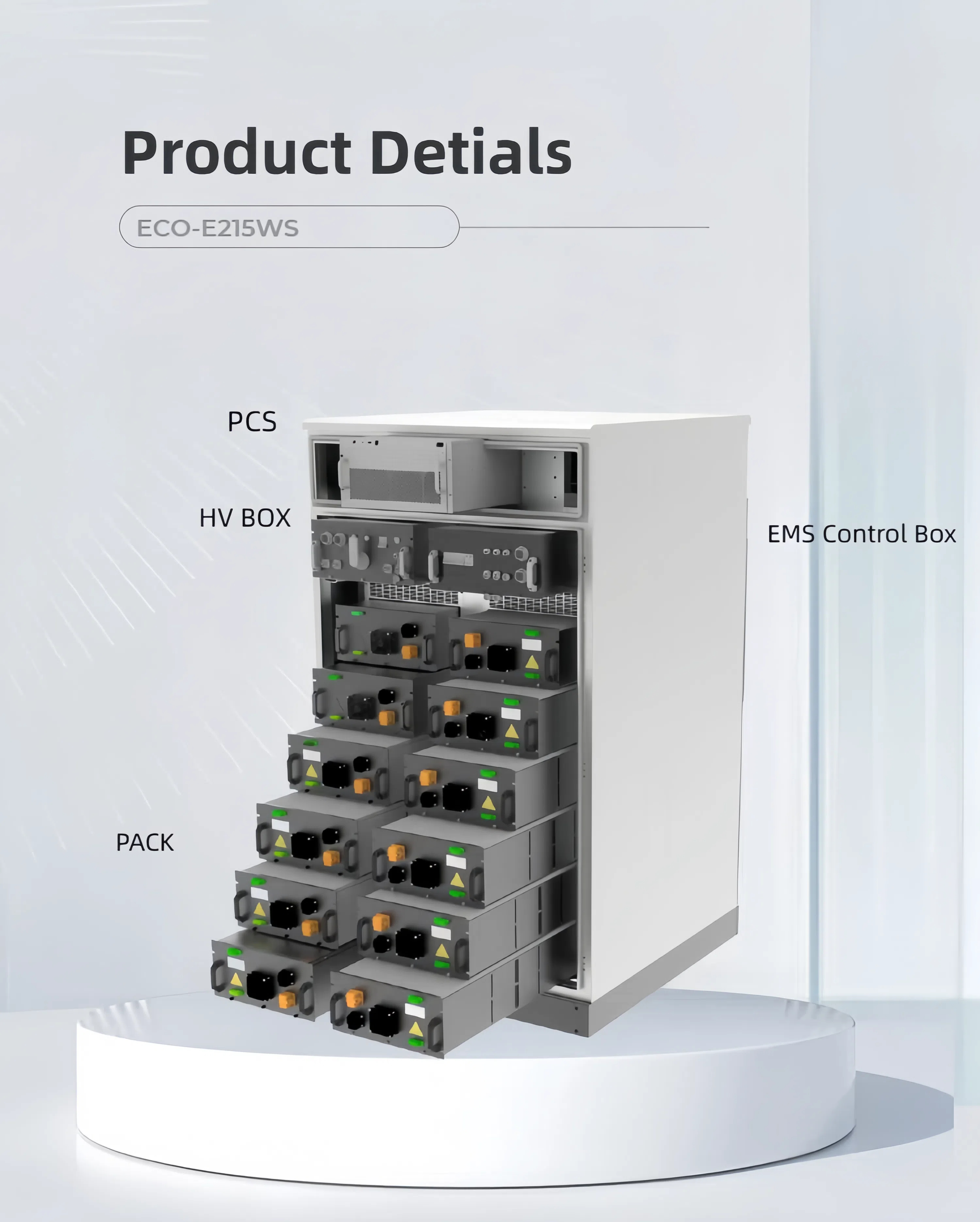

Detail 1

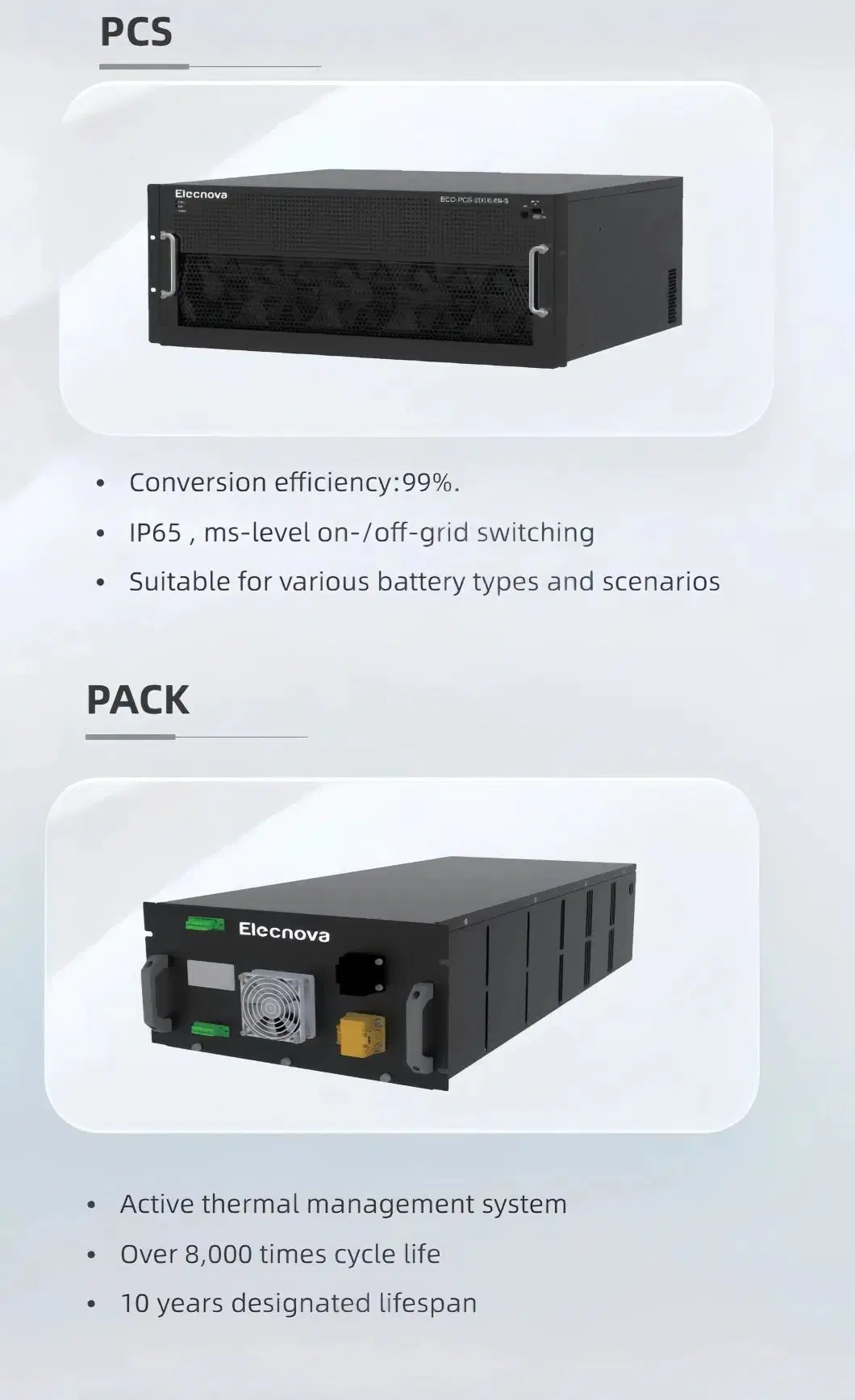

Detail 2

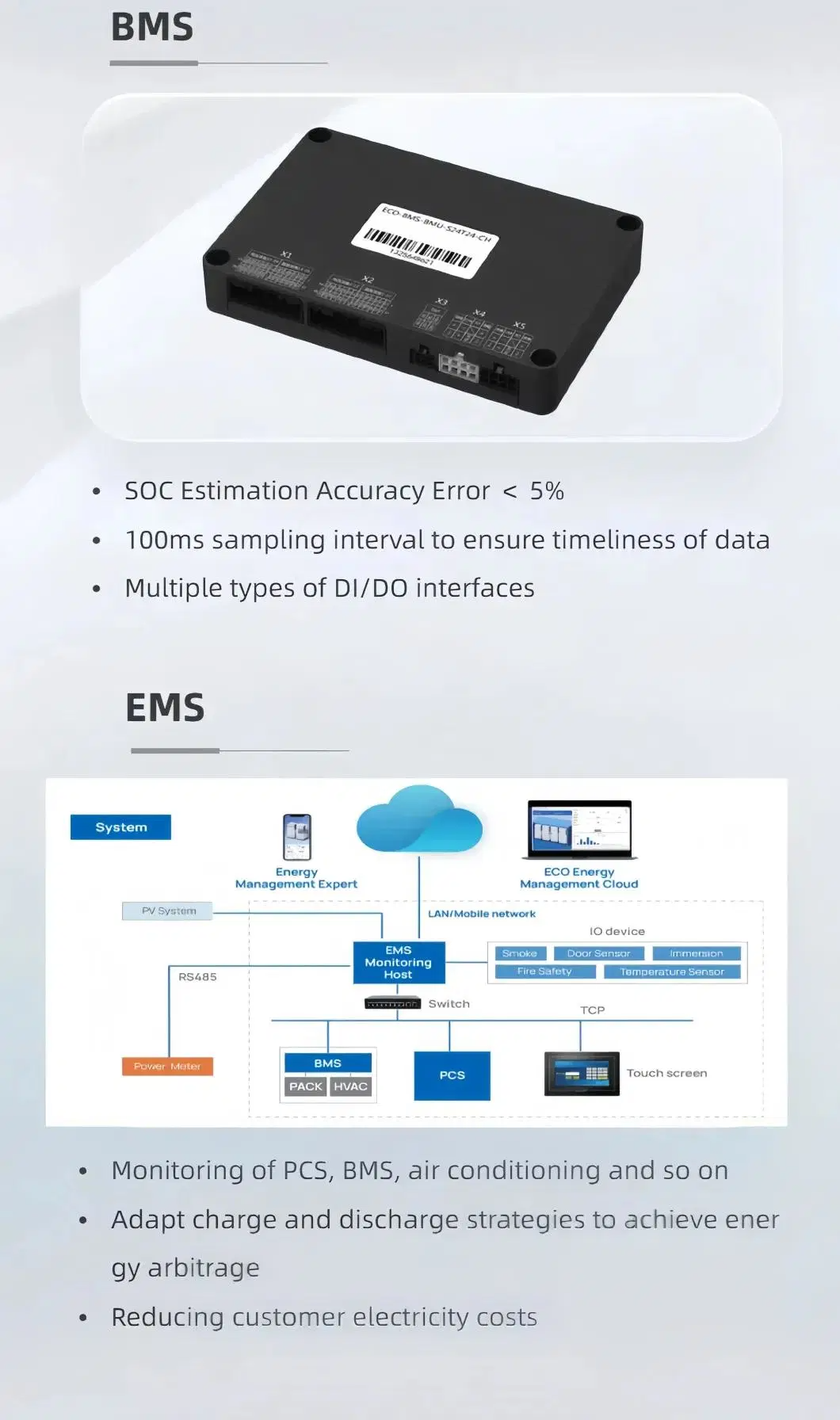

Detail 3

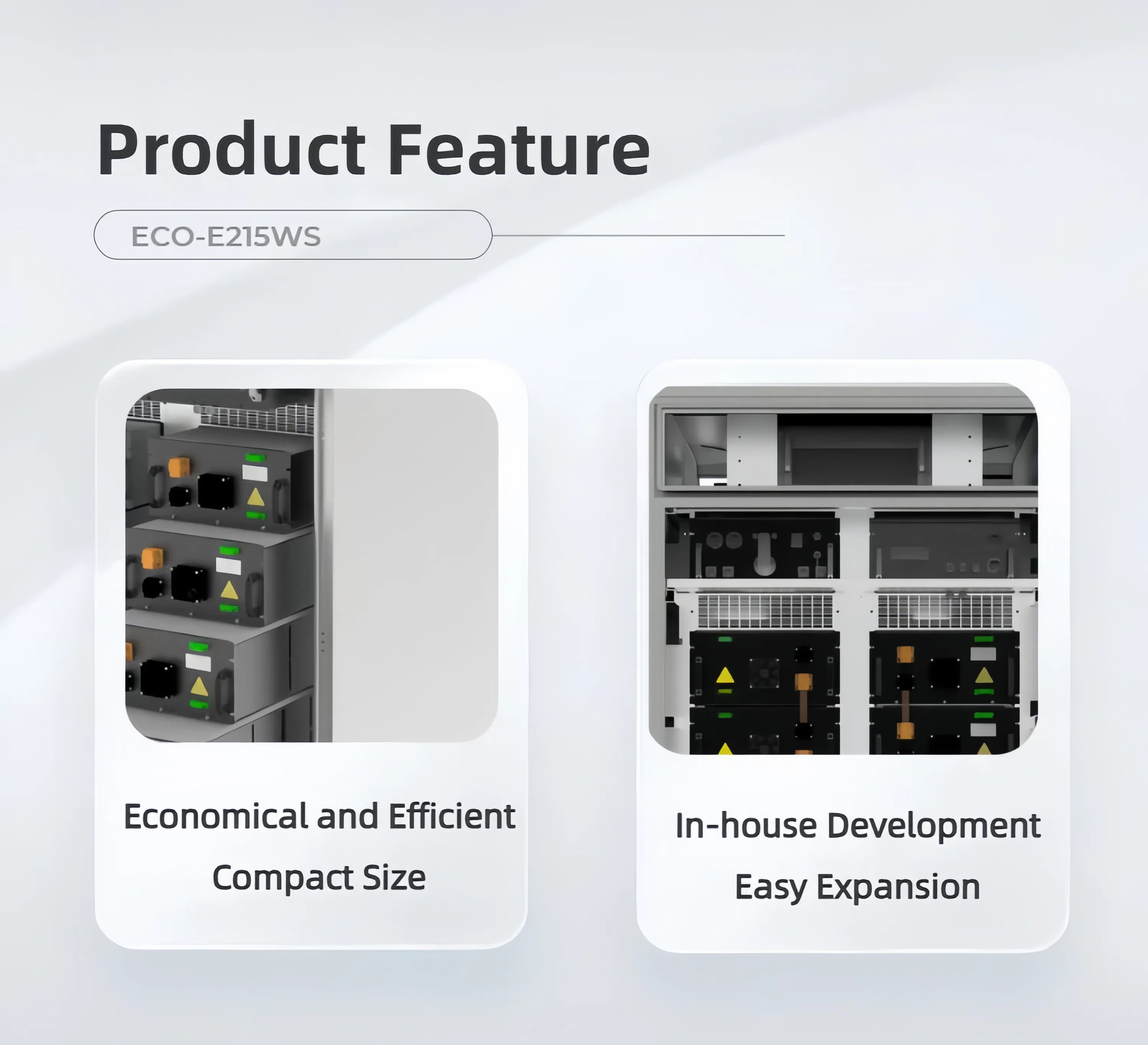

Detail 4

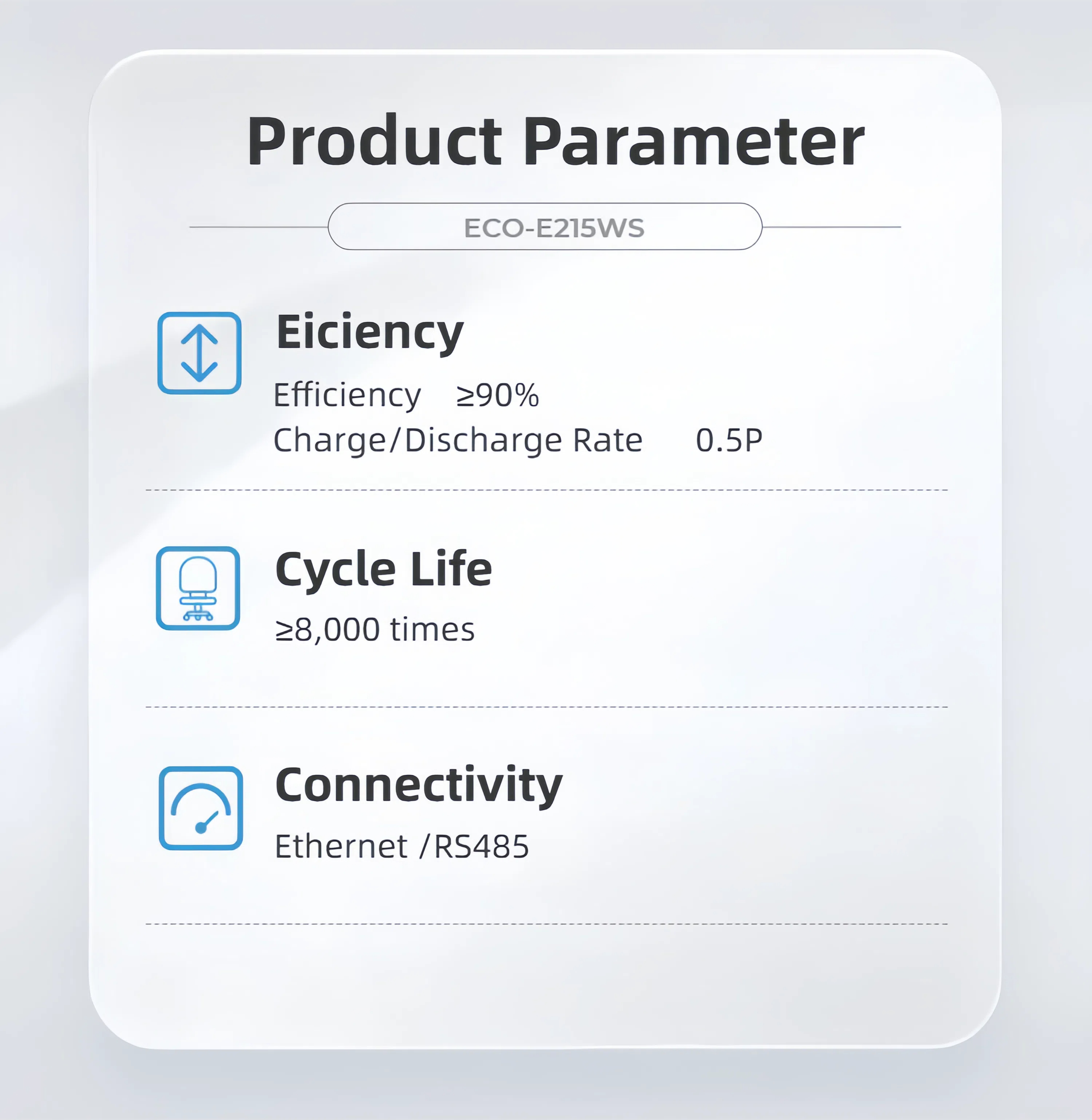

Detail 5
Application
Application
Project

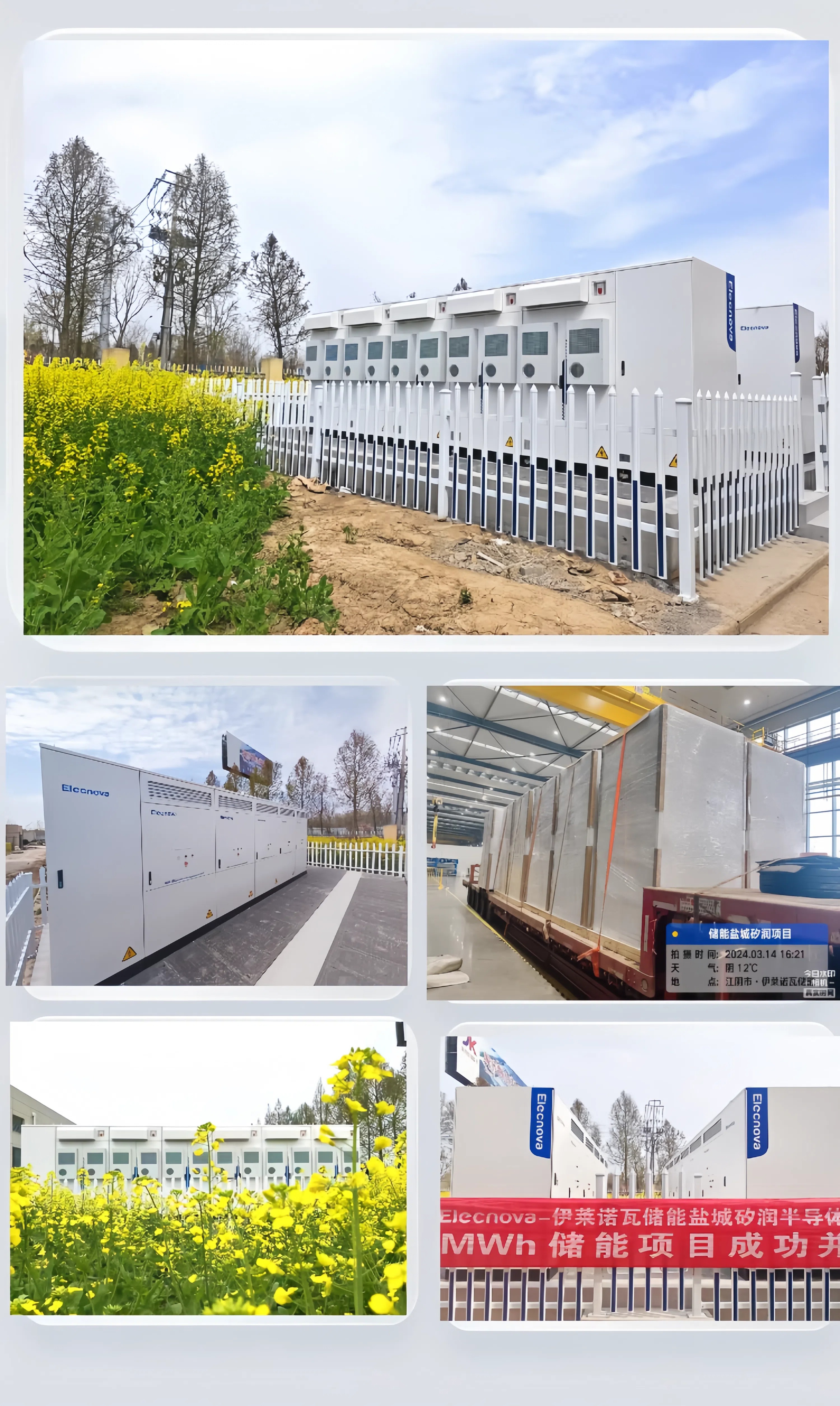

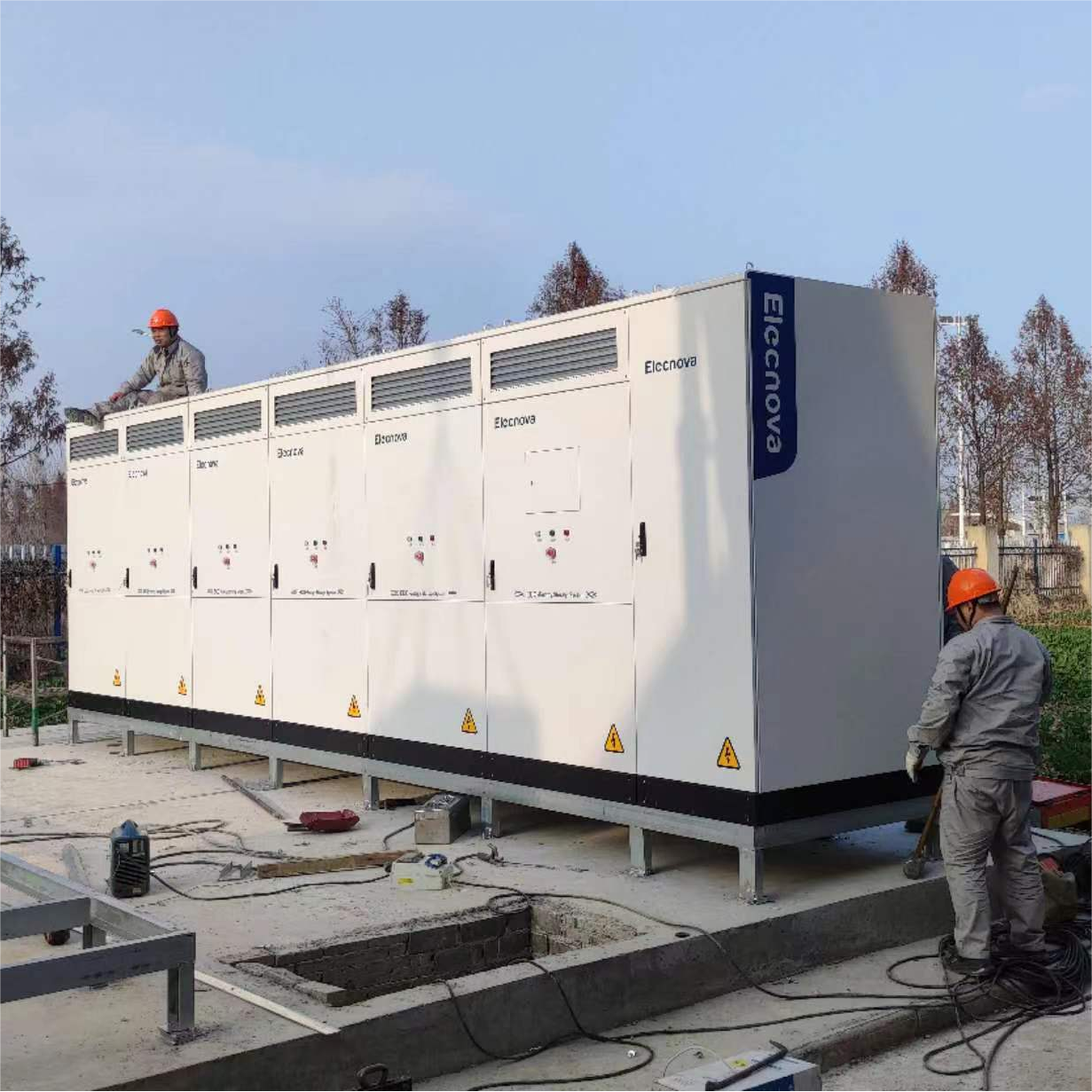

Project Case
FAQ
How long is the delivery time of your products?
Usually about 45 days.
What kind of certificates your products have?
UN38.3, IEC61619, UL1973, UL9540 and CE-EMC.
Can you supply OEM & ODM service?
Yes, but there is a minimum order quantity required.
Can you ship your battery products by sea or by air?
We have long-term cooperated forwarders who are professional at battery shipment.
How long is the warranty?
Our warranty is from 5~10 years.
How do you provide after-sales service?
We have overseas branches that can provide repair and replacement.
