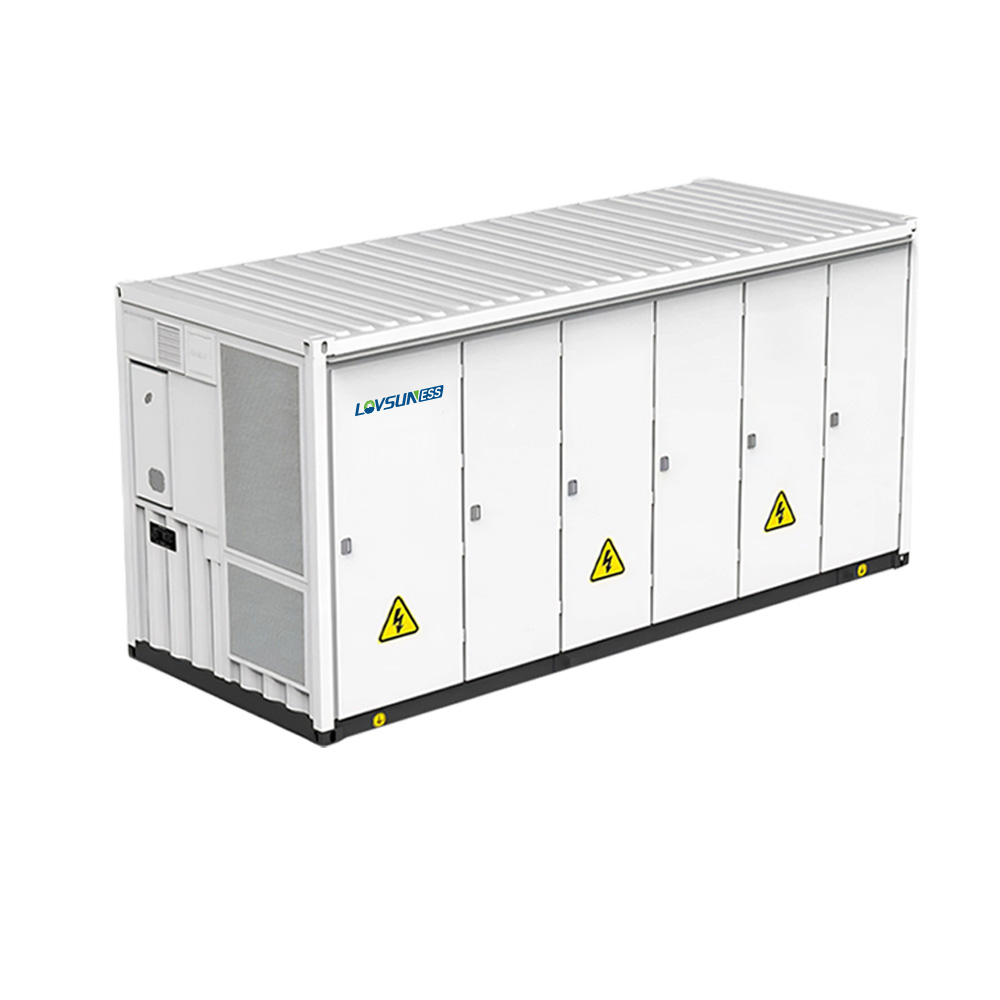

BESS ESS Outdoor 1MW 1000KWH 20FT Lithium Solar Battery 500kWh High Voltage Lifepo4 Battery System Energy Storage Container

1 / 5

BESS ESS Outdoor 1MW 1000KWH 20FT Lithium Solar Battery 500kWh High Voltage Lifepo4 Battery System Energy Storage Container

Send Inquiry

Product Description

Product Details

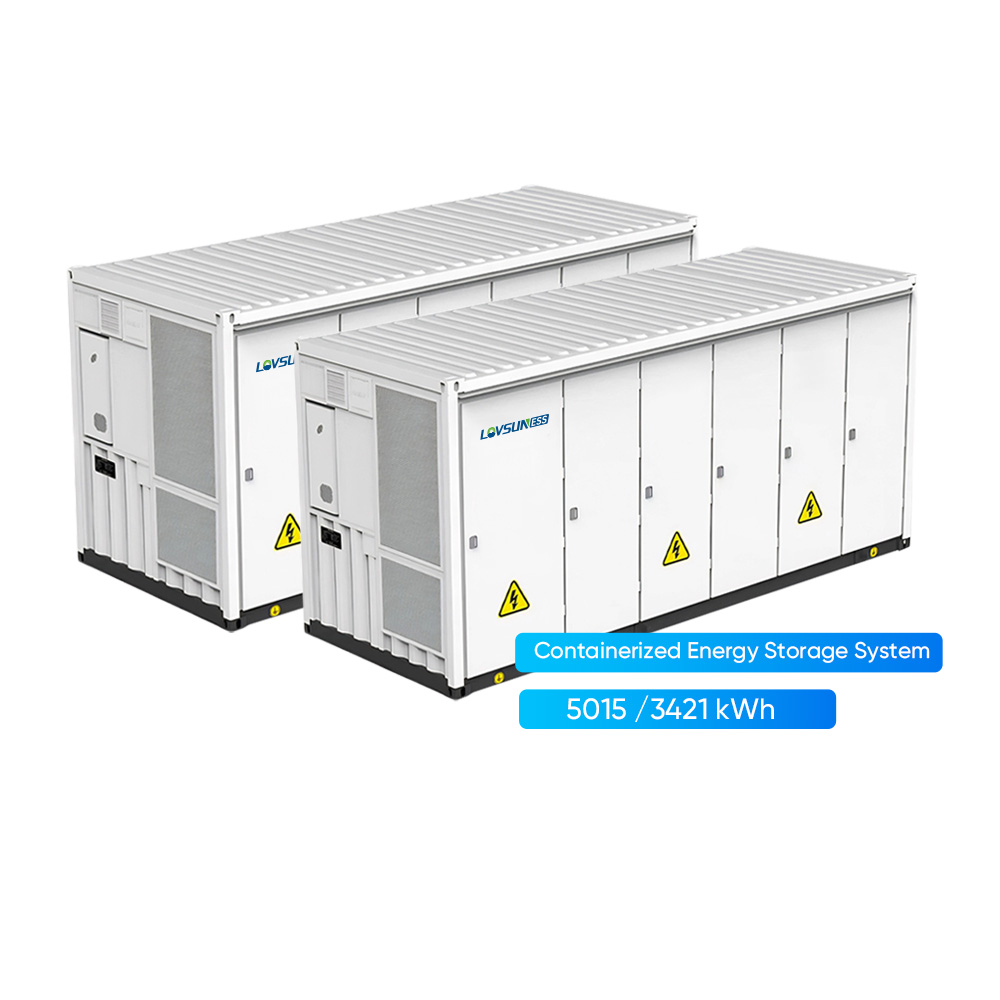

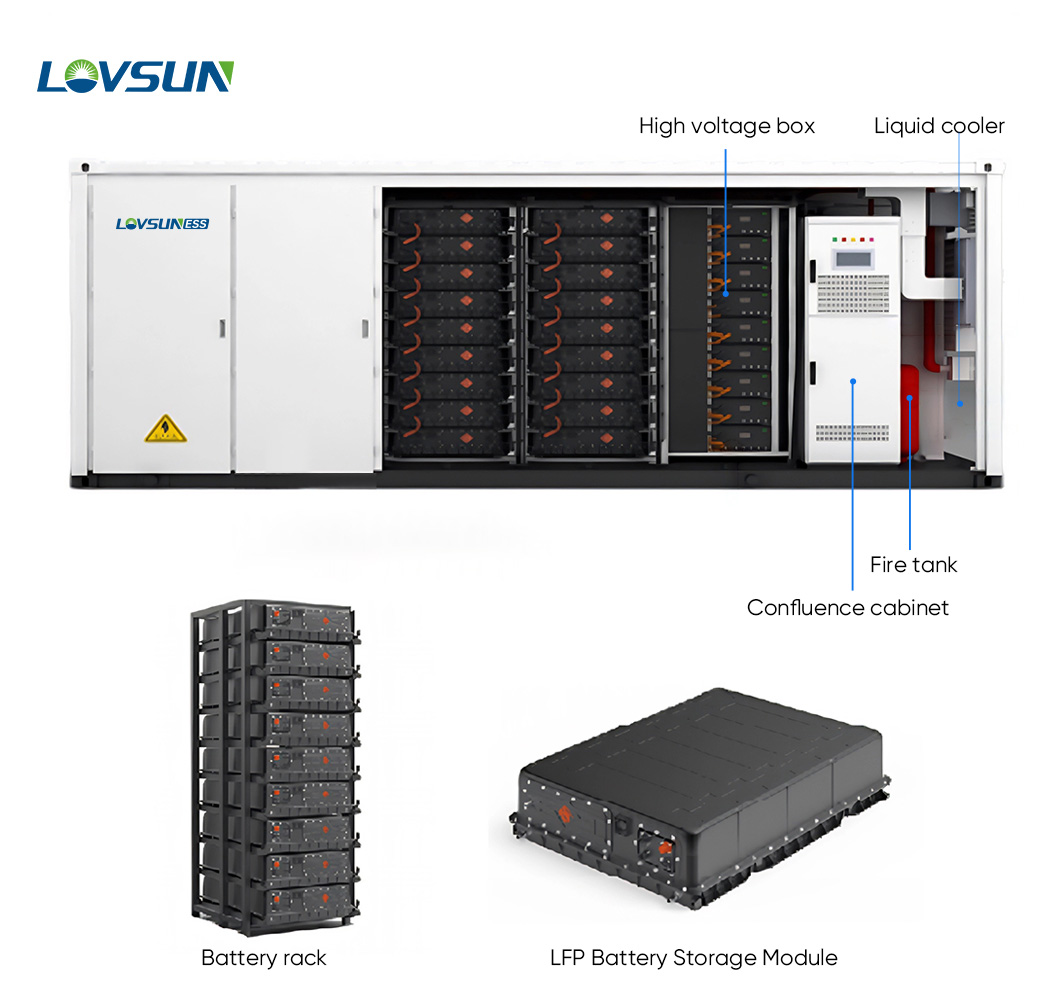

Specification	Model ESD1267-05P3421	Model ESD1280-05P4608
Cell Type	LFP-300Ah
System Configuration	9P396S	12P400S
Nominal Energy (kWh)	3421	4608
Rated Voltage (Vdc)	1267	1280
Voltage Range(Vdc)	990~1445.4	1000~1460
Max. Charge Power(kW)	1710.5 (0.5P)	2304 (0.5P)
Cooling Mode	Liquid-Cooling
Dimensions (W * D * H)mm	20ft Container 6058 x 2438 x 2896

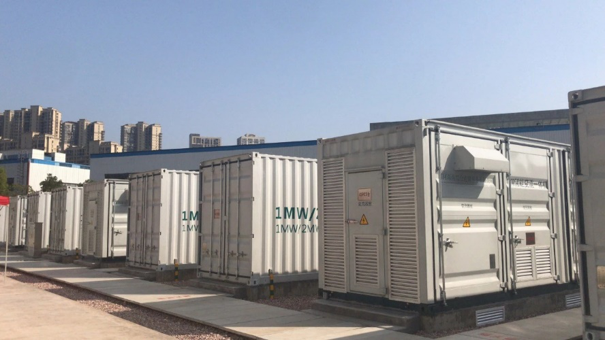

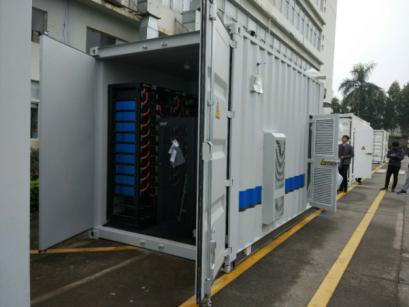

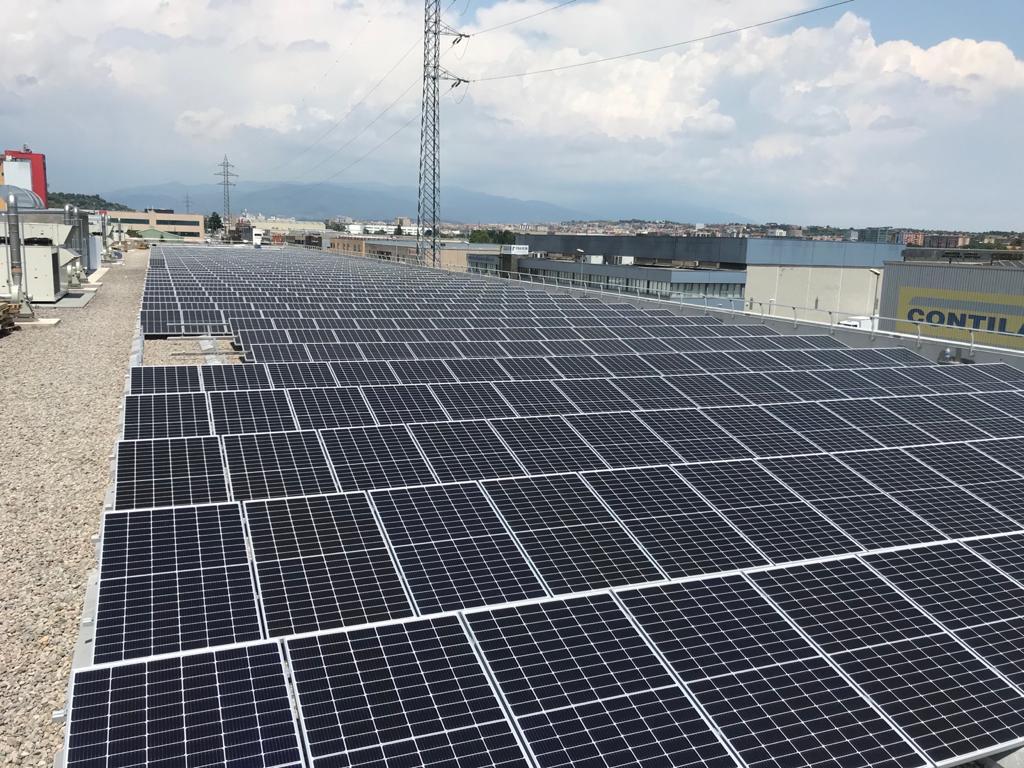

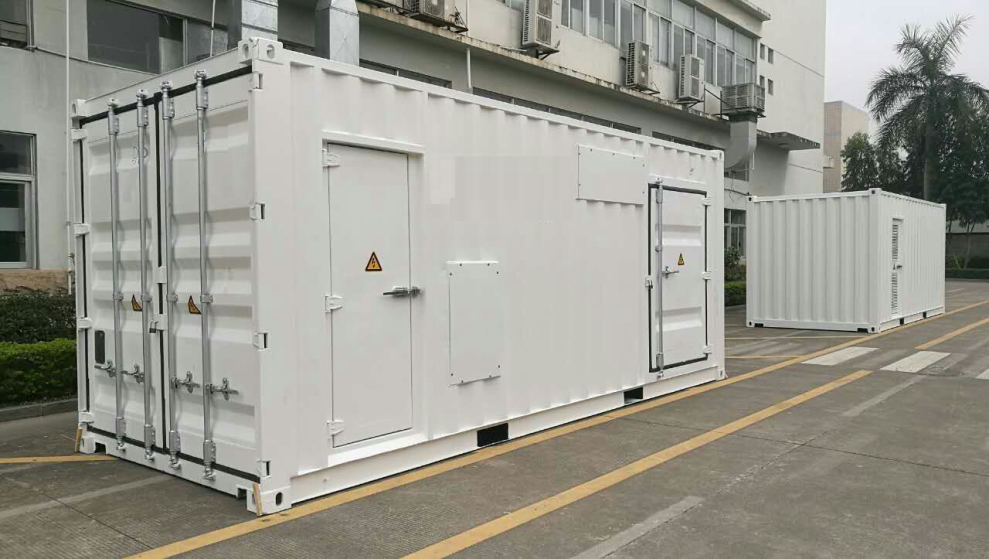

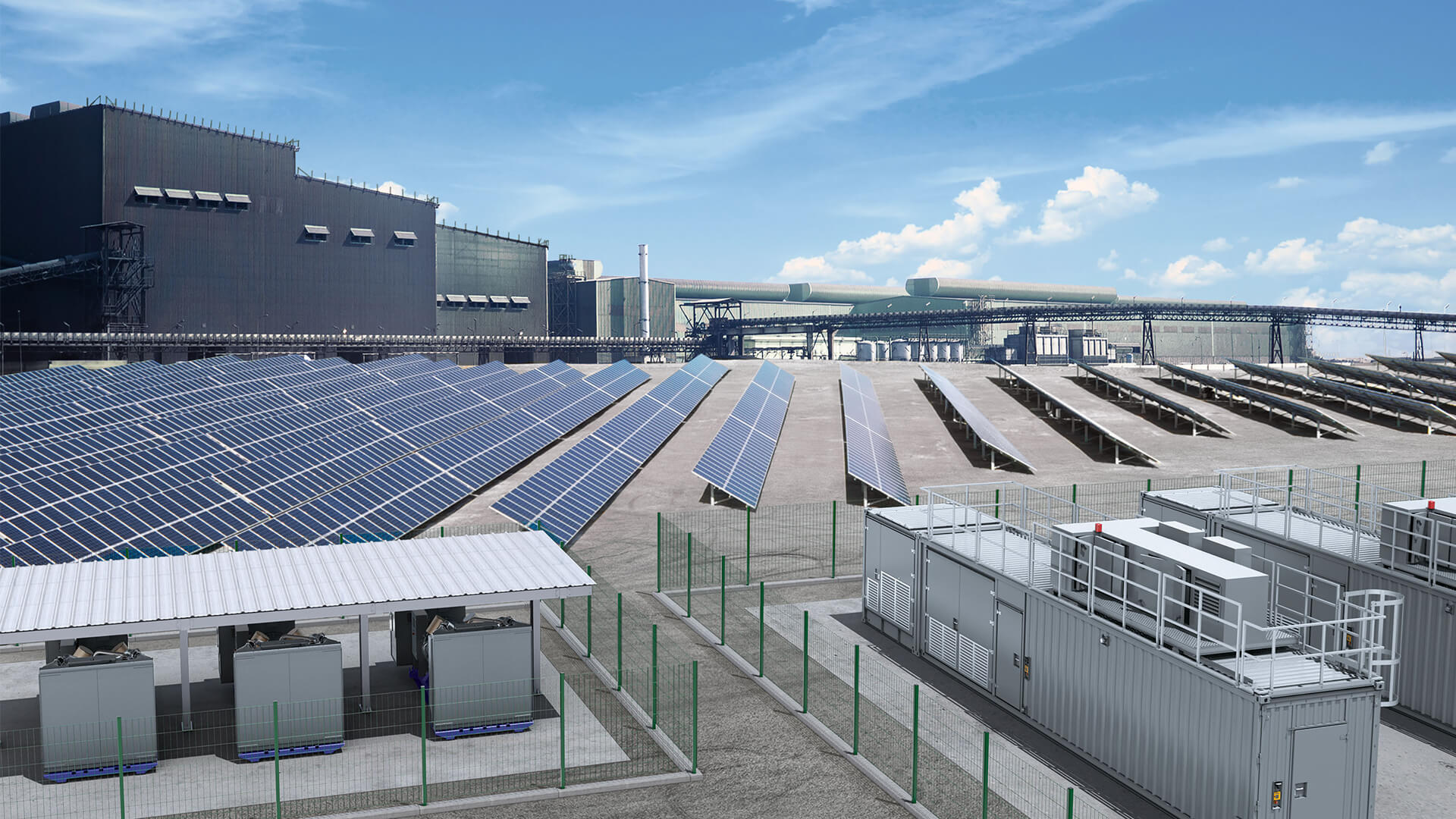

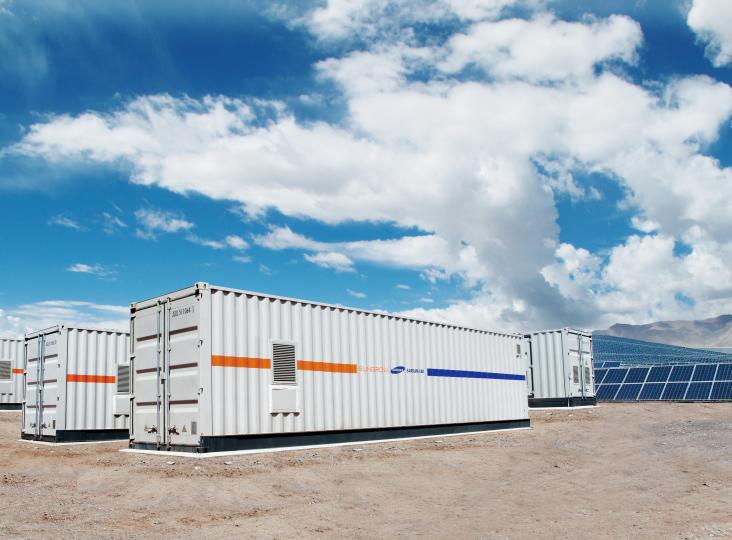

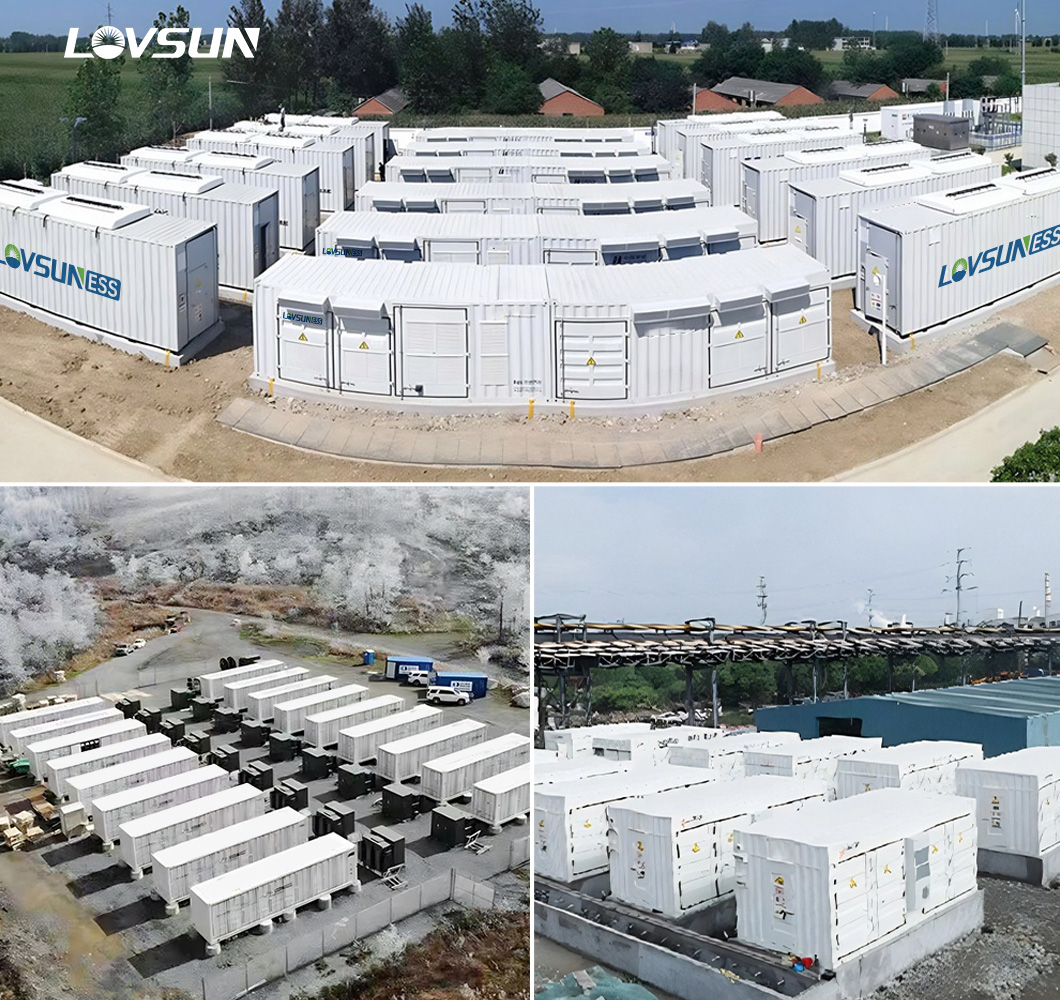

Project Case

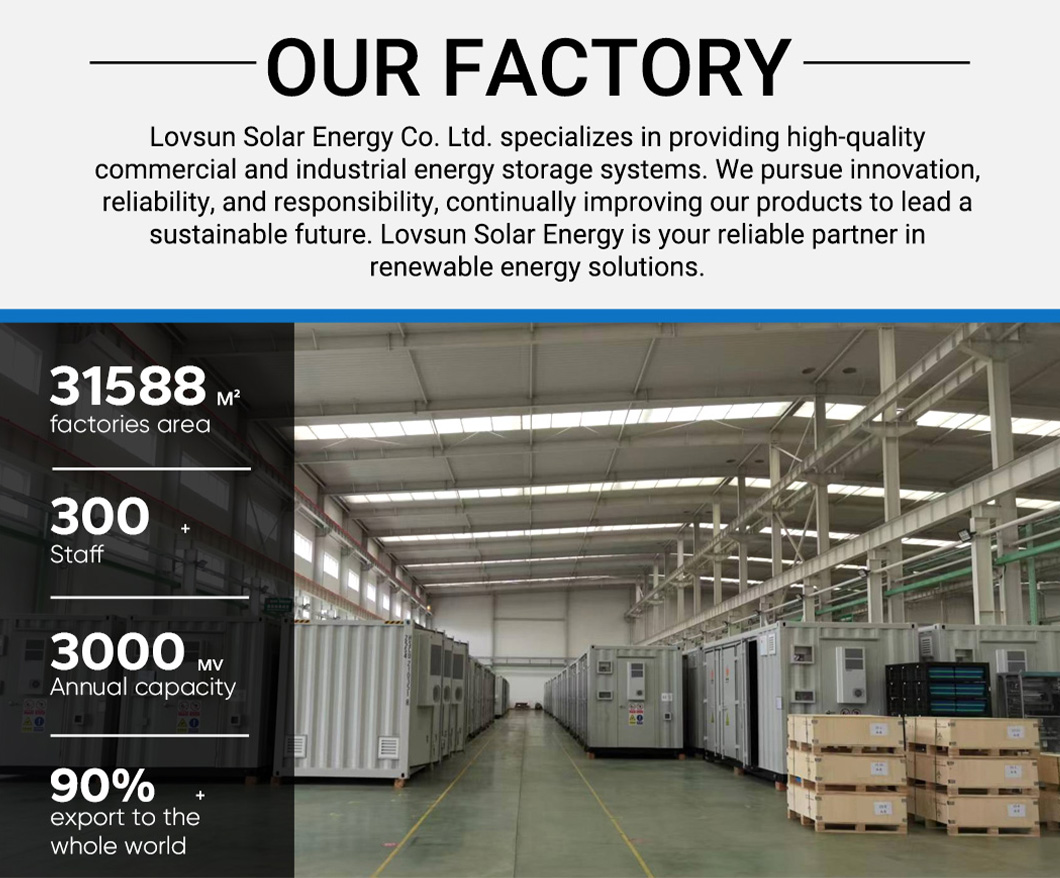

Factory

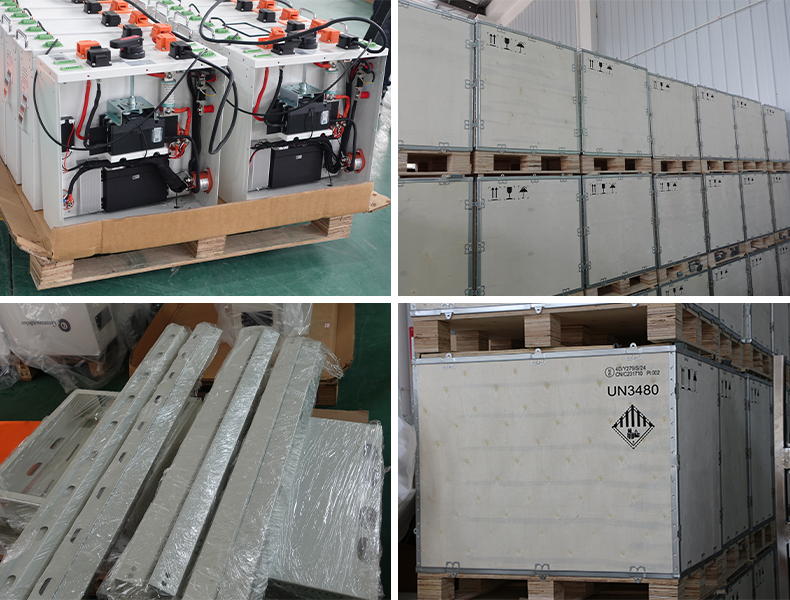

Packing & Delivery

Frequently Asked Questions

What type of battery cells are used in these energy storage systems?

These energy storage containers utilize premium LFP (Lithium Iron Phosphate) 300Ah cells, which offer exceptional safety characteristics, thermal stability, and a long cycle life for utility-scale applications.

What are the main differences between the ESD1267 and ESD1280 models?

The ESD1267-05P3421 features a 9P396S configuration with a nominal energy capacity of 3421 kWh and a rated voltage of 1267 Vdc. The ESD1280-05P4608 model features a 12P400S configuration with a higher nominal energy capacity of 4608 kWh and a rated voltage of 1280 Vdc.

How is the thermal management handled in these storage systems?

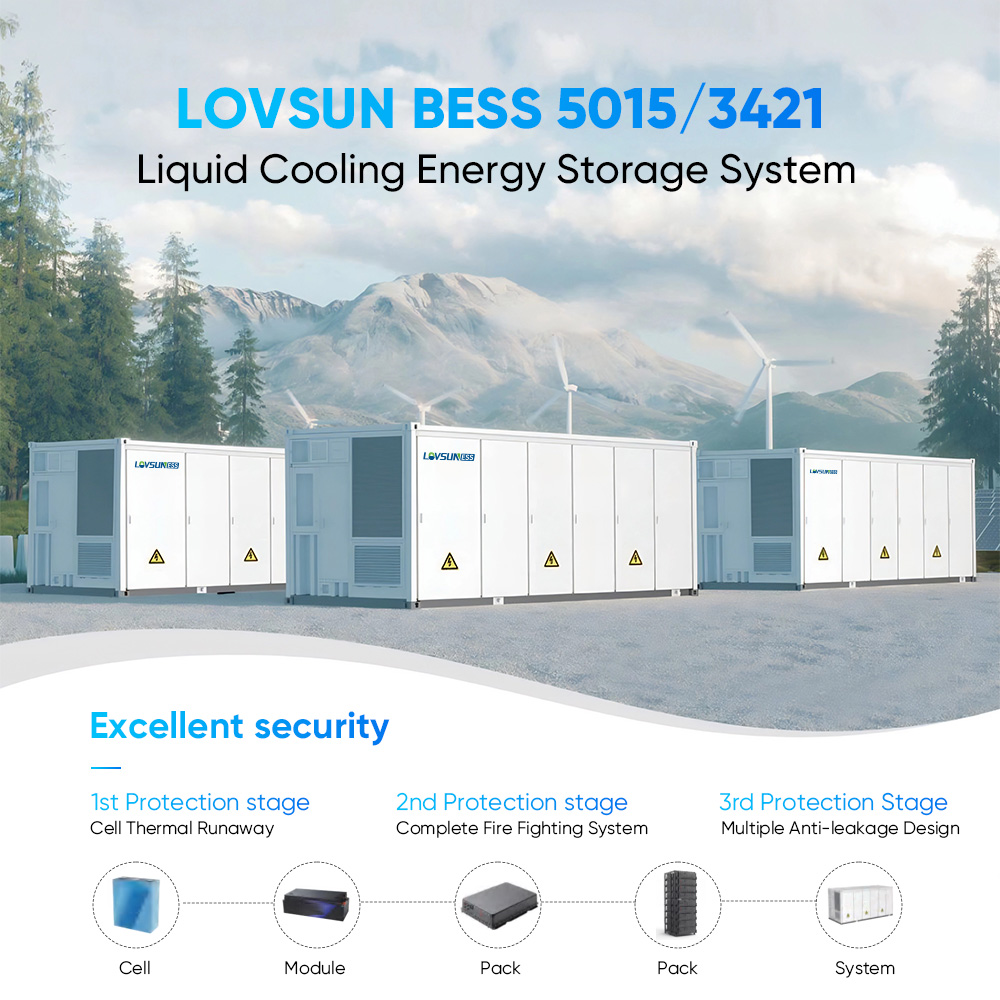

Both models utilize an advanced Liquid-Cooling system. This provides uniform temperature distribution across the battery cells, optimizing performance and significantly extending the lifetime of the system compared to traditional air cooling.

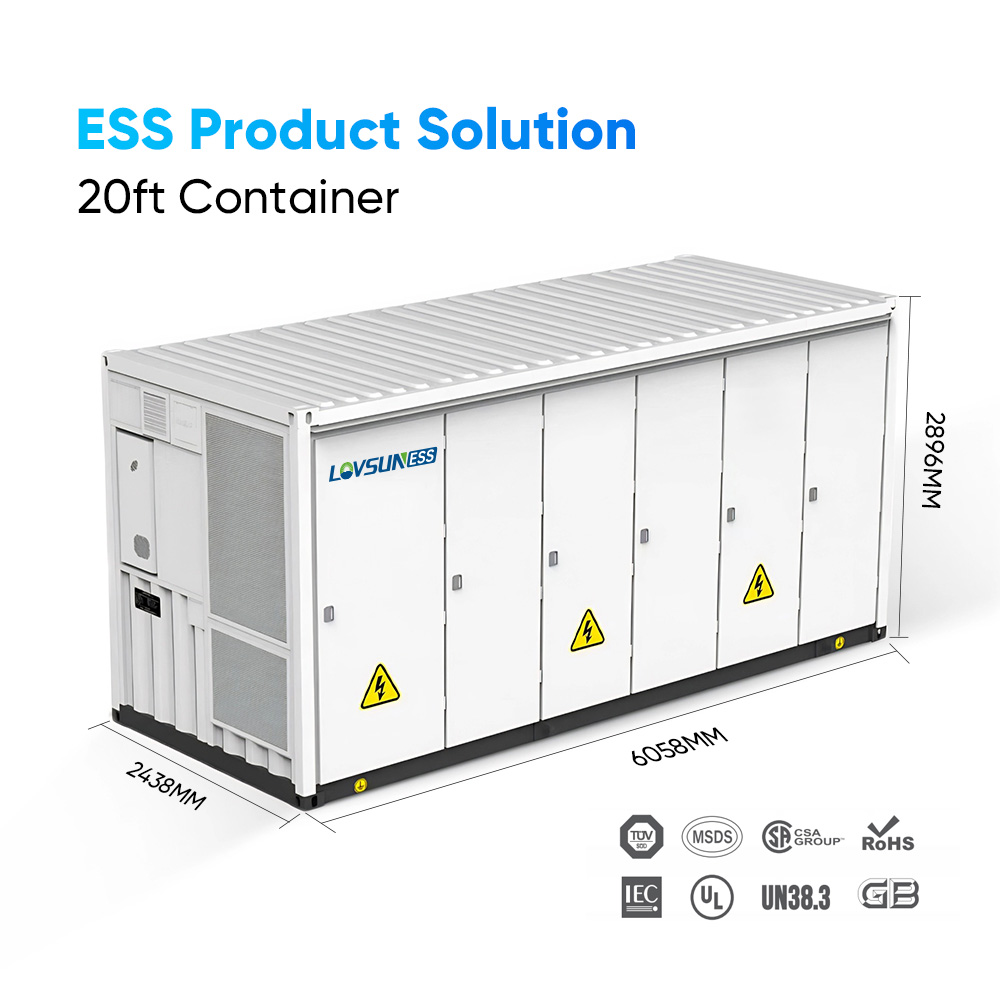

What are the physical dimensions of the storage system container?

Both configurations are housed in a standard 20ft container with physical dimensions of 6058 mm (Width) x 2438 mm (Depth) x 2896 mm (Height), allowing for easy transport and deployment.

What is the voltage range and charging capability of the systems?

The ESD1267 model has a voltage range of 990 to 1445.4 Vdc with a maximum charge power of 1710.5 kW (0.5P). The ESD1280 model has a voltage range of 1000 to 1460 Vdc with a maximum charge power of 2304 kW (0.5P).

Product Detail

BESS ESS Outdoor 1MW 1000KWH 20FT Lithium Solar Battery 500kWh High Voltage Lifepo4 Battery System Energy Storage Container

Product Description
