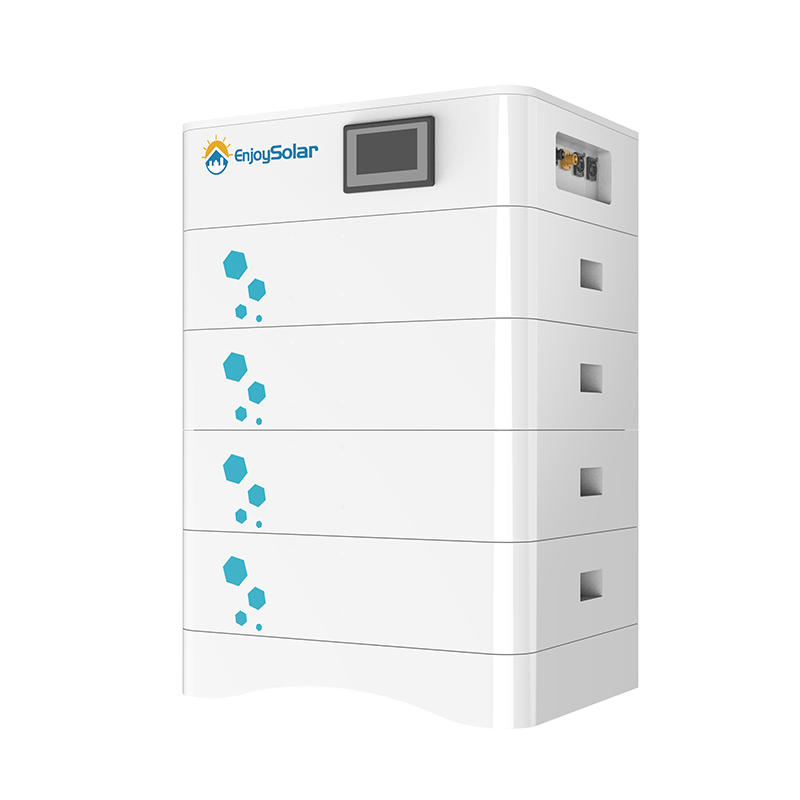

15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
1 / 5
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System
15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System

15kwh 20 Kwh 30kwh High Voltage Home Use Stackable LiFePO4 Lithium Ion Battery Cell Lipo Lithium Battery Pack for off Grid Home Power Backup Battery System

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Basic Information
Model NO.
ES-20KHS
Nominal Capacity
20kWh
Cycle Life
6000 Times
Rate Voltage
204.8V
Protection Level
IP65
Display
LCD Screen
BMS Control
Yes
Communication
CAN/RS485
Cooling Method
Natural Air Cooling
Function
Home Solar Energy Storage System
Application

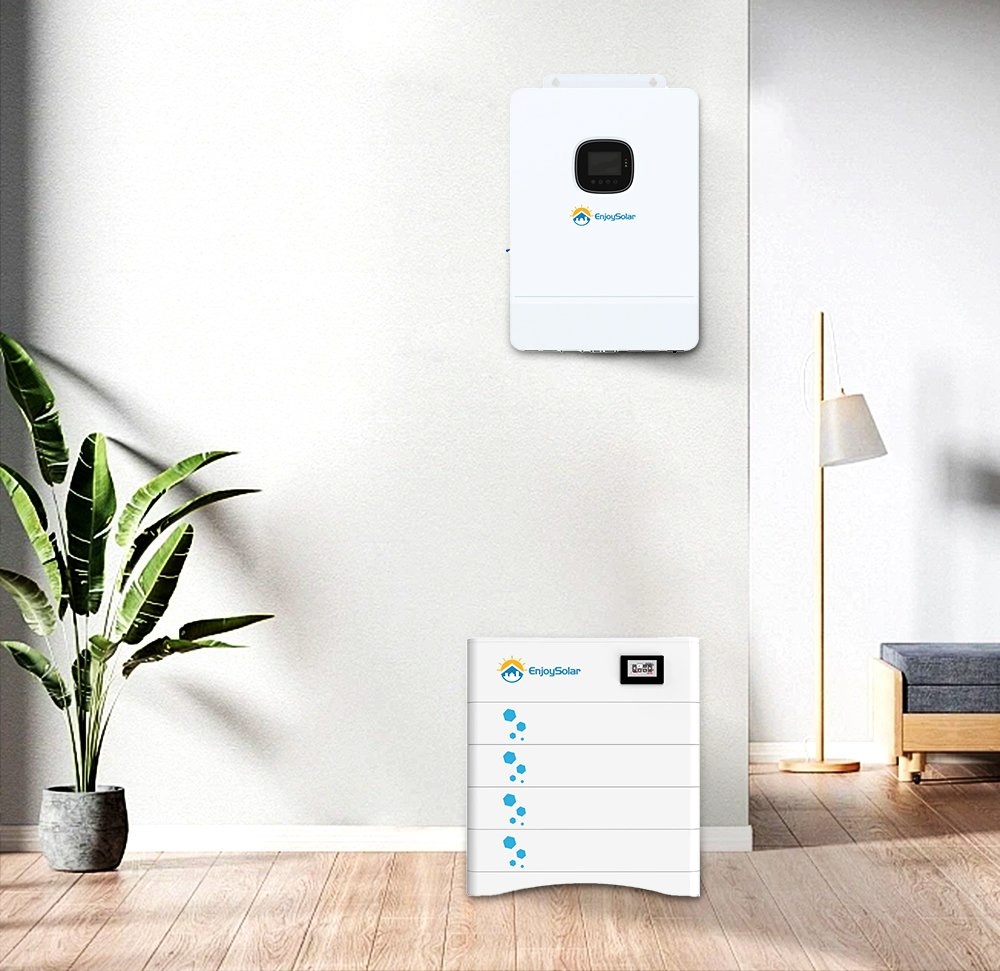

Application 1 Application 2
Product Description

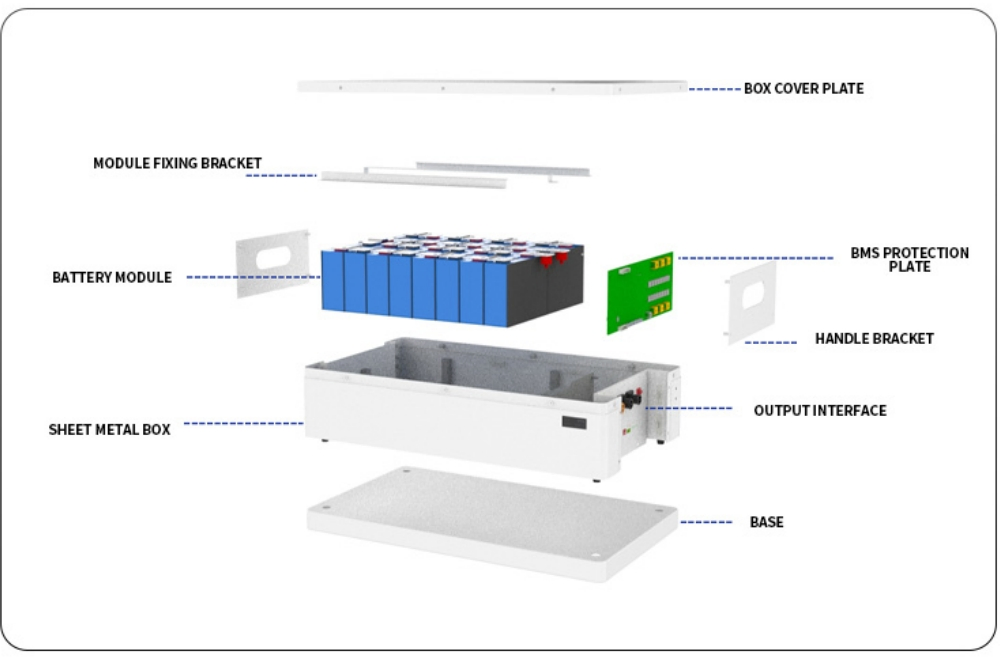

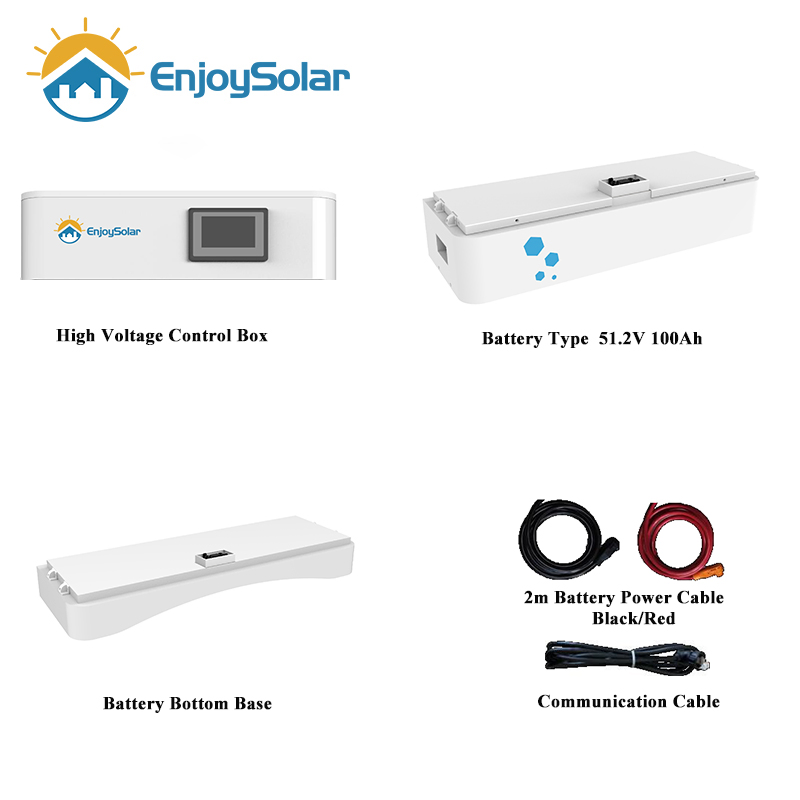

Product Detail

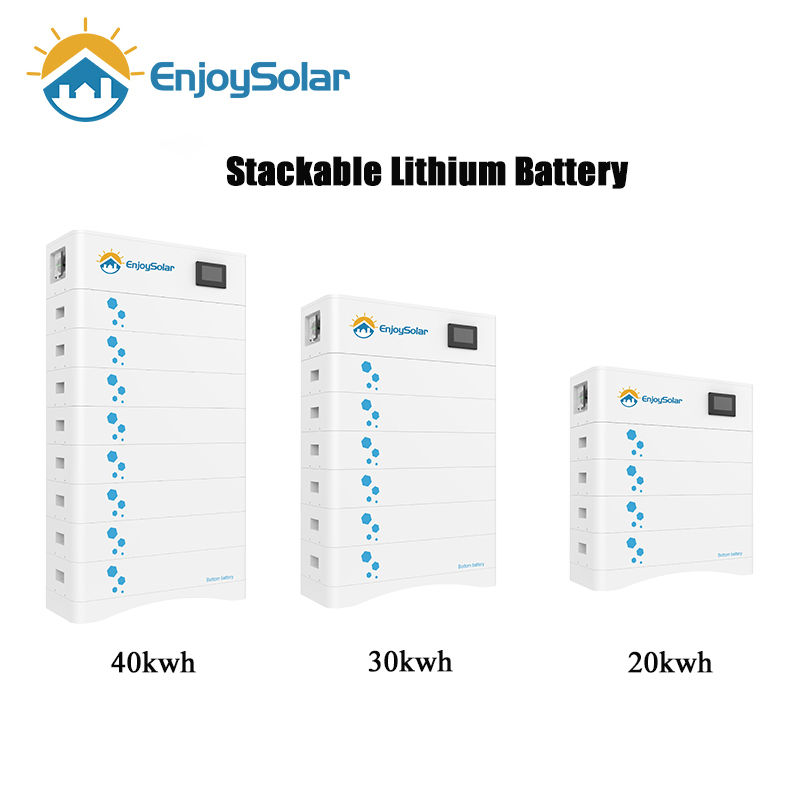

Smaller Footprint: Higher energy density benefit from latest LFP technology. Expandable Module Design: Maximum flexibility ranging from 15.36kwh to 40.96kwh. Intelligent Monitor: Real-time monitoring of battery charging and discharging, supporting online system updates and maintenance. Comprehensive Communication: Supports CAN, RS485, and RS232 protocols for seamless integration.
Product Parameters
Model ES-15KHS ES-20KHS ES-30KHS ES-40KHS
Battery Module Qty3468
Nominal Voltage (V)153.6204.8307.2409.6
Module Capacity (Ah)100100100100
Charge/Discharge (A)50505050
Nominal Capacity (KWh)15.3620.4830.7240.96
Dimension (mm)590*420*698590*420*849590*420*1151590*420*1453
Weight (kgs)161.4207298.2389.4
Ingress ProtectionIP65
Cycle Life6000+ Cycles (EOL 70%)
Compatible Inverters
Compatible List
Packaging & Shipping

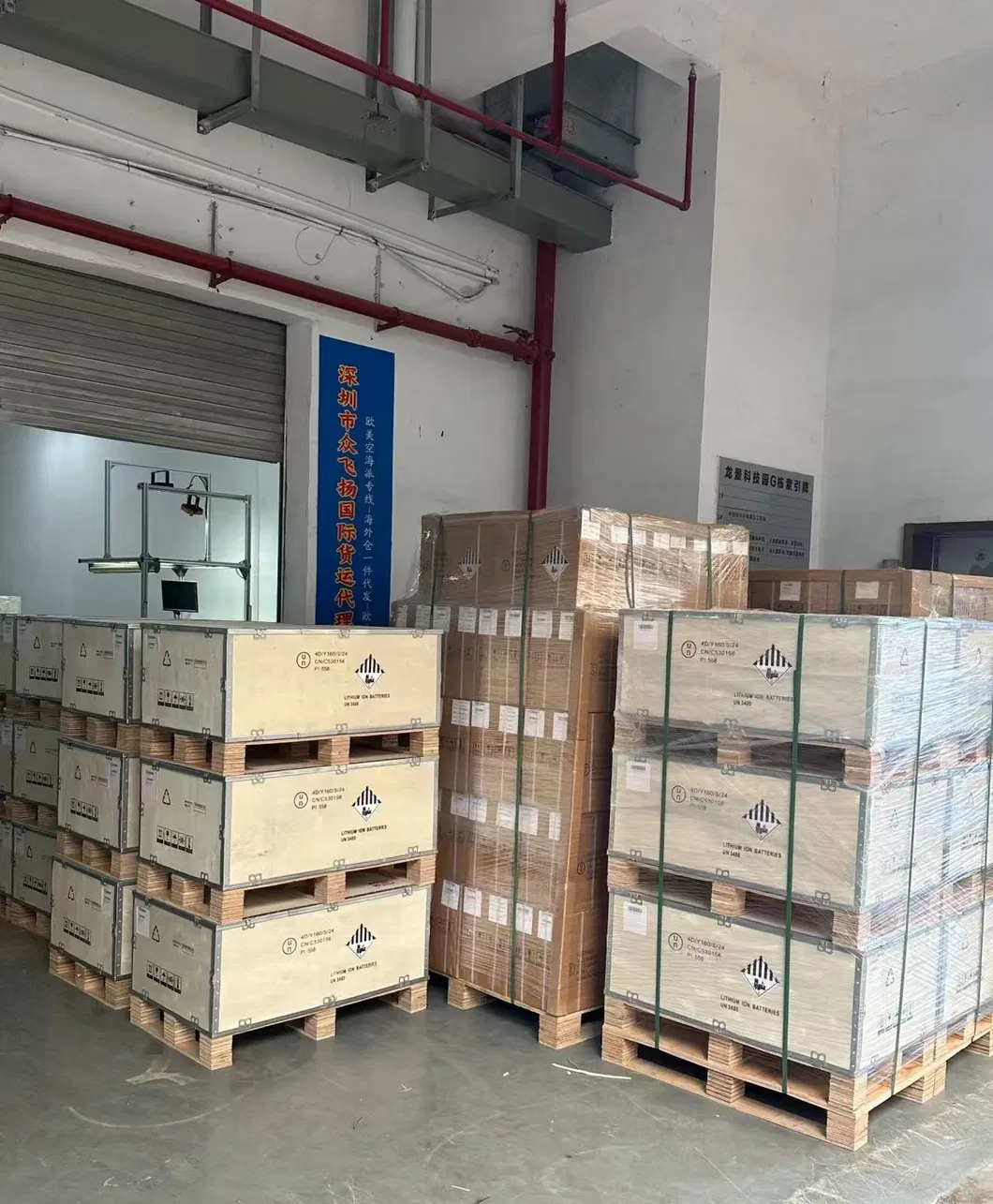

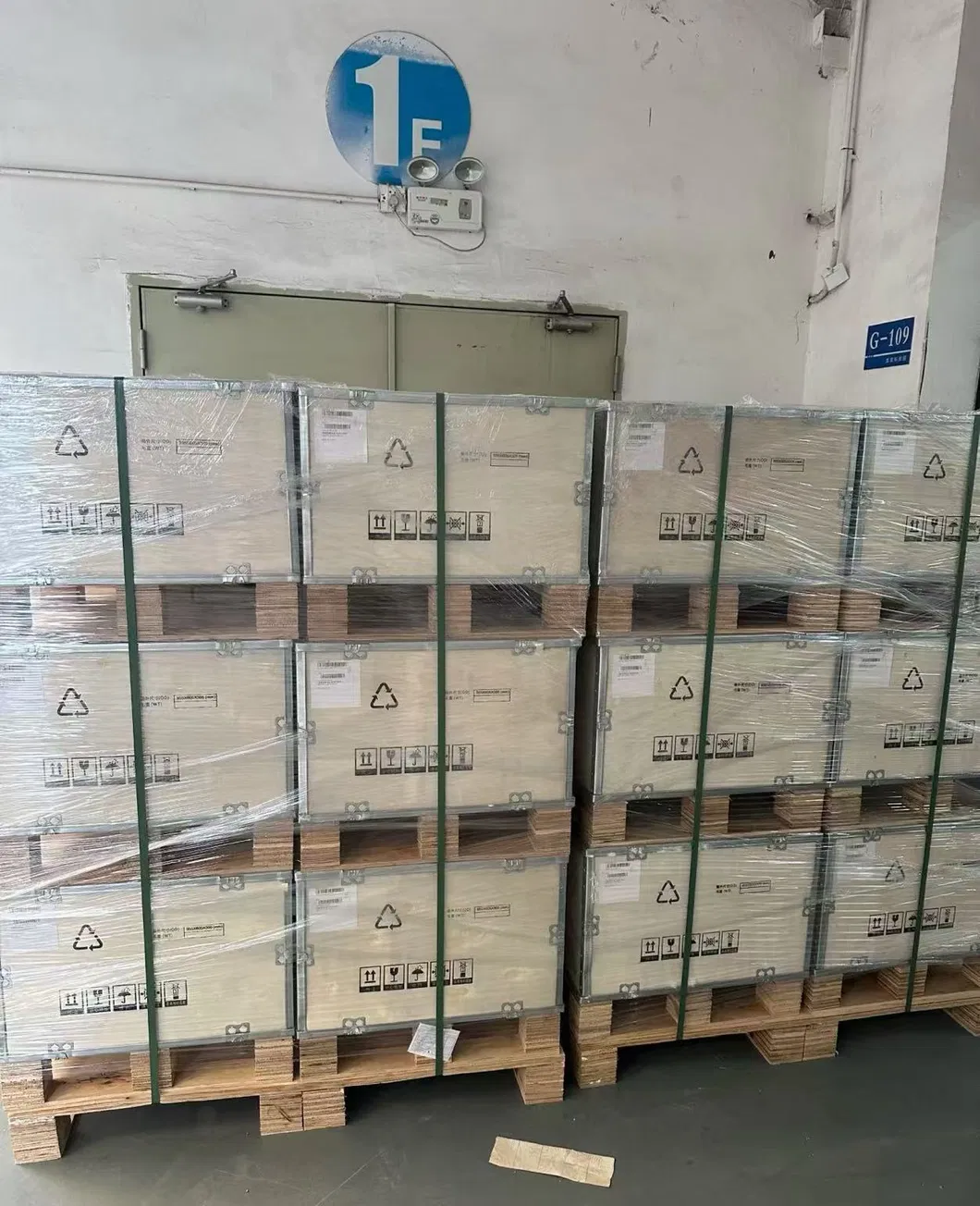

Shipping 1 Shipping 2
Successful Projects

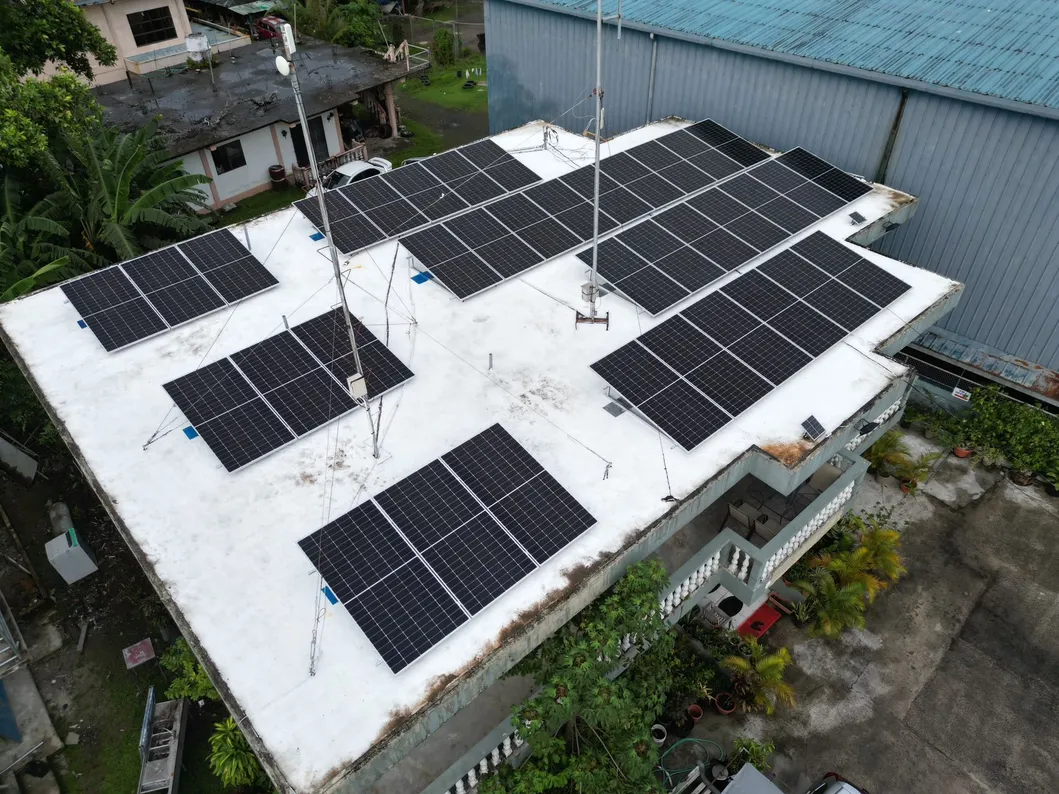

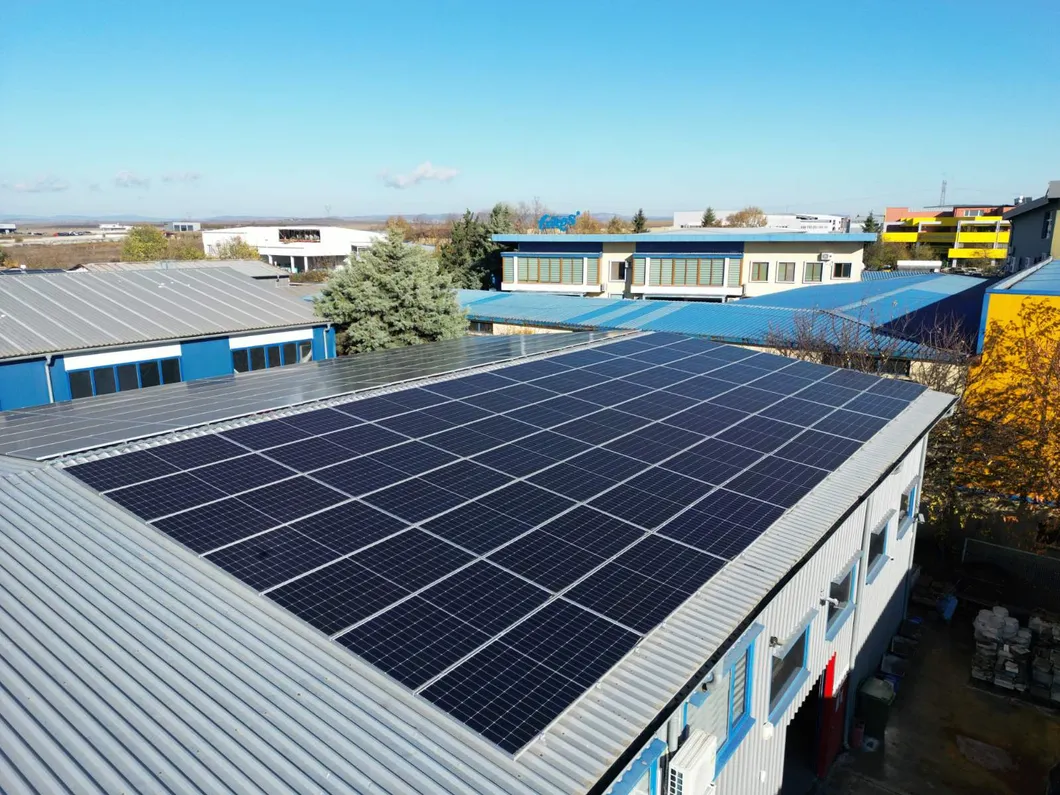

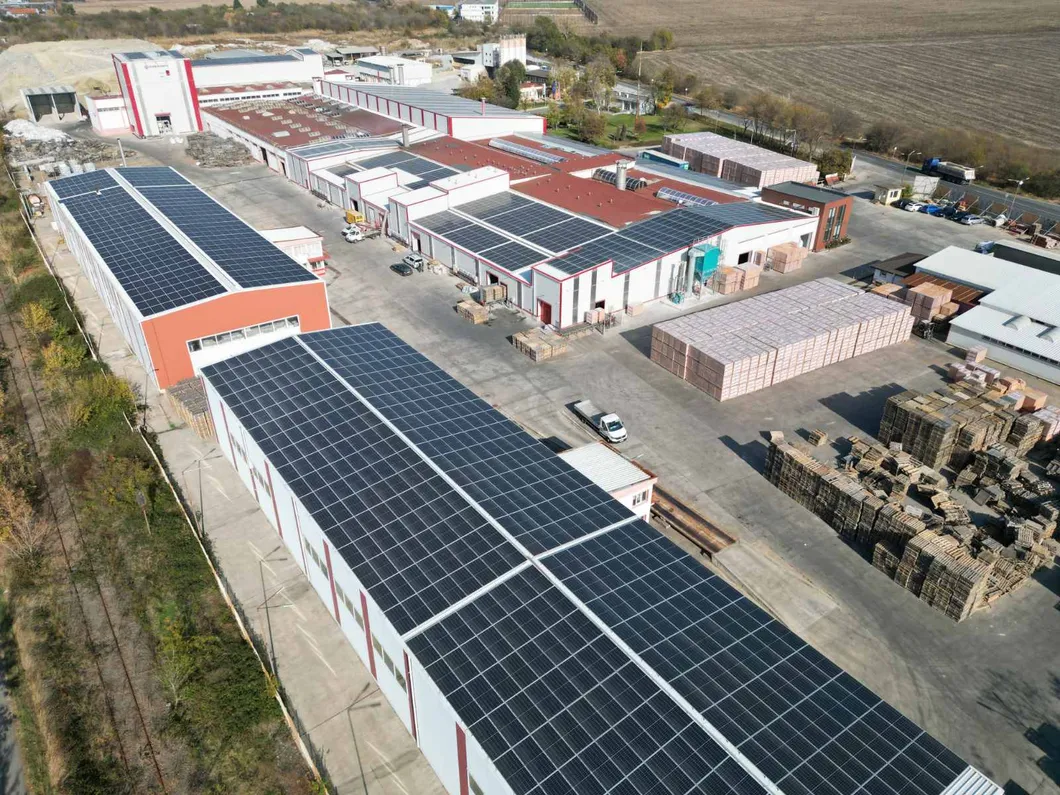

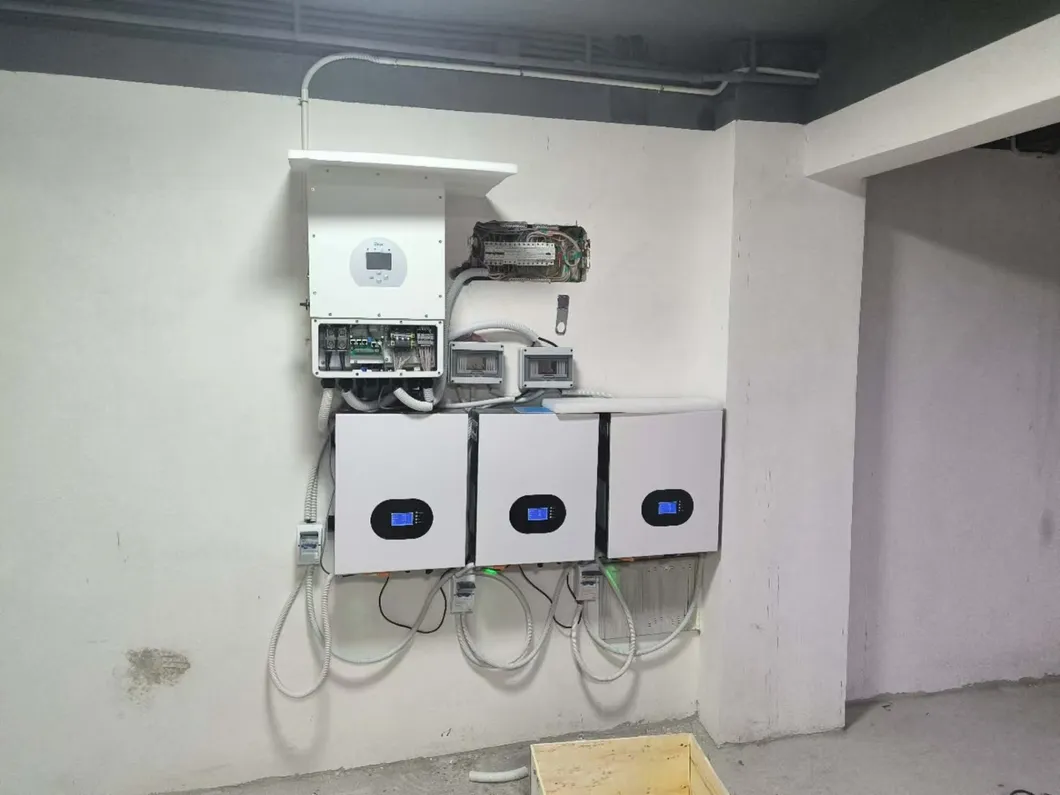

Project 1 Project 2 Project 3 Project 4
Frequently Asked Questions
What is the range of products you offer?
We offer a complete range of solar energy solutions, including solar panels, high-voltage lithium battery systems, inverters, powerwalls, and mounting accessories.
Do you provide customization (OEM) services?
Yes, we provide professional OEM services and can support field installation to meet specific project requirements.
How is the quality of the battery systems ensured?
Quality is our priority. We utilize fully automatic production lines with advanced equipment and a dedicated QC team that inspects every unit before packaging.
What are the advantages of your stackable battery design?
The modular stackable design allows for easy expansion from 15kWh up to 40kWh, offering a smaller footprint and easier installation for home energy storage.
What is the lifespan of these lithium batteries?
Our LiFePO4 battery systems are designed for high durability, offering a cycle life of over 6,000 times at 25°C.
How can I receive technical support for my order?
You can reach out via inquiry email or online chat. Our technical sales team is available to provide immediate assistance and comprehensive after-sales support.
