| DC Part | |
| Cell Type | LFP 3.2V/280Ah |
| PACK | 17.92kWh/1P20S |
| Battery System | 215kWh/1P240S |
| Voltage Range | 672~864Vdc |
| Rated Voltage | 768Vdc |
| AC Part | |
| Rated Power | 100kW |
| Max. Power | 110kW (60s) |
| THDi | < 3% |
| DC Ratio | < 0.5%Ipn |
| Nominal Voltage | 400Vac |
| Power Factor | -1 lagging~1 leading |
| Nominal Frequency | 50/60 Hz |
| General | |

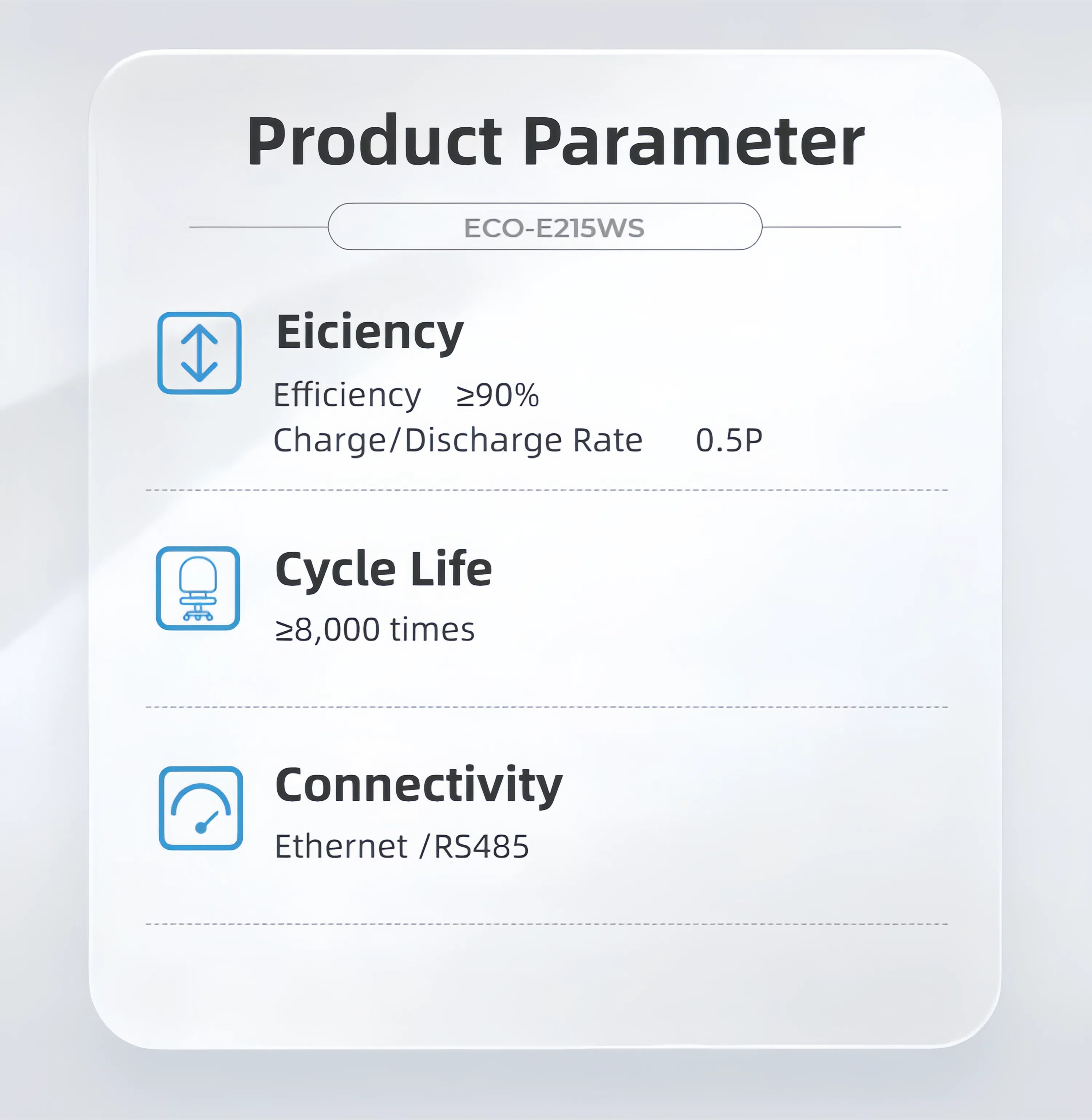

| Efficiency | ≥90% |
| Charge/Discharge Rate | ≤0.5P |
| DoD | 95% |
| Cycle Life | ≥8,000 times |
| Switching Time | < 100ms |
| Connectivity | Ethernet / RS485 |
| Ingress Rating | IP55 |
| Cooling | Forced Air Cooling |
| Operating Temperature | -25℃ ~ 55℃ |
| Humidity | 0-95%RH, non-condensing |
| Noise | ≤75dB |
| Altitude | ≤2,000m (derating above 2,000m) |
| Fire Safety | Aerosol + Active Warning |
| Dimensions (W*D*H) | 1,250*1,300*2,400 (mm) |
| Weight | 2,500kg |
| Compliance | UN38.3, IEC61619, UL1973, UL9540 and CE-EMC |

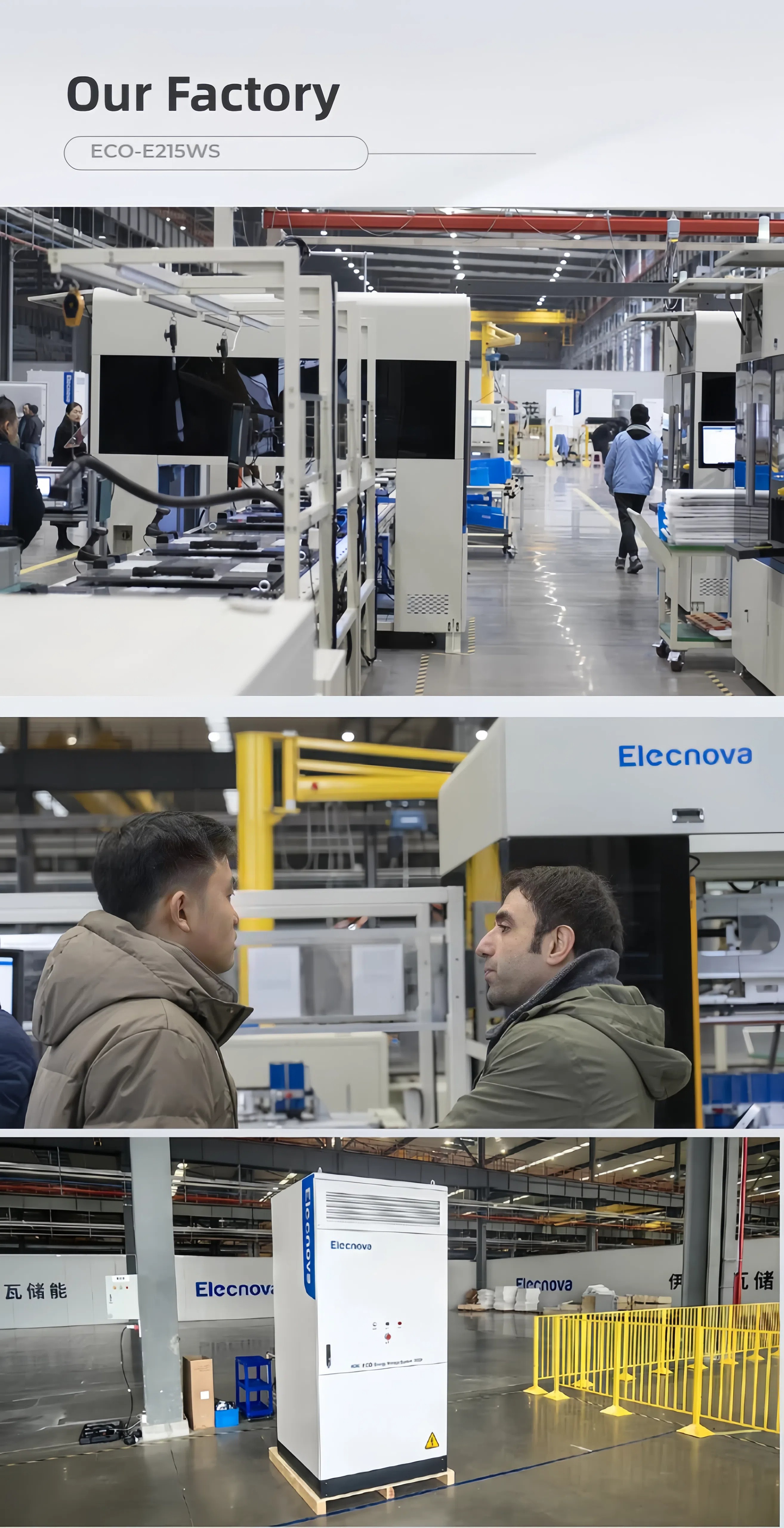

We are a technology-based enterprise focusing on overall solutions for energy storage systems. Our team has the overall supporting capability for the system integration of PACK, PCS, and BMS. We aim to meet the diversified energy requirements of segmented markets and customers, with products at the core and quality as the cornerstone. We are committed to providing high-quality customized products and services in various energy consumption scenarios on the power generation side, grid side, and user side.
