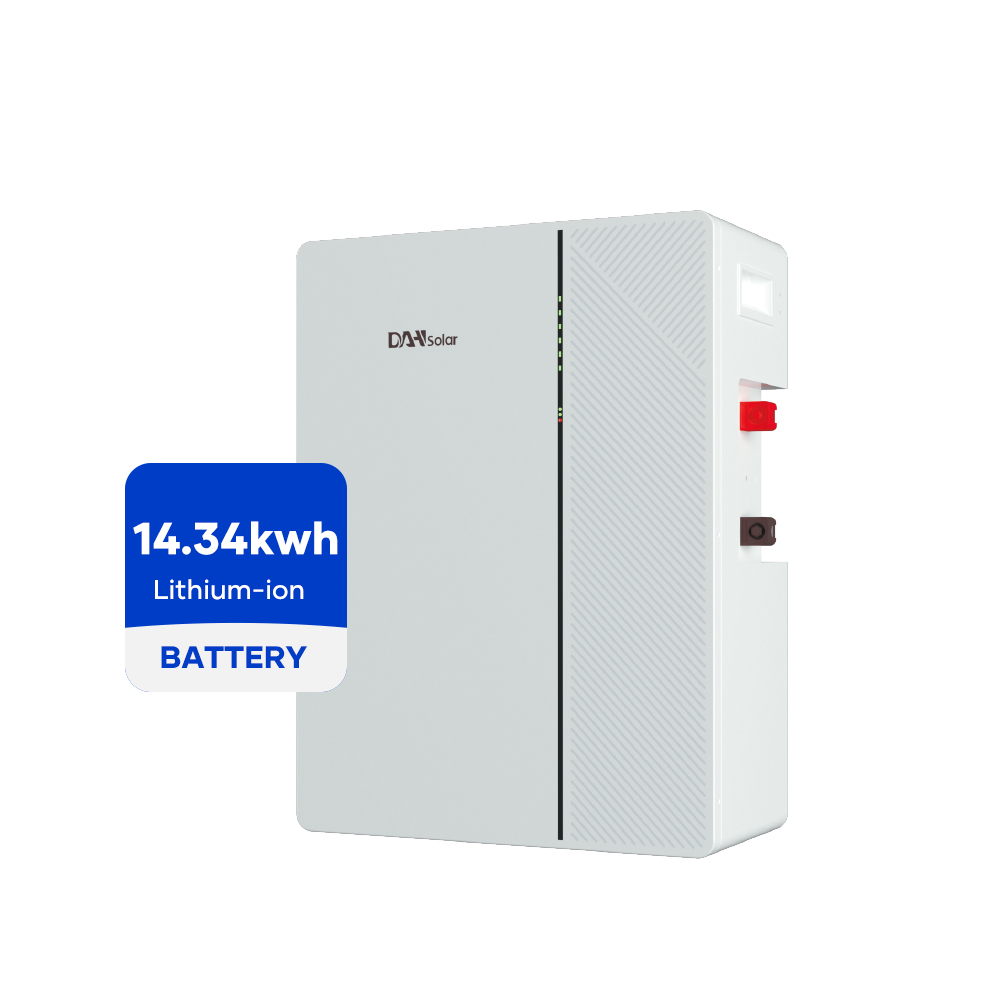

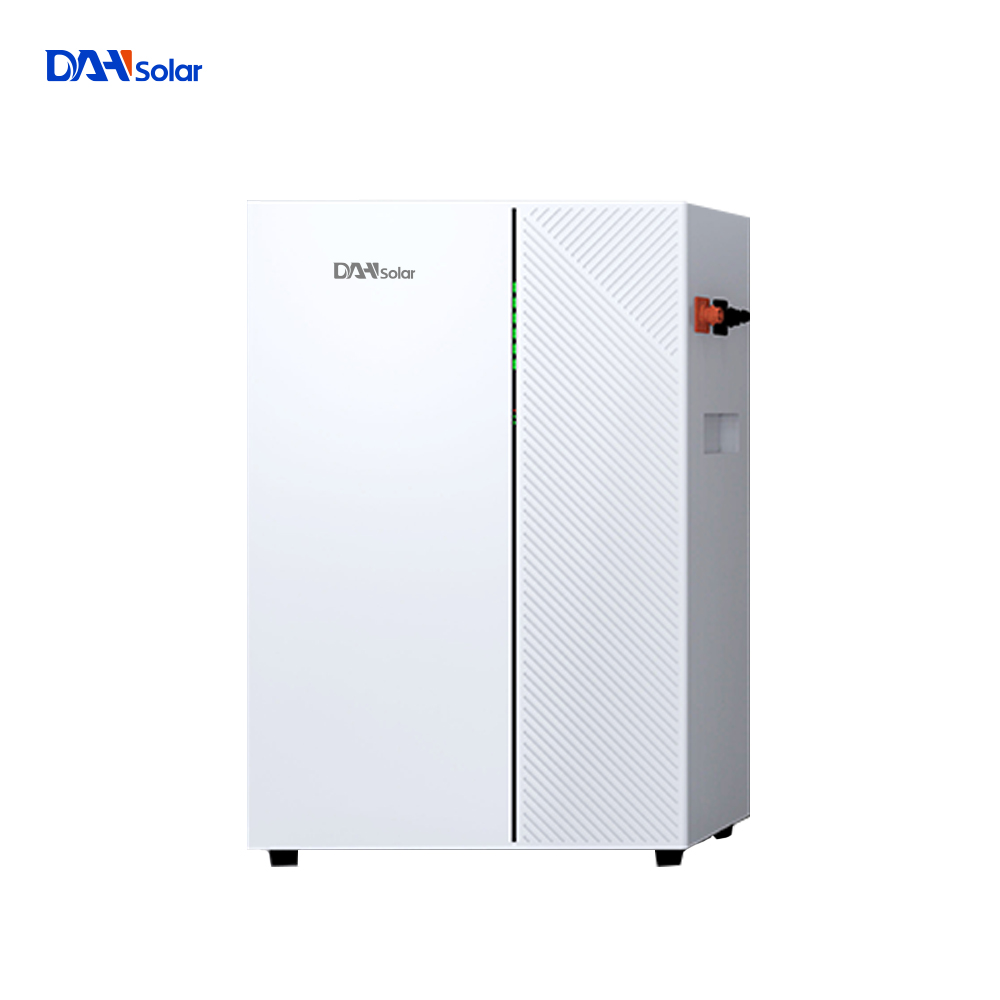

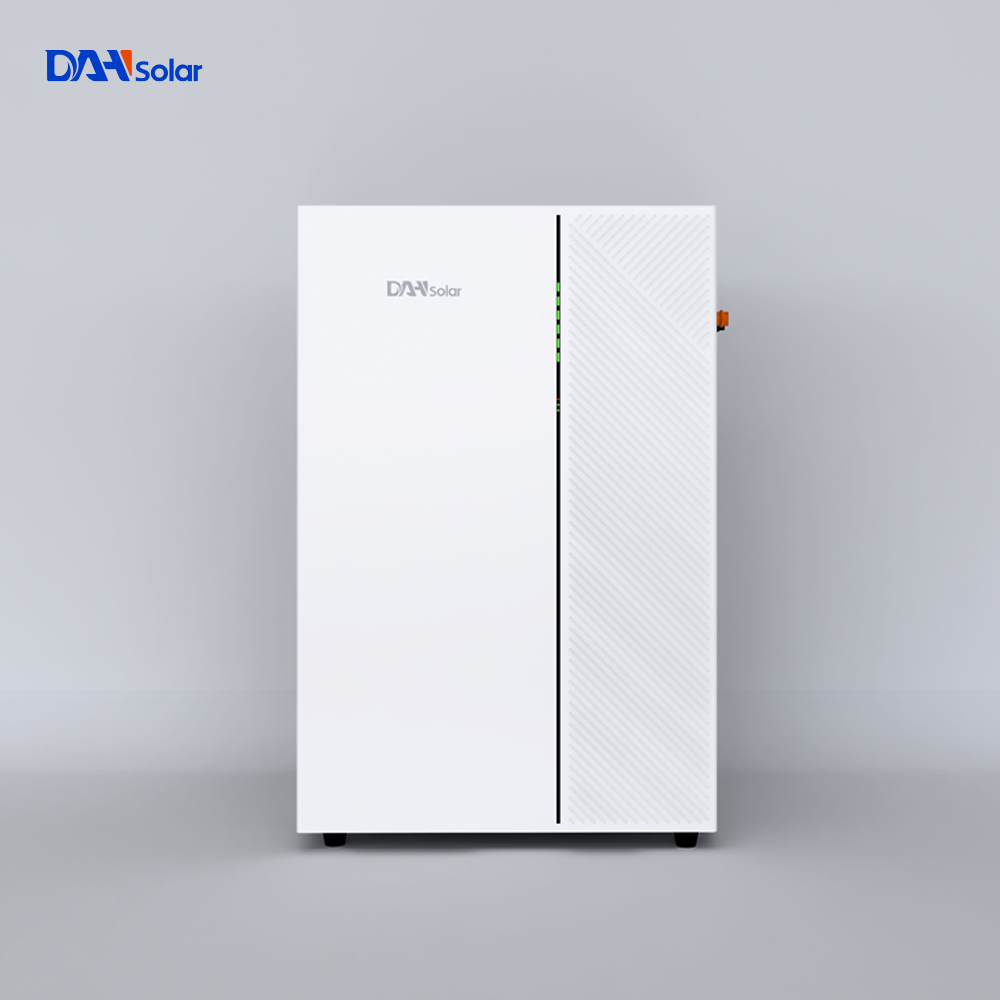

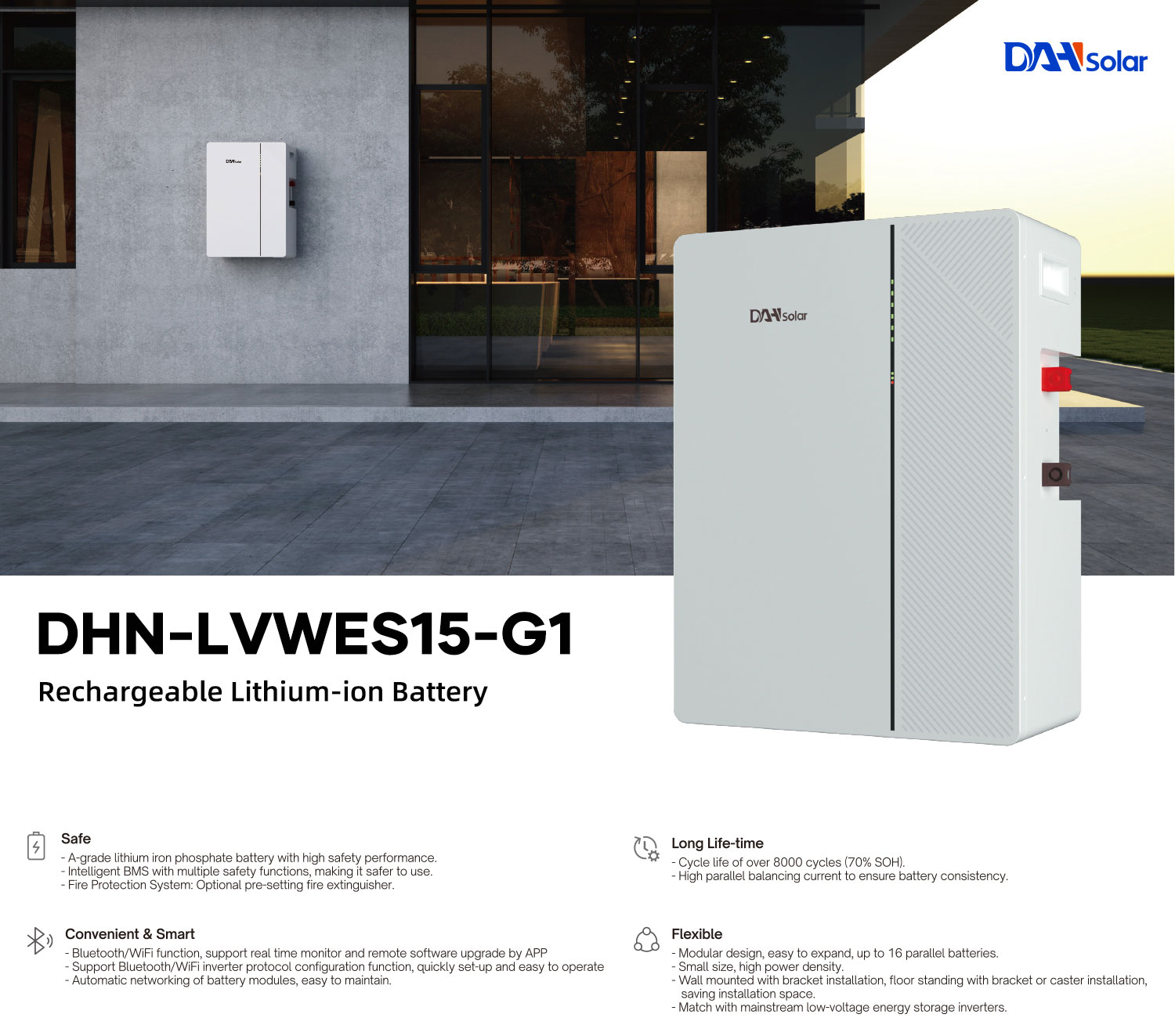

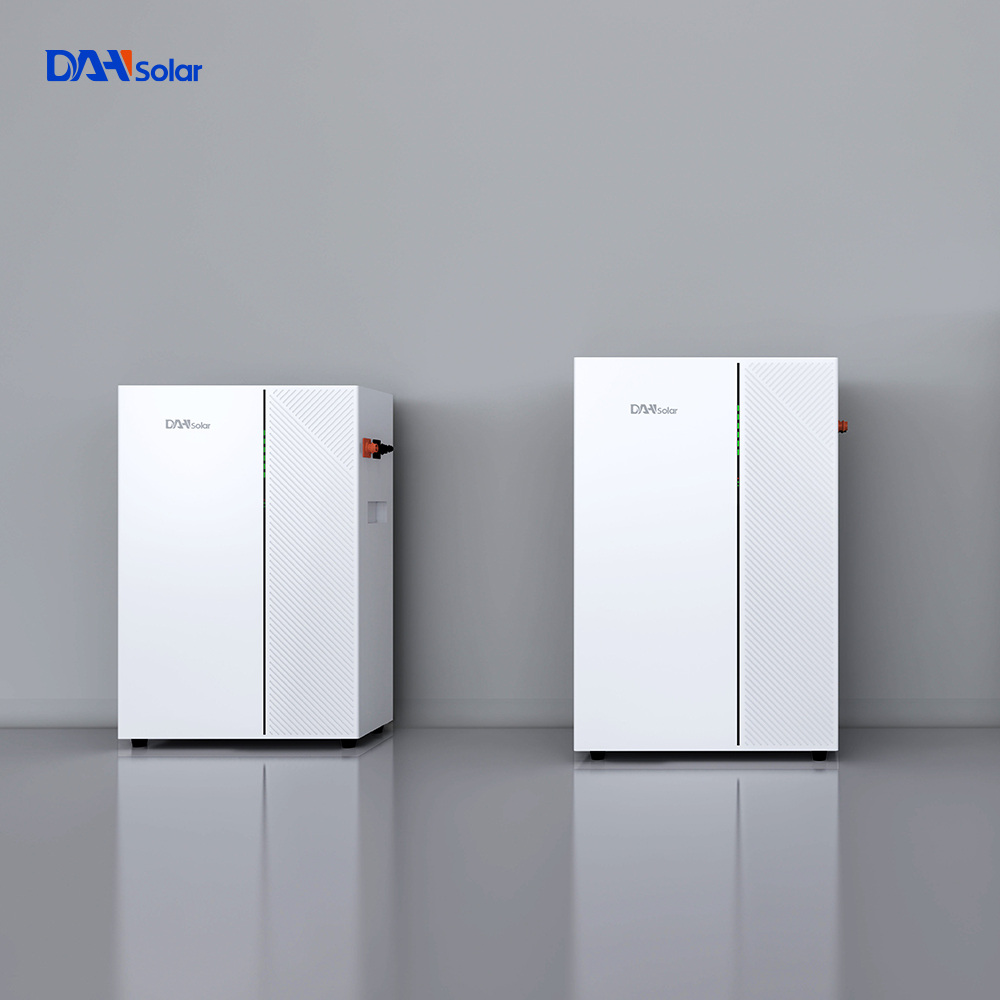

| Model | DHN-LVWES15-G1 |
| Main Parameter | |
| Battery Type | LiFePO4 |
| Battery Rated Energy (kWh) | 14.34 |
| Battery Rated Capacity (Ah) | 280 |
| Scalability | Parallel connection of up to 16 units |
| Nominal Voltage (V) | 51.2 |
| Operating Voltage (V) | 43.2 ~ 57.6 |
| Charge/Discharge Current (A) - Recommend | 140 |
| Charge/Discharge Current (A) - Max. | 200 |
| Other Parameter | |
| Recommend Depth of Discharge (%) | ≤90 |
| System Dimension (W/D/H, mm) | 520x680x232 |
| System Weight (kg) | 114 |
| Master LED Indicator | 6LED (SOC:16.6%~100%), 3LED (ON/OFF, RUN, ALARM) |
| IP Rating of Enclosure | IP20 |
| Operating Temperature (°C) | Charge: 0~55 / Discharge: -20~55 |
| Storage Temperature (°C) | -20~35 |
| Humidity (%) | 5~95 |
| Altitude (m) | ≤2000m |
| Cycle Life (25±2°C, 0.5C/0.5C, 70%EOL) | ≥8000 |

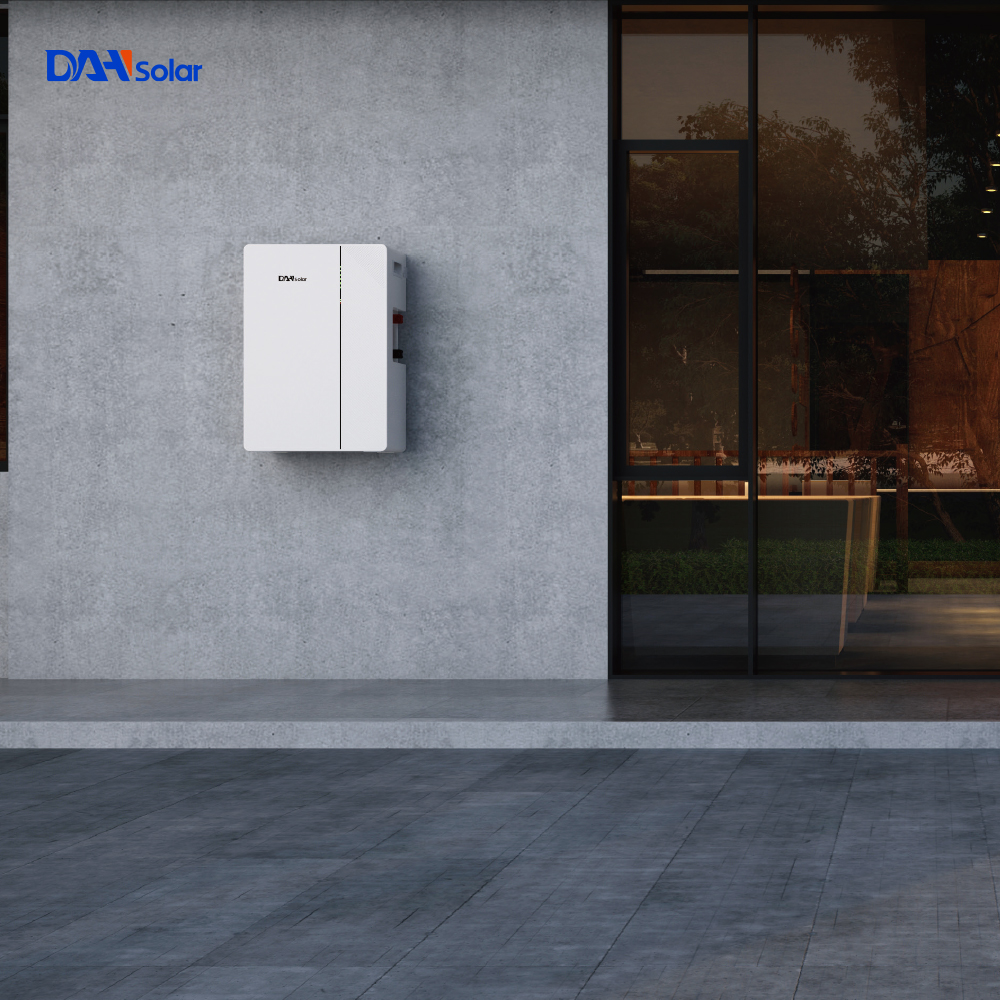

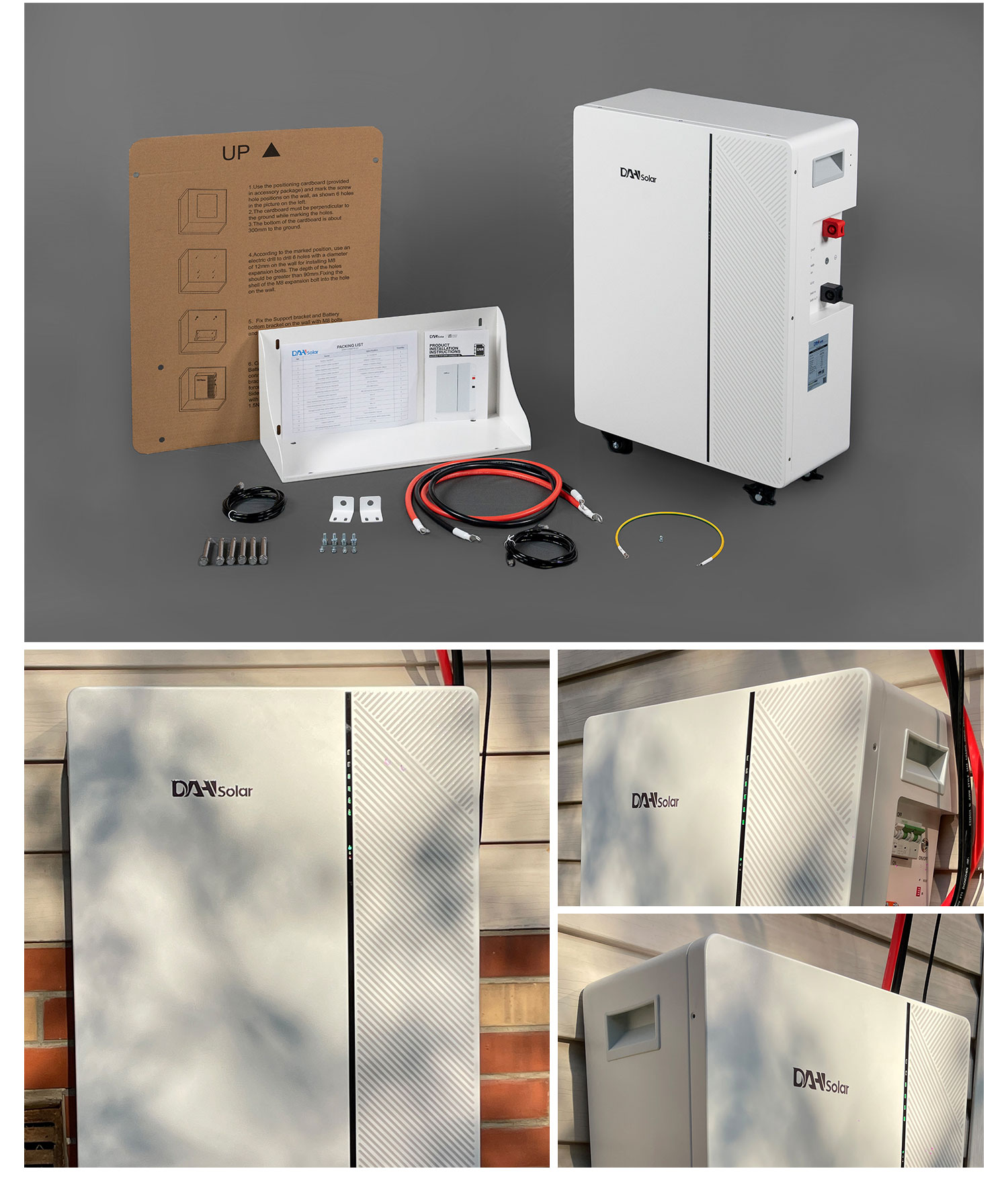

| Installation | Floor-Mounted / Wall-Mounted (optional wheel) |
| Fire Prevention System | Prefabricated whole fluorine ketone fire extinguishing device (optional) |
| Communication Methods | CAN2.0 / RS485 |
| Warranty Period (years) | 10 |
| Certification | IEC62619-CB, CE, UN38.3 |
| Compatible Inverters | SMA / VICTRON / SE / DEYE / SOLIS / GOODWE / GROWATT / LUXPOWERTEK / SENERGY / SRD etc |
We are a leading manufacturer and global exporter specializing in advanced solar energy storage products. With a strong commitment to innovation, sustainability, and quality, we empower homes, businesses, and communities worldwide to harness the full potential of solar energy. Our cutting-edge energy storage solutions are designed to meet the growing demand for reliable, efficient, and eco-friendly power systems in an increasingly energy-conscious world.
Our mission is to drive the global transition to renewable energy by providing state-of-the-art energy storage solutions that optimize solar energy storage. We aim to make clean energy accessible, affordable, and reliable for everyone, contributing to a greener and more sustainable future.
We specialize in the design, development, and production of high-performance lithium-ion batteries tailored for solar energy storage applications. Our product portfolio includes:
As the world shifts toward renewable energy, we are committed to being a key player in the solar energy storage revolution. We envision a future where clean, reliable, and affordable energy is accessible to all, and we are dedicated to making this vision a reality through continuous innovation, strategic partnerships, and a relentless focus on customer satisfaction.
Join us in powering a sustainable future. The energy of tomorrow is within reach today.
This energy storage system uses high-performance LiFePO4 (Lithium Iron Phosphate) battery chemistry, which is renowned for its safety, thermal stability, and long cycle life.
Yes, the system is highly scalable. You can connect up to 16 units in parallel to expand your total capacity as needed.
The system features an exceptional cycle life of ≥8,000 cycles (measured at 25±2°C, 0.5C charge/discharge rates, and 70% End of Life), ensuring long-term reliability.
It is compatible with most leading hybrid and off-grid inverters, including SMA, Victron, SE, Deye, Solis, GoodWe, Growatt, Luxpowertek, Senergy, SRD, and other major brands.
The product comes with a comprehensive 10-year warranty, reflecting our confidence in the build quality and service life of our storage components.
Yes. For added safety, the system offers an optional prefabricated whole fluorine ketone fire extinguishing device that can be integrated inside the enclosure.
