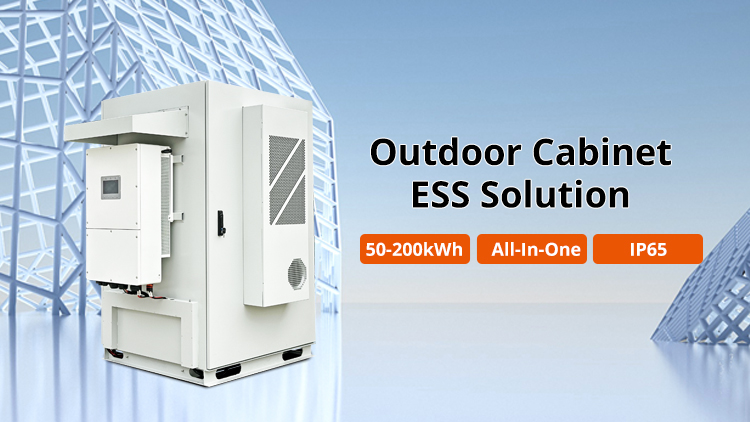

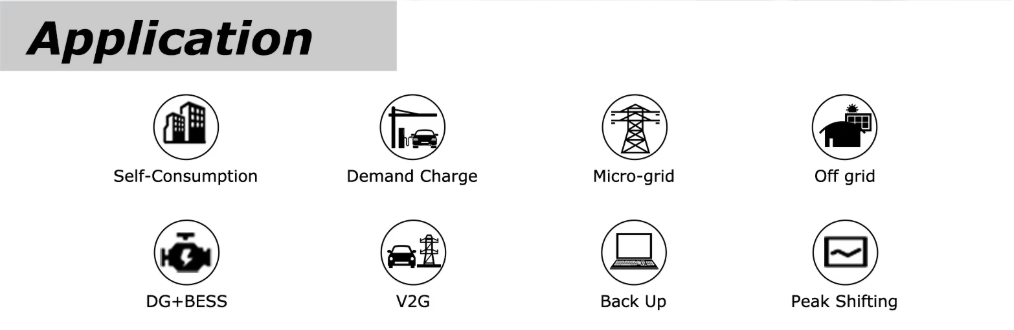

The air cooling outdoor cabinet-on/off grid machine integrates energy storage batteries, PCS, EMS, DCDC, air conditioning and fire protection systems. Suitable for various application scenarios, and can be widely applied in small-scale commercial and industrial enterprises, hospital buildings, residential energy storage, etc. Equipped with features such as peak shaving, self-consumption, dynamic scaling, and planned curve response.

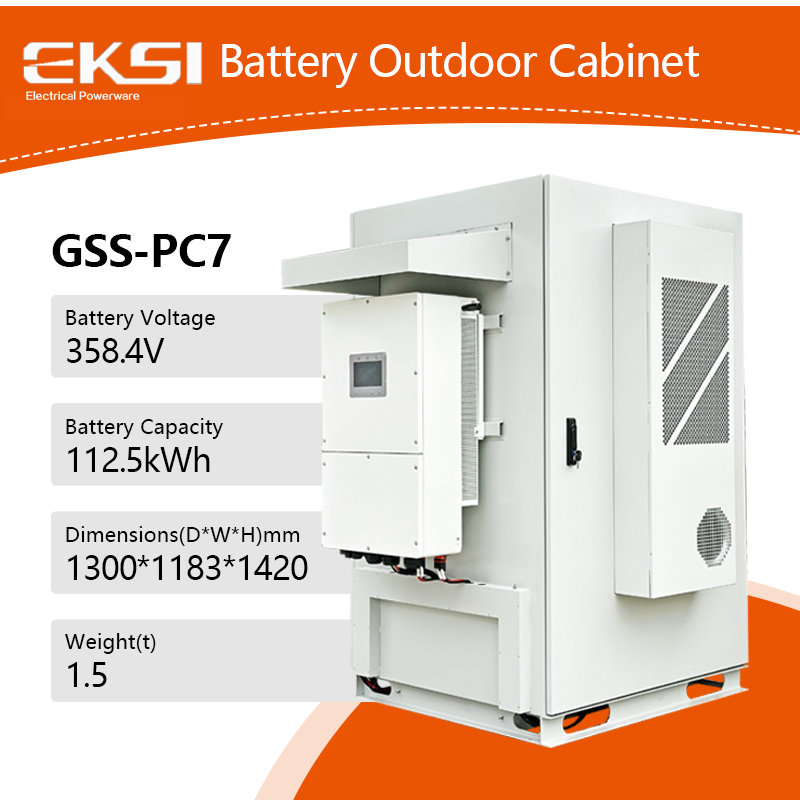

| Model | GSS-PC4 | GSS-PC5 | GSS-PC6 | GSS-PC7 | GSS-PC8 | GSS-PC9 |
|---|---|---|---|---|---|---|
| Cell Parameters | ||||||
| Cell type | Lithium Iron Phosphate Cell | |||||
| Cell specification | 3.2V 314Ah | |||||
| PACK Parameters | ||||||
| Combination method | 16S1P | |||||
| Rated voltage (V) | 51.2 | |||||
| Operating voltage (V) | 48~56.8 | |||||
| Rated electric energy (kWh) | 16 | |||||
| Standard charge /discharge power | 0.5P | |||||
| System Composition | ||||||
| System composition | 4pack | 5pack | 6pack | 7pack | 8pack | 9pack |
| Rated voltage (V) | 204.8 | 256 | 307.2 | 358.4 | 409.6 | 460.8 |
| Operating voltage (V) | 192~227.2 | 240~284 | 288~340.8 | 336~397.6 | 384~454.4 | 432~511.2 |
| Rated electric energy (kWh) | 64.3 | 80.4 | 96.5 | 112.5 | 128.6 | 144.7 |
| Maximum charge /discharge Rate | Protection&General parameter | |||||
| Dimension (D*W*H)mm | 1300*750*1650 | 1300*750*1905 | 1300*750*2160 | 1300*1163*1395 | 1300*1163*1650 | |
| Weight(t) | 0.9 | 1.0 | 1.1 | 1.5 | 1.7 | 1.8 |
| DC overcurrent protection | Yes | |||||
| DC short circuit protection | Yes | |||||
| DC overvoltage protection | Yes | |||||
| Over temperature protection | Yes | |||||
| Fire protection | Aerosol/Perfluorohexanone (Optional) | |||||
| Incoming line method | Side connection | |||||
| Environmental temperature(℃) | -20~50 (De-rating power from 45) | |||||
| Charging temperature(℃) | 0~50 | |||||
| Discharging temperature(℃) | -10~60 | |||||
| Environmental humidity(%RH) | <95%RH, Non-condensing | |||||
| Working altitude(m) | 5000 (Reduce capacity for use above 2000 meters) | |||||
| Protection level | IP54 (Key Device IP65) | |||||
| Cooling method | Industrial air conditioning | |||||
| Note: The actual product shall prevail. Parameters are subject to modification without prior notice. | ||||||

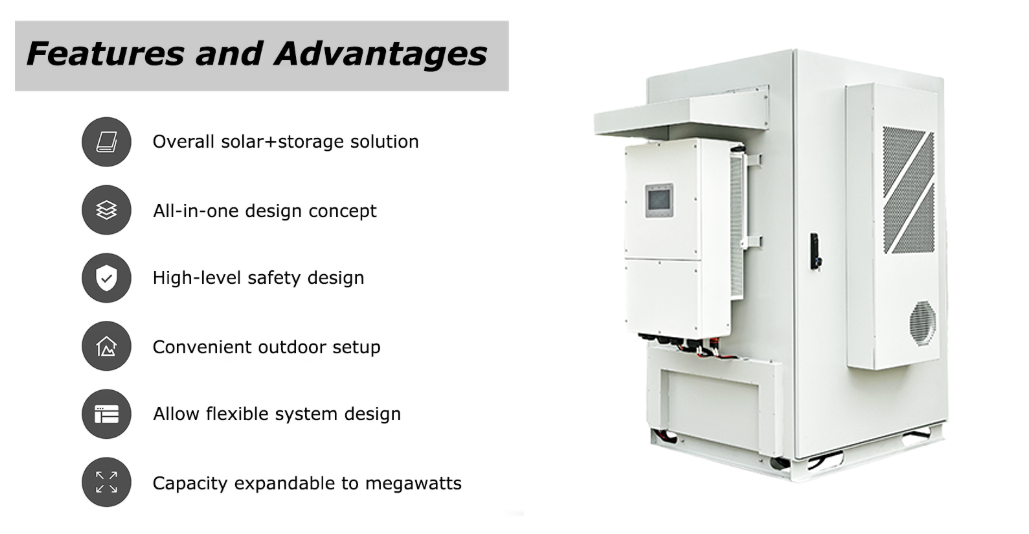

It has the characteristics of waterproof, dustproof, sun-proof, and corrosion-resistant. It can operate stably for a long time in high temperature, humid, dusty and other outdoor environments, protecting the battery from external erosion.
Fireproof materials or heat-insulating structures are usually used to reduce the risk of fire caused by battery overheating or short circuit; some products are equipped with anti-theft locks or intelligent monitoring systems to improve safety.

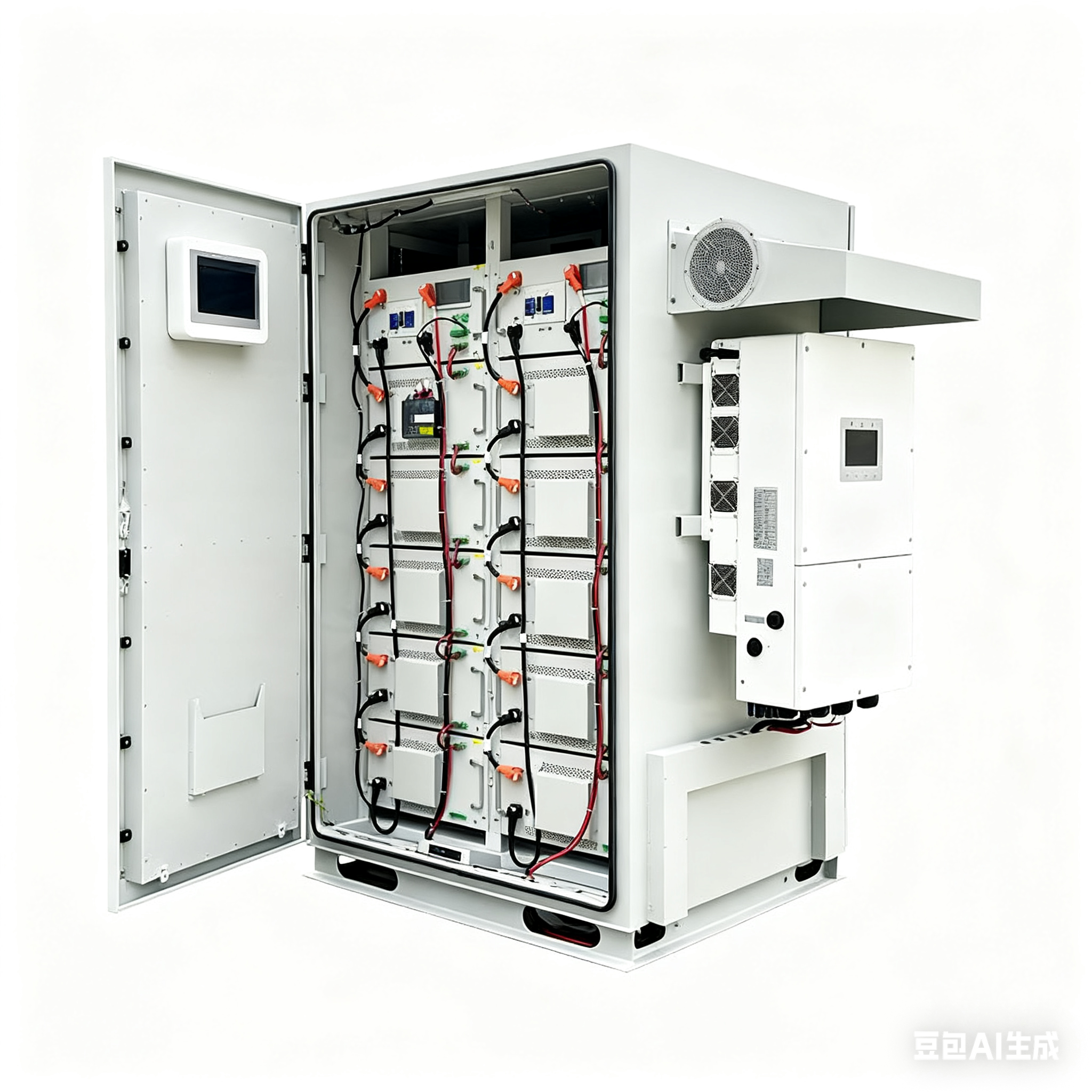

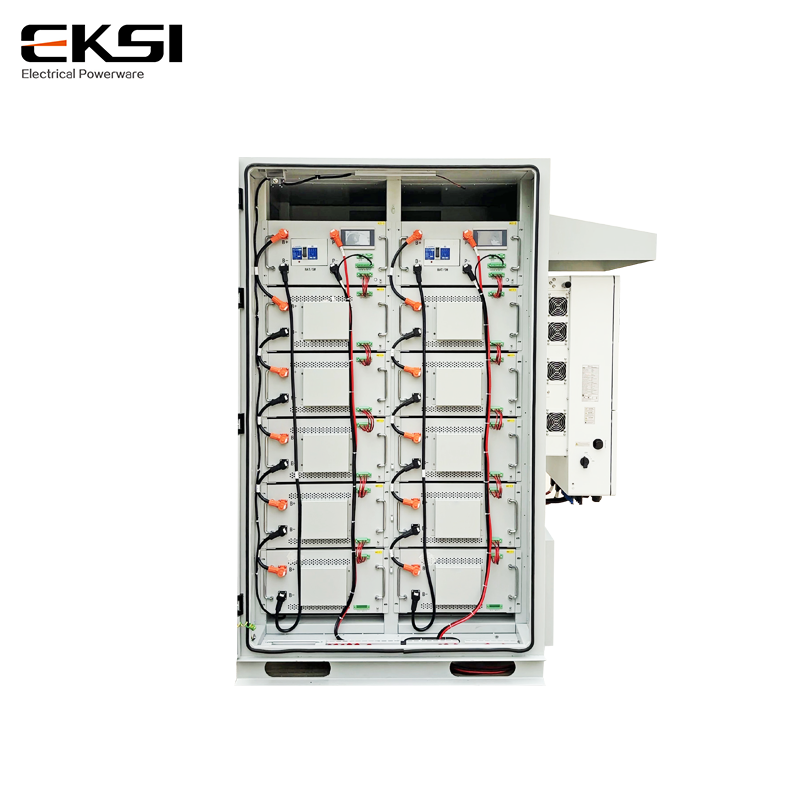

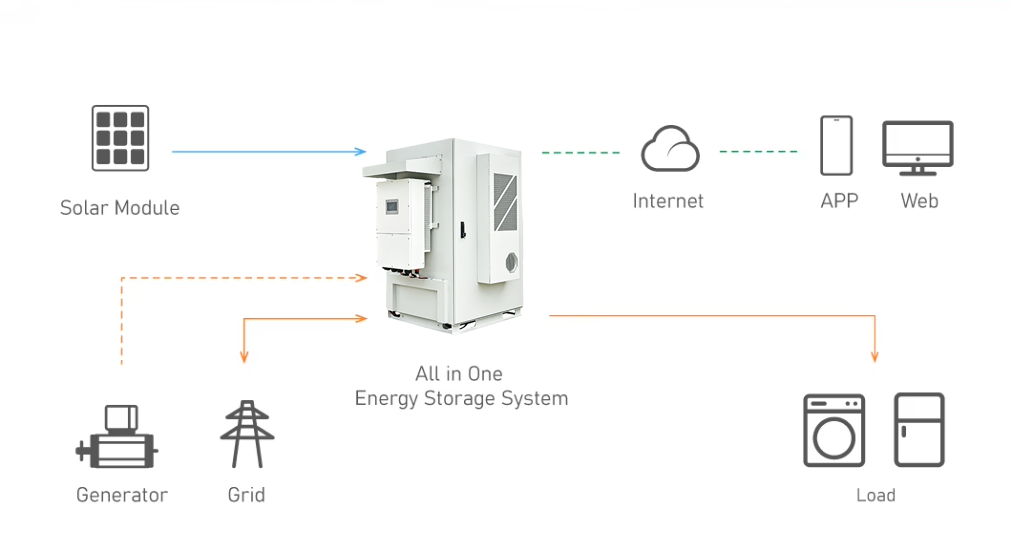

Supports flexible combination of multiple battery packs to meet different capacity requirements; reserved interfaces are convenient for later upgrades or connection to other devices (such as solar panels, inverters, etc.).

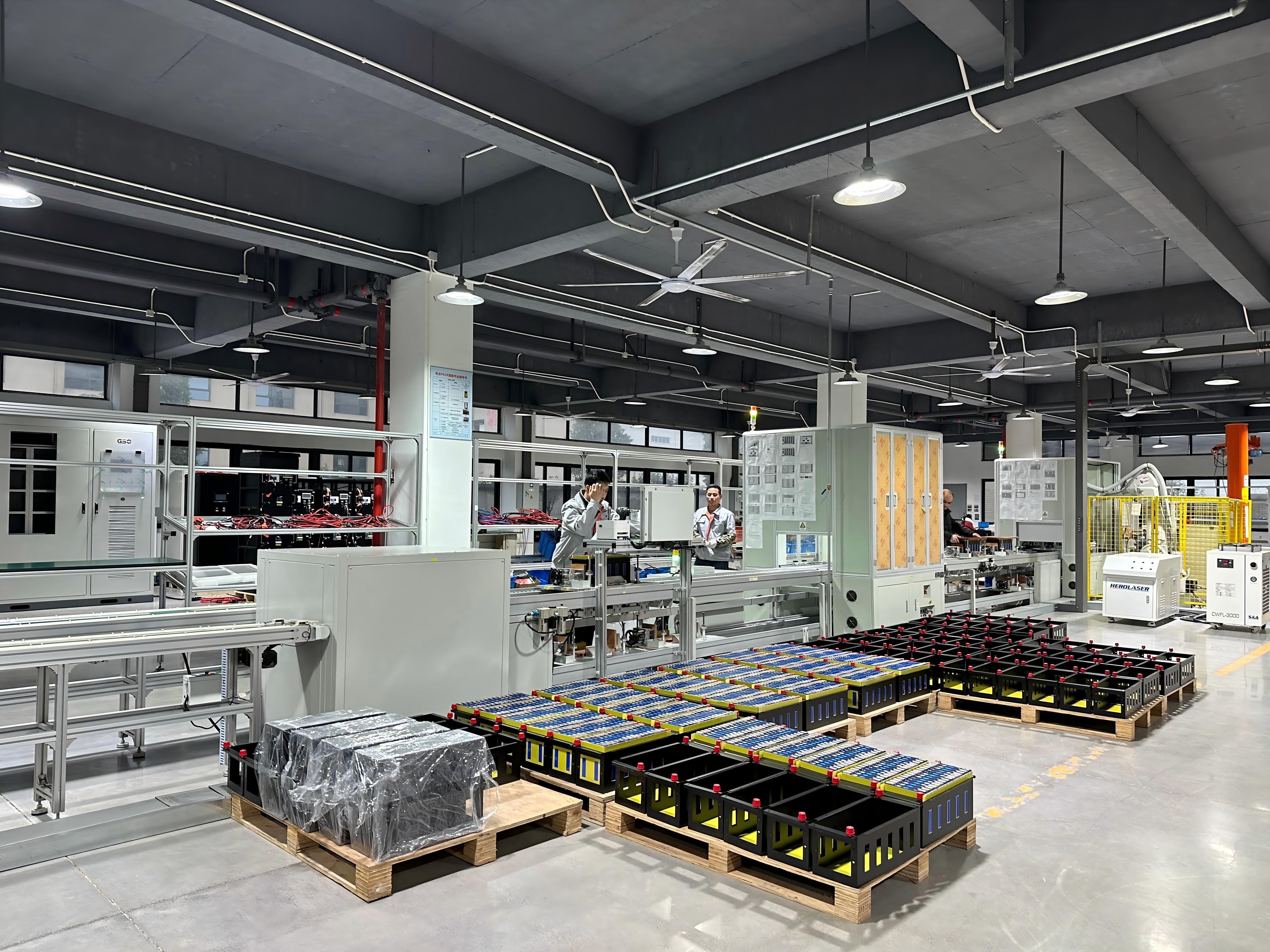

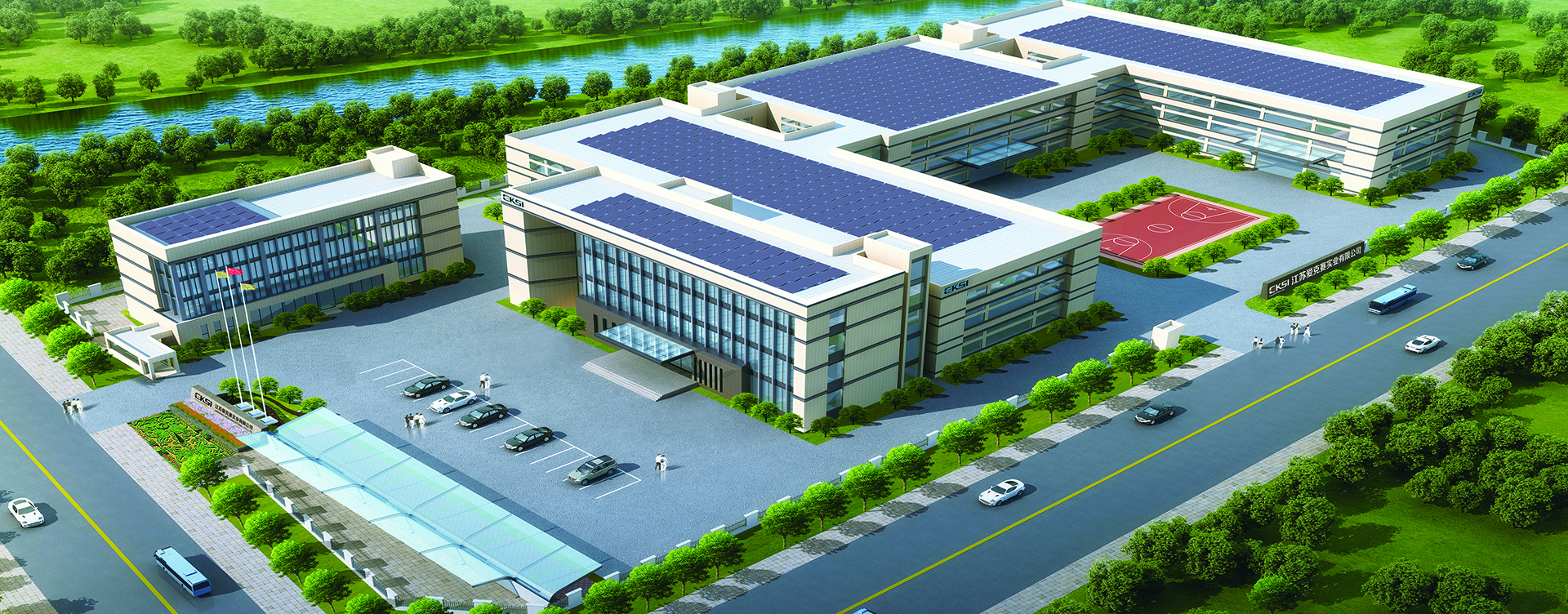

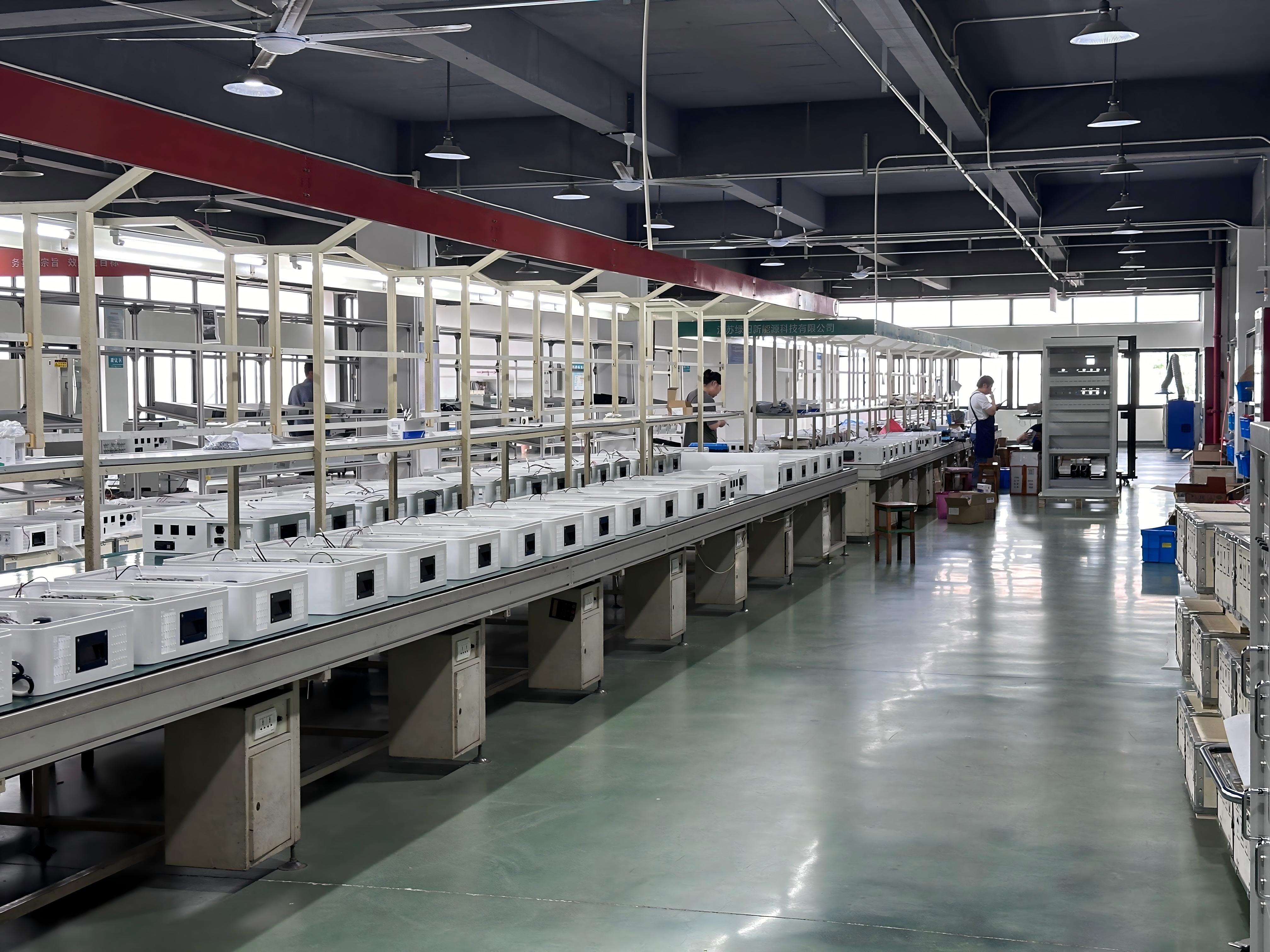

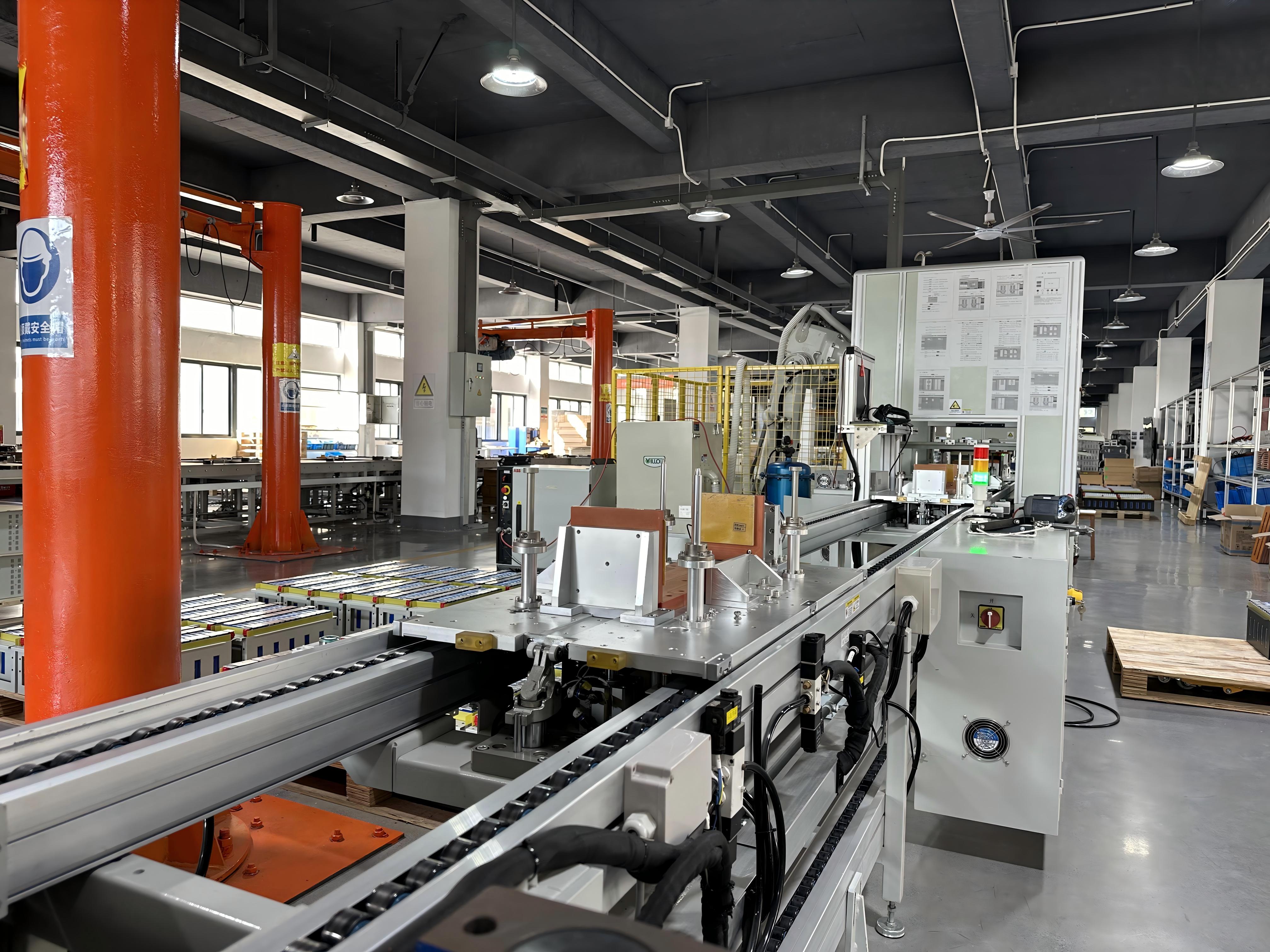

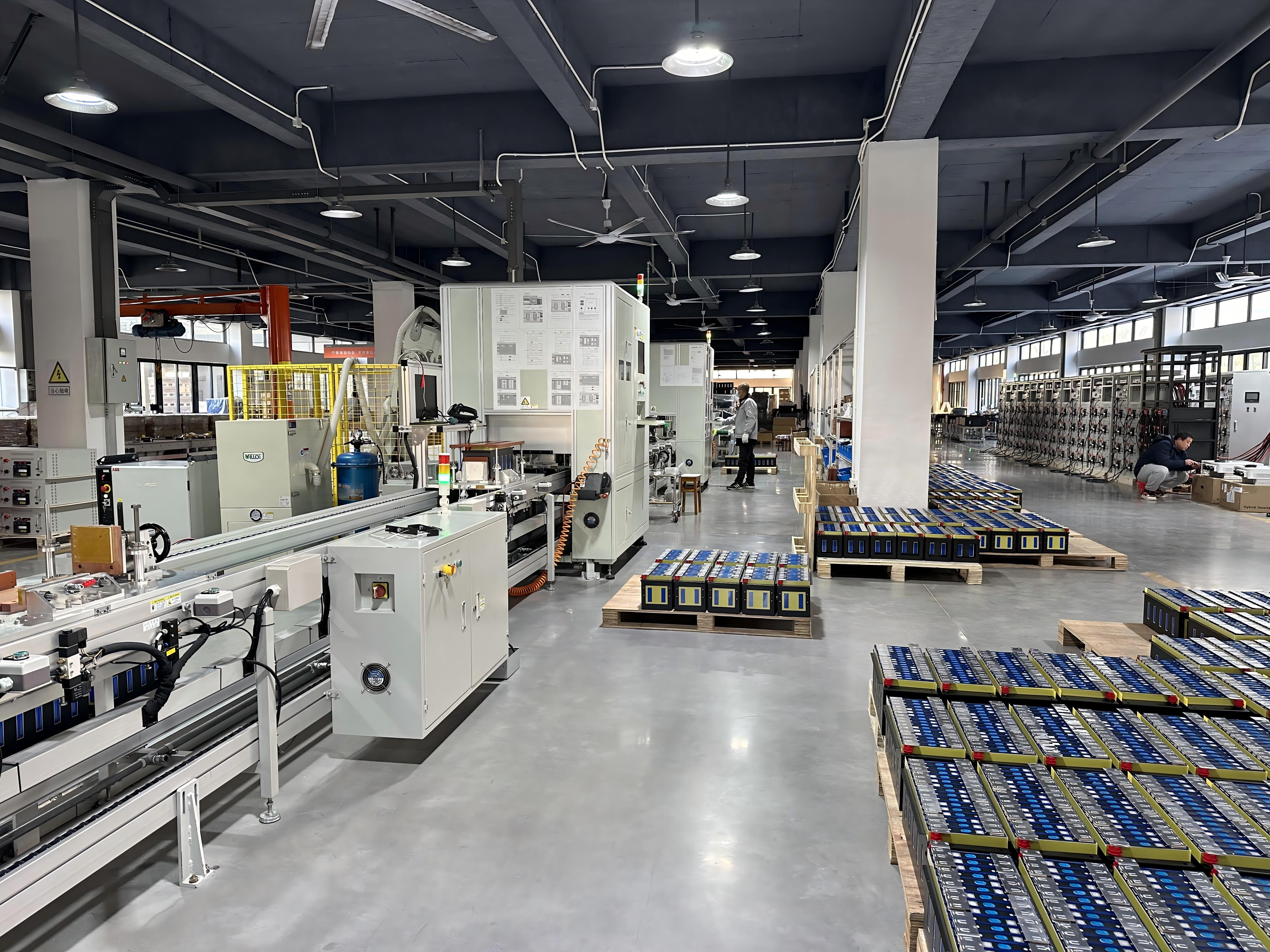

The in-house manufacturing facility has long been certified as a National High-Tech Enterprise in China. Its core products include residential energy storage systems, commercial and industrial energy storage systems, mobile energy storage systems, hybrid inverters, energy storage converters, and smart energy operation and maintenance services. We deliver comprehensive photovoltaic and energy storage solutions tailored for diverse scenarios, including renewable power generation in mountainous regions and islands, hybrid solar-storage-diesel microgrids, commercial and industrial parks, charging stations, data centers, and communication base stations.
Driven by technological innovation, long-term strategic partnerships have been established with over ten renowned universities, founding the "Provincial Engineering Research Center for Solar Energy and Grid-Connected/Off-Grid Inverters." It stands as one of the few new energy technology enterprises achieving complete independent R&D in energy storage converters, hybrid inverters, and energy storage system integration. The company has secured multiple national patents and software copyrights in the new energy sector. The company has successively obtained ISO9001 Quality Management System Certification, ISO5001 Energy Management System Certification, ISO14001 Environmental Management System Certification, ISO45001 Occupational Health and Safety Management System Certification, ISO27001 Information Security Management System Certification, Green Factory Certification, Green Supply Chain Management System Certification, Green Environmental Protection Enterprise Management System Certification, 12-Star Certification for After-Sales Service System Excellence, CE certification, 3C certification, UN38.3 testing, and cargo transport condition appraisal. Its product sales network spans over 120 countries and regions worldwide.
Moving forward, we will remain steadfast in innovation, continuing to drive the advancement of the energy storage industry. Together with global customers and partners, we are committed to building a world powered by green energy.
The system features modular composition options ranging from 4pack to 9pack setups, with rated voltages ranging from 204.8V up to 460.8V, and rated electric energy capacities stretching from 64.3 kWh to 144.7 kWh.
The system is built using premium Lithium Iron Phosphate (LiFePO4) cells, which provide outstanding thermal stability and life cycles. Specifically, it uses 3.2V 314Ah cell specifications.
It integrates extensive protection circuits, including DC overcurrent, short circuit, overvoltage, and overtemperature protections. For active safety, it utilizes an Aerosol/Perfluorohexanone fire protection system (optional).
The cabinet itself features an IP54 protection level, while the key device parts achieve an IP65 protection rating, making it highly waterproof, dustproof, and sun-proof for demanding outdoor setups.
The system features an operating environmental temperature range of -20°C to 50°C (with de-rating power starting from 45°C). The charging temperature spans 0°C to 50°C, and the discharging temperature spans -10°C to 60°C, managed by industrial air conditioning.
