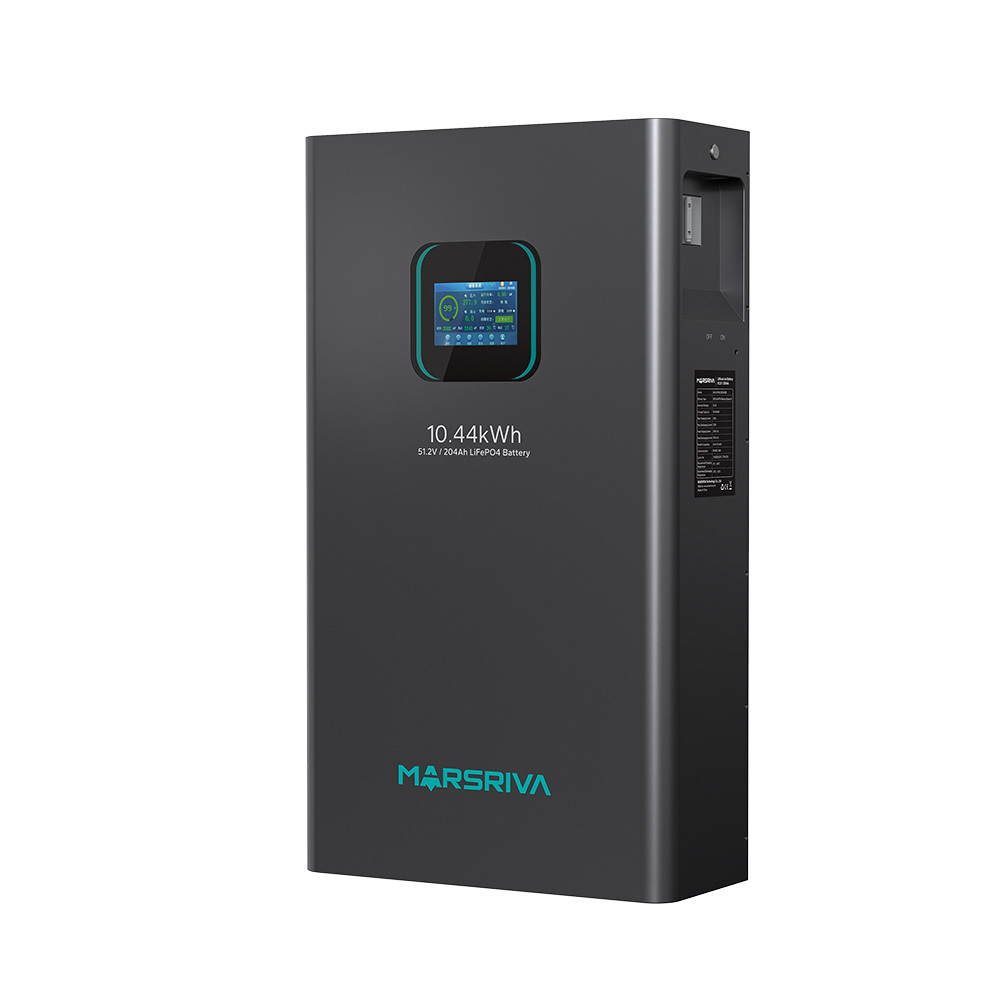

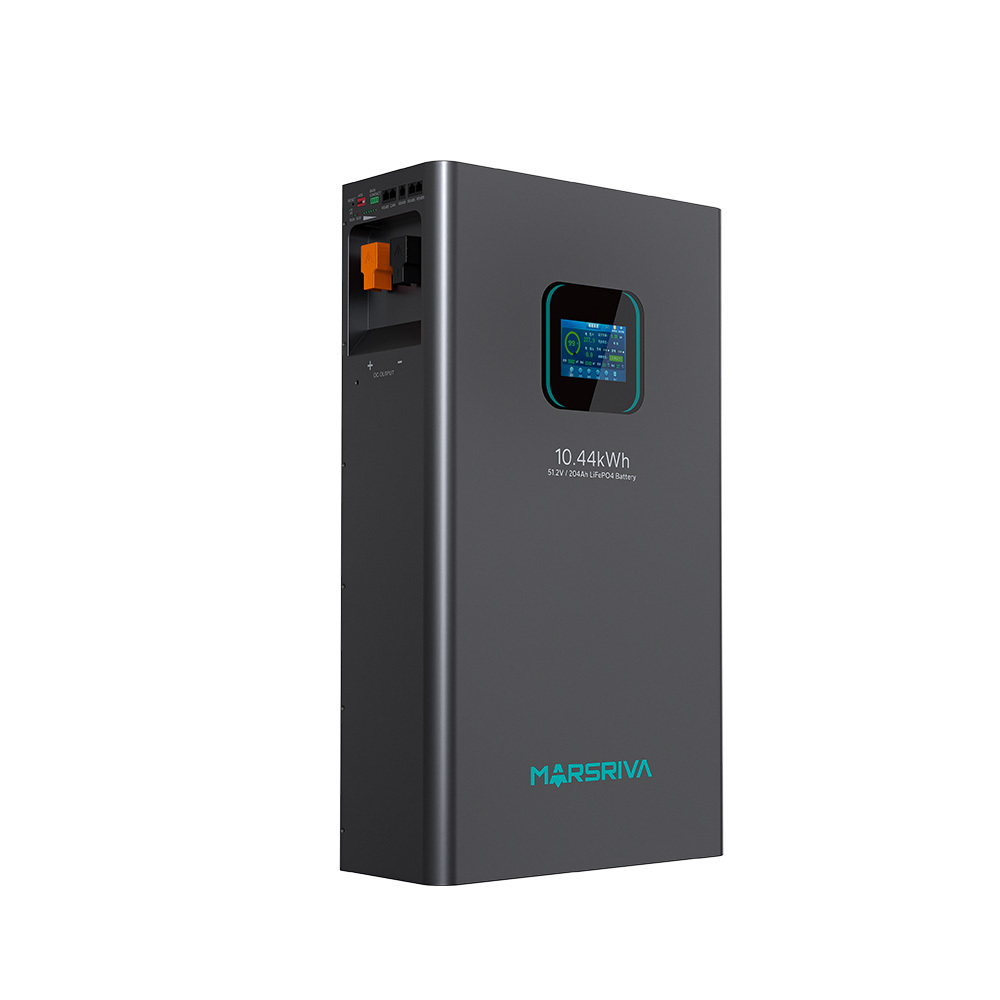

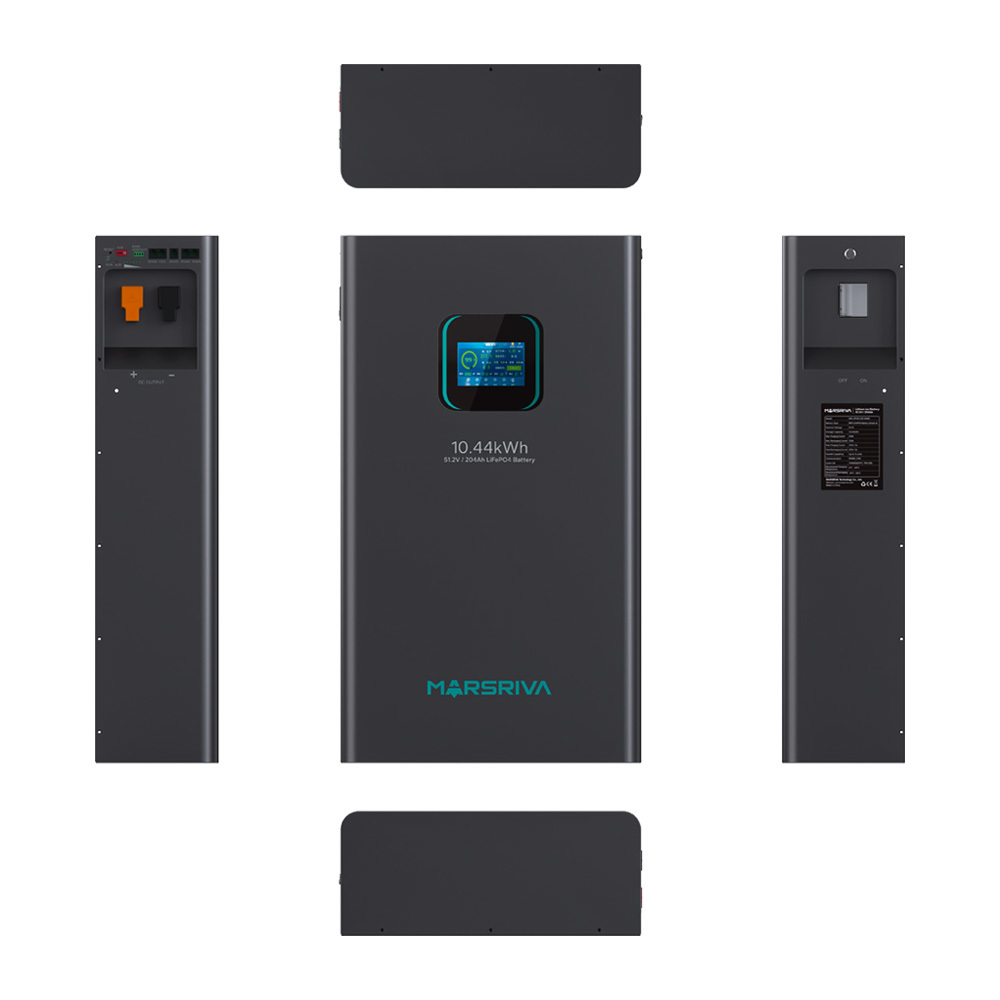

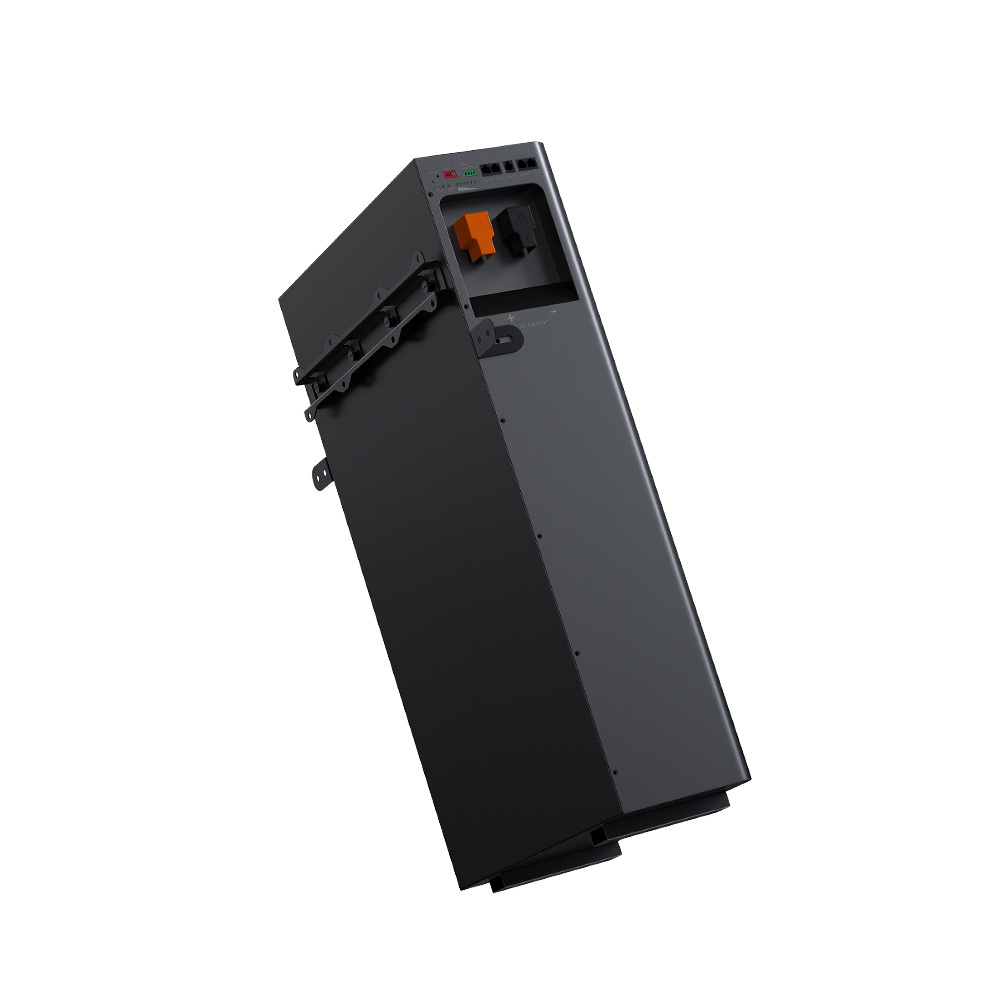

All In One Solar Home Storage Battery (Grade A) 10.44kWh (51.2V / 204Ah) BYD LiFePO4 Battery

Product Description

Products Description

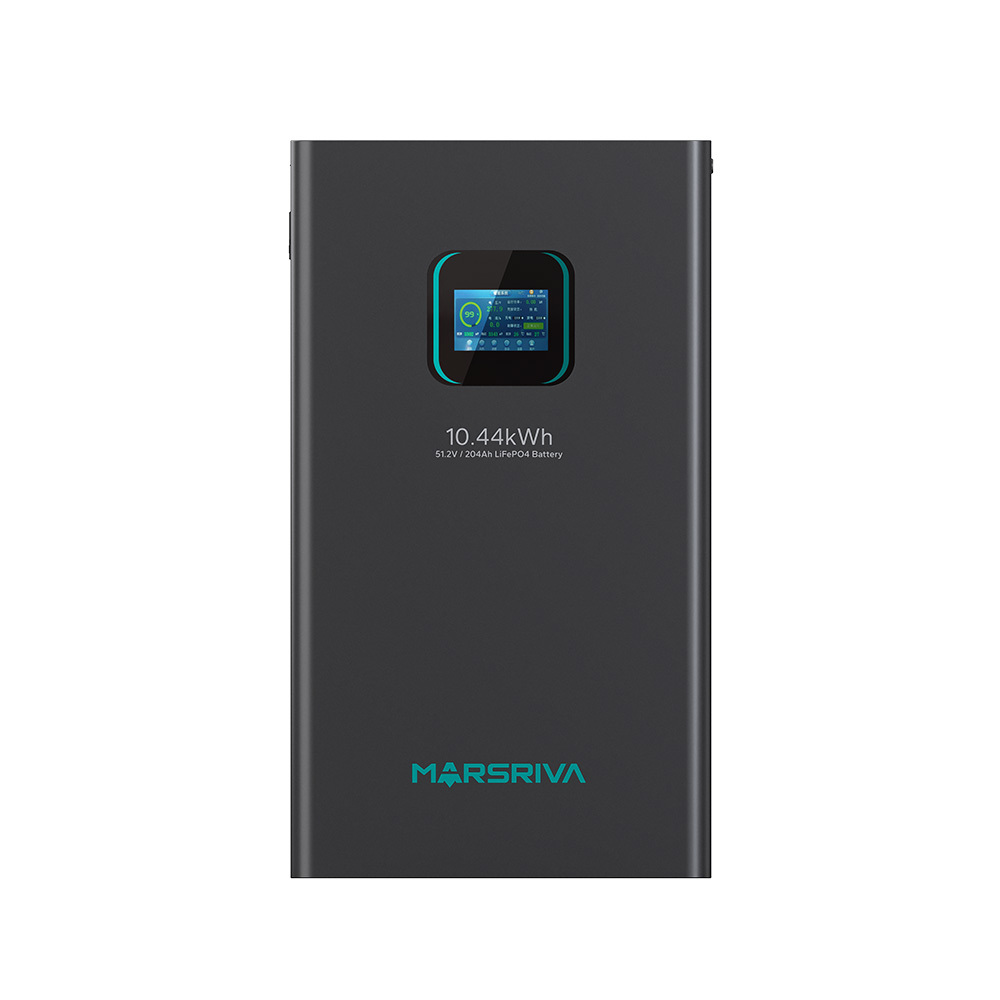

Product Image
Iron phosphate-lithium power battery
High energy density, high capacity, longer discharge time
Support using under wide temperature range, 6000 cycle life
Built-in BMS
Support connected in parallel mode for expansion
Long warranty period
Floor standing or wall mount for simple installation
Constructed with SPCC high-quality cold-rolled steel for robust support
4.3-inch touch screen for easy operation
Specification
MODEL MR-LFP48-200-WMD
Battery Type BYD LiFePO4 Battery (Grade A)
Nominal Voltage 51.2V
Capacity 204Ah
Storage Capacity 10.44kWh
Battery Internal Resistance ≤10mΩ
Cycle Life ≥6000 @25°C, 70% EOL
Design Life ≥10 years
Max. Charging Current 210A
Max. Discharging Current 210A
Peak Charging Current 215A / 2s
Peak Discharging Current 215A / 2s
Communication RS232, RS485, CAN
Number of Parallel Connections Up to 15 units
Charging Temperature 0°C to 60°C
Discharge Temperature -15°C to 55°C
Storage Temperature -30°C to 35°C
Humidity 5% – 95%
Dimension (L*W*H) 847 × 483 × 200mm
Weight Net Weight: 89.3kg (Gross Weight: 104.2kg)
Specifications are subject to change without notice, all product drawings are for reference only.
Why Choose Us
Overview Image
Overview
With a strong emphasis on high-tech product development, efficient production, and rigorous quality management, as a cutting-edge new energy enterprise, we are dedicated to becoming one of the best suppliers of UPS systems, power supplies, solar photovoltaic products, and related products.
Merged with our partner brand in 2020, we began expanding our business in the Middle East and Africa markets. We will keep exceeding expectations by offering high-quality products, establishing ourselves as the most reliable choice worldwide. We take great pride in providing a comprehensive range of products and services to meet the diverse requirements of clients, from local regions to worldwide markets. Our unwavering focus is on fostering strong and successful partnerships with all our customers.
Network Image
International Business Network
With our logistics and support network, we supply products to more than 60 countries, serving millions of people worldwide. Our company proudly holds ISO9001 management system certification, and several of our products have been granted national patents.
Looking ahead, we plan to expand with additional branch offices, R&D centers, and logistic centers in various regions, further supporting our valued business partners from around the globe. We are dedicated to providing innovative products and solutions to meet the needs of consumers worldwide.
Core Value Image
Core Value
Adhering to the principle that "customer is the king," we place utmost importance on our customers and their needs. Our unwavering commitment is to provide the most suitable and reliable solution to solve our customers' problems effectively.
From product development to after-sales support, we consistently strive to exceed customer expectations, ensuring their complete satisfaction with our offerings. Our core value is not just a statement but a way of doing business. We are committed to delivering excellence, and our customers remain at the center of everything we do.
Company Profile
Company Profile Image
Certifications
Certifications Image
Exhibition
Exhibition Image 1
Exhibition Image 2
Exhibition Image 3
Product Packaging
Product Packaging Image
Frequently Asked Questions
Q1: What are the main applications of this battery?
A1: This battery is ideal for energy storage systems, solar power backup, UPS systems, and residential or commercial power solutions.
Q2: Can these batteries be connected in parallel for more capacity?
A2: Yes, the system supports parallel connection of up to 15 units to expand capacity and meet larger power demands.
Q3: What is the lifespan and cycle life of the battery?
A3: It features a design life of over 10 years and offers a cycle life of 6000 cycles or more under 25°C at 70% EOL (End of Life).
Q4: Does the battery come with protection systems?
A4: Yes, it is equipped with a built-in Battery Management System (BMS) that monitors and protects the battery from overcharging, overdischarging, and overheating.
Q5: How can this battery be installed?
A5: The battery is designed for flexible installation, supporting both floor standing and wall-mounted setups.
Q6: What is the operating temperature range?
A6: The battery operates efficiently with a charging temperature range of 0°C to 60°C and a discharge temperature range of -15°C to 55°C.
