Product Overview
SLPO series is a LiFePO4 (lithium iron phosphate) battery pack designed for high-performance communication and standby applications. It features advanced technology, including long cycle life, lightweight design, and high safety standards, making it ideal for harsh outdoor environments.
The battery integrates a smart Battery Management System (BMS), supporting remote monitoring and management. It is perfectly suited for access networks, mobile communication equipment, micro base stations, and other critical infrastructure.
Basic Info
Model: SLPO48-200
Chemistry: LiFePO4
Cycle Life: 6000 Times
Design Life: 12 Years
Weight: 76kg
Communication: CAN, RS485
Self Discharge: <1% Per Month @20℃
Protection: Non-Explosive, Non-Flammable
Product Specification
| Feature | Details |
|---|
| Capacity(0.5c) | 200ah |
| Related Voltage | 3.2v |
| Typical Impedance | ≤ 0.4mΩ |
| BMS Cycle Life | 6000 times @ 50A, 80% Capacity @25ºC |
Key Features
- Smart BMS: Integrated management monitors internal cells, protecting against overvoltage, undervoltage, overcurrent, and short circuits.
- Enhanced Hardware: Includes 125A DC circuit breaker, reset button, and multi-port communication (CAN/RS485).
- Maintenance-Free: Zero maintenance required throughout the operational lifetime, reducing OPEX.
- Fast Charging: Supports up to 100A rapid charging.
- Environmental: Eco-friendly, no heavy metals, compliant with UN38.3, CE, IEC standards.

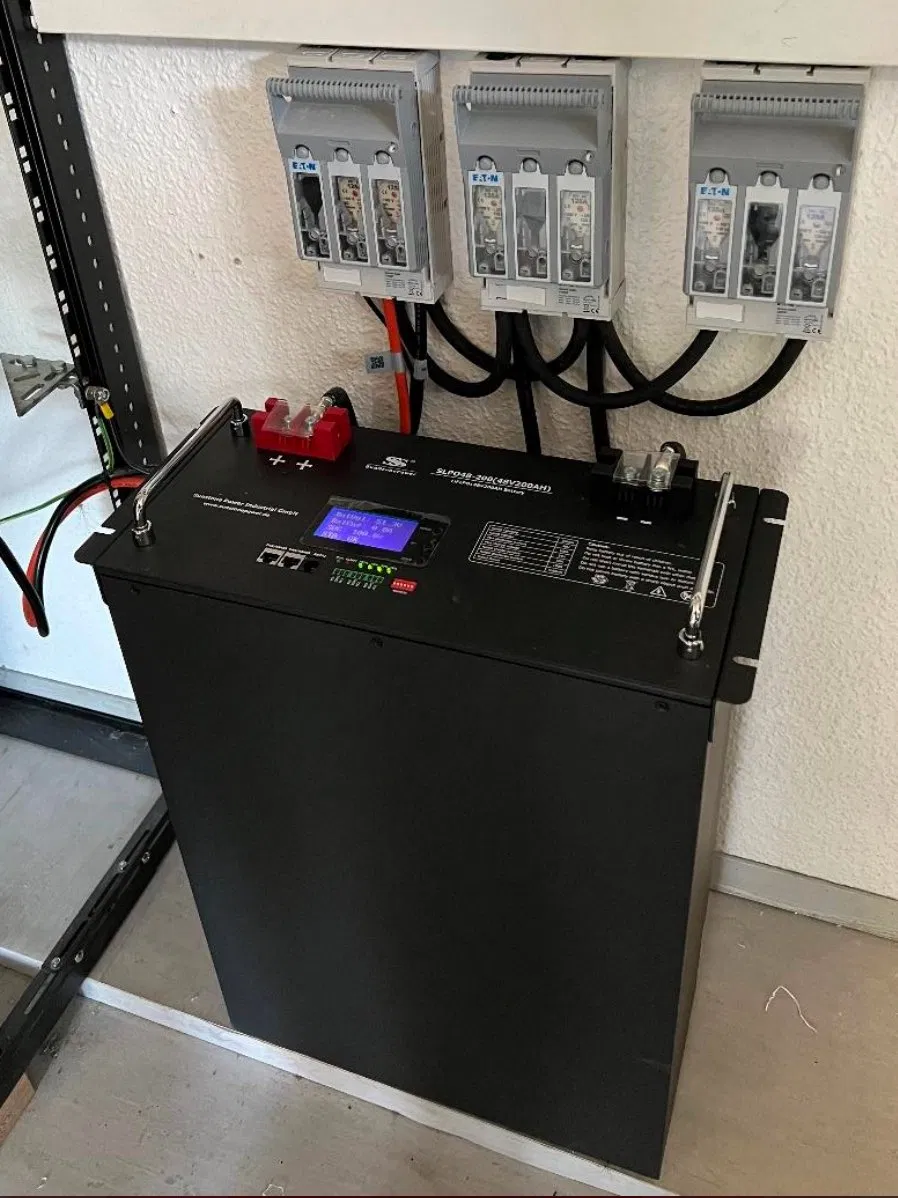

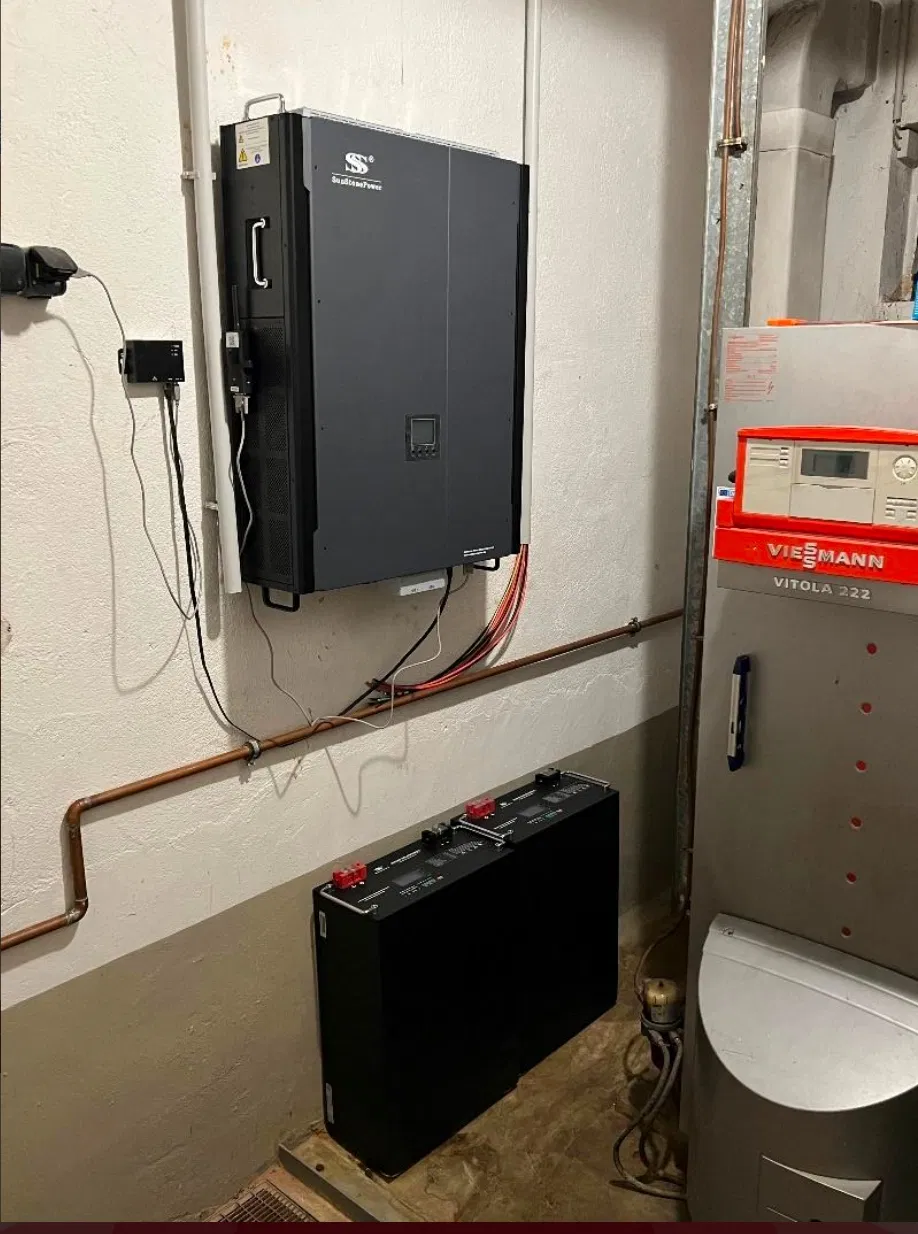

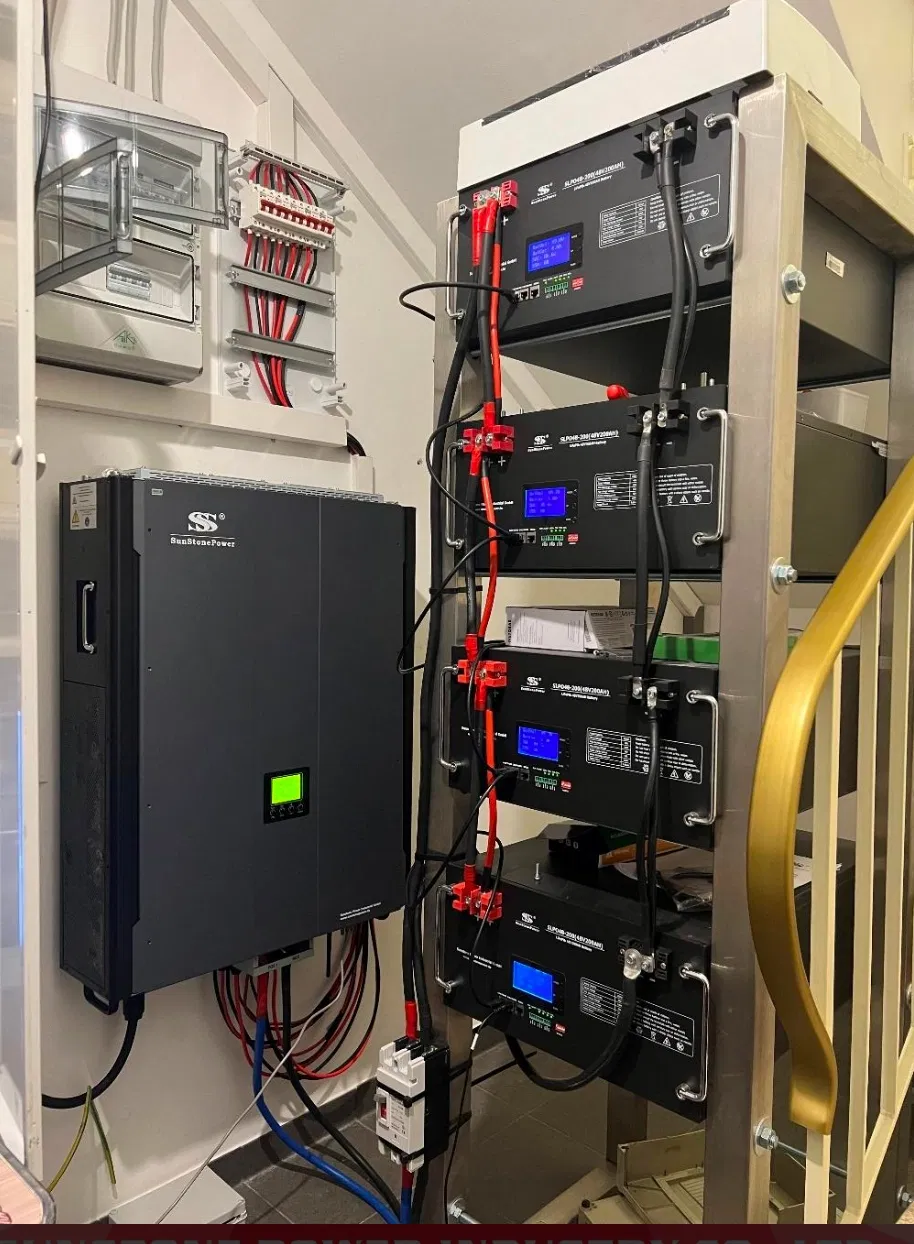

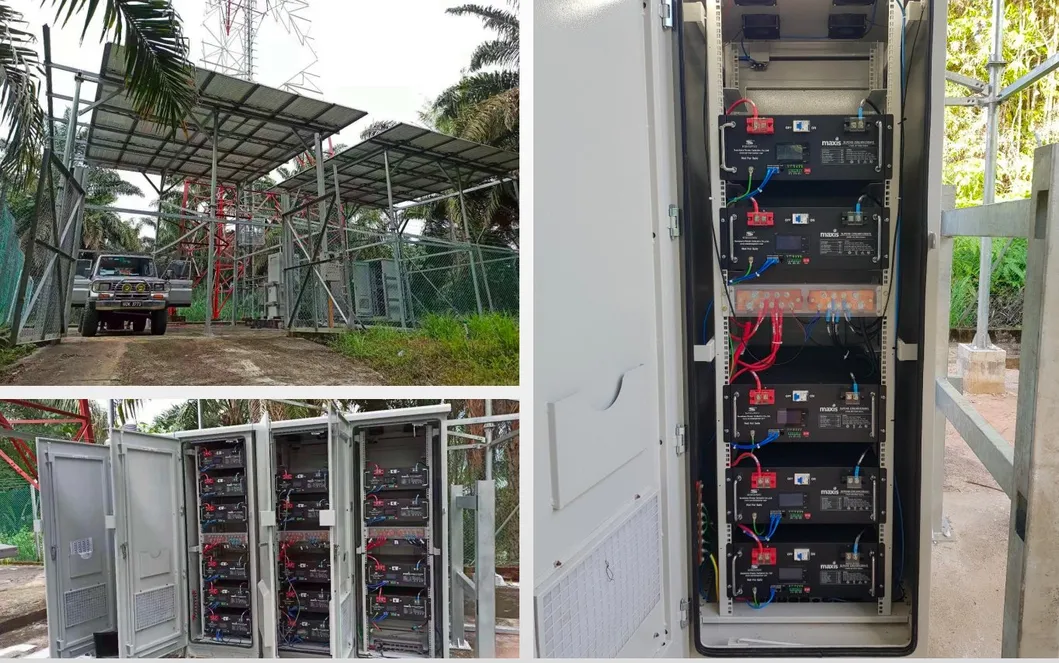

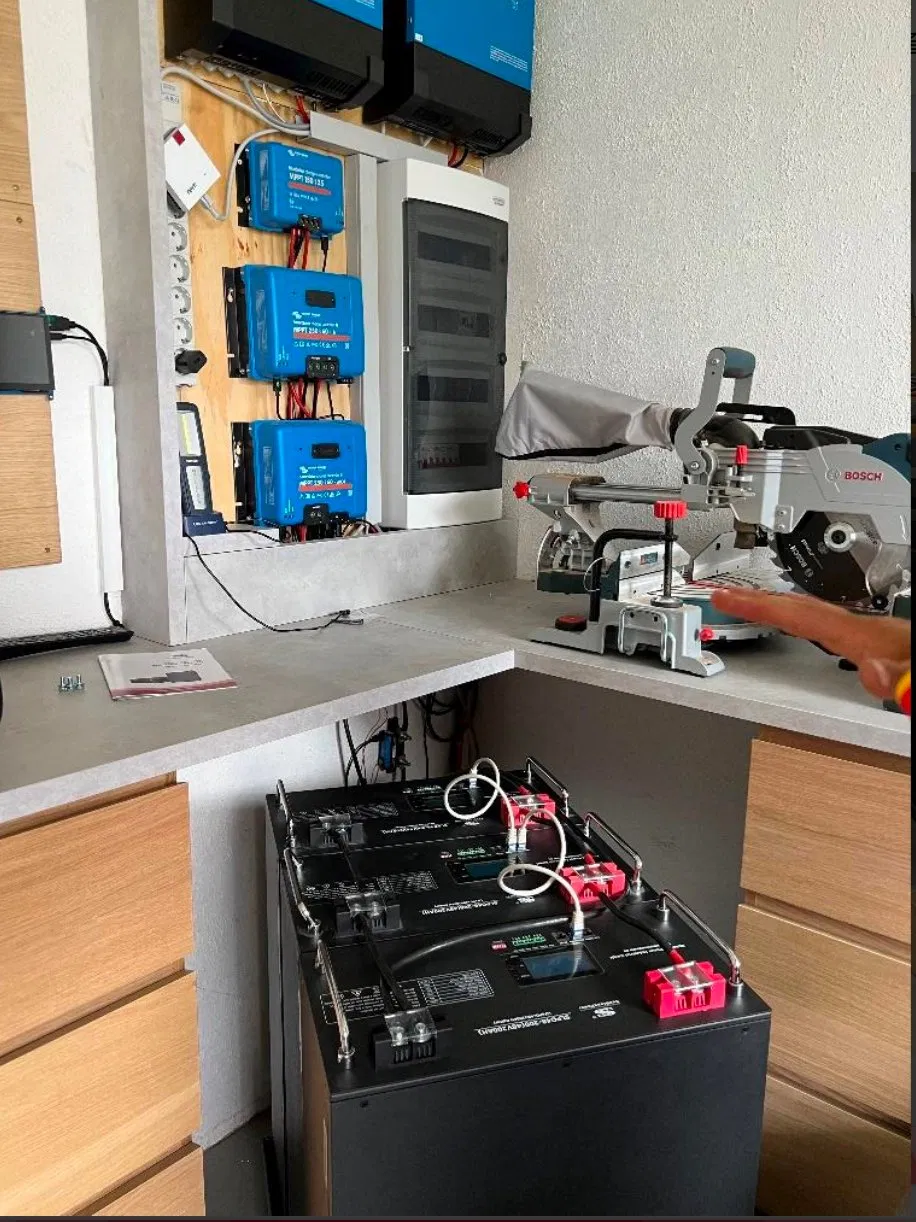

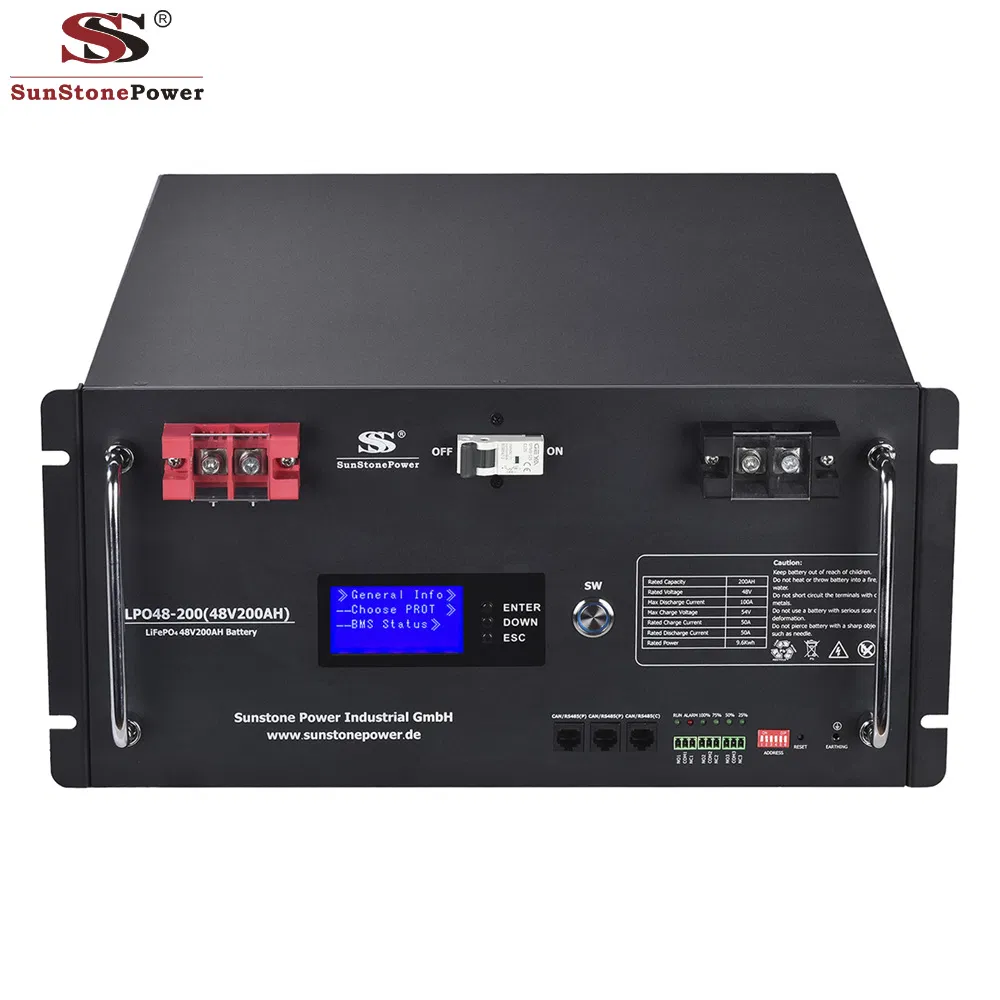

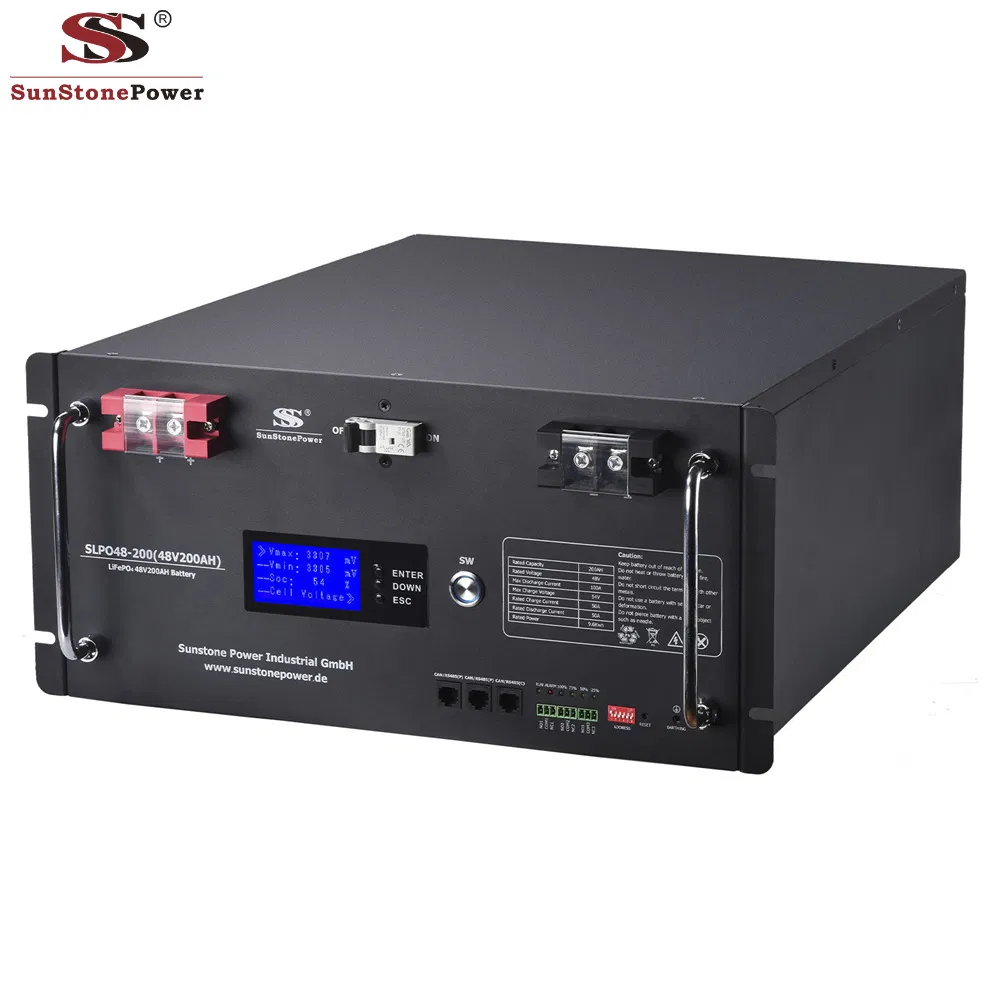

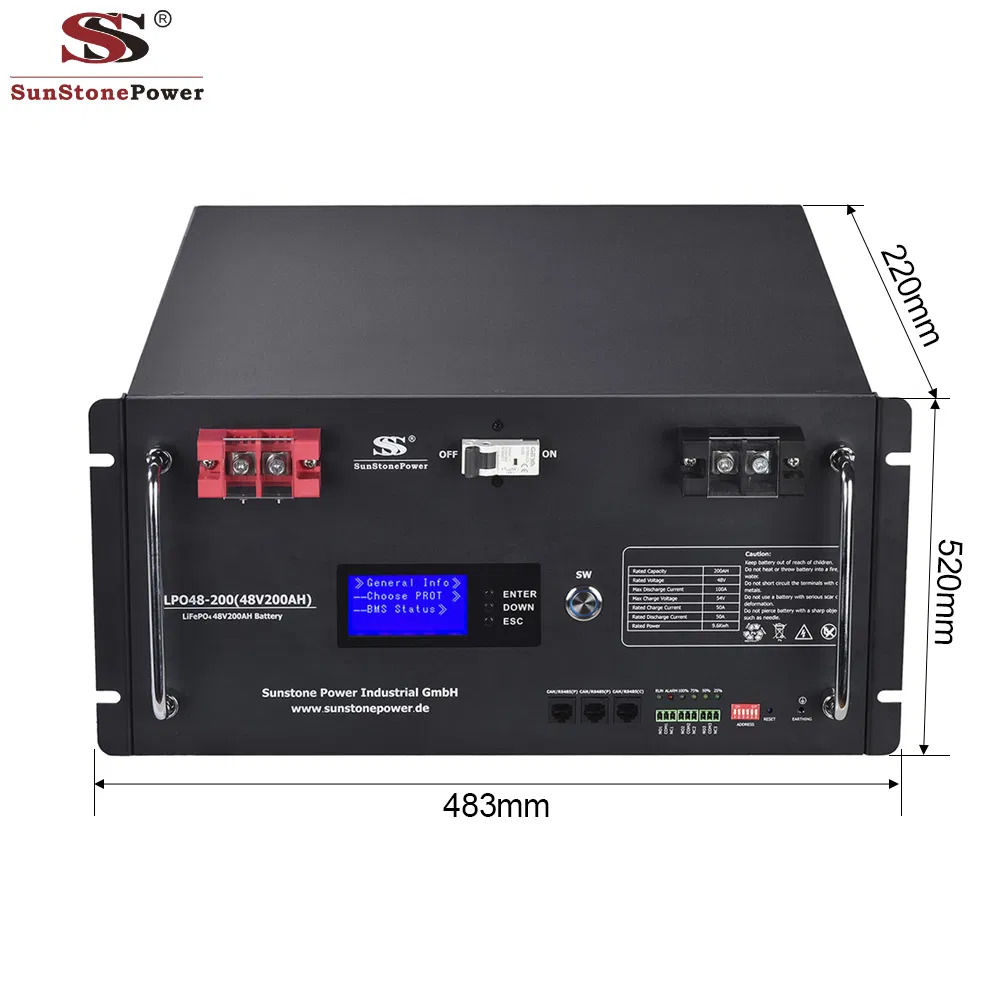

Product Gallery
Frequently Asked Questions
1. What is the expected cycle life of this 48V LiFePO4 battery?
This battery is designed for a long service life, supporting over 6000 cycles at 80% Depth of Discharge (DOD) at 25°C.
2. Can I use this battery with different inverter brands?
Yes, this battery is compatible with multiple inverter protocols, including SMA, Growatt, and Deye, which can be selected directly via the built-in LCD screen.
3. How does the integrated BMS ensure safety?
The BMS automatically monitors voltage, current, and temperature, protecting the battery against overcharge, over-discharge, short-circuits, and reverse polarity.
4. Does this battery require regular maintenance?
No, this unit is completely maintenance-free throughout its service life, which significantly saves operational costs for users.
5. Is it safe to use this battery in outdoor environments?
Yes, it is designed for strong environmental adaptability, making it suitable for harsh outdoor conditions and remote installations.
6. What should I do if the battery enters a sleep state?
If the battery is in a sleep state, you can simply press the dedicated Reset Button to activate the BMS and resume normal operation.
