GAF Energy
GAF Energy
PL Warehouse Available
You can order one box only. Fast and convenient dispatch.

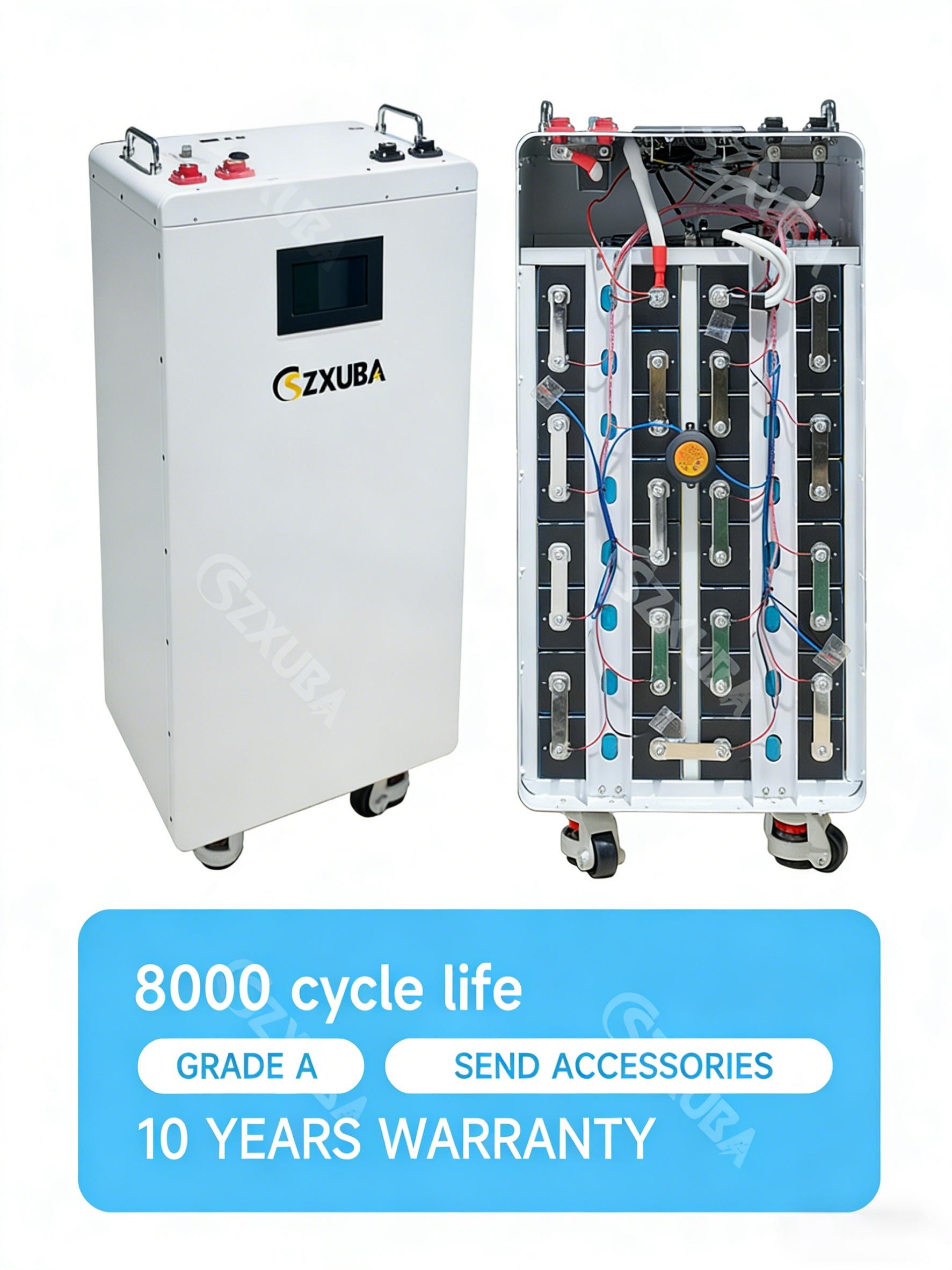

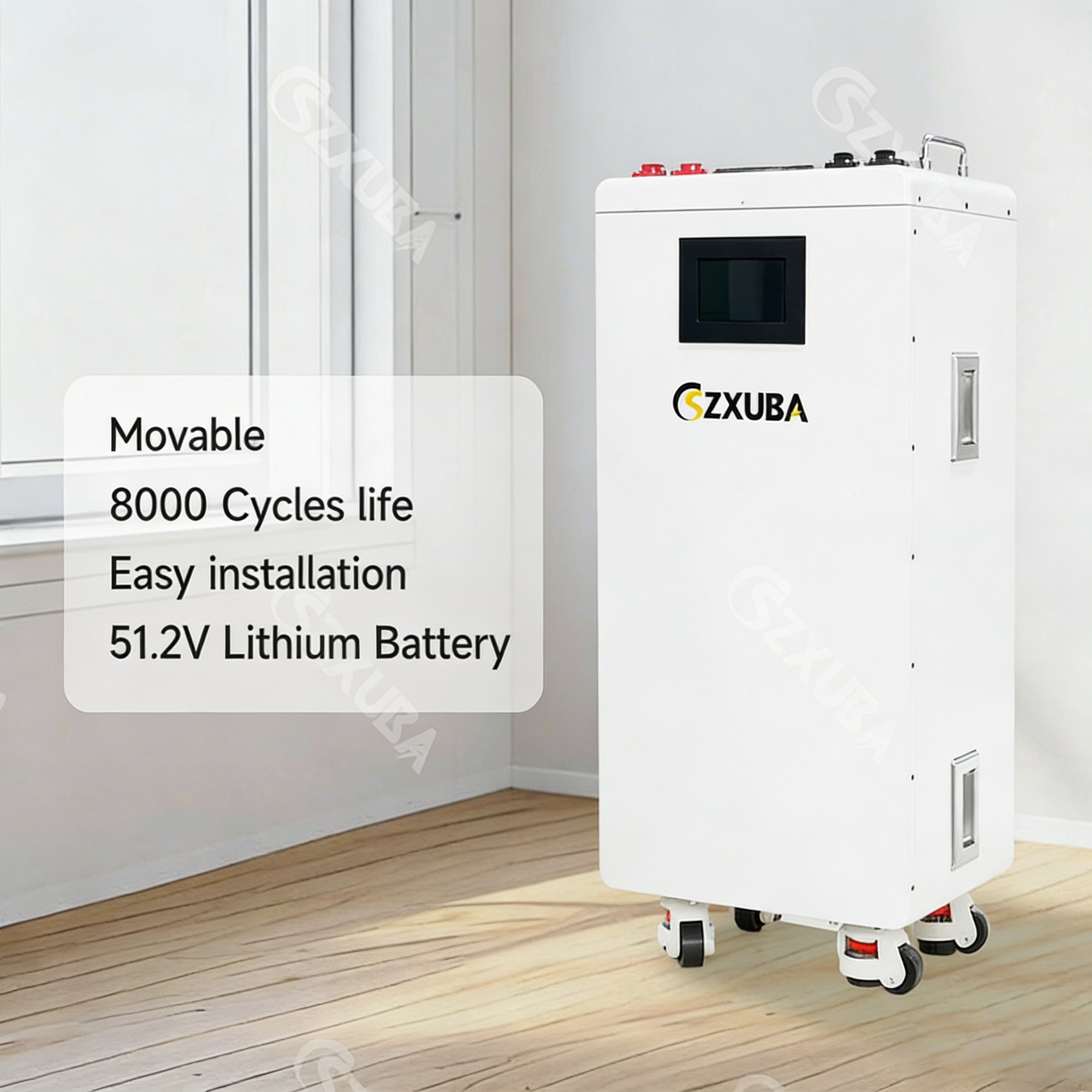

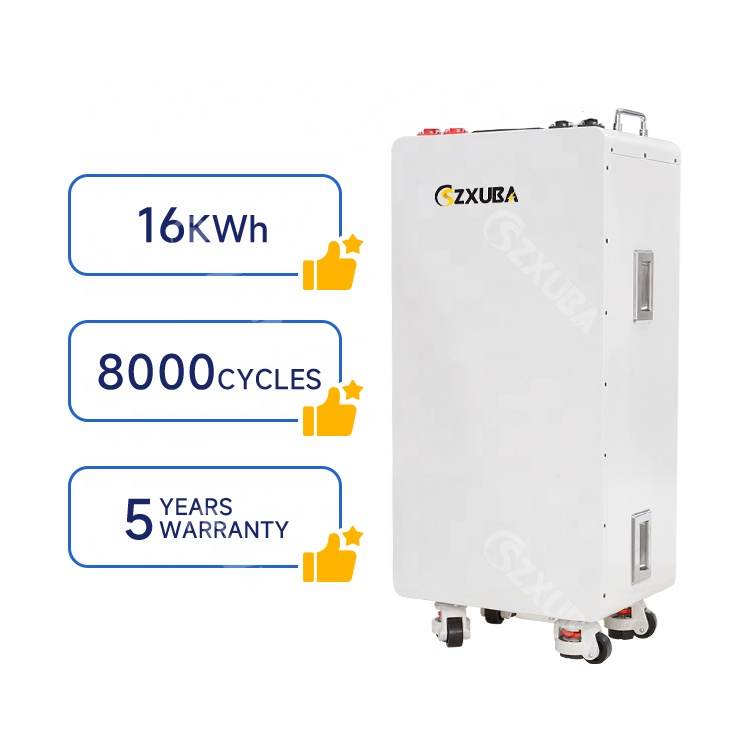

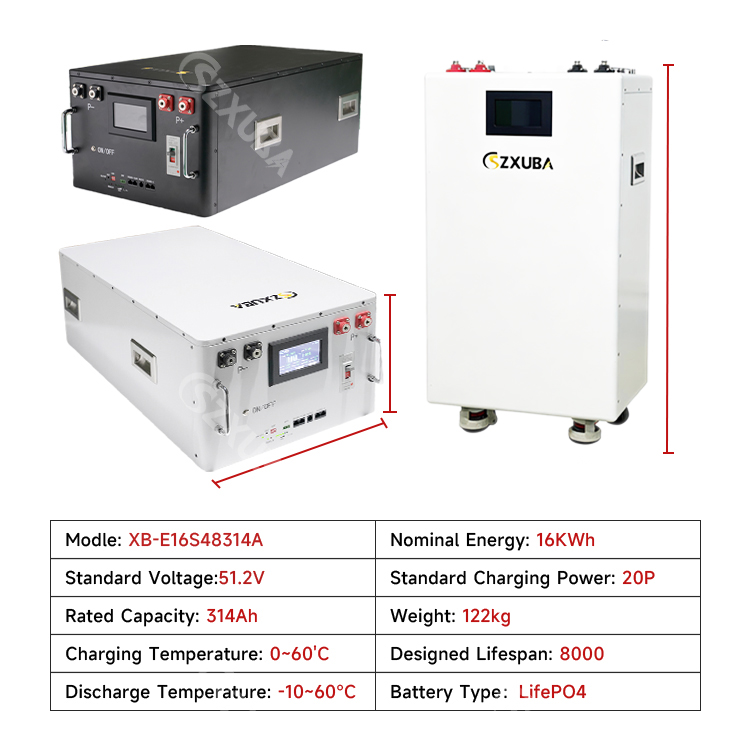

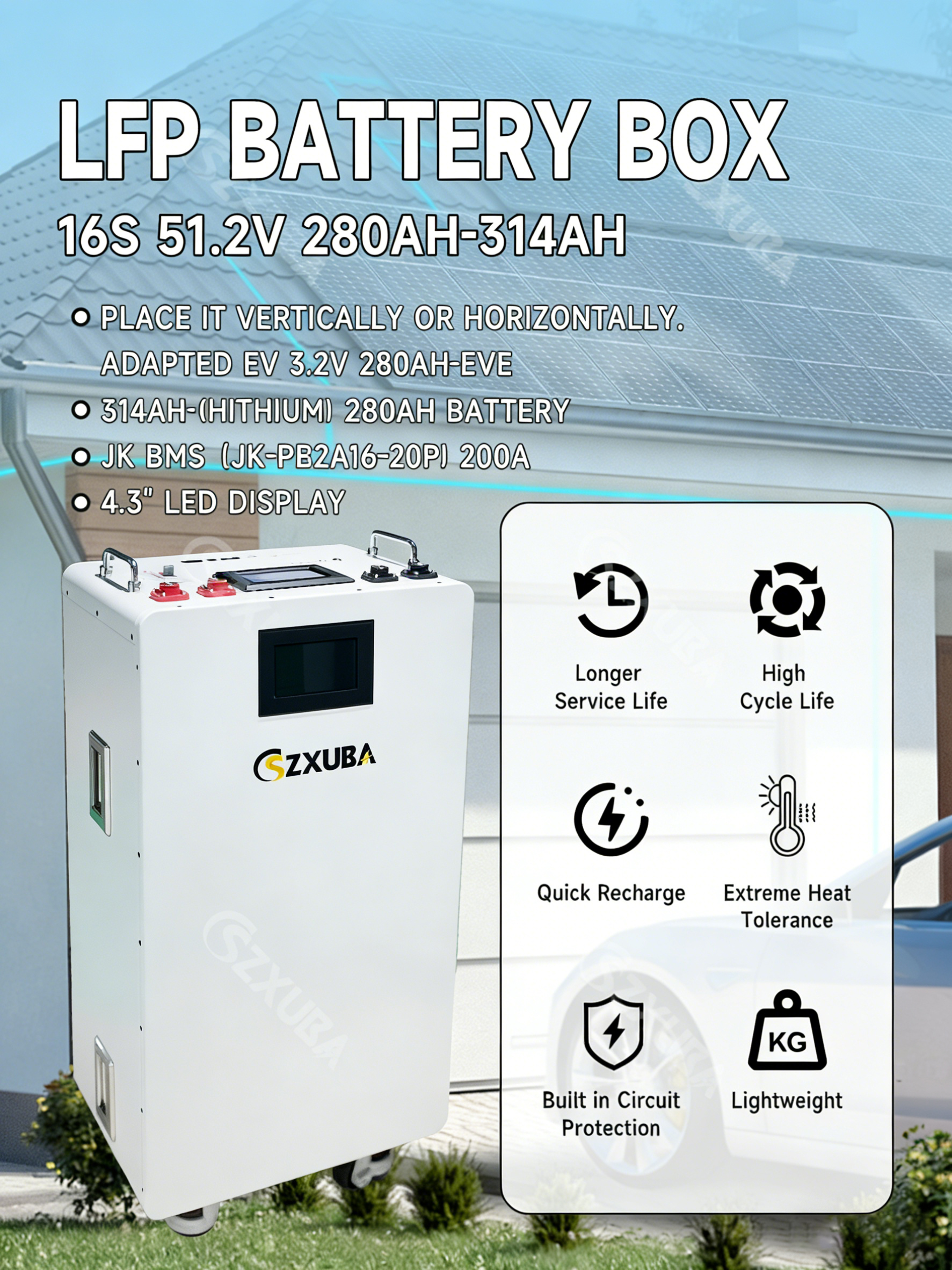

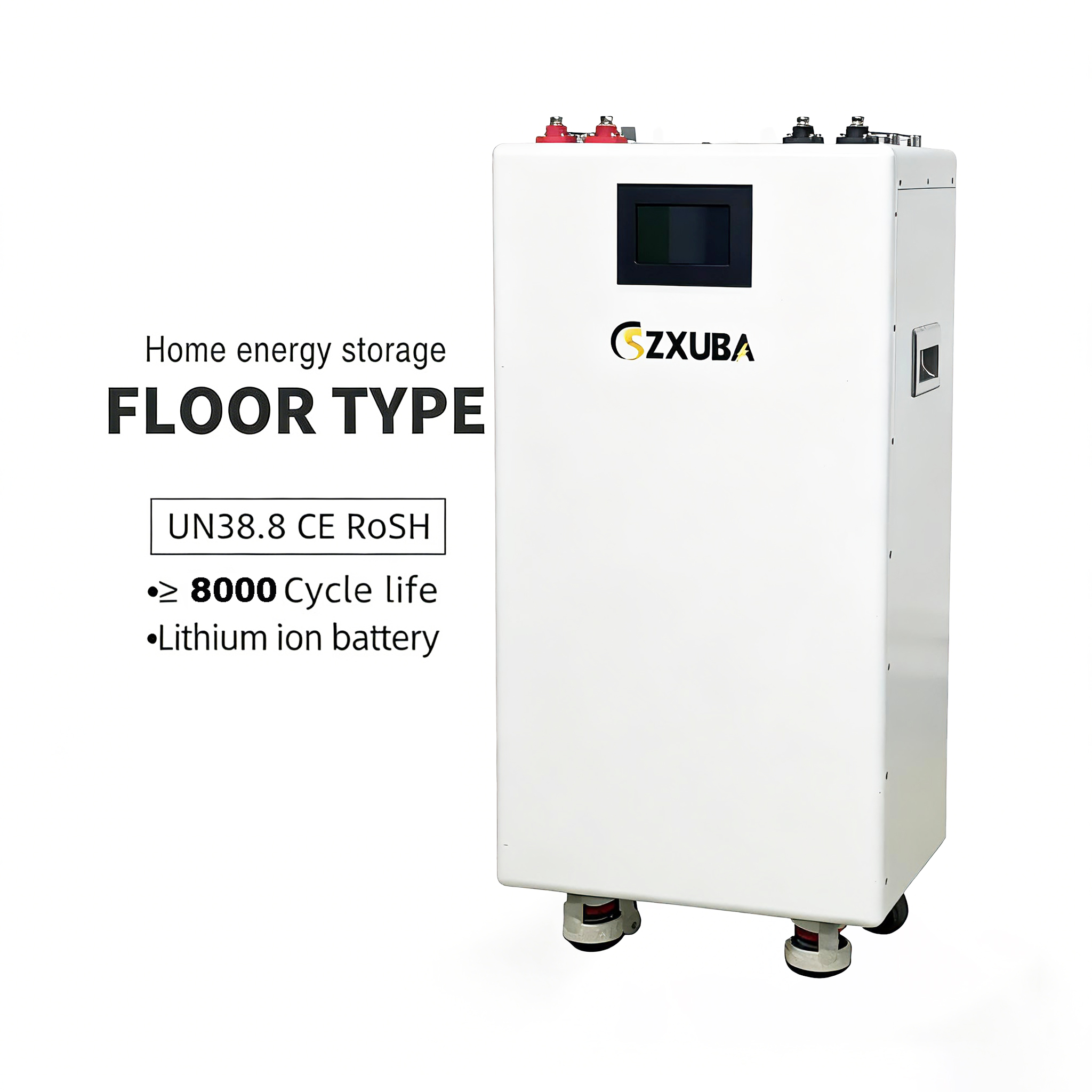

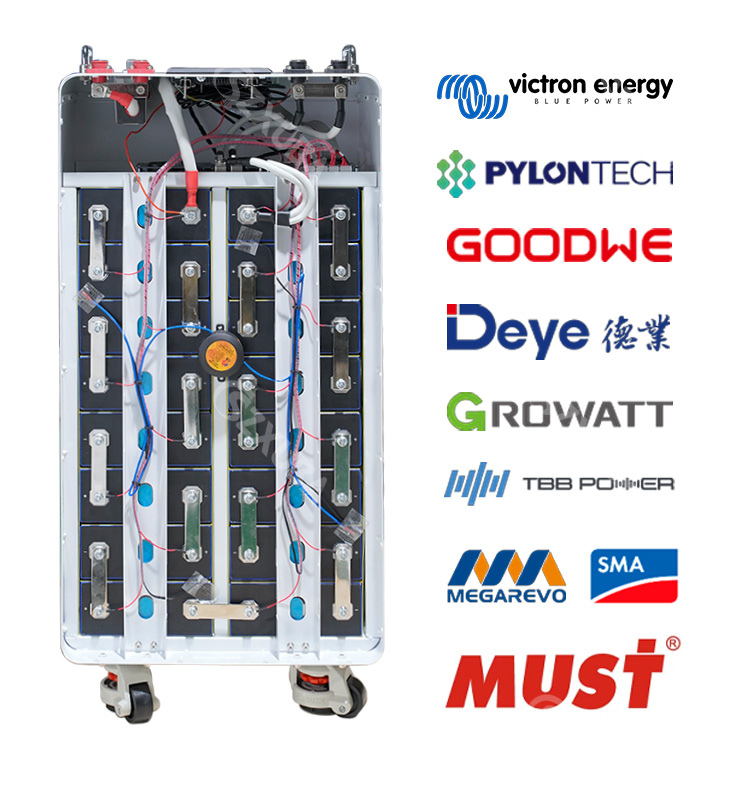

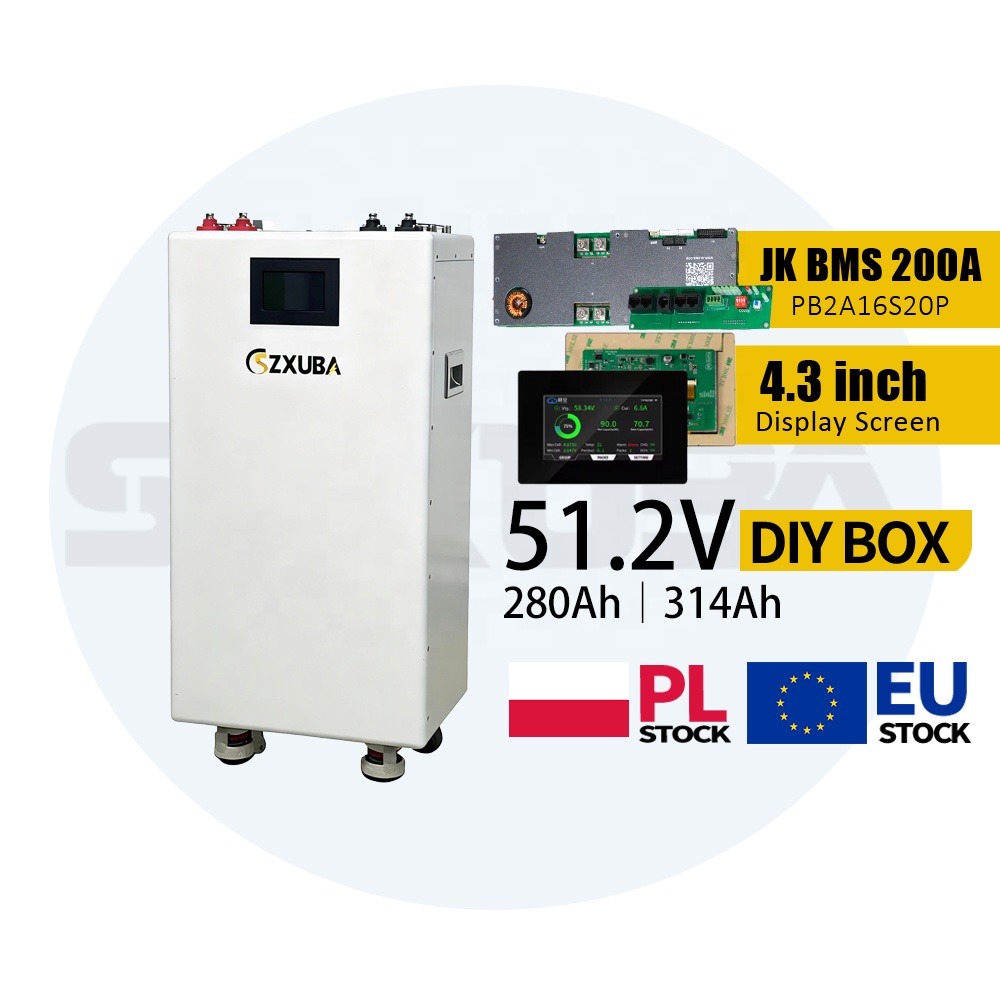

This is a battery DIY Kit for building a powerful 51.2V battery system with around 15kWh/16KWh capacity.

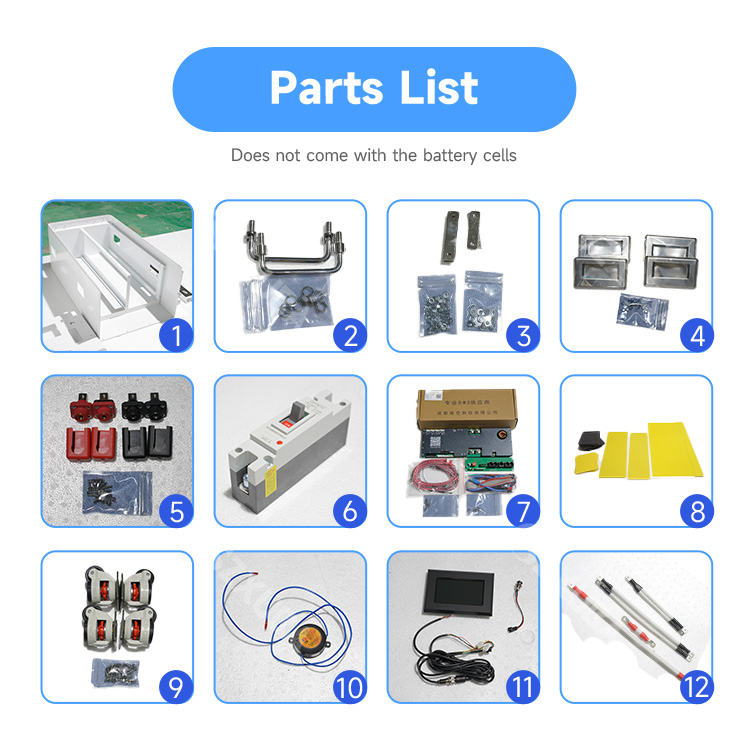

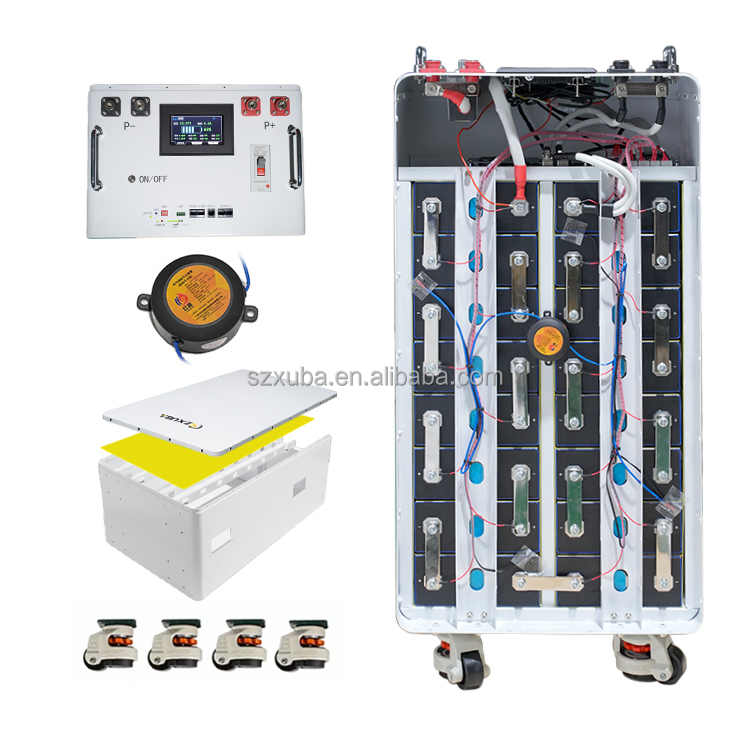

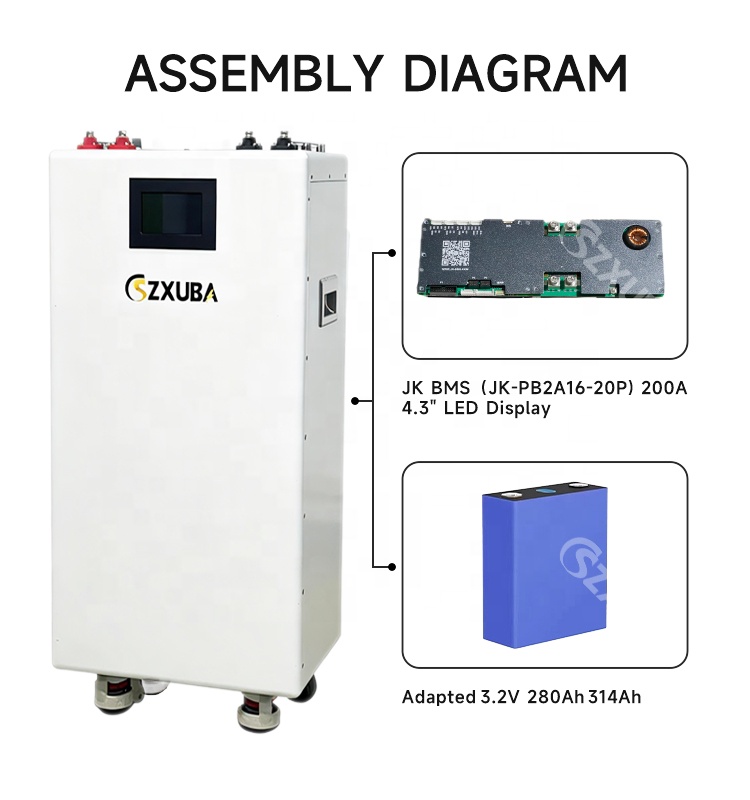

It comes with all necessary parts: a 200A Apexium BMS with CAN and RS485, display, communication ports, cables, balance boards, terminals, and everything required.

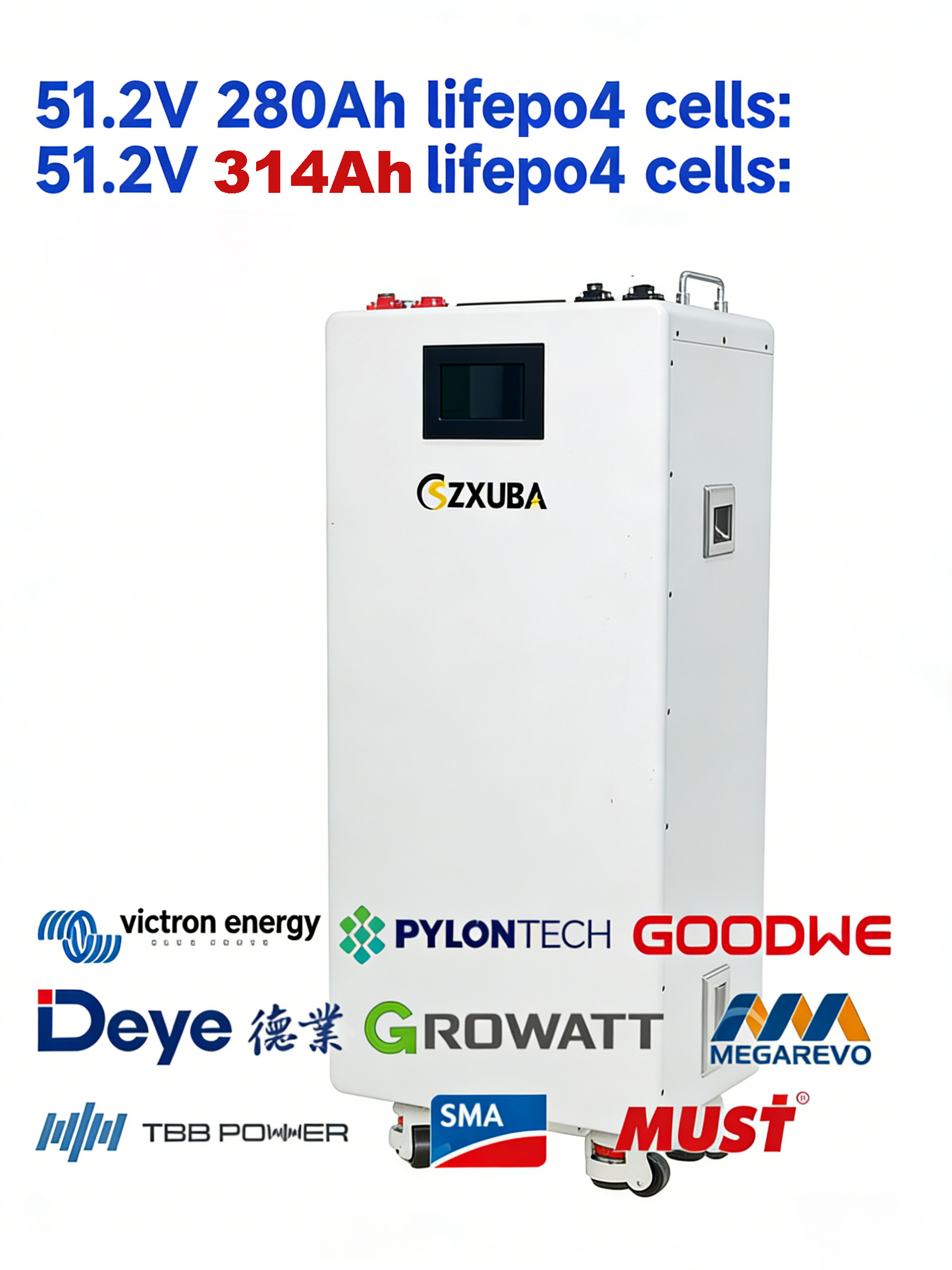

You just need to add your own Hithium/Rept/Lishen/LF280K or MB31 (314Ah) cells.

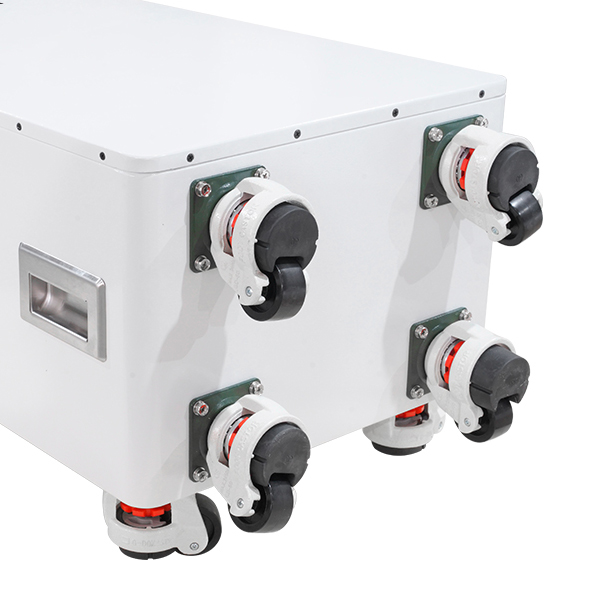

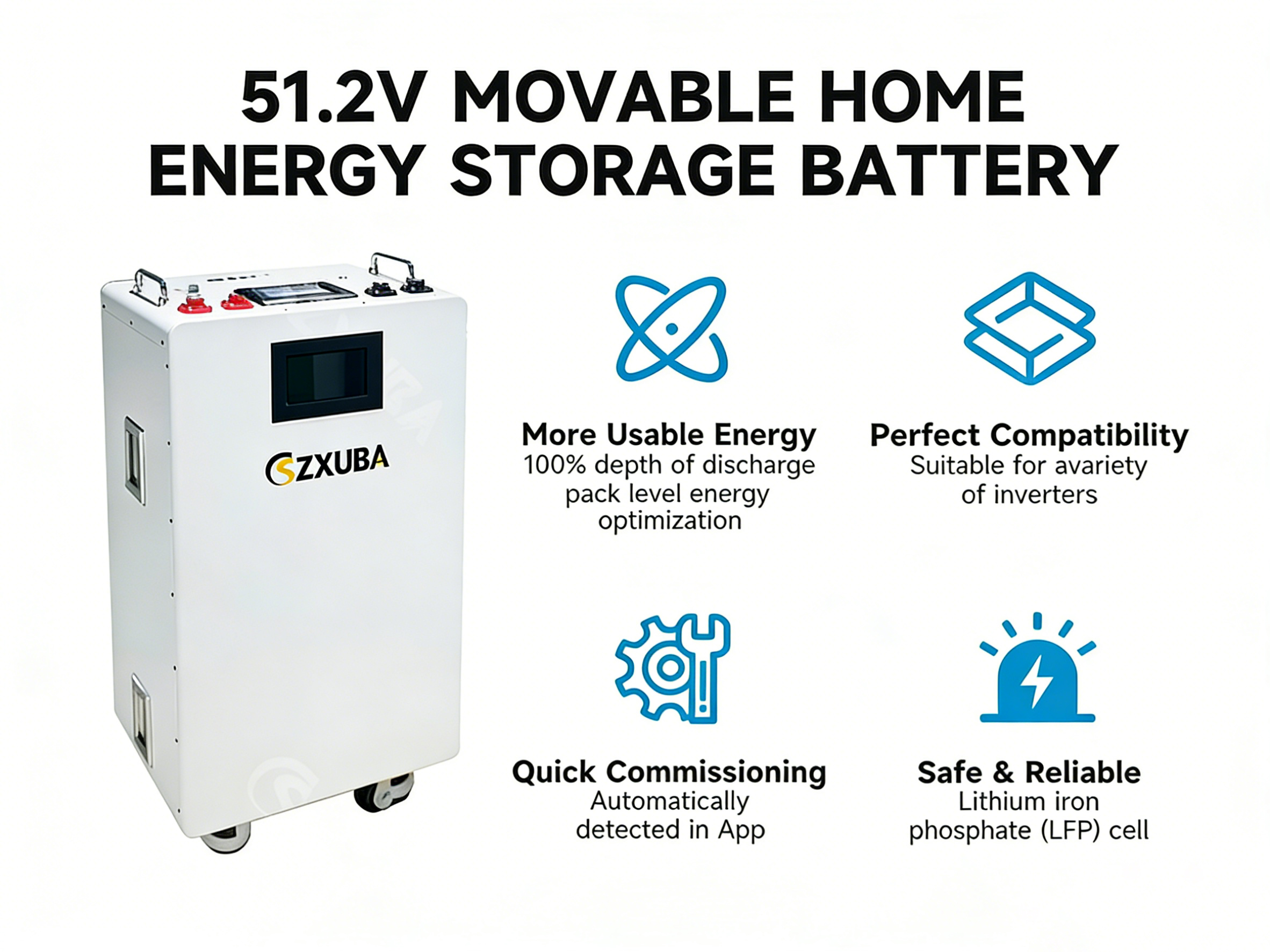

They can be moved around easily. We upgraded the system to include 4 tires. You can put the wheels in the back and stand them up, making storage simple and space-saving.

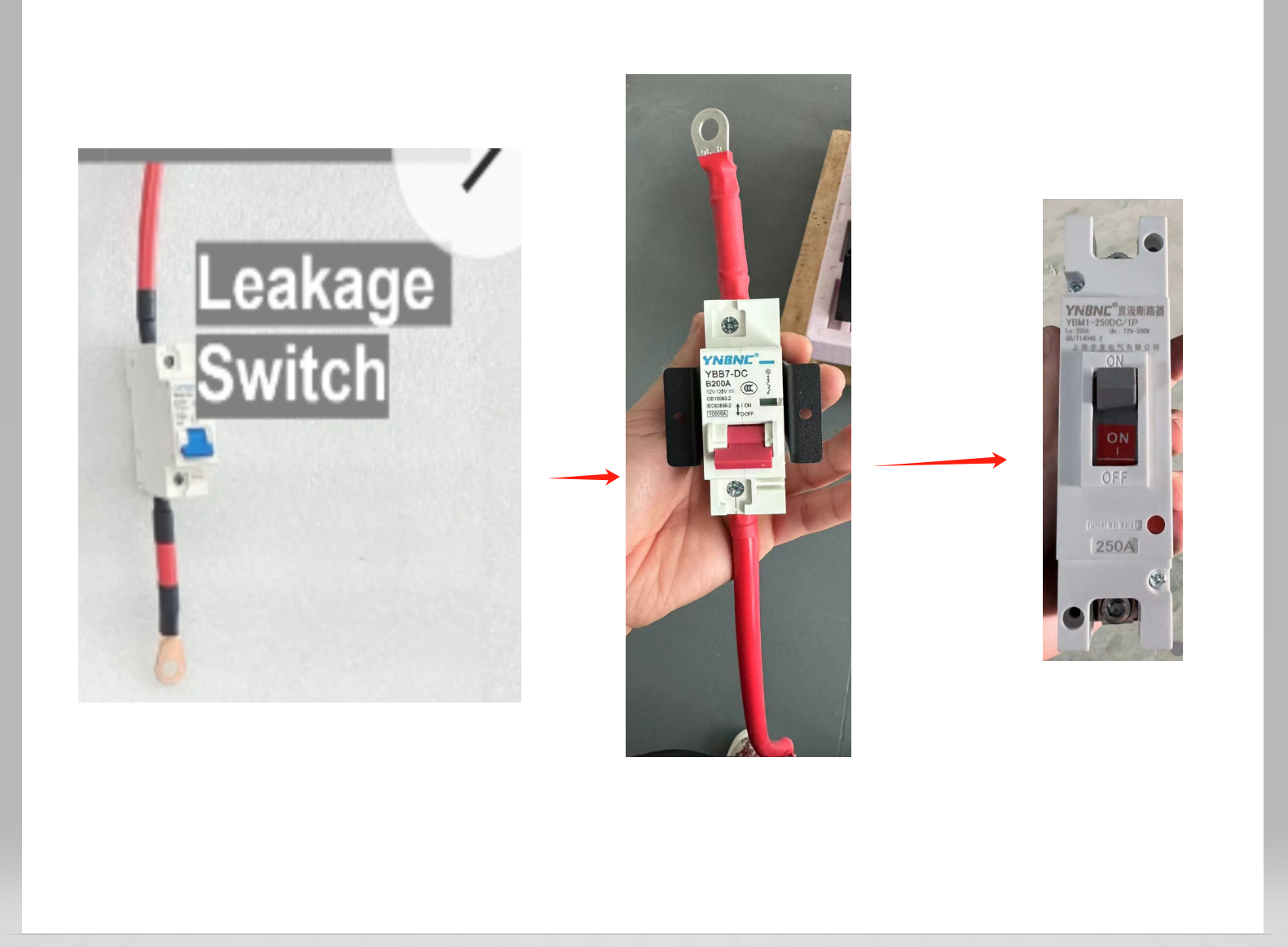

We use larger, safer leakage switches to protect against short circuit hazards, overheating, and overloading issues common in standard DC circuit breakers.
| Battery | Cycles (25℃) | Voltage | Capacity | AC IR. | Weight (g) | Dimension (mm) |
|---|---|---|---|---|---|---|
| LF32 | 3500 | 3.2V | 32AH | ≤1.5mΩ | 730±50 | 148*26*94 |
| LF50F | 1500 | 3.2V | 50AH | ≤2mΩ | 1035±100 | 148*26*129 |
| LF50K | 7000 | 3.2V | 50AH | ≤0.7mΩ | 1395±50 | 135*29*185 |
| LF80 | 4000 | 3.2V | 80AH | ≤0.5mΩ | 1680±50C | 130*36*170 |
| LF90K | 6000 | 3.2V | 90AH | ≤0.5mΩ | 1994±100 | 130*36*200 |
| LF100MA | 2000 | 3.2V | 101AH | ≤0.5mΩ | 1920±100 | 160*50*118 |
| LF100LA | 5000 | 3.2V | 102AH | ≤0.28mΩ | 1985±100 | 160*50*118 |
| LF105 | 4000 | 3.2V | 105AH | ≤0.3mΩ | 1980±60 | 130*36*200 |
| LF125 | 4000 | 3.22V | 125AH | ≤0.4mΩ | 2390±71 | 200*33*172 |
| LF150 | 4000 | 3.22V | 150AH | ≤0.4mΩ | 2830±84 | 200*33*207 |
| LF160 | 4000 | 3.22V | 160AH | ≤0.2mΩ | 3000±100 | 200*33*207 |
| LF173 | 4000 | 3.2V | 173AH | ≤0.2mΩ | 3190±96 | 173*41*207 |
| LF230 | 4000 | 3.2V | 230AH | ≤0.2mΩ | 4140±124 | 173*53*207 |
| LF280k | 8000 | 3.2V | 280AH | ≤0.2mΩ | 5490±300 | 173*71*207 |
| LF304 | 4000 | 3.2V | 304AH | ≤0.1mΩ | 5450±300 | 173*71*207 |
| MB30 | 10000 | 3.2V | 306AH | ≤0.1mΩ | 5600±300 | 173*71*207 |
| MB31 | 8000 | 3.2V | 314AH | ≤0.1mΩ | 5600±300 | 173*71*207 |
| LF560K | 8000 | 3.2V | 628AH | ≤0.2mΩ | 10700±300 | 72*352*207 |
We can custom batteries and provide OEM branding designs for your specific needs.
Advanced manufacturing facilities ensuring premium production quality and stable capacity.
All cells must be authentic Grade A battery cells, brand new with the factory QR code intact. Fully guaranteed against used, inflated, or B-grade quality cells.
We rigorously test all battery cells for voltage, internal resistance, and capacity prior to shipping.
Providing professional support globally. Logistics solutions are dynamically optimized based on delivery locations to ensure on-time arrival.
Customized sponge inserts with high hardness are used to strengthen and protect the batteries.
Multi-layered export-grade corrugated cartons designed for dangerous goods transport.
Outer carton box fully wrapped and sealed with waterproof tape.
Wooden crates packing available upon customer request for additional shipping protection.
| Region | Type | Details / Carrier | Timeframes |
|---|---|---|---|
| USA | Sea Delivery | Sea + FEDEX Delivery (DDP, Tax free) | 25-30 working days (ETD: 3-7 days, ETA: 15-20 working days) |
| Air Delivery | Air + FEDEX/UPS (Tax free) | 10-12 working days | |
| Europe | Railway Delivery | Railway + DPD/UPS/FEDEX (DDP, Tax free) | 45-55 working days (ETD: 3-7 days, ETA: 35-45 working days) |
| Air Delivery | Air + DPD/UPS (Tax free) | 10-12 working days | |
| Australia | Sea Delivery | Sea + Delivery (DAP) | 45-50 working days (ETD: 3-7 days, ETA: 20-29 working days) |
| Air Delivery | Air + DPD/UPS (Tax free) | 8-15 working days | |
| Others | Standard Logistics | Customized carrier arrangements | Please inquire for details (ETD: 3-7 days) |
1. Are the batteries top quality and brand new?
Yes, they are top quality. The factory QR code is intact and they are brand new from the original factory.
2. Do the batteries come with busbars and bolts?
Yes, the price includes busbars and bolts. Each battery comes with one set of busbar and bolts (e.g. if you buy 4pcs of battery, you will receive 4pcs cells with 4pcs busbars and 8pcs bolts).
3. Are the batteries tested prior to shipping?
Yes, we rigorously test all cell voltages and internal resistances before shipping.
4. What kind of packaging is used?
Batteries are wrapped in thick PE foam or bags and safely packaged in 5-layer strong export cartons.
5. Why do some LiFePO4 cells have minor scuff marks?
Minor scuff marks are normal because QC inspections are performed several times at the factory. During the voltage and resistance verification process, cells are placed together for testing, which may cause minor cosmetic marks. All prismatic cells come with laser-welded studs and are matched before storage.
