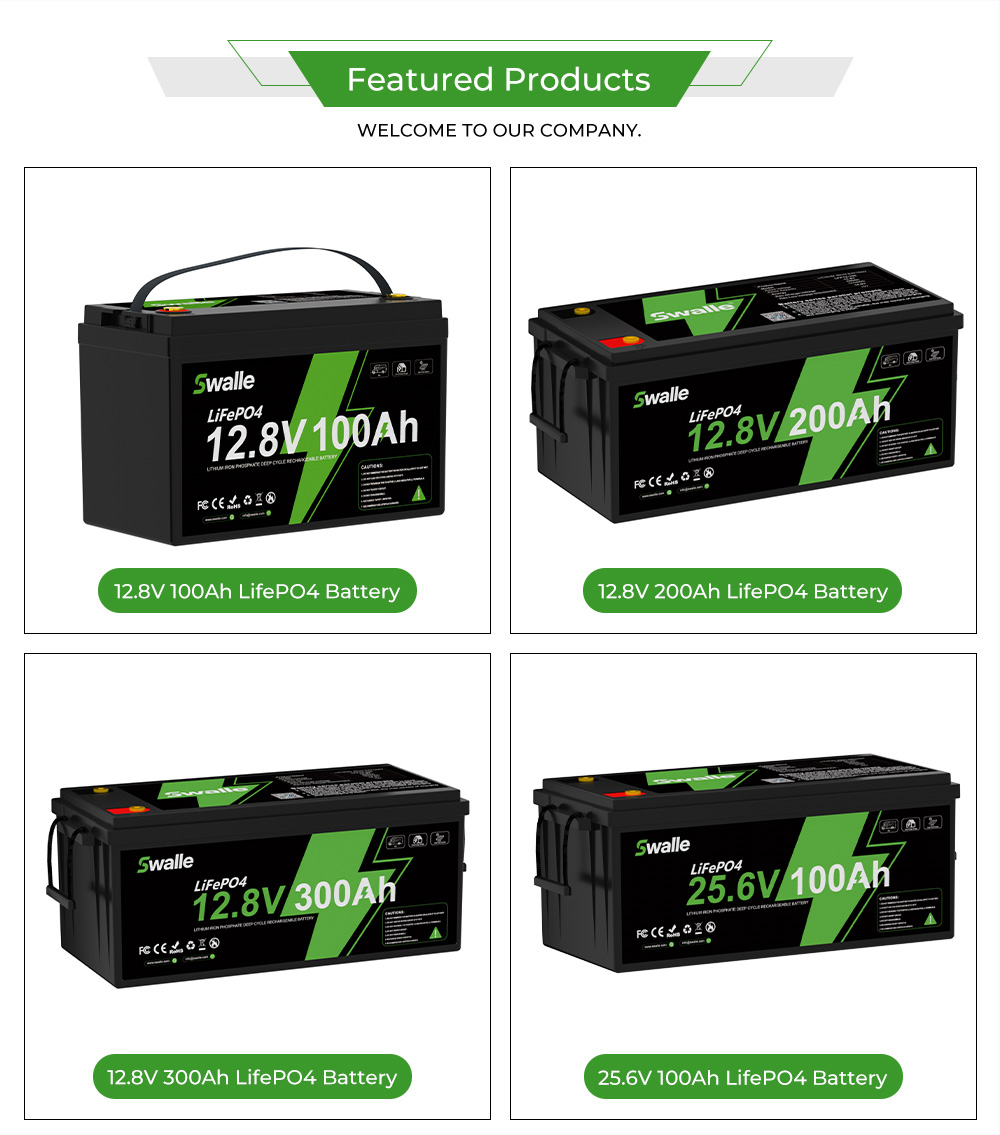

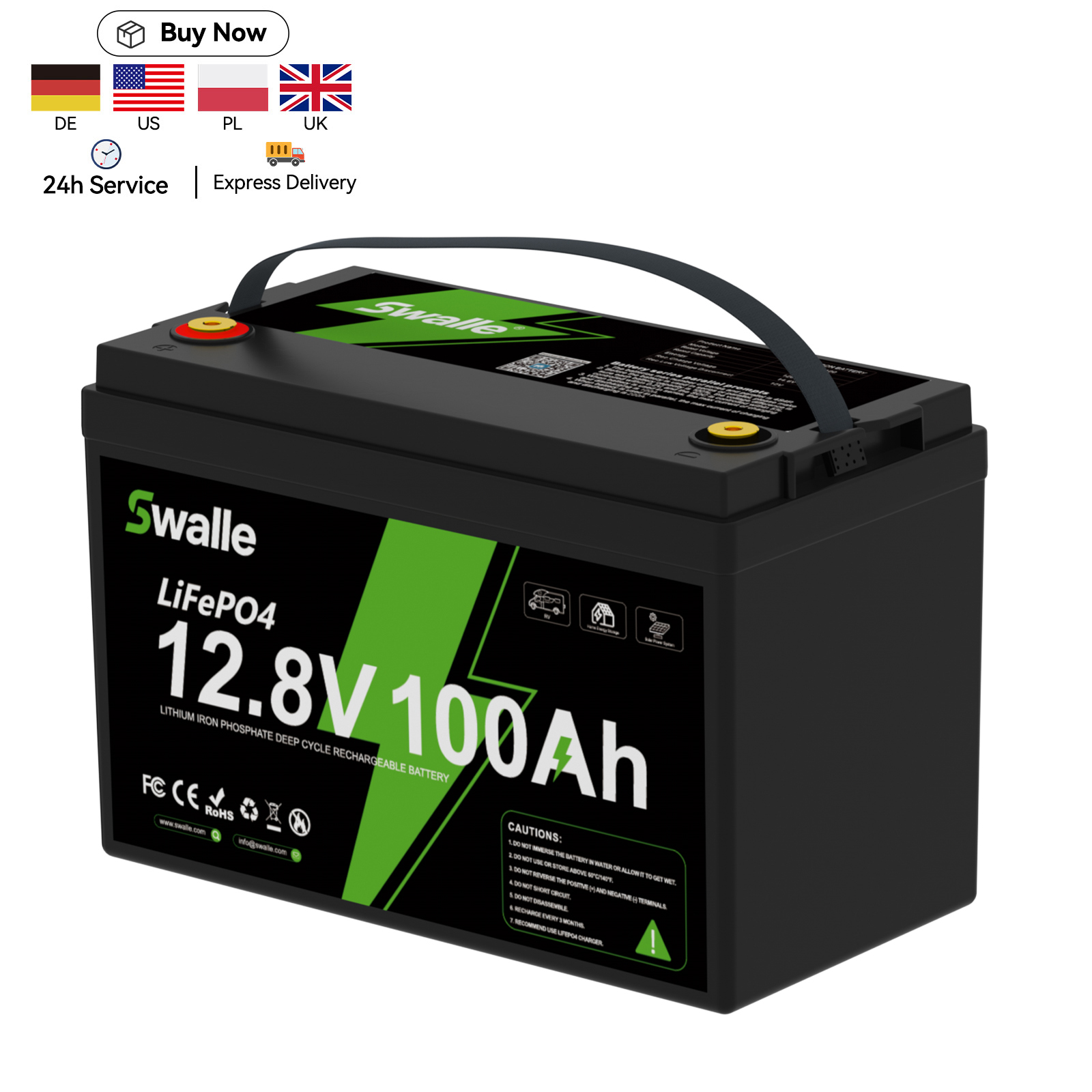

| Models | 12.8V 100Ah | 12.8V 200Ah | 12.8V 300Ah | 25.6V 100Ah |
|---|---|---|---|---|
| Nominal Capacity | 100Ah | 200Ah | 300Ah | 100Ah |

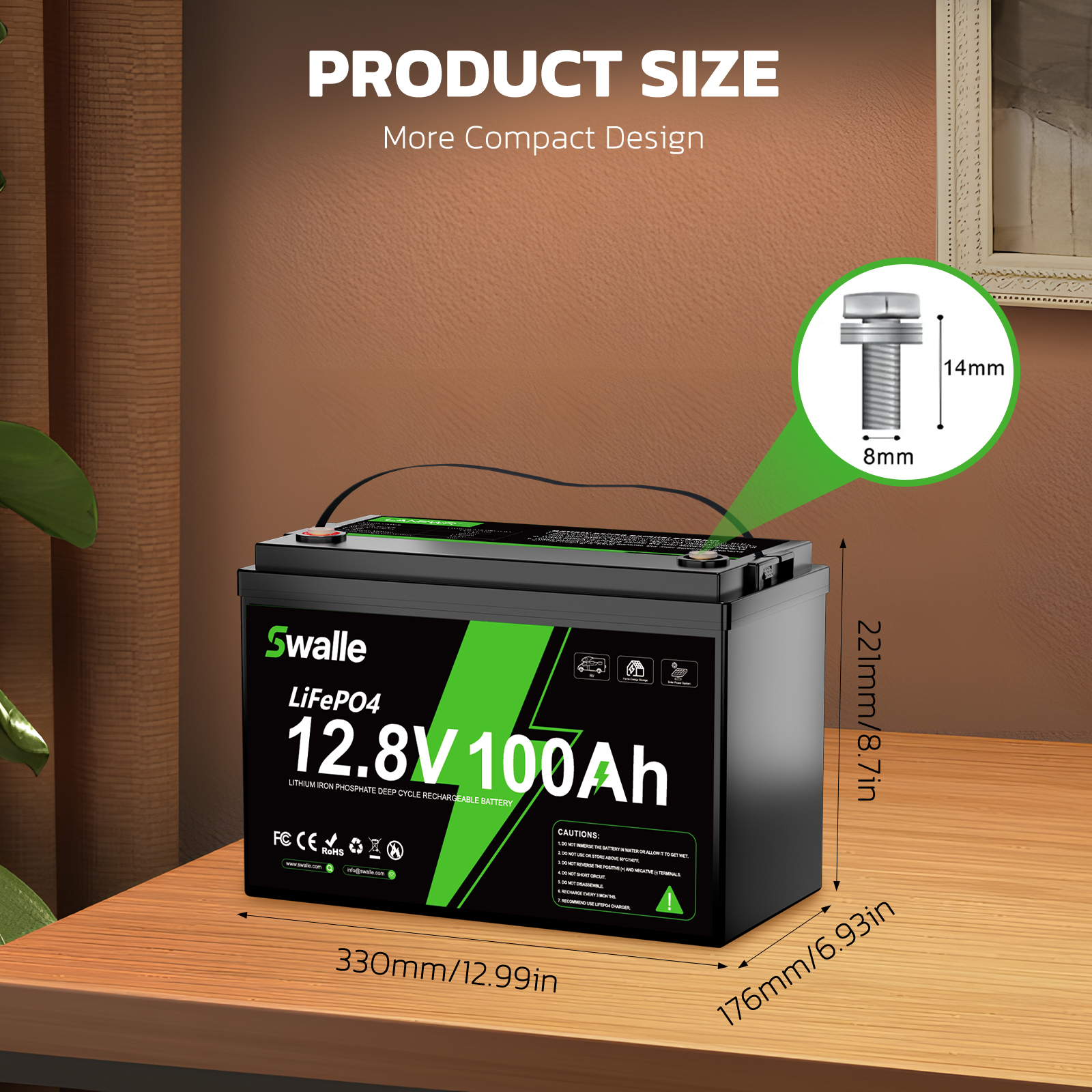

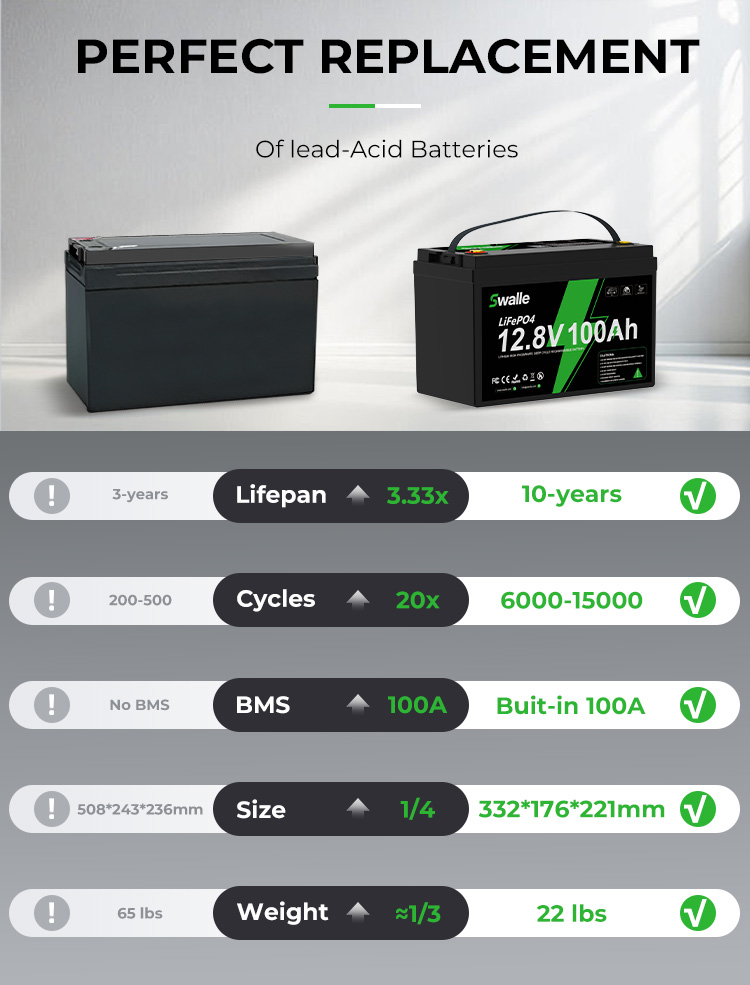

| Dimension (mm) | 332*176*221mm | 522*238*218mm | 522*238*218mm | 522*238*218mm |
| Weight (kg) | 12 | 19.2 | 19.2 | 19.2 |
| Cycle Life | 6000 times | |||
| Max. discharge current | 100A | 150A/Customized | 150A/Customized | 100A |
| Max. charging current | 100A | 150A/Customized | 150A/Customized | 100A |
| Charge voltage |
12V System Absorption voltage: 14.2-14.6V Float voltage: 13.5-13.6V 24V System Absorption voltage: 28.4-29.2V Float voltage: 27-27.2V |
|||
| Working Condition |
Charging: 0℃ to 45℃ (32℉ to 113℉) @60±25% Relative Humidity

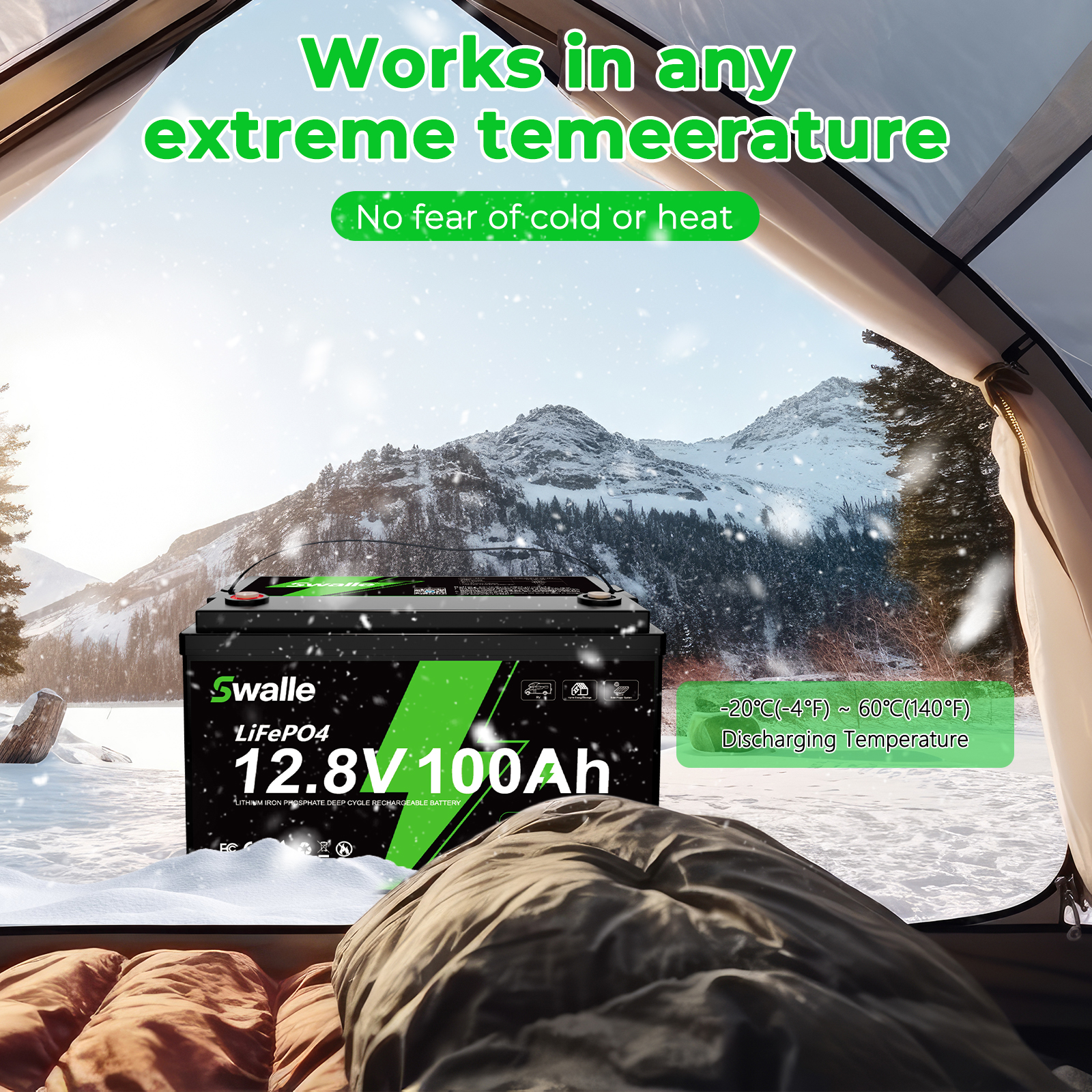

Discharge: -20℃ to 60℃ (-4℉ to 140℉) @60±25% Relative Humidity
Storage: 0℃ to 40℃ (32℉ to 104℉) @60±25% Relative Humidity
|
|||
| BMS temperature protection |
Charge Cut-off @ 0℃
Discharge Cut-off @ 60℃
|
|||
| Connection | MAX. 4S4P | Parallel Only, MAX.4P | ||
| Enclosure Protection Level | IP65 | |||
| Certification | CE, MSDS, UN38.3, etc | |||

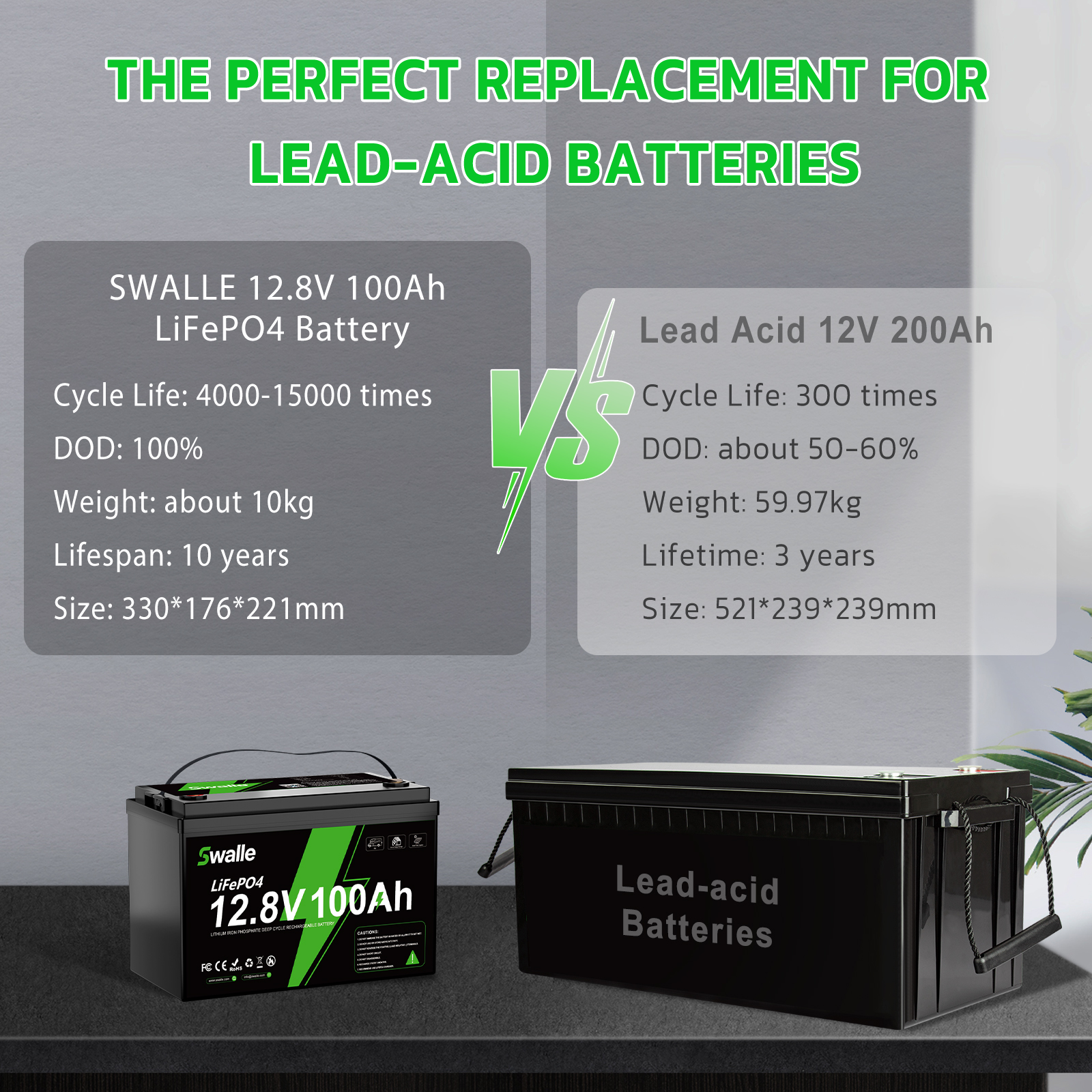

These batteries are engineered for extreme durability, offering a cycle life of up to 6000 times under standard testing conditions, ensuring long-lasting performance and outstanding return on investment.
For the 12.8V 100Ah model, you can connect them in series and parallel up to a maximum setup of 4S4P. For the other models (12.8V 200Ah, 12.8V 300Ah, and 25.6V 100Ah), they support parallel connections only, up to a maximum of 4P.
Yes. The integrated Battery Management System (BMS) features automatic temperature cut-offs, disabling charging when temperatures fall below 0℃ and disabling discharging when temperatures exceed 60℃ to safeguard battery health.
The batteries come with an IP65 certified protection level enclosure, providing robust resistance against dust entry and low-pressure water jets from any direction.
Our batteries are fully certified with CE, MSDS, UN38.3, and other key international safety and quality standards, making them globally compliant for transportation and usage.
