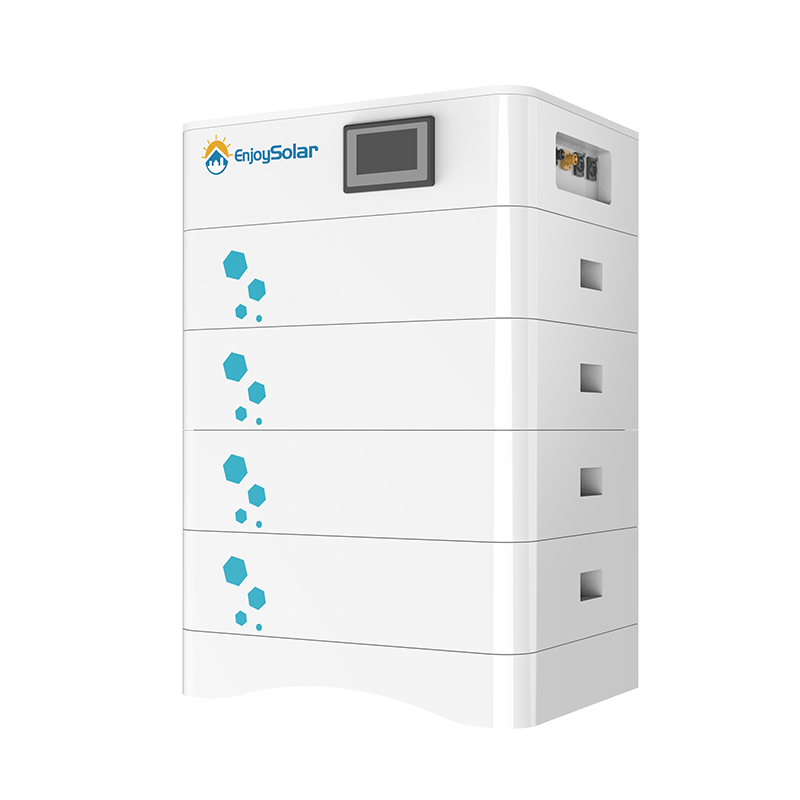

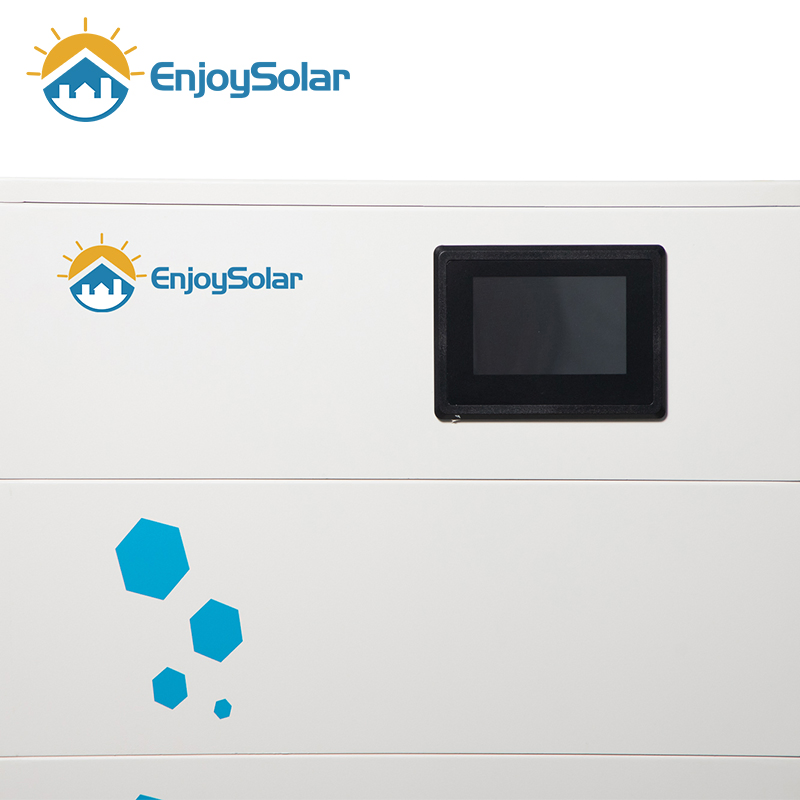

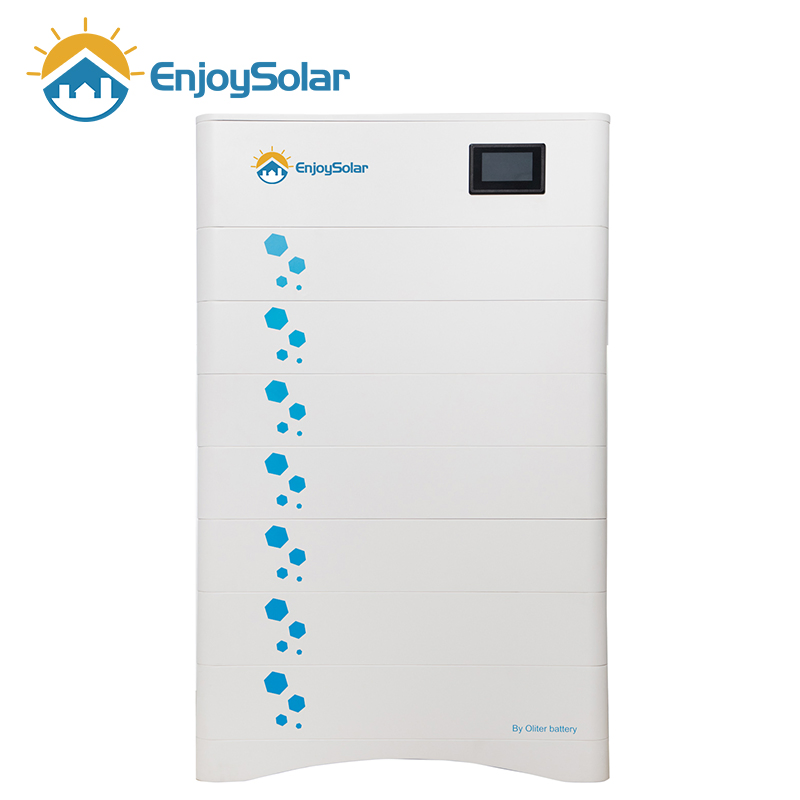

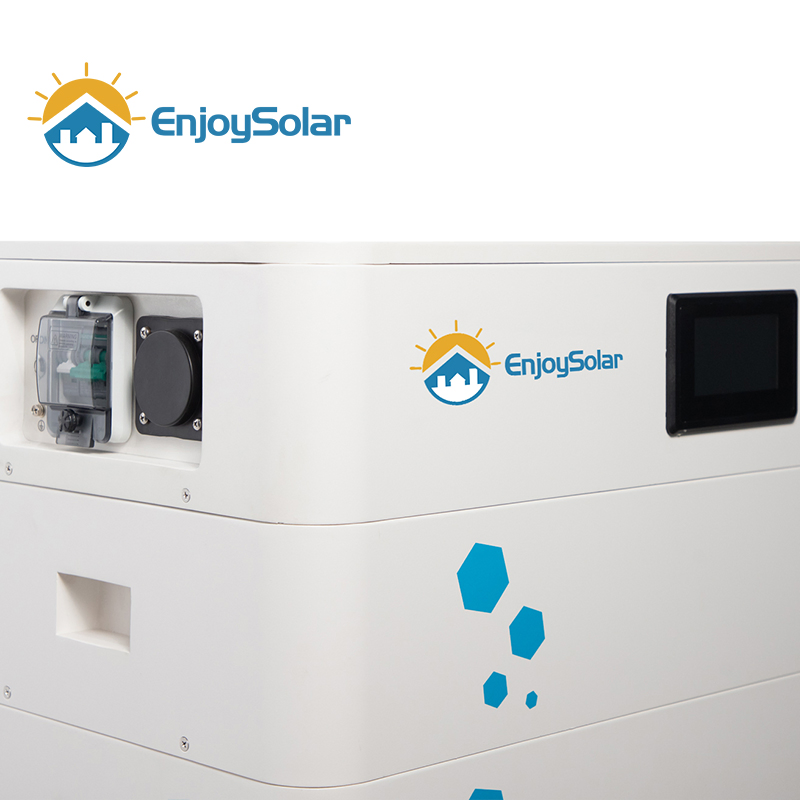

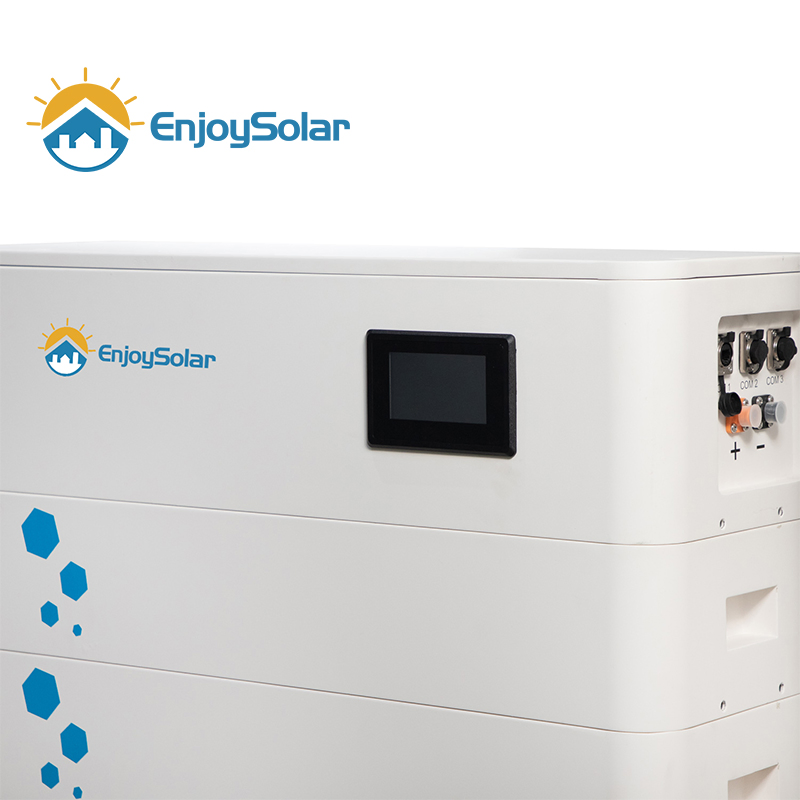

Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
1 / 5
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack
Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack

Stackable Byd 51.2V 100ah High Voltage LiFePO4 Battery Cell 20kwh 30kwh Solar Lithium Ion Battery Storage Pack

Still deciding? Get samples of $ !
Order Sample
Send Inquiry

Product Description

Overview Application Product Description Product Parameters Compatible with Packaging & Shipping Projects FAQ Our Showroom
Basic Info
Model NO.ES-30KHS
RechargeableYes
Size590*420*849mm, 20kwh 30kwh
Nominal Voltage48V
Warranty10 Years of 80% Dod
Nominal Capacity30kwh
Cycle Life6000 Times
Capacity30.72kwh
Rate Voltage307.2V
Protection LevelIP65
Solar Battery ShapeSquare
DisplayLCD Screen
BMS ControlYes
CommunicationCan/RS485
Cooling MethodNatural Air Cooling
CertificationMSDS, Un38.3, CE, IEC
FunctionHome Solar Energy Storage System
OEM/ODMAccept
Transport PackageWooden Box with Pallet
Specification590*420*849mm
HS Code8507600090
Production Capacity50000pieces/Years
Packaging & Delivery
Package Size60.00cm * 40.00cm * 16.00cm
Package Gross Weight80.000kg
Application

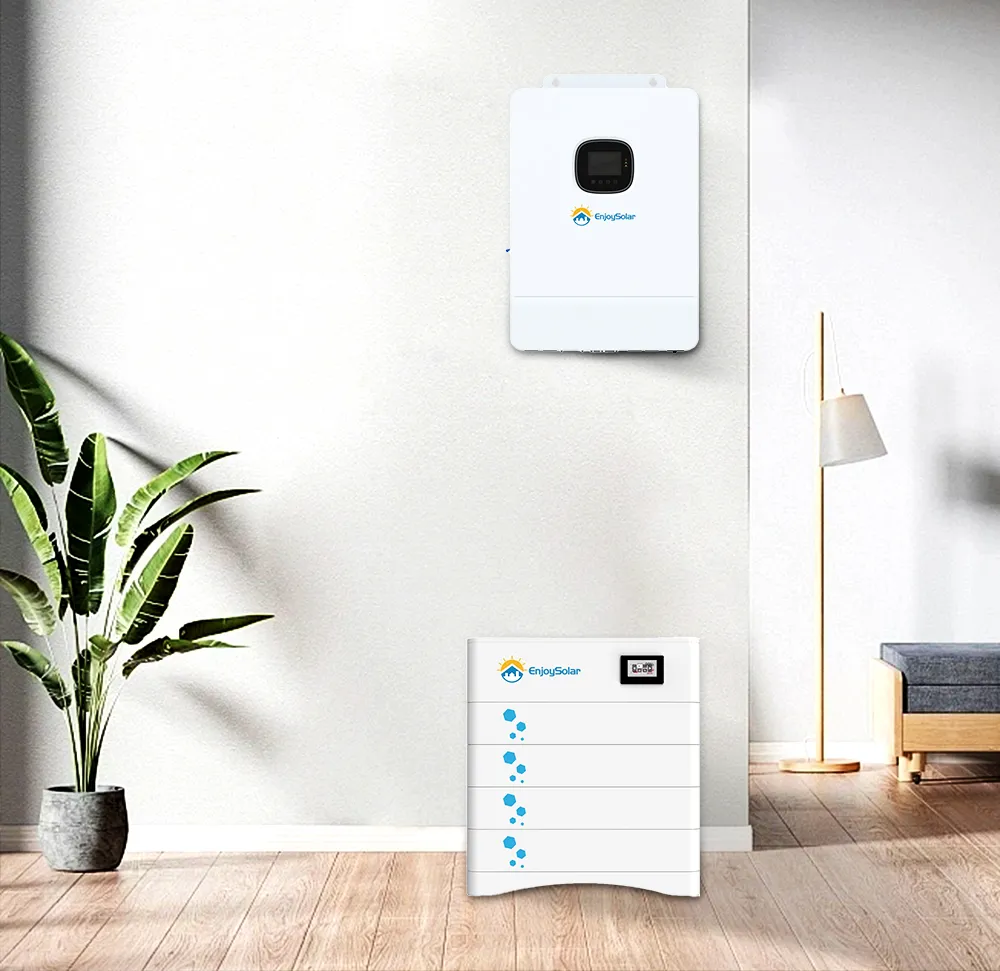

Application Scenario 1 Application Scenario 2
Product Description

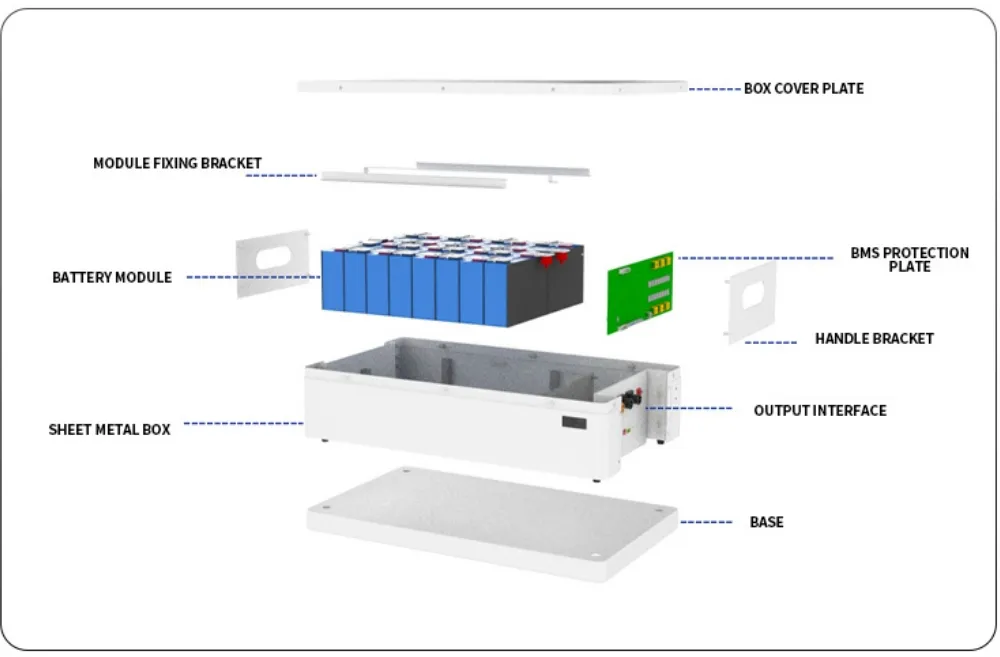

Product Structure
Smaller Footprint
Experience the unparalleled advantage of our high energy density, meticulously crafted using top-tier LFP technology. This translates into remarkable performance enhancements, delivering more power in a compact design!
Expandable Module Design
Our system offers unmatched flexibility, accommodating energy capacities from a robust 15.36kWh up to an extraordinary 40.96kWh, perfectly catering to a diverse range of energy demands.
Monitor
Immerse yourself in a world of effortless control with our real-time monitoring capabilities. Keep track of battery charging and discharging processes, and receive automatic online updates and maintenance. This ensures your system operates optimally at all times, keeping you worry-free!
Communication Supports
Achieve seamless integration with a wide range of communication protocols, including CAN, RS485, and RS232, offering versatile connectivity options for your energy storage solution.
Product Parameters
Model ES-15KHS ES-20KHS ES-30KHS ES-40KHS
Battery Module Qty In Series(Optional) 3 4 6 8
System Nominal Voltage(V) 153.6 204.8 307.2 409.6
Module Capacity (Ah) 100 100 100 100
Recommend Charge/Discharge Current (A) 50 50 50 50
System Nominal Capacity(KWh) 15.36 20.48 30.72 40.96
Usable Capacity(kwh) 12.29 16.38 24.58 32.77
Dimension (mm) 590*420*698 590*420*849 590*420*1151 590*420*1453
Weight (kgs) 161.4 207 298.2 389.4
Communication CAN
Ingress Protection IP65
Altitude <2000m
Cycle Life 25±2°C, 0.5C/0.5C, EOL70% > 6000
Monitoring Parameters System voltage, Current, cell voltage, cell temperature, module temperature
SOC Intelligent algorithm
Working Temperature Charge: 0ºC to 45ºC / Discharge: -10ºC to 55ºC
Storage Temperature 0-35ºC
Compatible with
Inverter Compatibility Map
Packaging & Shipping
Packaging Detail 1 Packaging Detail 2
Projects

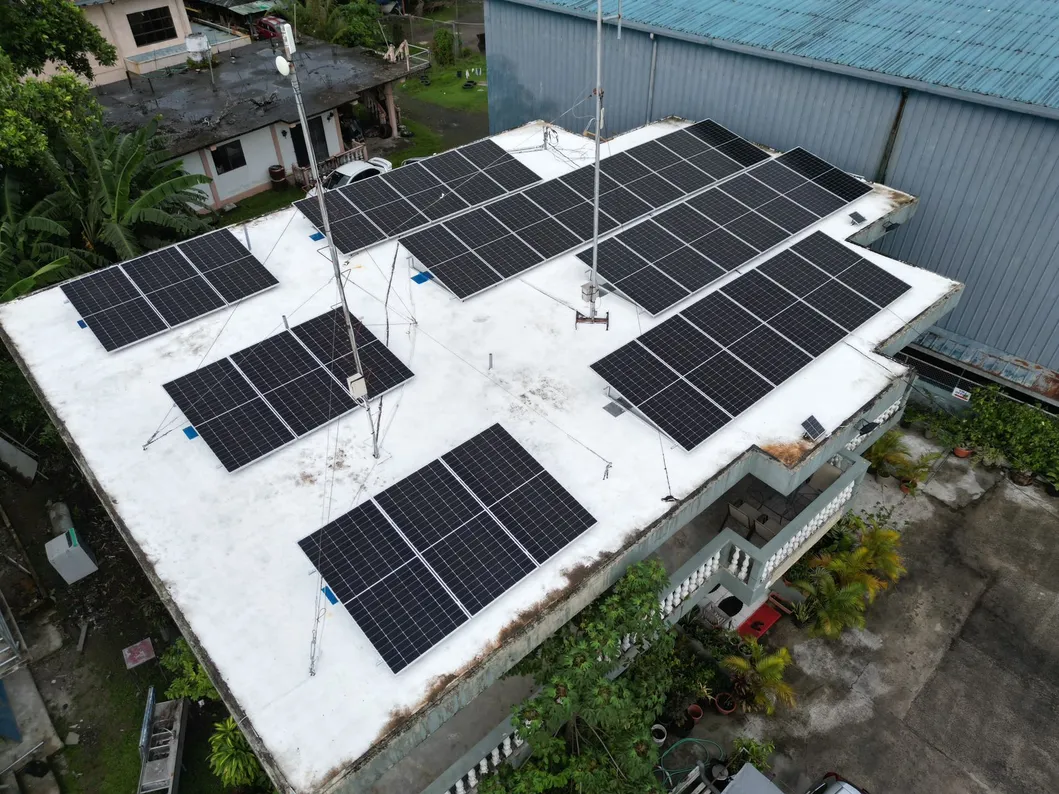

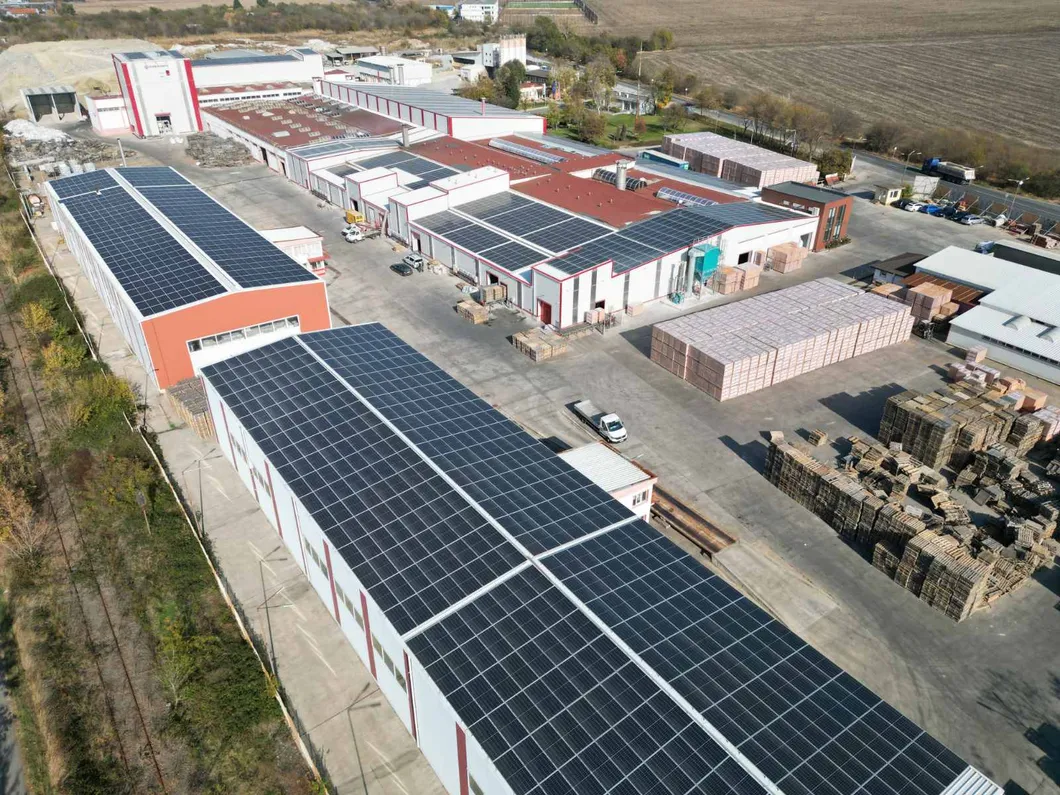

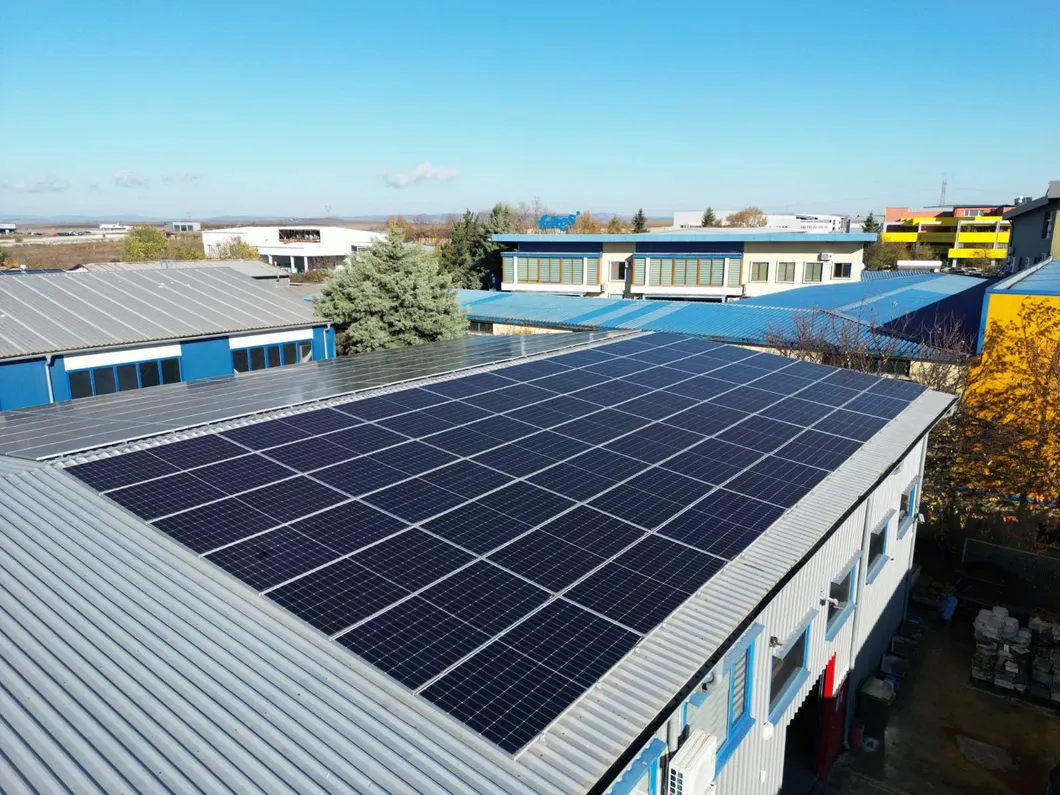

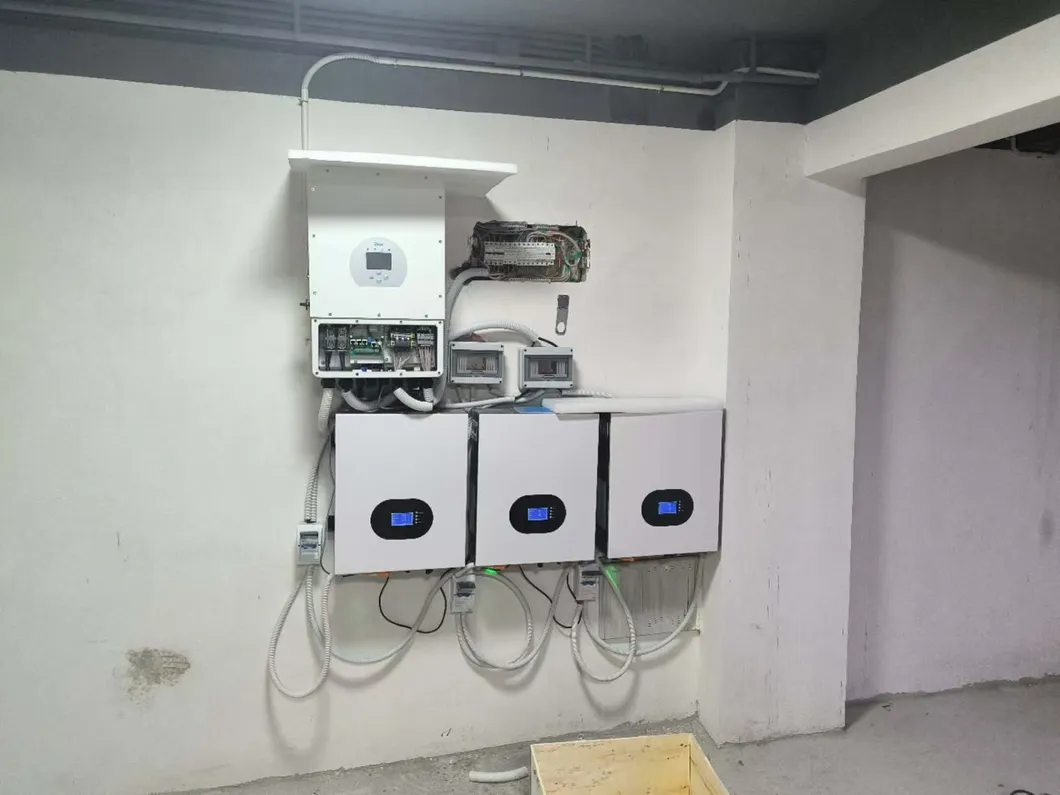

Project Case 1 Project Case 2 Project Case 3 Project Case 4
Frequently Asked Questions
What are your main products?
We have many series of solar products, mainly producing solar systems, solar panels, solar inverters, powerwall, solar lithium ion batteries and solar mounting systems, and all related solar accessories.
Are you a factory or trading company?
We are a factory with more than seven years of experience in producing solar energy series products. You are welcome to visit our factory.
Can you support OEM and field installation?
Yes, as a professional solar system manufacturer, we can provide customers with OEM and on-site installation, comprehensive support, and after-sales services.
How does your factory conduct quality control?
Quality first. We have a professional QC team to control the quality strictly. Only when the quality meets the requirements, will it be packaged out of the factory.
What are your strengths in solar systems?
Fully automatic production line using international advanced production equipment. The price and quality are very competitive, and we have cooperated with many well-known brands. And we can supply large solar energy series products.
How can I do if I need more help with the order?
You can chat with our sales online or send inquiry email, we will respond to you immediately.
