| Battery Module Specification | |
|---|---|
| Battery Type | LiFePO4 battery |
| Nominal Voltage | 51.2V |
| Normal Capacity | 100Ah |
| Energy | 5.12Kw/h |
| Communication | RS232/RS485/CAN/BLUETOOTH/WIFI |
| Cycle Life* | 8000 cycles 80% DOD, 0.5C |
| Certification & Safety Standard | UN38.3, MSDS, IEC62619, CE, UL1973, UL2054 |
| Protection Level | IP20 |

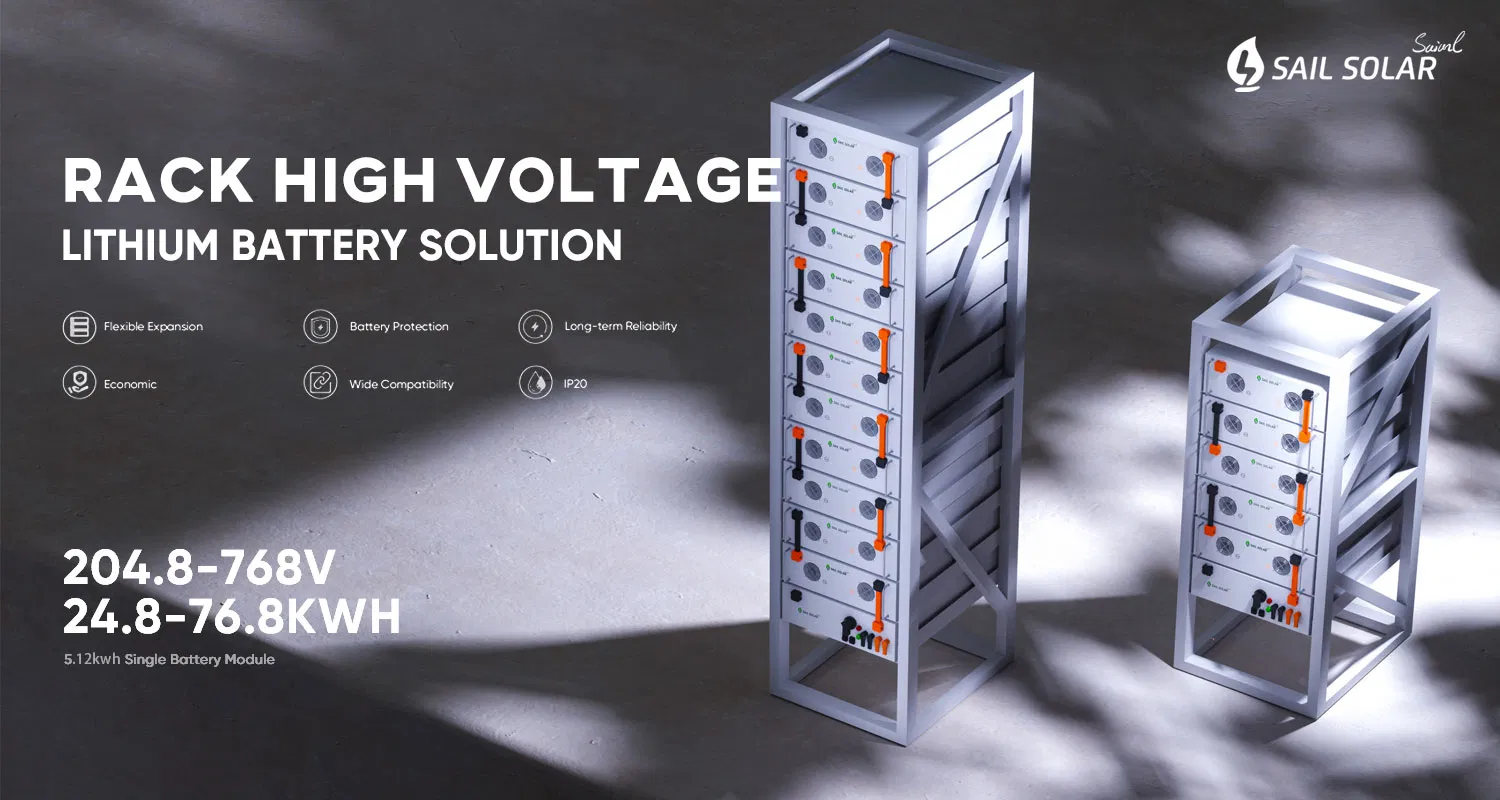

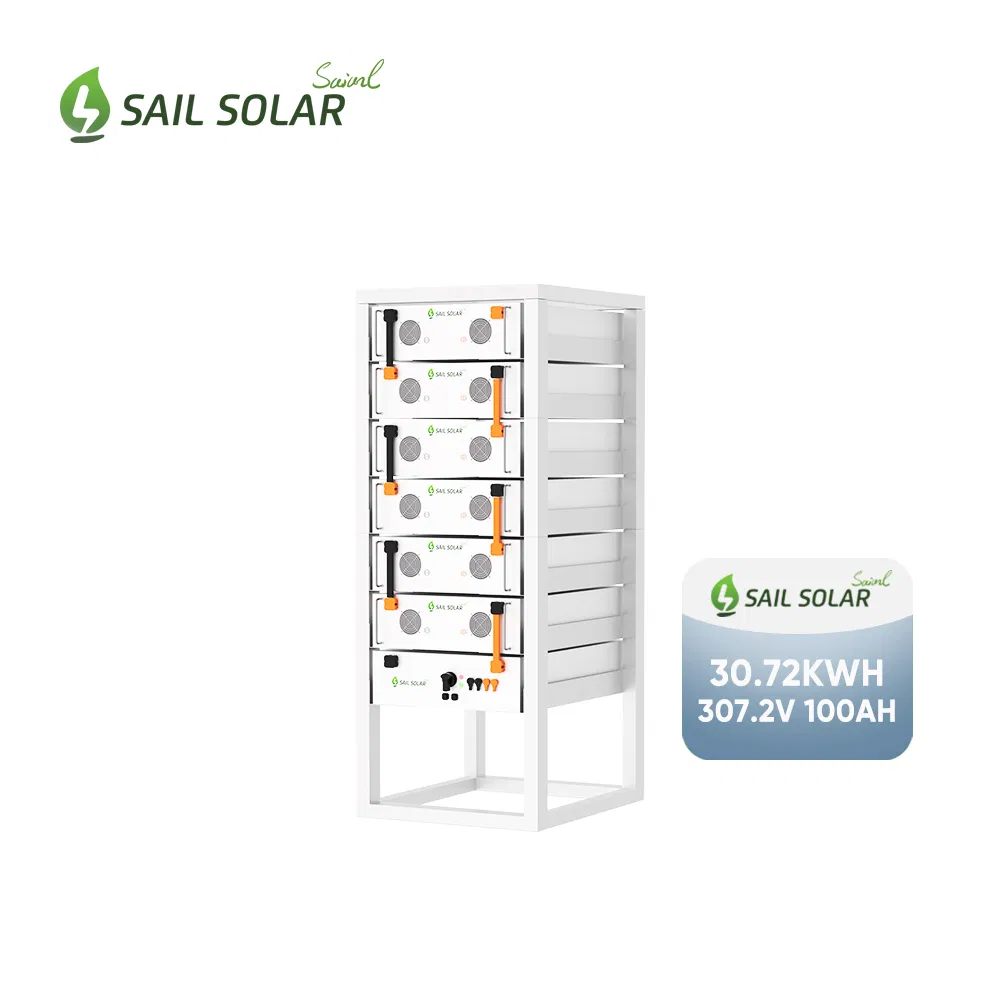

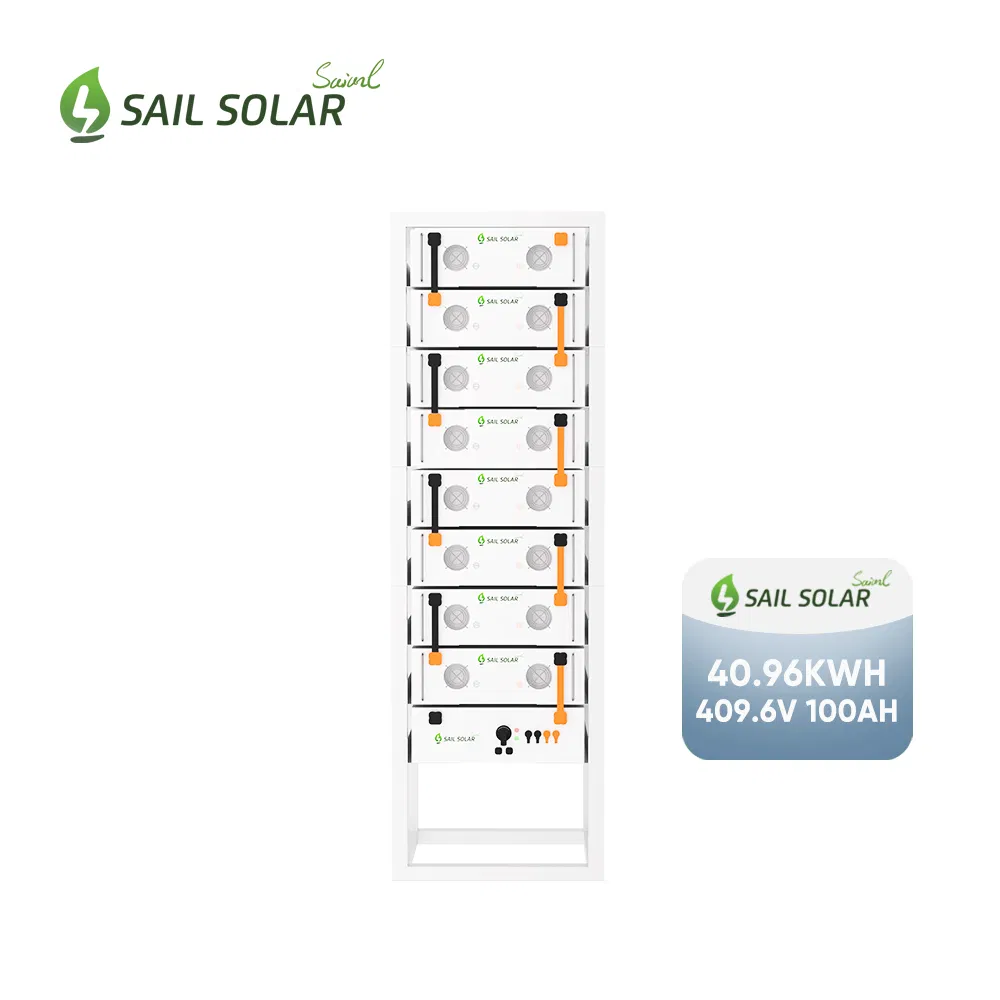

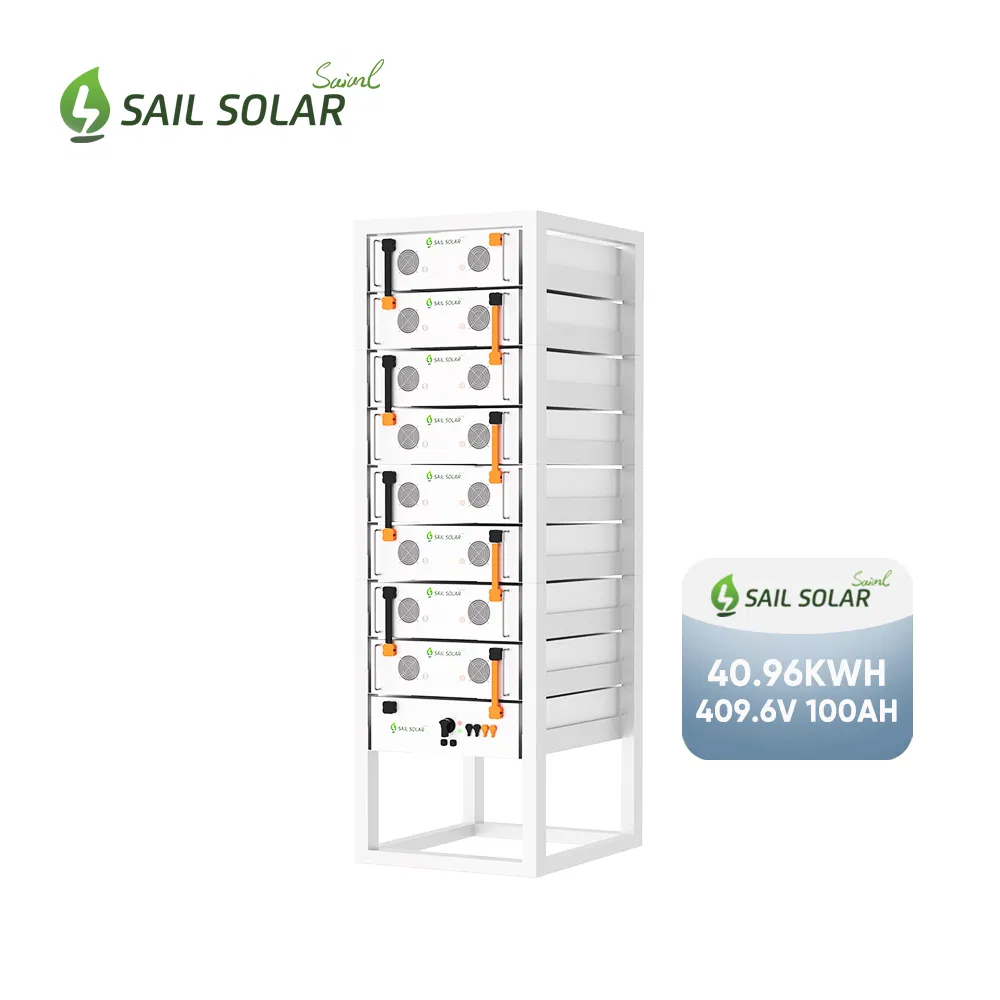

| Battery Rack Specification | |||
|---|---|---|---|
| Battery Module Quantity | 4~7 units | 8~11 units | 12~15 units |
| Nominal Battery Energy | 5.12kWh x n (n=4~7) | 5.12kWh x n (n=8~11) | 5.12kWh x n (n=12~15) |
| Nominal Capacity | 100Ah | 100Ah | 100Ah |
| Nominal Voltage | 51.2V x n (n=4~7) | 51.2V x n (n=8~11) | 51.2V x n (n=12~15) |
| Max. Power Output | 5.12kW x n (n=4~7) | 5.12kW x n (n=8~11) | 5.12kW x n (n=12~15) |
| Recommend Charging Current | 60A | 60A | 60A |
| Recommend Discharging Current | 60A | 60A | 60A |
| Max Charge/Discharge Working Current (A) | 100A | 100A | 100A |

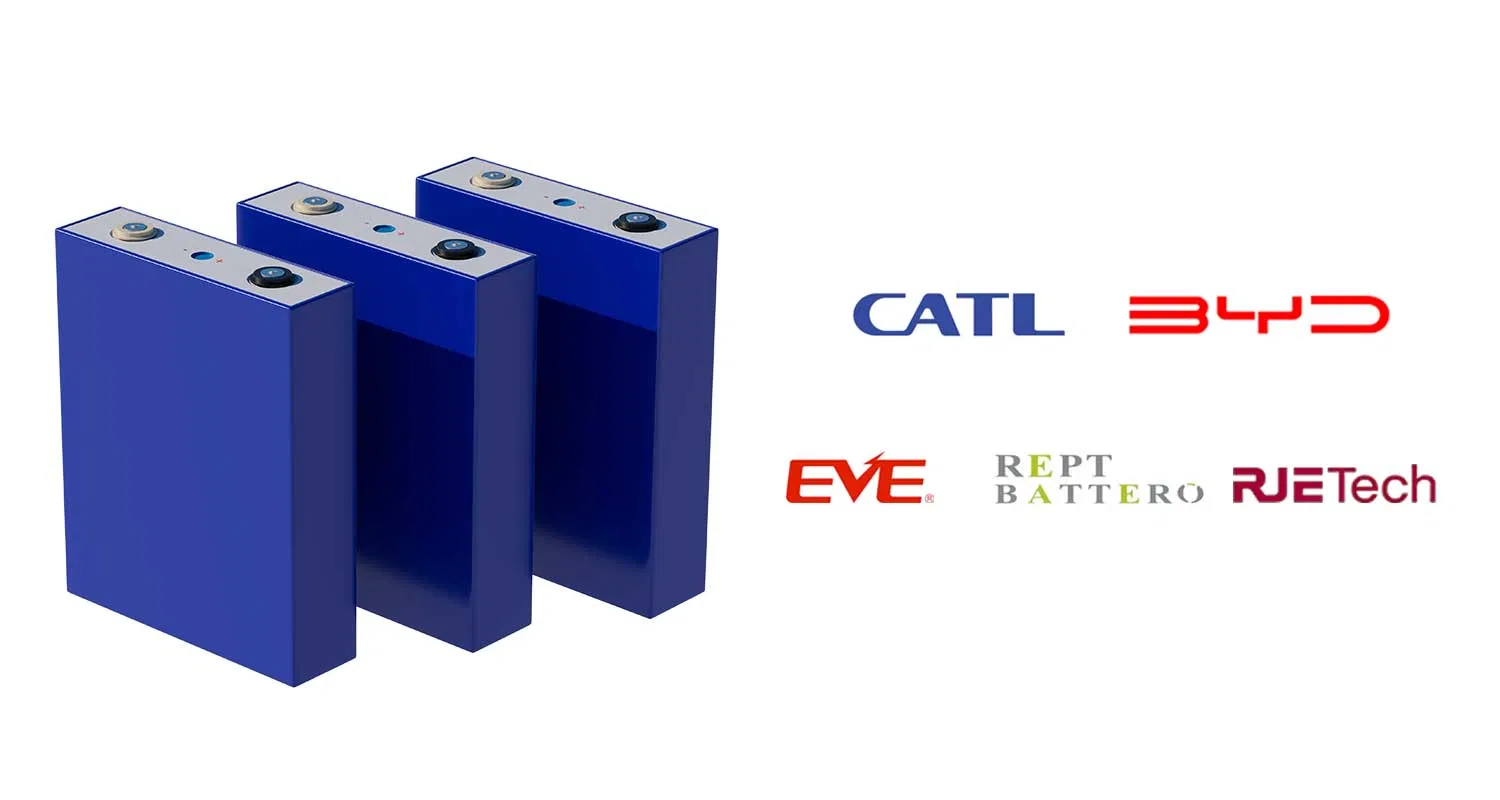

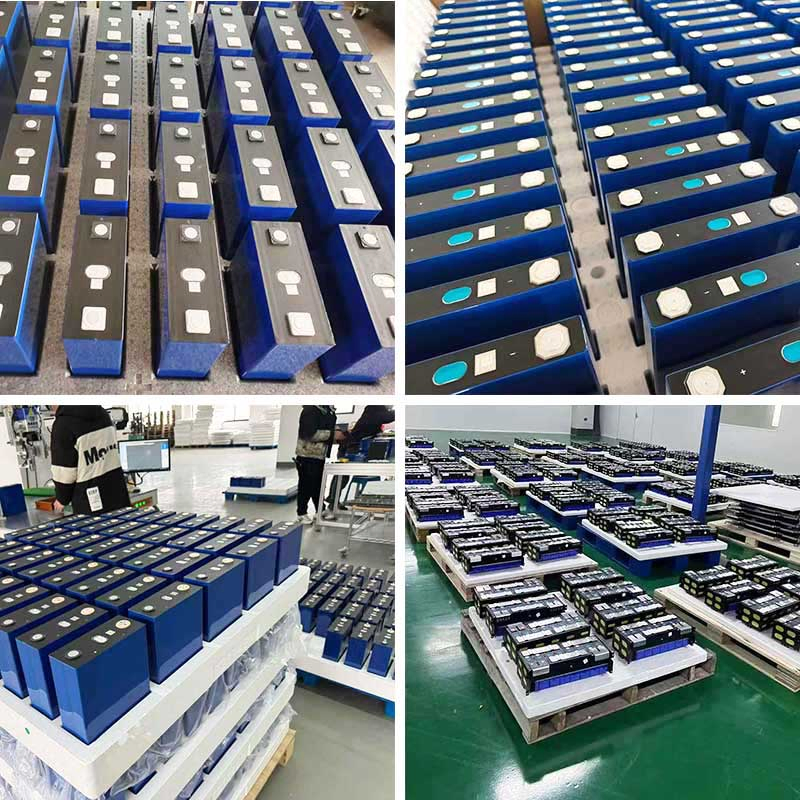

Only Grade A cells from leading brands such as CATL and REPT are used to produce these lithium batteries.
Top brand BPU boxes including KGOOER, UDAN, and BYD are integrated into this high voltage lithium battery solution.
These Lithium battery modules cooperate seamlessly with most inverters on the market. Compatibility with additional brands is expanding regularly.

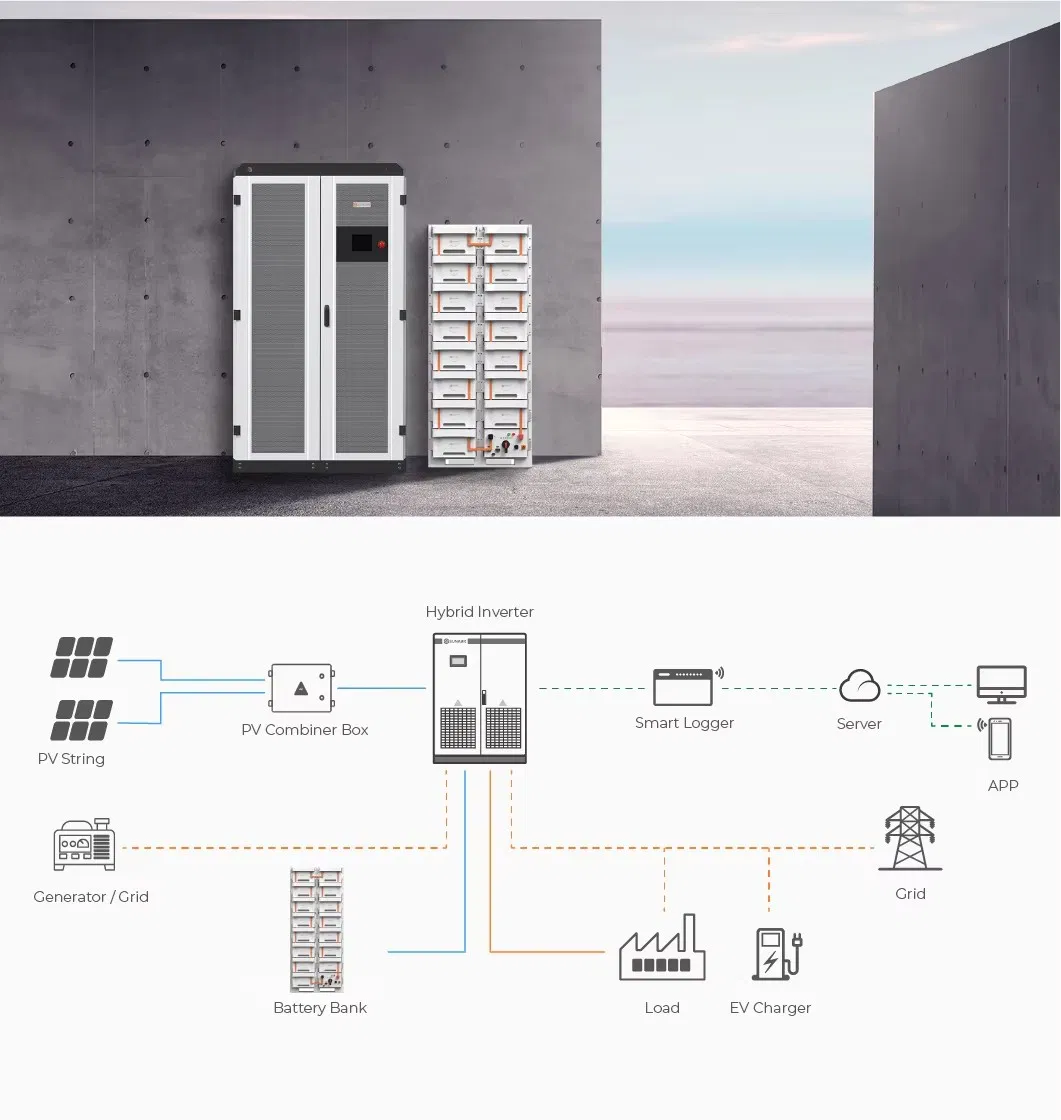

Solar panels produce DC electricity, which can be converted into AC electricity through an inverter for direct use by household loads. The extra DC electricity charges the battery to serve as backup power at night or on rainy days.
Inverters have a state grid supplementing function. When the power stored in the battery is insufficient at night, the state grid can run the load. Users can also charge the battery during low electricity price periods or sell excess electricity back to the grid. For commercial and industrial hybrid systems, diesel generators can be integrated for additional energy backup.

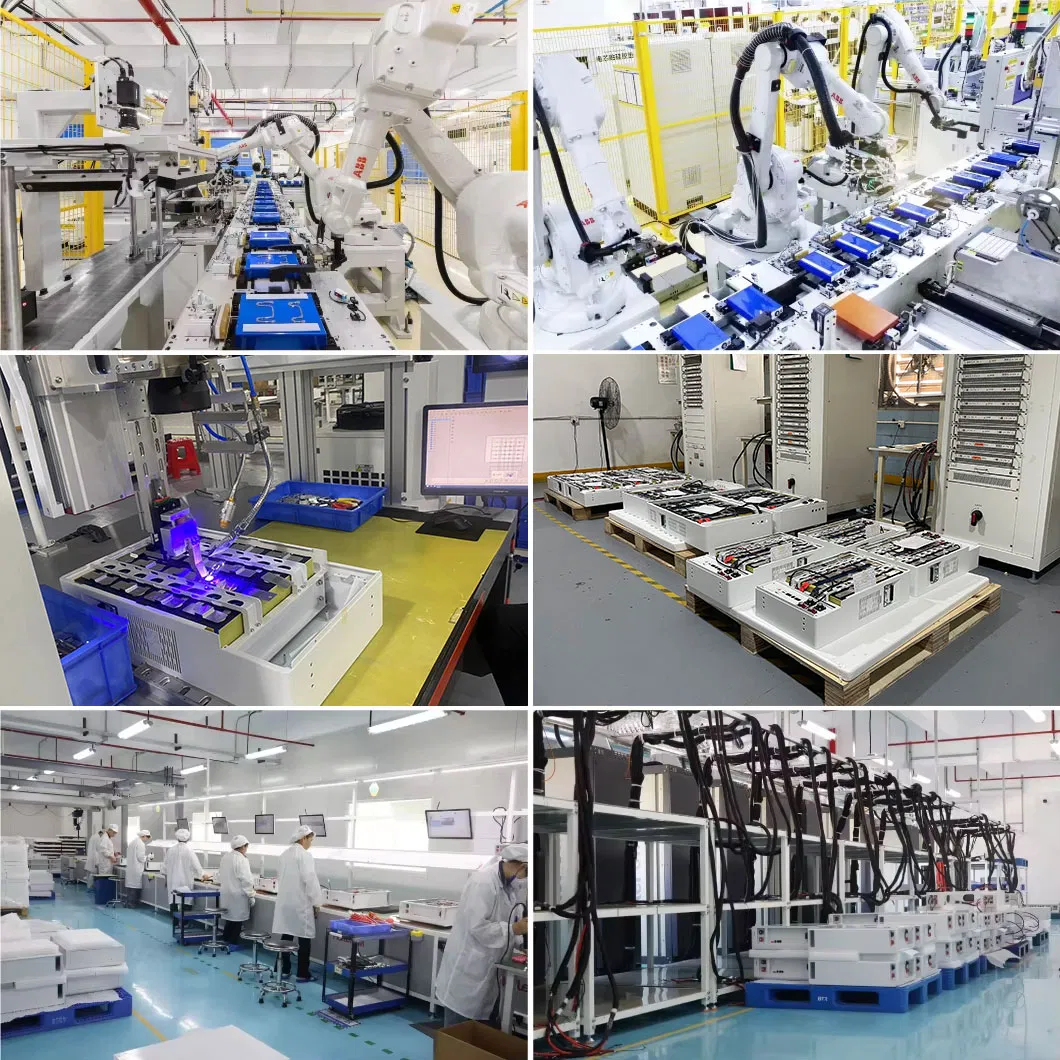

An industry-leading intelligent manufacturing system has been developed, constantly leading innovation in equipment and technology with the independent R&D of a top-notch technical team.
Built with world-class production automation, intelligence, and efficiency, the intelligent factory employs cutting-edge technologies including AI, image recognition, machine learning, predictive algorithms, and 5G.
Participation in more than 20 exhibitions worldwide each year spans major markets across Asia, Europe, and the Americas.
