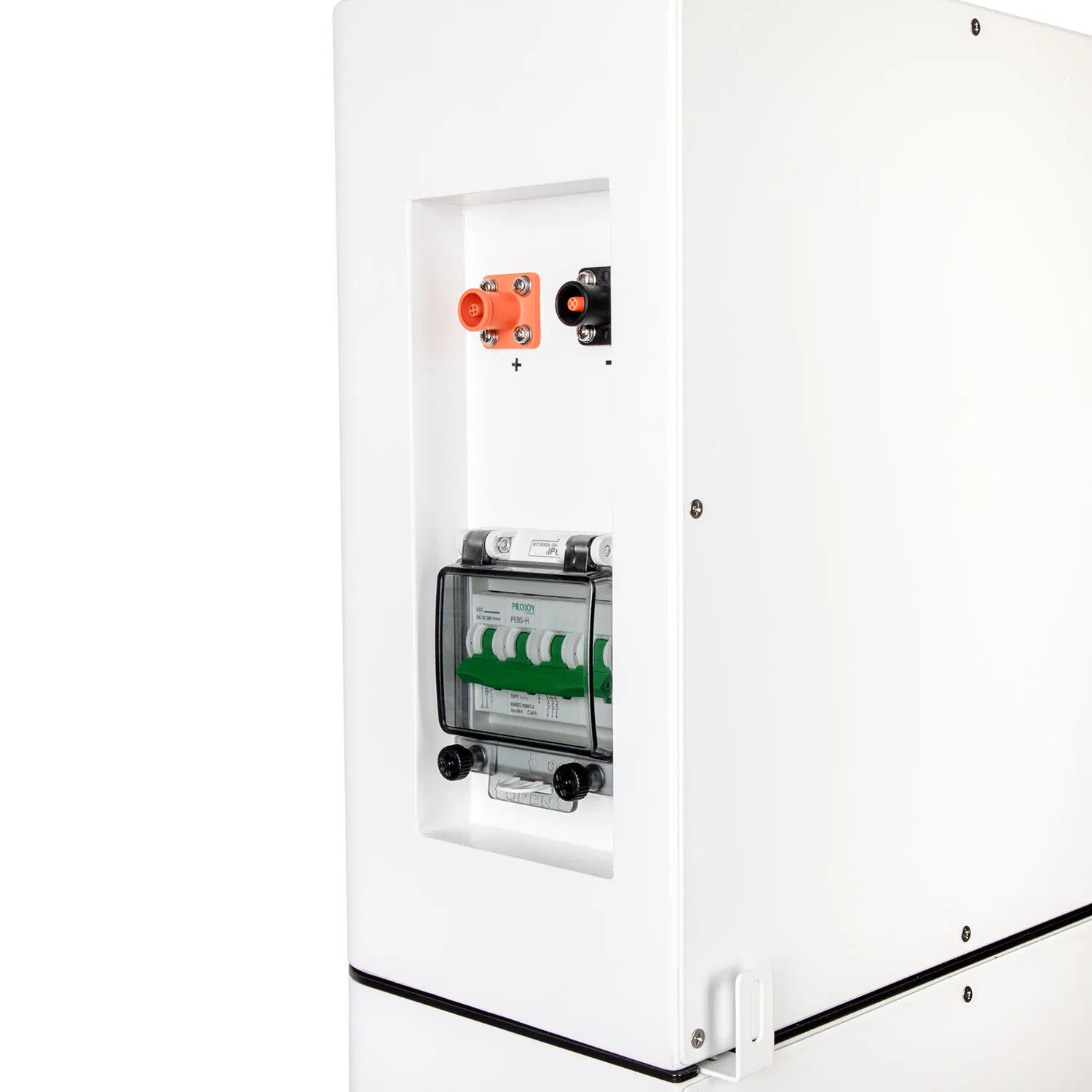

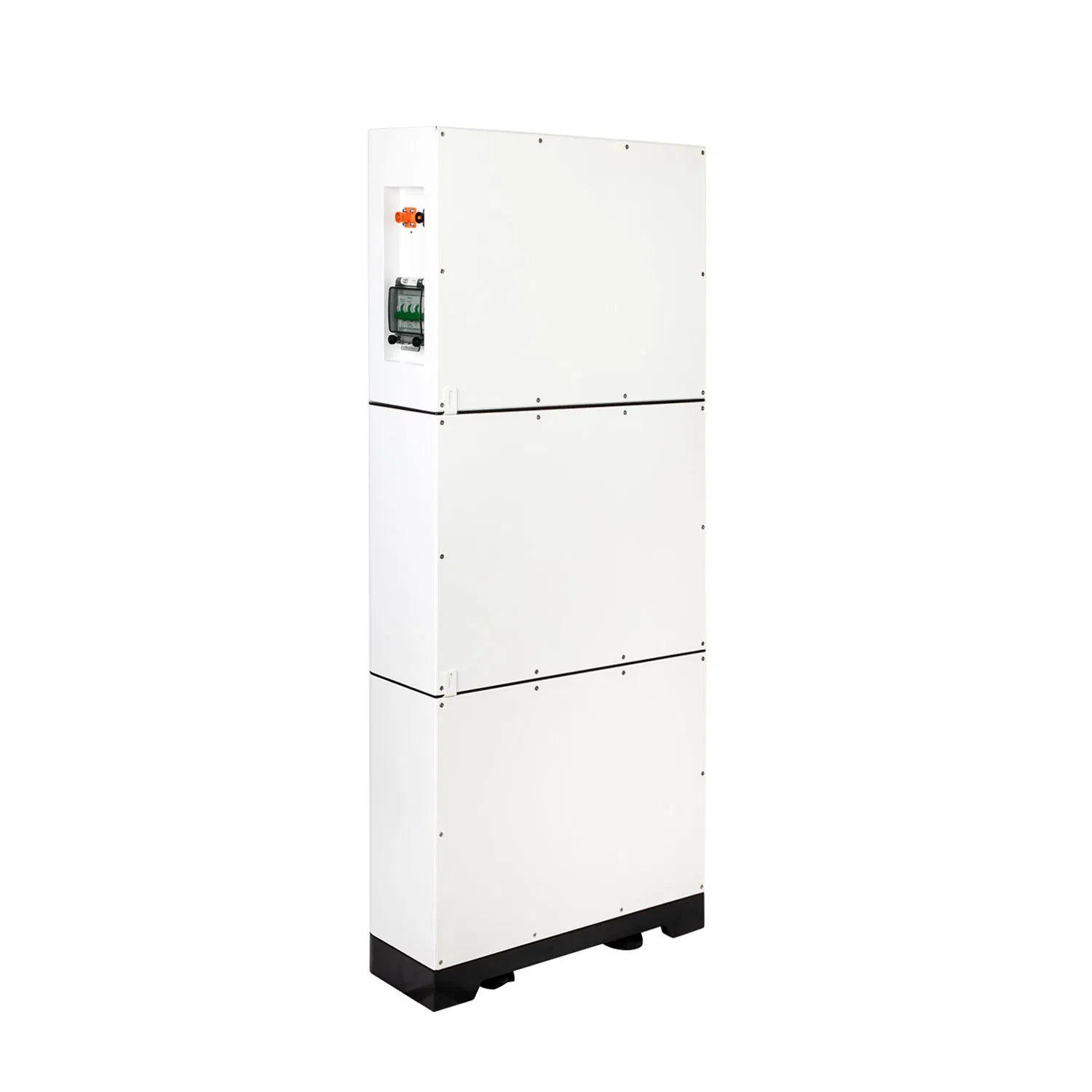

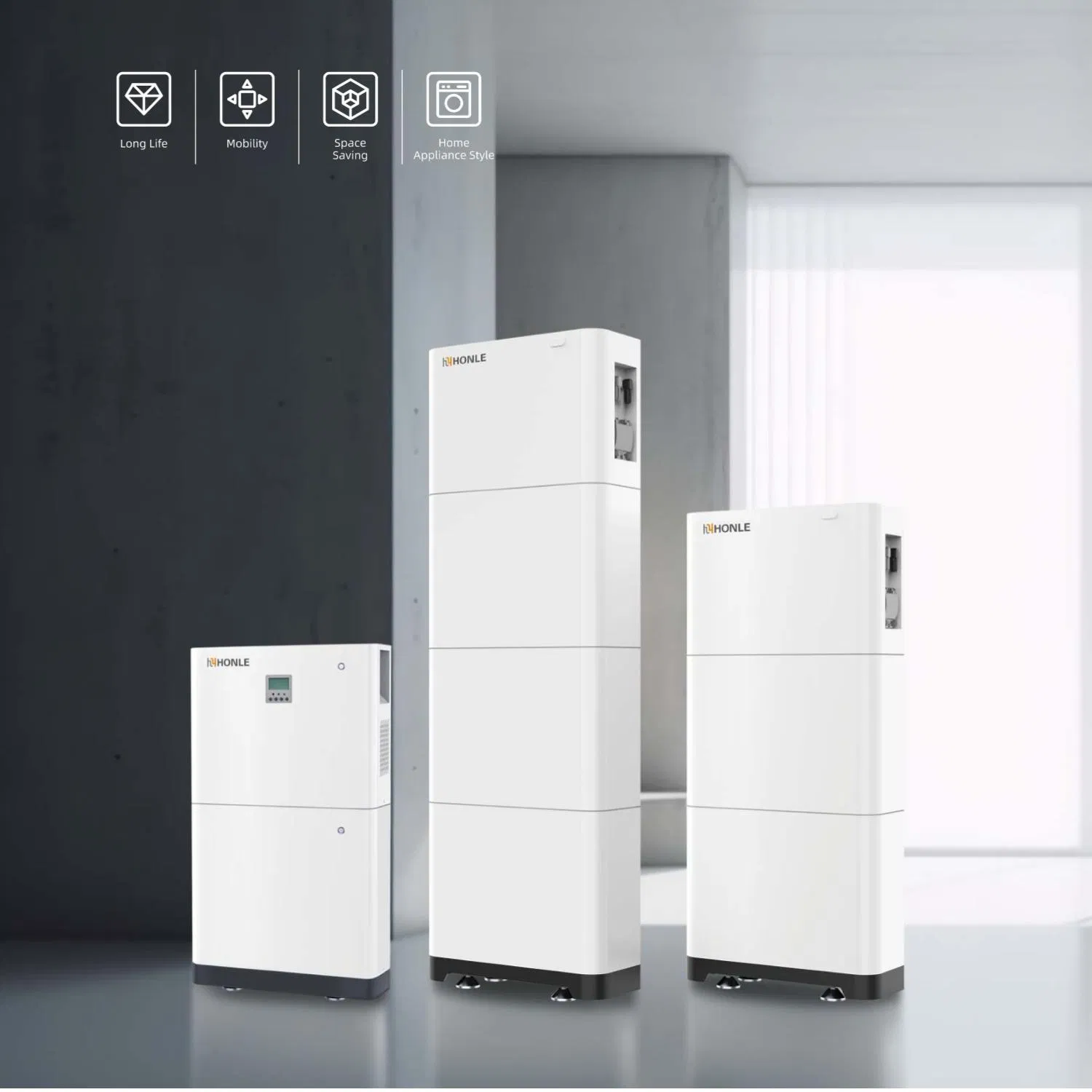

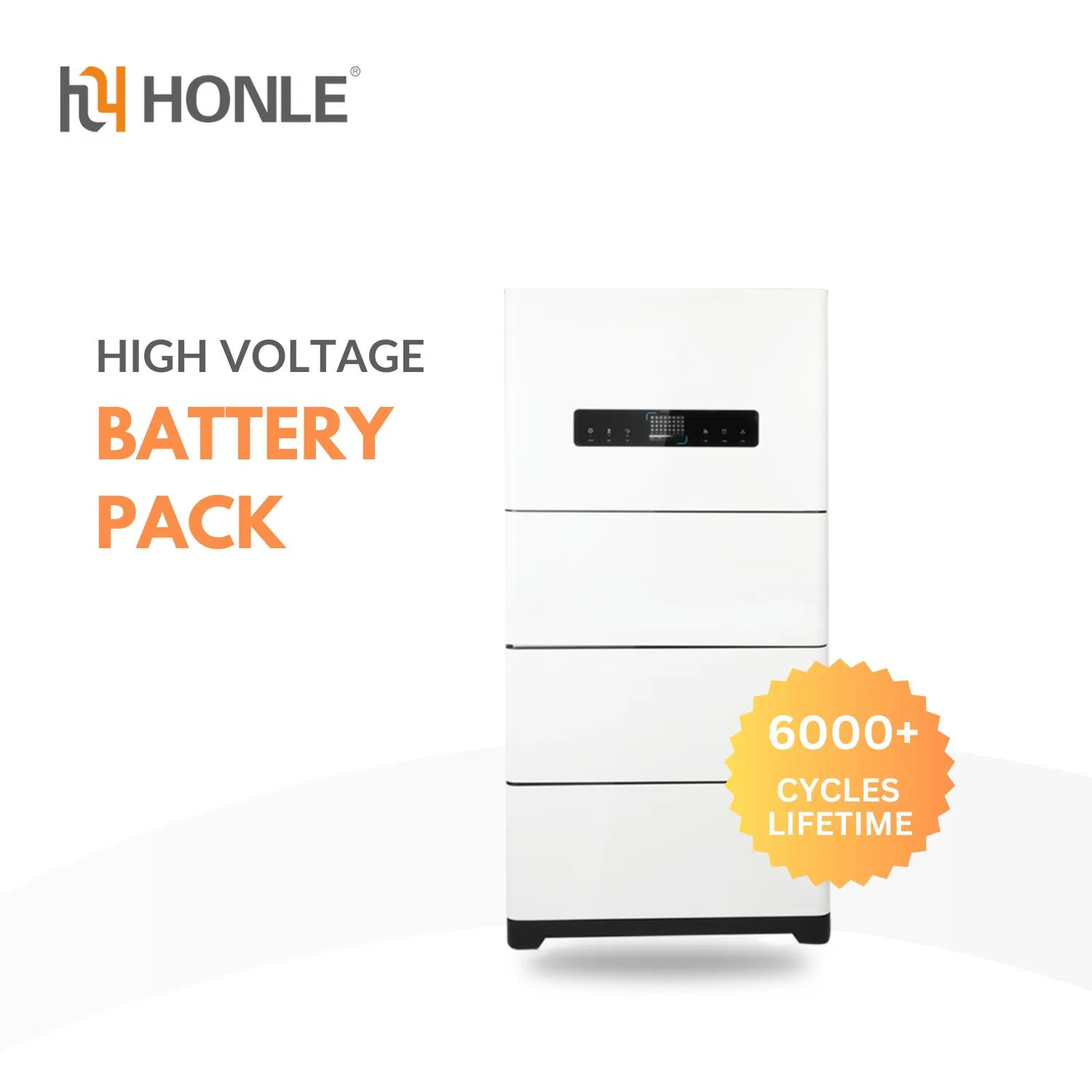

Honle Best Price LiFePO4 Lithium Stackable High Voltage 300V Solar Battery Solar Panel for Power Bank System

Still deciding? Get samples of $ !
Order Sample

Product Description

Overview
Basic Info.
Model NO. HVHL-P15.3
Cycle Life 6000 Cycles
Nominal Capacity 50ah
Standard Voltage 307.2V
Certifications CE, FCC, CCC, UN38.3, UN3480
Protection Grade IP54
Working Voltage 240-350.4V
Discharge Rate 0.8c/40A
Charge Rated 0.5c/25A
Efficiency 96%
Interface CAN/RS485
Rated Capacity 15.36kwh
Origin China
HS Code 33039639
Packaging & Delivery
Package Size 61.00cm * 27.00cm * 184.00cm
Package Gross Weight 176.000kg
Transport Package Wooden Case Packing
Product Description
Stacked Energy Storage High Voltage (Residential)
Designed with an integrated household appliance aesthetic, stacked energy storage systems feature a sleek size and easy installation. The modular stack design allows for flexible matching of energy storage units and on-demand expansion. With an integrated inverter, these systems offer excellent portability and mobility for homeowners.
  • 1 Modular Stacking for Flexibility
  • 2 Expandable to Meet Your Needs
  • 3 Single-Layer Module Capacity
  • 4 High Working Voltage
  • 5 Portable and Efficient
  • 6 Long Cycle Life

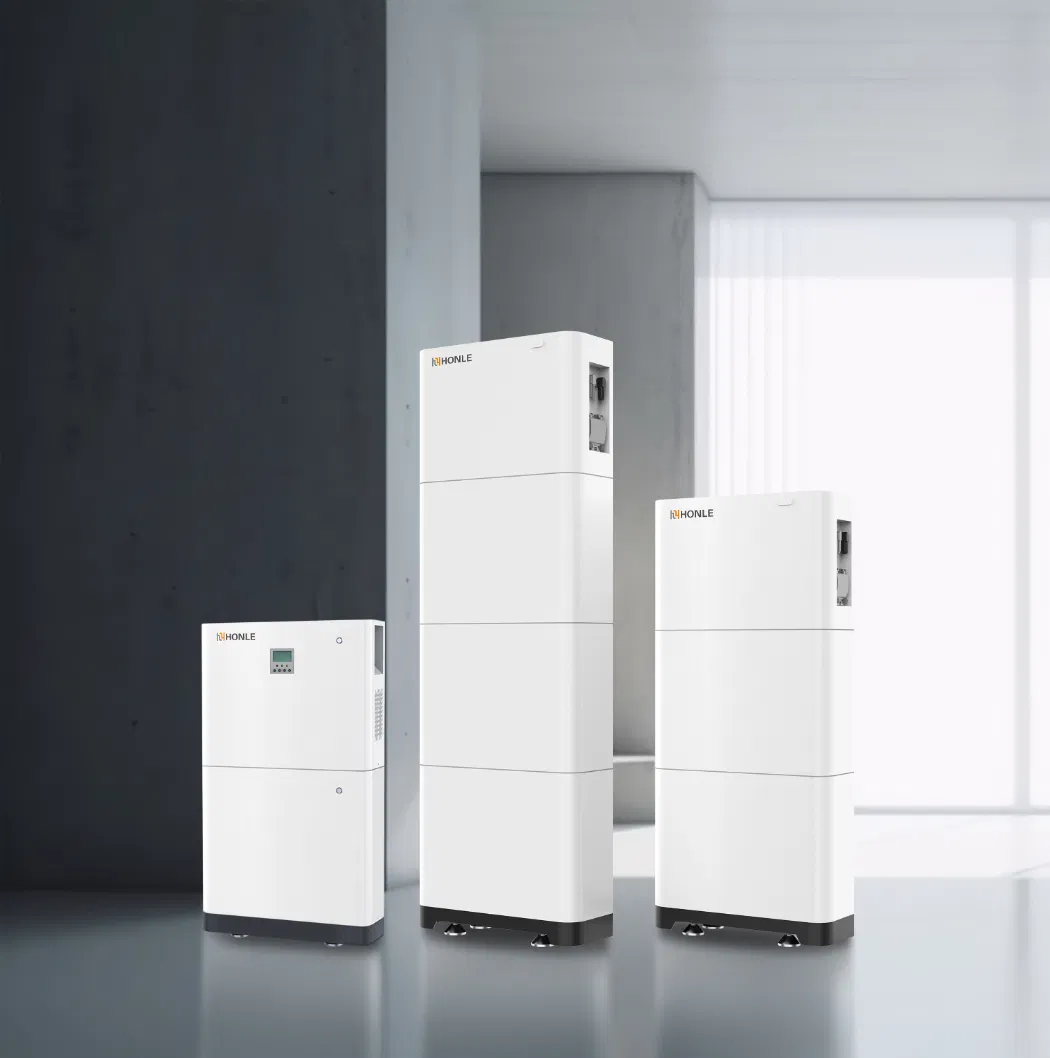

LiFePO4 Lithium Stackable High Voltage 300V Solar Battery
LiFePO4 Lithium Stackable High Voltage 300V Solar Battery Systems
Our Advantages
Energy Storage System Advantages
Product Parameters
Model HVHL-P10.2 HVHL-P15.3 HVHL-P20.4
Module Number 2 3 4
Rated Capacity 10.24kwh 15.36kwh 20.48kwh
Rated Voltage 204.8 307.2 409.6
Working Voltage Range 160-233.6V 240-350.4V 320-467.2V
Size 530*190*1186mm 530*190*1569mm 530*190*1952mm
Weight 106kg 150kg 195kg
Discharge Rate (Max) 0.8C/40A
Charge Rated (Max) 0.5C/25A
Working Temperature Charge: -20°C-55°C / Discharge: 0°C-55°C
Rated Capacity ≥50Ah@23°C BOL
Protection Grade IP54
Charge/Discharge Efficiency ≥96%
Communication Interface CAN/RS485
Application

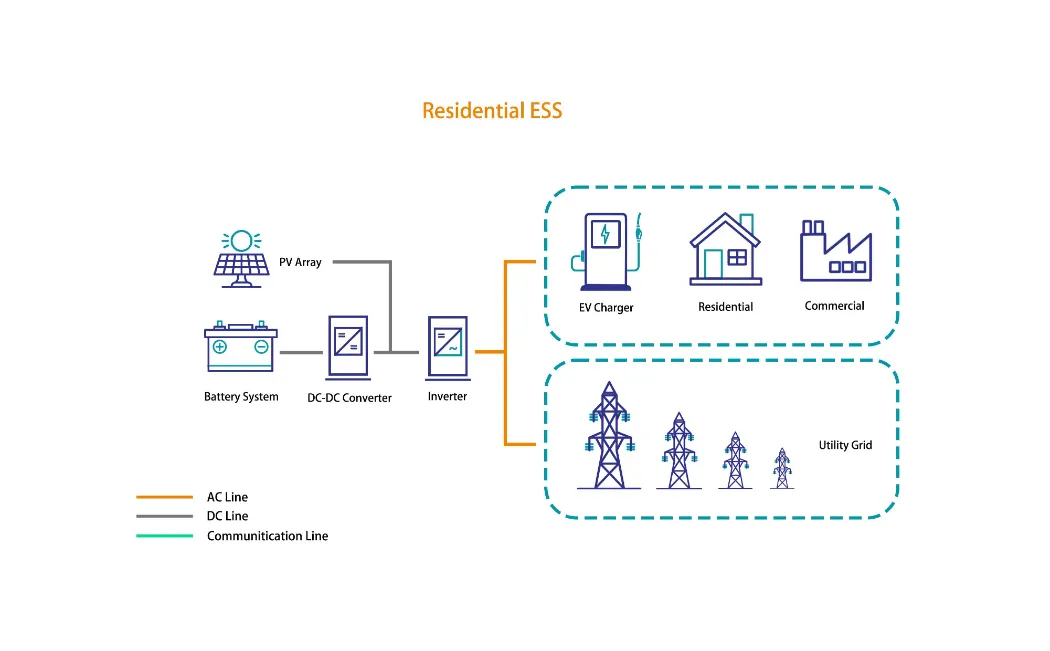

Energy Storage System Application
Energy Storage Application Scenario
Residential Solar Energy Storage
Production & Quality

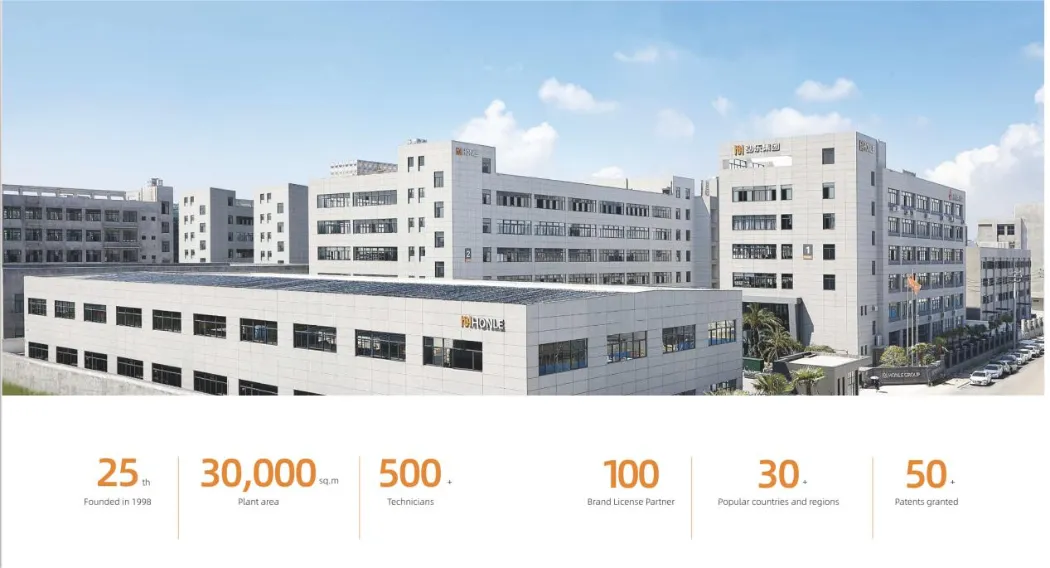

Production facility overview
A globally recognized and dependable supplier of sustainable, eco-friendly energy storage solutions, with more than two decades of experience in the electric and new energy industry. State-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters. The new energy power solutions and battery products find wide applications in various traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
State-of-the-art international production equipment boasts an annual production capacity of 30,000 square meters. Product solutions are tailored for traditional household energy storage, power walls, commercial energy storage systems, and other dynamic information power fields.
Production workflow
Factory assembly floor
Production Line
As an innovation-oriented manufacturer, the production line is equipped with the latest technology and machinery, as well as high-level testing machines and devices. A team of experienced and skilled workers oversees the production process to ensure that every product meets strict quality standards.

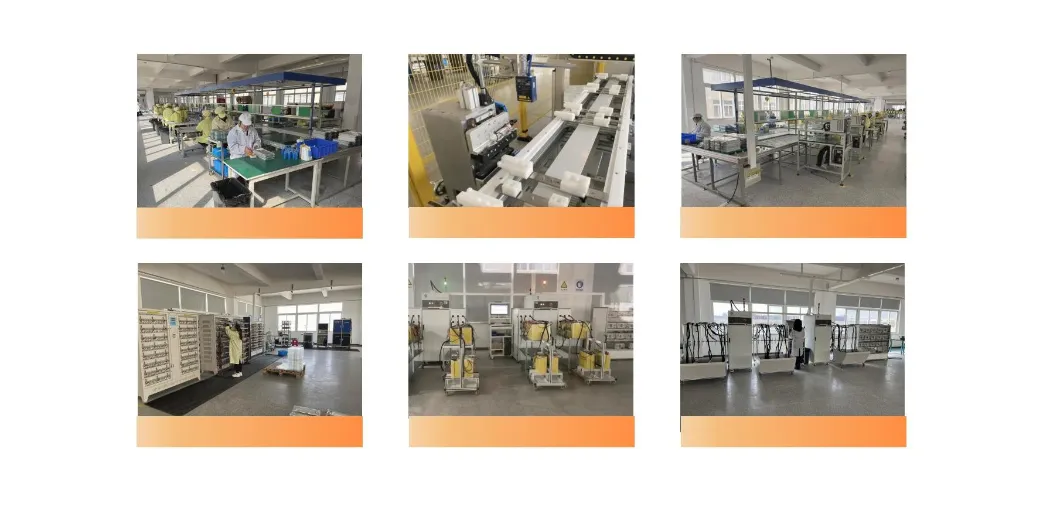

Advanced production line machinery
Certifications
Product Quality Certifications
Packaging & Shipping

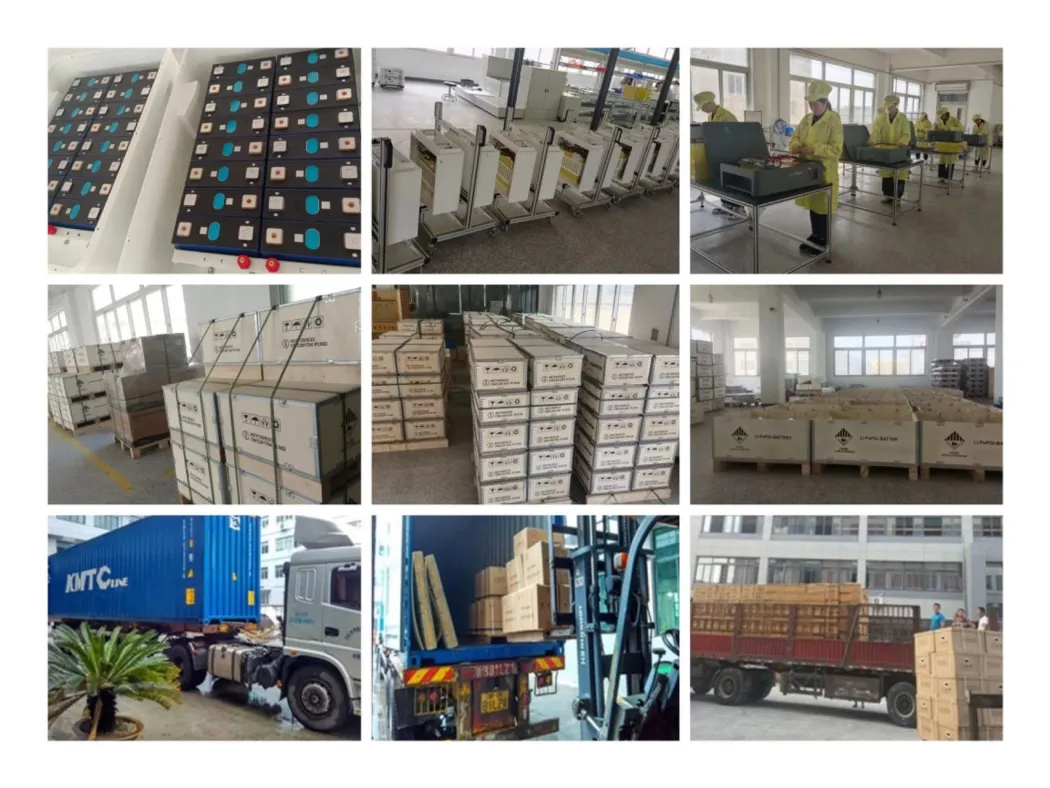

Shipping packages and logistics
Packing List:
Inverter communication network cable (12-87) *1 *1pc (by your enquiry)
Positive and negative wires (Line 6) *1 pair (by your enquiry)
Parallel positive and negative wires (Line 6) *1 pair (by your enquiry)
Parallel communication network cable *1pc (by your enquiry)
Stainless steel three-in-one combination screw, M6 *10pc
Grounding wire (Line 12) *1pc
User instruction *1pc
Frequently Asked Questions
Q1 Do you have any MOQ limit?
A: Yes. In general, MOQ is 1 set.
Q2 Factory or Trading?
A: We are the manufacturer specializing in lithium ion battery.
Q3 How about your delivery time?
A: For the big capacity, we can deliver around 25 days. Depends on the items and the quantity of your order. It usually takes 1-2 days if in stock.
Q4 Can you OEM and ODM Service?
A: Yes, we can provide free OEM Service, and ODM Service. We can design the packaging and logo according to your requirements.
Q5 Do you test all your goods before delivery?
A: Yes, all our products have been tested before delivery.
Q6 Tell me the standard of package?
A: We use strong wooden case for protection.
