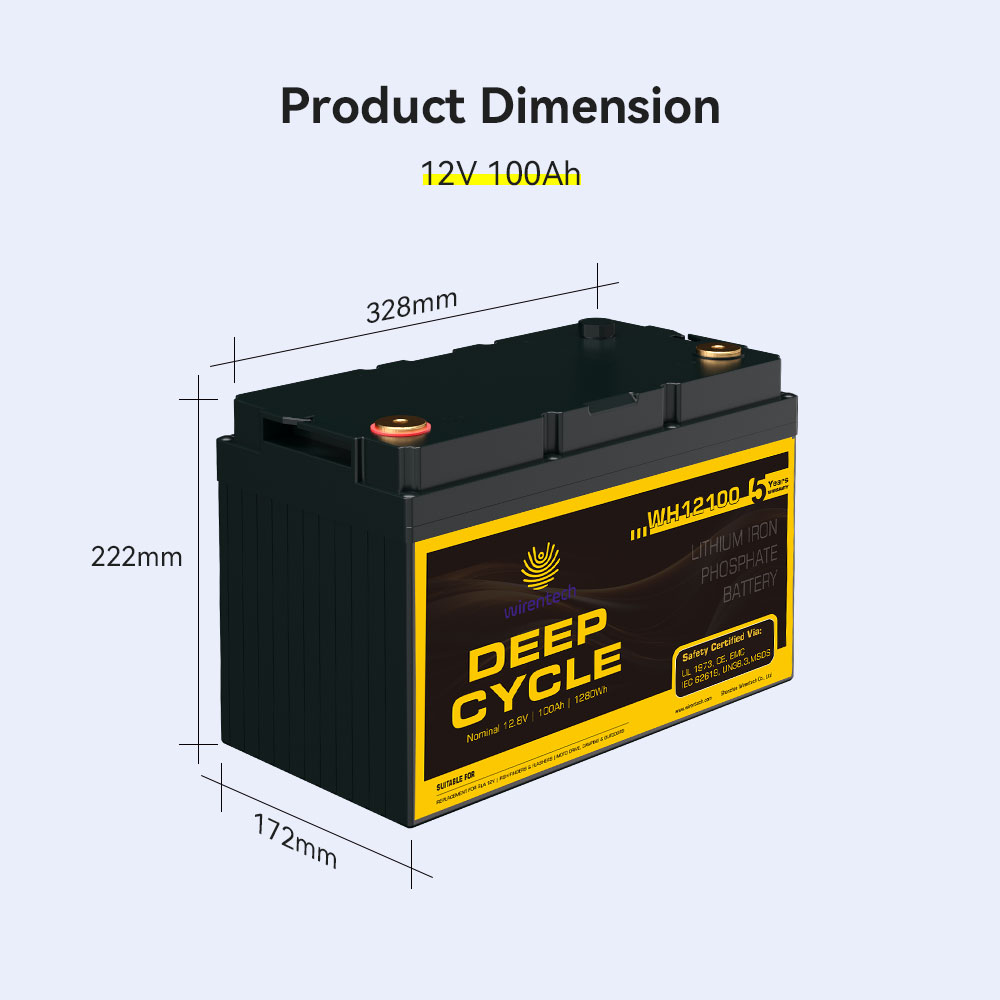

| WH12100 Specifications | |||
|---|---|---|---|
| Charging Temperature Range | 32° ~ 131°F (140°F Max.) | Discharging Temperature Range | -4° ~ 140°F (-20°C - 60°C) |
| Charge Method | CC/CV | Discharge Current | 100Amps Continuous |
| Absorb Voltage(CC) | 14.0 to 14.4 Volts | Discharge Current 3 seconds | <300Amps |
| Maximum Current | 100Amps @ 77°F (25°C) | Discharge Cut-off Voltage | 10 Volts; Any cell (2.5 Volts) |
| Recommended Current | 50Amps | Recommended Low Voltage Disconnect | 12 Volts |
| Recommended CV Time | 15 minutes | Short Circuit Protection | 1400A for 250μS |
| Charge Efficiency | 99% | Short Circuit Protection Release | Disconnect the load |
