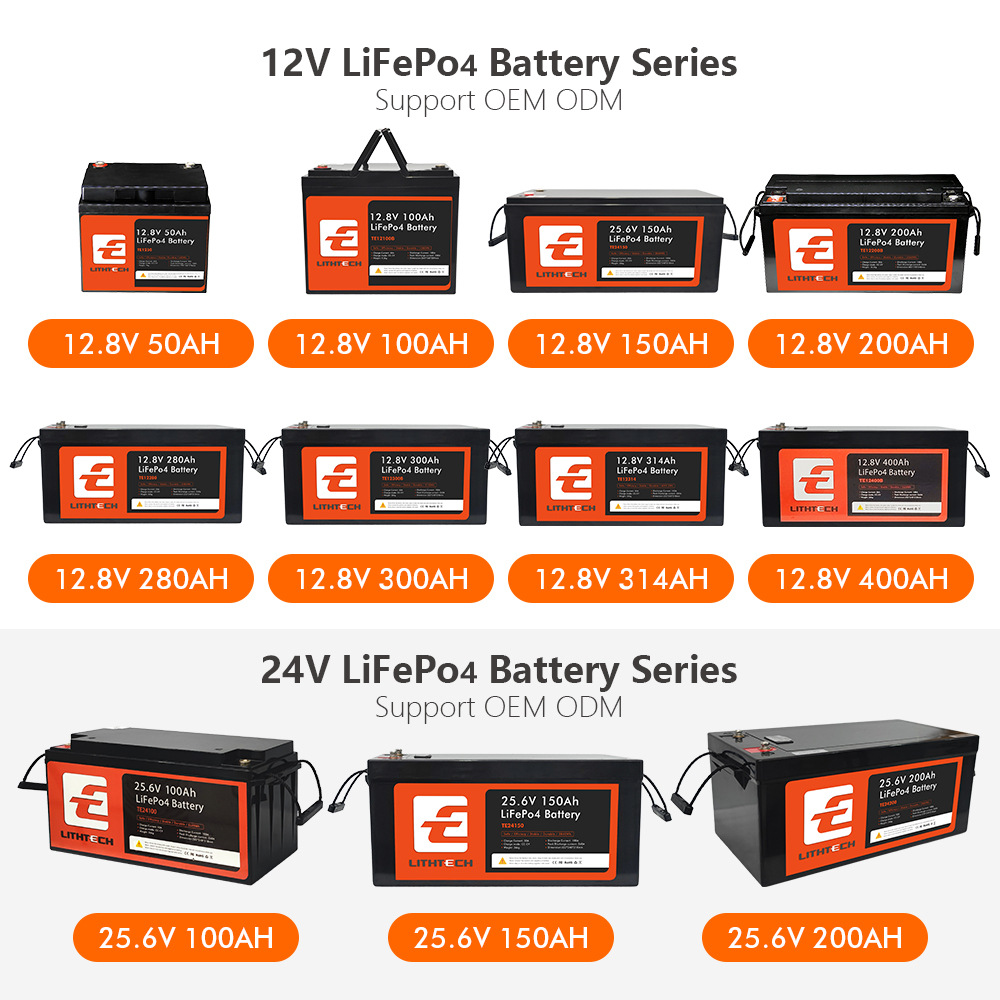

| Model No | TE1250 (Customized) | TE12100 | TE12200 | TE12300 | TE12400 (Customized) | TE24100 | TE24200 (Customized) |
|---|---|---|---|---|---|---|---|
| Voltage | 12.8V | 12.8V | 12.8V | 12.8V | 12.8V | 25.6V | 25.6V |
| Capacity | 50Ah | 100Ah | 200Ah | 300Ah | 400Ah | 100Ah | 200Ah |
| Energy | 640 Wh | 1280 Wh | 2560 Wh | 3840 Wh | 5120 Wh | 2560 Wh | 5120 Wh |
| Communication | Bluetooth | Preheat | USB | CAN | RS485 | RS232 | ||||||
| Configuration | 4S1P | 4S1P | 4S2P | 4S3P | 4S4P | 8S1P | 8S2P |
| Discharging current | 5A-50A | ||||||
| Max.charging current | 100A | ||||||
| Self Discharge | ≤3.5% Per Month | ||||||
| Warranty | 5 years | ||||||
| Recommend Charge Voltage | 14.2V-14.6V | ||||||
| Short Circuit Protection | 200-400μs | ||||||
| Life cycles(80% DOD, 25°C) | >6000+ Cycles Times | 5000+ Cycles Times | |||||
| Storage time / temperature | 5 months @ 25°C; 3 months @ 35°C; 1 month @ 45°C | ||||||
| Operation temperature | -20°C to 60°C @60+/-25% Relative Humidity | ||||||
| Storage temperature | 0°C to 45°C @60+/-25% Relative Humidity | ||||||
| Lithium Battery Standard | CE, IEC62133, UN38.3, MSDS | ||||||
| Enclosure protection rating | IP65 | ||||||

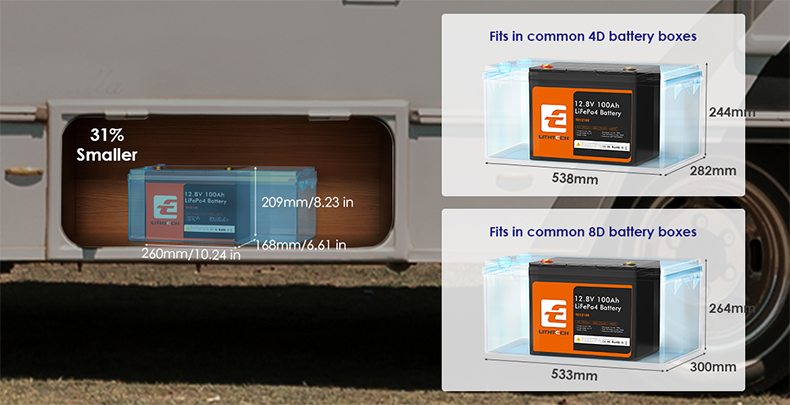

| Dimensions(L×W×H)mm | Customized | 260*168*209 | 483*170*240 | 520*269*220 | 520*268*220 | 483*170*240 | 520*269*220 |

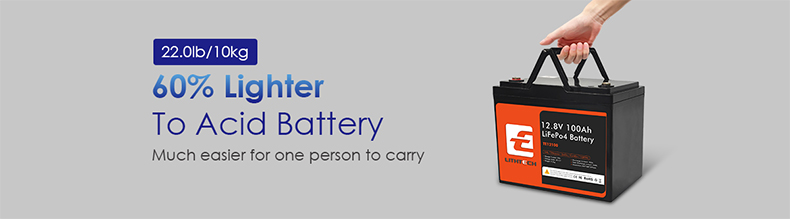

| Weight | Customized | 10KG | 20KG | 28KG | 40KG | 22KG | 36KG |
