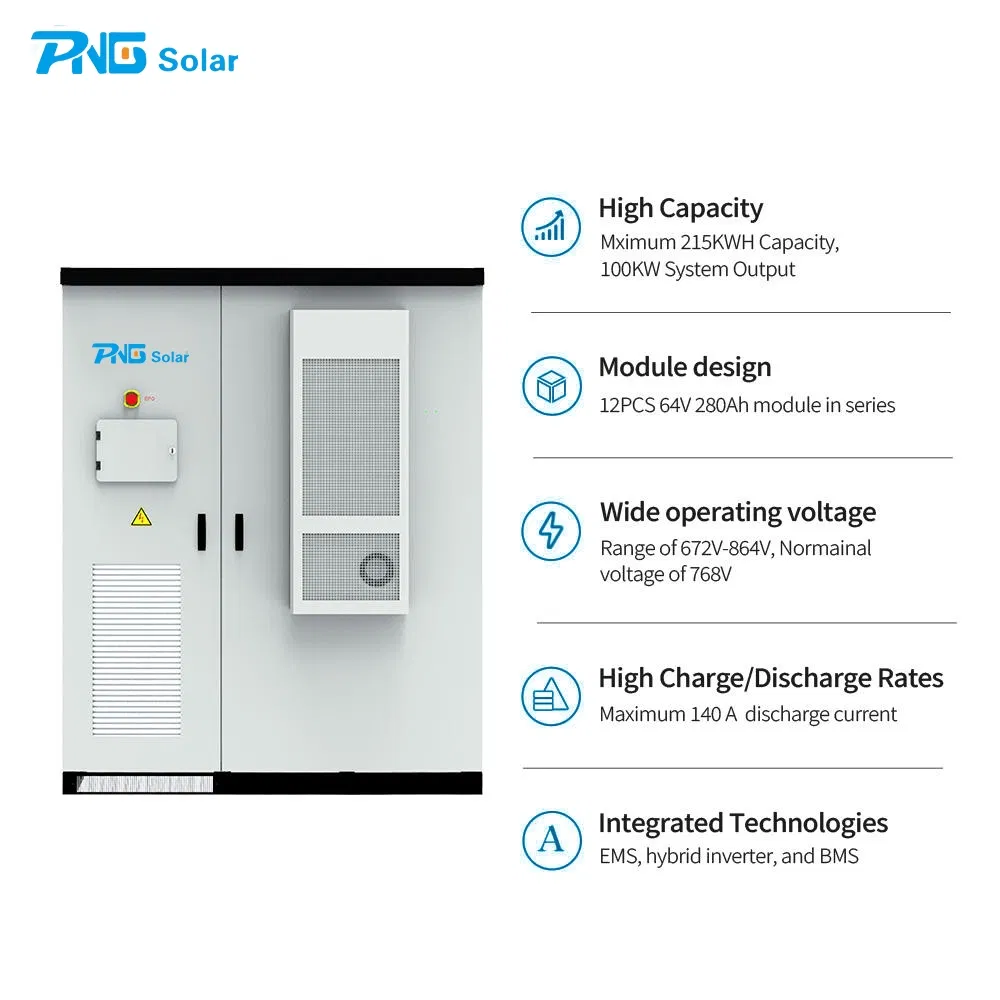

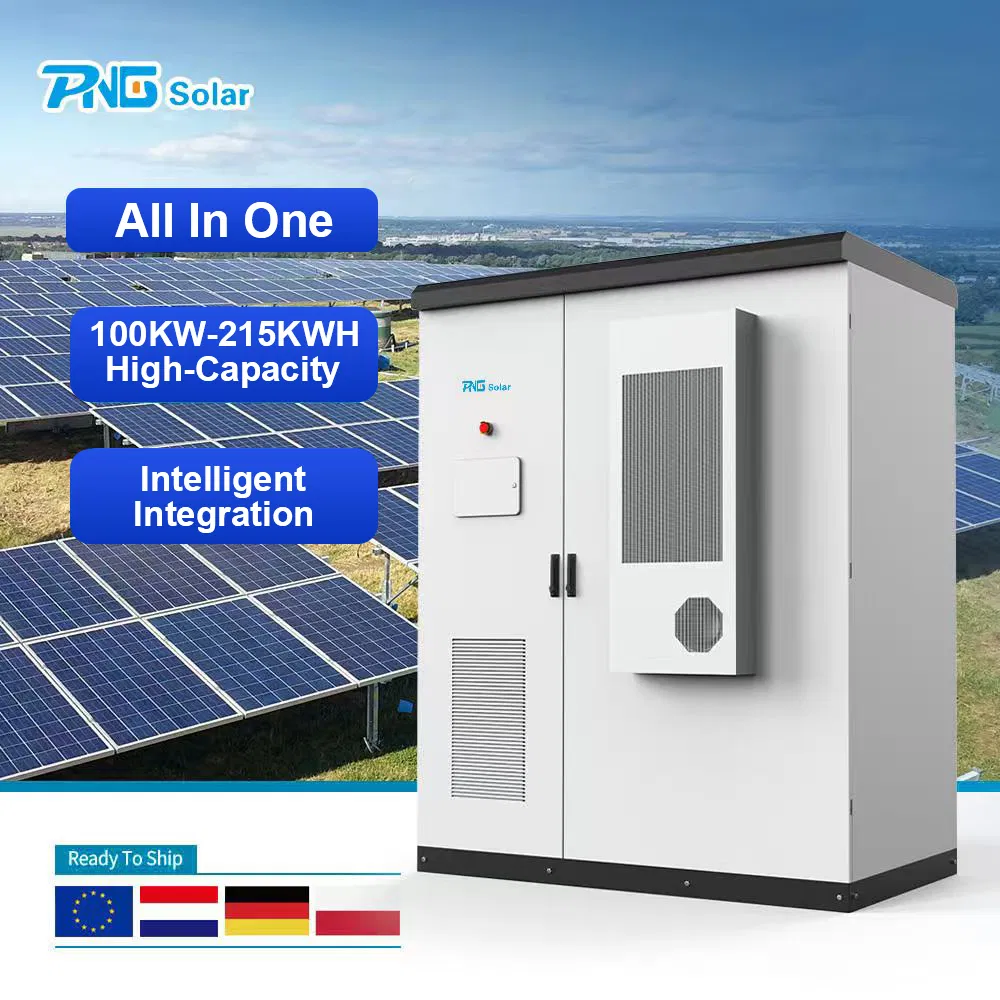

768V 215kwh Industrial and Commercial All-in-One Energy Storage Cabinet Lithium Battery Energy Storage System Lithium Ion Battery Pack

Customization: Available
Application: Industrial Park Peak-Valley Arbitrage
Installation: Cabinet Floor-Mounted

Product Description

Overview
Company Profile
Product Description
Packaging & Shipping
Successful Projects
Certifications
FAQ

Basic Info.

Model NO. 100KW-215KWH
Energy Capacity 100kWh-500kWh
Power Configuration 100kW-250kW
Cycle Life 6000cycles
Cooling Method Full Liquid Cooling (Temperature Difference ≤3℃)
Cabinet Outdoor
Battery Cell 3.2V 314ah, New a+ Grade Prismatic
Inverter/PCS 100kw
Design Life 10years
String Configuration 1p240s
Transport Package Wooden Pallet and Carton Box
Origin China
HS Code 8507600090
Production Capacity 100000000000

Packaging & Delivery

Package Size 1600.00cm * 1000.00cm * 2350.00cm
Package Gross Weight 2500.000kg

Company Profile

Established in 2016, a professional and leading manufacturer of quality solar modules. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.
Key Production Standards:
  • 3 production lines with an annual capacity of 1.2GW facilitate the lead production time.
  • Sophisticated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales volume of USD 1.5 billion, and listed in the top 5 producers and exporters in our region.
For residential and commercial solar energy systems, including on-grid, off-grid and hybrid solar energy systems, we cooperate with famous brands like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials. Quality is our soul.
Our principles: Integrity, Win-Win, Innovation!

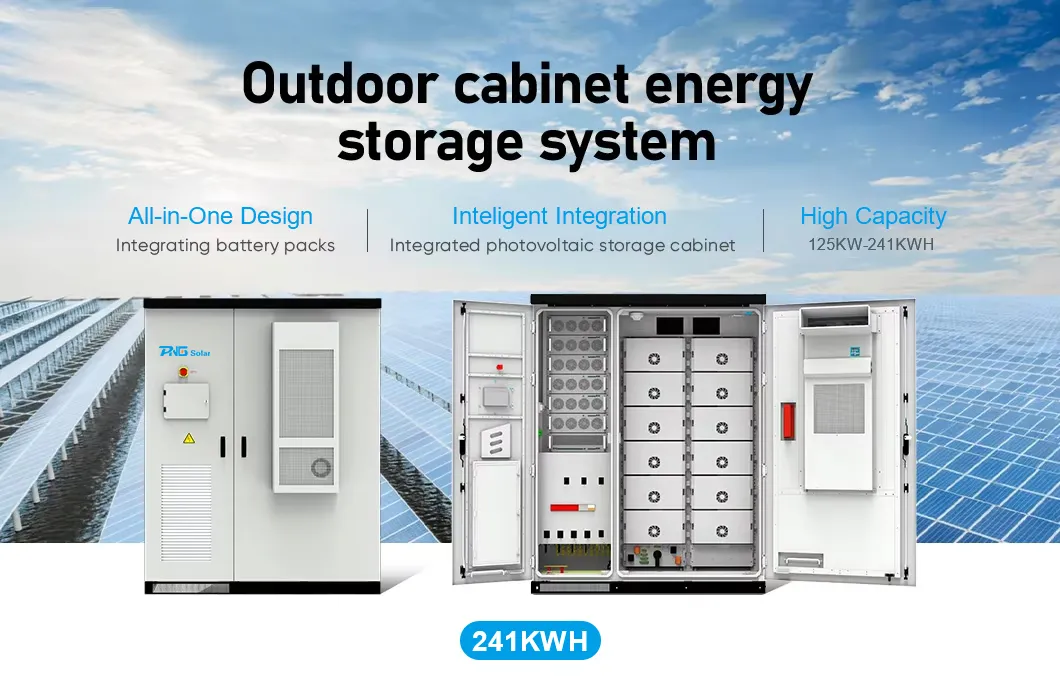

Industrial and Commercial All-in-One Energy Storage Cabinet
Energy Storage System Interior

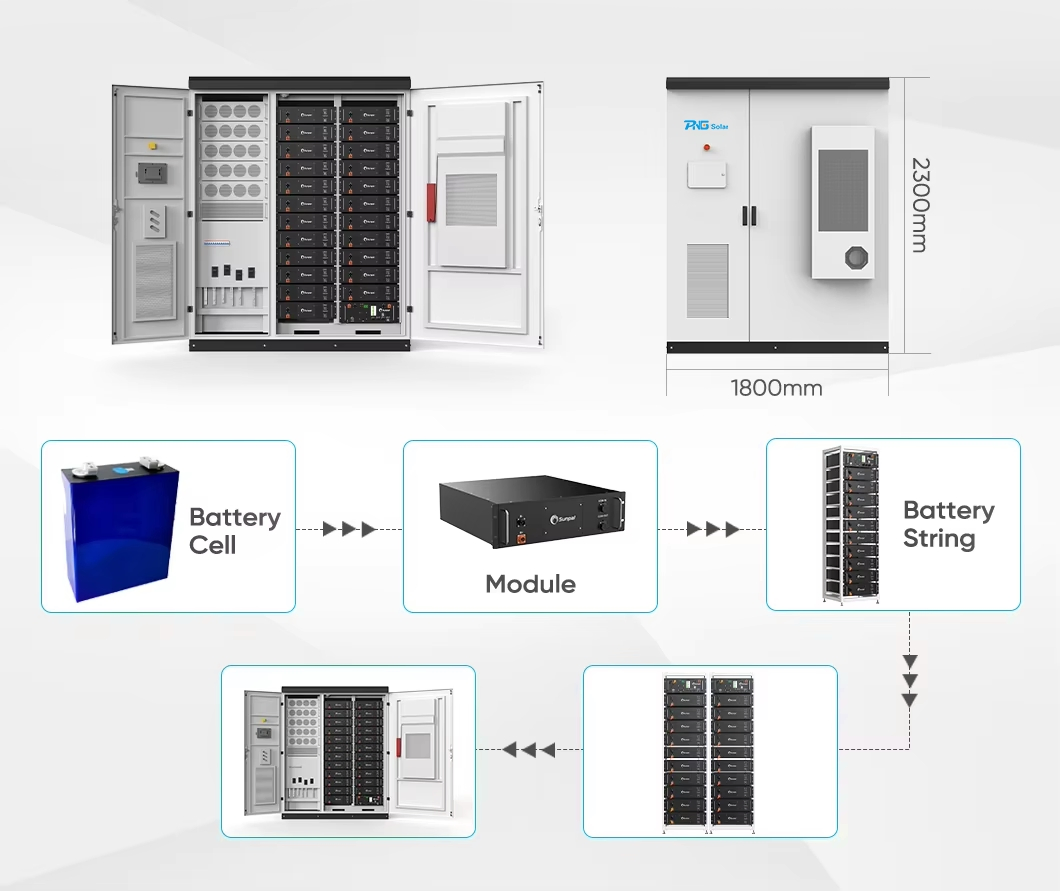

Battery Module Structure

Product Description

Technical Specifications Diagram

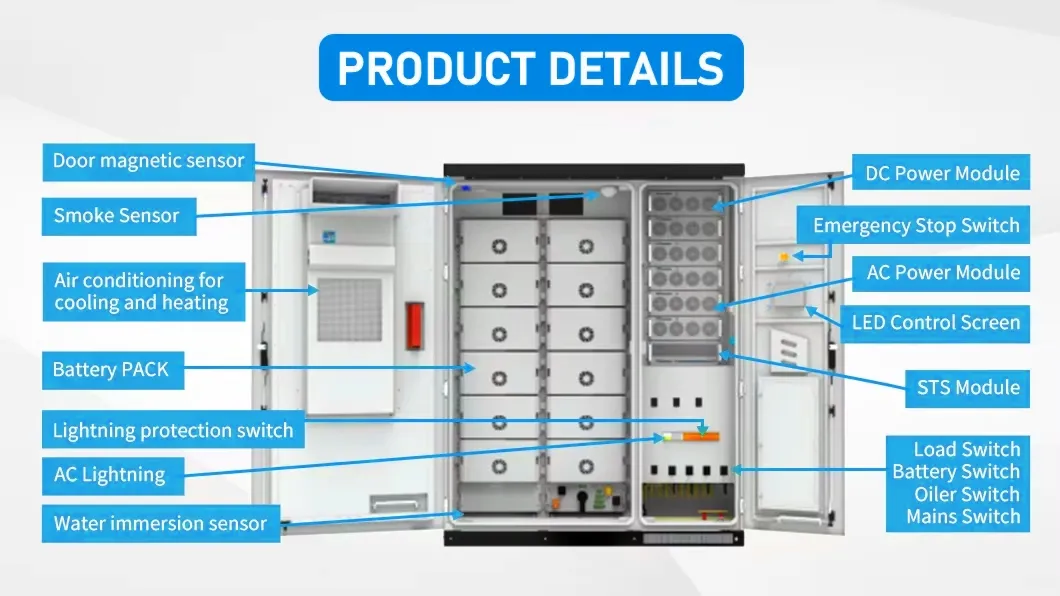

Liquid Cooling System Details

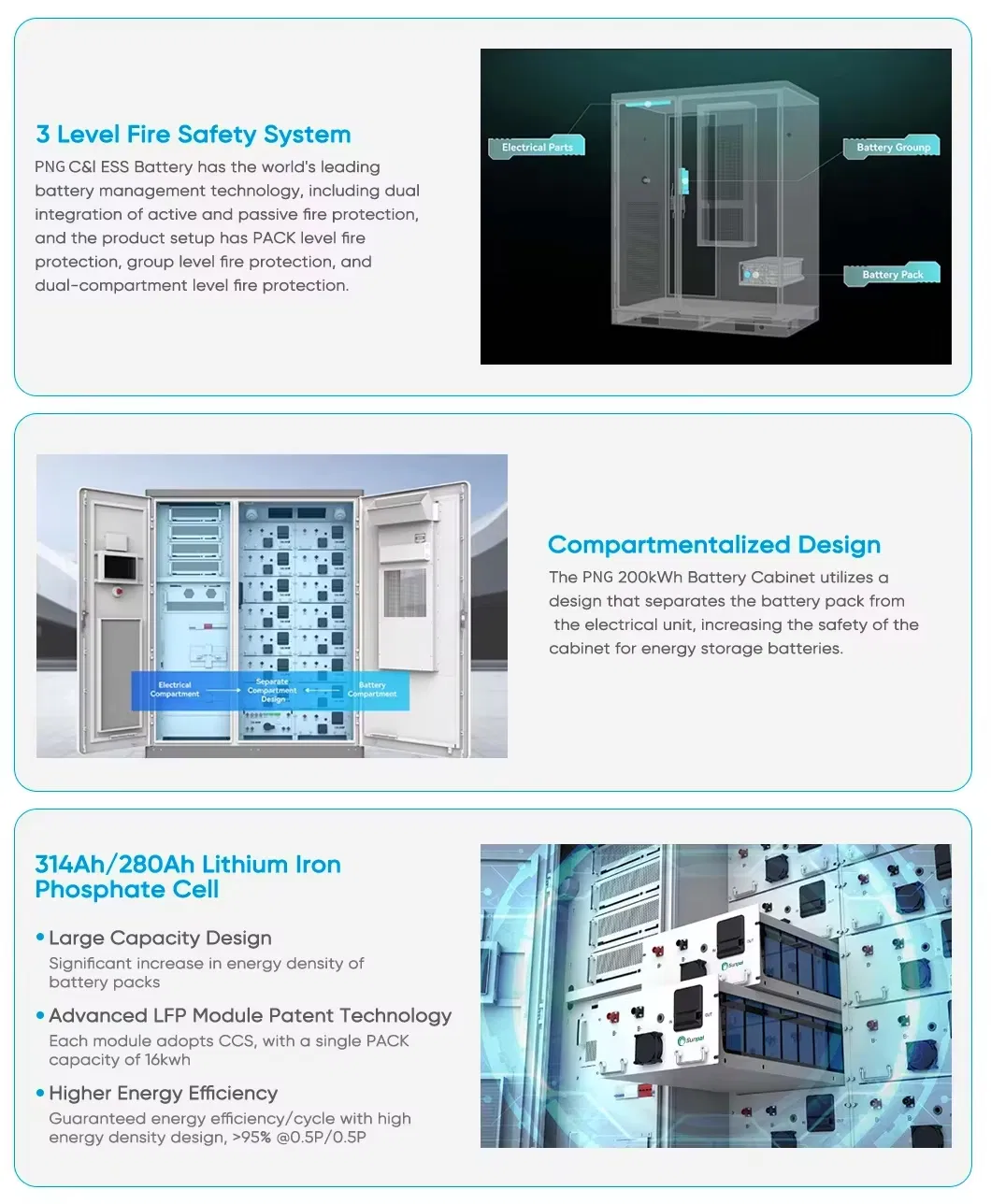

Structure Layout Configuration
Detailed Parameters

Specifications for high-voltage box

Parameter Specification
Dimension 483*648*222.5mm
Weight 25kgs
Rated Current 250A
Rated Voltage 1000V
Voltage Sampling Range 0~1500V

Specifications for the all-in-one LFP Cabinet

Parameter Specifications
Model 100kw-215kwh
Nominal Energy 215.04KWH
Nominal Voltage 768V
Operating Voltage Range 672-876V
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Cycle Life more than 8000cycles (@25ºC, 0.5P/0.5P)
Cell Specification 3.2V 280Ah
Battery Pack Energy 14.336kwh
String configuration 1P240S
No. of strings 1
Rated Charging Power 0.5P
Rated Discharging Power 0.5P
Safety
Fire Extinguishing System Aerosol fire extinguishing
Inverter Data
Rated Output Power 100KW
Rated Network Voltage 3/N/PE, 230/400
Rated Network Frequency 50/60
General wave deformation <0.3%In
Power Factor 1 (0.9leading and 0.9lagging)
THDI <3%
General
Dimension (W*D*H) 1600*1000*2350mm
Weight Appro. 2.5T
IP Rating IP 54
Cooling method Air cooling
Operating Temperature -20~+50ºC
Storage Temperature -20~+45ºC
Relative Humidity 15%~90%(Non-condensing)
Max. Operating Altitude less than 3000m
Communication Interfaces LAN/CAN/RS485
Compliance IEC62619, IEC/EN61000, UN38.3, MSDS
All-in-One Energy Storage Cabinet Overview

Packaging & Shipping

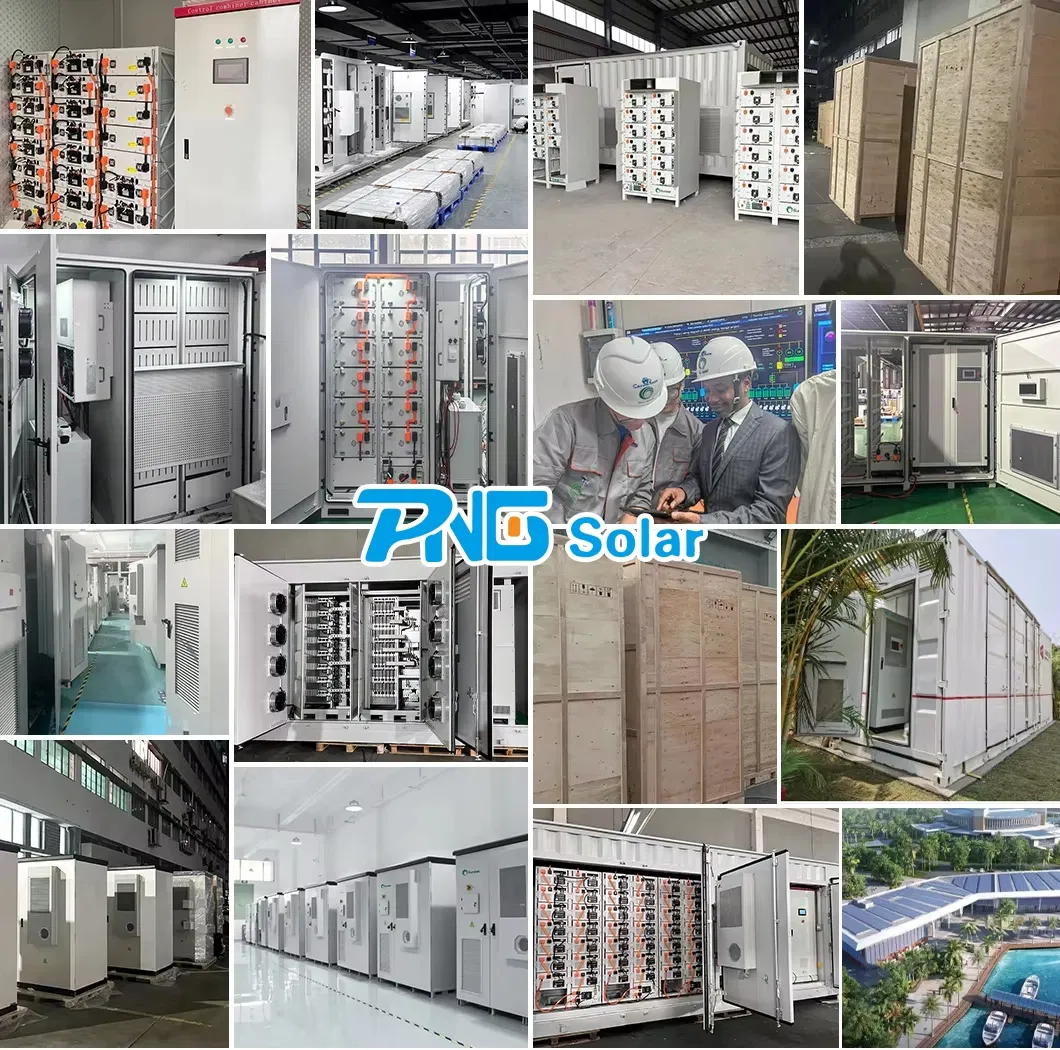

Wooden Pallet Packaging

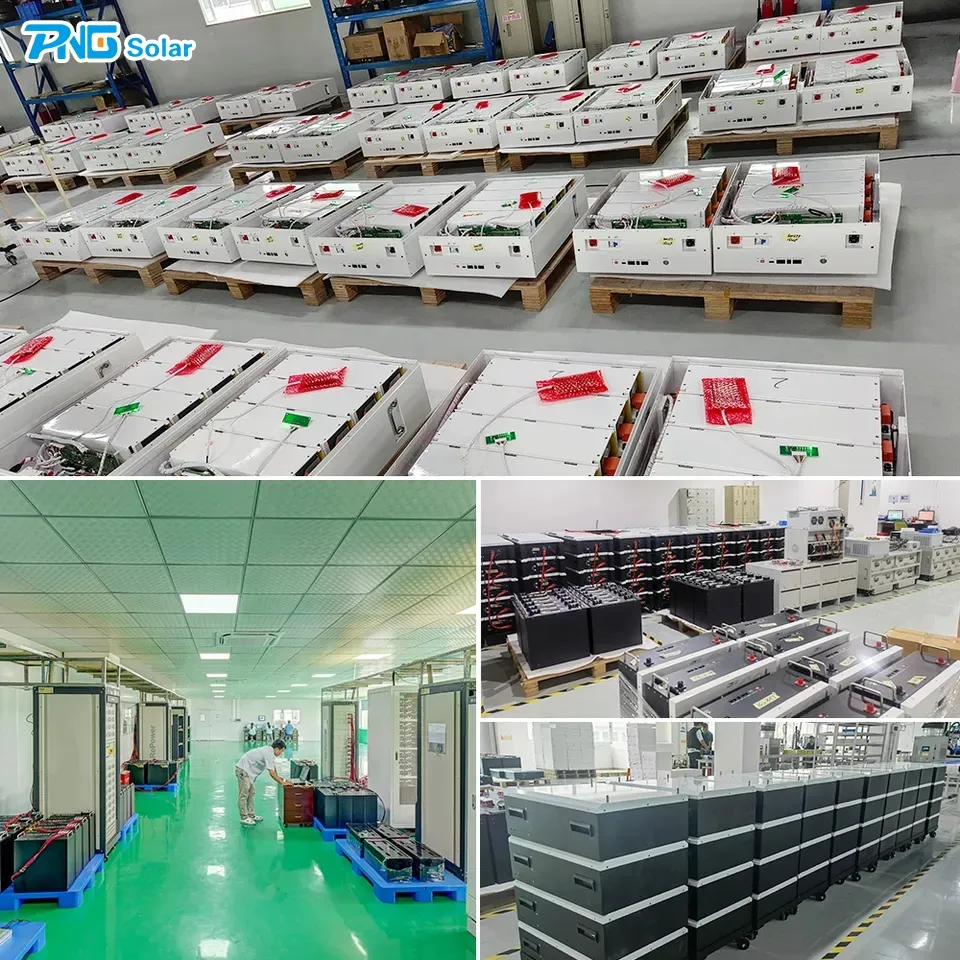

Carton Box Protective Packaging

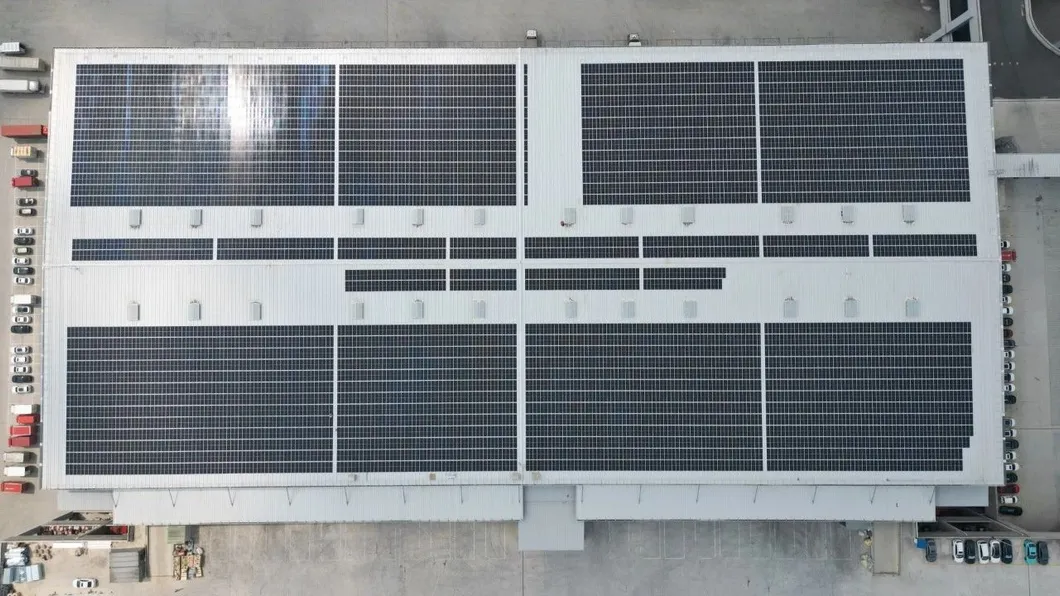

Successful Projects

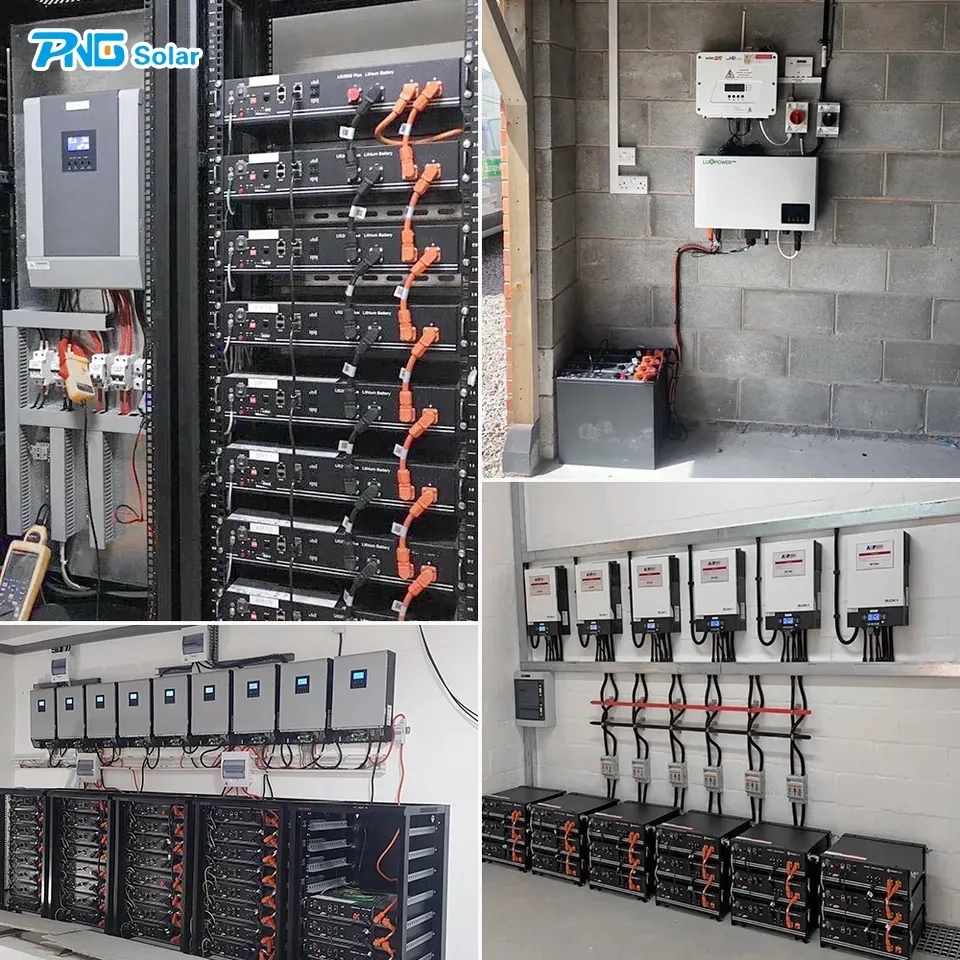

Project Installation View 1

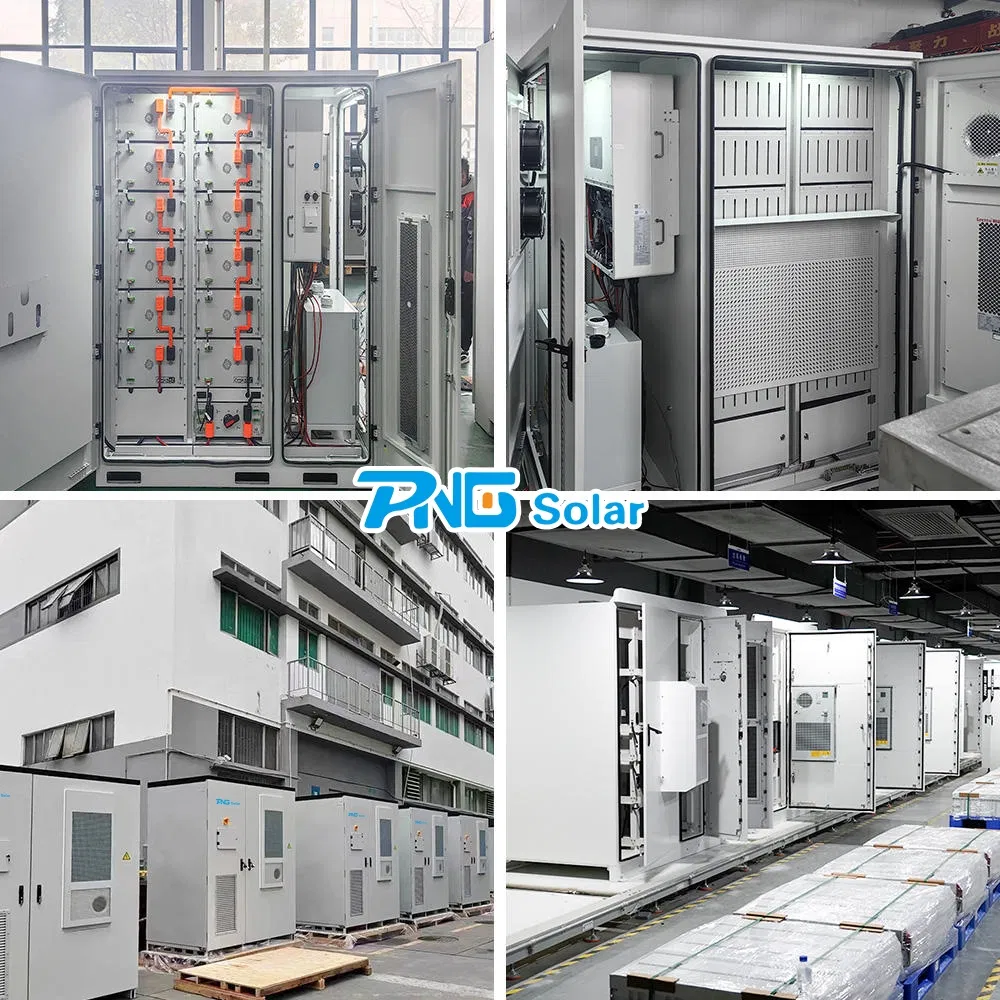

Project Installation View 2

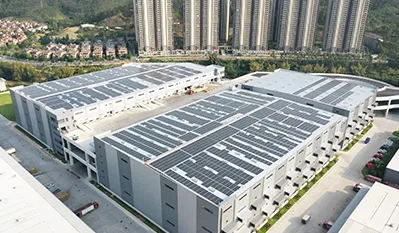

Outdoor Installed Battery Storage System 1
Outdoor Installed Battery Storage System 2

Certifications

Product Compliance Certificates

Frequently Asked Questions

What products can you buy from us?
Solar Panel, Solar System, Gel Battery and lithium battery, Inverter, complete on-grid, off-grid and hybrid solar system.
Why should you choose our solar products?
We only supply 100% A grade components directly from the original factories. We collaborate with leading industry brands such as Longi, Jinko, JA Solar, Astronergy Solar, and Huawei Inverter to deliver top-tier reliability and performance.
What services and commercial terms do we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency: USD, EUR, CNY
Accepted Payment Type: T/T, L/C, PayPal
Language Spoken: English, Chinese, Spanish, Japanese, German, Russian
What is the cycle life of the all-in-one LFP Cabinet?
The cabinet features high-quality LFP cells that deliver more than 8000 cycles (@25ºC, 0.5P/0.5P).
What safety mechanisms are built into the cabinet?
The cabinet is equipped with a professional, built-in Aerosol fire extinguishing system for active fire safety mitigation.
Which compliance standards do your systems satisfy?
Our systems satisfy international safety and quality standards including IEC62619, IEC/EN61000, UN38.3, and MSDS.
