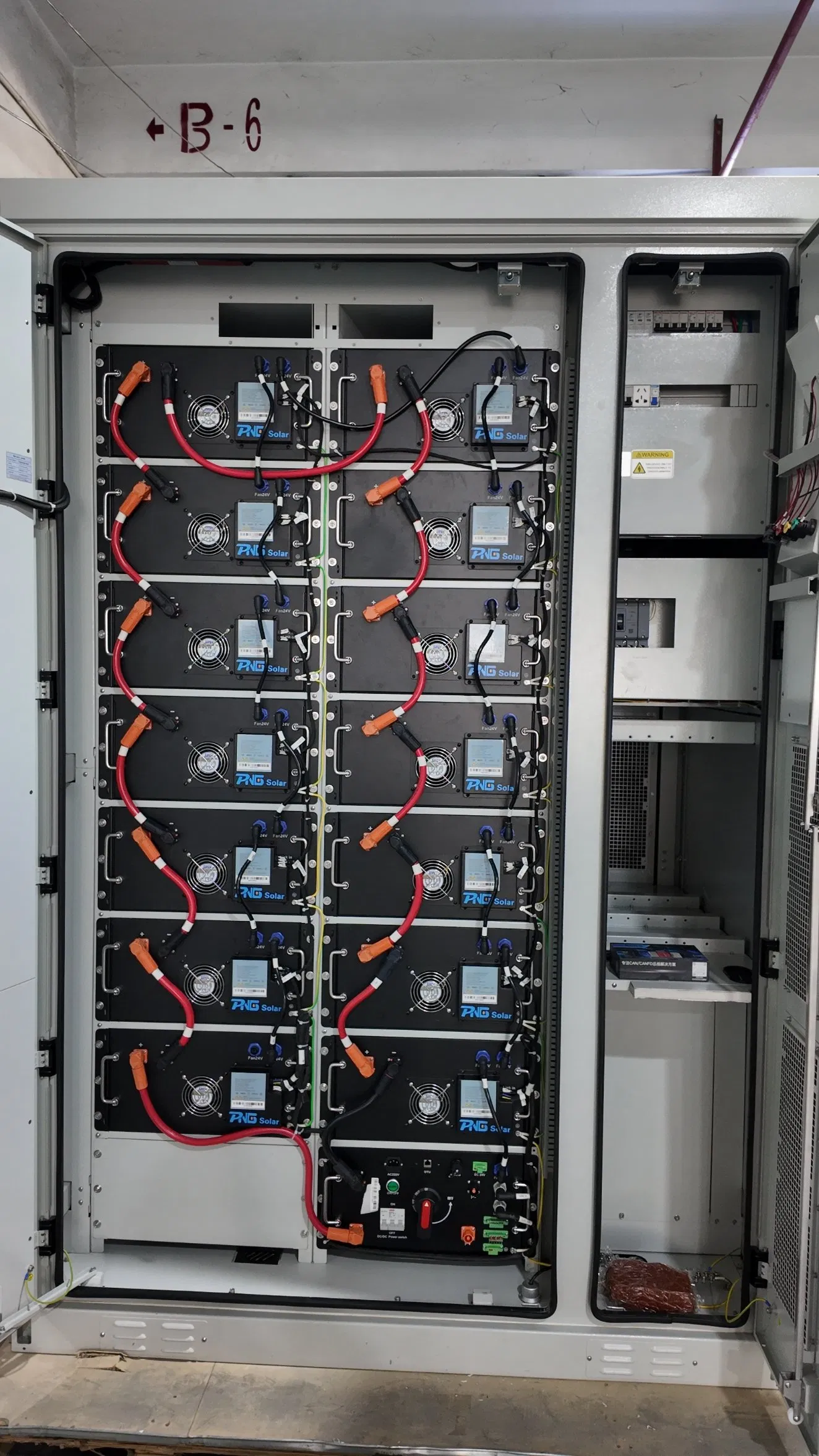

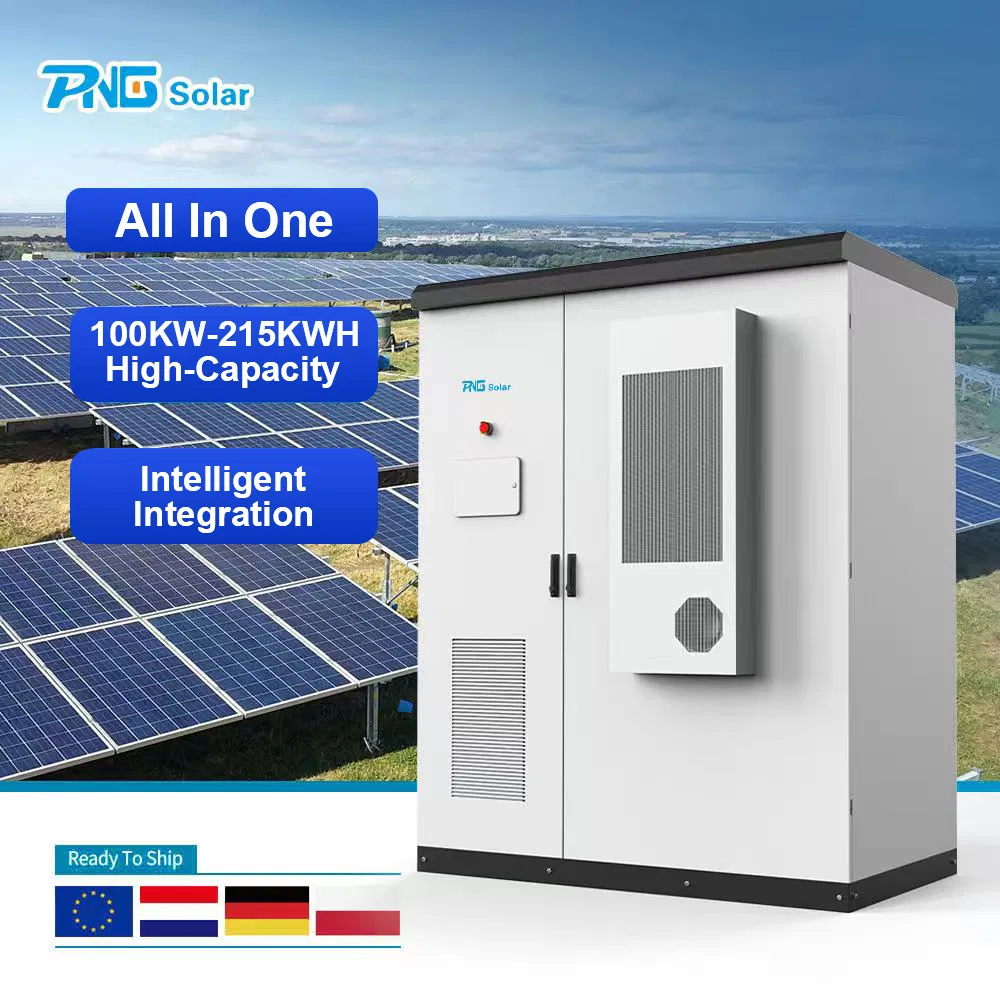

Hot Sale 261.2 Kwh LiFePO4 Container Battery Energy Storage System LFP314ah Industrial & Commercial Energy Storage Battery System

Customization: Available
Application: Mine Off-Grid Power Supply
Installation: Cabinet Floor-Mounted

Product Description

Basic Info.
Model NO. 125KW-261KWH
Energy Capacity 100kWh-500kWh
Power Configuration 100kW-250kW
Cycle Life 6000cycles
Cooling Method Full Liquid Cooling (Temperature Difference ≤3℃)
Nominal Energy 261.248kwh
Battery Cell New a+ Grade 3.2V 314ah, Prismatic
Each Battery Pack Energy 166.4V 314ah. 52.25kwh
No. of Battery Packs 5units
Warranty 5years or 8000cycles
String Configuration 1p260s
MPPT Voltage Range 150-950V
Hybrid Inverter/PCS 125kw
EMS Built-in
OEM/ODM Acceptable
Transport Package Wooden Pallet and Carton Box
Origin China
HS Code 8507600090
Production Capacity 100000000000
Packaging & Delivery
Package Size 1300.00cm * 1400.00cm * 1890.00cm
Package Gross Weight 2800.000kg
Company Profile
Established in 2016, a professional and leading manufacturer of quality solar modules. The business covers the R&D, production and sales of PV modules, residential, commercial and large scale solar plants. We supply turn-key service for domestic customers and all the materials for overseas markets.
Key Strength
3 production lines with annual capacity 1.2GW facilitate the lead production time. Sophisticated production experience and global sales network is attracting more and more customers from worldwide. In 2022, the company achieved sales volume with USD 1.5 billion. And listed in the top 5 producer and exporter in our county.
For residential and commercial solar energy system, including on-grid, off-grid and hybrid solar energy system. Cooperate with famous brands, like Huawei, Sungrow, Growatt, Deye and etc to supply quality materials. Quality is our soul.
Our Principles
Integrity, Win-Win, Innovation!
Container Battery Energy Storage System
Energy Storage System Panel View

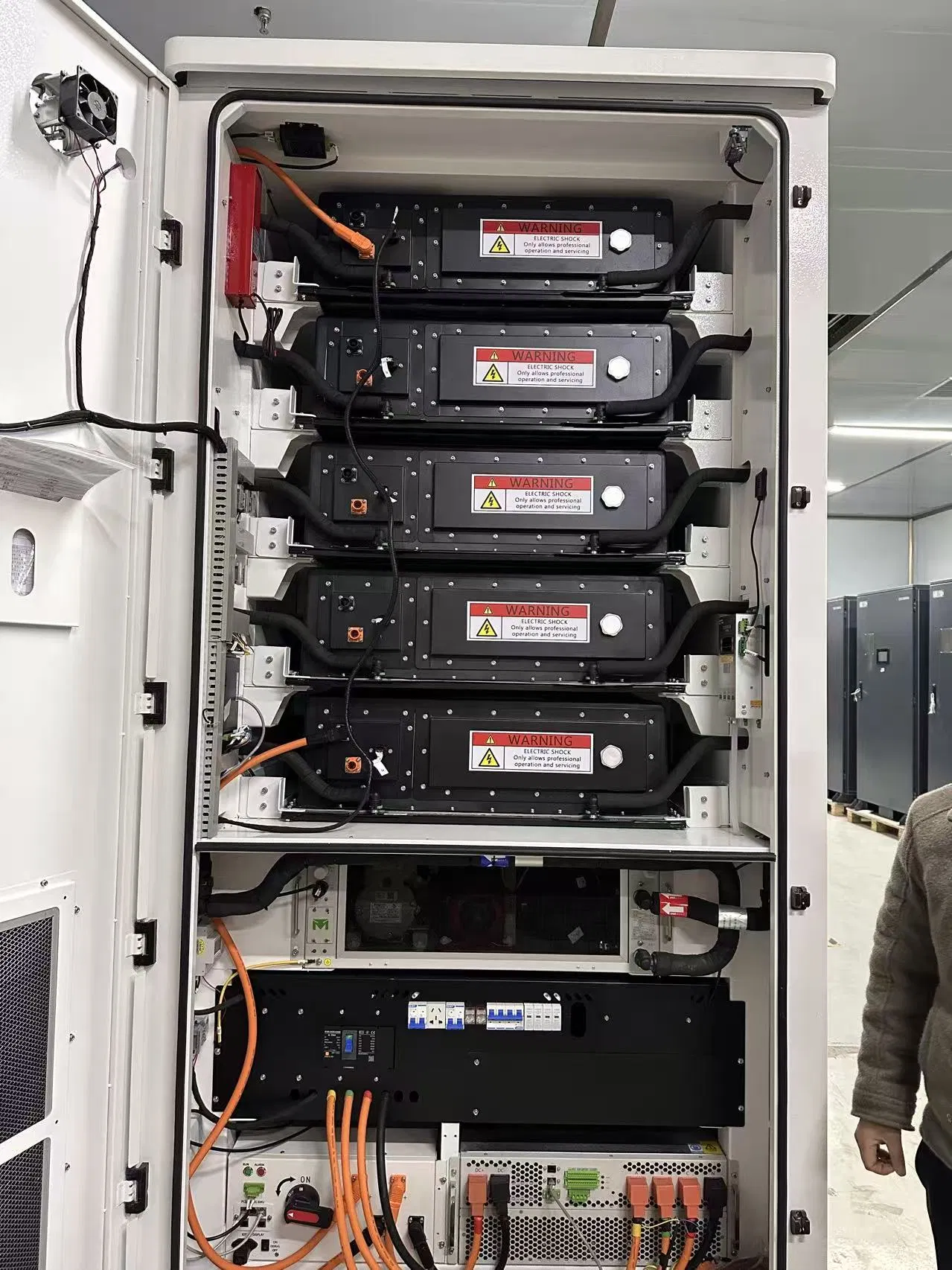

Energy Storage System Interior
Product Description

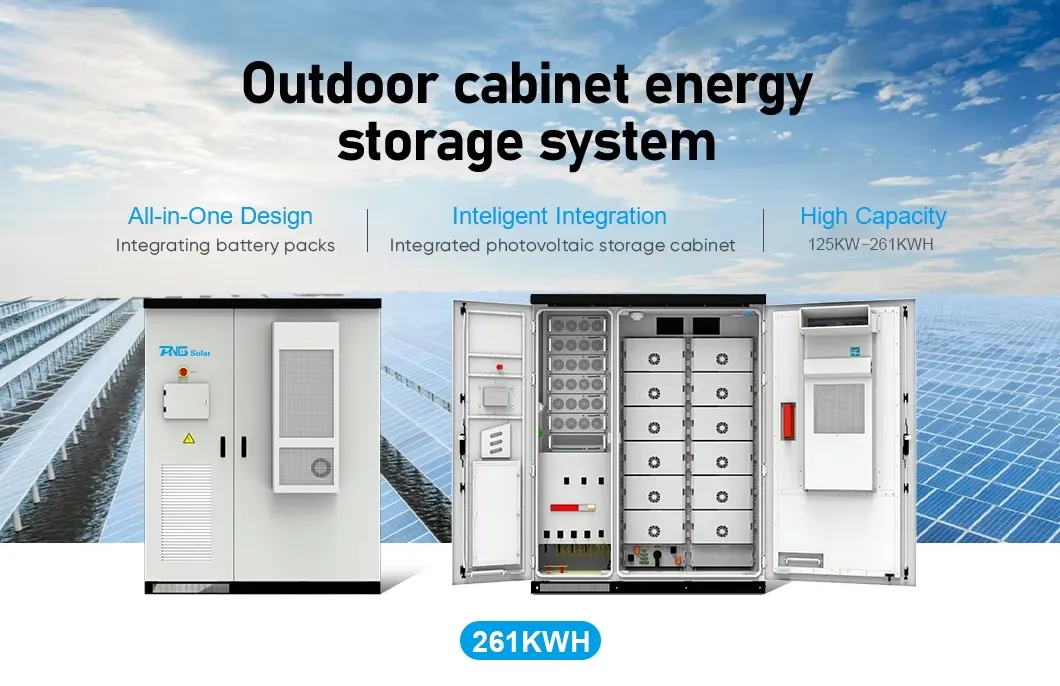

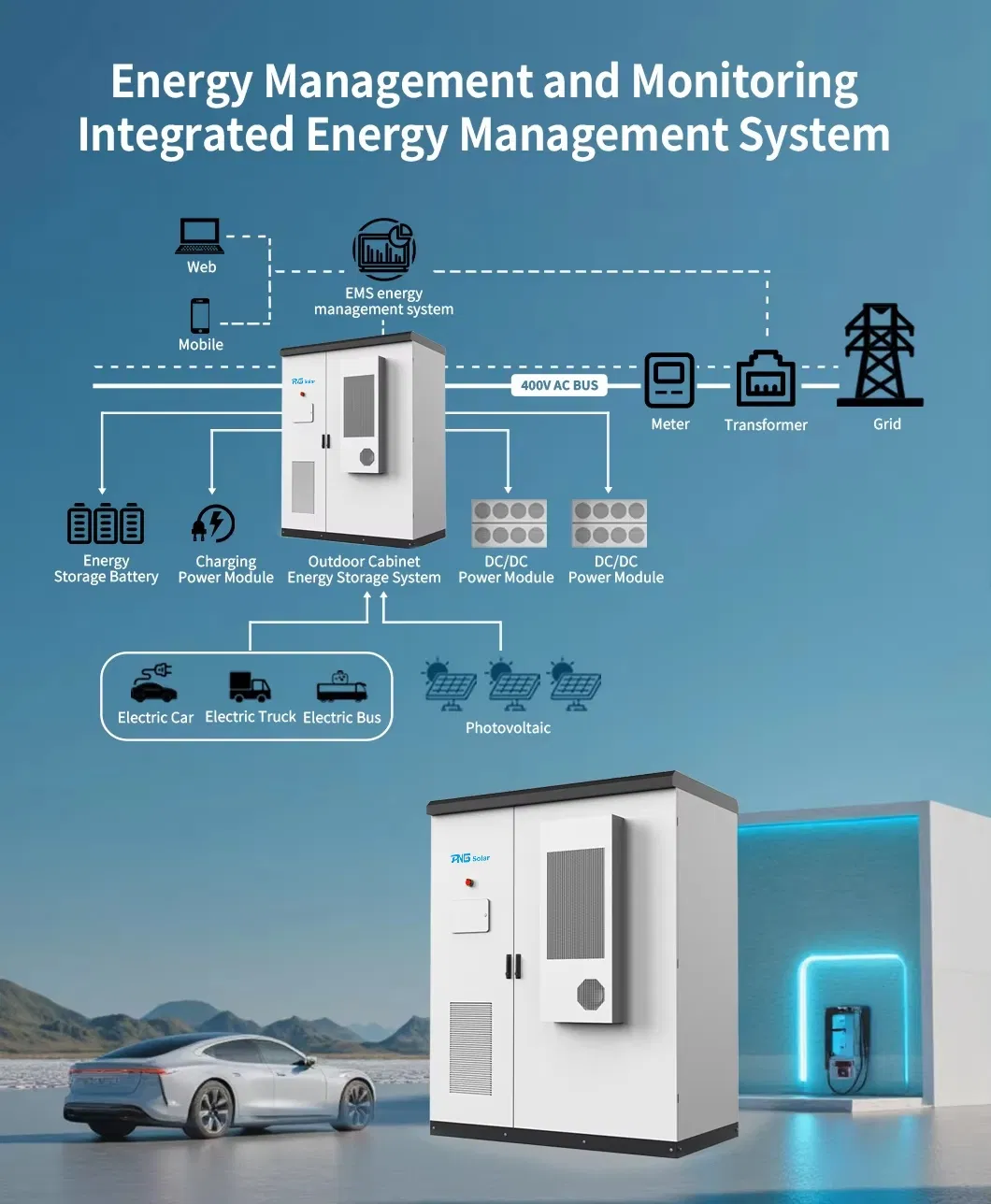

Energy Storage Diagram

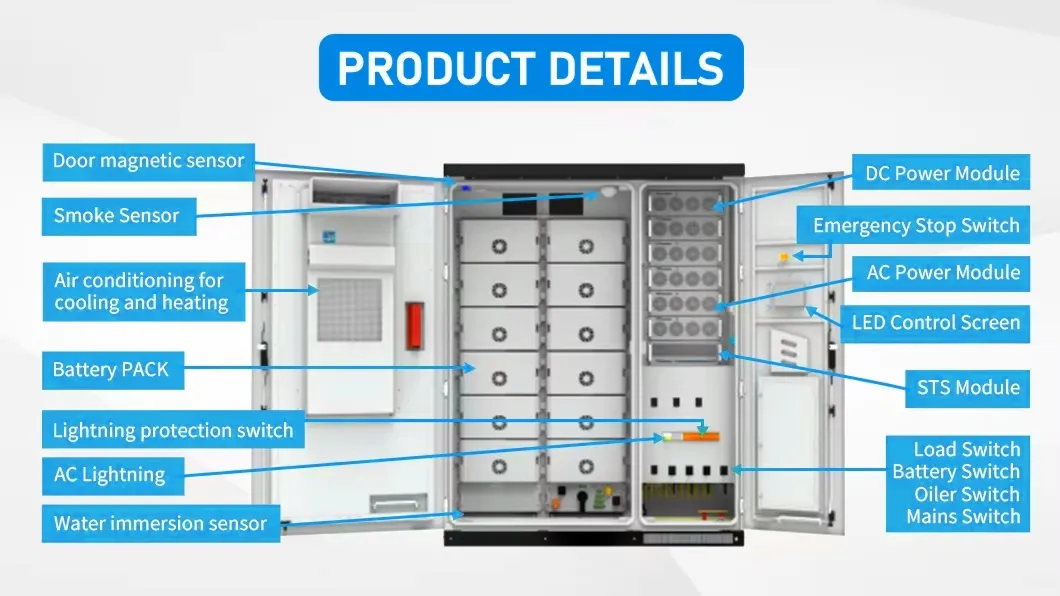

System Dimensions

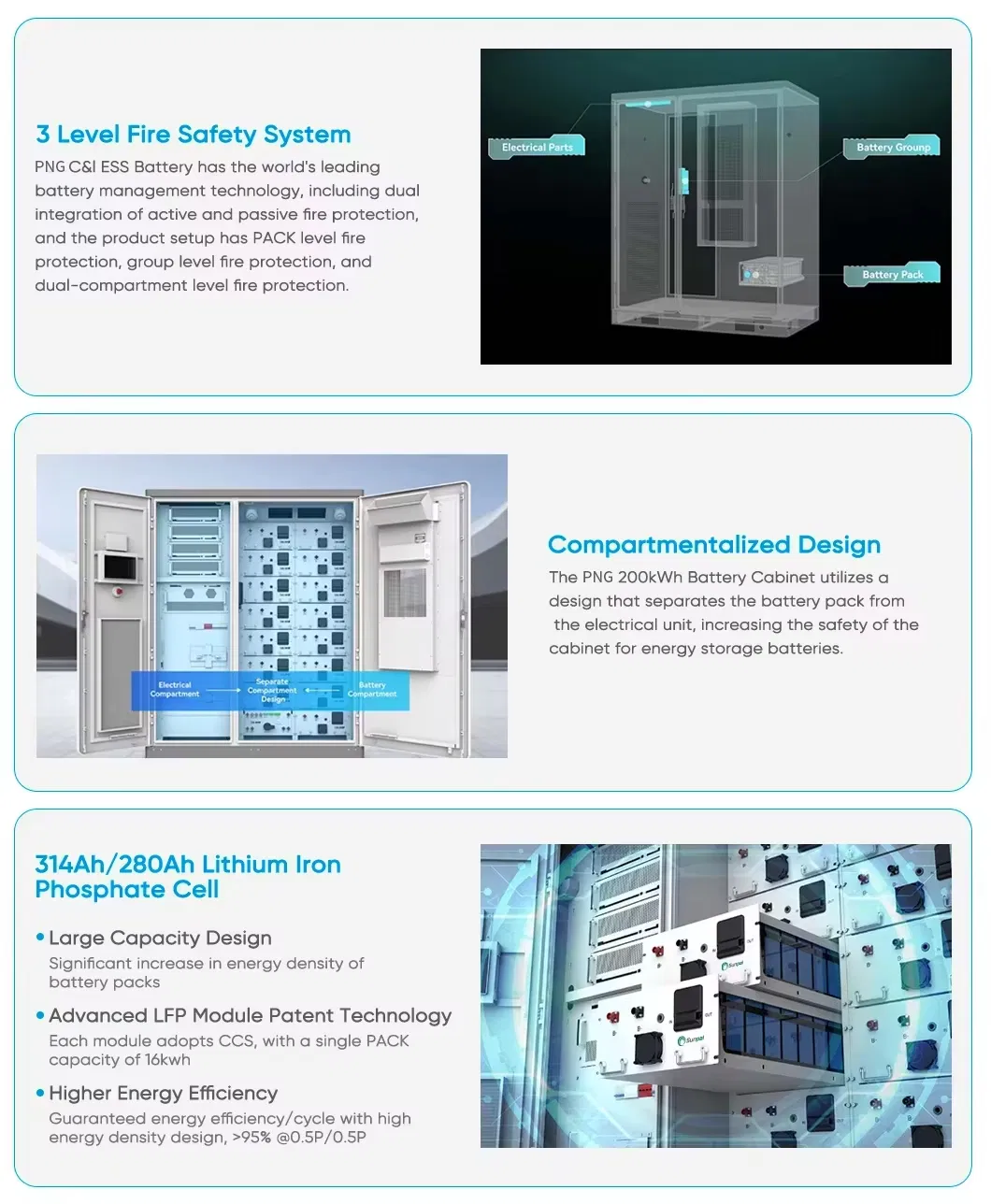

Product Spec Details Sheet 1
Product Spec Details Sheet 2
Specifications for high-voltage box
Dimension 483*648*222.5mm
Weight 25kgs
Rated Current 250A
Rated Voltage 1000V
Voltage Sampling Range 0~1500V
Specifications for the all-in-one LFP Cabinet
System Specifications
Model 125KW-261KWH
Nominal Energy 261.248KWH
Nominal Voltage 832V
Operating Voltage Range 728-949V
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Cycle Life more than 8000cycles (@25ºC, 0.5P/0.5P)
Cell Specification 3.2V 314Ah
Battery Pack Energy 52.24kwh
String configuration 1P260S
No. of strings 1
Rated Charging Power 0.5P
Rated Discharging Power 0.5P
Safety Systems
Fire Extinguishing System Aerosol fire extinguishing
Inverter Data
Rated Output Power 125KW
Max. Output Current 198A
Rated Network Voltage 3/N/PE, 230/400
Rated Network Frequency 50/60
General wave deformation <0.3%In
Power Factor 1 (0.9leading and 0.9lagging)
THDI <3%
General Parameters
Dimension (W*D*H) 1300*1450*1890mm
Weight Appro. 2.6T
IP Rating IP 54
Cooling method Liquid cooling
Operating Temperature -20~+50ºC
Storage Temperature -20~+45ºC
Relative Humidity 15%~90%(Non-condensing)
Max. Operating Altitude less than 3000m
Communication Interfaces LAN/CAN/RS485
Compliance IEC62619, IEC/EN61000, UN38.3, MSDS
Packaging & Shipping

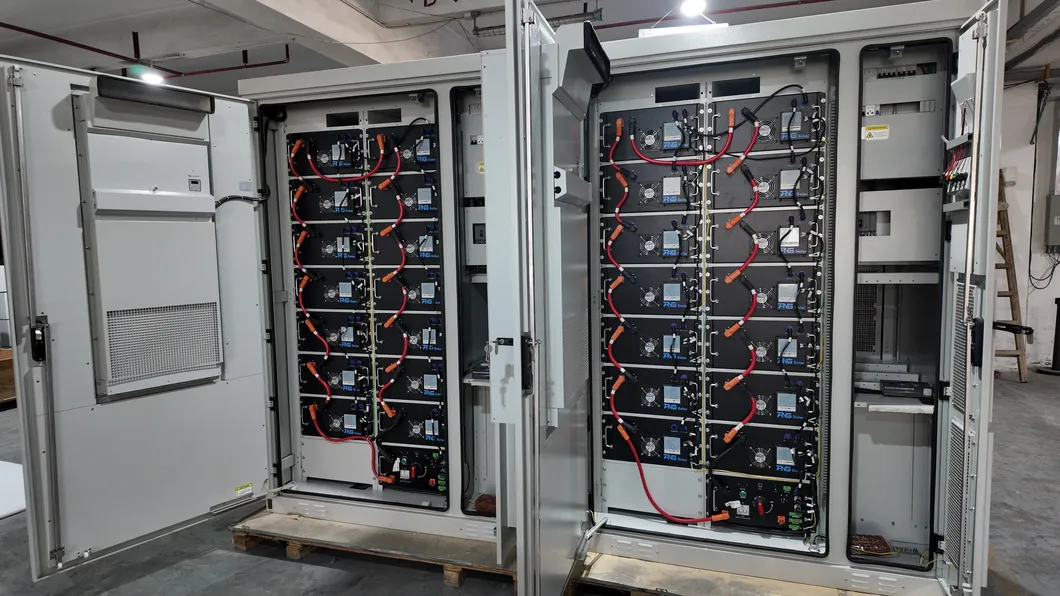

Packaging Box Processing

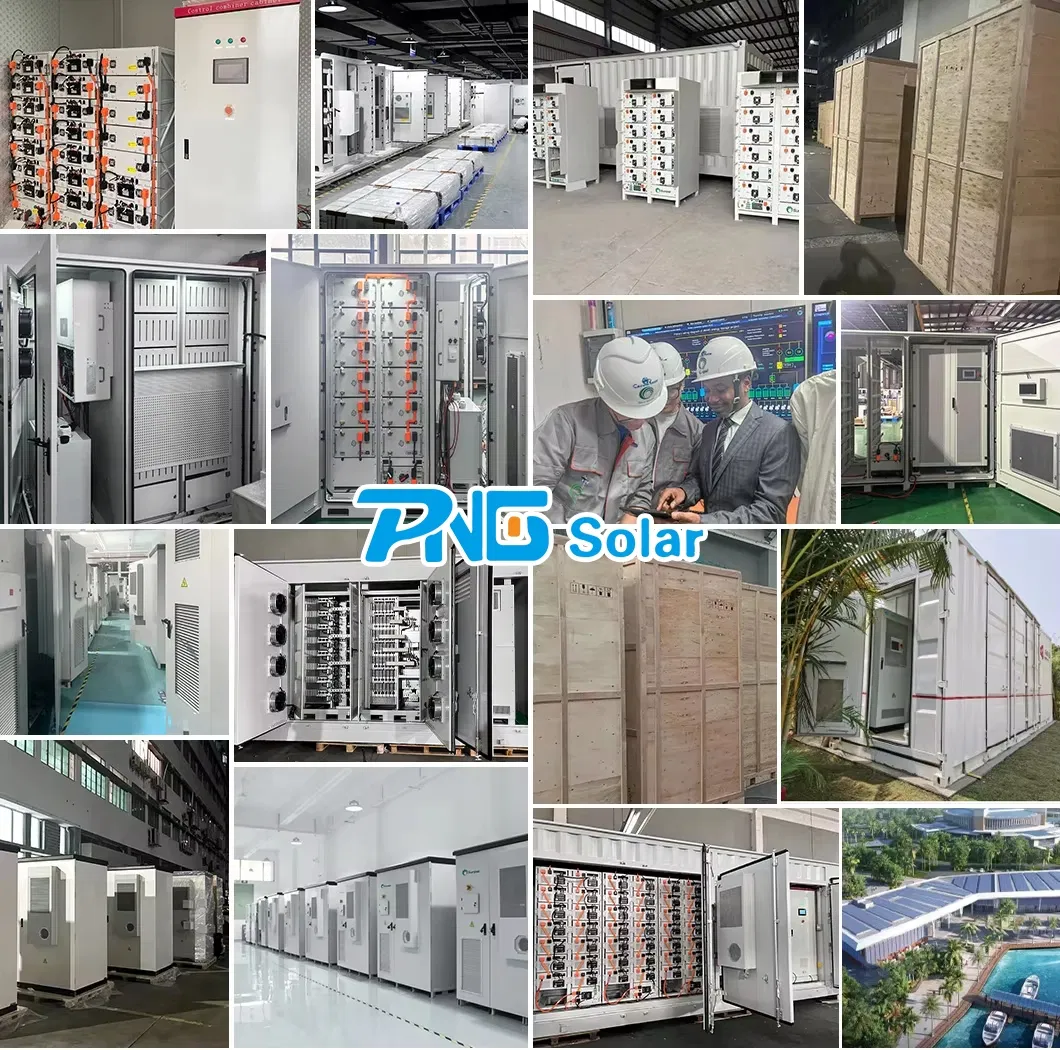

Wooden Box Packaging

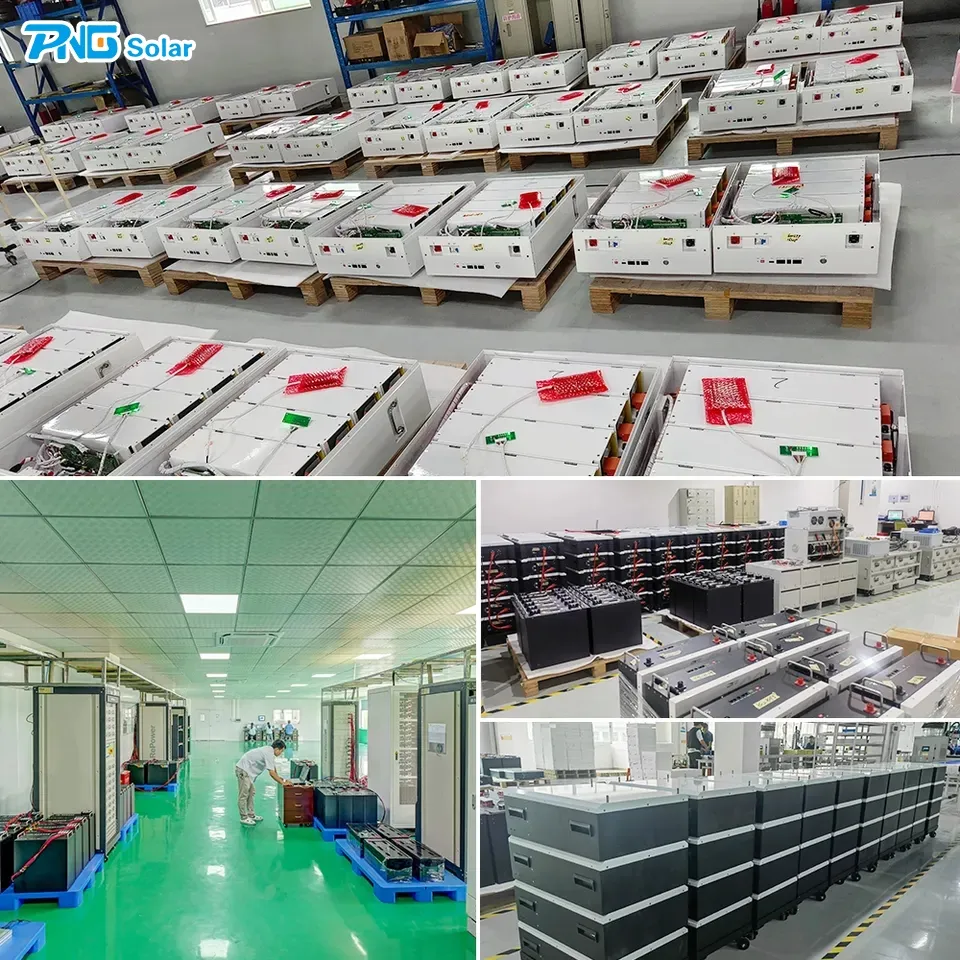

Container Packing Process

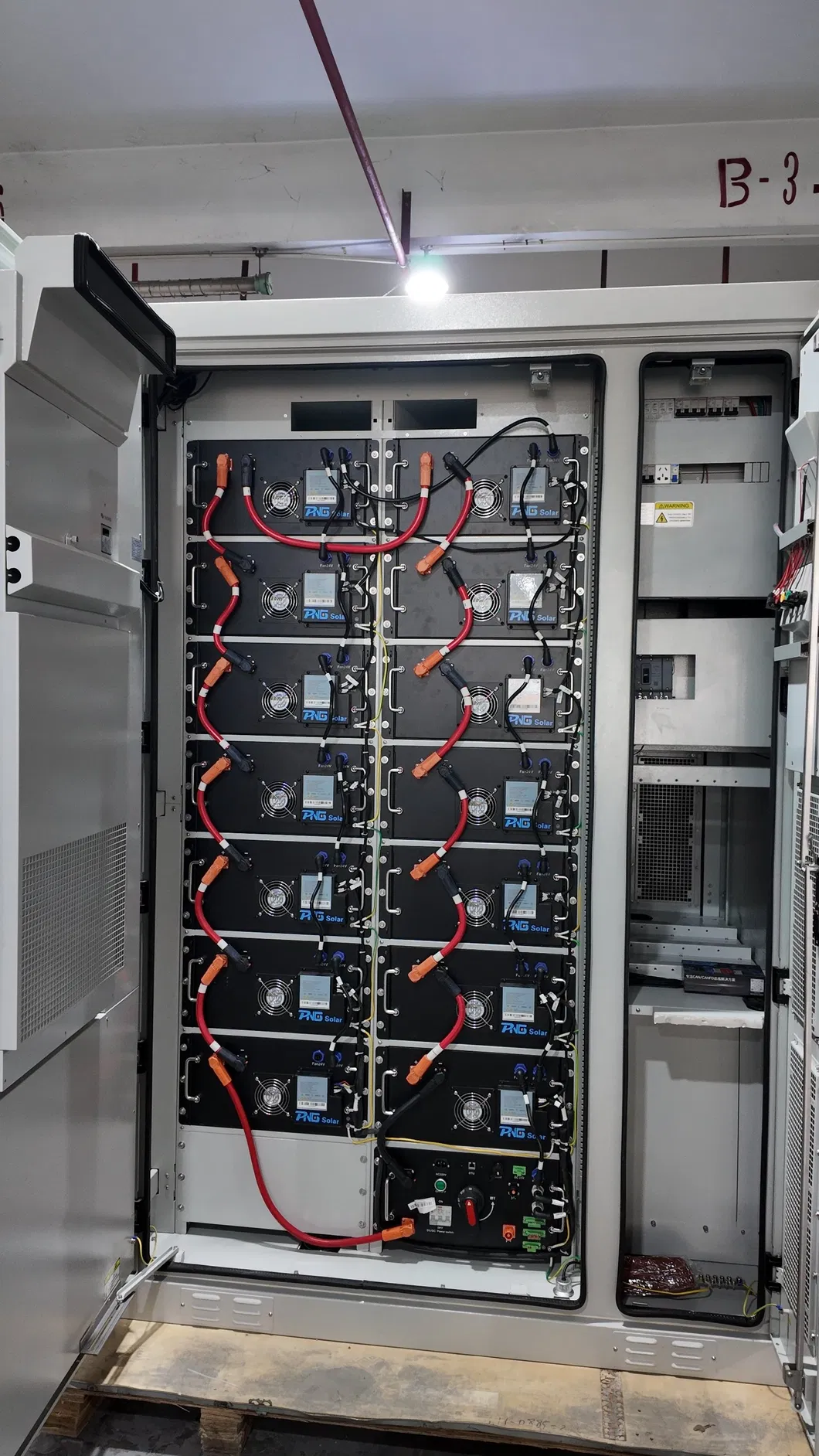

Shipping Logistics Preparation
Successful Projects

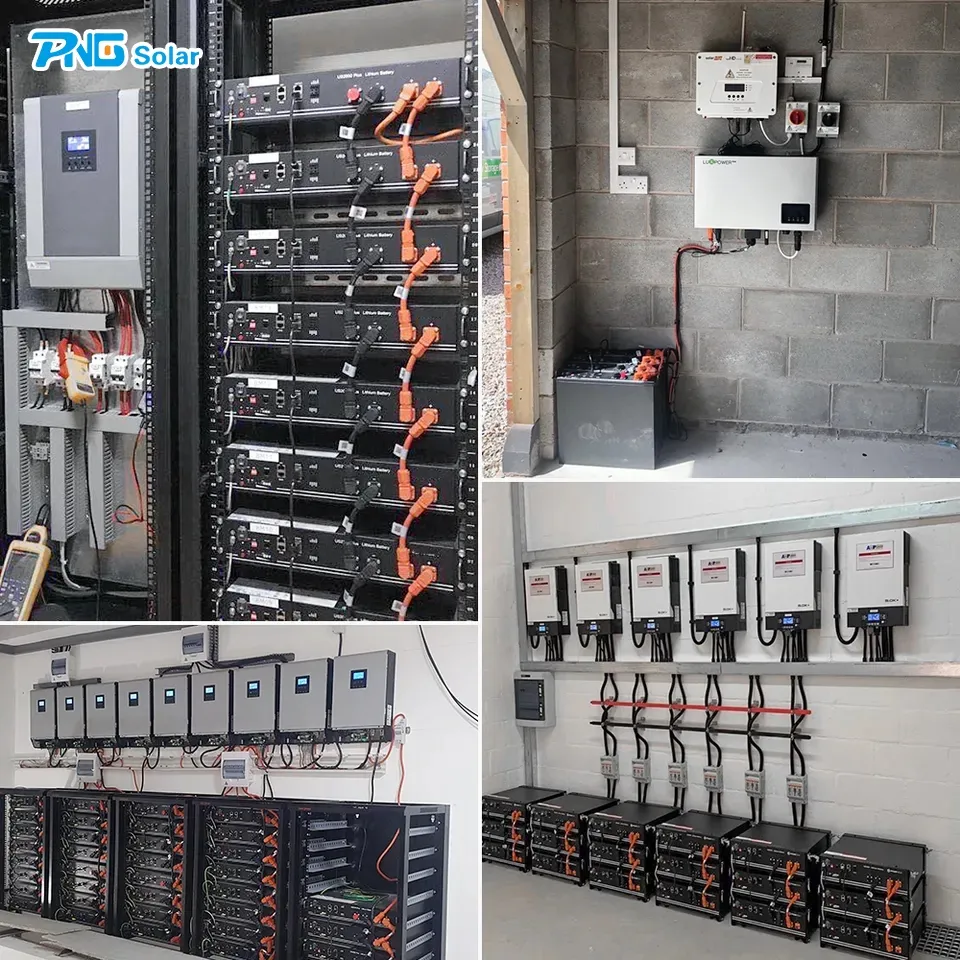

Project Installation Site 1

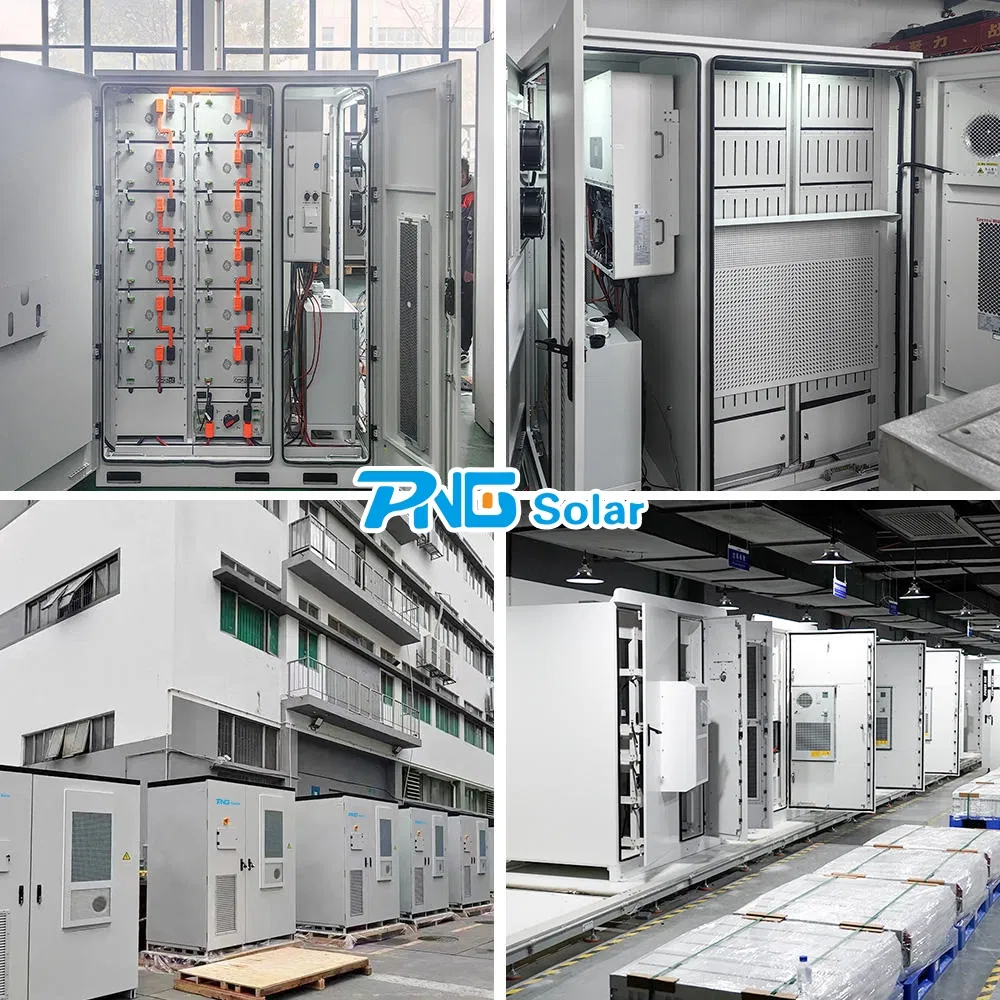

Project Installation Site 2

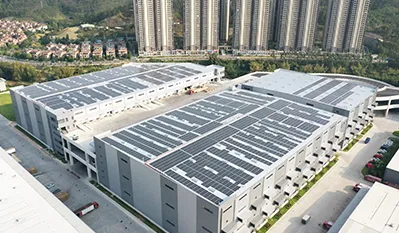

Project Installation Site 3

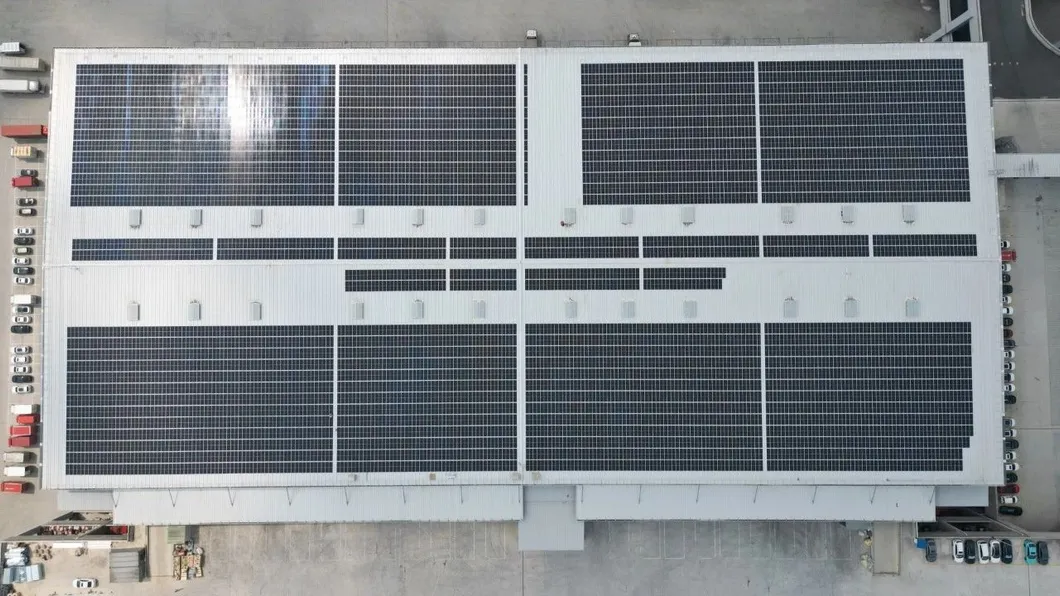

Project Installation Site 4
Certifications
Quality and System Certifications
FAQ
Q1 What can you buy from us?
Solar Panel, Solar System, Gel Battery and lithium battery, Inverter, complete on-grid, off-grid and hybrid solar system.
Q2 Why should you buy from us not from other suppliers?
We are audited by made-in-China, with an annual turnover of 1.5 billion USD. We are an official agent of Longi, Jinko, JA Solar, Astronergy Solar, Huawei Inverter, and more. Long-term partnership is our core rule. We only supply 100% A-grade products from the original factory.
Q3 What services can we provide?
Accepted Delivery Terms: FOB, CFR, CIF, EXW, DDP;
Accepted Payment Currency: USD, EUR, CNY;
Accepted Payment Type: T/T, L/C, PayPal;
Languages Spoken: English, Chinese, Spanish, Japanese, German, Russian.
Q4 What is the cycle life of the battery system?
The battery system offers a high cycle life of 6,000 cycles, and more than 8,000 cycles under standard operating conditions (@25ºC, 0.5P/0.5P).
Q5 What cooling method is utilized in this container battery system?
It employs a full liquid cooling system that ensures highly efficient thermal management with a temperature difference maintained at ≤3℃.
Q6 What standard warranties are provided for the system?
The product comes with a standard warranty coverage of 5 years or up to 8,000 operational cycles.
