GAF Energy
GAF Energy

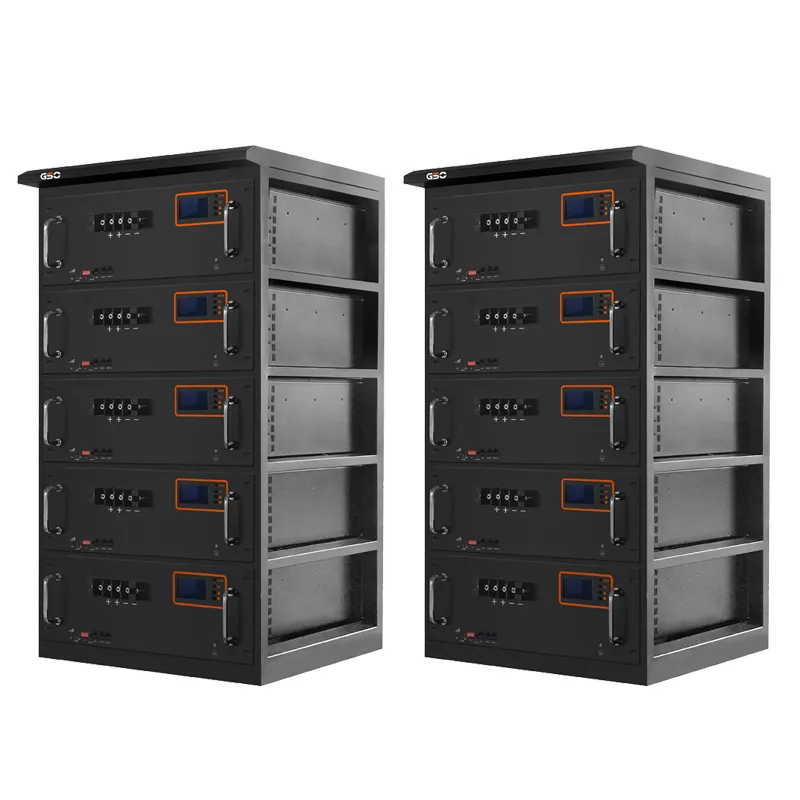

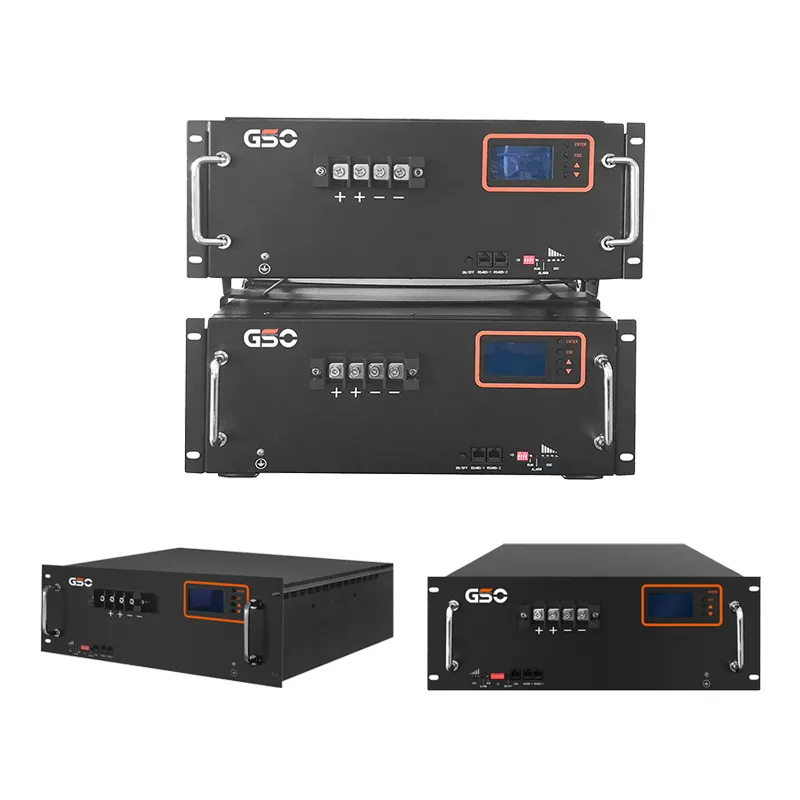

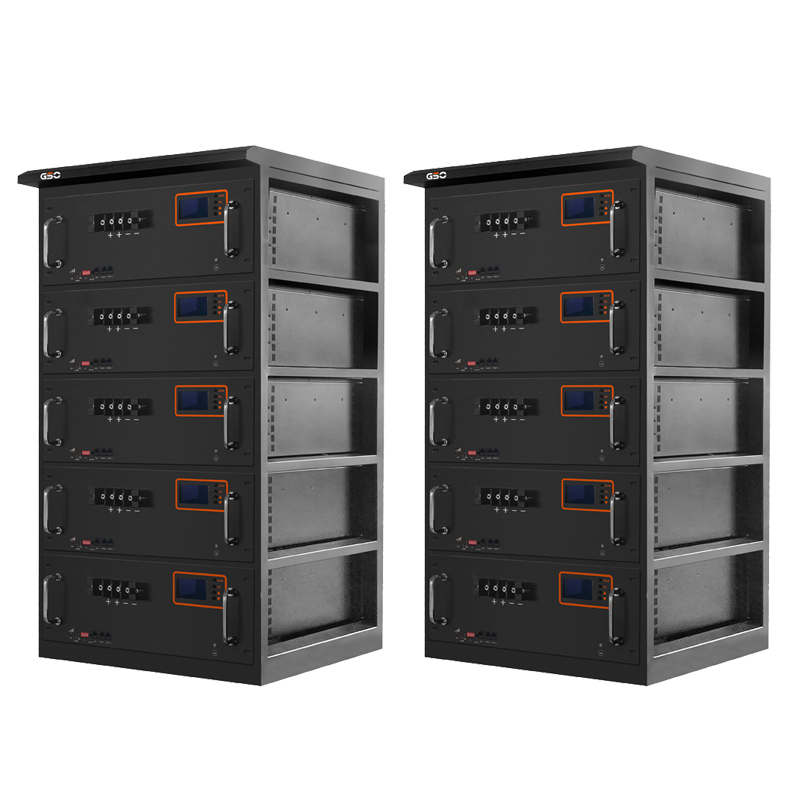

| Model Number | GBP9650 | GBP48100 | GBP32150 | GBP96100 | GBP48200 | GBP32300 |

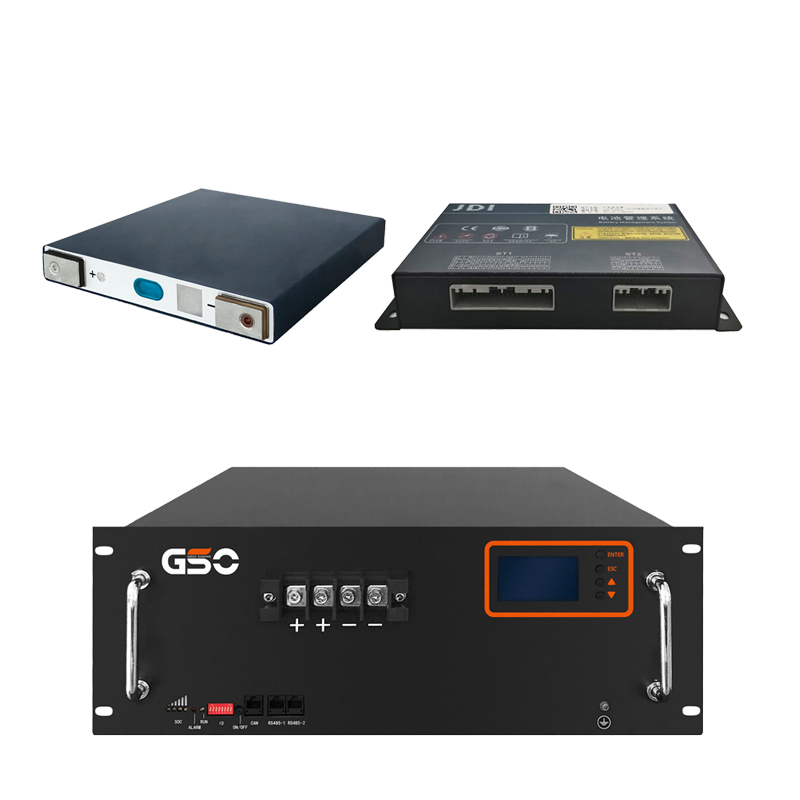

| Cell version | 52AH | 105AH | ||||
| Nominal power (KWH) | 5 | 5 | 5 | 10 | 10 | 10 |
| Nominal capacity(AH) | 52 | 104 | 156 | 105 | 210 | 315 |
| Nominal voltage (VDC) | 96 | 48 | 32 | 96 | 48 | 32 |
| Operating voltage range(VDC) | 87-106.5 | 43.5-53.2 | 29-35.5 | 87-106.5 | 43.5-53.2 | 29-35.5 |
| Operating temperature | -20~65ºC | |||||
| IP grade | IP20 | |||||
| Reference weight(kg) | 50 | 90 | ||||
| Reference size (Depth*Wide*Height) | 475*630*162mm | 510*640*252mm | ||||
