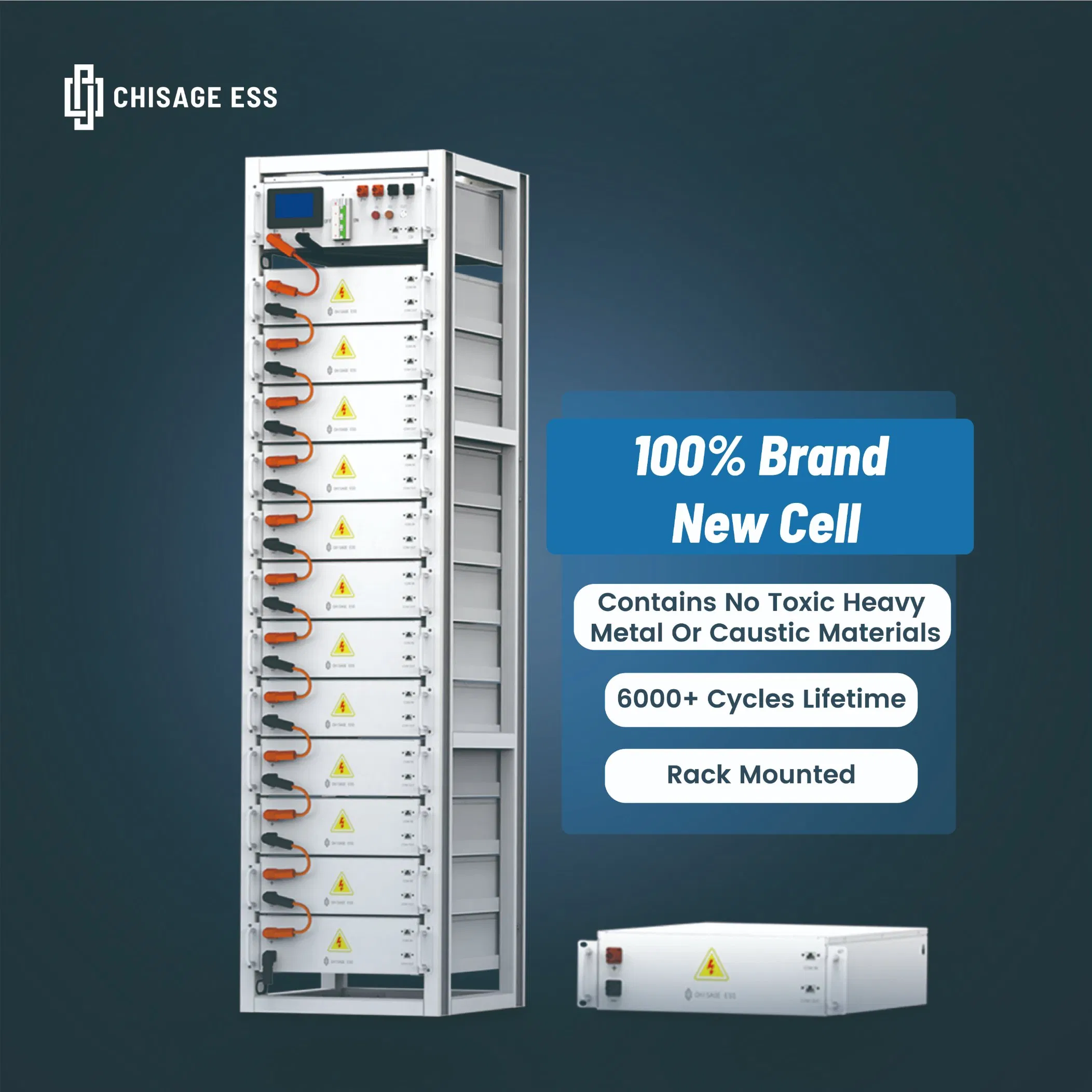

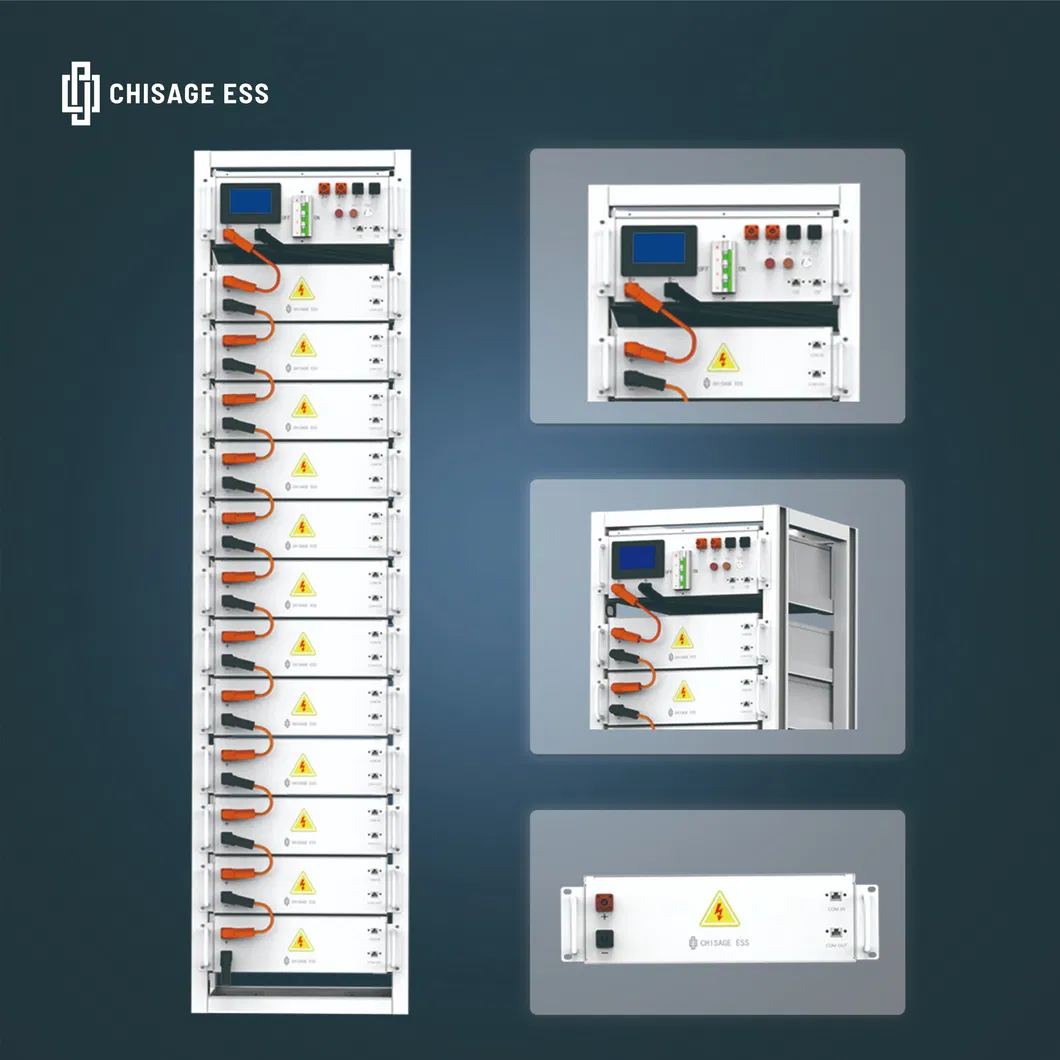

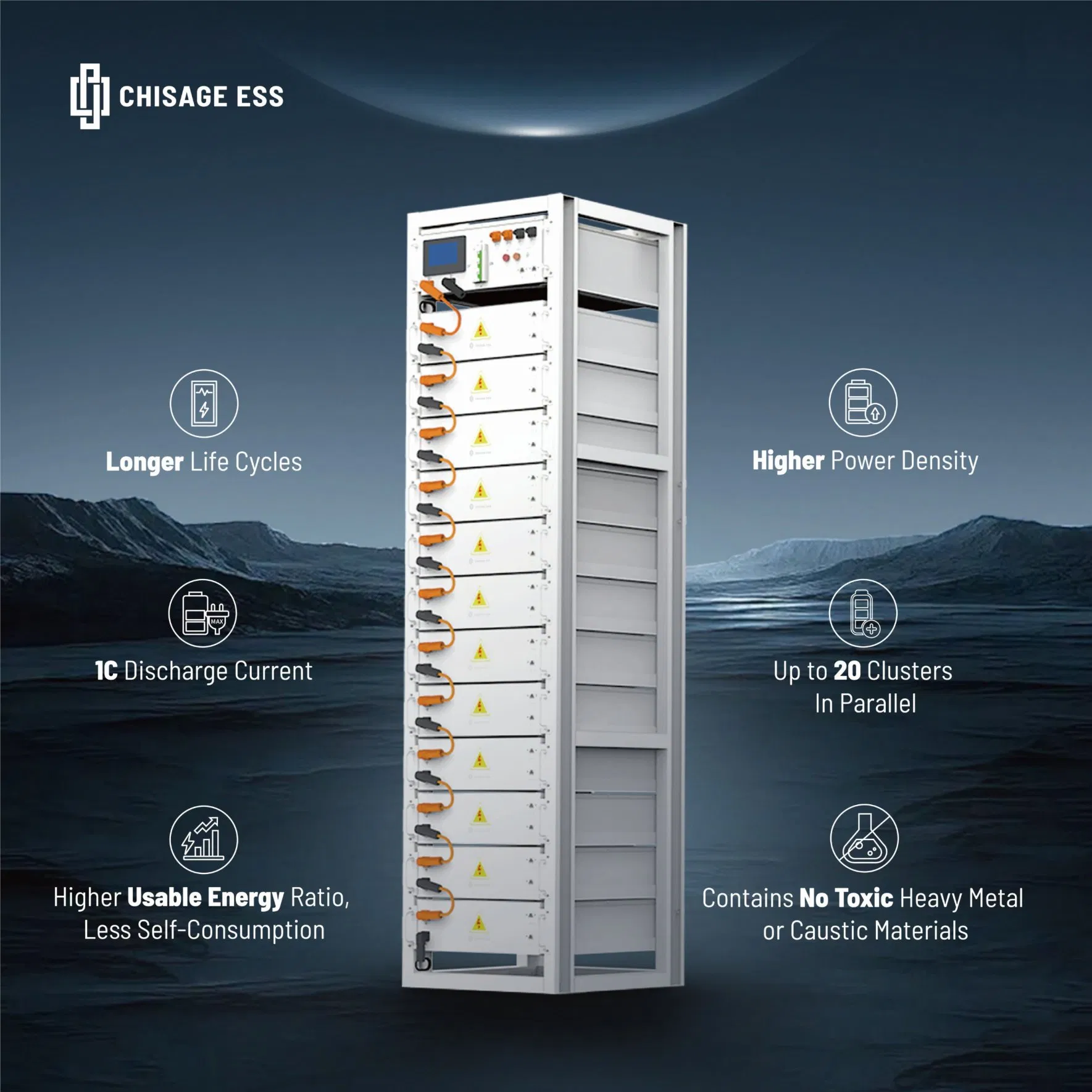

High Voltage Energy Storage Battery 61kwh Stacked Lithium Battery

1 / 5

High Voltage Energy Storage Battery 61kwh Stacked Lithium Battery

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

Overview & Basic Info

Model NO.

CAL60-RH

Rechargeable

Chargeable

Discharge Rate

High Discharge Rate

Size

Medium

Accessories Type

Battery

Rated Capacity

>1000MAH

Standard Voltage

>12V

Usage

Energy Storage

Electrolyte

Li-ion

Battery Type

Lead-Acid or Lithium-Ion

PV Arc Fault Detection

Optional

Charging Strategy for Li-Ion Battery

Self-Adaption to BMS

PV Input Voltage(V)

550 (160~800)

No. of MPPT Trackers

No.of String Per MPPT Track

1+1

Peak Power(off Grid)

2 Times of Rated Power, 10 S

Max. Continuous AC Passthrough(a)

50A

Power Factor

0.8 Leading to 0.8 Lagging

Max.Efficiency

97.60%

Euro Efficiency

97.00%

Surge Protection

DC Type II / AC Type III

Cooling

Smart Cooling

Noise(dB)

<45

Communication with BMS

RS485; Can

Transport Package

Standard Export Carton Package

Specification

500.5Wx628.9Hx289.5D mm

Production Capacity

50000pieces/Year

Product Description & Features

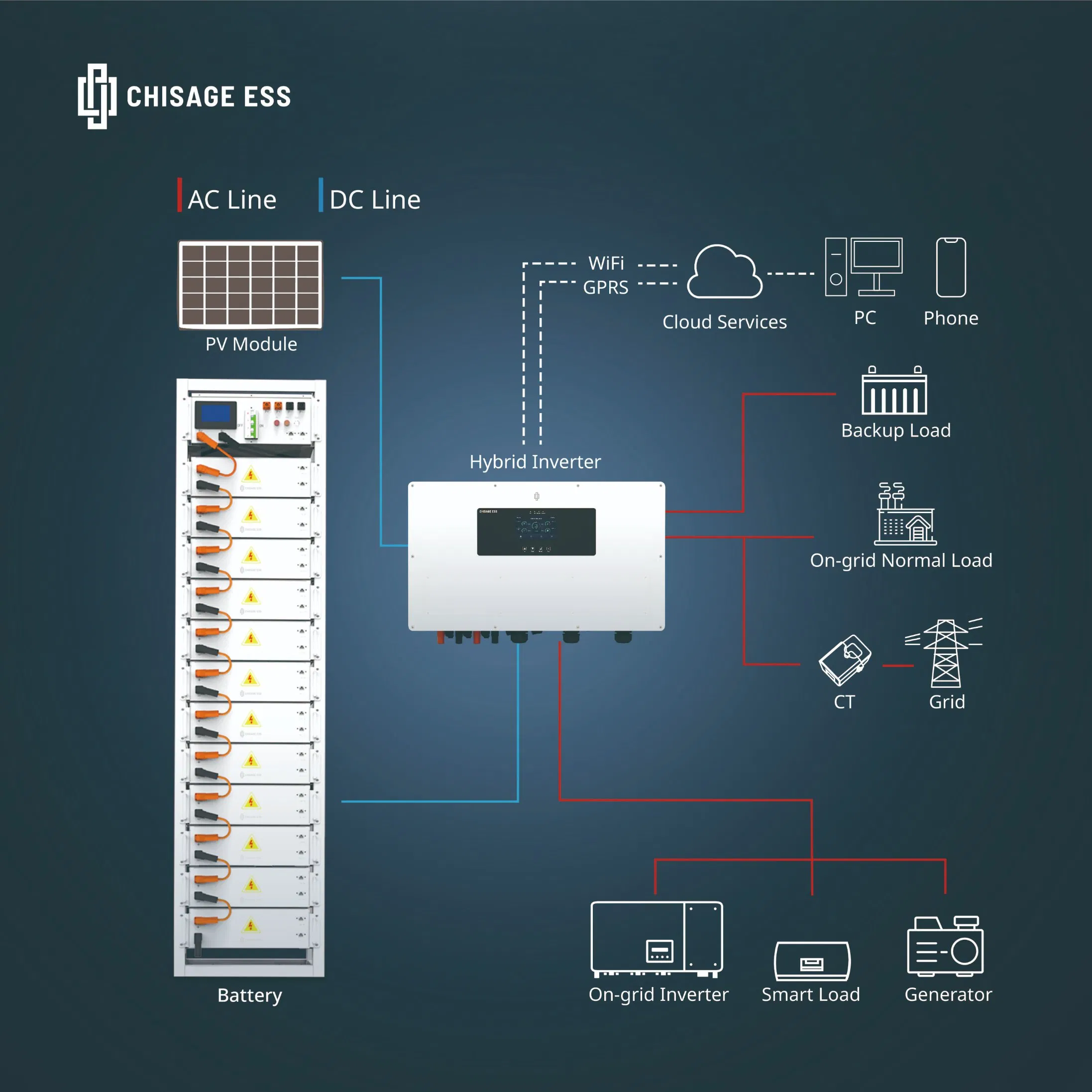

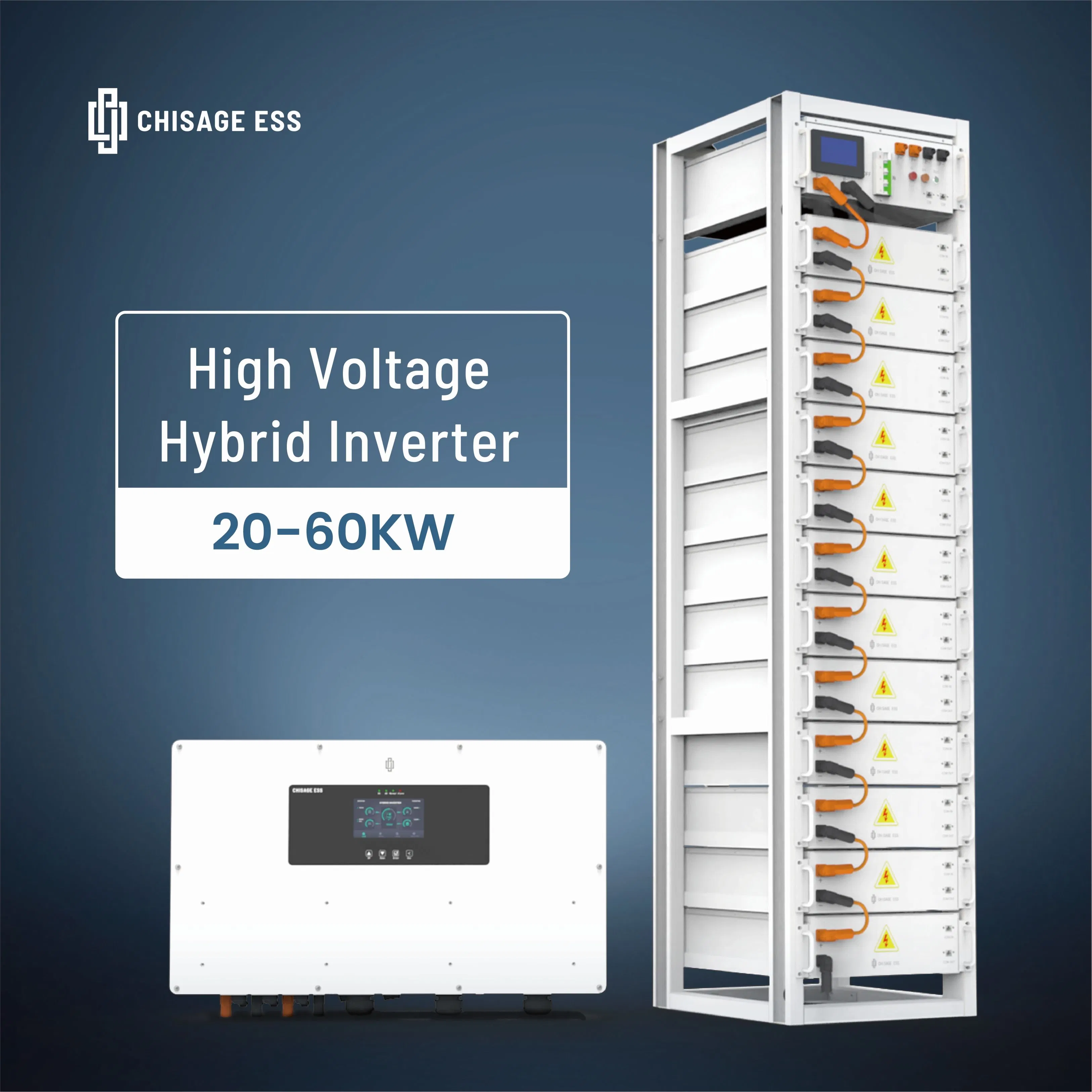

5kw 6kw 8kw 10kw 12kw PV System DC AC Solar Power Triple Phase Inverter Pure Sine Wave Hybrid Inverter

Less than 5ms on off grid switching time. Support different power inverters parallel connection. 20pcs paralleled in off-grid mode. Support on/off grid mode switch, EPS output.

Support battery charging/discharging according to the time setting. Independent AC input port for diesel generator. Colorful 7-inch touch LCD, IP65 protection degree.

Specifications

Model	Mars-5G1-LE	Mars-6G1-LE	Mars-8G1-LE	Mars-10G1-LE	Mars-12G1-LE	Mars-14G1-LE
Battery Input
Battery Type	Lead-acid or Lithium-ion
Battery Voltage Range (V)	40~60
Max. Charge Current (A)	120	130	200	220	250	280
Max. Discharge Current (A)	120	130	200	220	250	280
Charging Curve	3 Stages / Equalization
External Temperature Sensor	Yes
Charging Strategy for Li-Ion Battery	Self-adaption to BMS
PV String Input
Max. DC Input Power (W)	7500	9000	12000	15000	18000	20000
PV Input Voltage (V)	650 (160~800)
MPPT Range (V)	200~700
Full Load DC Voltage Range (V)	260~650
Start-up Voltage (V)	160
PV Input Current (A)	17+17			26+17
Max. PV Isc (A)	20+20			34+20
No. of MPPT Trackers	2
No. of String per MPPT Trackers	1+1			2+1
AC Output
Rated AC Output and UPS Power (W)	5000	6000	8000	10000	12000	14000
Max. AC Output Power (W)	6000	7200	9600	12000	13200	15400
Peak Power (off grid)	2 times of rated power, 10s				1.8 times of rated power, 10s
AC Output Rated Current (A)	7.6/7.3	9.1/8.7	12.1/11.6	15.2/14.5	18.2/17.4	21.2/20.3
Max. AC Current (A)	11.4/10.9	13.6/13	18.2/17.4	22.7/21.7	27.3/26.1	27.6/26.4
Max. Continuous AC Passthrough (A)	30			50
Power Factor	0.8 leading to 0.8 lagging
Output Frequency and Voltage (V)	50/60Hz, 380/400Vac(Triple phase)
Grid Type	Triple phase
Current Harmonic Distortion	THD<3% (Linear load<1.5%)
Efficiency
Max. Efficiency	96.60%
Euro Efficiency	96.60%
MPPT Efficiency	99.90%
Protection
Integrated Protection	PV Input Lightning Protection, Anti-islanding Protection, PV String Input Reverse Polarity Protection, Insulation Resistor Detection, Residual Current Monitoring Unit, Output Over Current Protection, Output Shorted Protection
PV Arc Fault Detection	Optional
Output Over Voltage Protection	DC Type II / AC Type III

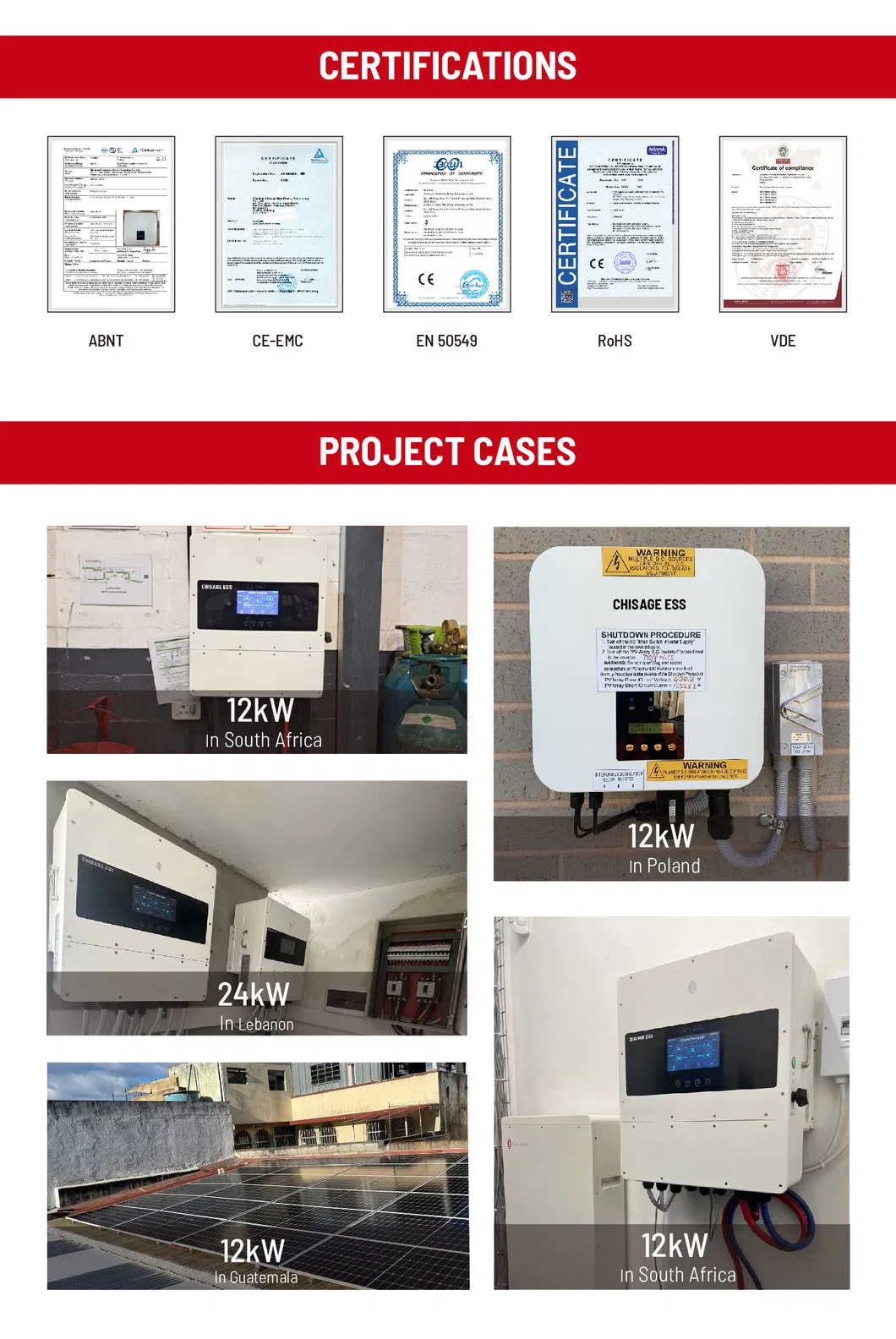

Certifications and Standards
Grid Regulation	CEI 0-21, VDE-AR-N 4105, NRS 097, IEC 61727, G99, G98, VDE 0126-1-1, RD 1699,C10-11
Safety Regulation	IEC/EN62109-1, IEC/EN62109-2
EMC	IEC/EN 61000-6-1,IEC/EN 61000-6-2, IEC/EN 61000-6-3, IEC/EN 61000-6-4
General Data
Operating Temperature Range (°C)	-40~60, >45 Derating
Cooling	Smart Cooling
Noise (dB)	≤45
Communication with BMS	RS485; CAN
Weight (kg)	38	40	42	44	44	45
Dimensions (mm)	510Wx630Hx290D
Protection Degree	IP65
Installation Style	Wall-mounted
Warranty	5 years

Why Choose Us

Support storing energy from diesel generator. ARC fault detection optional.

There are 3 ways companies work with us:

Be our district agents
Be our exclusive agents
Be our strategic partners (Joint Venture Companies)

Be Our Partner with 3 Steps:

From sample orders to installation training
From sample testing to market feedback
From market feedback to market strategy (WIN-WIN)

What Can We Bring To You?

Price protection in the distribution system
Localized after-sales service training
Brand online and offline promotion strategy
Safe and on-time transportation in warehousing and logistics
Support from order cycle to financials

Frequently Asked Questions

Are you a factory or trading company?

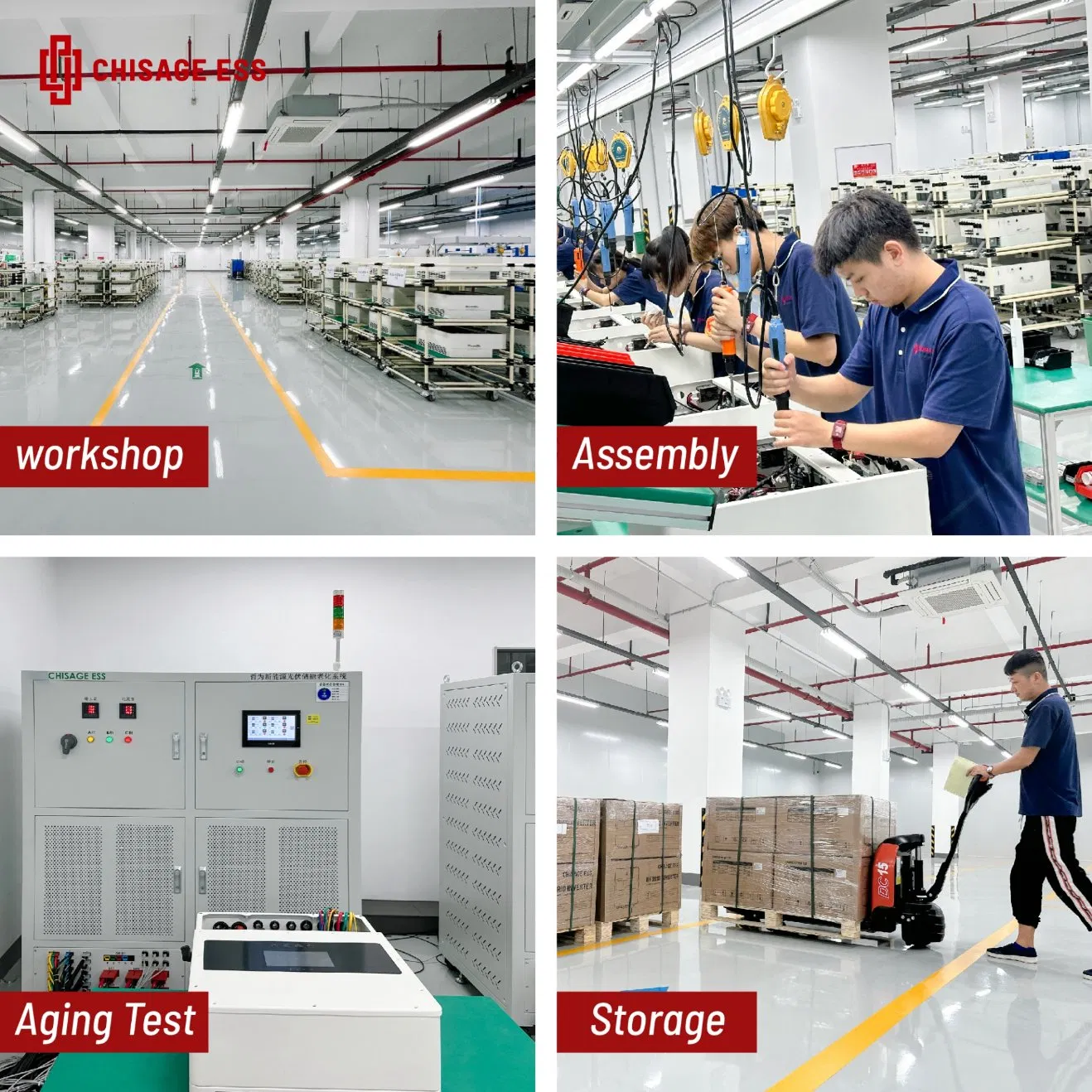

We are a factory specialising in the field of solar inverter and solar energy storage system. With advanced intelligent production lines and an experienced production team. We prioritize innovation and reliability, committed to delivering top-tier solutions to our customers.

What is the MOQ?

The MOQ is 1 unit, and for items in stock, we will ship within 7 business days.

Do you accept custom products?

Yes, OEM and ODM are supported. We have a professional R&D team with over 20 years of experience and a wealth of customisation experience to provide you with professional customisation support including but not limited to packaging, functionality, etc.

What is your after-sales service?

a. More than 10 after-sales team members to provide online service 24/7 throughout the year.
b. We offer product replacement for quality issues during the warranty period.
c. We provide flexible training and warranty services, strictly adhering to the warranty terms.
d. For purchases of more than 5000 units, we set up a technical support centre in your city for comprehensive support.

What's the payment term?

We support a variety of payment methods, such as T/T, L/C, Trade Guarantee Payment, PayPal, Alipay and others. If we enter into strategic cooperation, we can communicate with you about payment methods such as DP.

What is the standard warranty period for your energy storage batteries and inverters?

We provide a comprehensive 5-year warranty on our main products, covering reliable performance and components, along with professional post-installation training and troubleshooting services.
